Model Whirlpool A6498XRS GAS RANGE – Common Parts & Diagrams

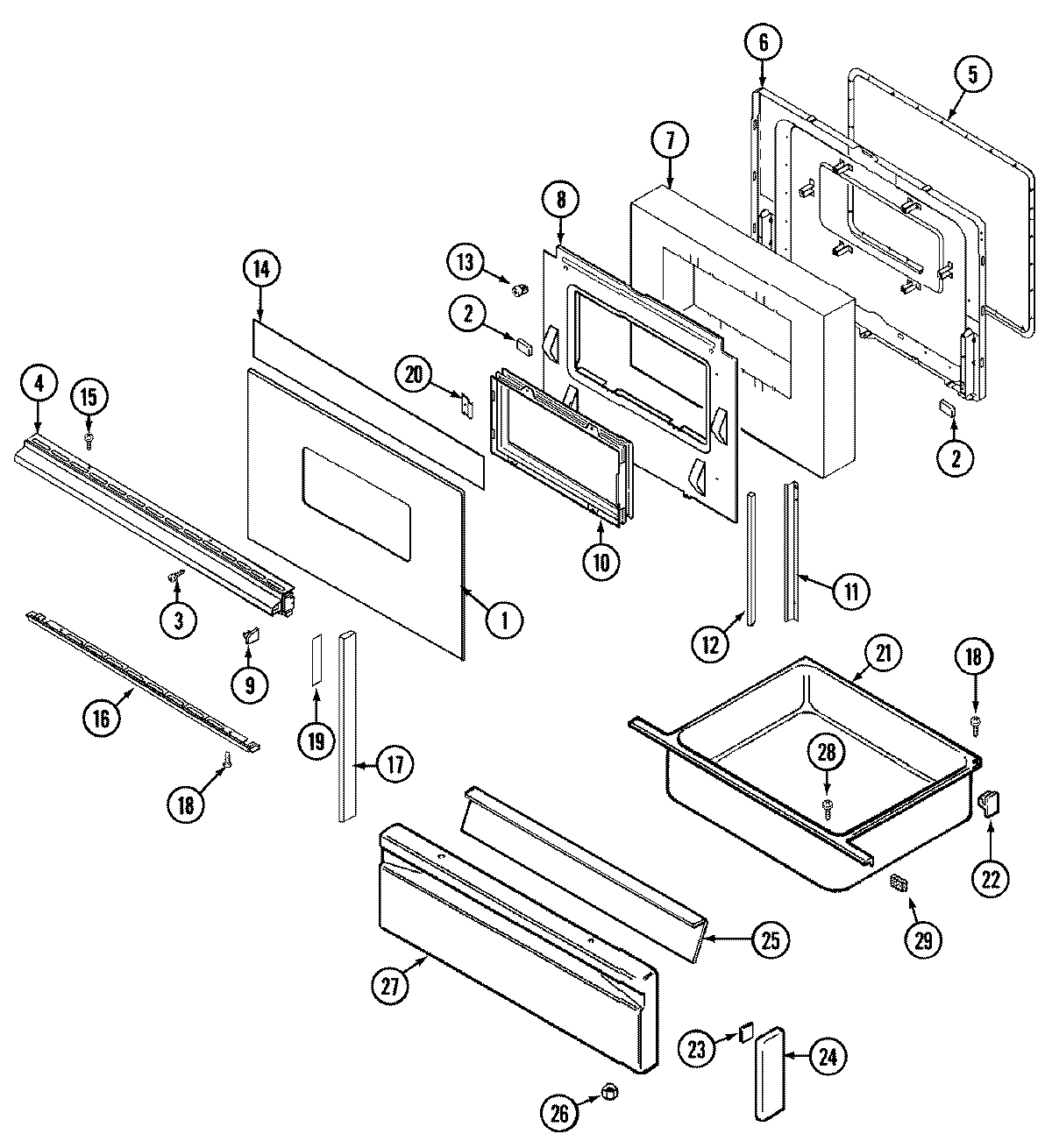

02 - DOOR/DRAWER
03 - GAS CONTROLS
06 - WIRING INFORMATION
01 - BODY
04 - OVEN/BASE
05 - TOP ASSEMBLY
Common parts from model Whirlpool A6498XRS GAS RANGE
1
VALVE, TOP BURNER WPL 7502P21860 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
1
BACK, MAIN WPL 4002F21180 Contact Us For Availability
1
PEDESTAL, SIDES WPL 4020W01580 Contact Us For Availability
1
TRIM, MEMBRANE WPL 7740P03960 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
PANEL, SIDE (LT-BLK) WPL 2618F07870 Contact Us For Availability
2
PANEL, SIDE (RT-BLK) WPL 2618F07970 Contact Us For Availability
2
PANEL, SIDE (LT-BLK) WPL 2618F09570 Contact Us For Availability
2
PANEL, SIDE (RT-BLK) WPL 2618F09670 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
2
BEZEL, VALVE KNOB (BLK) WPL 7740P03360 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
3
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
3
BOX, BURNER WPL 4011F22380 Contact Us For Availability
3
LEG, LEVELING WPL 74001311 Contact Us For Availability
3
BRACKET, CLOCK WPL 3801F22245 Contact Us For Availability
4
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
4
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
4
TUBE, AIR WPL 7506P12460 Contact Us For Availability
4
CLOCK, ELECTRONIC WPL 7601P20660 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
5
FAN ASSY. WPL 7427P01360 Contact Us For Availability
5
RACK, OVEN WPL 7801P04760 Contact Us For Availability
5
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
5
COVER, VENT TRIM WPL 7724P05160 Contact Us For Availability
6
LINING, DOOR WPL 2402W20919 Contact Us For Availability
6
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
6
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
6
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
6
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
GASKET, VENT WPL 7201P04060 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
7
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
7
COVER, MAIN WIRE WPL 4005F35551 Contact Us For Availability
7
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
GRATE (BLK) WPL 2003W02300 Contact Us For Availability
7
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
LEVER, LATCH WPL 8009P02860 Contact Us For Availability
8
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
9
END CAP (RT) WPL 7744P07560 Contact Us For Availability
9
END CAP (LT) WPL 7744P07660 Contact Us For Availability
9
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
9
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
9
BULB-OVEN WPL 7407P10360 Contact Us For Availability
9
KNOB, VALVE (BLK) WPL 7733P08460 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
10
SCREW WPL 7101P32860 Contact Us For Availability
10
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
10
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
11
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
11
BOX, AIR TUBE WPL 4006F14851 Contact Us For Availability
11
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
TOP, MAIN (STLS) WPL 2001F08930 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
SCREW WPL 7101P31560 Contact Us For Availability
12
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
12
NUT, SPEED WPL 7103P12060 Contact Us For Availability
12
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
12
PANEL, MANIFOLD (BLK) WPL 7712P16660 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
13
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
13
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
13
SCREW WPL 7101P33460 Contact Us For Availability
13
BRACKET, TOP WPL 3801F31851 Contact Us For Availability
14
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
14
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
14
EXTENSION, VENT BOX WPL 4022W00445 Contact Us For Availability
14
SUPPORT, VALVE & REGULATOR WPL 3807F47651 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
15
BOTTOM, AIR TUBE BOX WPL 4011F24251 Contact Us For Availability
15
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
16
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
16
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
16
PIPE, MANIFOLD WPL 7513P12160 Contact Us For Availability
16
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
16
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
17
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
17
TUBING, REGULATOR/PIPE (3/8``) WPL 74002319 Contact Us For Availability
17
INSULATOR, DOOR LOCK SWITCH WPL 7003P06360 Contact Us For Availability
17
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
17
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
18
SCREW WPL 7101P29060 Contact Us For Availability
18
BAFFLE, BROIL BURNER WPL 3601F21747 Contact Us For Availability
18
HINGE WPL 7106P05660 Contact Us For Availability
18
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
19
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
19
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
19
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
19
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
20
BRACKET, SPARK MODULE WPL 3801F34145 Contact Us For Availability
20
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
20
BRACKET, MAIN TOP WPL 3801F32551 Contact Us For Availability
20
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
21
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
21
KIT, ORIFICE/TUBE ASSY. WPL 12001077 Contact Us For Availability
21
VENT BOX ASSY. WPL 4006W12245 Contact Us For Availability
21
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
21
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
22
SCREW WPL 7101P29160 Contact Us For Availability
22
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
22
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
22
SHIELD, HEAT (LT) WPL 3604F21351 Contact Us For Availability
22
SHIELD, HEAT (RT) WPL 3604F21451 Contact Us For Availability
22
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
23
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
23
TUBE, AIR DUCT WPL 8026P02160 Contact Us For Availability
23
COVER, VALVE WPL 4005F42951 Contact Us For Availability
24
TAPE WPL 8270P09860 Contact Us For Availability
24
SWITCH, HI LIMIT WPL 7403P24960 Contact Us For Availability
24
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
25
END CAP (BLK) WPL 7744P06860 Contact Us For Availability
25
RELAY BOARD WPL 7428P01060 Contact Us For Availability
26
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
26
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
27
NUT, LOCK WPL 7103P08560 Contact Us For Availability
27
SCREW WPL 7101P34460 Contact Us For Availability
28
PANEL, DRAWER (BLK) WPL 2416F03865 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
29
SCREW WPL 7101P11560 Contact Us For Availability
29
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
NI
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
NI
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001736 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
COVER, MANIFOLD WPL 4005F44151 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK WPL 5170P13860 Contact Us For Availability
NI
HARNESS, RELAY WPL 5170P13960 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P04660 Contact Us For Availability
× ![]()
