Model Whirlpool A59FN-5TVWM-R ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams
01 - BODY
03 - MICROWAVE

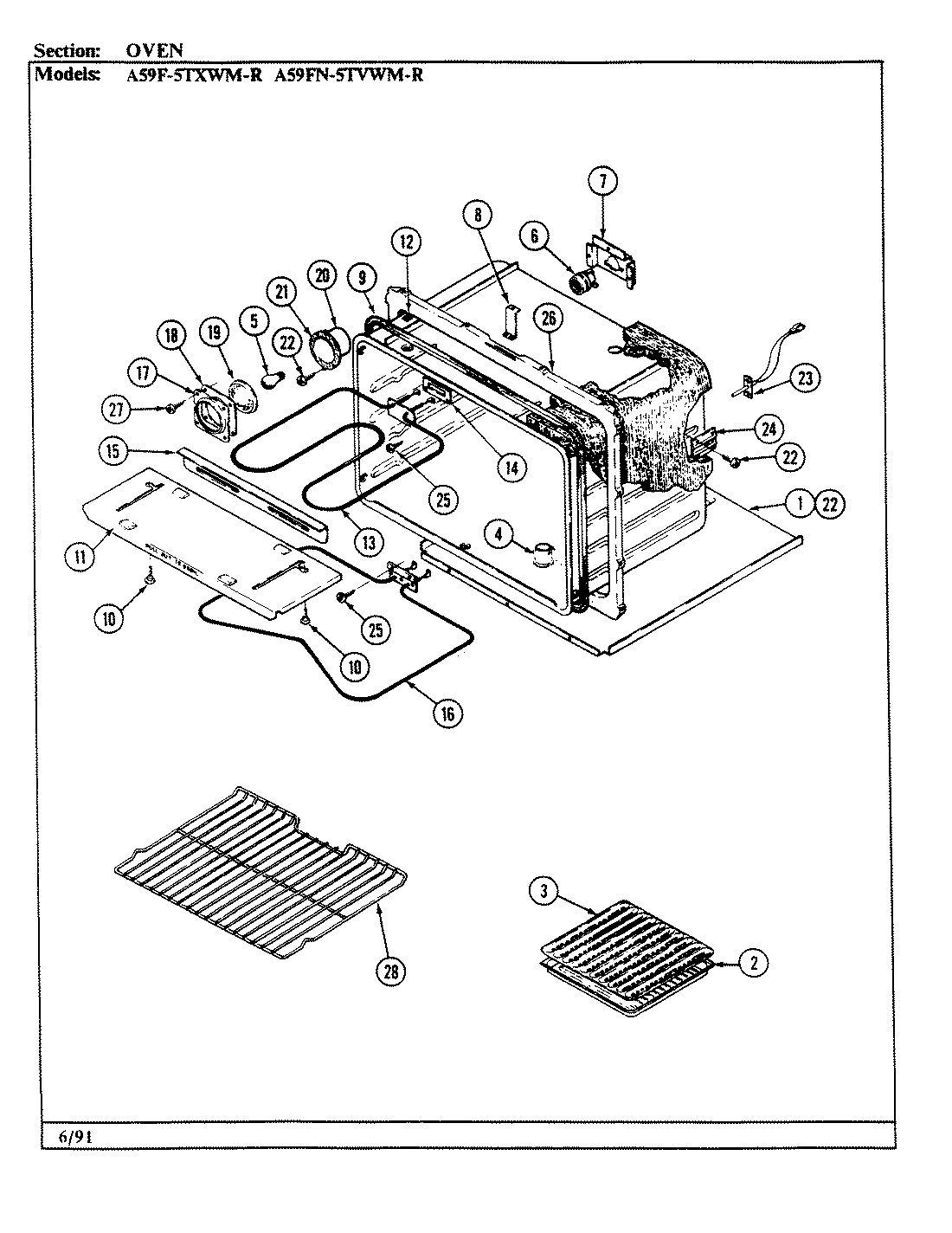

04 - OVEN

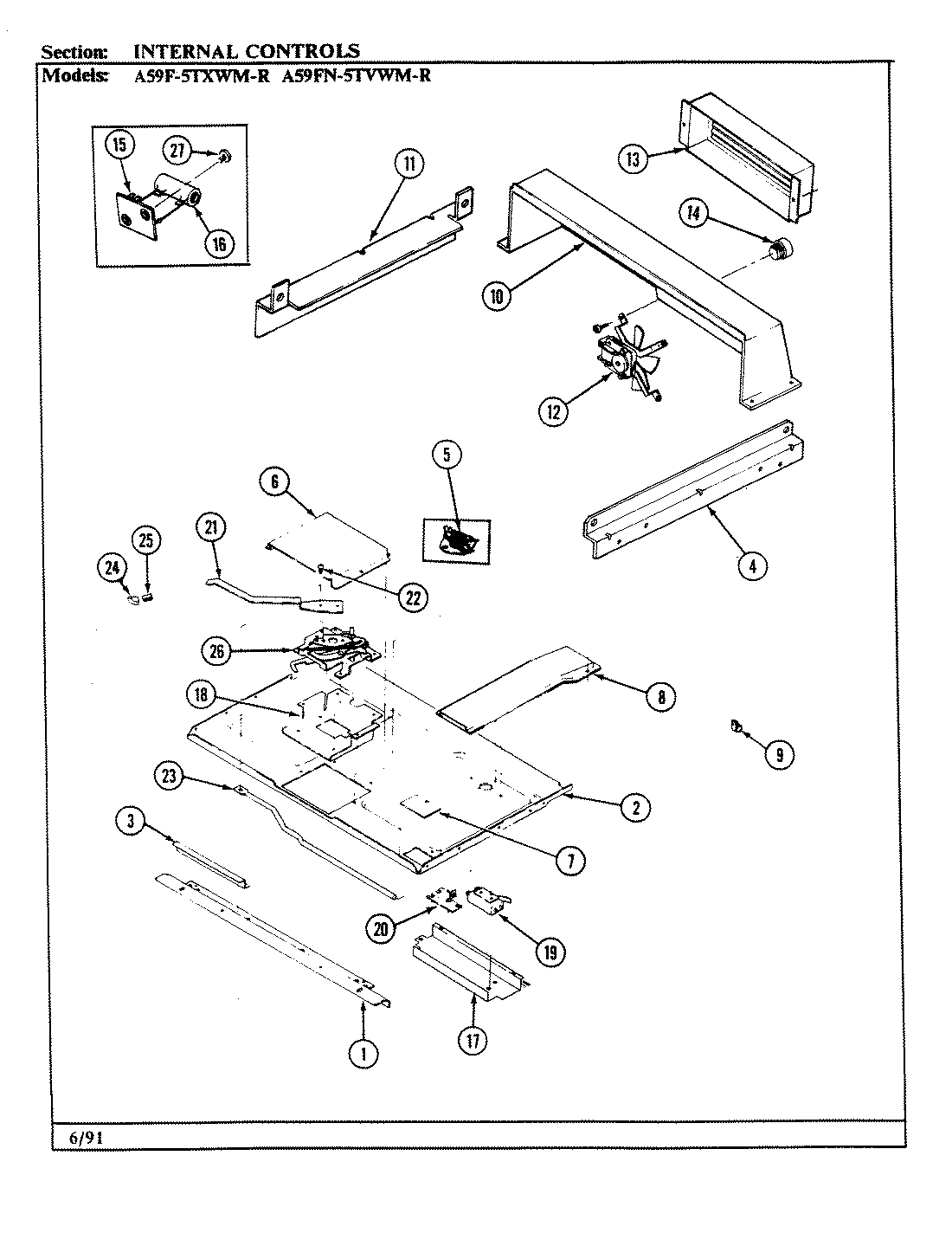

02 - INTERNAL CONTROLS
Common parts from model Whirlpool A59FN-5TVWM-R ELECTRIC WALL OVEN/MICROWAVE COMBO
1
BAFFLE, OVEN DOOR WPL 3601F16180 Contact Us For Availability
1
LINING ASSY INNER SIDE WPL 4009W08280 Contact Us For Availability
1
SCREW WPL 7101P11260 Contact Us For Availability
1
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
1
NUT, NYLON WPL 7103P04560 Contact Us For Availability
1
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
1
RETAINER, BOTTOM INSULATION WPL 3804F10280 Contact Us For Availability
1
FRONT,BURNER BOX BOTTOM WPL 4012F01880 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
PAN, BROIL WPL 3401F00423 Contact Us For Availability
2
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
2
BOTTOM BURNER BOX WPL 4011F17780 Contact Us For Availability
3
SPRING, MINI-STANLEY WPL 04000040 Contact Us For Availability
3
HINGE (INCL. SPRING) WPL 7106P02460 Contact Us For Availability
3
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
3
SHIELD, TERMINAL WPL 3604F14980 Contact Us For Availability
4
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
4
SCREW WPL 7101P06160 Contact Us For Availability
4
TUBE, OVEN VENT WPL 8026A00960 Contact Us For Availability
4
SUPPORT MTG RT WPL 3801F23045 Contact Us For Availability
5
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
5
EXTRUSION CTR TRIM BLK WPL 7756P05260 Contact Us For Availability
5
EXTRUSION CTR TRIM WHT WPL 7756P05360 Contact Us For Availability
5
BULB, OVEN WPL 7407P02660 Contact Us For Availability
5
SWITCH, HI LIMIT WPL 7403P19960 Contact Us For Availability
6
BACK, MAIN WPL 4002F10380 Contact Us For Availability
6
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
6
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
7
BRACKET MW MTG TOP WPL 3801F23345 Contact Us For Availability
7
EXTRUSION SIDE RT BRIGHT WPL 7750P04060 Contact Us For Availability
7
EXTRUSION RIGHT BLK WPL 7750P04160 Contact Us For Availability
7
EXTRUSION SIDE LF BRIGHT WPL 7750P04260 Contact Us For Availability
7
EXTRUSION LEFT WPL 7750P04360 Contact Us For Availability
7
BRACKET WPL 3801F02451 Contact Us For Availability
7
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
8
PLATE CONDUIT WPL 3605F16380 Contact Us For Availability
8
VENT BOX ASSY. WPL 4006W05245 Contact Us For Availability
9
HOUSING MAIN WIRE WPL 4001F05880 Contact Us For Availability
9
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
9
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
10
COVER, WIRE HOUSING WPL 4005F15780 Contact Us For Availability
10
HOUSING FAN WPL 4001F06751 Contact Us For Availability
11
COVER ACCESS WPL 4005F36151 Contact Us For Availability
11
SHIELD, BROIL WPL 3604F09245 Contact Us For Availability
11
SUPPORT MTG LF WPL 3801F22945 Contact Us For Availability
12
COVER, REDUNDANT THERMO WPL 4005F29951 Contact Us For Availability
12
NUT, KEPS BLACK WPL 7103P06260 Contact Us For Availability
12
CONNECTOR, PIN WPL 7417P00260 Contact Us For Availability
12
FAN ASSY. WPL 7427P01060 Contact Us For Availability
13
COVER CATCH ASSY WPL 4005F35151 Contact Us For Availability
13
ELEMENT, BROIL WPL 7406P06860 Contact Us For Availability
13
COVER FAN WPL 4005F37451 Contact Us For Availability
14
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
14
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
14
RECEPTACLE, FUSE WPL 7408P01460 Contact Us For Availability
14
FUSE WPL 7416P00260 Contact Us For Availability
15
TUBING CONDUIT WPL 3414F09844 Contact Us For Availability
15
WASHER WPL 7109P00260 Contact Us For Availability
15
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
15
BLOCK, TERMINAL WPL 7401P01660 Contact Us For Availability
16
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
16
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
16
FAN, RESISTOR ASY WPL 7413A00260 Contact Us For Availability
17
SLEEVE, TUBE WPL 8018P00260 Contact Us For Availability
17
RETAINER, LAMP GUARD WPL 3804F01245 Contact Us For Availability
17
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
18
EXTRUSION (TOP) WPL 7756P04460 Contact Us For Availability
18
EXTRUSION TOP WPL 7756P05160 Contact Us For Availability
18
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
18
SUPPORT, CATCH ASSY. WPL 3807F40845 Contact Us For Availability
19
EXTRUSION (BTM) WPL 7756P04960 Contact Us For Availability
19
EXTRUSION, BOTTOM WPL 7756P05060 Contact Us For Availability
19
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
19
INSULATION, SWITCH (UPPER) WPL 7003P01960 Contact Us For Availability
19
INSULATION, SWITCH WPL 7003P03960 Contact Us For Availability
19
SWITCH, OVN LOCK ASY----NA WPL 7403P09960 Contact Us For Availability
20
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
20
HOUSING, LAMP WPL 4001F02023 Contact Us For Availability
20
SUPPORT, LOCK SWITCH WPL 3807F19345 Contact Us For Availability
20
SCREW WPL 7101P03160 Contact Us For Availability
21
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
21
SCREW WPL 7101P01860 Contact Us For Availability
21
LEVER, DOOR LOCK WPL 8009P00960 Contact Us For Availability
22
BOLT WPL 7116P00360 Contact Us For Availability
23
PROBE, OVEN SENSOR WPL 7430P00860 Contact Us For Availability
23
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
24
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
24
HANDLE, LATCH (WHT) WPL 7701P08960 Contact Us For Availability
25
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
26
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
26
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
27
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
27
SCREW WPL 7118P00460 Contact Us For Availability
28
RACK, OVEN WPL 7801P03060 Contact Us For Availability
× ![]()
