Model Whirlpool A59FN-5TVW-R ELECTRIC WALL OVEN – Common Parts & Diagrams
02 - CONTROL PANEL (A59FN-5TVW-R)

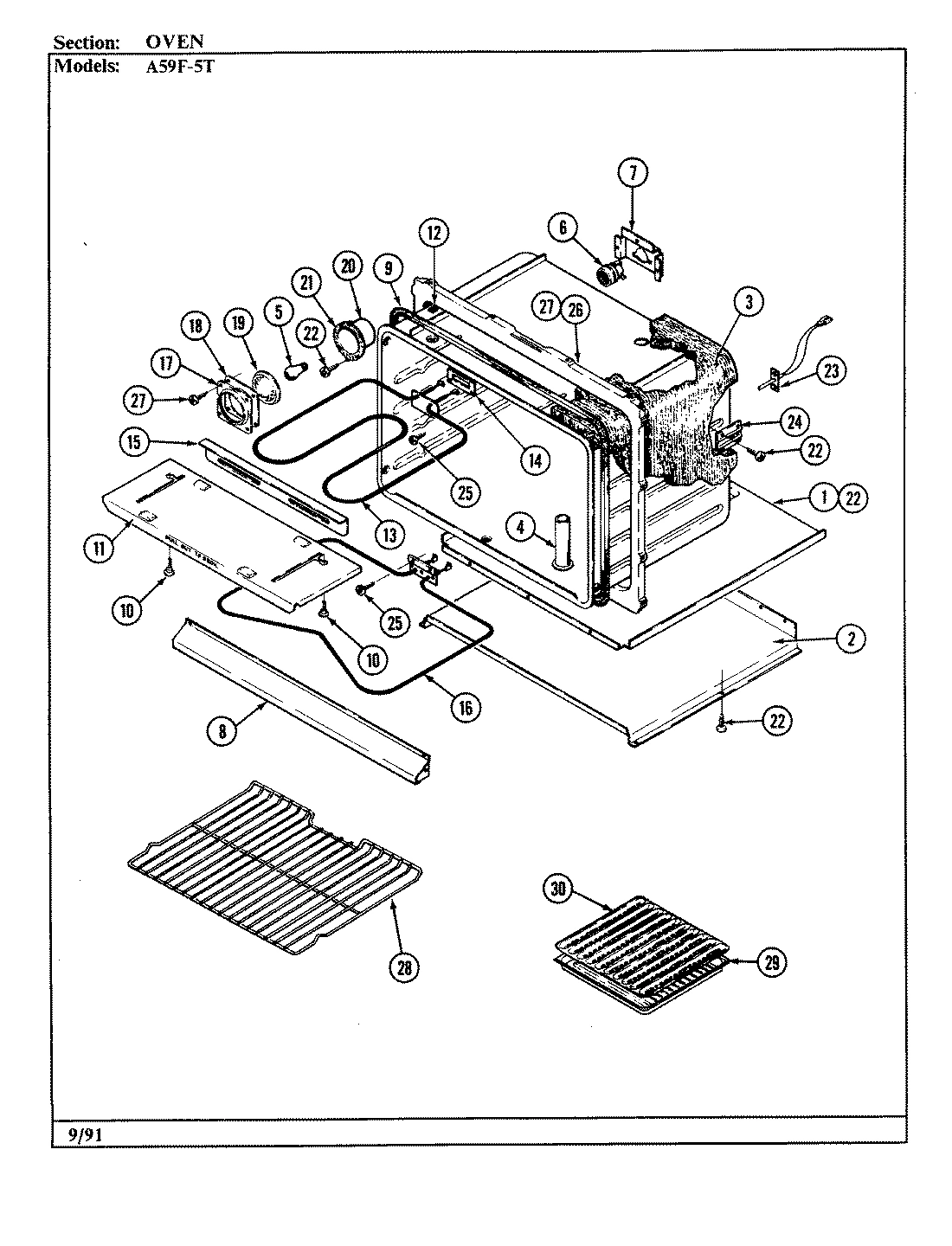

04 - OVEN

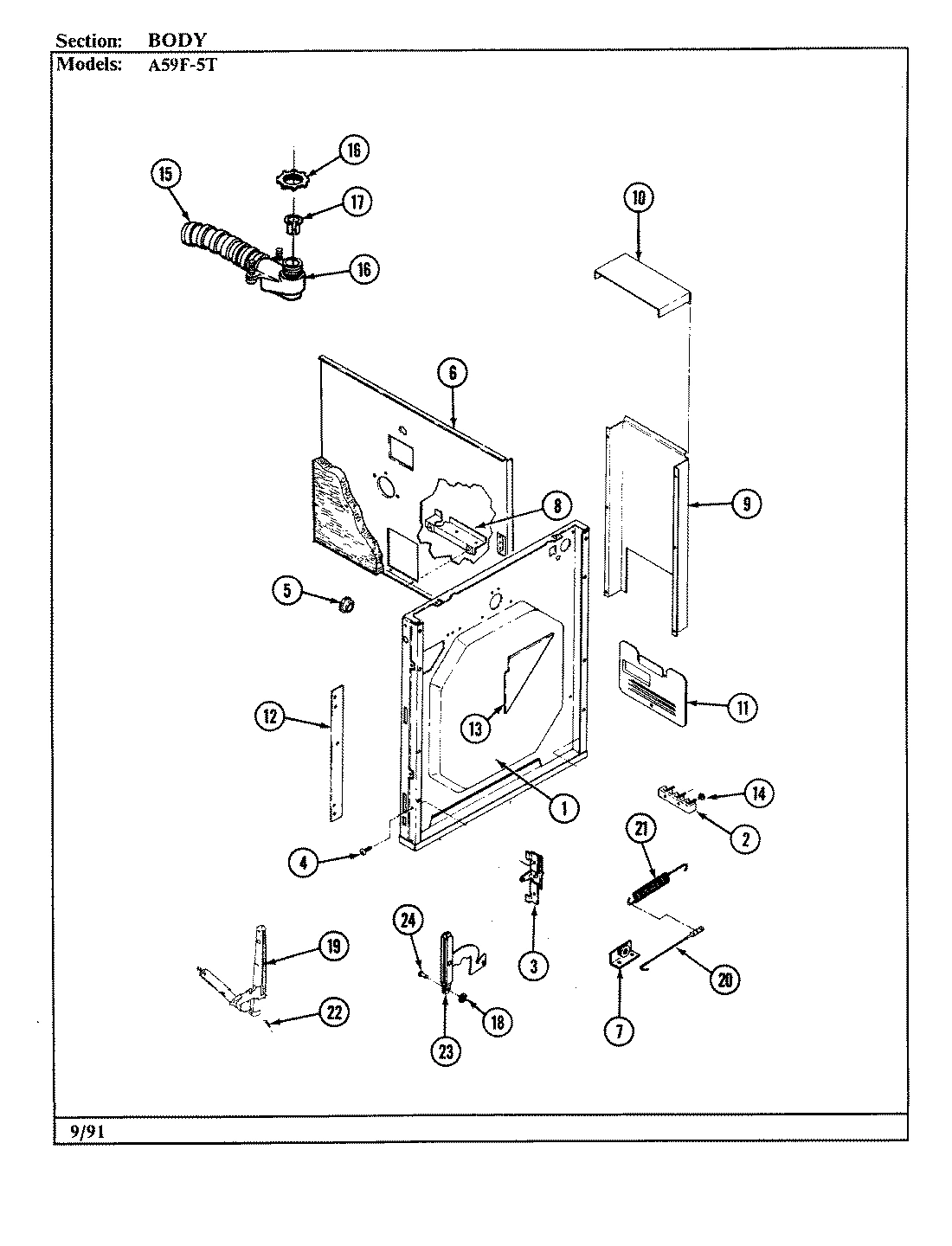

01 - BODY

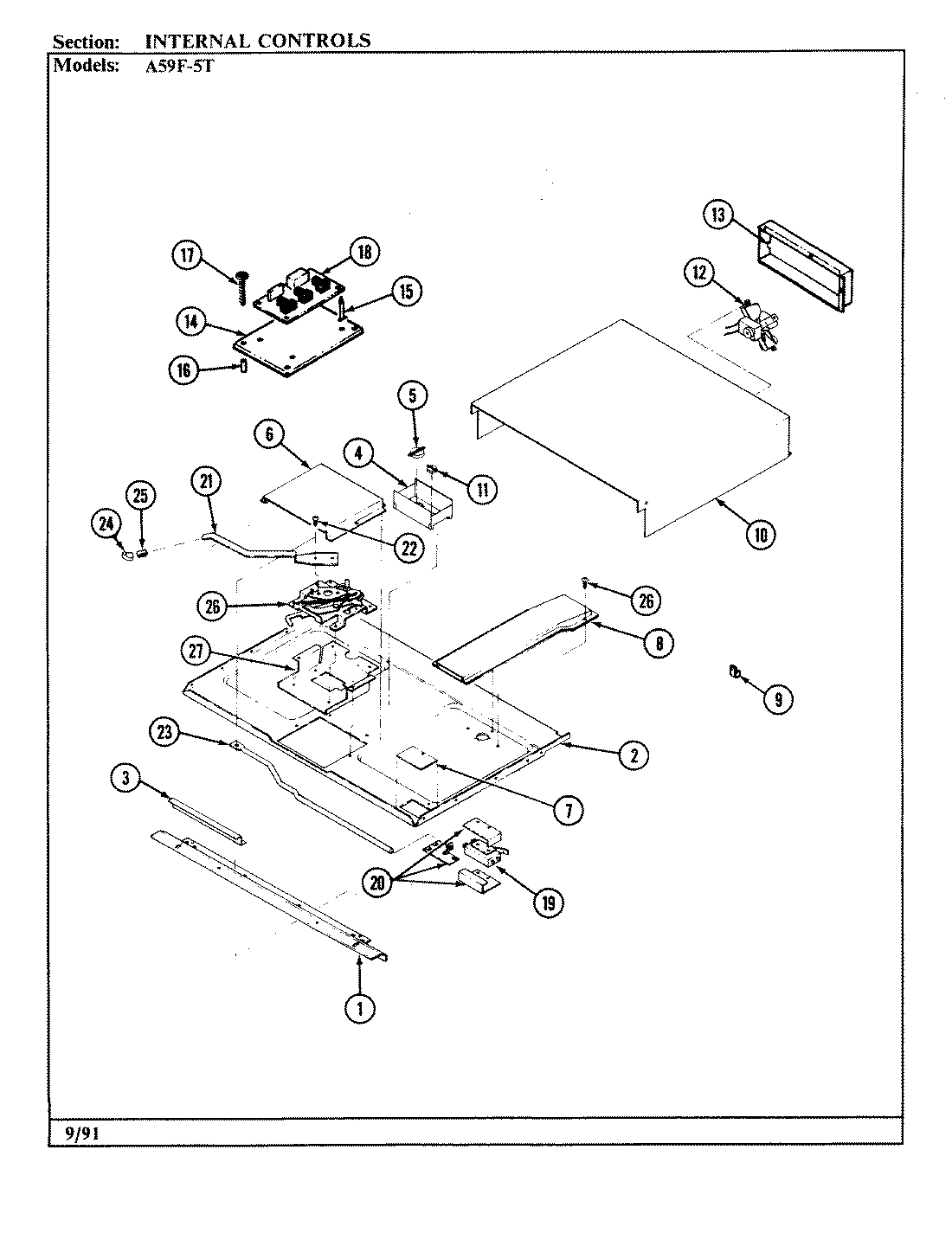

03 - INTERNAL CONTROLS
Common parts from model Whirlpool A59FN-5TVW-R ELECTRIC WALL OVEN
1
EXTRUSION WPL 7756P04260 Contact Us For Availability
1
RETAINER, BOTTOM INS. WPL 3804F09380 Contact Us For Availability
1
RETAINER, BOTTOM INSULATION WPL 3804F10280 Contact Us For Availability
1
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
1
LINING ASSY, INNER SIDE WPL 4009W03080 Contact Us For Availability
1
LINING,INNER SIDE(L) WPL 4009W06680 Contact Us For Availability
1
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
1
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
1
NUT, NYLON WPL 7103P04560 Contact Us For Availability
1
FRONT,BURNER BOX BOTTOM WPL 4012F01880 Contact Us For Availability
2
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
2
SHIELD, BOTTOM WPL 3604F07380 Contact Us For Availability
2
BLOCK, WIRE TERMINAL WPL 7401P02860 Contact Us For Availability
2
BOTTOM, BURNER BOX WPL 4011F15880 Contact Us For Availability
2
SCREW WPL 7101P10460 Contact Us For Availability
3
EXTRUSION (RIGHT) WPL 7750P02260 Contact Us For Availability
3
TRIM, SIDE (LEFT) WPL 7750P02360 Contact Us For Availability
3
PROBE, OVEN SENSOR WPL 7430P00560 Contact Us For Availability
3
PROBE, OVEN SENSOR WPL 7430P00860 Contact Us For Availability
3
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
3
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
3
SHIELD, TERMINAL WPL 3604F14980 Contact Us For Availability
4
TRIM, END CAP WPL 7726P02860 Contact Us For Availability
4
CATALYST BURNER WPL 7505P04160 Contact Us For Availability
4
TUBE, OVEN VENT WPL 8026A00960 Contact Us For Availability
4
SCREW WPL 7101P11260 Contact Us For Availability
4
SUPPORT, THERM DISC WPL 3807F21951 Contact Us For Availability
4
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
5
EXTRUSION, TOP WPL 7752P00360 Contact Us For Availability
5
BULB, OVEN WPL 7407P02660 Contact Us For Availability
5
GROMMET WPL 8008P01960 Contact Us For Availability
5
SWITCH, HI LIMIT WPL 7403P19960 Contact Us For Availability
6
PLATE - SWITCH MTG WPL 3604F16180 Contact Us For Availability
6
PLATE WPL 3605F17280 Contact Us For Availability
6
SCREW WPL 7101P06160 Contact Us For Availability
6
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
6
BACK, MAIN WPL 4002F10380 Contact Us For Availability
6
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
7
SHIELD, CLOCK INSULATION WPL 7003P03460 Contact Us For Availability
7
CLOCK WPL 7601P12060 Contact Us For Availability
7
CLOCK WPL 7601P15660 Contact Us For Availability
7
CLOCK WPL 7601P16860 Contact Us For Availability
7
CLOCK WPL 7601P17760 Contact Us For Availability
7
BRACKET WPL 3801F02451 Contact Us For Availability
7
BRACKET, CABLE ROLLER WPL 12400018 Contact Us For Availability
7
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
8
SWITCH, OVEN LAMP WPL 7403P19660 Contact Us For Availability
8
SHIELD, LOWER VENT WPL 3604W00270 Contact Us For Availability
8
SHIELD,LOWER VENT (BLK) WPL 3604W15270 Contact Us For Availability
8
PLATE, CONDUIT WPL 3605F14880 Contact Us For Availability
8
VENT BOX ASSY. WPL 4006W05245 Contact Us For Availability
9
SLEEVE, SWITCH (WHT) WPL 7214P02360 Contact Us For Availability
9
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
9
HOUSING,MAIN WIRE WPL 4001F05151 Contact Us For Availability
9
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
10
KNOB, CLOCK (BUTTON-WHT) WPL 7711P42060 Contact Us For Availability
10
BUTTON, CTRL SET WPL 7711P45360 Contact Us For Availability
10
SCREW WPL 7101P00560 Contact Us For Availability
10
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
10
COVER, WIRE HOUSING WPL 4005F15780 Contact Us For Availability
10
HOUSING, FAN WPL 4001F05951 Contact Us For Availability
11
HARNESS, OVEN SENSOR WPL 5170P06560 Contact Us For Availability
11
HARNESS, OVEN SENSOR WPL 5170P08860 Contact Us For Availability
11
SHIELD, BROIL WPL 3604F09245 Contact Us For Availability
11
COVER ACCESS WPL 4005F30251 Contact Us For Availability
11
SWITCH, HI LIMIT WPL 7403P08960 Contact Us For Availability
12
EXTRUSION, FILLER TRIM WPL 7752P00460 Contact Us For Availability
12
NUT, KEPS BLACK WPL 7103P06260 Contact Us For Availability
12
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
12
FAN, ASSEMBLY WPL 7427P00460 Contact Us For Availability
12
GROMMET, NYLON WPL 8008P01460 Contact Us For Availability
13
GLASS CONTROL PANEL WHT WPL 7912P05760 Contact Us For Availability
13
ELEMENT, BROIL WPL 7406P03260 Contact Us For Availability
13
ELEMENT, BROIL WPL 7406P06860 Contact Us For Availability
13
CLIP, BROIL ELEMENT SUPPORT WPL 8004P01360 Contact Us For Availability
13
COVER, SWITCH WPL 4005F16351 Contact Us For Availability
13
COVER, FAN WPL 4005F26251 Contact Us For Availability
14
LENS WPL 7730P00660 Contact Us For Availability
14
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
14
NUT, LEVEL WPL 7103P00760 Contact Us For Availability
14
SUPPORT, RELAY BOARD WPL 3807F32445 Contact Us For Availability
15
KNOB, CLOCK (WHT) WPL 7711P41960 Contact Us For Availability
15
KNOB, CLOCK (WHT) WPL 7711P43260 Contact Us For Availability
15
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
15
TUBING, CONDUIT WPL 3414F06651 Contact Us For Availability
15
WASHER WPL 7109P00260 Contact Us For Availability
15
SUPPORT, RELAY BOARD WPL 8004P02260 Contact Us For Availability
16
BRACKET - SWITCH PLATE WPL 3801F17045 Contact Us For Availability
16
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
16
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
16
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
16
SPACER, TUBING WPL 8010P04060 Contact Us For Availability
17
RETAINER, LAMP GUARD WPL 3804F01245 Contact Us For Availability
17
SLEEVE, TUBE WPL 8018P00260 Contact Us For Availability
17
SCREW, BASE WPL 7101P08460 Contact Us For Availability
18
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
18
CONNECTOR, PIN WPL 7417P00260 Contact Us For Availability
18
WIRE HARNESS WPL 5170P06460 Contact Us For Availability
18
RELAY, BOARD ASSY. WPL 7428P00460 Contact Us For Availability
18
RELAY BOARD WPL 7428P00960 Contact Us For Availability
19
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
19
SCREW WPL 7101P01260 Contact Us For Availability
19
HINGE (INCL. SPRING) WPL 7106P02460 Contact Us For Availability
19
INSULATION, SWITCH (UPPER) WPL 7003P01960 Contact Us For Availability
19
INSULATION, SWITCH WPL 7003P03960 Contact Us For Availability
19
SWITCH, OVN LOCK ASY----NA WPL 7403P09960 Contact Us For Availability
20
HOUSING WPL 4001F02015 Contact Us For Availability
20
STRAP CABLE WPL 8019P00160 Contact Us For Availability
20
SUPPORT, LOCK SWITCH WPL 3807F19345 Contact Us For Availability
20
SUPPORT, DOOR LOCK SWITCH WPL 3807F42245 Contact Us For Availability
20
SCREW WPL 7101P03160 Contact Us For Availability
21
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
21
SPRING, DOOR WPL 7803P03160 Contact Us For Availability
21
SCREW WPL 7101P01860 Contact Us For Availability
21
LEVER, DOOR LOCK WPL 8009P00960 Contact Us For Availability
21
LEVER, DOOR LOCK WPL 8009P01860 Contact Us For Availability
22
SPRING, MINI-STANLEY WPL 04000040 Contact Us For Availability
22
BOLT WPL 7116P00360 Contact Us For Availability
23
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
23
STOP ASSY., HINGE WPL 3420A03434 Contact Us For Availability
23
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
23
LINK, DOOR LOCK WPL 7807P01260 Contact Us For Availability
24
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
24
PIN, HINGE WPL 7113P00260 Contact Us For Availability
24
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
25
SCREW WPL 7101P06460 Contact Us For Availability
25
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
26
NOT REQUIRED PART OR SEE NOTE FRONT,OVEN UPPE WPL W10124350 Contact Us For Availability
26
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
27
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
27
SUPPORT, CATCH ASSY. WPL 3807F19545 Contact Us For Availability
27
SUPPORT, CATCH ASSY. WPL 3807F40845 Contact Us For Availability
28
RACK, OVEN WPL 7801P03060 Contact Us For Availability
29
PAN, BROIL WPL 3401F00415 Contact Us For Availability
30
INSERT, PAN WPL 3413F00215 Contact Us For Availability
NI
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
NI
BLOCK, TERMINAL WPL 7401P01660 Contact Us For Availability
NI
FAN, RESISTOR ASY WPL 7413A00260 Contact Us For Availability
× ![]()
