Model Whirlpool A59E-5EXW-R ELECTRIC WALL OVEN – Common Parts & Diagrams

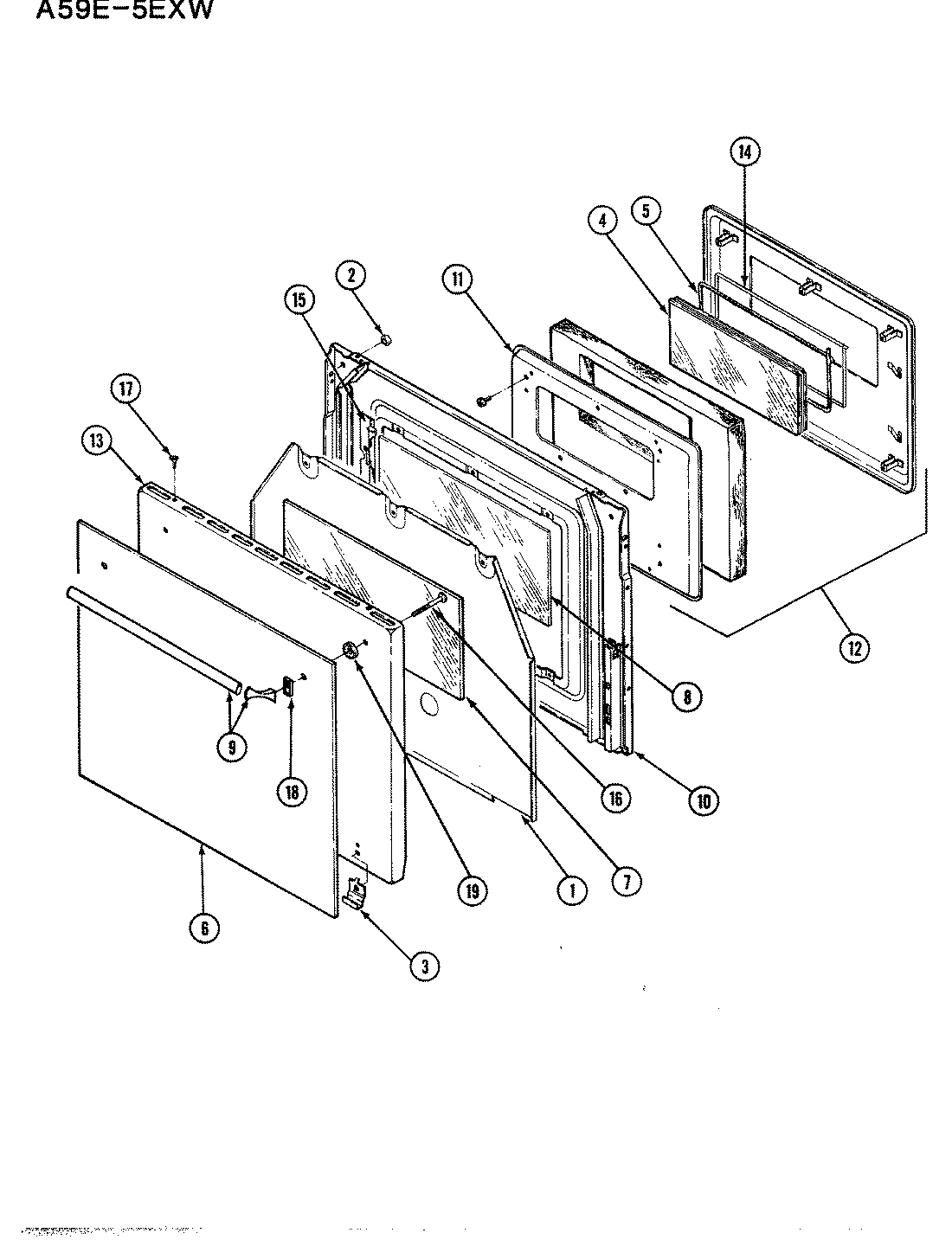

02 - DOOR

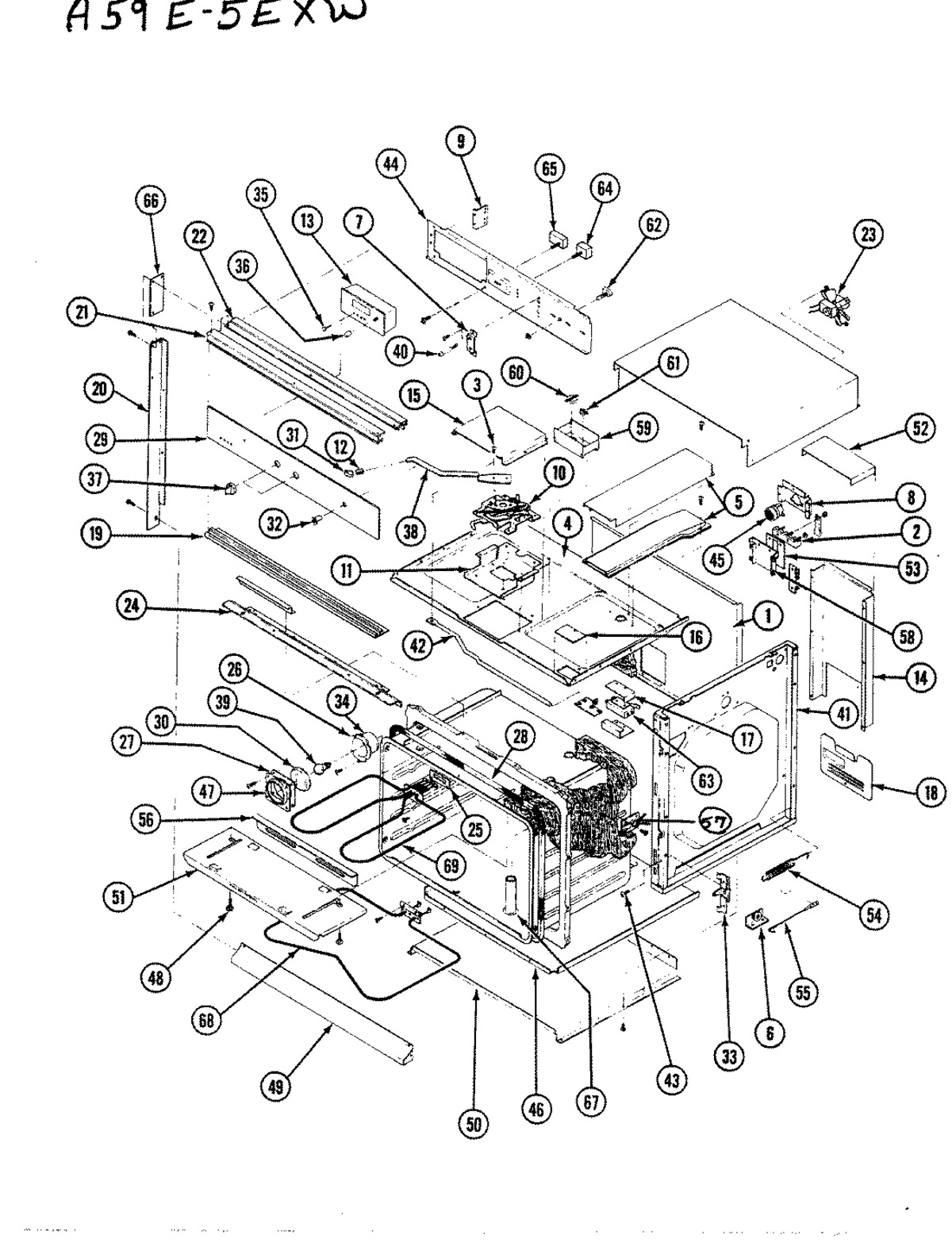

01 - BODY
Common parts from model Whirlpool A59E-5EXW-R ELECTRIC WALL OVEN
1
BAFFLE WPL 3601F09351 Contact Us For Availability
1
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
1
BACK, MAIN WPL 4002F09220 Contact Us For Availability
2
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P01660 Contact Us For Availability
3
CLIP, GLASS RETAINER (BLK) WPL 3819F01070 Contact Us For Availability
3
CLIP, RETAINER WPL 7112P05160 Contact Us For Availability
3
BOLT, DOOR LOCK WPL 7116P00260 Contact Us For Availability
4
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F13380 Contact Us For Availability
5
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
5
BRACKET WPL 3801F09351 Contact Us For Availability
5
VENT BOX ASSY. WPL 4006W05245 Contact Us For Availability
6
GLASS, OUTER (BLACK) WPL 7902P12060 Contact Us For Availability
6
BRACKET WPL 0284294 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
BRACKET, IND LT WPL 3801F09920 Contact Us For Availability
8
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
8
GLASS, WINDOW WPL 7902P10360 Contact Us For Availability
8
GLASS, CLEAR WPL 7902P13560 Contact Us For Availability
8
BRACKET WPL 3801F02451 Contact Us For Availability
9
BRACKET, SWITCH MTG WPL 3801F09851 Contact Us For Availability
10
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
10
LINING WPL 2402W12815 Contact Us For Availability
10
NUT, SNAP WPL 7103P11460 Contact Us For Availability
10
CATCH WPL 8002P01460 Contact Us For Availability
11
PAD, INNER WPL 2410F01651 Contact Us For Availability
11
CHANNEL, SWITCH LOCK WPL 3818F027 Contact Us For Availability
11
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
12
PAD, ASSY. WPL 2410A02915 Contact Us For Availability
12
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
12
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
12
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
12
CLIP WPL 7112P02960 Contact Us For Availability
13
PANEL, (BLACK) WPL 2401W04970 Contact Us For Availability
13
CONNECTOR, SINGLE WPL 7417P00160 Contact Us For Availability
13
CONNECTOR, PIN WPL 7417P00260 Contact Us For Availability
13
+ CLOCK WPL 7601P04760 Contact Us For Availability
14
SHIELD WPL 4005F01380 Contact Us For Availability
15
RIVET WPL 7107P01760 Contact Us For Availability
15
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
16
SCREW WPL 7101P16260 Contact Us For Availability
16
COVER, SWITCH WPL 4005F16351 Contact Us For Availability
17
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
17
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
17
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
18
SPACER, HANDLE (BLK) WPL 8010P01560 Contact Us For Availability
18
COVER, WIRE HOUSING WPL 4005F15720 Contact Us For Availability
19
WASHER, LOCK WPL 7109P01260 Contact Us For Availability
19
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
19
TAPE, RETAINER CLIP WPL 8270P01060 Contact Us For Availability
19
EXTRUSION, CTRL BOT WPL 7706P14660 Contact Us For Availability
20
TRIM, SIDE (RIGHT) WPL 7706P14460 Contact Us For Availability
20
TRIM,SIDE (LEFT) WPL 7706P14560 Contact Us For Availability
20
EXTRUSION, TOP WPL 7706P20160 Contact Us For Availability
21
TRIM TOP FRONT WPL 7706P17560 Contact Us For Availability
22
TRIM, FILLER STRIP WPL 7706P16760 Contact Us For Availability
23
FAN, ASSEMBLY WPL 7427P00460 Contact Us For Availability
24
FRONT, OVEN WPL 2201F03323 Contact Us For Availability
24
FRONT,BURNER BOX BOTTOM WPL 4012F01880 Contact Us For Availability
25
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
26
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
27
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
28
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
29
GLASS, CONTROL WPL 7902P12560 Contact Us For Availability
30
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
31
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
32
HANDLE, OVEN DOOR WPL 7701P02560 Contact Us For Availability
32
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
32
KNOB, LIGHT SWITCH WPL 7711P00860 Contact Us For Availability
33
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
33
HOUSING, FAN WPL 4001F03751 Contact Us For Availability
34
INSERT WPL 3413F00211 Contact Us For Availability
34
HOUSING WPL 4001F02013 Contact Us For Availability
35
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
36
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
36
KNOB, SELECTION WPL 7711P31660 Contact Us For Availability
36
KNOB, SELECTOR WPL 7739P02460 Contact Us For Availability
37
KNOB WPL 7711P31760 Contact Us For Availability
37
KNOB, THERMOSTAT WPL 7735P01960 Contact Us For Availability
38
LEVER, DOOR LOCK WPL 8009P00660 Contact Us For Availability
39
BULB, OVEN WPL 7407P02660 Contact Us For Availability
40
LIGHT, INDICATOR----NA WPL 7407P00760 Contact Us For Availability
41
LINING, INNER SIDE WPL 4009W03020 Contact Us For Availability
42
PAN, BROIL WPL 3401F00411 Contact Us For Availability
42
NUT, BROIL SHIELD WPL 7103P00660 Contact Us For Availability
42
NUT, TWIN SPEED WPL 7103P02960 Contact Us For Availability
42
NUT, NYLON WPL 7103P04560 Contact Us For Availability
42
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
43
PLATE, CONDUIT WPL 3605F03180 Contact Us For Availability
43
PLATE, CONDUIT REIN WPL 3605F14651 Contact Us For Availability
43
WPL 3605F14880 WPL 3605F14880 Contact Us For Availability
43
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
44
WPL 3605F10720 WPL 3605F10720 Contact Us For Availability
44
WPL 7801P00460 WPL 7801P00460 Contact Us For Availability
44
WPL 8308P00160 WPL 8308P00160 Contact Us For Availability
45
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
46
WPL 3804F02245 WPL 3804F02245 Contact Us For Availability
46
WPL 3804F05180 WPL 3804F05180 Contact Us For Availability
46
WPL 3804F09320 WPL 3804F09320 Contact Us For Availability
47
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
47
WPL 7107P01460 WPL 7107P01460 Contact Us For Availability
48
WPL W10124350 WPL W10124350 Contact Us For Availability
48
WPL 7101P00560 WPL 7101P00560 Contact Us For Availability
48
WPL 7101P01860 WPL 7101P01860 Contact Us For Availability
48
WPL 7101P05760 WPL 7101P05760 Contact Us For Availability
48
WPL 7101P10160 WPL 7101P10160 Contact Us For Availability
48
WPL 7208P00260 WPL 7208P00260 Contact Us For Availability
48
WPL 7208P00760 WPL 7208P00760 Contact Us For Availability
49
WPL 3604W00200 WPL 3604W00200 Contact Us For Availability
50
WPL 3604F07320 WPL 3604F07320 Contact Us For Availability
51
WPL 3604F09245 WPL 3604F09245 Contact Us For Availability
52
WPL 3604F00720 WPL 3604F00720 Contact Us For Availability
53
WPL 3604F07420 WPL 3604F07420 Contact Us For Availability
53
WPL 7214P00160 WPL 7214P00160 Contact Us For Availability
53
WPL 7214P00460 WPL 7214P00460 Contact Us For Availability
54
WPL 3420A03434 WPL 3420A03434 Contact Us For Availability
54
WPL 7803P031 WPL 7803P031 Contact Us For Availability
× ![]()
