Model Whirlpool A54FN-5TKVWM-R GAS WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

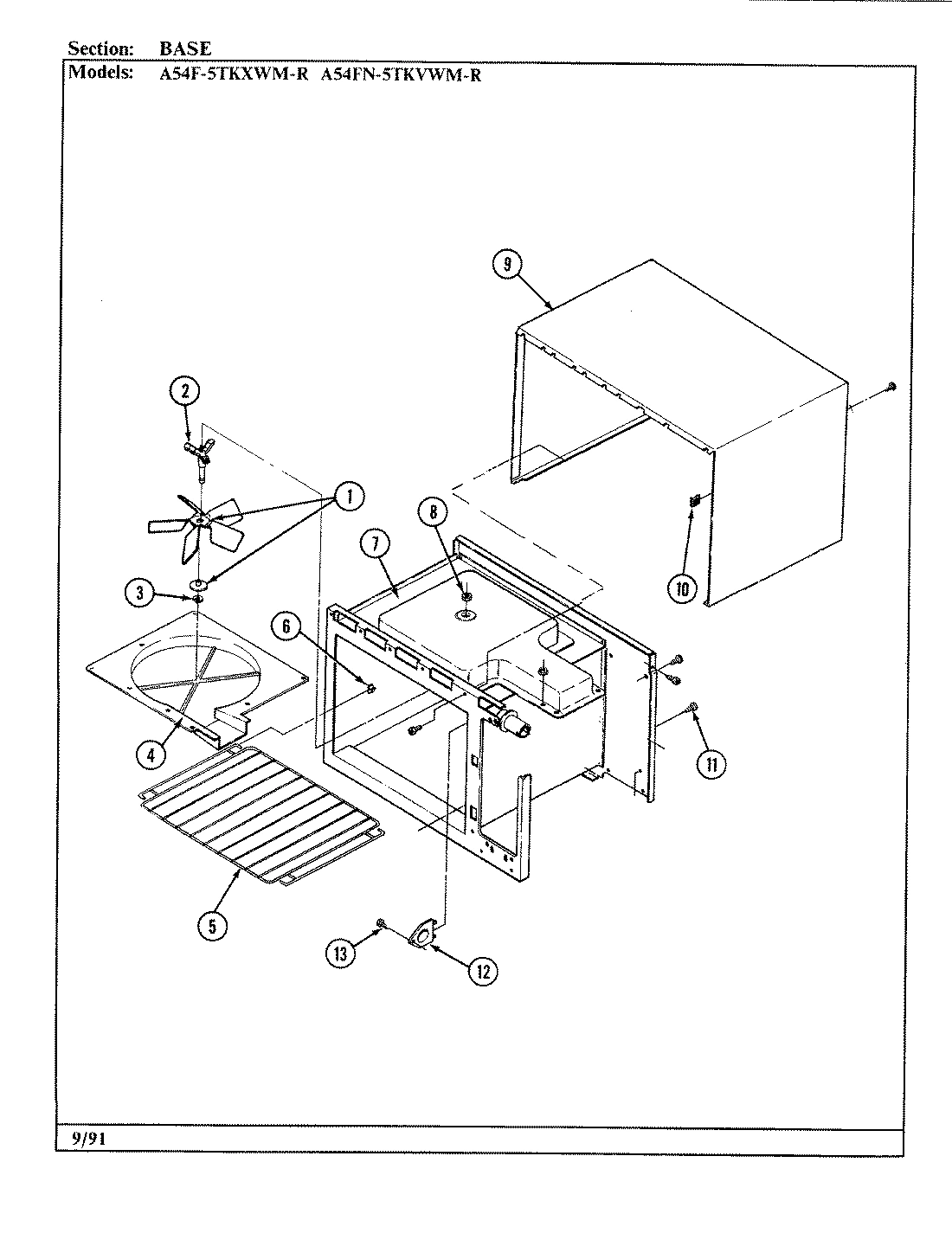

01 - BASE

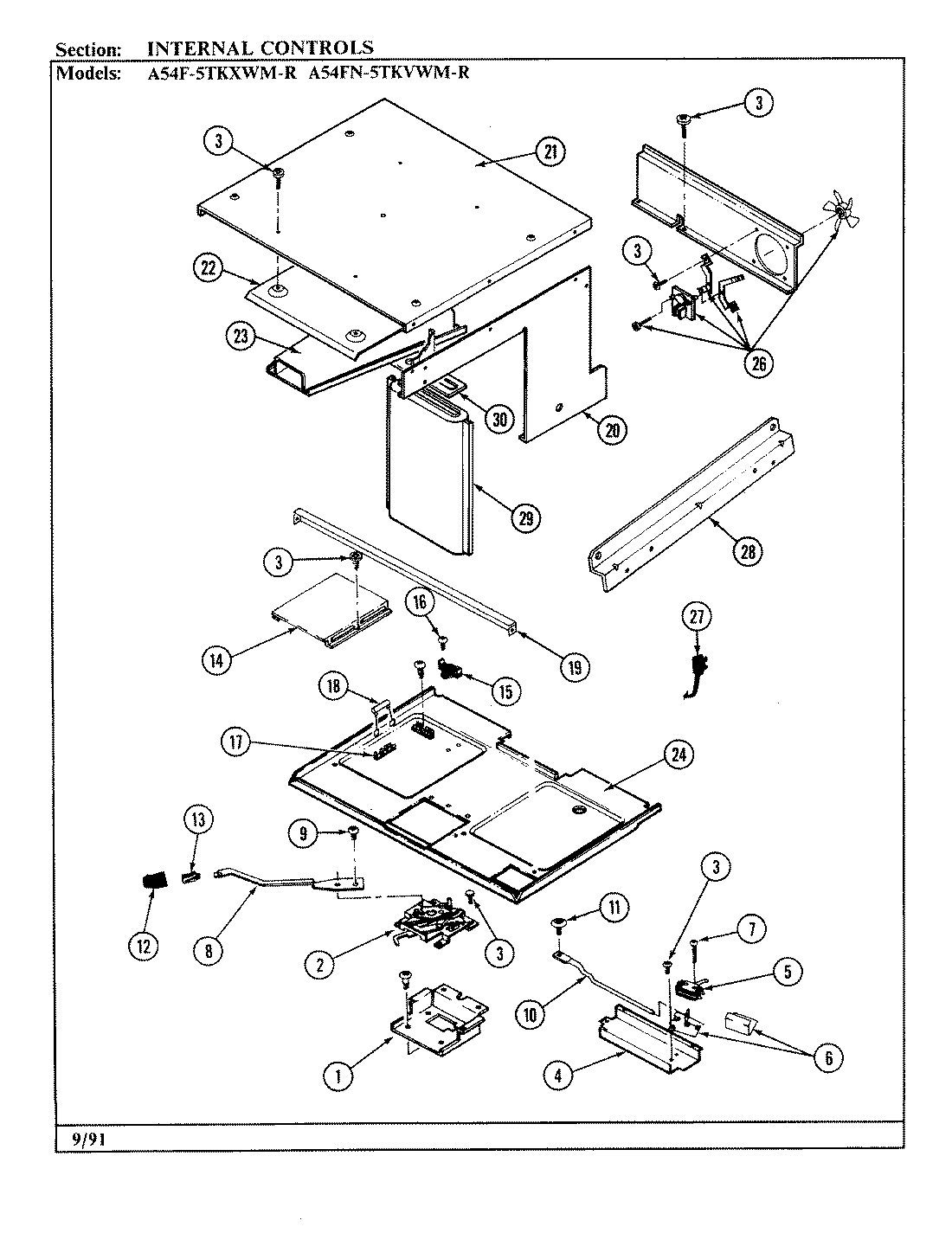

03 - CONTROL PANEL

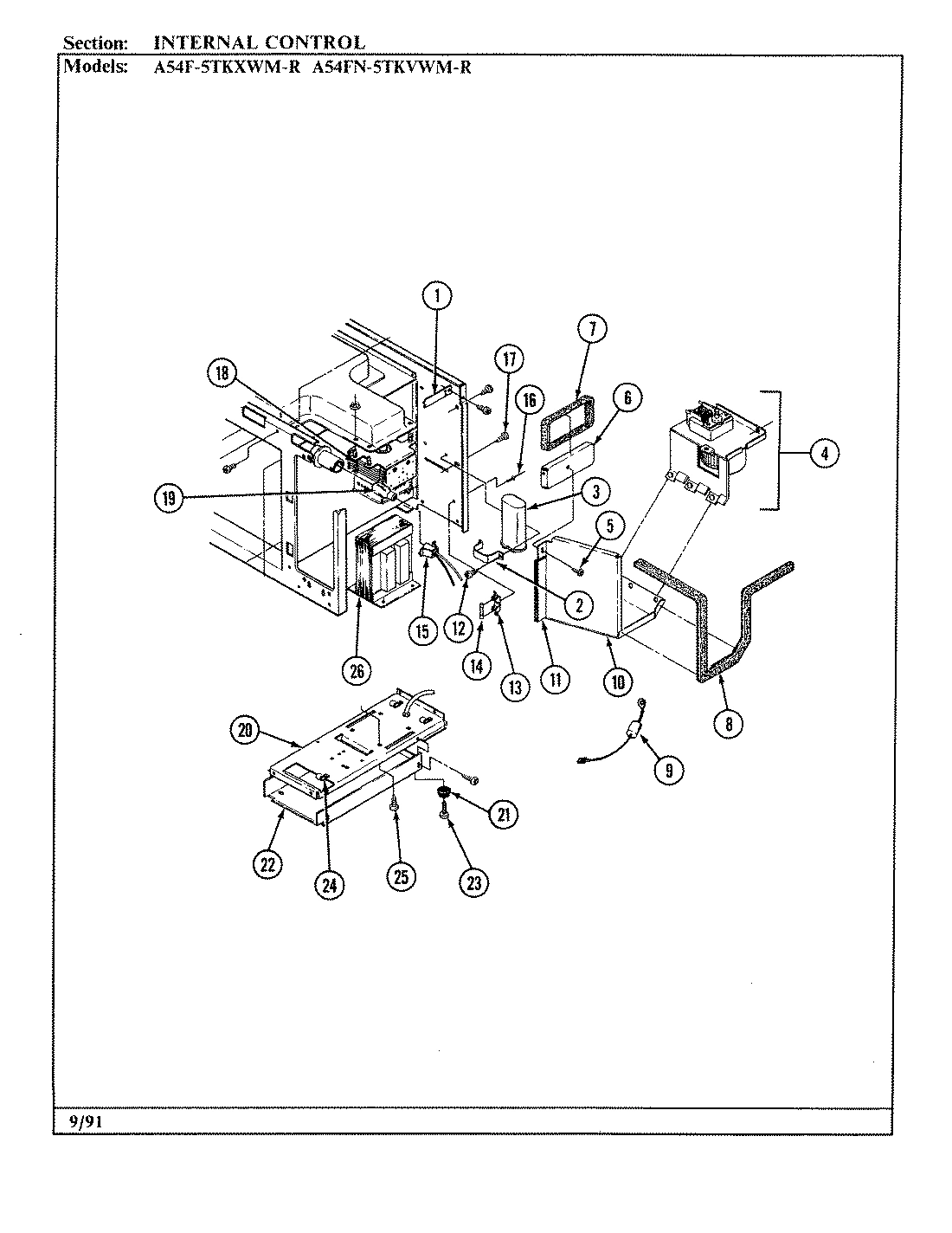

08 - INTERNAL CONTROLS

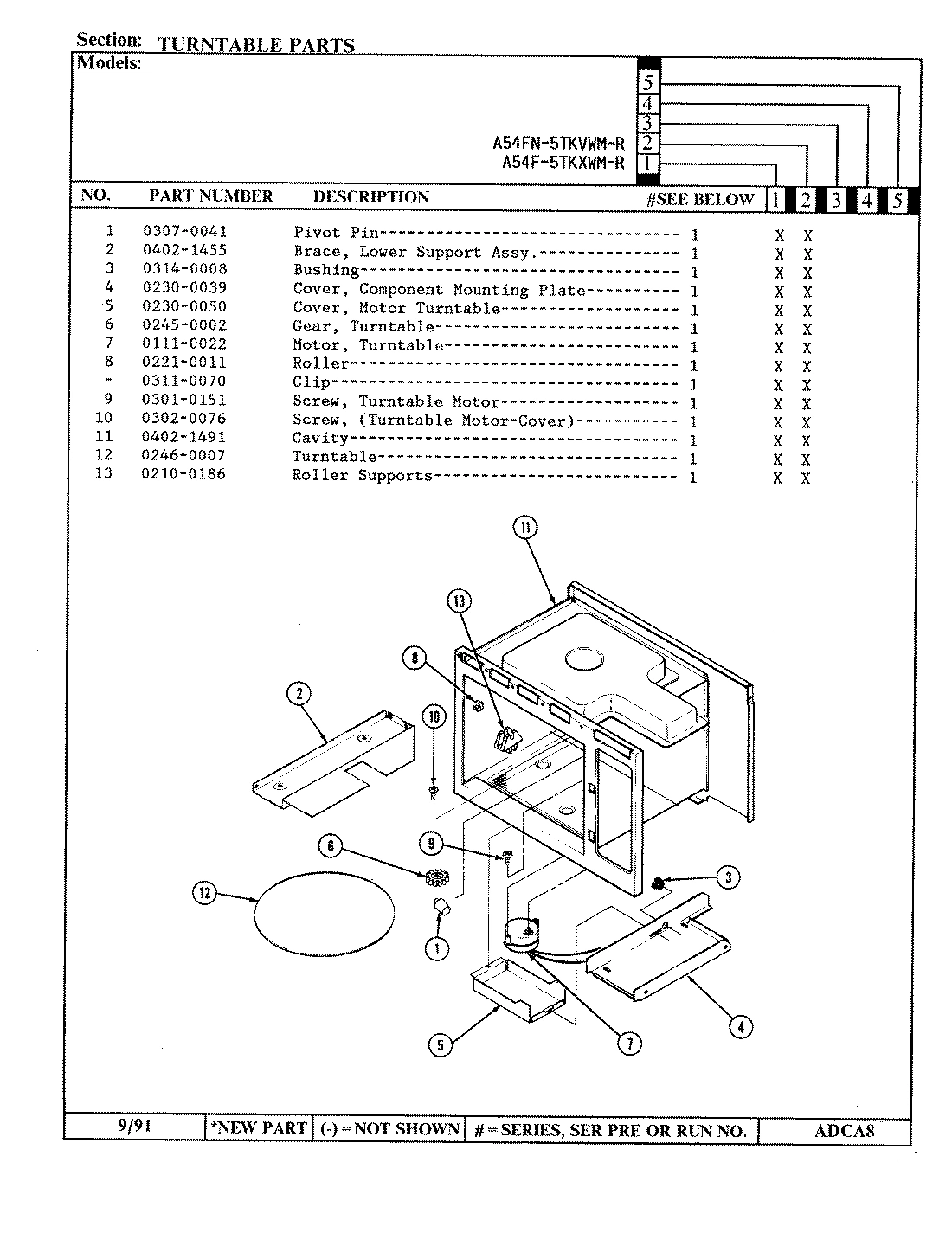

10 - TURNTABLE

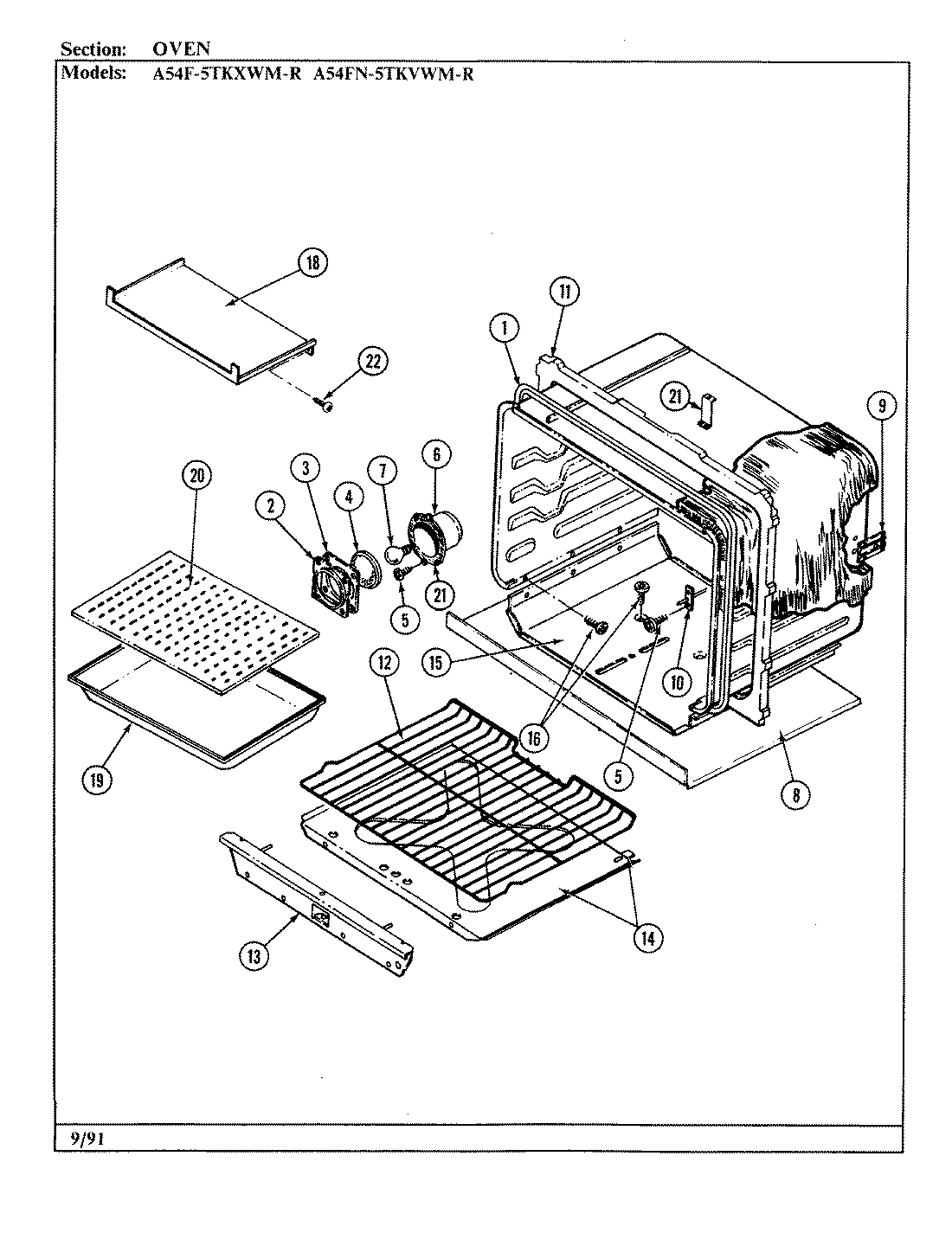

04 - CONTROL SYSTEM
07 - INTERNAL CONTROLS

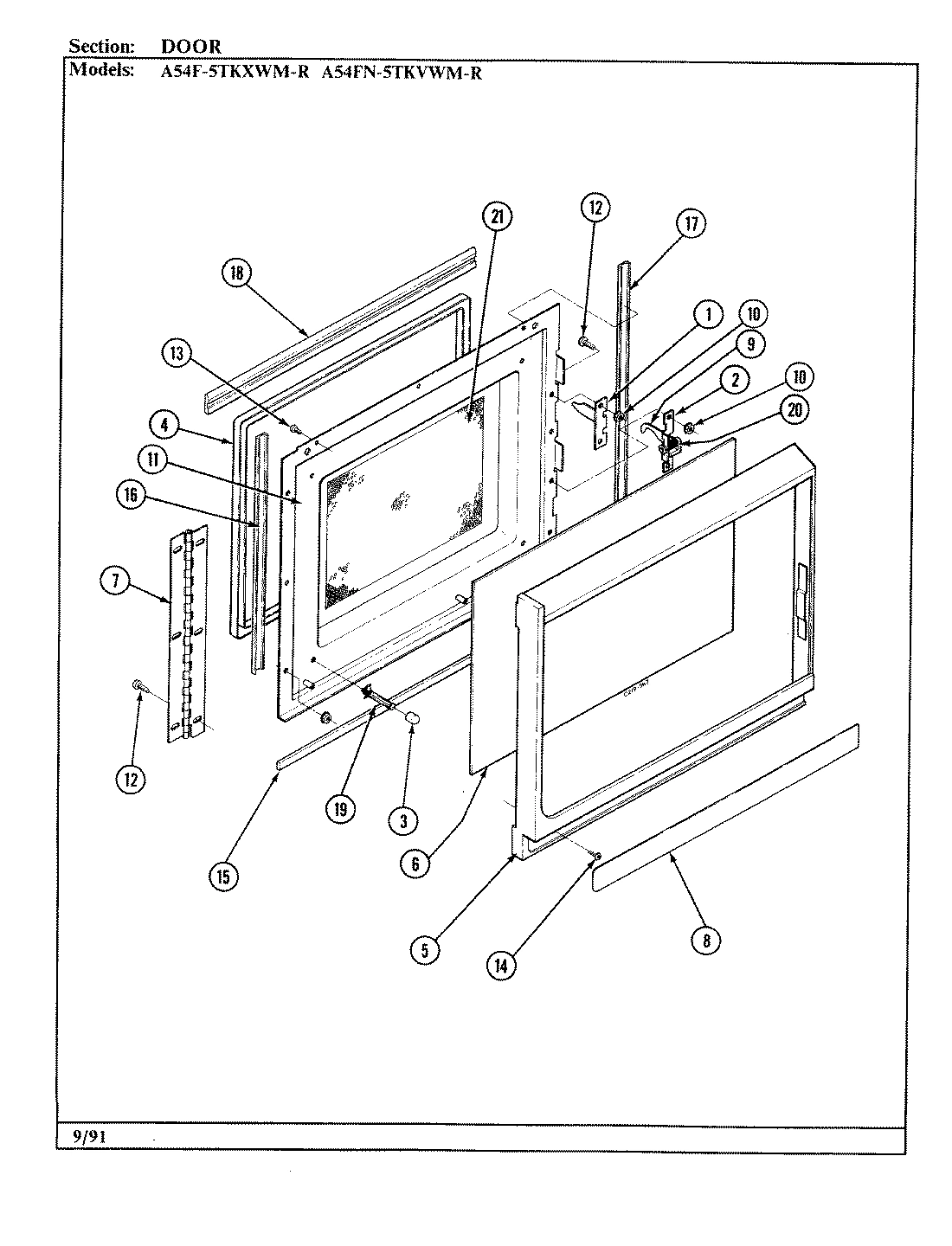

05 - DOOR

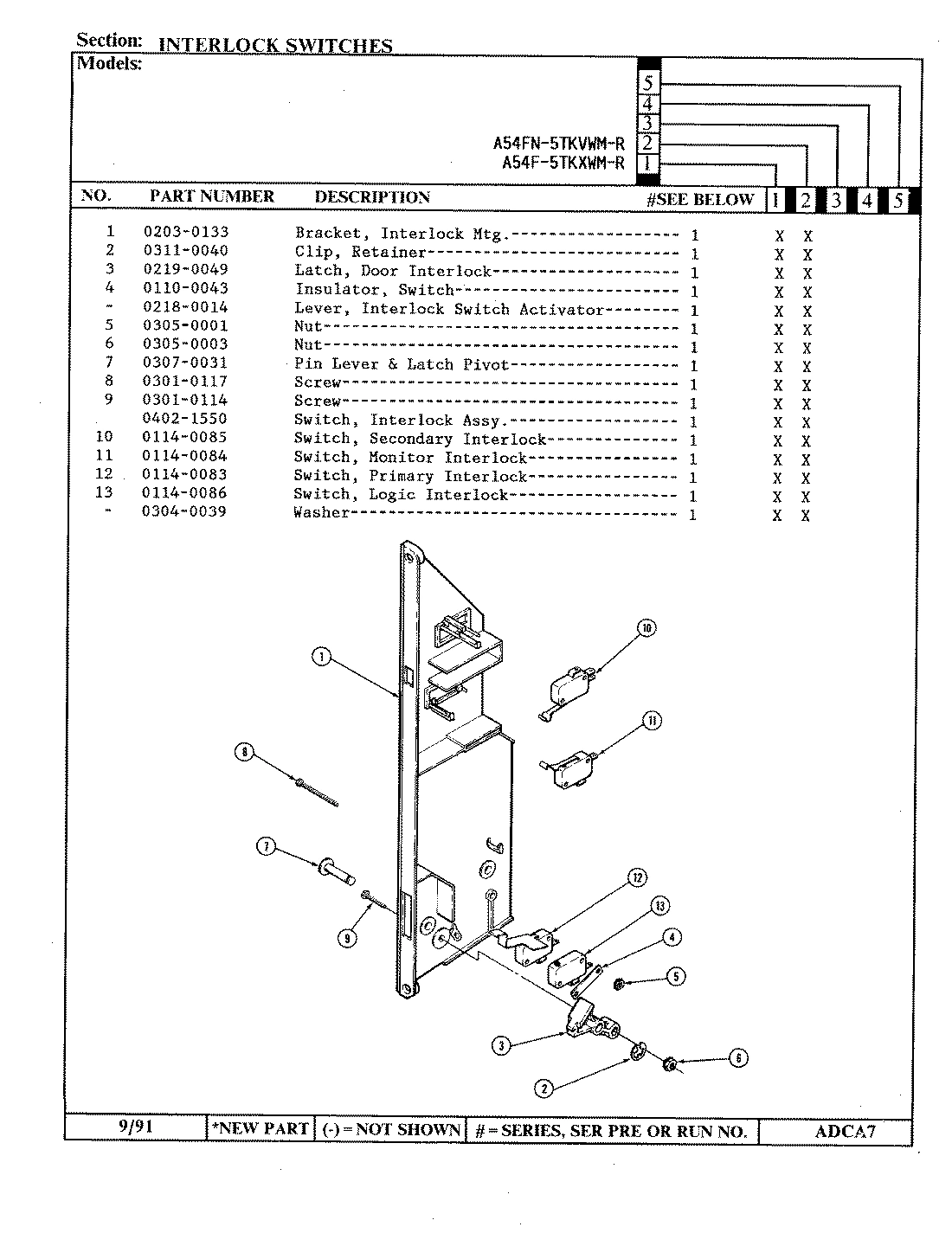

06 - INTERLOCK SWITCHES

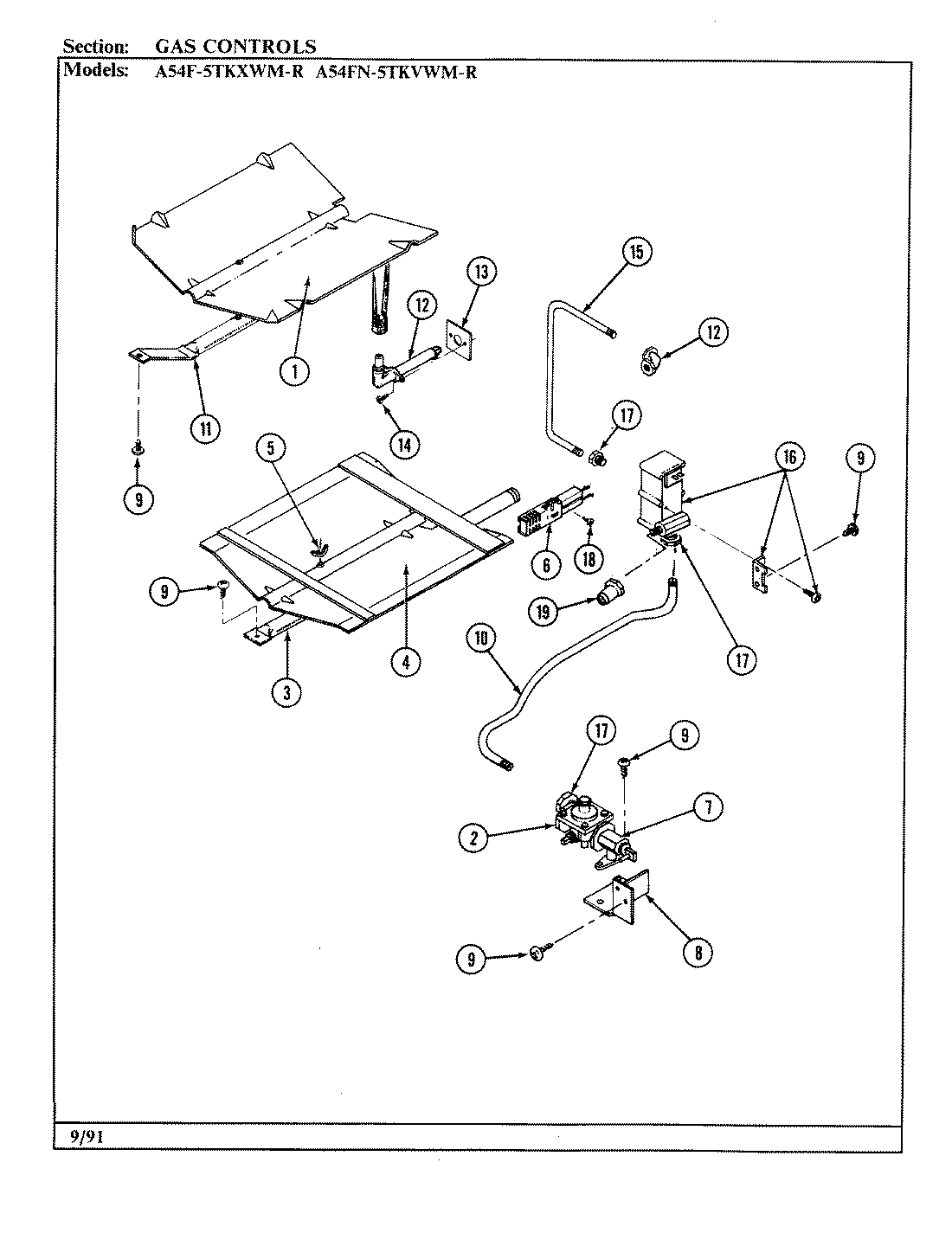

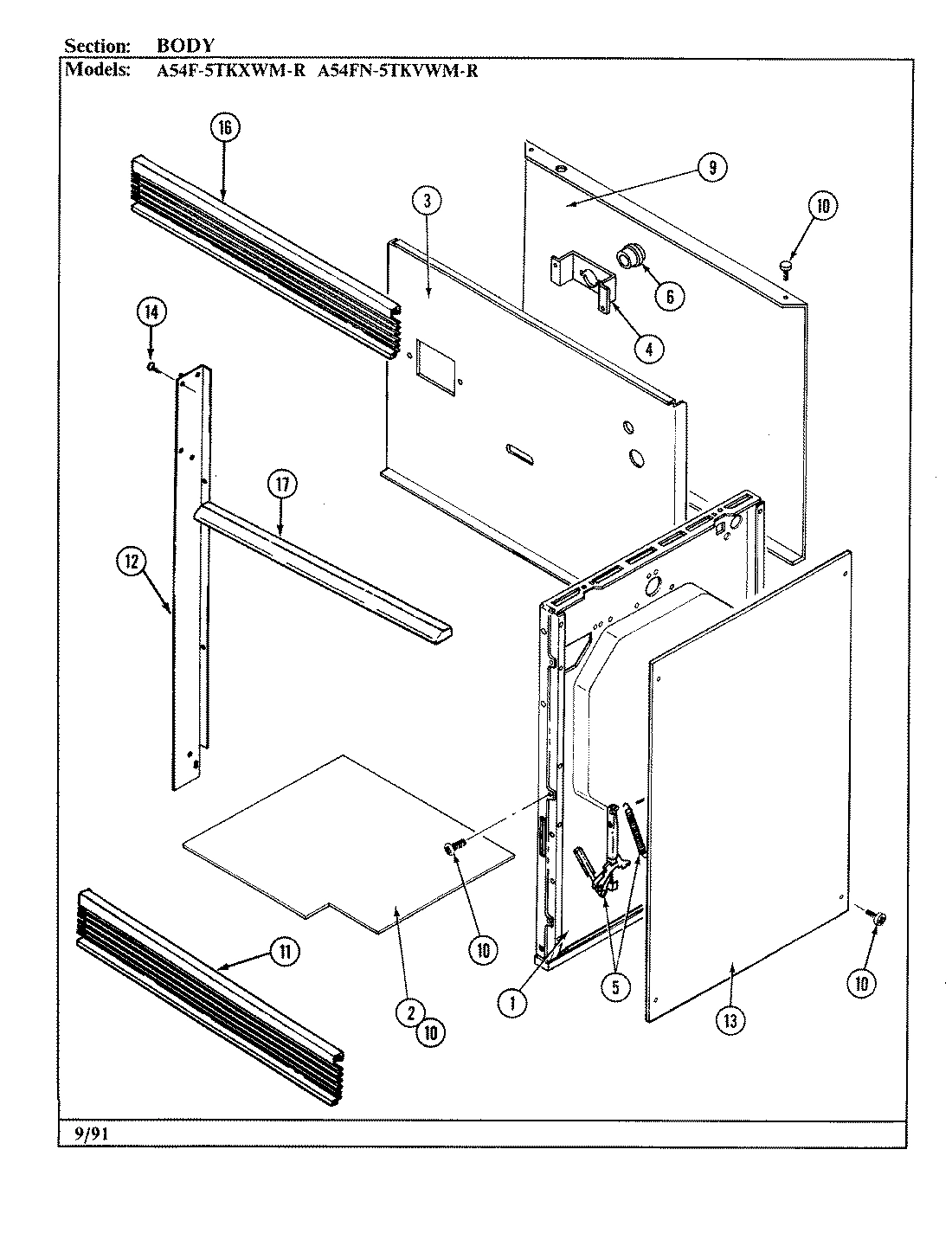

02 - BODY

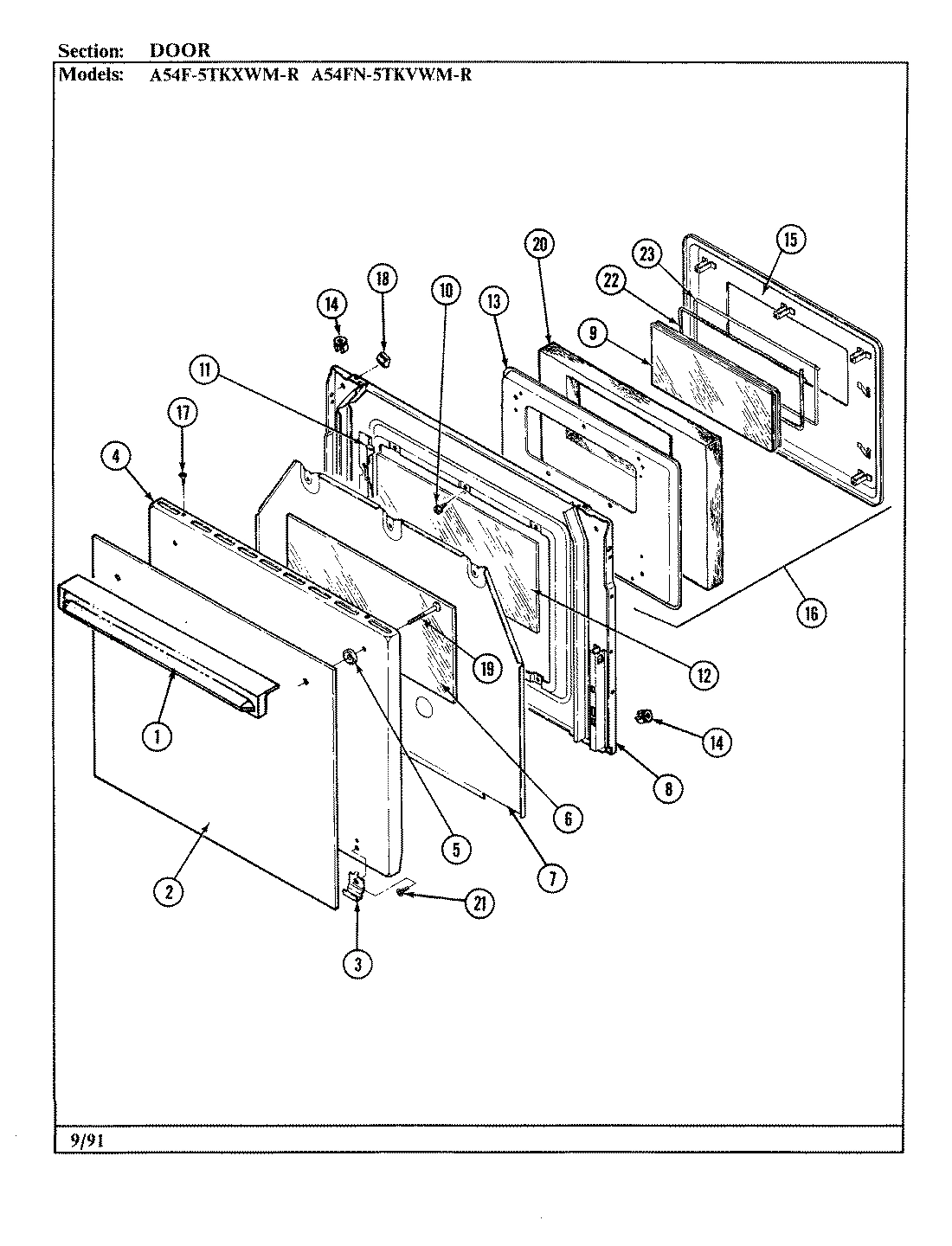

09 - OVEN
Common parts from model Whirlpool A54FN-5TKVWM-R GAS WALL OVEN/MICROWAVE COMBO
1
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
1
BOARD, CONTROL WPL 01210093 Contact Us For Availability
1
BOARD, CONTROL (T-CLOCK) WPL 01210102 Contact Us For Availability
1
KNOB, CLOCK (WHT) WPL 7711P43260 Contact Us For Availability
1
BRACE, SUPPORT (LOWER) WPL Y02020028 Contact Us For Availability
1
PIN, PIVOT WPL Y03070041 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
SUPPORT, CATCH ASSY. WPL 3807F40845 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
LINING ASSY INNER SIDE WPL 4009W08280 Contact Us For Availability
1
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
1
NUT, SNAP (ROUND-BLK) WPL 7103P04160 Contact Us For Availability
1
RIVET WPL 7107P01760 Contact Us For Availability
1
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
2
SHAFT, STIRRER WPL 02360058 Contact Us For Availability
2
BRACKET, CONTROL MTG WPL 02030164 Contact Us For Availability
2
BRACKET WPL 02030123 Contact Us For Availability
2
BRACE, LOWER SUPPORT WPL 04021455 Contact Us For Availability
2
REGULATOR PRESSURE WPL 7510P03660 Contact Us For Availability
2
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
2
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
2
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
SHIELD FLOOR WPL 3604F15545 Contact Us For Availability
2
RETAINER, LAMP GUARD WPL 3804F01245 Contact Us For Availability
3
CLIP, STIRRER WPL Y03110055 Contact Us For Availability
3
CLIP, SWITCH WPL 03110069 Contact Us For Availability
3
SWITCH, CONTROL PANEL WPL Y02060353 Contact Us For Availability
3
RESISTOR, BLEEDER WPL 01010008 Contact Us For Availability
3
CAPACITOR WPL Y01020023 Contact Us For Availability
3
BUSHING WPL Y03140008 Contact Us For Availability
3
BURNER BAKE WPL 7505P17460 Contact Us For Availability
3
BUMPER WPL Y02100135 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
BACK BROILER SECTION WPL 4002F12245 Contact Us For Availability
3
BACK, MAIN WPL 4002F15580 Contact Us For Availability
3
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
4
COVER, STIRRER WPL Y02300045 Contact Us For Availability
4
INLAY, TRIM (WHITE) WPL 7728P07760 Contact Us For Availability
4
CONTROL PANEL (WHITE) WPL Y02100245 Contact Us For Availability
4
MOTOR, BLOWER WPL 01110029 Contact Us For Availability
4
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
4
WHEEL, BLOWER WPL Y01110016 Contact Us For Availability
4
BRACKET, BLOWER SUPPORT WPL Y02030144 Contact Us For Availability
4
HOUSING, BLOWER WPL Y02170119 Contact Us For Availability
4
COVER, MTG PLATE WPL 02300039 Contact Us For Availability
4
BAFFLE WPL 3601W19019 Contact Us For Availability
4
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
4
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
4
CHOKE, FILLER (BLK) WPL Y02100166 Contact Us For Availability
4
LEVER, INTERLOCK SWITCH WPL 02180014 Contact Us For Availability
4
INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability
4
BRACKET WPL 3801F02451 Contact Us For Availability
4
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
5
RACK, OVEN WPL Y02410004 Contact Us For Availability
5
SCREW WPL 03010138 Contact Us For Availability
5
SCREW WPL 03020061 Contact Us For Availability
5
WIRE ASSEMBLY WPL 04010265 Contact Us For Availability
5
SCREW (TOP) WPL Y03010147 Contact Us For Availability
5
COVER, MOTOR TURNTABLE WPL Y02300050 Contact Us For Availability
5
NUT, WING WPL 7103P03060 Contact Us For Availability
5
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
5
INSULATION, SWITCH (UPPER) WPL 7003P01960 Contact Us For Availability
5
INSULATION, SWITCH WPL 7003P03960 Contact Us For Availability
5
SWITCH, OVN LOCK ASY----NA WPL 7403P09960 Contact Us For Availability
5
PANEL, DOOR (WHITE) WPL 02100246 Contact Us For Availability
5
NUT WPL Y03050001 Contact Us For Availability
5
HINGE, DOOR WPL 7106P03160 Contact Us For Availability
6
SUPPORT, DUCT MAGNETRON WPL Y02170111 Contact Us For Availability
6
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
6
COVER IGNITOR WIRE WPL 4005F36345 Contact Us For Availability
6
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
6
SUPPORT, DOOR LOCK SWITCH WPL 3807F42245 Contact Us For Availability
6
EXTRUSION, HANDLE (WHT) WPL 02120166 Contact Us For Availability
6
GLASS, OUTER DOOR WPL 02220112 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
6
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
6
HOUSING, LAMP WPL 4001F02019 Contact Us For Availability
7
TAPE, FOAM WPL 02310109 Contact Us For Availability
7
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
7
VALVE, SHUT OFF WPL 7501P04160 Contact Us For Availability
7
SCREW WPL 7101P03160 Contact Us For Availability
7
HINGE WPL 02200021 Contact Us For Availability
7
PIN, LEVER & PIVOT LATCH WPL Y03070031 Contact Us For Availability
7
FRONT,BURNER BOX BOTTOM WPL 4012F01880 Contact Us For Availability
7
BULB, OVEN WPL 7407P02660 Contact Us For Availability
8
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
8
SWITCH, TEMP LIMIT WPL 01180010 Contact Us For Availability
8
TAPE, FOAM WPL 02310070 Contact Us For Availability
8
ROLLER WPL 02210011 Contact Us For Availability
8
CLIP - PUSH ON WPL Y03110070 Contact Us For Availability
8
BRACKET, REGULATOR WPL 3801F21745 Contact Us For Availability
8
LEVER, DOOR LOCK WPL 8009P00960 Contact Us For Availability
8
INSERT DOOR/CONTROL (WHITE) WPL Y02100223 Contact Us For Availability
8
SCREW WPL 03010117 Contact Us For Availability
8
SUPPORT BAFFLE WPL 3807F38645 Contact Us For Availability
9
CABINET WPL 02140079 Contact Us For Availability
9
DIODE WPL Y04010206 Contact Us For Availability
9
SCREW WPL 03010151 Contact Us For Availability
9
SCREW WPL 7101P01860 Contact Us For Availability
9
LATCH, DOOR WPL 02190056 Contact Us For Availability
9
SCREW WPL 03010114 Contact Us For Availability
9
INTERLOCK SWITCH ASSEMBLY WPL Y04021550 Contact Us For Availability
9
COVER BACK WPL 4005F33351 Contact Us For Availability
9
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
10
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
10
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
10
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
10
SCREW WPL Y03020076 Contact Us For Availability
10
TUBING REGULATOR WPL 3414F09244 Contact Us For Availability
10
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
10
SWITCH, LOGIC WPL Y01140085 Contact Us For Availability
10
OVEN SENSOR WPL 7430P00760 Contact Us For Availability
11
CAVITY WPL 04021491 Contact Us For Availability
11
TAPE, FOAM WPL 02310071 Contact Us For Availability
11
BURNER, BROIL WPL 3403D02845 Contact Us For Availability
11
BOLT WPL 7116P00360 Contact Us For Availability
11
PANEL, INNER DOOR (BLK) WPL 04021377 Contact Us For Availability
11
SWITCH, MONITOR WPL Y01140084 Contact Us For Availability
11
STRIP, BOTTOM (WHT) WPL 4005F35471 Contact Us For Availability
11
EXTRUSION (BTM) WPL 7756P04960 Contact Us For Availability
11
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
12
LENS, BULB WPL Y02400007 Contact Us For Availability
12
TURNTABLE WPL Y02460007 Contact Us For Availability
12
FITTING, BROIL BURNER WPL 7507P07560 Contact Us For Availability
12
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
12
HANDLE, LATCH (WHT) WPL 7701P08960 Contact Us For Availability
12
SCREW, 6-32 X 3/8 PH BLACK WPL Y03010157 Contact Us For Availability
12
SWITCH, PRIMARY WPL 01140083 Contact Us For Availability
12
BRACKET MW MTG TOP WPL 3801F23345 Contact Us For Availability
12
EXTRUSION SIDE RT WPL 7750P04660 Contact Us For Availability
12
EXTRUSION SIDE LF WPL 7750P04760 Contact Us For Availability
12
RACK, OVEN WPL 7801P03160 Contact Us For Availability
13
CLIP WPL Y03110050 Contact Us For Availability
13
CLIP, STIRRER WPL 03110066 Contact Us For Availability
13
SUPPORT, ROLLER WPL Y02100186 Contact Us For Availability
13
PLATE, FITTING WPL 3605F01945 Contact Us For Availability
13
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
13
SCREW WPL Y03010118 Contact Us For Availability
13
WASHER WPL 03040039 Contact Us For Availability
13
SWITCH, TERTIARY (LOGIC) WPL Y01140086 Contact Us For Availability
13
SHIELD SIDE WPL 3604F18045 Contact Us For Availability
13
BAFFLE OVEN FRONT WPL 3601W12519 Contact Us For Availability
13
INSULATION, BAFFLE WPL 7002P00960 Contact Us For Availability
13
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
14
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
14
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
14
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
14
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
14
BOTTOM, OVEN WPL 2205W02121 Contact Us For Availability
15
RECEPTACLE, LIGHT WPL 01100045 Contact Us For Availability
15
TUBING, BROIL BURNER WPL 3414F09344 Contact Us For Availability
15
SWITCH, HI LIMIT WPL 7403P24960 Contact Us For Availability
15
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
15
SHIELD, TERMINAL WPL 3604F14980 Contact Us For Availability
15
HOUSING, BAKE BURNER WPL 4001F06045 Contact Us For Availability
16
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
16
PLATE, POPCORN WPL 02040094 Contact Us For Availability
16
SCREW WPL 7101P06160 Contact Us For Availability
16
VALVE, OVEN WPL 7501P08560 Contact Us For Availability
16
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
16
EXTRUSION TOP VENT WPL 7756P05560 Contact Us For Availability
17
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
17
HOUSING MIXER PIN WPL 4001F05445 Contact Us For Availability
17
COVER MIXER PIN WPL 4005F37745 Contact Us For Availability
17
SCREW WPL 7101P07960 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
17
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
17
EXTRUSION CTR TRIM WHT WPL 7756P05360 Contact Us For Availability
17
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
18
MAGNETRON WPL 01040004 Contact Us For Availability
18
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
18
FAN, RESISTOR ASY WPL 7413A00260 Contact Us For Availability
18
SEAL, TOP WPL 02120153 Contact Us For Availability
18
SHIM WPL Y03120064 Contact Us For Availability
18
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
18
SCREW WPL 7101P27360 Contact Us For Availability
19
BULB, LIGHT WPL Y01060024 Contact Us For Availability
19
HOOD ORIFICE No.56 WPL 7509P01360 Contact Us For Availability
19
SUPPORT DUCT WPL 3807F40745 Contact Us For Availability
19
SPACER, DOOR WINDOW WPL Y03120069 Contact Us For Availability
19
PAN, BROIL WPL 3401F00419 Contact Us For Availability
20
PLATE, COMPONENT MOUNTING WPL Y02040101 Contact Us For Availability
20
COVER SIDE WPL 4005F35851 Contact Us For Availability
20
COVER SIDE WPL 4005F35951 Contact Us For Availability
20
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
20
INSERT, BROIL PAN WPL 3413F00219 Contact Us For Availability
21
TRIM (WHITE) WPL 02100247 Contact Us For Availability
21
FOOT, BASE WPL 02230012 Contact Us For Availability
21
LABEL, COOKING GUIDE WPL Y02240782 Contact Us For Availability
21
COVER TOP WPL 4005F36051 Contact Us For Availability
21
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
22
SHIELD, HEAT WPL 3604F16645 Contact Us For Availability
23
DUCT ASSY. WPL 4006D10145 Contact Us For Availability
24
CLIP, WIRE HARNESS WPL 03110022 Contact Us For Availability
24
BOTTOM BURNER BOX WPL 4011F19380 Contact Us For Availability
25
SCREW WPL 03010094 Contact Us For Availability
25
HOUSING FAN WPL 4001F06945 Contact Us For Availability
26
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
26
WIRE HARNESS WPL 04010262 Contact Us For Availability
26
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
26
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
26
MANUAL, USE & CARE WPL Y06010311 Contact Us For Availability
26
FAN ASSY. WPL 7427P01060 Contact Us For Availability
27
CORD, POWER WPL 7402P04060 Contact Us For Availability
27
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
28
SUPPORT MTG LF WPL 3801F22945 Contact Us For Availability
28
SUPPORT MTG RT WPL 3801F23045 Contact Us For Availability
29
RISER DUCT WPL 4006D11945 Contact Us For Availability
30
GASKET, FLUE TOP WPL 7201P04860 Contact Us For Availability
30
GASKET, FLUE BOTTOM WPL 7201P04960 Contact Us For Availability
× ![]()
Login and Registration Form
