Model Maytag A4TXCGFBW01 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET

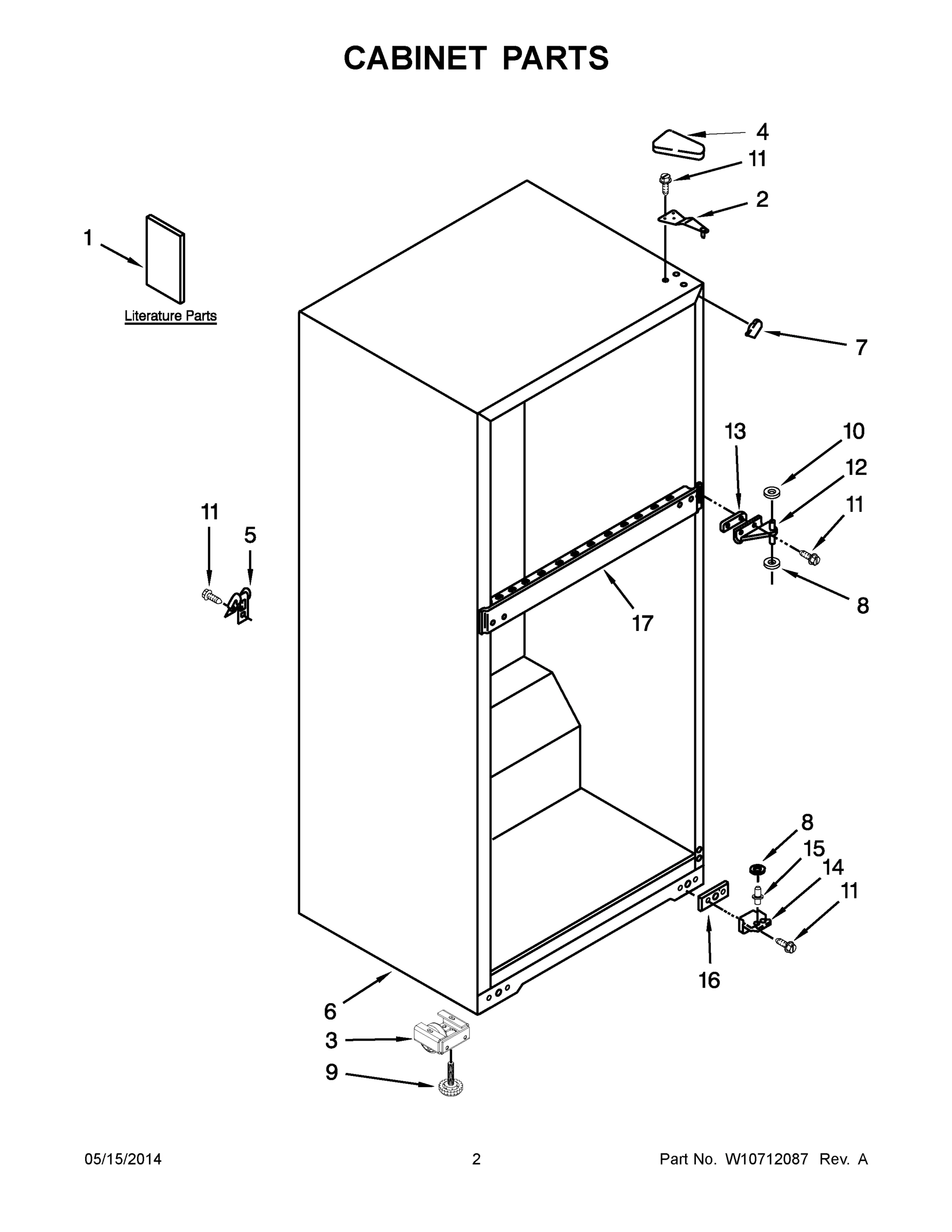

02 - CABINET PARTS

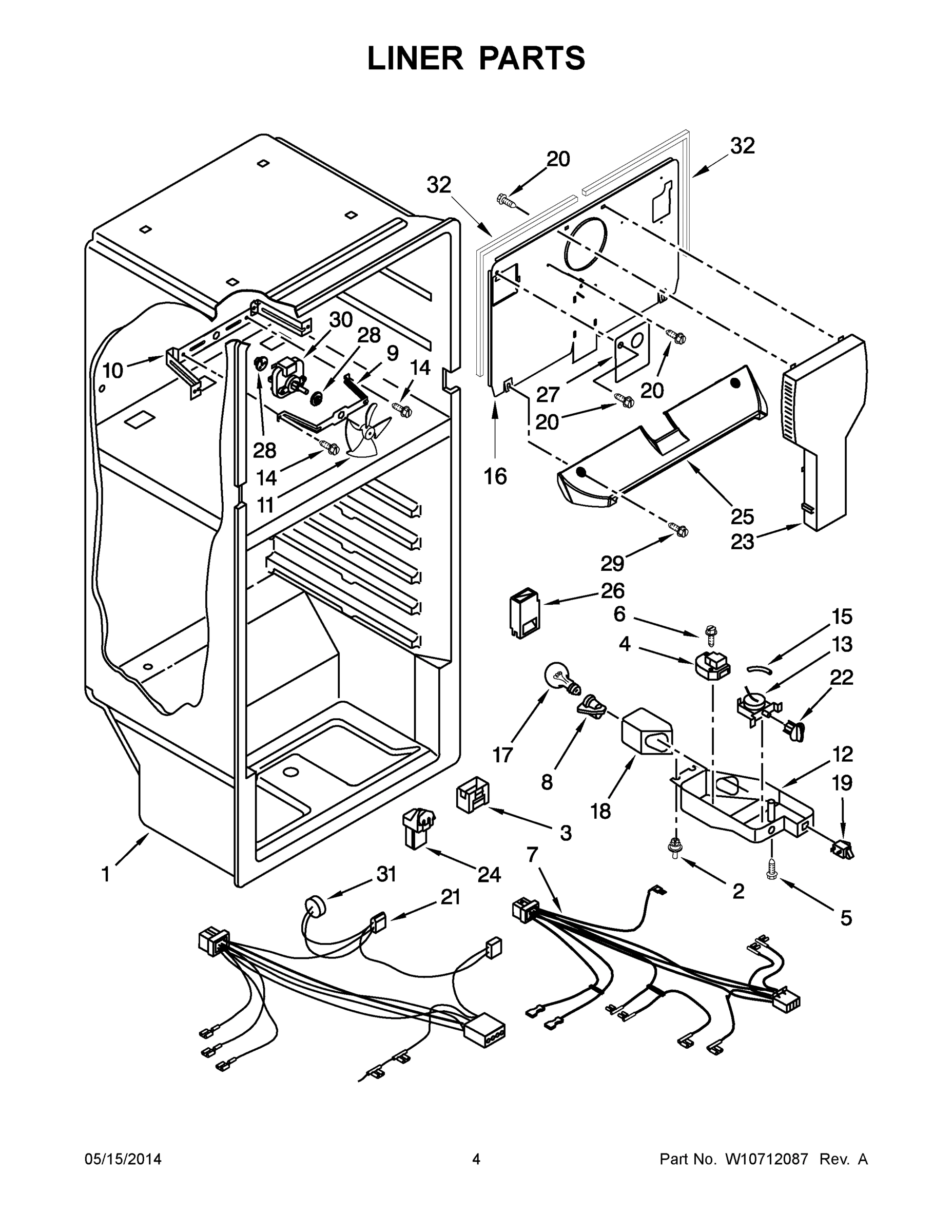

03 - LINER PARTS

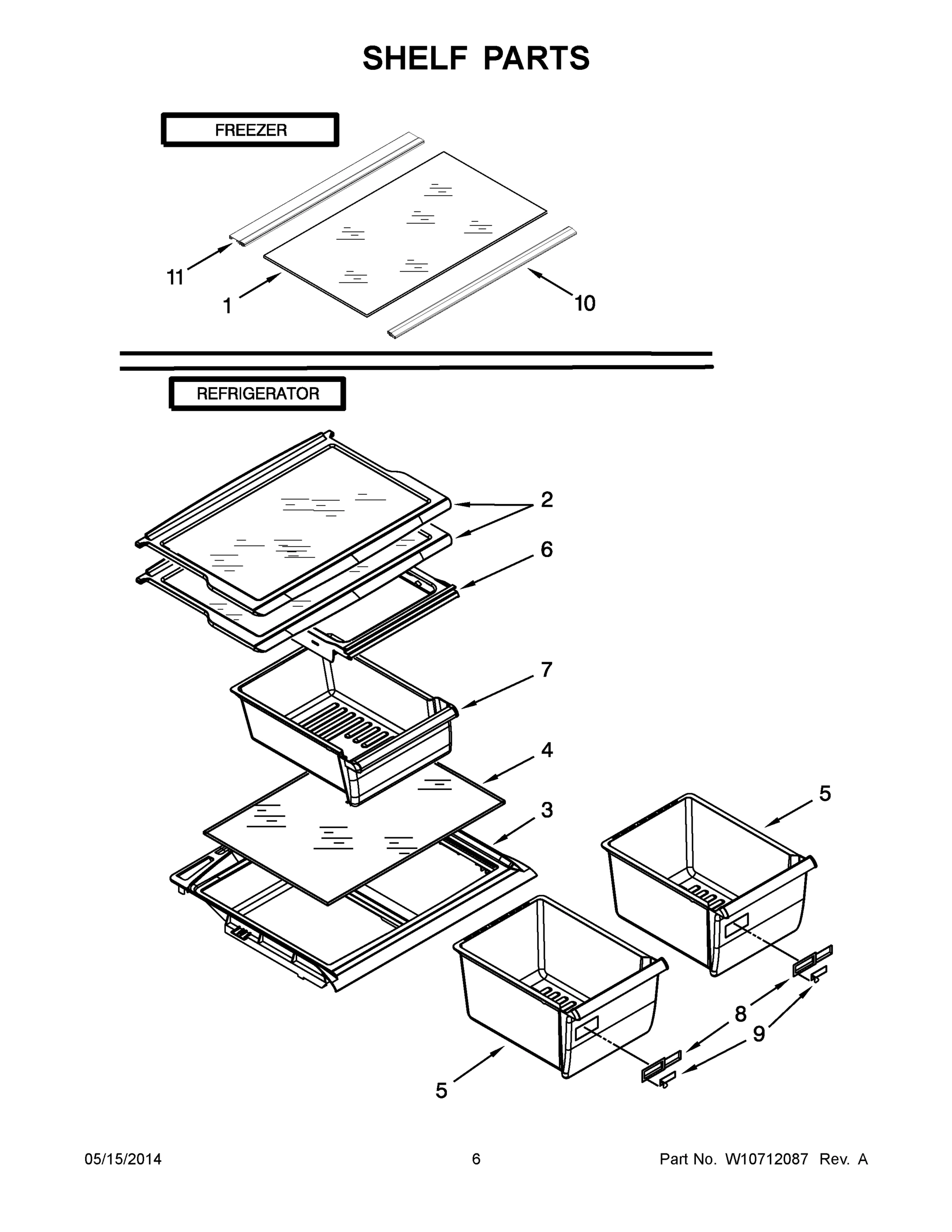

04 - SHELF PARTS

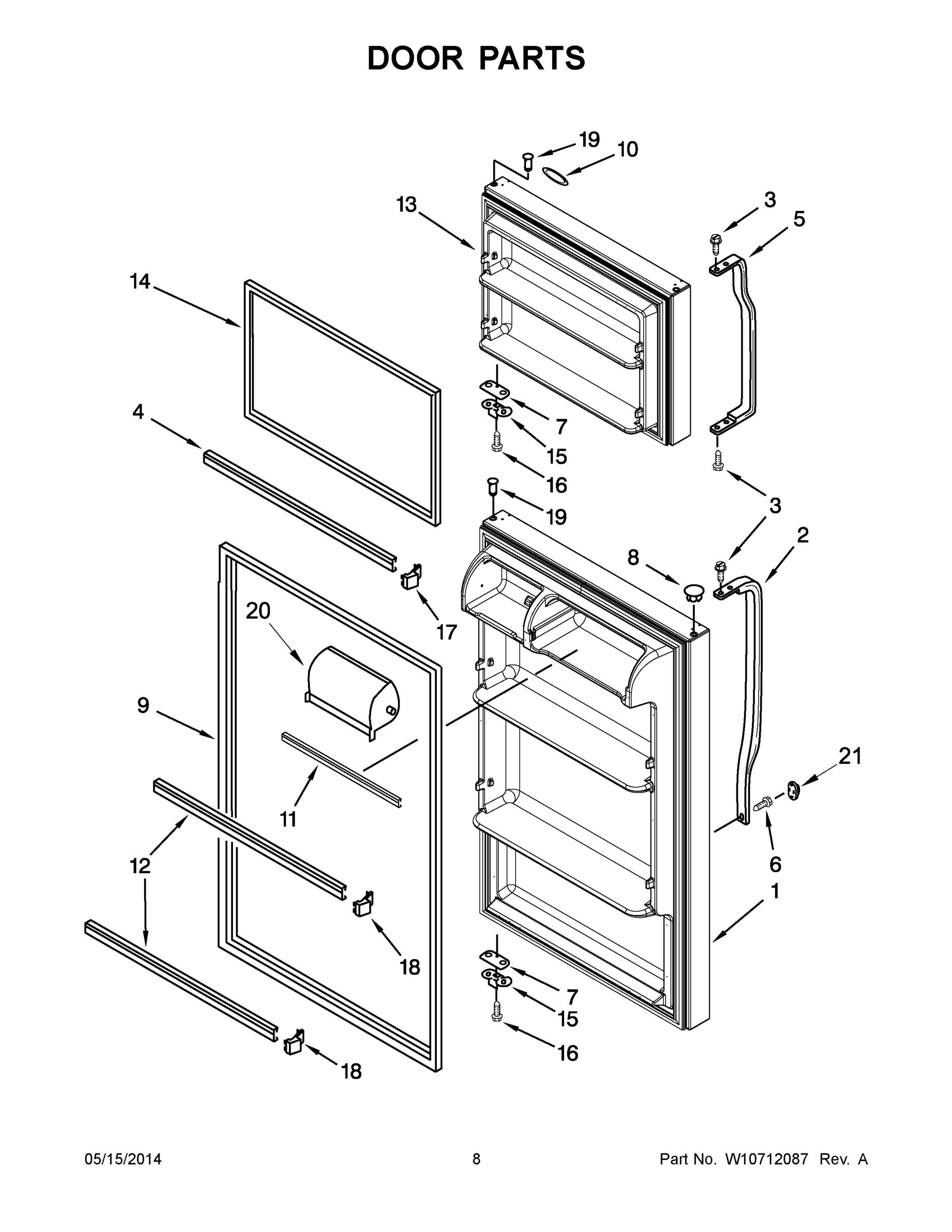

05 - DOOR PARTS

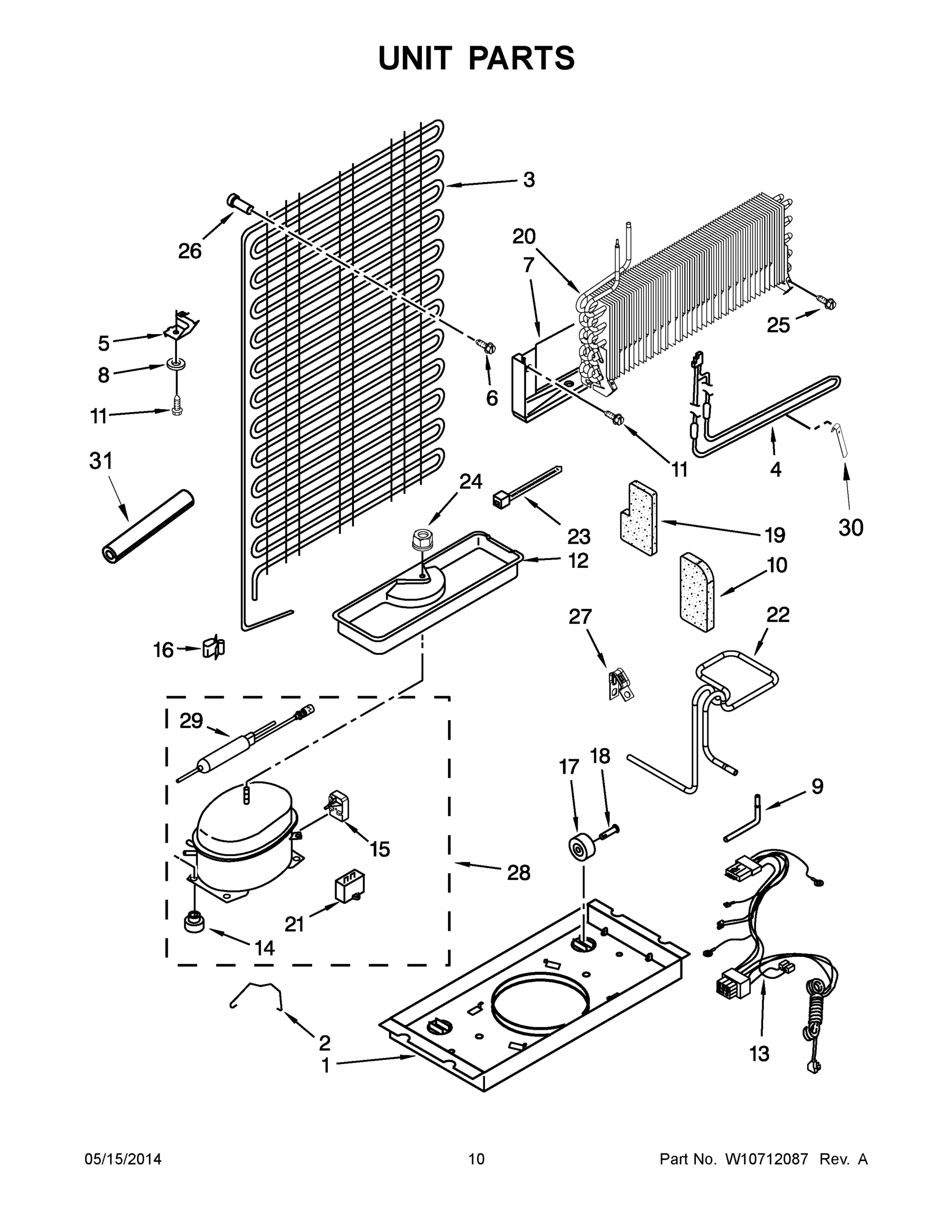

06 - UNIT PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag A4TXCGFBW01 REFRIGERATOR
1
USE AND CARE GUIDE MAY W10214129 Contact Us For Availability
1
MAY W10488103 MAY W10488103 Contact Us For Availability
1
MAY W10565983 MAY W10565983 Contact Us For Availability
1
SHELF, GLASS MAY W10283872 Contact Us For Availability
1
MAY W10287760 MAY W10287760 Contact Us For Availability
1
PLATE, COMPRESSOR SUPPORT MAY W10222451 Contact Us For Availability
2
ASSEMBLY, TOP HINGE MAY 2261963 Contact Us For Availability
2
RIVET, PLASTIC MAY 939962 Contact Us For Availability
2
ASSEMBLY, SHELF MAY 2263643 Contact Us For Availability
2
HANDLE, RC (WHITE) MAY 2221946W Contact Us For Availability
2
STRAP, BALE MAY 2212996 Contact Us For Availability
3
MAY W10142530 MAY W10142530 Contact Us For Availability
3
MAY 2183061 MAY 2183061 Contact Us For Availability
3
MAY 2222031 MAY 2222031 Contact Us For Availability
3
MAY 489357 MAY 489357 Contact Us For Availability
3
MAY W10219348 MAY W10219348 Contact Us For Availability
4
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
4
MAY 2188371 MAY 2188371 Contact Us For Availability
4
MAY 2262441 MAY 2262441 Contact Us For Availability
4
MAY 2266727 MAY 2266727 Contact Us For Availability
4
MAY 2263749 MAY 2263749 Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
PAN, CRISPER MAY 2256704 Contact Us For Availability
5
Handle, FC (White) MAY 2202098 Contact Us For Availability
5
CLIP, CONDENSER MAY 2172892 Contact Us For Availability
6
Screw MAY 488693 Contact Us For Availability
6
MAY 2256601 MAY 2256601 Contact Us For Availability
6
MAY 8281206 MAY 8281206 Contact Us For Availability
6
MAY 8533892 MAY 8533892 Contact Us For Availability
7
MAY 2166003 MAY 2166003 Contact Us For Availability
7
ASSEMBLY, CONTROL BOX WIRE MAY 2265929 Contact Us For Availability
7
MAY 2261934 MAY 2261934 Contact Us For Availability
7
Shim, Door Stop (White) MAY 2258681W Contact Us For Availability
7
SHIELD, HEAT MAY 2319224 Contact Us For Availability
8
Washer, Plastic MAY 487576 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY 2212446 MAY 2212446 Contact Us For Availability
8
Hole Plug (White) MAY 2212648 Contact Us For Availability
8
MAY VS611 MAY VS611 Contact Us For Availability
9
MAY W10133299 MAY W10133299 Contact Us For Availability
9
MAY W10180172 MAY W10180172 Contact Us For Availability
9
Slide, Humidity Control MAY 2176222 Contact Us For Availability
9
DOOR GASKET (BEIGE) MAY W10190033 Contact Us For Availability
9
MAY VS20001 MAY VS20001 Contact Us For Availability
10
WASHER, PLASTIC MAY 489341 Contact Us For Availability
10
BRACKET, FAN MOUNTING MAY 2197405 Contact Us For Availability
10
TRIM, SHELF (FRONT) MAY W10272379 Contact Us For Availability
10
NAMEPLATE (SILVER) MAY 2325418 Contact Us For Availability
10
MAY 2262192 MAY 2262192 Contact Us For Availability
11
MAY 489497 MAY 489497 Contact Us For Availability
11
MAY 2169142 MAY 2169142 Contact Us For Availability
11
MAY W10272382 MAY W10272382 Contact Us For Availability
11
TRIM, DOOR MAY W10234242 Contact Us For Availability
11
MAY 489442 MAY 489442 Contact Us For Availability
12
ASSEMBLY, HINGE (CENTER) MAY 2166086 Contact Us For Availability
12
MAY 2264013 MAY 2264013 Contact Us For Availability
12
TRIM, DOOR MAY 2266738 Contact Us For Availability
12
TRAY, EVAPORATOR MAY W10174378 Contact Us For Availability
13
SHIM, HINGE CENTER (WHITE) MAY 2166043 Contact Us For Availability
13
MAY W10567140 MAY W10567140 Contact Us For Availability
13
MAY W10287763 MAY W10287763 Contact Us For Availability
13
ASSEMBLY, UNIT WIRE MAY W10151654 Contact Us For Availability
14
MAY 2325482 MAY 2325482 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
DOOR GASKET (BEIGE) MAY W10190031 Contact Us For Availability
14
MAY 2264447 MAY 2264447 Contact Us For Availability
15
PIN, HINGE (BOTTOM) MAY 2325483 Contact Us For Availability
15
TUBE, THERMOSTAT BARRIER MAY 1118680 Contact Us For Availability
15
MAY 2189202 MAY 2189202 Contact Us For Availability
15
START DEVICE, MAY W10399283 Contact Us For Availability
16
SHIM HINGE, BOTTOM MAY 2201567 Contact Us For Availability
16
MAY W10244012 MAY W10244012 Contact Us For Availability
16
MAY 8533904 MAY 8533904 Contact Us For Availability
16
CLIP, WIRE (COMPRESSOR) MAY 939054 Contact Us For Availability
17
Bulb, Light MAY 527949 Contact Us For Availability
17
END CAP, TRIM MAY 2156003 Contact Us For Availability
17
MAY W10475495 MAY W10475495 Contact Us For Availability
18
SHIELD, LIGHT MAY 9791702 Contact Us For Availability
18
CAP, DOOR TRIM END MAY 2195916 Contact Us For Availability
18
AXLE, ROLLER MAY 2264756 Contact Us For Availability
19
Switch, Rocker Arm MAY 1118894 Contact Us For Availability
19
MAY 2262054 MAY 2262054 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
20
MAY 2207942 MAY 2207942 Contact Us For Availability
20
ASSEMBLY, EVAPORATOR MAY 2263919 Contact Us For Availability
21
ASSEMBLY, FREEZER WIRE MAY W10290501 Contact Us For Availability
21
Cover, Screw (White) MAY 2202819W Contact Us For Availability
21
CAPACITOR MAY 2252799 Contact Us For Availability
22
KNOB, CONTROL MAY 2202885 Contact Us For Availability
22
MAY W10442467 MAY W10442467 Contact Us For Availability
23
TOWER, AIR MAY 9790408 Contact Us For Availability
23
TIE, WIRE MAY 2263990 Contact Us For Availability
24
ASSEMBLY, HOOD AND FOIL MAY 2197052 Contact Us For Availability
24
NUT, HEX MAY 489153 Contact Us For Availability
25
MAY 489478 MAY 489478 Contact Us For Availability
25
COVER, AIR RETURN (FREEZER) MAY 2261978 Contact Us For Availability
26
ASSEMBLY, AIR DIFFUSER MAY 2221992 Contact Us For Availability
26
SPACER, CONDENSER MAY 2258452 Contact Us For Availability
27
Clamp, Power Cord MAY 549193 Contact Us For Availability
27
MAY 2217784 MAY 2217784 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
COMPRESSOR (ALSO ORDER 482801 INSTALLATION KI MAY W10399120 Contact Us For Availability
29
MAY 2262178 MAY 2262178 Contact Us For Availability
29
MAY W10190413 MAY W10190413 Contact Us For Availability
30
MOTOR, FAN MAY W10188389 Contact Us For Availability
30
MAY 2258429 MAY 2258429 Contact Us For Availability
31
BI-METAL, DEFROST MAY 2266067 Contact Us For Availability
31
MAY 2161302 MAY 2161302 Contact Us For Availability
32
GASKET, EVAP COVER MAY W10244016 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 2155469A MAY 2155469A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3`` X 24`` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
