Model Whirlpool A3478XRW GAS RANGE – Common Parts & Diagrams
04 - GAS CONTROLS

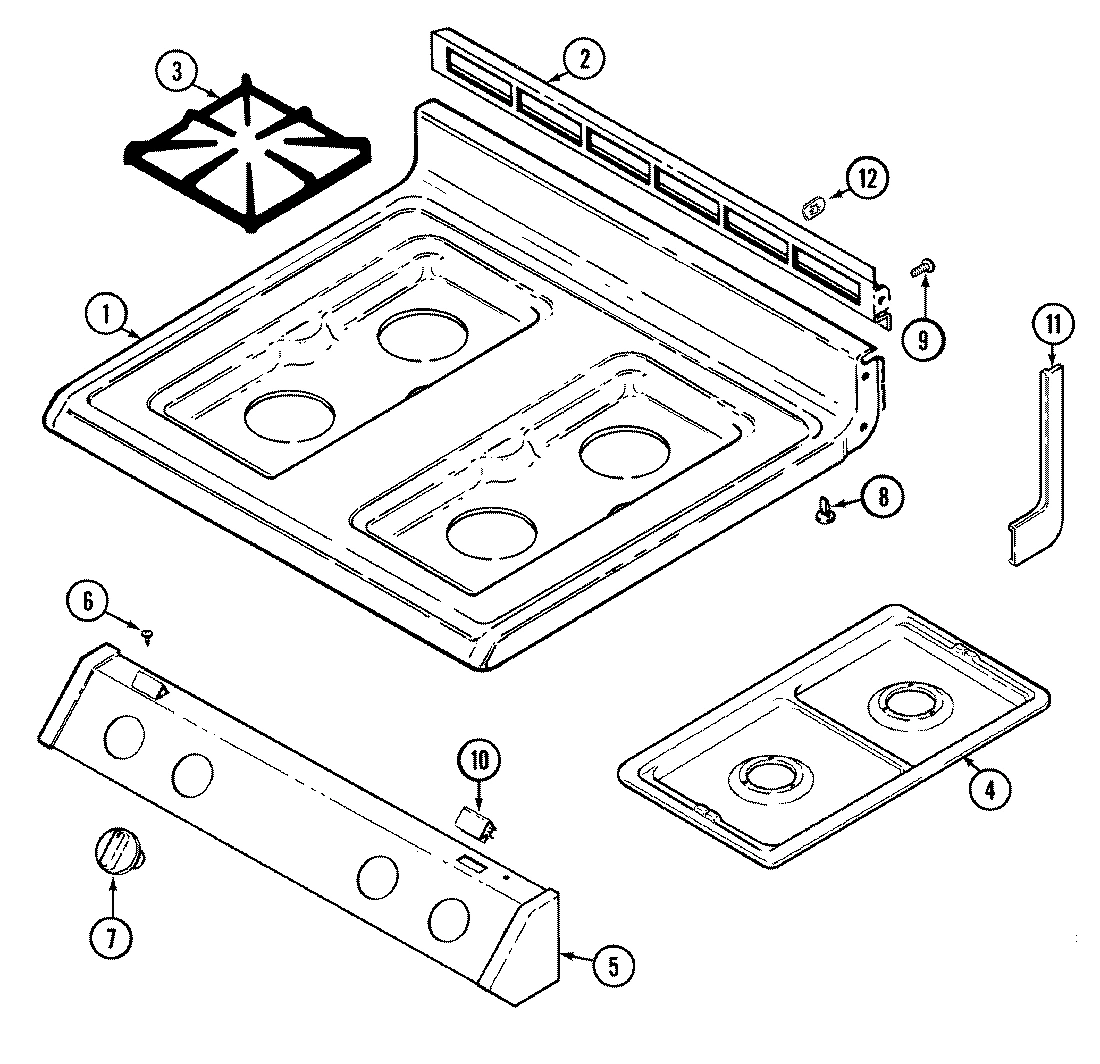

06 - TOP ASSEMBLY

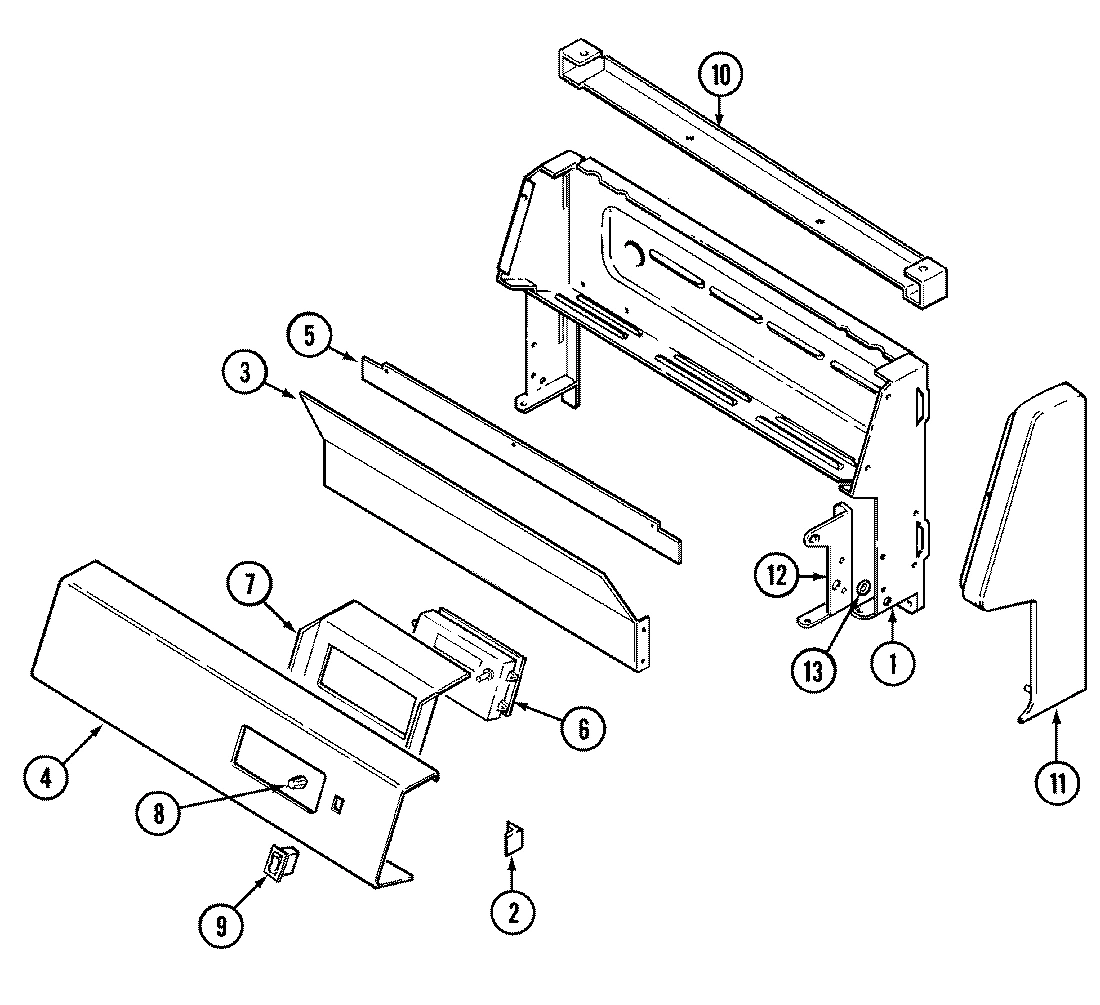

02 - CONTROL PANEL

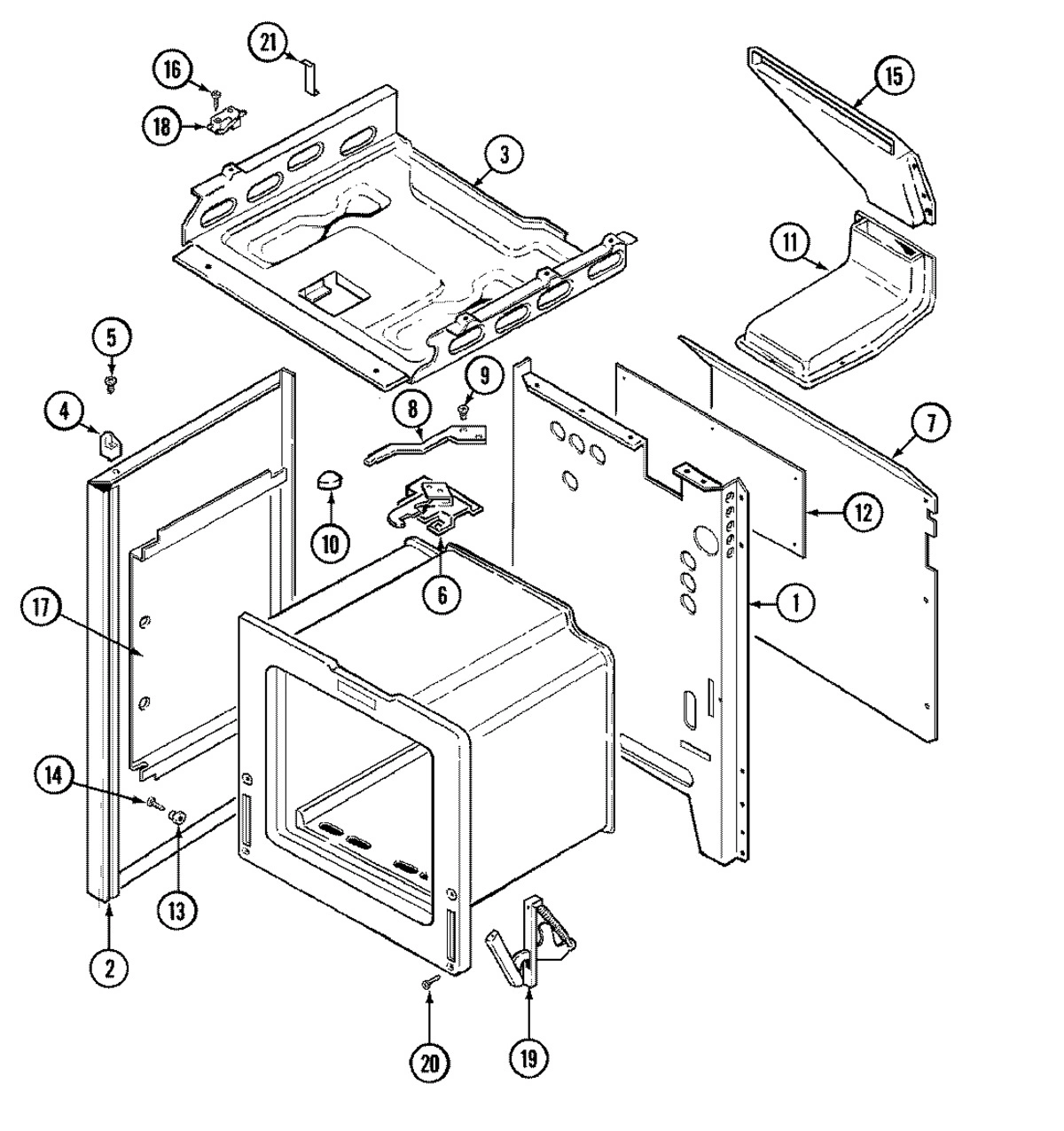

01 - BODY

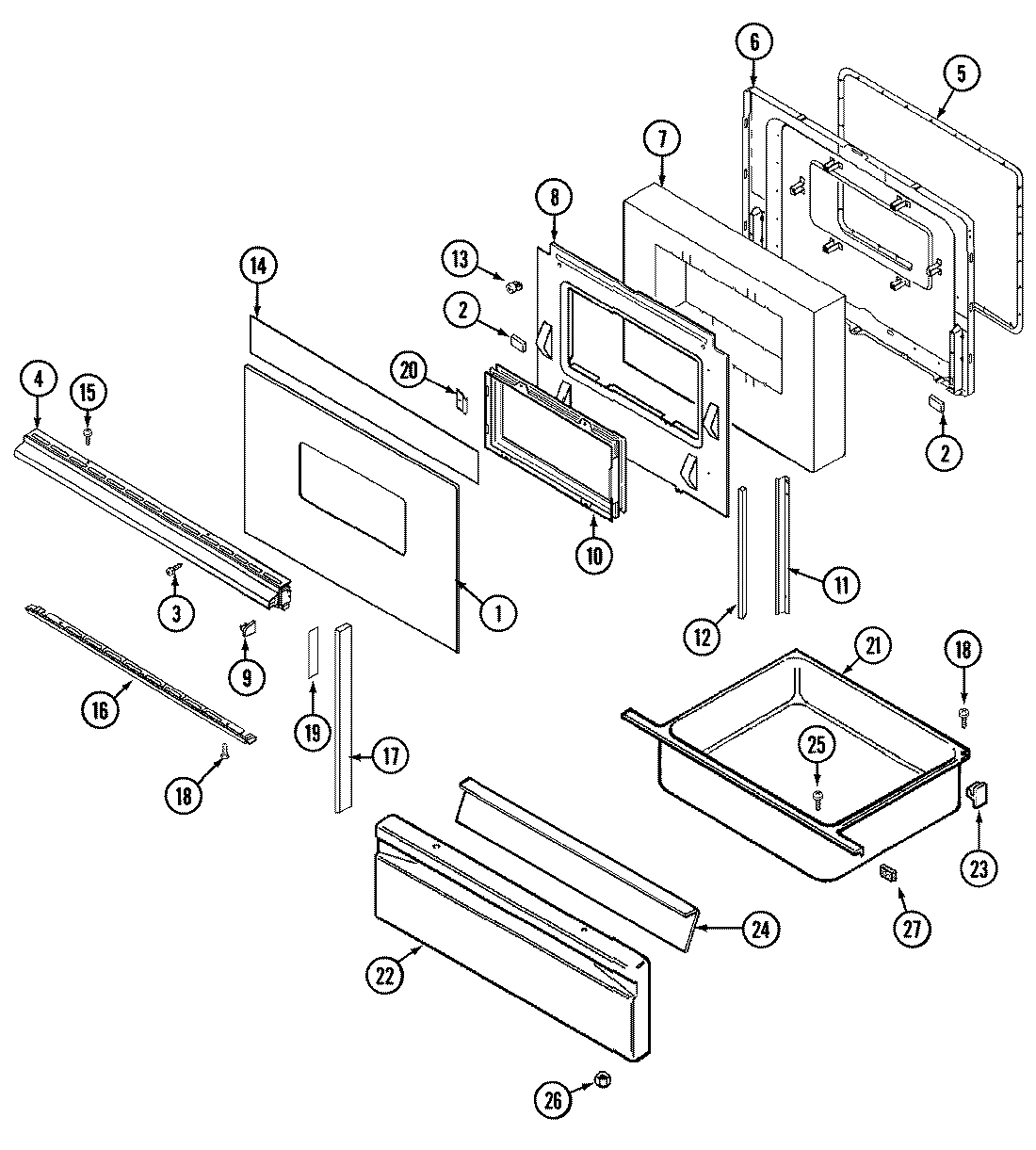

03 - DOOR/DRAWER

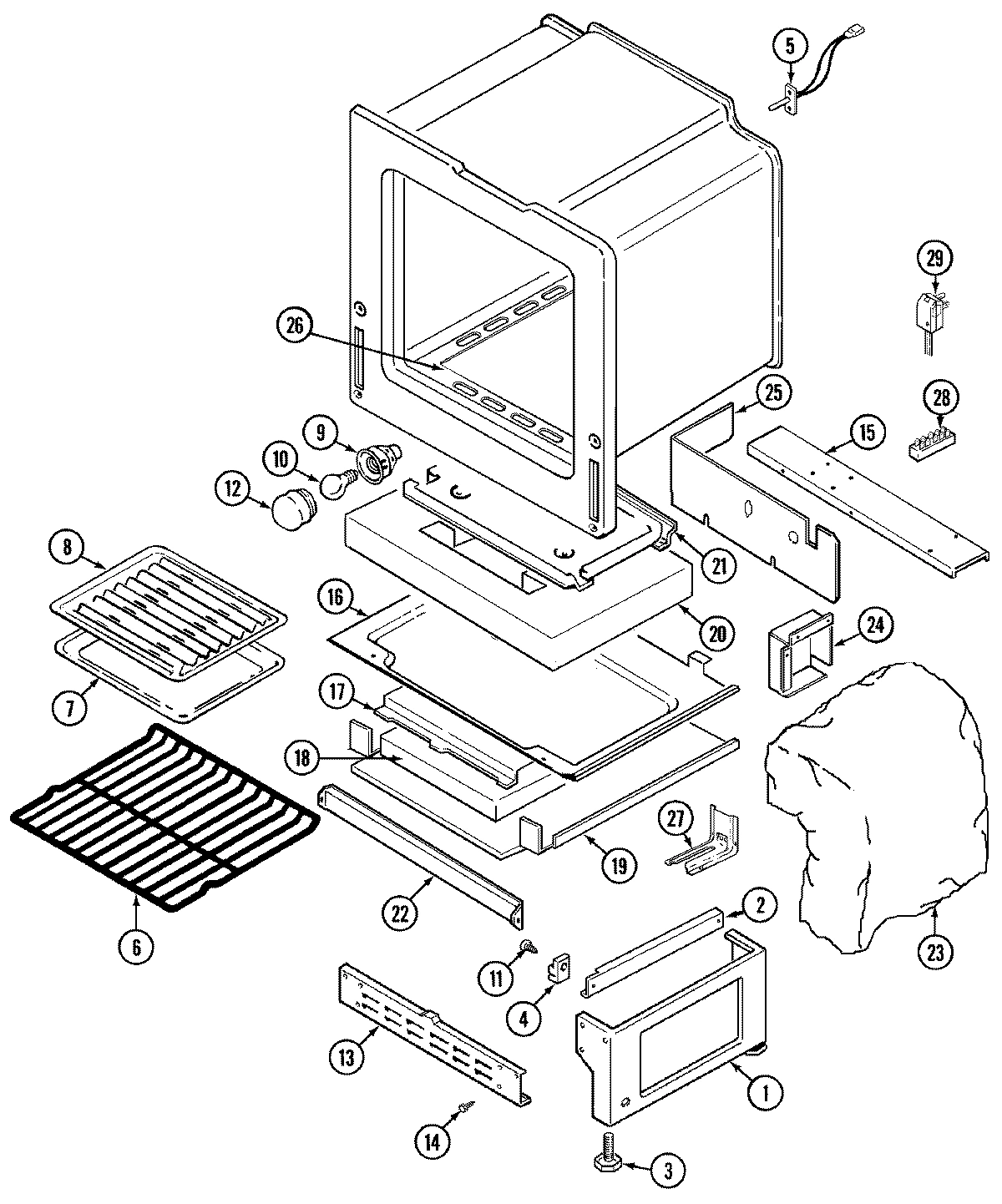

05 - OVEN/BASE
Common parts from model Whirlpool A3478XRW GAS RANGE
1
VALVE, TOP BURNER WPL 7502P21760 Contact Us For Availability
1
VALVE, BURNER WPL 7502P25060 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001W08581 Contact Us For Availability
1
HOUSING, BACKGUARD WPL 4001F08851 Contact Us For Availability
1
BACK, MAIN WPL 4002F19980 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
PEDESTAL (SIDES) WPL 74001705 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
3
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
3
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011F21080 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
3
LEG, LEVELING WPL 74001311 Contact Us For Availability
4
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A43360 Contact Us For Availability
4
PANEL, CONTROL ASSY WPL 4851S00459 Contact Us For Availability
4
PANEL, CONTROL ASSY WPL 4851S01059 Contact Us For Availability
4
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
4
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
4
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
5
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 7712P19060 Contact Us For Availability
5
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
6
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
6
SCREW WPL 7101P32960 Contact Us For Availability
6
RELAY WPL 7428P01260 Contact Us For Availability
6
CLOCK WPL 7601P16960 Contact Us For Availability
6
CLOCK WPL 7601P20860 Contact Us For Availability
6
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
6
LATCH ASSY. WPL 8002P02460 Contact Us For Availability
6
LINING, DOOR WPL 2402W20919 Contact Us For Availability
6
RACK, OVEN WPL 7801P04760 Contact Us For Availability
7
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
7
KNOB, VALVE WPL 7733P07860 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F26345 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F31045 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F33151 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F05160 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
GLIDE WPL 8016P01360 Contact Us For Availability
8
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
8
LEVER LOCK WPL 8009P01560 Contact Us For Availability
8
BAFFLE WPL 3601F23645 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
9
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
9
END CAP (RT) WPL 7744P07560 Contact Us For Availability
9
END CAP (LT) WPL 7744P07660 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
10
SCREW WPL 7101P32860 Contact Us For Availability
10
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
10
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
10
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
10
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
11
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
11
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
11
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
11
END CAP (LT-BLK) WPL 7726P05960 Contact Us For Availability
11
END CAP (RT-BLK) WPL 7726P06060 Contact Us For Availability
11
BOX, VENT WPL 4006W11345 Contact Us For Availability
11
SCREW WPL 7101P10360 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
12
SCREW WPL 7101P31560 Contact Us For Availability
12
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
12
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
12
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
13
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
13
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
13
NUT, SPEED WPL 7103P04460 Contact Us For Availability
13
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
13
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
14
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
14
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
14
SCREW WPL 7101P29060 Contact Us For Availability
15
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
15
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
SUPPORT, VALVE & REGULATOR WPL 3807F47651 Contact Us For Availability
16
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
16
SCREW WPL 7101P03160 Contact Us For Availability
16
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
16
RETAINER, INSULATION WPL 3804F11247 Contact Us For Availability
17
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
17
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
17
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
17
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
17
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
18
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
18
BRACKET, SWITCH WPL 3801F26745 Contact Us For Availability
18
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
19
REGULATOR, PRESSURE WPL 7510P06360 Contact Us For Availability
19
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
19
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
20
SUPPORT, SPARK MODULE WPL 3807F42151 Contact Us For Availability
20
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
20
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
20
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
21
ORIFICE FITTING ASSEMBLY WPL 5187D03460 Contact Us For Availability
21
ORIFICE FITTING ASSEMBLY WPL 5187D03560 Contact Us For Availability
21
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
21
DRAWER, STORAGE WPL 3405F01480 Contact Us For Availability
21
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
21
PAN, BAKE BURNER WPL 3401F02547 Contact Us For Availability
22
PANEL, DRAWER (WHT) WPL 2416F03862 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 3601F20845 Contact Us For Availability
23
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
23
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
23
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
24
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
24
SUPPORT, SPARK MODULE WPL 3807F47351 Contact Us For Availability
25
SCREW WPL 7101P07260 Contact Us For Availability
25
COVER, VALVE WPL 4005F42951 Contact Us For Availability
26
NUT, LOCK WPL 7103P08560 Contact Us For Availability
26
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
27
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
29
CORD, POWER WPL 7402P04360 Contact Us For Availability
NI
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
NI
WIRES, IGNITER WPL 5140D03560 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
HARNESS SENSOR WPL 5170P12360 Contact Us For Availability
NI
HARNESS CTRL TO RELAY WPL 5170P12460 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5170P16060 Contact Us For Availability
NI
HARNESS, WIRE CLOCK WPL 5180D14260 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5180D15260 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P01860 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P04660 Contact Us For Availability
× ![]()
