Model Whirlpool A3277XRA-N GAS RANGE – Common Parts & Diagrams

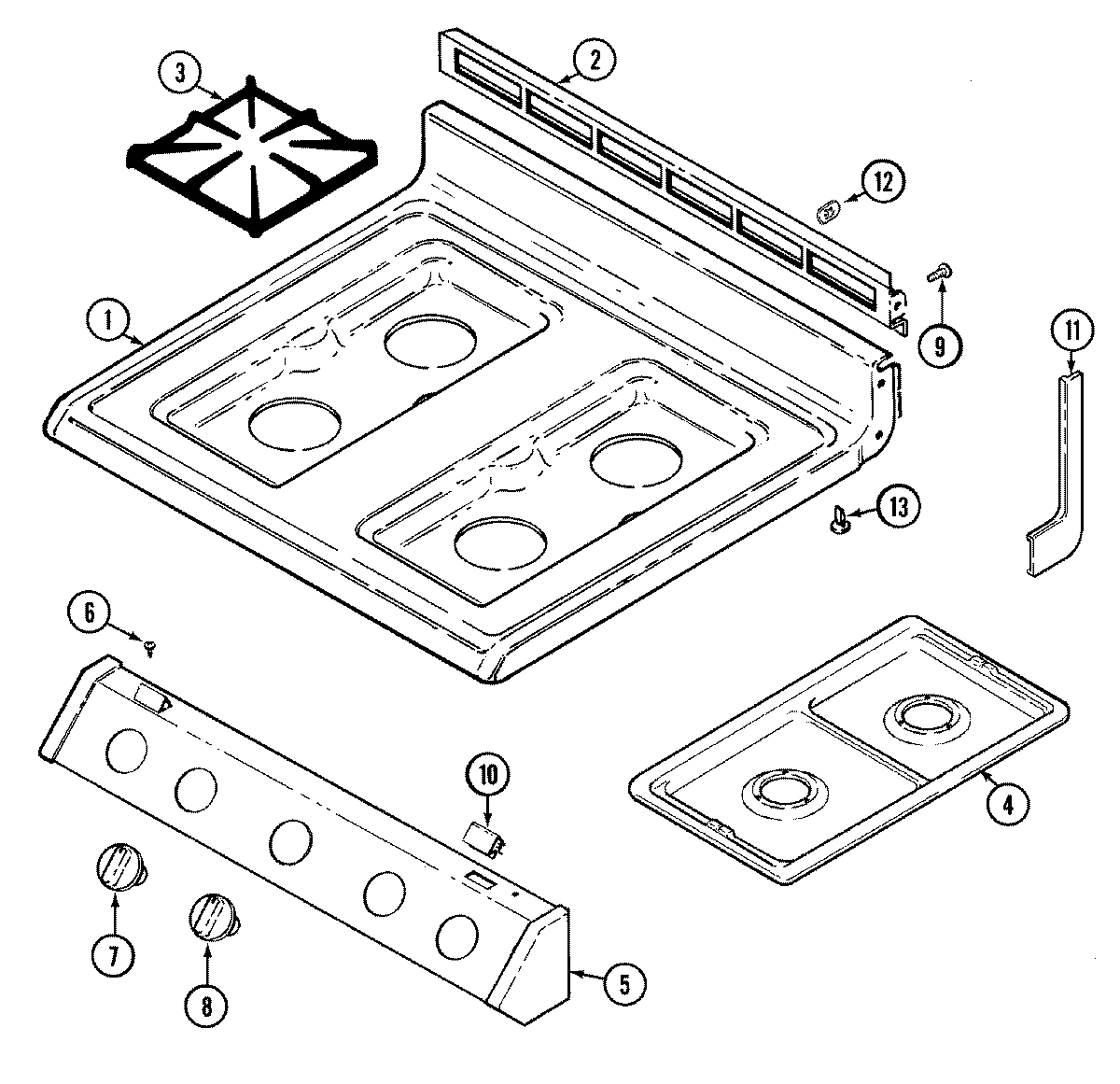

06 - TOP ASSEMBLY
02 - CONTROL PANEL

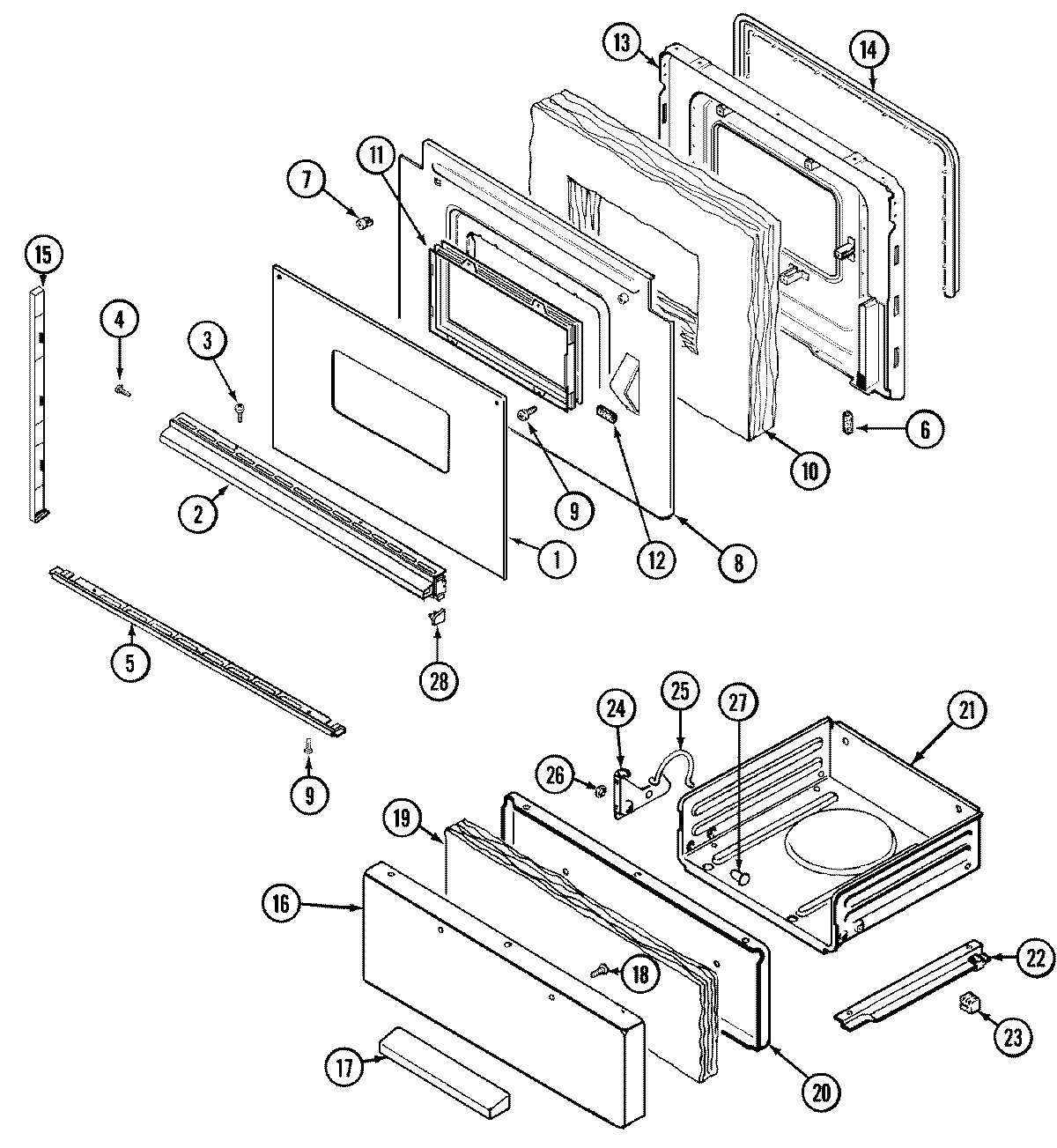

03 - DOOR/DRAWER

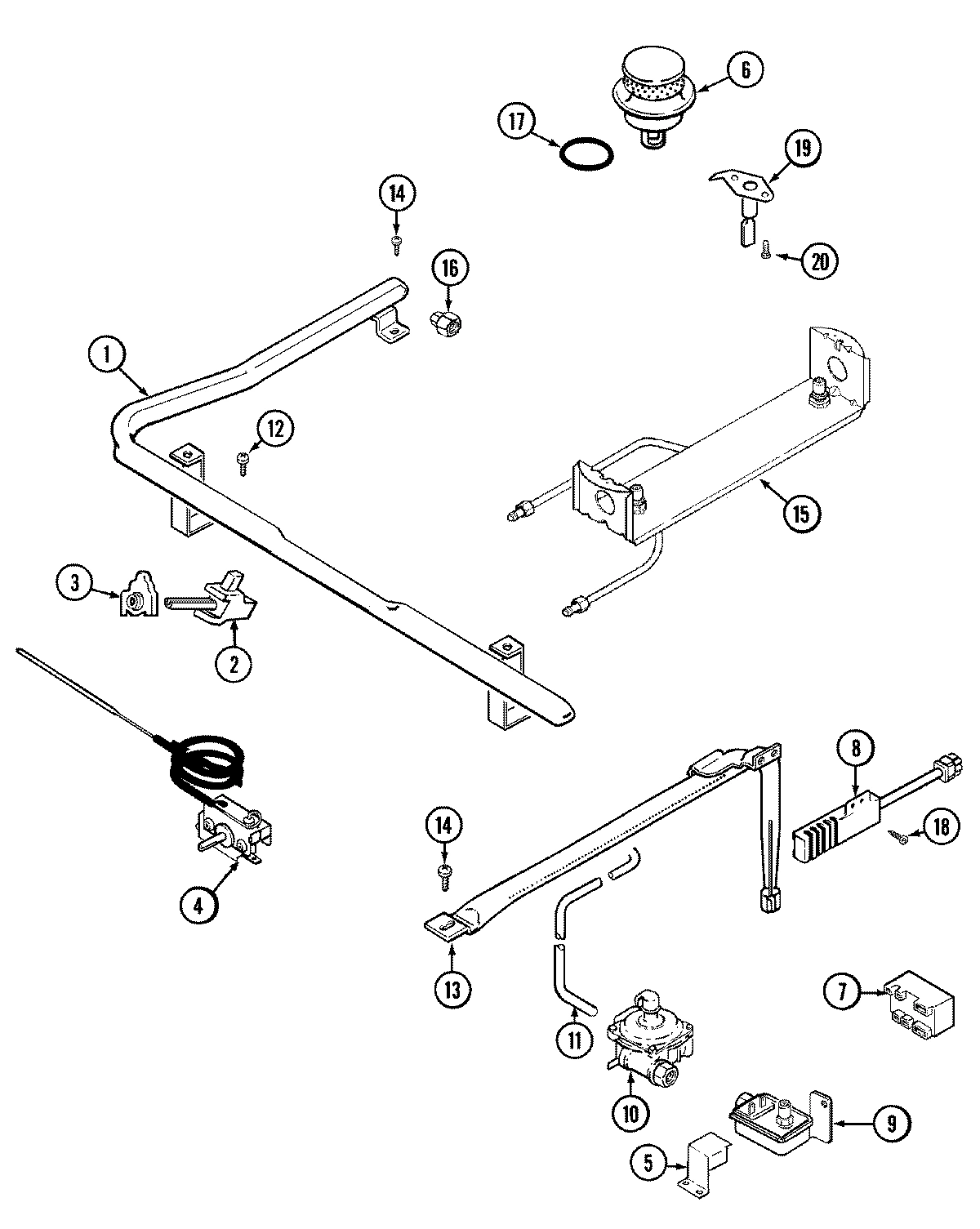

04 - GAS CONTROLS

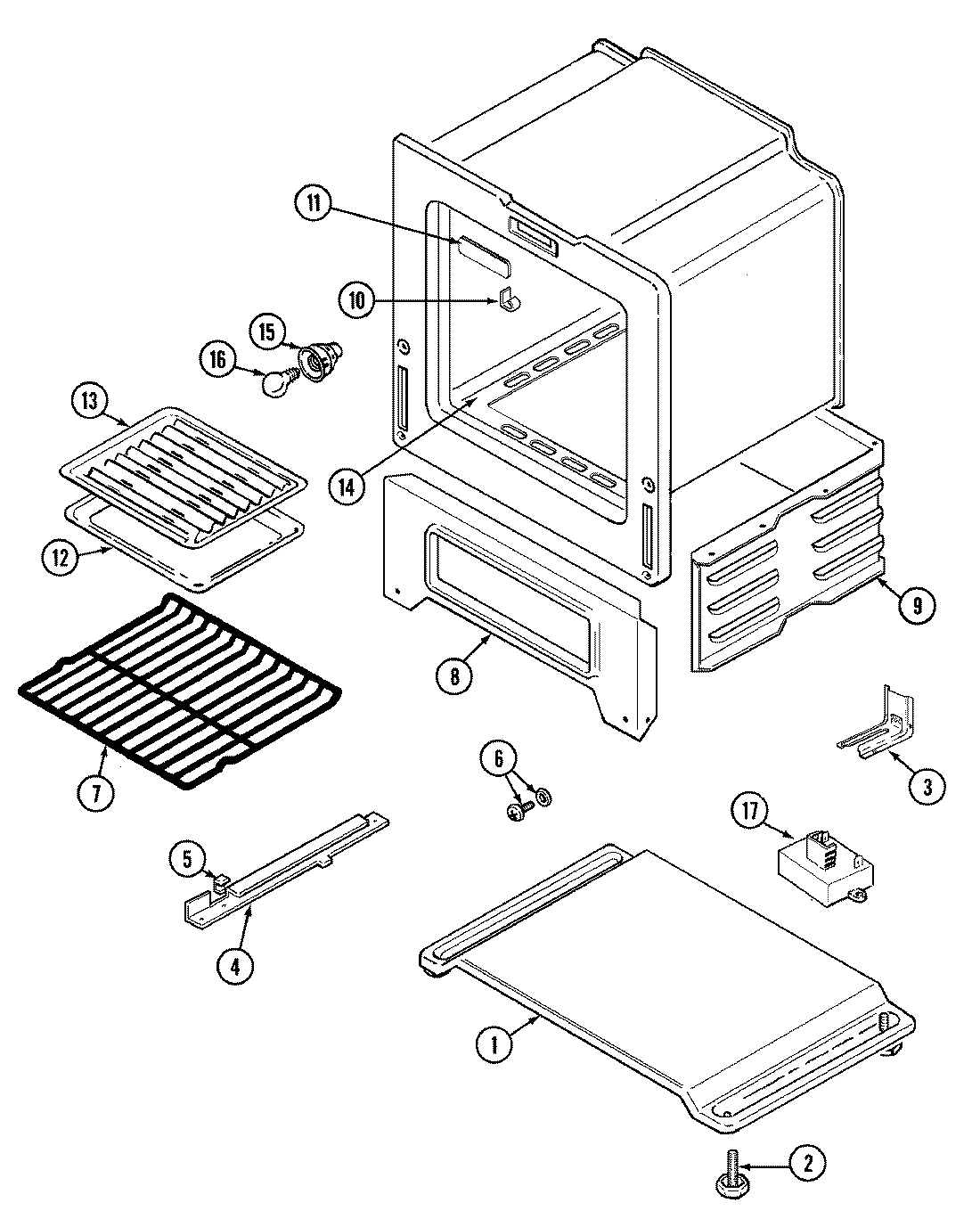

05 - OVEN/BASE

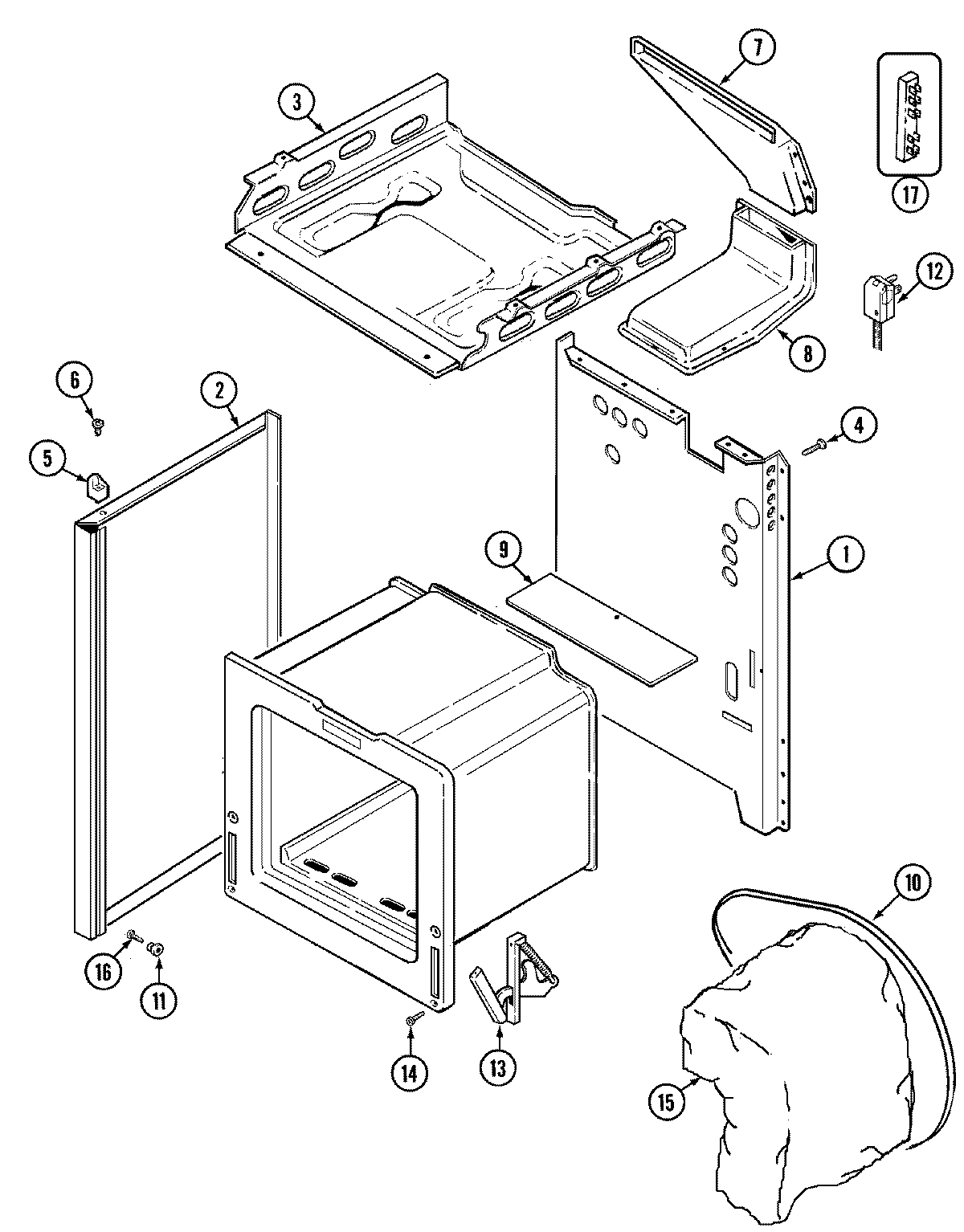

01 - BODY
Common parts from model Whirlpool A3277XRA-N GAS RANGE
1
TOP, MAIN (ALM) WPL 2001W08284 Contact Us For Availability
1
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09351 Contact Us For Availability
1
COVER, WIRE WPL 4005F44845 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
1
BASE WPL 4003W02867 Contact Us For Availability
1
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
1
NUT WPL 7103P12560 Contact Us For Availability
1
BACK, MAIN WPL 4002F18880 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P21960 Contact Us For Availability
2
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08564 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02300 Contact Us For Availability
3
KIT, CONTROL PANEL ASSY. WPL 12001090 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P63260 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
3
BOX, BURNER WPL 4011F22480 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
SCREW WPL 7101P32960 Contact Us For Availability
4
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
4
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
4
THERMOSTAT WPL 7404P08760 Contact Us For Availability
4
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
4
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 7712P13460 Contact Us For Availability
5
NUT, SPEED WPL 7103P12960 Contact Us For Availability
5
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
5
COVER, VALVE WPL 4005F43351 Contact Us For Availability
5
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
SHIELD WPL 8036P00160 Contact Us For Availability
6
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
6
SEALED BURNER ASSY. WPL 3412D01709 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
7
KNOB, THERMOSTAT WPL 7731P07660 Contact Us For Availability
7
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
7
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
7
NUT, NYLON WPL 7103P04560 Contact Us For Availability
7
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
7
MODULE, SPARK WPL 7431P02260 Contact Us For Availability
7
RACK WPL 7801P04060 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
7
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
8
KNOB, VALVE WPL 7733P07860 Contact Us For Availability
8
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
8
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
8
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05960 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P06060 Contact Us For Availability
9
SCREW WPL 7101P29060 Contact Us For Availability
9
VALVE, OVEN WPL 7501P13760 Contact Us For Availability
9
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
9
SUPPORT, OVEN BACK INSULATION WPL 3807F41651 Contact Us For Availability
10
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
10
SCREW WPL 7101P29360 Contact Us For Availability
10
CLOCK WPL 7602P11560 Contact Us For Availability
10
CLOCK (BLK) WPL 7602P11860 Contact Us For Availability
10
INSULATION, DOOR WPL 4804F03360 Contact Us For Availability
10
PIPE, NIPPLE WPL 7507P12360 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
11
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
11
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
11
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
11
BRACKET CLOCK SUPPORT WPL 3801F26645 Contact Us For Availability
11
BRACKET, CLOCK WPL 3801F34045 Contact Us For Availability
11
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
11
TUBING - REGULATOR & PIPE WPL 3414F10444 Contact Us For Availability
11
COVER LOCK SLOT WPL 8114P33660 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
12
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
12
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
CORD, POWER WPL 7402P04560 Contact Us For Availability
13
BUTTON, SET (BLK) WPL 7711P46860 Contact Us For Availability
13
LINING, OVEN DOOR WPL 2402W20316 Contact Us For Availability
13
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
HINGE, DOOR WPL 7106P04860 Contact Us For Availability
14
BUTTON, SLIDE (BLK) WPL 7711P46960 Contact Us For Availability
14
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
14
BAFFLE, OVEN BOTTOM WPL 3601F23945 Contact Us For Availability
14
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
14
SCREW WPL 7101P11560 Contact Us For Availability
15
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
15
ORIFICE FITTING ASSY WPL 5187D02560 Contact Us For Availability
15
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 4804F03160 Contact Us For Availability
15
INSULATION, OVEN WRAPPER WPL 4804F03260 Contact Us For Availability
16
PANEL, BROILER DRW (ALM) WPL 2403F02864 Contact Us For Availability
16
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
16
LAMP, OVEN WPL 7407P02760 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
17
HARNESS, CONTROL PANEL WPL 5180D13860 Contact Us For Availability
17
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
17
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
17
REGULATOR, VOLTAGE WPL 7510P04660 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
18
QUICK REF. GUIDE MASTERCARE WPL 16000328 Contact Us For Availability
18
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
18
SCREW WPL 7101P32860 Contact Us For Availability
19
MANUAL, USE & CARE WPL 16007436 Contact Us For Availability
19
MANUAL, USE & CARE WPL 8113P04960 Contact Us For Availability
19
INSULATION WPL 4804F02560 Contact Us For Availability
20
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
20
SCREW WPL 7101P31560 Contact Us For Availability
21
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
22
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
22
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
22
SCREW WPL 7101P06160 Contact Us For Availability
23
GLIDE WPL 8016P01360 Contact Us For Availability
23
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
24
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
24
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
25
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
25
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
26
NUT, GRIP WPL 7103P02260 Contact Us For Availability
27
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
28
END CAP (RT) WPL 7744P07560 Contact Us For Availability
28
END CAP (LT) WPL 7744P07660 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
NI
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
NI
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
NI
HARNESS, BURNER BOX WPL 5195D07860 Contact Us For Availability
× ![]()
