Model Whirlpool A31703PAWL GAS RANGE – Common Parts & Diagrams

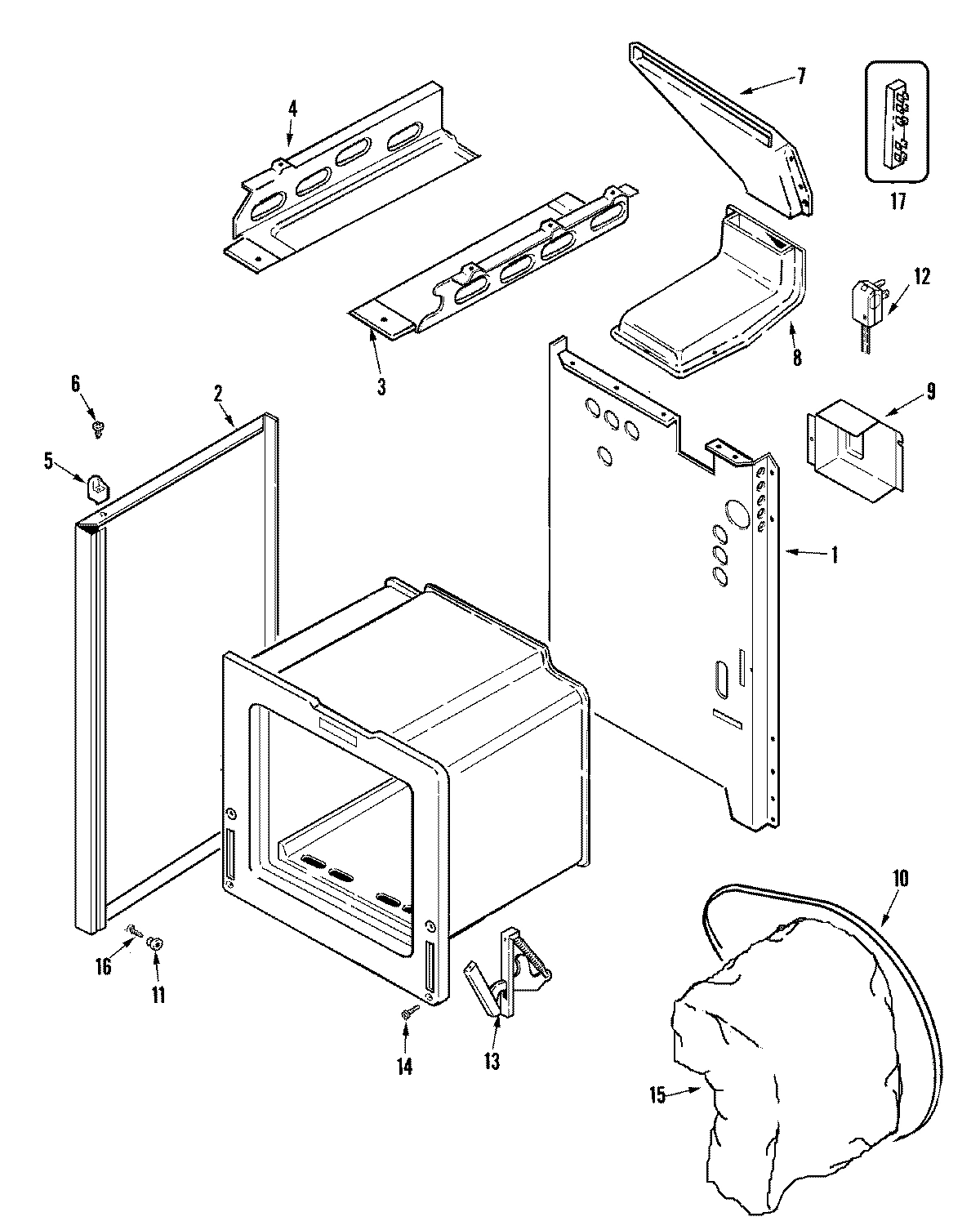

01 - BODY

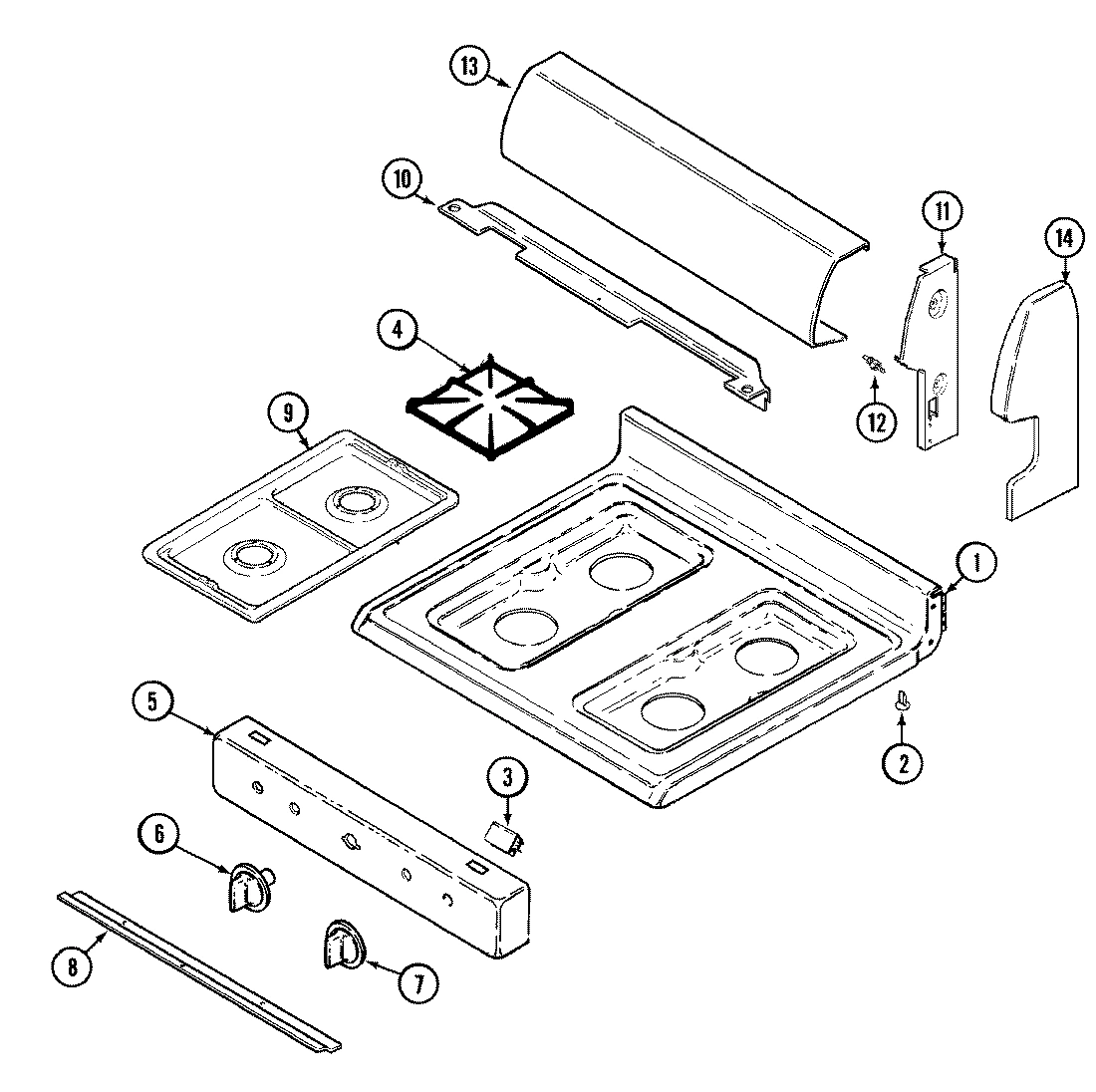

02 - CONTROL PANEL/TOP ASSEMBLY

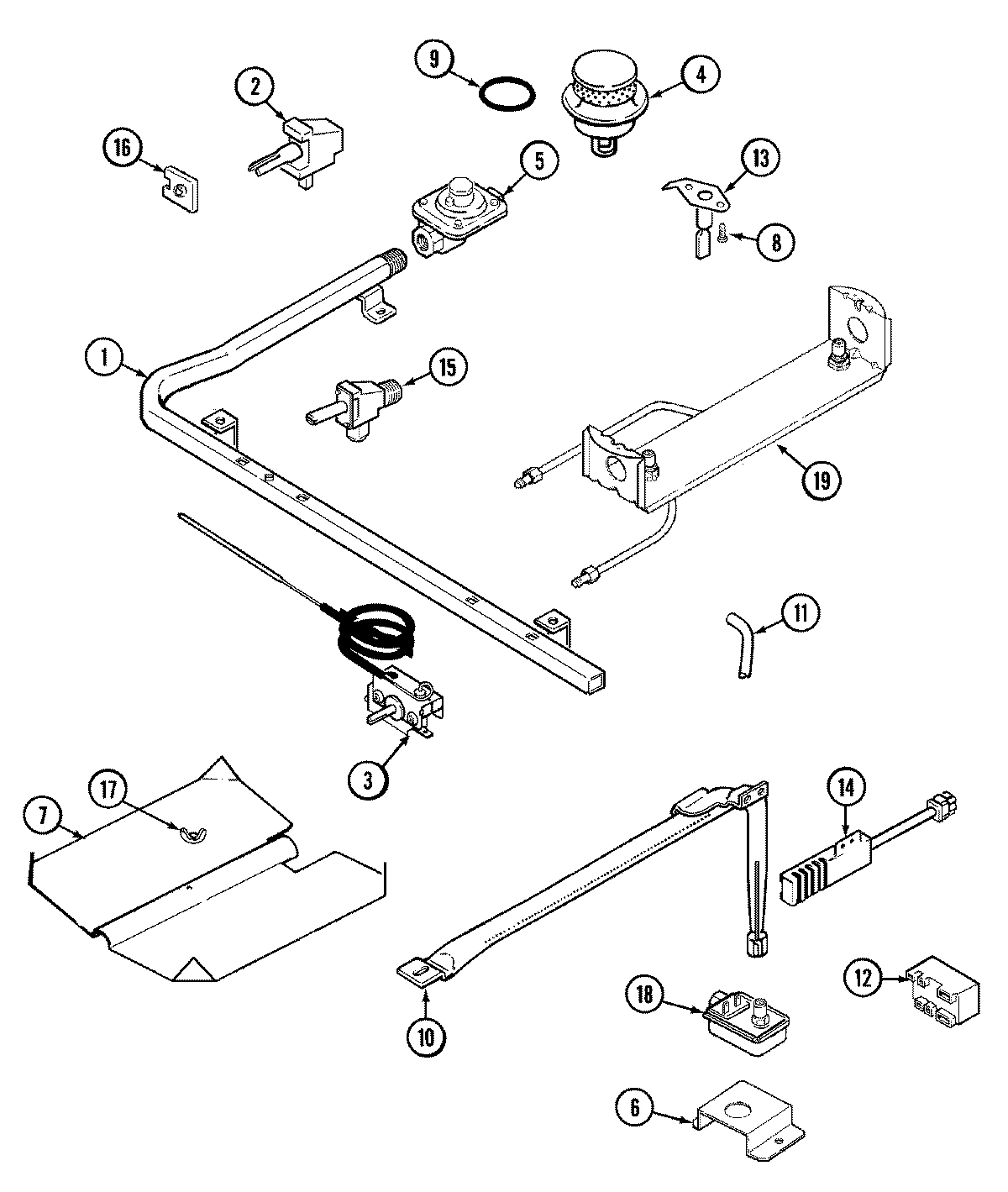

04 - GAS CONTROLS

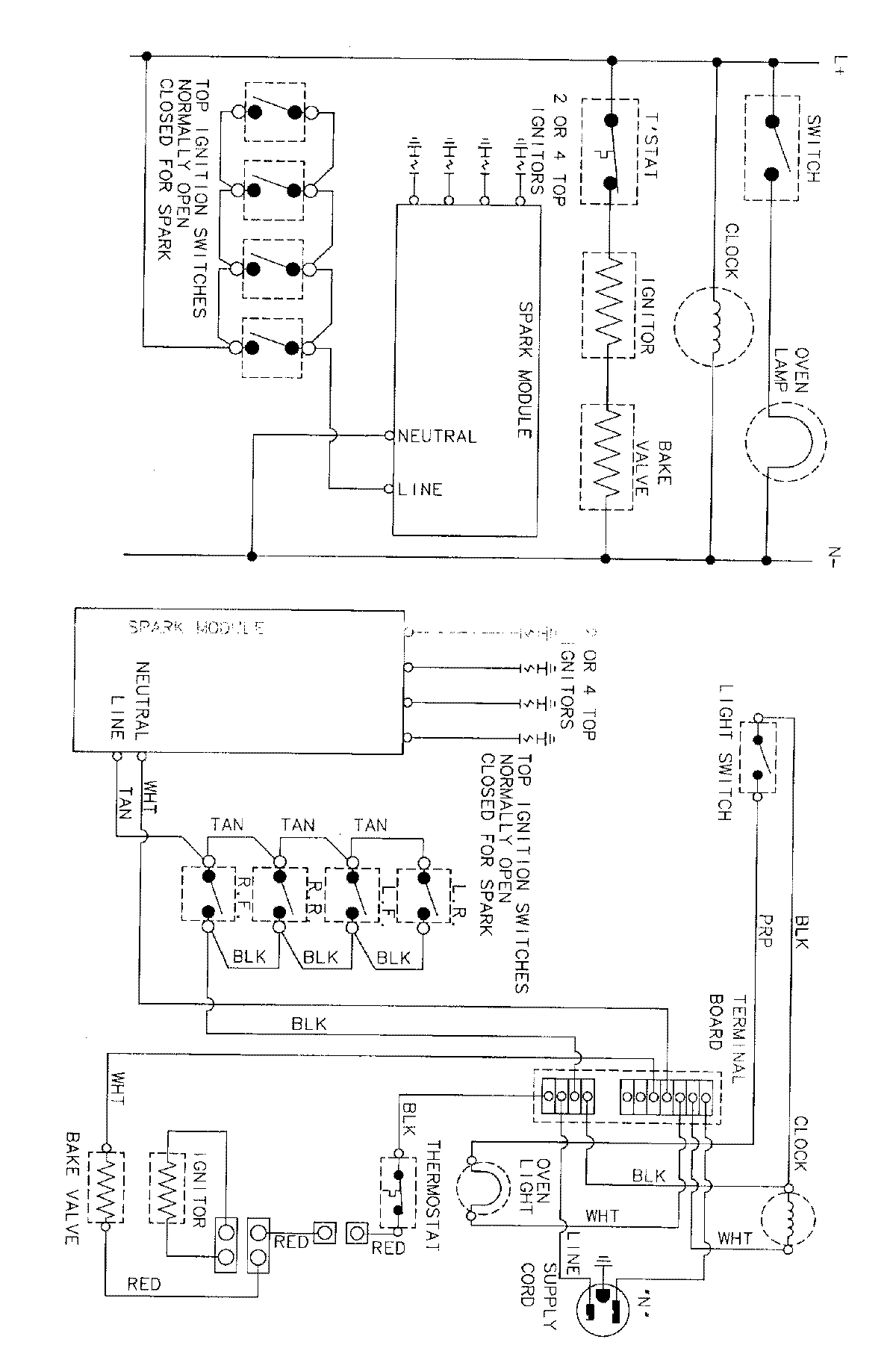

06 - WIRING INFORMATION

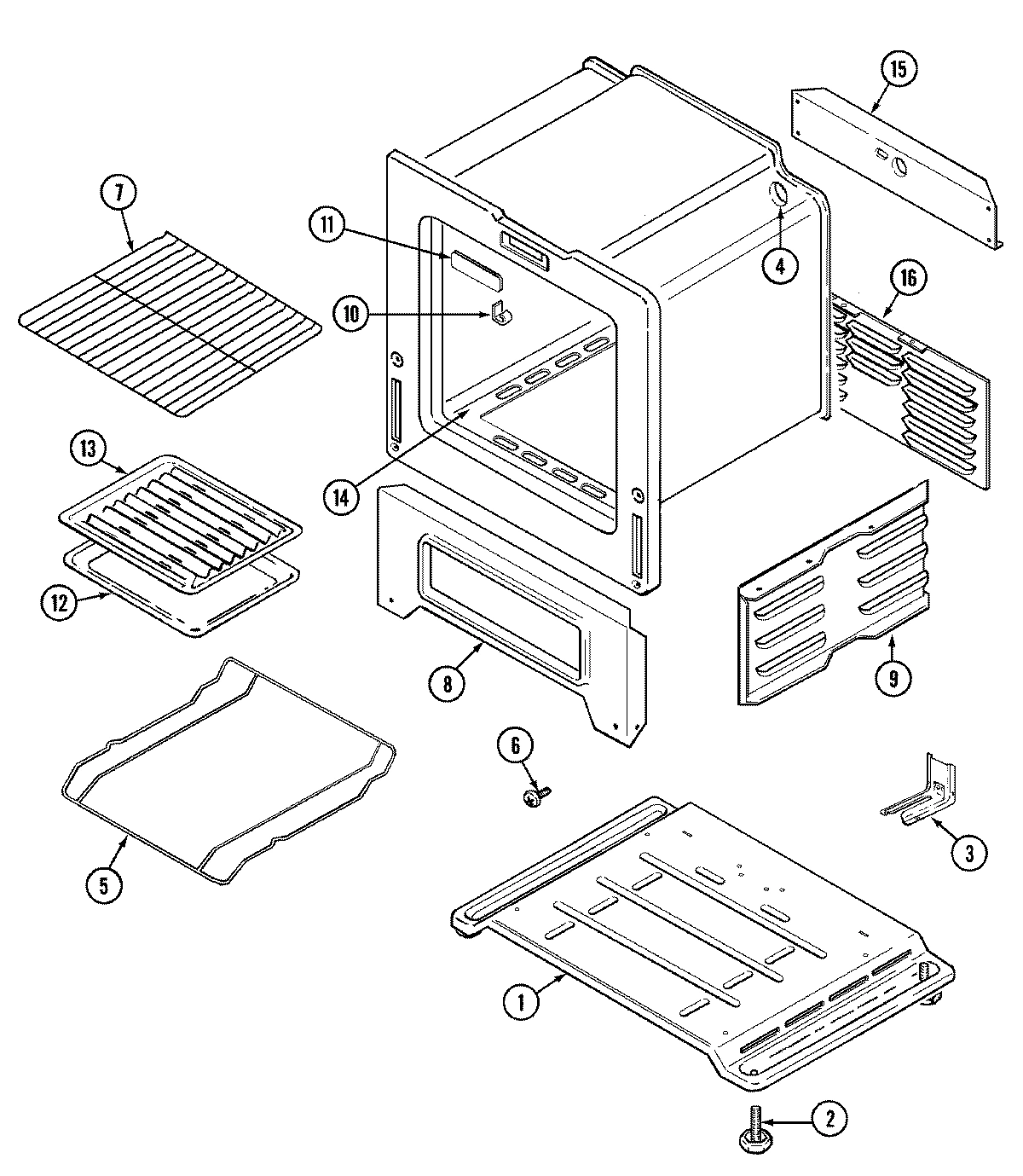

05 - OVEN/BASE

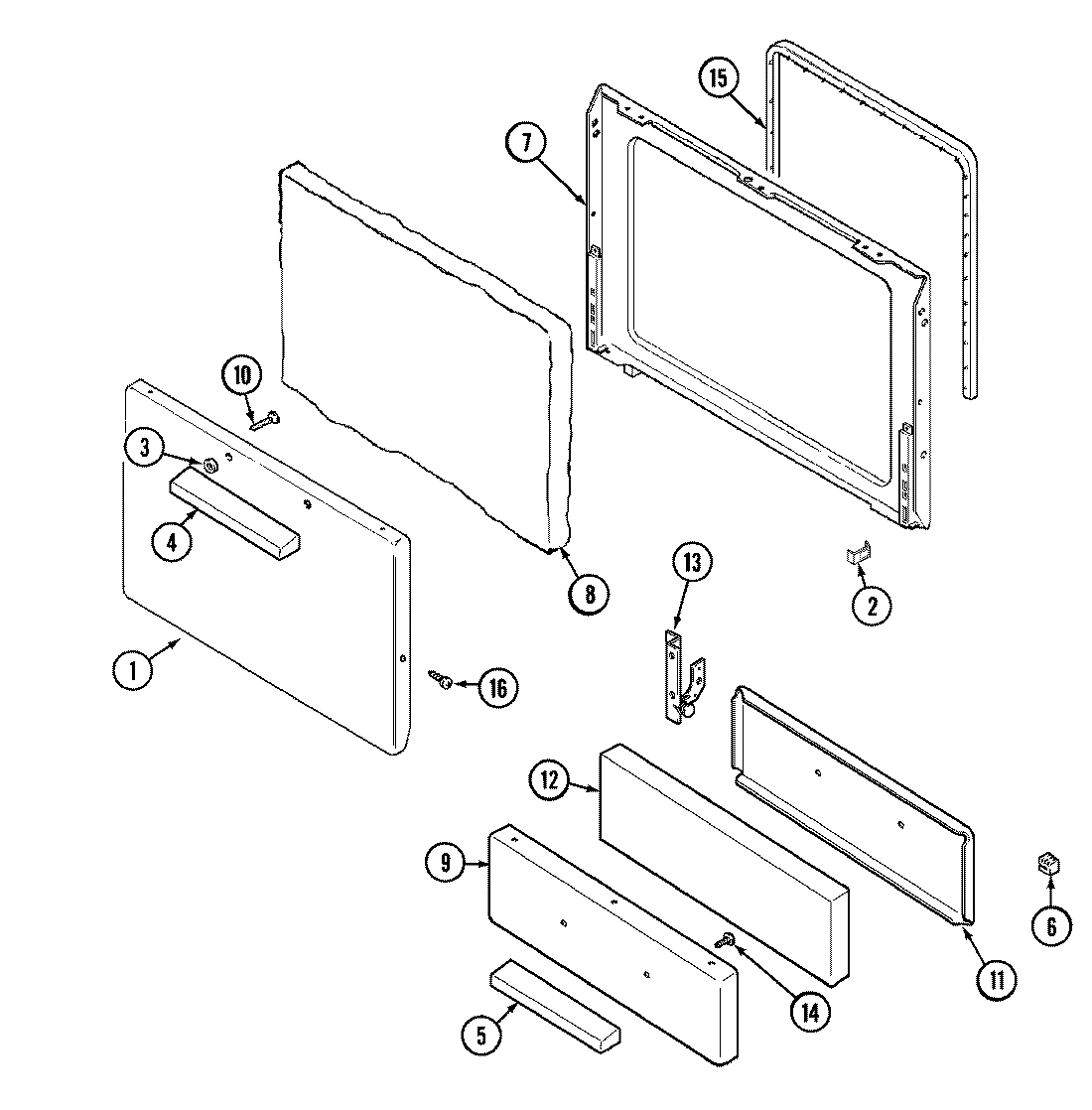

03 - DOOR/DRAWER
Common parts from model Whirlpool A31703PAWL GAS RANGE
1
BACK, MAIN WPL 74002364 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 74002440 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74002454 Contact Us For Availability
1
BASE, MAIN WPL 74002372 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 74002945 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 74003137 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001504 Contact Us For Availability
2
VALVE, BURNER WPL 74002532 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74002452 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
3
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
3
SCREW WPL 7101P35260 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74002453 Contact Us For Availability
4
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
4
GRATE (BLK) WPL 74001653 Contact Us For Availability
4
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
4
COVER, HOLE WPL 74002380 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
5
WASHER WPL 7109P01560 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 74002411 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P05260 Contact Us For Availability
5
RACK, BROILER WPL 74002381 Contact Us For Availability
5
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
GLIDE WPL 8016P01560 Contact Us For Availability
6
KNOB, THERMOSTAT (BLK) WPL 7731P09660 Contact Us For Availability
6
BRACKET, OVEN VALVE WPL 74002394 Contact Us For Availability
7
EXTENSION, VENT BOX WPL 74002412 Contact Us For Availability
7
KNOB, VALVE (BLK) WPL 74002744 Contact Us For Availability
7
BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability
7
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
7
LINING, DOOR WPL 74002396 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
BOX, VENT WPL 74002367 Contact Us For Availability
8
SHIELD, SIGHT WPL 74002447 Contact Us For Availability
8
FRONT, OVEN (LWR) WPL 74002327 Contact Us For Availability
8
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
8
INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability
9
COVER, MAIN WIRE WPL 74002368 Contact Us For Availability
9
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
9
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
9
PANEL, DRAWER (WHT) WPL 74002663 Contact Us For Availability
10
STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability
10
SHIELD, VENT DEFLECTOR WPL 74002401 Contact Us For Availability
10
CLIP, SPACER WPL 74002409 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
11
BRACKET, PANEL (LT) WPL 74002402 Contact Us For Availability
11
BRACKET, PANEL (RT) WPL 74002403 Contact Us For Availability
11
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
11
TUBING, VALVE (3/8``) WPL 74002456 Contact Us For Availability
11
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
11
LINING, DRAWER WPL 74002397 Contact Us For Availability
12
CORD, POWER WPL 7402P04360 Contact Us For Availability
12
PIN, MAIN TOP HINGE WPL 74002404 Contact Us For Availability
12
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability
13
HINGE WPL 7106P05560 Contact Us For Availability
13
PANEL, CONTROL (BLK) WPL 74002654 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
HINGE, DRAWER WPL 74002398 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
14
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
14
SCREW WPL 74002408 Contact Us For Availability
14
END CAP, CONTROL PNL (RT-BLK) WPL 74002655 Contact Us For Availability
14
END CAP, CONTROL PNL (LT-BLK) WPL 74002656 Contact Us For Availability
14
SCREW WPL 7101P32860 Contact Us For Availability
14
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
14
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
14
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
14
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 74002634 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
15
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
15
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
16
SWITCH, IGNITER WPL 74002533 Contact Us For Availability
16
BACK, BROILER WPL 74002379 Contact Us For Availability
16
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
17
NUT, WING WPL 7103P03060 Contact Us For Availability
18
VALVE, OVEN (LP) WPL 74002585 Contact Us For Availability
19
ORIFICE FITTING ASSY. WPL 74002586 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74002355 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
NI
WIRES, MODULE/SWITCHES WPL 74002362 Contact Us For Availability
NI
WIRES, SWITCH (BLK/TN) WPL 74002363 Contact Us For Availability
NI
WIRES, IGNITER (4-OR) WPL 74002457 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001767 Contact Us For Availability
× ![]()
