Model Whirlpool A3110PRALT GAS RANGE – Common Parts & Diagrams
01 - BODY/OVEN

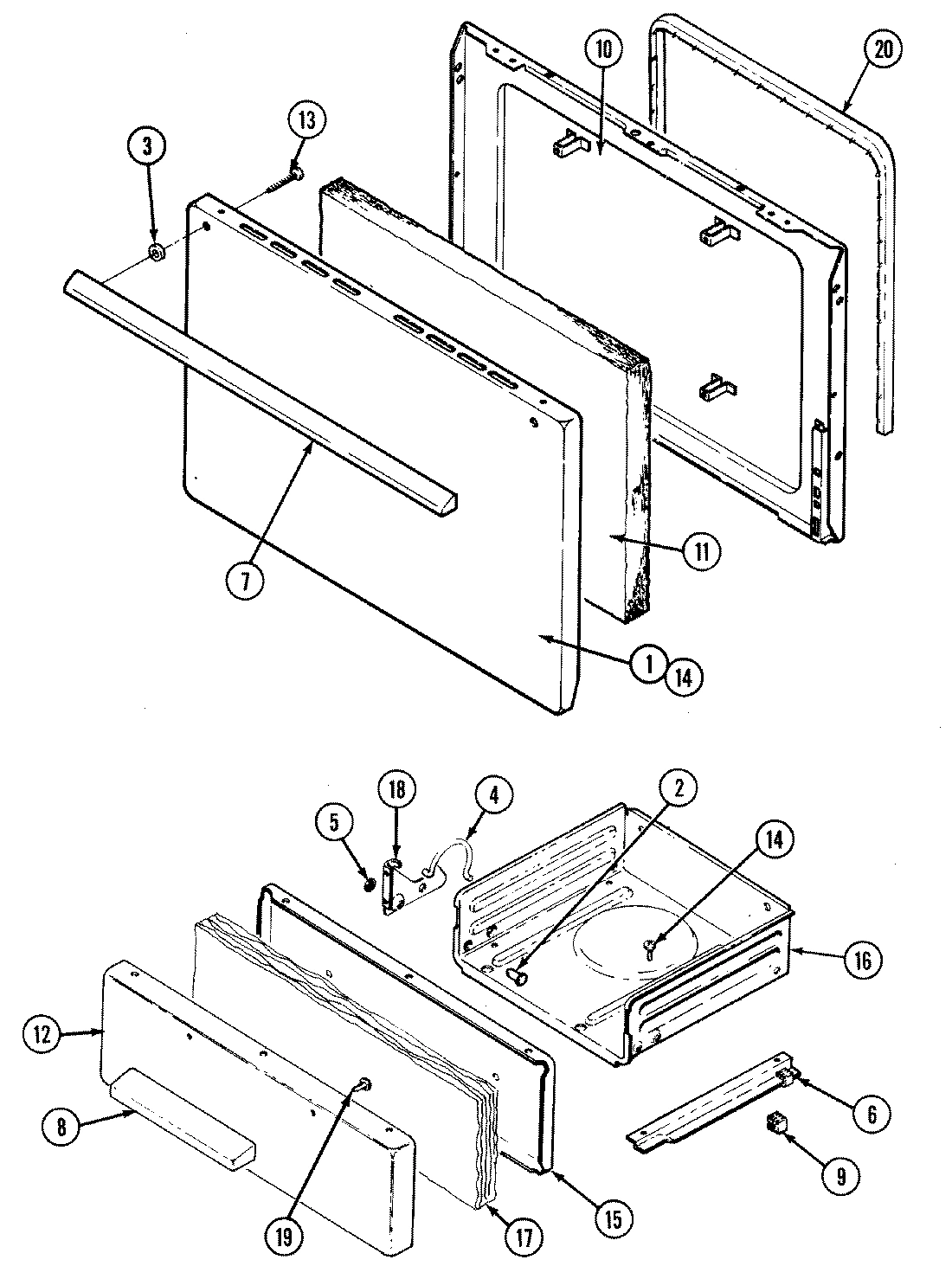

03 - DOOR\DRAWER

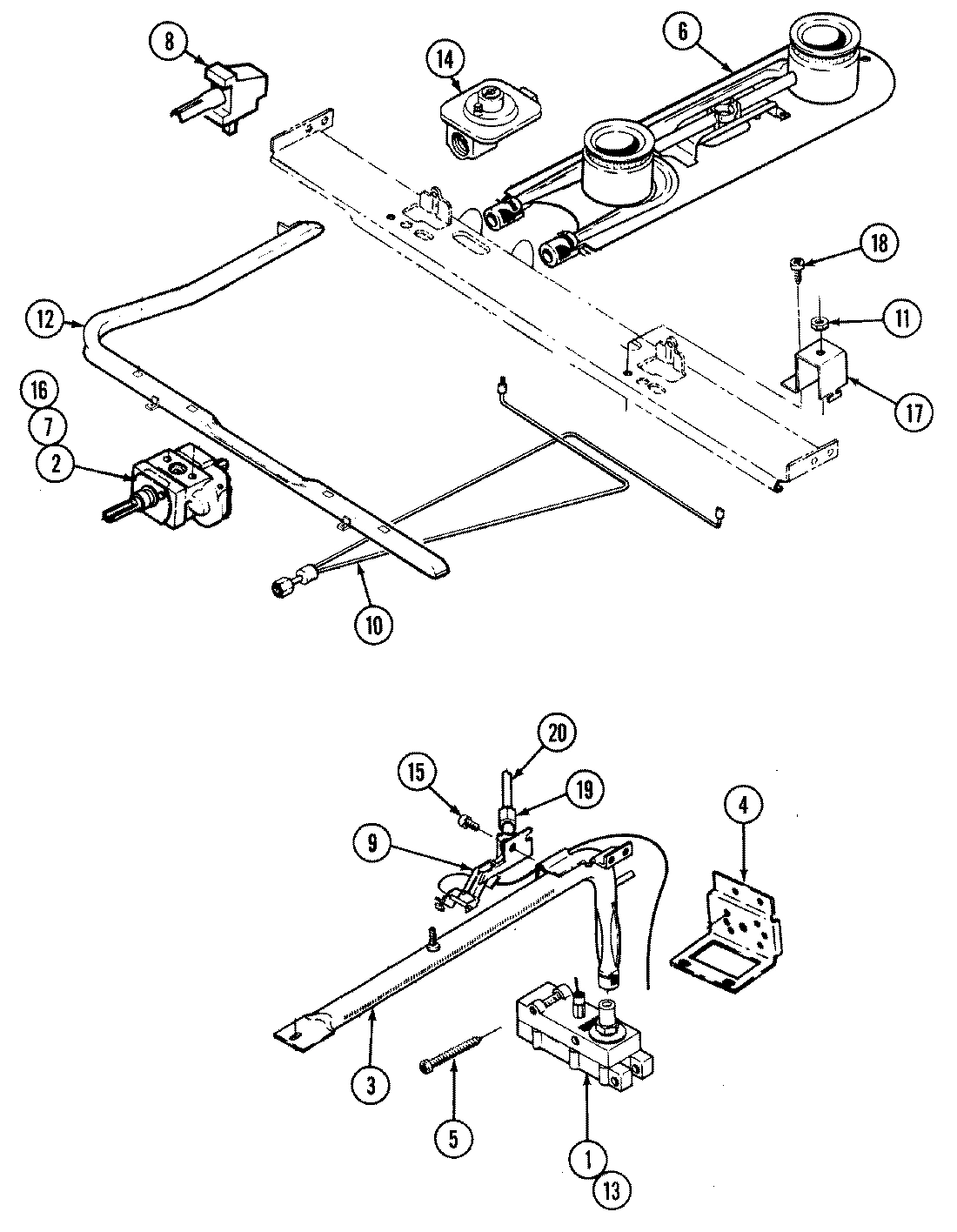

02 - CONTROL SYSTEM

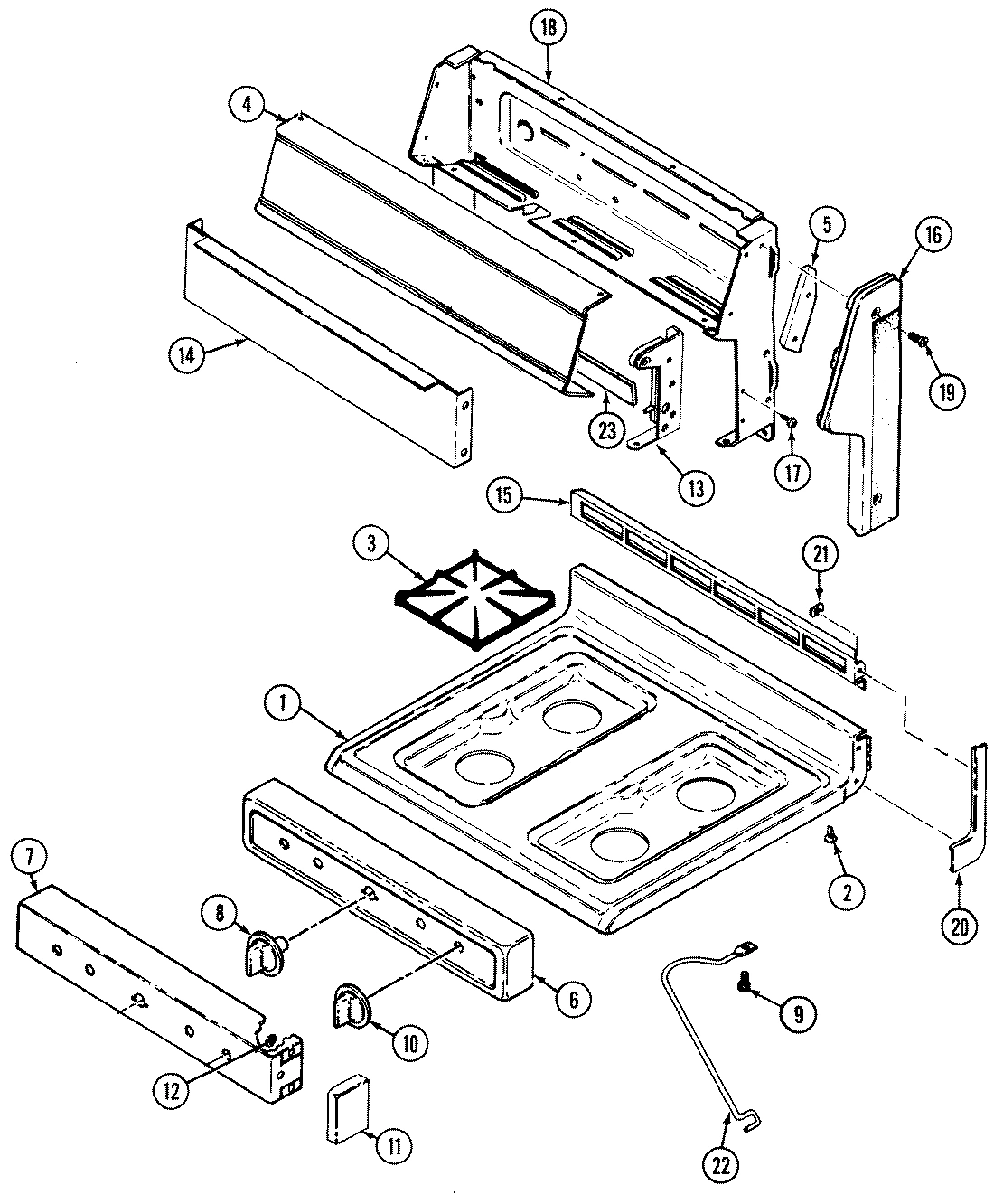

04 - TOP ASSY./CONTROL PANEL
Common parts from model Whirlpool A3110PRALT GAS RANGE
1
BASE WPL 4003W02867 Contact Us For Availability
1
NUT WPL 7103P12560 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 2401F09662 Contact Us For Availability
1
PANEL, DOOR (ALM) WPL 2401F09664 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F23580 Contact Us For Availability
1
VALVE, OVEN WPL 7501P12760 Contact Us For Availability
1
TOP, MAIN (ALM) WPL 2001W08184 Contact Us For Availability
2
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
2
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
2
GLIDE WPL 8016P01360 Contact Us For Availability
2
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
2
THERMOSTAT WPL 7515P03660 Contact Us For Availability
3
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
4
BAFFLE, OVEN BOTTOM WPL 3601F23445 Contact Us For Availability
4
BOTTOM, OVEN WPL 5504A00119 Contact Us For Availability
4
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
4
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
4
BRACKET, SAFETY VALVE WPL 3801F23845 Contact Us For Availability
4
PANEL, BACKGUARD WPL 2601F41009 Contact Us For Availability
4
PANEL, CONTROL (WHT) WPL 2601F41381 Contact Us For Availability
4
PANEL, CONTROL (ALM) WPL 2601F41384 Contact Us For Availability
4
NAMEPLATE, ADMIRAL (BLK) WPL 7719P06260 Contact Us For Availability
5
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
5
NUT, GRIP WPL 7103P02260 Contact Us For Availability
5
SCREW No.10 X 2 WPL 7101P06260 Contact Us For Availability
5
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
5
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
6
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
6
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
6
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
6
BURNER, TOP WPL 3412A00419 Contact Us For Availability
6
PANEL, MANIFOLD (BLK) WPL 2616F08509 Contact Us For Availability
7
SCREW WPL 7101P33460 Contact Us For Availability
7
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
7
TUBING 3/8`` WPL 3414F09444 Contact Us For Availability
7
PANEL, MANIFOLD (BLK) WPL 2616F09509 Contact Us For Availability
7
SCREW----NA WPL 7101P31160 Contact Us For Availability
8
HINGE, DOOR WPL 7106P04860 Contact Us For Availability
8
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
8
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
8
VALVE BURNER LP WPL 7502P17560 Contact Us For Availability
8
KNOB, THERMOSTAT (BLK) WPL 7731P07960 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
9
LIGHTER PILOT WPL 7432P06860 Contact Us For Availability
9
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
LINING, DOOR WPL 2402W20119 Contact Us For Availability
10
BURNER, PILOT (LP) WPL 7505P19460 Contact Us For Availability
10
KNOB, VALVE (BLK) WPL 7733P06260 Contact Us For Availability
11
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F03360 Contact Us For Availability
11
NUT, TOP PILOT WPL 7103P07060 Contact Us For Availability
11
END CAP, PANEL (BLK) WPL 7713P01860 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
PANEL, BROILER DRW (ALM) WPL 2403F02864 Contact Us For Availability
12
PIPE MANIFOLD WPL 7513P13260 Contact Us For Availability
12
PANEL, MANIFOLD WPL 7712P09260 Contact Us For Availability
13
RACK WPL 7801P04060 Contact Us For Availability
13
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
13
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
13
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
13
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
14
BOX, VENT WPL 4006W11345 Contact Us For Availability
14
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
14
SCREW WPL 7101P29060 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00160 Contact Us For Availability
14
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
15
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
15
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
15
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
15
SCREW WPL 7101P11260 Contact Us For Availability
15
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
16
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
16
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
16
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
16
SCREW WPL 7101P31760 Contact Us For Availability
16
END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability
16
END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability
17
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
17
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
17
INSULATION WPL 4804F02560 Contact Us For Availability
17
SUPPORT, TOP PILOT WPL 3807F20434 Contact Us For Availability
17
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
18
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
18
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
18
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
18
HOUSING, CONTROL PANEL WPL 4001F09751 Contact Us For Availability
19
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
19
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
19
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
19
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
20
BACK, MAIN WPL 4002F18880 Contact Us For Availability
20
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
20
TUBING 3/16`` SUB WPL 3414F10844 Contact Us For Availability
20
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
20
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
21
BOX, BURNER WPL 4011F23080 Contact Us For Availability
21
NUT, SPEED WPL 7103P12960 Contact Us For Availability
22
SCREW WPL 7101P11560 Contact Us For Availability
22
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
23
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
23
SHIELD WPL 8036P00160 Contact Us For Availability
23
MANUAL, USE & CARE WPL 8113P04260 Contact Us For Availability
24
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
25
PANEL, SIDE (ALM) WPL 2618F08564 Contact Us For Availability
25
PANEL, SIDE (ALM) WPL 2618F09964 Contact Us For Availability
26
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
26
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
27
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
28
INSULATION, OVEN BACK WPL 4804F03160 Contact Us For Availability
28
INSULATION, OVEN WRAPPER WPL 4804F03260 Contact Us For Availability
29
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
× ![]()
