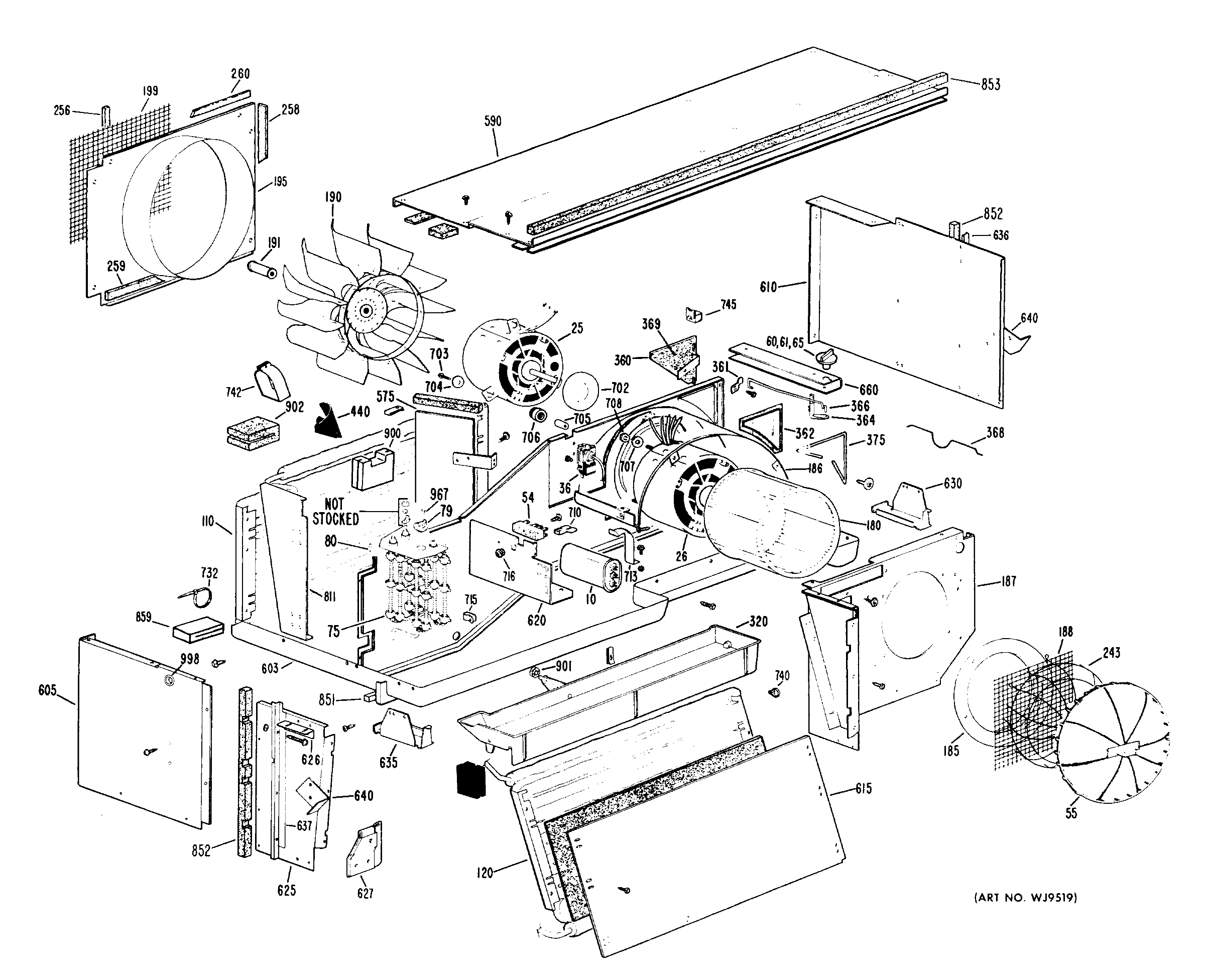

Model GE A2B778DJALD1 – Common Parts & Diagrams
0
1
Common parts from model GE A2B778DJALD1
10
GEN WJ20X0547 Contact Us For Availability
10
GEN WJ20X0594 Contact Us For Availability
20
GEN WJ23X0252 Contact Us For Availability
25
GEN WP94X0013 Contact Us For Availability
26
GEN WP94X0019 Contact Us For Availability
35
GEN WP28X0018 Contact Us For Availability
36
GEN WJ28X0224 Contact Us For Availability
45
GEN WP26X0003 Contact Us For Availability
49
GEN WP26X0001 Contact Us For Availability
52
GEN WP03X0001 Contact Us For Availability
54
GEN WJ03X0171 Contact Us For Availability
55
GEN WP85X0002 Contact Us For Availability
61
GEN WJ12X0170 Contact Us For Availability
65
KNOB SPRING GEN WJ02X0187 Contact Us For Availability
70
GEN WJ35X0099 Contact Us For Availability
74
GEN WJ01X0361 Contact Us For Availability
75
GEN WP70X0040 Contact Us For Availability
78
GEN WP70X0071 Contact Us For Availability
79
GEN WP23X0007 Contact Us For Availability
80
GEN WP23X0013 Contact Us For Availability
86
GEN WP24X0005 Contact Us For Availability
99
GEN WJ03X0309 Contact Us For Availability
160
CAPILLARY .042 CUT TO 13 GEN WJ53X0127 Contact Us For Availability
160
CAPILLARY .036 CUT TO 27 GEN WJ53X0137 Contact Us For Availability
165
GEN WJ56X0036 Contact Us For Availability
165
GEN WJ56X0073 Contact Us For Availability
165
GEN WJ62X0220 Contact Us For Availability
180
GEN WJ74X0136 Contact Us For Availability
185
GEN WP78X0002 Contact Us For Availability
186
GEN WP76X0001 Contact Us For Availability
187
GEN WP78X0003 Contact Us For Availability
190
GEN WJ73X0047 Contact Us For Availability
191
GEN WJ02X0153 Contact Us For Availability
195
GEN WP78X0010 Contact Us For Availability
199
OUTDOOR ORIFICE SCREEN GEN WJ85X0109 Contact Us For Availability
200
GEN WP71X0025 Contact Us For Availability
205
GEN WP71X0026 Contact Us For Availability
243
GEN WP71X0020 Contact Us For Availability
256
GASKET SEPARATE AIR GEN WJ43X0372 Contact Us For Availability
258
GEN WJ43X0408 Contact Us For Availability
259
GEN WJ44X0105 Contact Us For Availability
260
GEN WJ43X0409 Contact Us For Availability
310
GEN WP07X0046 Contact Us For Availability
320
GEN WP70X0072 Contact Us For Availability
360
GEN WJ70X0139 Contact Us For Availability
361
GEN WJ02X0219 Contact Us For Availability
362
GEN WP85X0001 Contact Us For Availability
364
GEN WP14X0002 Contact Us For Availability
366
GEN WP14X0001 Contact Us For Availability
368
GEN WJ02X0218 Contact Us For Availability
369
GEN WJ43X0194 Contact Us For Availability
375
GEN WJ66X0177 Contact Us For Availability
400
GEN WJ02X0257 Contact Us For Availability
400
GEN WJ02X0258 Contact Us For Availability
400
GEN WJ02X0259 Contact Us For Availability
401
GEN WJ01X0348 Contact Us For Availability
402
GEN WJ01X0347 Contact Us For Availability
406
GEN WJ79X0302 Contact Us For Availability
407
GEN WJ79X0301 Contact Us For Availability
408
GEN WJ01X0292 Contact Us For Availability
409
GEN WP01X0005 Contact Us For Availability
410
GEN WJ43X0333 Contact Us For Availability
411
CONDUCTOR TERMINAL CAP GEN WP37X0002 Contact Us For Availability
436
ACCUMULATOR CLAMP GEN WJ02X0432 Contact Us For Availability
440
GEN WJ75X0010 Contact Us For Availability
442
GEN WJ02X0480 Contact Us For Availability
552
GEN WP79X0009 Contact Us For Availability
560
GEN WP79X0005 Contact Us For Availability
561
GEN WP79X0004 Contact Us For Availability
565
CONTROL PLATE GEN WP79X0003 Contact Us For Availability
590
GEN WP79X0006 Contact Us For Availability
603
GEN WP79X0028 Contact Us For Availability
605
PANEL LEFT SIDE REAR GEN WP81X0001 Contact Us For Availability
610
GEN WP82X0007 Contact Us For Availability
615
GEN WP81X0006 Contact Us For Availability
620
GEN WP79X0007 Contact Us For Availability
625
GEN WP82X0008 Contact Us For Availability
626
GEN WP41X0012 Contact Us For Availability
627
GEN WJ66X0429 Contact Us For Availability
630
GEN WP66X0007 Contact Us For Availability
635
GEN WP66X0008 Contact Us For Availability
636
GEN WP82X0010 Contact Us For Availability
637
GEN WP82X0009 Contact Us For Availability
640
GEN WP66X0004 Contact Us For Availability
701
GEN WJ36X0016 Contact Us For Availability
702
GEN WJ43X0240 Contact Us For Availability
702
GEN WP60X0009 Contact Us For Availability
703
GEN WZ05X0154 Contact Us For Availability
704
GEN WZ10X0155 Contact Us For Availability
705
GEN WJ01X0370 Contact Us For Availability
706
GEN WJ01X0368 Contact Us For Availability
707
WASHER GEN WJ01X0506 Contact Us For Availability
707
GEN WZ10X0152 Contact Us For Availability
708
GEN WJ01X0445 Contact Us For Availability
710
GEN WJ02X0067 Contact Us For Availability
713
GEN WJ03X0279 Contact Us For Availability
715
GEN WJ02X0392 Contact Us For Availability
715
WIRE CLIP 7/16" DIAMETER GEN WJ02X0410 Contact Us For Availability
715
GEN WJ02X0411 Contact Us For Availability
715
GEN WJ02X0413 Contact Us For Availability
716
GEN WJ01X0651 Contact Us For Availability
732
WIRE STRAP GEN WJ03X0302 Contact Us For Availability
740
WIRE CLIP SNAP-IN GEN WJ02X0425 Contact Us For Availability
742
GEN WJ02X0443 Contact Us For Availability
811
GEN WP70X0073 Contact Us For Availability
851
GEN WJ43X0343 Contact Us For Availability
851
GASKET CHASSIS BOTTOM GEN WP43X0017 Contact Us For Availability
852
GASKET CHASSIS RS GEN WP43X0018 Contact Us For Availability
852
GASKET CHASSIS LS GEN WP43X0019 Contact Us For Availability
853
GASKET CHASSIS TOP GEN WP43X0016 Contact Us For Availability
859
GEN WJ43X0399 Contact Us For Availability
900
GEN WP60X0010 Contact Us For Availability
900
GEN WP60X0011 Contact Us For Availability
902
GEN WJ60X0008 Contact Us For Availability
905
GEN WP71 Contact Us For Availability
927
GEN WJ01X0649 Contact Us For Availability
940
GEN WP01X0001 Contact Us For Availability
952
GEN WZ02X0548 Contact Us For Availability
952
SCREW & WASHER 10-16 GEN WZ06X0083 Contact Us For Availability
953
SCREW 6-32 X 1/4" HEX GEN WZ02X0529 Contact Us For Availability
959
SCREW 10-16 X 1/2" HEX GEN WZ04X0288 Contact Us For Availability
967
GEN WZ04X0275 Contact Us For Availability
983
GEN WZ05X0153 Contact Us For Availability
985
GEN WZ06X0122 Contact Us For Availability
994
GEN WZ04X0362 Contact Us For Availability
× ![]()
