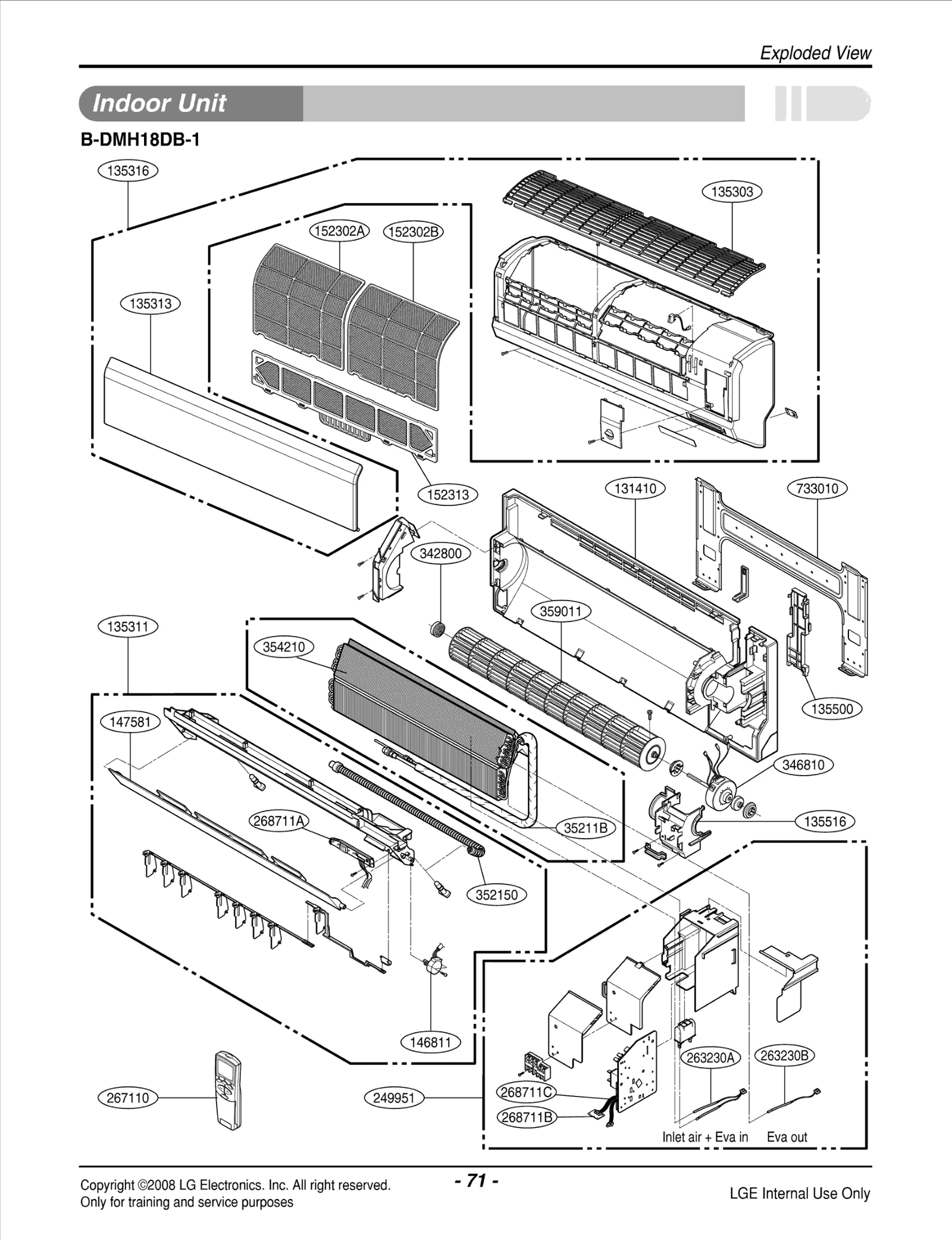

Model LG A2-H183GA0 residential Multi_Outdoor – Common Parts & Diagrams

35211B
TUBE ASSEMBLY,TUBING
TUBE ASSEMBLY,TUBING LGE 5211A21363E Contact Us For Availability
View on Model
131410
Chassis Assembly
Chassis Assembly LGE 3141A20019J Contact Us For Availability
View on Model
135303
Grille,Inlet
Grille,Inlet LGE 3530A10255A Contact Us For Availability
View on Model
135311
Grille Assembly,Discharge(Indoor)
Grille Assembly,Discharge(Indoor) LGE 3531A11307E Contact Us For Availability
View on Model
135313
Grille Assembly,Inlet
Grille Assembly,Inlet LGE 3531A10339C Contact Us For Availability
View on Model
135316
Grille Assembly,Front(Indoor)
Grille Assembly,Front(Indoor) LGE 3531A23004L Contact Us For Availability
View on Model
135500
Cover
Cover LGE 3550A30262A Contact Us For Availability
View on Model
146811
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability
View on Model
146811
MOTOR ASSEMBLY,STEP
MOTOR ASSEMBLY,STEP LGE 4681A20055A Contact Us For Availability
View on Model
152313
Filter Assembly,Deodorizer
Filter Assembly,Deodorizer LGE 5231A20040A Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE 4995A20831A Contact Us For Availability
View on Model
263230A
Thermistor,NTC
Thermistor,NTC LGE 6323AQ3226T Contact Us For Availability
View on Model
263230C
Thermistor Assembly
Thermistor Assembly LGE 6323A20001N Contact Us For Availability
View on Model
263230D
Thermistor,NTC
Thermistor,NTC LGE 6323A20023A Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711A20128L Contact Us For Availability
View on Model
268711C
PCB Assembly
PCB Assembly LGE 6871A20989A Contact Us For Availability
View on Model
268711F
PCB Assembly,Main
PCB Assembly,Main LGE 6871A20479G Contact Us For Availability
View on Model
268711H
PWB(PCB) ASSEMBLY,MAIN(AC)
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20500B Contact Us For Availability
View on Model
346810
Motor Assembly,AC,Indoor
Motor Assembly,AC,Indoor LGE 4681AR2295L Contact Us For Availability
View on Model
349480
ORIFICE
ORIFICE LGE 4948AP2527A Contact Us For Availability
View on Model
349600
MOUNT,MOTOR
MOUNT,MOTOR LGE 4960AP1361A Contact Us For Availability
View on Model
352150
HOSE ASSEMBLY,DRAIN
HOSE ASSEMBLY,DRAIN LGE 5251A20011B Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A20218B Contact Us For Availability
View on Model
359011
Fan Assembly,Cross Flow
Fan Assembly,Cross Flow LGE 5901A20017F Contact Us For Availability
View on Model
359011
Fan Assembly,Cross Flow
Fan Assembly,Cross Flow LGE 5901A20017G Contact Us For Availability
View on Model
430410
BASE ASSY,OUTDOOR
BASE ASSY,OUTDOOR LGE 3041AP2741G Contact Us For Availability
View on Model
435300
GRILLE,REAR
GRILLE,REAR LGE 1A00207B Contact Us For Availability
View on Model
435301
GRILLE,DISCHARGE
GRILLE,DISCHARGE LGE 3530A20007B Contact Us For Availability
View on Model
435511
Cover Assembly,Control(Outdoor)
Cover Assembly,Control(Outdoor) LGE ACQ36712501 Contact Us For Availability
View on Model
437210
Panel,Front
Panel,Front LGE 1A00196L Contact Us For Availability
View on Model
437211
PANEL ASSEMBLY,FRONT(OUTDOOR)
PANEL ASSEMBLY,FRONT(OUTDOOR) LGE 3721A23001A Contact Us For Availability
View on Model
447910
Barrier Assembly,Outdoor
Barrier Assembly,Outdoor LGE 4791A30004K Contact Us For Availability
View on Model
548490
Accumulator Assembly
Accumulator Assembly LGE AAB33905201 Contact Us For Availability
View on Model
552112
Tube Assembly,Condenser(In)
Tube Assembly,Condenser(In) LGE AJR33484101 Contact Us For Availability
View on Model
552113A
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE 5211A20927F Contact Us For Availability
View on Model
552113B
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE AJR33485101 Contact Us For Availability
View on Model
552114
Tube Assembly,Discharge(Outdoor)
Tube Assembly,Discharge(Outdoor) LGE AJR33477801 Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE 5220A20001K Contact Us For Availability
View on Model
552203B
Valve,Service
Valve,Service LGE 5220A20005D Contact Us For Availability
View on Model
554031
Condenser Assembly,Bending
Condenser Assembly,Bending LGE 5403A20072L Contact Us For Availability
View on Model
554160A
Compressor Set,Korea
Compressor Set,Korea LGE 2520UGAK2AA Contact Us For Availability
View on Model
554160B
Compressor Set,Korea
Compressor Set,Korea LGE 2520UGJK2AA Contact Us For Availability
View on Model
649950
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE ABQ34008701 Contact Us For Availability
View on Model
733010
Plate Assembly,Installation
Plate Assembly,Installation LGE 3301A20020C Contact Us For Availability
View on Model
W0CZZA
SH CAPACITOR
SH CAPACITOR LGE 2A00986G Contact Us For Availability
View on Model
