Model Maytag A1RXNGFYB00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS

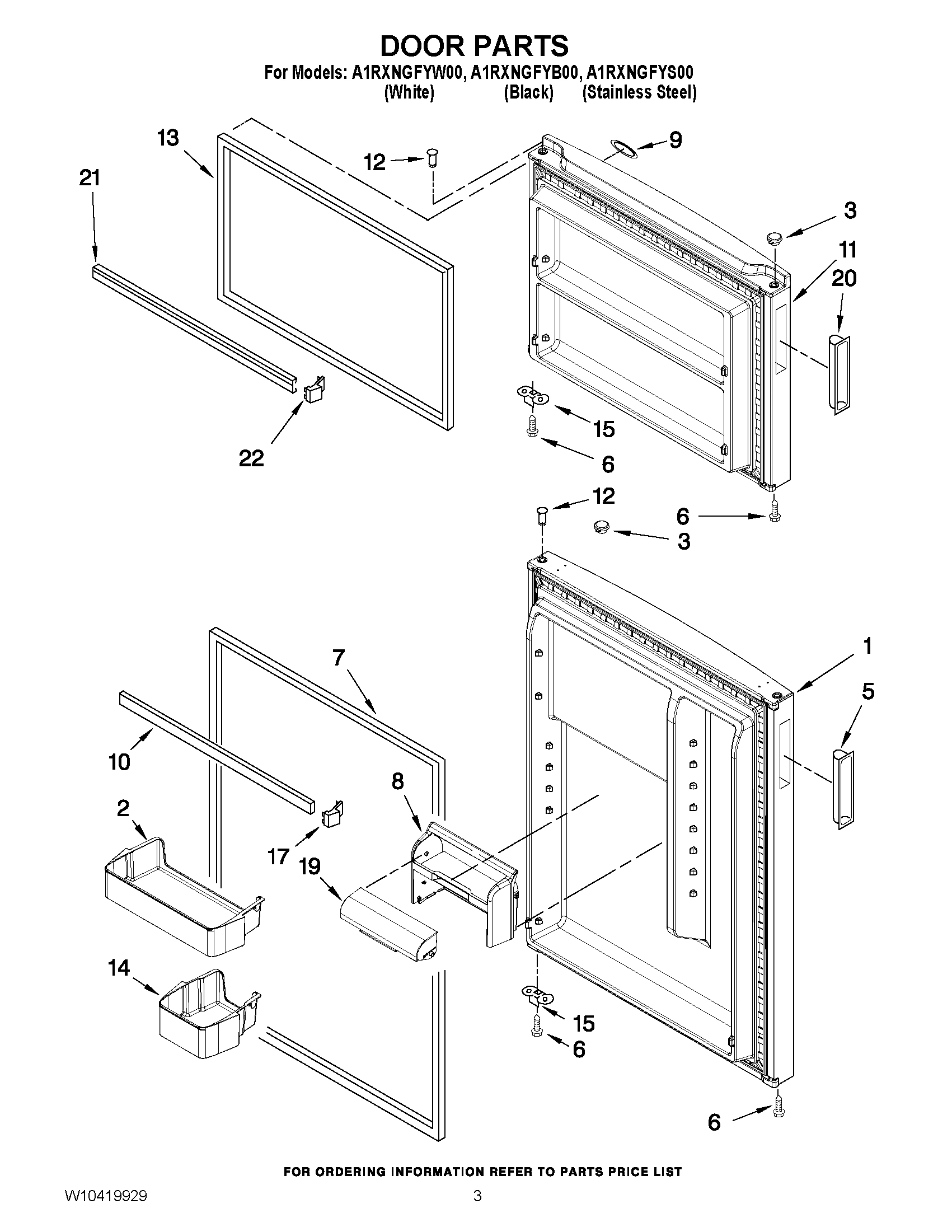

02 - DOOR PARTS

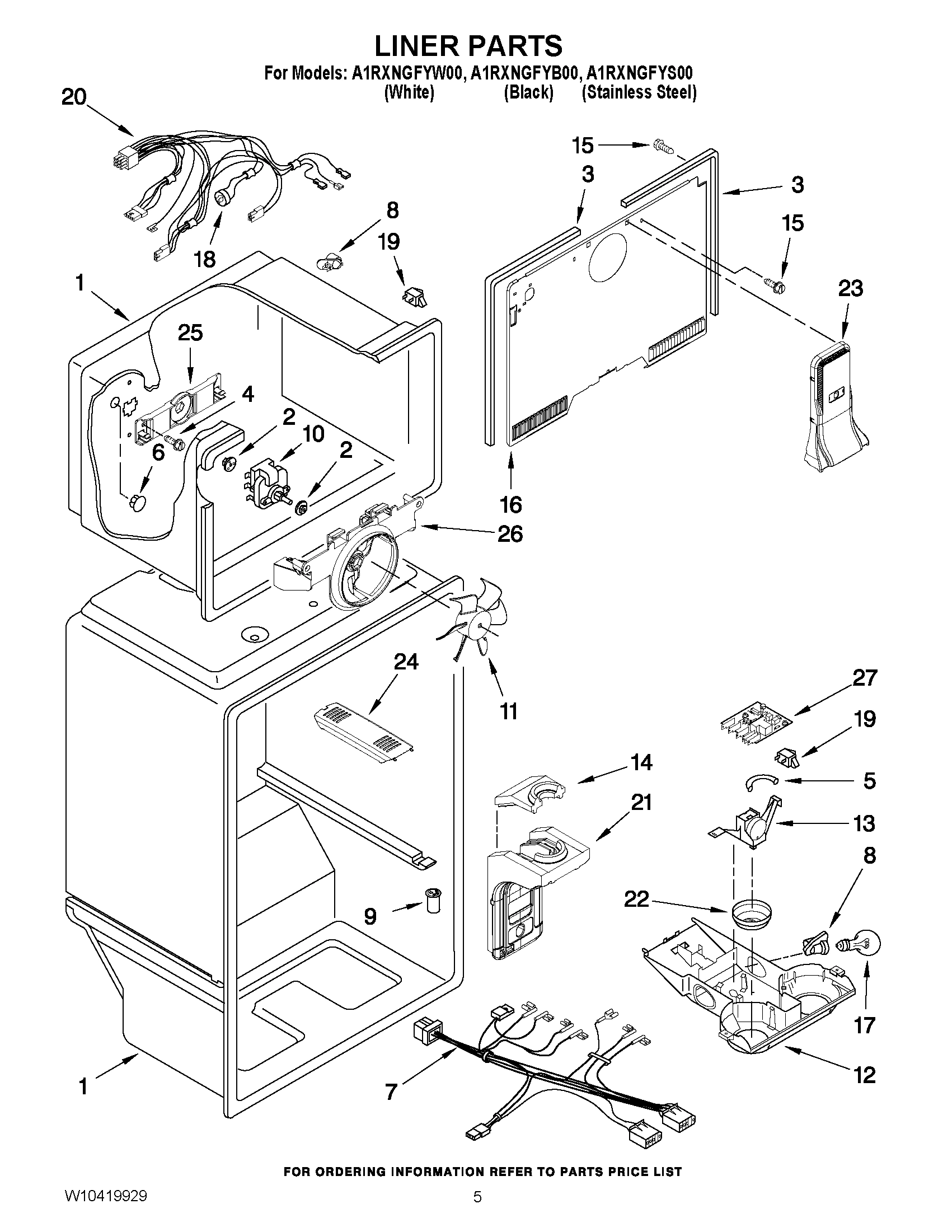

03 - LINER PARTS

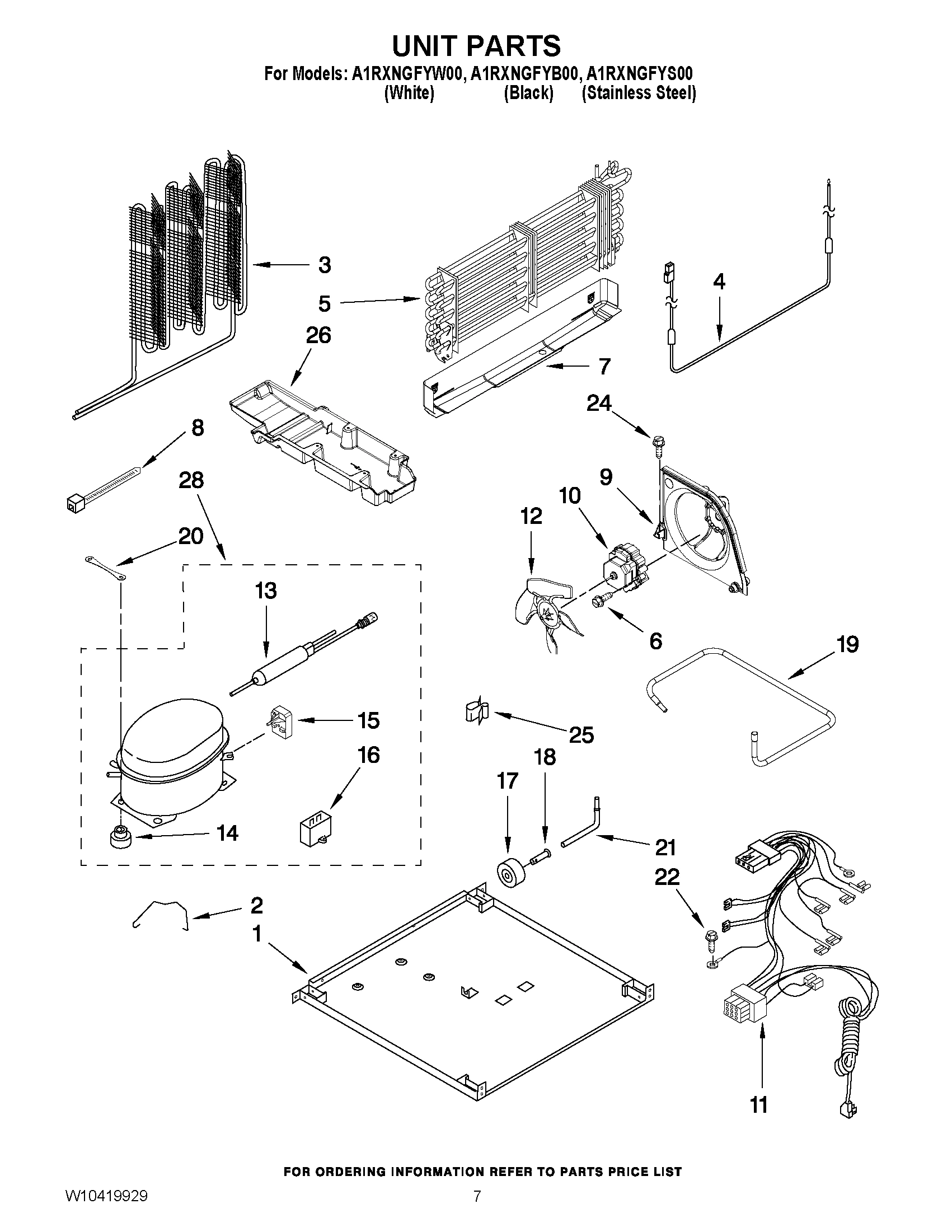

04 - UNIT PARTS

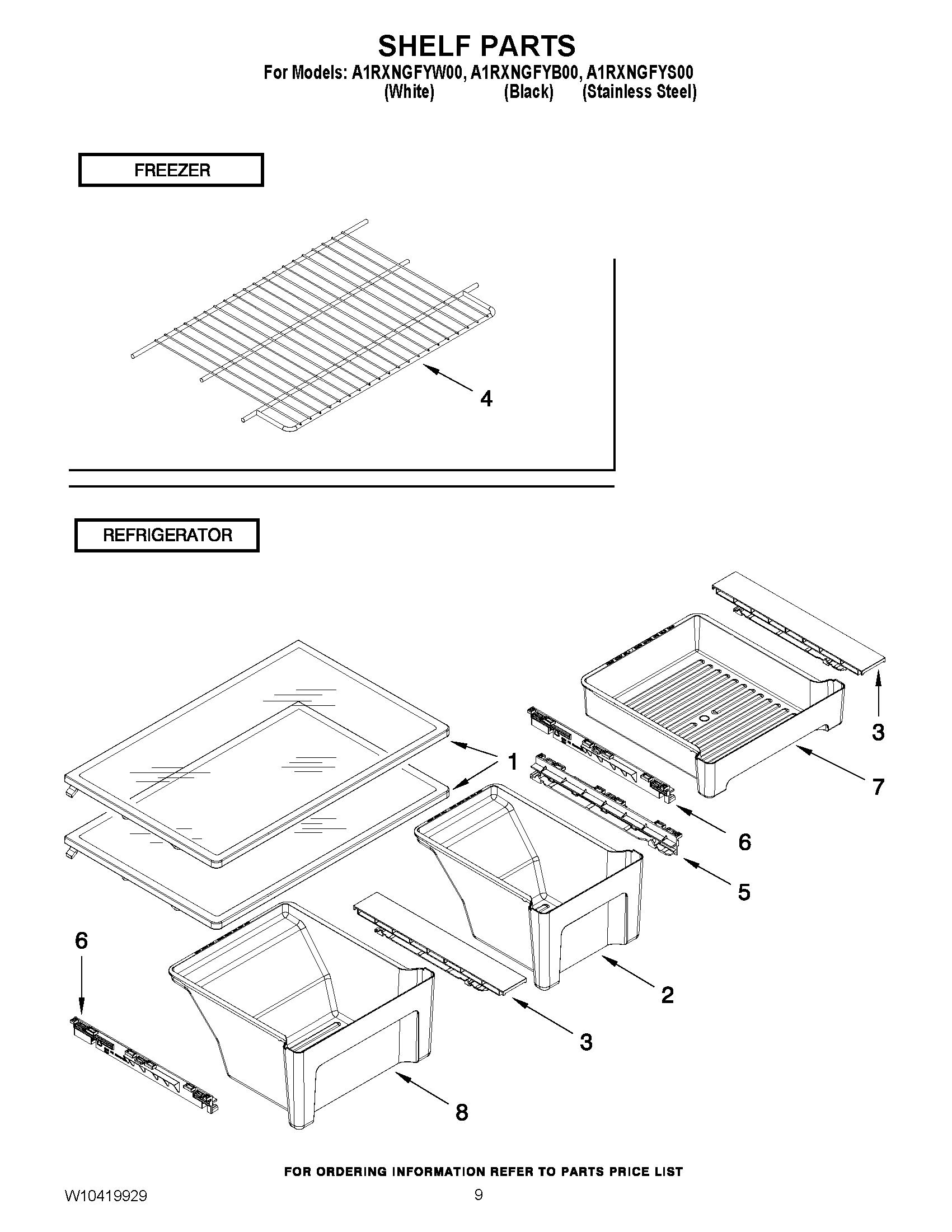

05 - SHELF PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag A1RXNGFYB00 REFRIGERATOR
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
MAY W10359280 MAY W10359280 Contact Us For Availability
1
MAY W10359292 MAY W10359292 Contact Us For Availability
1
SERVICE & WIRING SHEET MAY W10404596 Contact Us For Availability
1
REFRIGERATOR DOOR (WHITE) MAY W10406231 Contact Us For Availability
1
MAY W10406232 MAY W10406232 Contact Us For Availability
1
PLATE, UNIT MOUNTING MAY W10300118 Contact Us For Availability
1
SHELF FULL 33`` MAY W10308856 Contact Us For Availability
2
HINGE (TOP) MAY W10300065 Contact Us For Availability
2
BIN DOOR MAY W10349246 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
BALE STRAP MAY W10249638 Contact Us For Availability
2
MAY W10373947 MAY W10373947 Contact Us For Availability
3
ROLLER, FRONT (2) MAY W10327136 Contact Us For Availability
3
PLUG, HINGE (WHITE) MAY 2212648 Contact Us For Availability
3
PLUG, HINGE (BLACK) MAY 2212651 Contact Us For Availability
3
MAY 2254360 MAY 2254360 Contact Us For Availability
3
MAY W10376576 MAY W10376576 Contact Us For Availability
3
MAY W10404446 MAY W10404446 Contact Us For Availability
4
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
4
Screw MAY 488208 Contact Us For Availability
4
MAY W10316428 MAY W10316428 Contact Us For Availability
4
SHELF WIRE FC MAY W10384386 Contact Us For Availability
5
MAY 489427 MAY 489427 Contact Us For Availability
5
THERMOSTAT TUBE BARRIER MAY W10381575 Contact Us For Availability
5
EVAPORATOR ASSY. MAY W10314205 Contact Us For Availability
5
TRACK RAIL RS MAY W10404450 Contact Us For Availability
6
MAY 489341 MAY 489341 Contact Us For Availability
6
MAY 489276 MAY 489276 Contact Us For Availability
6
MAY 941839 MAY 941839 Contact Us For Availability
6
MAY 8533961 MAY 8533961 Contact Us For Availability
6
TRACK RAIL LS MAY W10404449 Contact Us For Availability
7
MAY 2179826 MAY 2179826 Contact Us For Availability
7
MAY 2202875 MAY 2202875 Contact Us For Availability
7
MAY 2202882 MAY 2202882 Contact Us For Availability
7
WIRE ASSY. CONTROL BOX MAY W10318068 Contact Us For Availability
7
MAY W10314195 MAY W10314195 Contact Us For Availability
7
MAY W10310944 MAY W10310944 Contact Us For Availability
8
MAY 3400517 MAY 3400517 Contact Us For Availability
8
HOUSING COMPARTMENT MAY W10308809 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
CLAMP MAY 2263990 Contact Us For Availability
8
MAY W10373945 MAY W10373945 Contact Us For Availability
9
MAY 8281265 MAY 8281265 Contact Us For Availability
9
MAY 2325418 MAY 2325418 Contact Us For Availability
9
MAY 2210509 MAY 2210509 Contact Us For Availability
9
MAY 2315541 MAY 2315541 Contact Us For Availability
10
MAY 489497 MAY 489497 Contact Us For Availability
10
MAY W10308874 MAY W10308874 Contact Us For Availability
10
MAY W10208121 MAY W10208121 Contact Us For Availability
10
MAY 2188874 MAY 2188874 Contact Us For Availability
11
MAY 2254618 MAY 2254618 Contact Us For Availability
11
FREEZER DOOR (WHITE) MAY W10406233 Contact Us For Availability
11
MAY W10406252 MAY W10406252 Contact Us For Availability
11
MAY W10406253 MAY W10406253 Contact Us For Availability
11
MAY 2200509 MAY 2200509 Contact Us For Availability
11
WIRE ASSY, UNIT MAY W10315318 Contact Us For Availability
12
MAY 2183852 MAY 2183852 Contact Us For Availability
12
MAY W10334042 MAY W10334042 Contact Us For Availability
12
MAY W10394915 MAY W10394915 Contact Us For Availability
12
FAN BLADE MAY W10139483 Contact Us For Availability
13
MAY 2254473 MAY 2254473 Contact Us For Availability
13
MAY 2214967 MAY 2214967 Contact Us For Availability
13
MAY 2214969 MAY 2214969 Contact Us For Availability
13
THERMOSTAT MAY W10357190 Contact Us For Availability
13
MAY W10143759 MAY W10143759 Contact Us For Availability
13
MAY W10177049 MAY W10177049 Contact Us For Availability
14
BIN DOOR MAY W10349245 Contact Us For Availability
14
MAY W10322086 MAY W10322086 Contact Us For Availability
14
Grommet (Production) MAY 1100826 Contact Us For Availability
15
MAY 2183998 MAY 2183998 Contact Us For Availability
15
Hole Plug (6) (White) MAY 2201012 Contact Us For Availability
15
Bracket, Door Stop (2) MAY 2189202 Contact Us For Availability
15
MAY 489478 MAY 489478 Contact Us For Availability
15
START-DEVICE (SERVICE) MAY W10194431 Contact Us For Availability
15
START-DEVICE (PRODUCTION) MAY W10330832 Contact Us For Availability
16
MAY W10385129 MAY W10385129 Contact Us For Availability
16
CAPICITOR (PRODUCTION) MAY 2264017 Contact Us For Availability
17
LIGHT BULB MAY W10311528 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
18
CORNER FILLER (2) (WHITE) MAY W10283959 Contact Us For Availability
18
MAY W10283960 MAY W10283960 Contact Us For Availability
18
DEFROST, BI-METAL MAY W10392132 Contact Us For Availability
18
MAY 2221797 MAY 2221797 Contact Us For Availability
19
GRILLE (INCLUDES ILLUS. 20) (WHITE) MAY W10300129 Contact Us For Availability
19
GRILLE (INCLUDES ILLUS. 20) (BLACK) MAY W10353939 Contact Us For Availability
19
COMPARTMENT DOOR MAY W10308843 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY W10376575 MAY W10376575 Contact Us For Availability
20
ENDCAP, GRILLE (WHITE) MAY W10339257 Contact Us For Availability
20
ENDCAP, GRILLE (BLACK) MAY W10353930 Contact Us For Availability
20
HANDLE CUP (BLACK) MAY W10174743 Contact Us For Availability
20
HANDLE CUP (WHITE) MAY W10182940 Contact Us For Availability
20
WIRE ASSEMBLY, FREEZER COMPARTMENT (INCLUDES MAY W10339629 Contact Us For Availability
20
MAY W10236396 MAY W10236396 Contact Us For Availability
21
MAY 487576 MAY 487576 Contact Us For Availability
21
TRIM, DOOR MAY W10308875 Contact Us For Availability
21
AIR DIFFUSER ASSEMBLY MAY W10376137 Contact Us For Availability
21
MAY 2212848 MAY 2212848 Contact Us For Availability
22
COVER, HINGE (WHITE, RS) MAY W10331560 Contact Us For Availability
22
COVER, HINGE (WHITE, LS) MAY W10331654 Contact Us For Availability
22
COVER, HINGE (BLACK, RS) MAY W10353945 Contact Us For Availability
22
COVER, HINGE (BLACK, LS) MAY W10353948 Contact Us For Availability
22
ENDCAP, TRIM RS MAY W10308871 Contact Us For Availability
22
ENDCAP, TRIM LS MAY W10338485 Contact Us For Availability
22
KNOB, THERMOSTAT MAY W10396462 Contact Us For Availability
22
MAY 488500 MAY 488500 Contact Us For Availability
23
MAY W10394363 MAY W10394363 Contact Us For Availability
24
MAY W10384414 MAY W10384414 Contact Us For Availability
24
LIGHT COVER, RC MAY W10348614 Contact Us For Availability
24
MAY 3400518 MAY 3400518 Contact Us For Availability
25
Bracket, Fan Back MAY 2254454 Contact Us For Availability
25
MAY 939054 MAY 939054 Contact Us For Availability
26
Tube Clamp MAY 489385 Contact Us For Availability
26
MAY 2254453 MAY 2254453 Contact Us For Availability
26
MAY W10314200 MAY W10314200 Contact Us For Availability
27
ELEC. CONTROL, DEFROST MAY W10352689 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 13,14,15, & 16) MAY W10237272 Contact Us For Availability
NI
REFRIGERANT CHARGE (R134A) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE (ECKMF94) MAY 2155469 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 MAY 350942 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 4392899 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, BISCUIT (1 QT. MAY 4392900 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Biscuit ( MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
