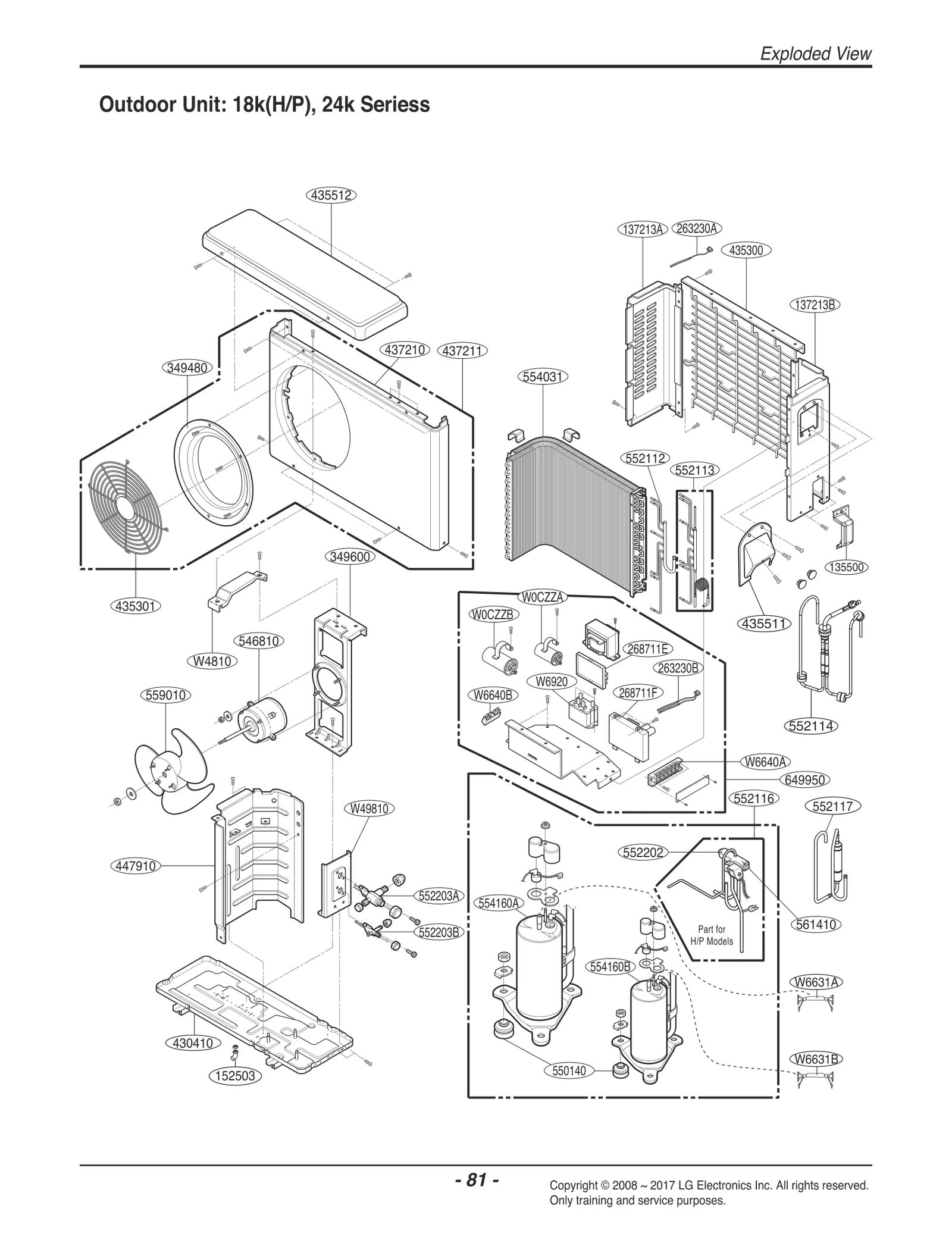

Model LG A-DMH18SB – Common Parts & Diagrams

268711E
PCB Assembly
PCB Assembly LGE 6871A10184F Contact Us For Availability
View on Model
435300
Grille,Rear
Grille,Rear LGE MDX59045502 Contact Us For Availability
View on Model
435511
Cover Assembly,Control(Outdoor)
Cover Assembly,Control(Outdoor) LGE 3551A10005G Contact Us For Availability
View on Model
435512
Cover Assembly,Top(Outdoor)
Cover Assembly,Top(Outdoor) LGE ACQ73019507 Contact Us For Availability
View on Model
437210
Panel Assembly,Front(Sub)
Panel Assembly,Front(Sub) LGE 1A00197F Contact Us For Availability
View on Model
447910
Barrier Assembly,Outdoor
Barrier Assembly,Outdoor LGE 4791A30004F Contact Us For Availability
View on Model
552112
Tube Assembly,Condenser(In)
Tube Assembly,Condenser(In) LGE 5211A34007A Contact Us For Availability
View on Model
552113
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE 5211A34008C Contact Us For Availability
View on Model
552114
Tube Assembly,Discharge(Outdoor)
Tube Assembly,Discharge(Outdoor) LGE 5211A25045C Contact Us For Availability
View on Model
552116
Tube Assembly,Reverse
Tube Assembly,Reverse LGE 5211A24108B Contact Us For Availability
View on Model
552117
Tube Assembly,Suction(Outdoor)
Tube Assembly,Suction(Outdoor) LGE 5211A25046B Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE 5220A20013D Contact Us For Availability
View on Model
552203B
VALVE,SERVICE
VALVE,SERVICE LGE 2H02479F Contact Us For Availability
View on Model
552203B
VALVE SERVICE
VALVE SERVICE LGE 2H02479B Contact Us For Availability
View on Model
552203B
Valve,Service
Valve,Service LGE 5220A20005C Contact Us For Availability
View on Model
554160A
Compressor Set,Korea
Compressor Set,Korea LGE 2520UGHK2AA Contact Us For Availability
View on Model
554160B
Compressor Set,Korea
Compressor Set,Korea LGE 2520UGKK2AA Contact Us For Availability
View on Model
649950
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE 4995A20383L Contact Us For Availability
View on Model
W0CZZB
CAPACITOR 400/35 GA-1015LC 121
CAPACITOR 400/35 GA-1015LC 121 LGE 3A00988B Contact Us For Availability
View on Model
W6631A
Harness,Multi
Harness,Multi LGE 6863AP3980U Contact Us For Availability
View on Model
W6640A
Connector,Terminal Block
Connector,Terminal Block LGE 6640AP9107C Contact Us For Availability
View on Model
