Model LG 98QNED89TUA – Common Parts & Diagrams
Diagram 0

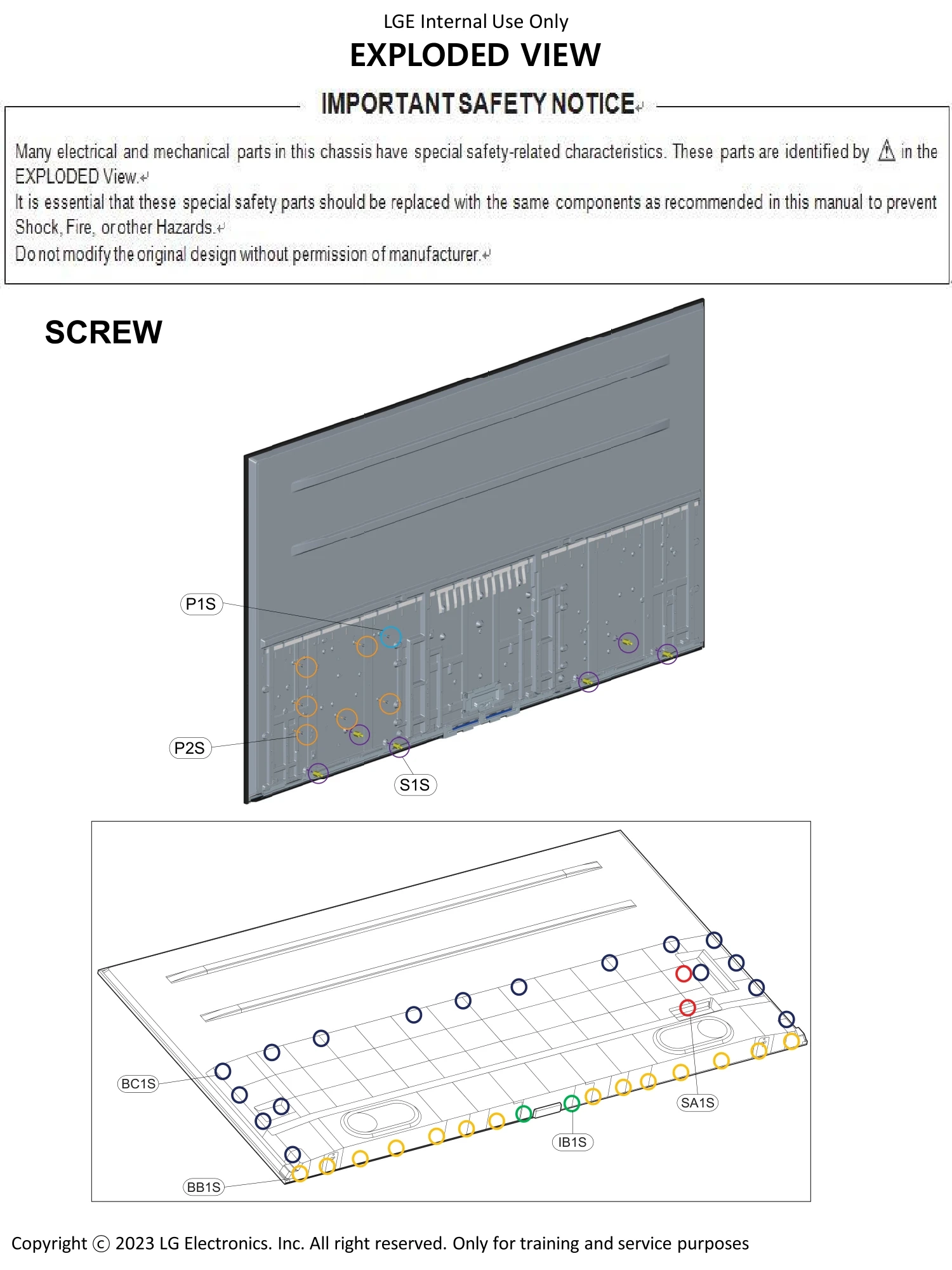

Diagram 1

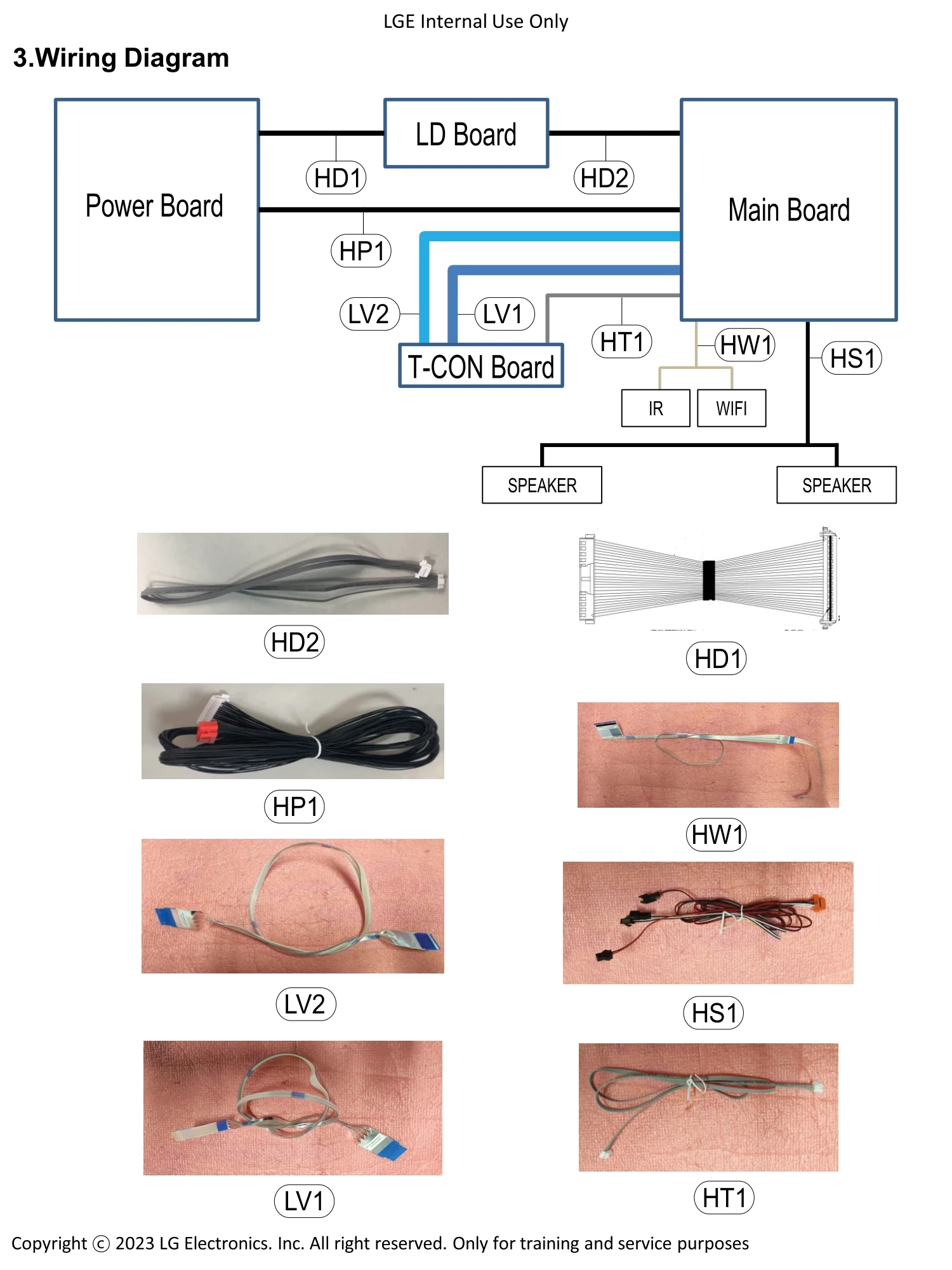

Diagram 2
Common parts from model LG 98QNED89TUA
120
Speaker Assembly,Outsourcing LGE COV37875601 Contact Us For Availability
121
Speaker Assembly,Outsourcing LGE COV37875501 Contact Us For Availability
200D
PCB Assembly,Sub,Outsourcing LGE COV37770801 Contact Us For Availability
200D
PCB Assembly LGE EBR43251801 Contact Us For Availability
200T
Time Control,Outsourcing LGE COV37851201 Contact Us For Availability
401
Cover Assembly,Outsourcing LGE COV37883301 Contact Us For Availability
402
Cover Assembly,Outsourcing LGE COV37883501 Contact Us For Availability
500
PCB Assembly,Sub,Outsourcing LGE COV37876101 Contact Us For Availability
501
Indicator,Outsourcing LGE COV37884001 Contact Us For Availability
521
Cover Assembly,Outsourcing LGE COV37883701 Contact Us For Availability
522
Cover Assembly,Outsourcing LGE COV37883801 Contact Us For Availability
530
Power Supply Assembly,Outsourcing LGE COV37865701 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU67920601 Contact Us For Availability
571
Bracket,Outsourcing LGE COV37884101 Contact Us For Availability
700
Power Cord,Outsourcing LGE COV37875301 Contact Us For Availability
730
Adapter,Outsourcing LGE COV37874901 Contact Us For Availability
801
Bracket Assembly,Outsourcing LGE COV37883901 Contact Us For Availability
802
Bracket Assembly,Outsourcing LGE COV37883902 Contact Us For Availability
811
Bracket Assembly,Outsourcing LGE COV37884601 Contact Us For Availability
812
Bracket Assembly,Outsourcing LGE COV37884602 Contact Us For Availability
820
Insulation,Outsourcing LGE COV37895001 Contact Us For Availability
901
Base Assembly,Outsourcing LGE COV37883601 Contact Us For Availability
902
Base Assembly,Outsourcing LGE COV37883602 Contact Us For Availability
AR2
Remote Controller Assembly LGE AKB76045002 Contact Us For Availability
BB1S
Screw Assembly,Outsourcing LGE COV37883103 Contact Us For Availability
BC1S
Screw Assembly,Outsourcing LGE COV37883102 Contact Us For Availability
HD2
HARNESS,Outsourcing LGE COV37876501 Contact Us For Availability
HP1
HARNESS,Outsourcing LGE COV37876201 Contact Us For Availability
HS1
HARNESS,Outsourcing LGE COV37875701 Contact Us For Availability
HW1
FFC Cable,Outsourcing LGE COV37875801 Contact Us For Availability
IB1S
Screw Assembly,Outsourcing LGE COV37883104 Contact Us For Availability
LV1
FFC Cable,Outsourcing LGE COV37876001 Contact Us For Availability
LV2
FFC Cable,Outsourcing LGE COV37875901 Contact Us For Availability
P1S
Screw Assembly,Outsourcing LGE COV37883109 Contact Us For Availability
P2S
Screw Assembly,Outsourcing LGE COV37883110 Contact Us For Availability
SA1S
Screw Assembly,Outsourcing LGE COV37883105 Contact Us For Availability
SP1
Spacer,Outsourcing LGE COV37883201 Contact Us For Availability
× ![]()
