Model Whirlpool 98FA-4CLX ELECTRIC WALL OVEN – Common Parts & Diagrams
02 - CONTROL PANEL

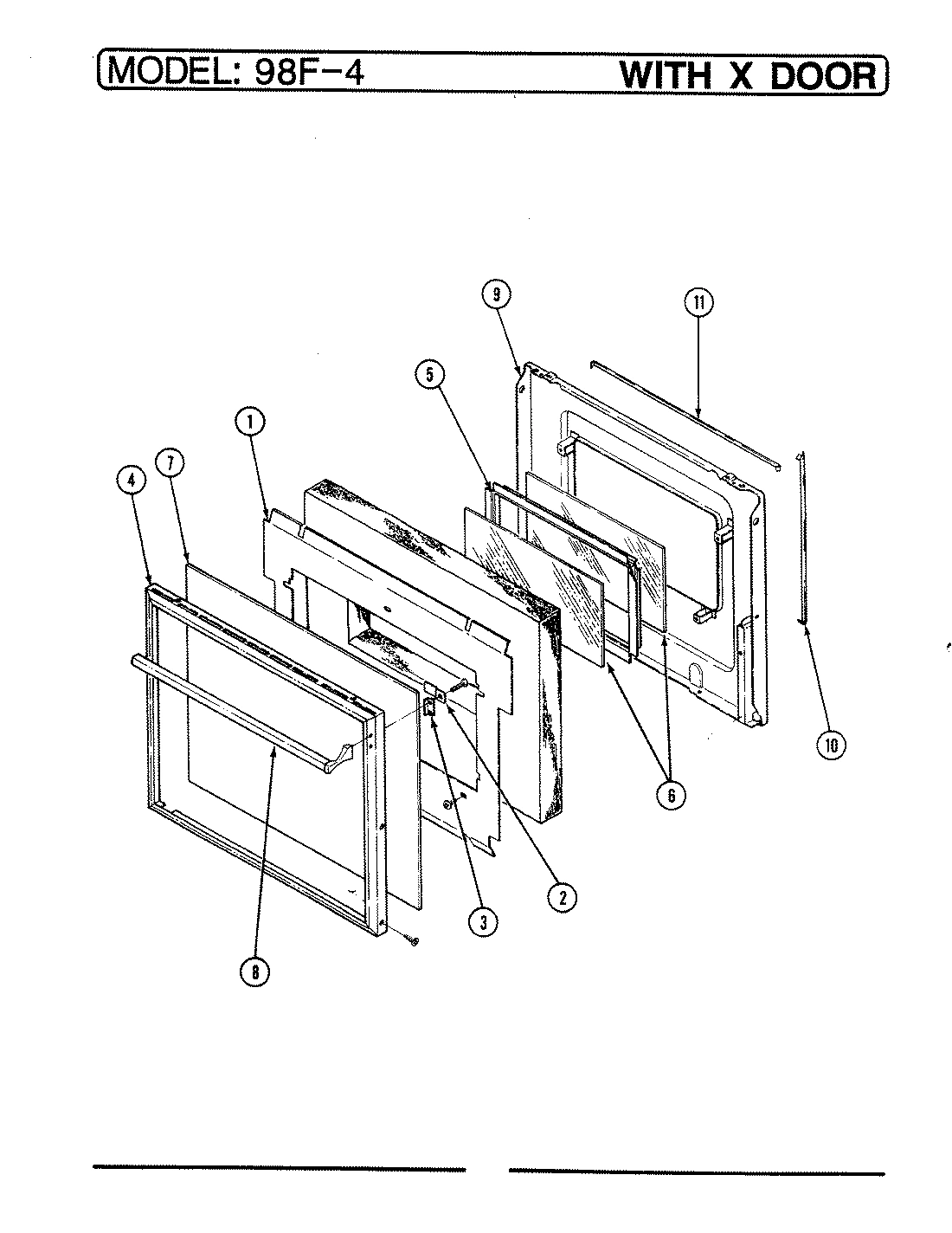

04 - DOOR (WITH X)

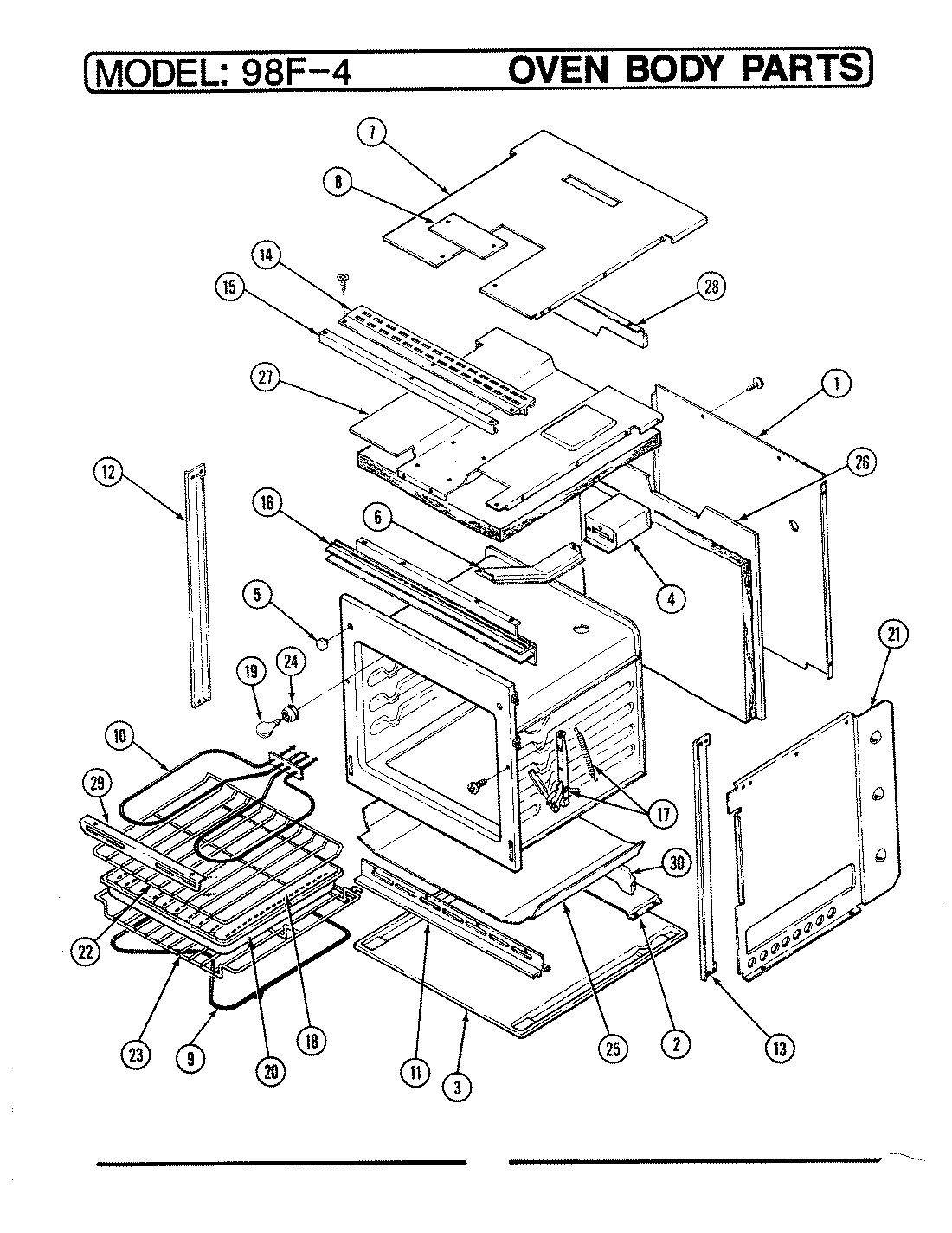

01 - BODY

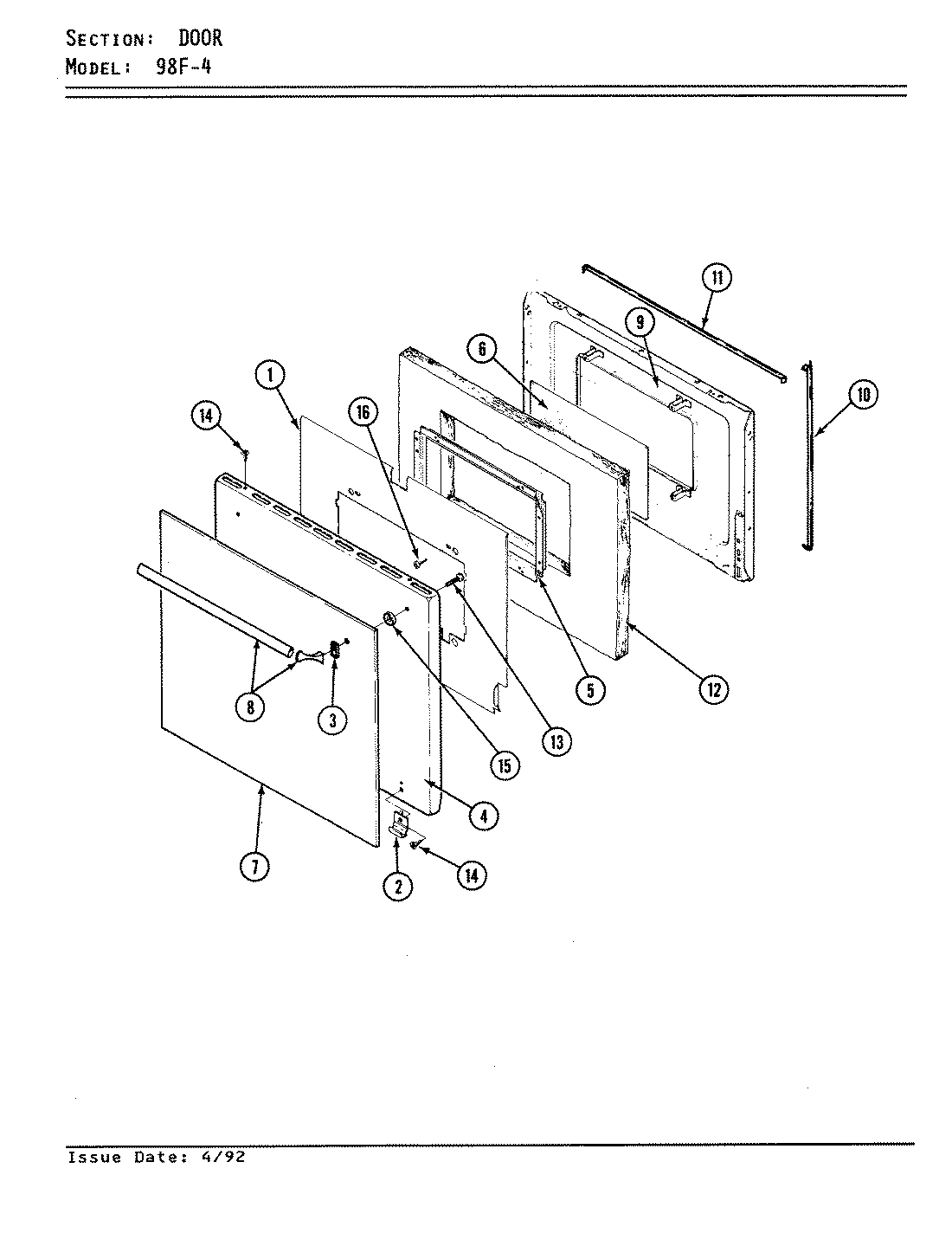

03 - DOOR (SERIES 12)
Common parts from model Whirlpool 98FA-4CLX ELECTRIC WALL OVEN
1
MOTOR, CLOCK 50HZ WPL 7409P00260 Contact Us For Availability
1
CLOCK WPL 7601P09860 Contact Us For Availability
1
BAFFLE, UPPER DOOR WPL 3601F10251 Contact Us For Availability
1
BACK MAIN WPL 4002F03951 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F10351 Contact Us For Availability
2
CONDUIT, FLEXIBLE WPL 7434P00660 Contact Us For Availability
2
RETAINER WPL 3804F01050 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00580 Contact Us For Availability
2
CLIP, GLASS RETAINER (BLK) WPL 3819F01070 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P00360 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
3
CLIP, DOOR HANDLE WPL 7112P01760 Contact Us For Availability
3
BASE, WALL OVEN WPL 4003F01120 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P01560 Contact Us For Availability
4
COVER, FAN WPL 4005F17751 Contact Us For Availability
4
FRAME, DOOR UPPER WPL 7706P22060 Contact Us For Availability
4
BOX, VENT WPL 4006W04615 Contact Us For Availability
4
PANEL, DOOR (BLK) WPL 2401F11170 Contact Us For Availability
5
COVER, WIRE WPL 4005F15051 Contact Us For Availability
5
FRAME, WINDOW WPL 7706P12860 Contact Us For Availability
5
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
5
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
6
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
6
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
6
CHANNEL, VENT ASSEMBLY WPL 3818W00215 Contact Us For Availability
7
GLASS, CONTROL PANEL WPL 7912P02760 Contact Us For Availability
7
GLASS, DOOR WPL 7902P26460 Contact Us For Availability
7
COVER, BOX WPL 4005F20251 Contact Us For Availability
7
GLASS, DOOR (BLK) WPL 7902P35760 Contact Us For Availability
8
LIGHT, INDICATOR----NA WPL 7407P00760 Contact Us For Availability
8
HANDLE, DOOR WPL 7701P01760 Contact Us For Availability
8
COVER, LOCK WPL 4005F16045 Contact Us For Availability
8
HANDLE, DOOR (BLK) WPL 7701P02460 Contact Us For Availability
9
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
9
LINING ASSY, OV DR WPL 2402W09916 Contact Us For Availability
9
LINING, DOOR WPL 2402W13317 Contact Us For Availability
9
ELEMENT BAKE WPL 7406P01360 Contact Us For Availability
9
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
9
LINING ASSY, OVEN DOOR WPL 2402W13316 Contact Us For Availability
10
KNOB (CHR) WPL 7711P29160 Contact Us For Availability
10
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
10
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
10
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
11
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
11
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
11
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
12
BRACKET, CONDUIT WPL 3801F07245 Contact Us For Availability
12
EXTRUSION, SIDE-L WPL 7706P11760 Contact Us For Availability
12
EXTRUSION, SIDE-L WPL 7750P01660 Contact Us For Availability
12
EXTRUSION, SIDE (LT-BLK) WPL 7750P03160 Contact Us For Availability
12
INSULATION, DOOR LOWER WPL 7002P01960 Contact Us For Availability
13
PLATE, BACKING WPL 3605F11380 Contact Us For Availability
13
EXTRUSION, SIDE-R WPL 7706P11860 Contact Us For Availability
13
EXTRUSION, SIDE-R WPL 7750P01760 Contact Us For Availability
13
EXTRUSION, SIDE (RT-BLK) WPL 7750P03260 Contact Us For Availability
13
SCREW, DOOR HANDLE WPL 7101P08960 Contact Us For Availability
14
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
14
EXTRUSION, TOP WPL 7706P11460 Contact Us For Availability
14
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
15
SWITCH, SELECTOR WPL 7403P17260 Contact Us For Availability
15
EXTRUSION, TOP FRONT WPL 7756P01360 Contact Us For Availability
15
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
16
THERMOSTAT, OVEN WPL 7404P04960 Contact Us For Availability
16
EXTRUSION, VENT WPL 7756P00760 Contact Us For Availability
16
EXTRUSION, VENT WPL 7756P02060 Contact Us For Availability
16
EXTRUSION, VENT WPL 7756P07160 Contact Us For Availability
16
SCREW WPL 7101P06160 Contact Us For Availability
17
HINGE, UPPER DOOR WPL 7106A01560 Contact Us For Availability
17
HINGE, OVEN DOOR WPL 7106A01860 Contact Us For Availability
17
HINGE WPL 7106P03660 Contact Us For Availability
18
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
18
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
19
BULB, OVEN WPL 7407P02660 Contact Us For Availability
20
PAN, BROIL WPL 3401F00423 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
21
PANEL, SIDE (RT) WPL 2618F05351 Contact Us For Availability
21
PANEL, SIDE (LT) WPL 2618F05451 Contact Us For Availability
22
RACK WPL 7801P00560 Contact Us For Availability
23
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
24
RECEPT, OVEN LIGHT WPL 7408P00160 Contact Us For Availability
25
RETAINER, BOTTOM INSULATION WPL 3804F10451 Contact Us For Availability
26
RETAINER, INSUL-R WPL 3804F00751 Contact Us For Availability
27
RETAINER,TOP WPL 3804F05351 Contact Us For Availability
28
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
29
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
30
SUPPORT WPL 3807F13780 Contact Us For Availability
× ![]()
