Model Whirlpool 9895VRV ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

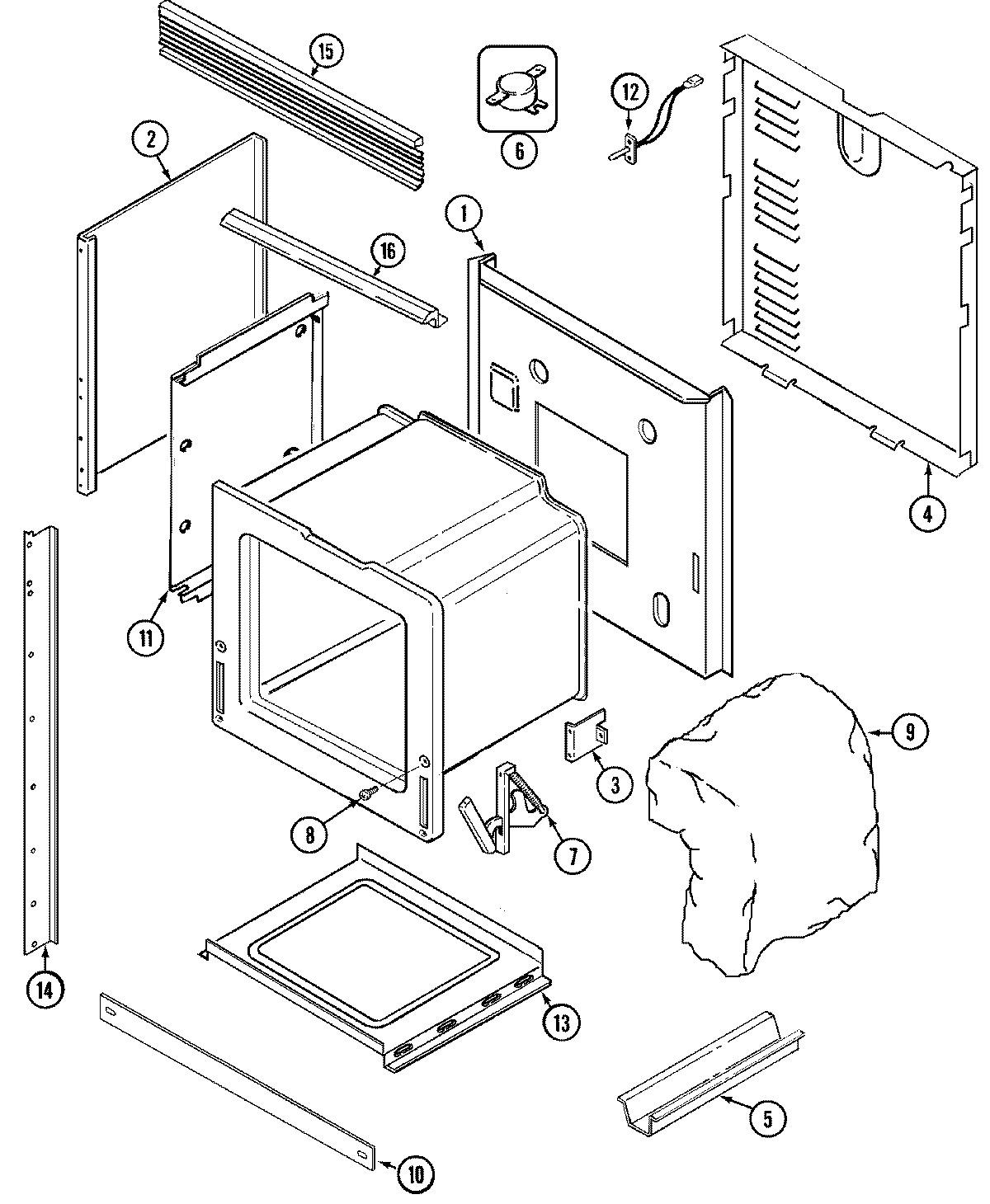

01 - BODY

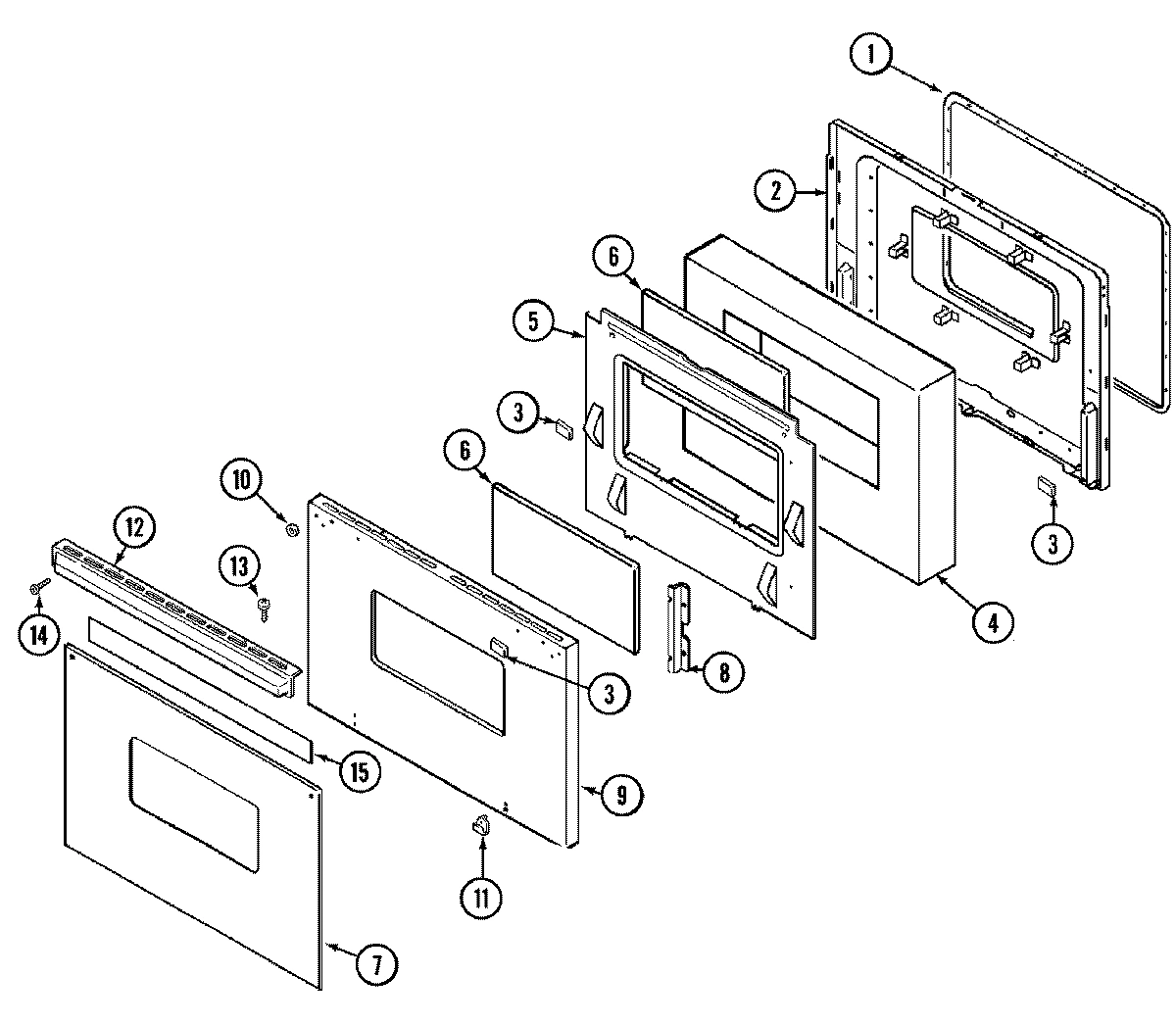

02 - DOOR (SER. PRE. 12)
04 - MICROWAVE
06 - WIRING INFORMATION (WALL OVEN)

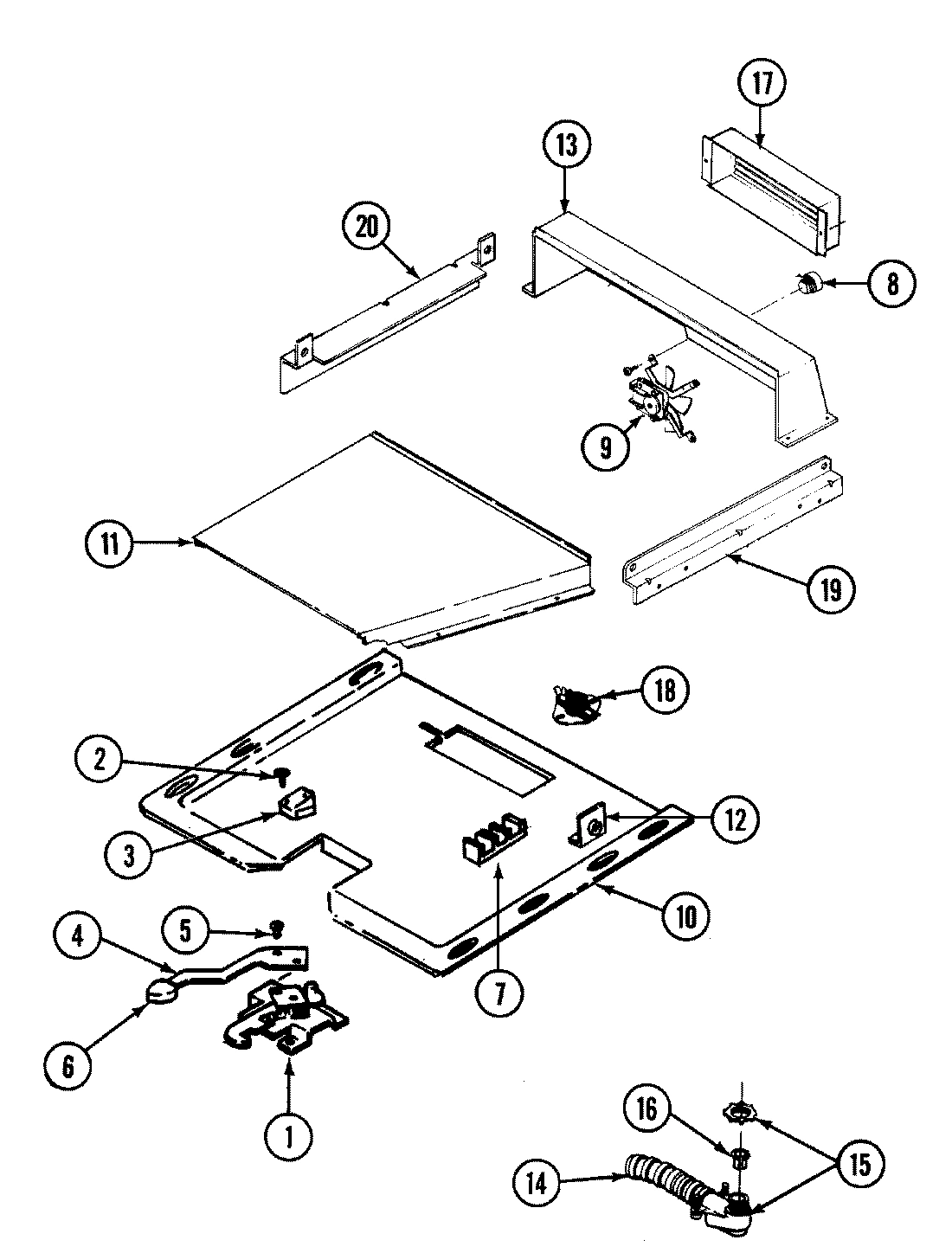

03 - INTERNAL CONTROLS

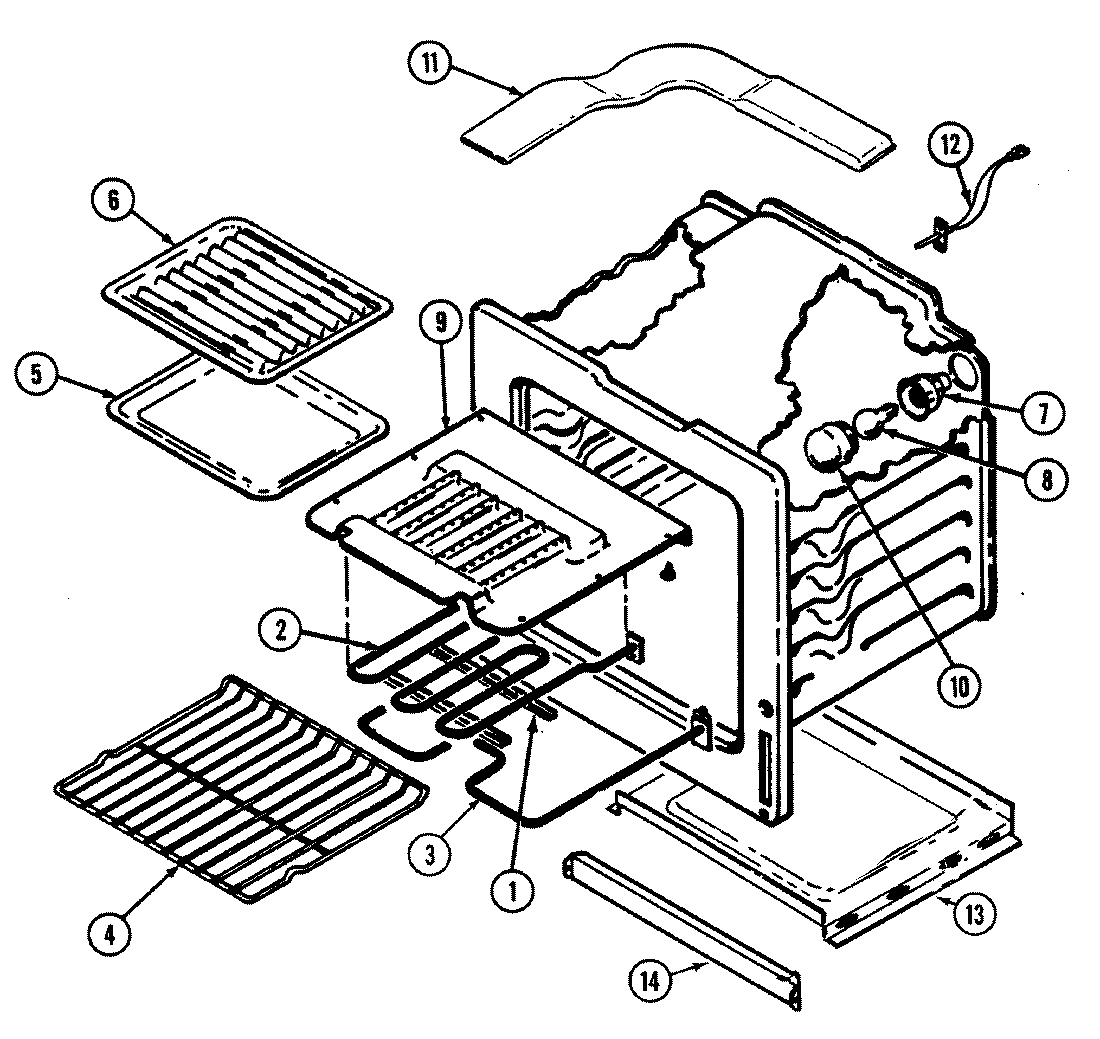

05 - OVEN
Common parts from model Whirlpool 9895VRV ELECTRIC WALL OVEN/MICROWAVE COMBO
1
BACK, MAIN WPL 4002F16951 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
NOT REQUIRED PART OR SEE NOTE FOR M/W PARTS S WPL W10124350 Contact Us For Availability
1
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P33460 Contact Us For Availability
2
PANEL, SIDE WPL 2618F08251 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P07960 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
INSULATION, FIBERBOARD WPL 7003P05160 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P07860 Contact Us For Availability
4
COVER, REAR WPL 4005F43451 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
LEVER WPL 8009P02060 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
SWITCH, HI-LIMIT WPL 7403P31660 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
6
HANDLE, DOOR LATCH (WHT) WPL 7701P13360 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
HINGE----NA WPL 7106P05060 Contact Us For Availability
7
GLASS, DOOR (WHT) WPL 7902P35160 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
SCREW WPL 7101P11560 Contact Us For Availability
8
RETAINER, GLASS WPL 74001844 Contact Us For Availability
8
FUSE WPL 7416P00260 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
9
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
9
PANEL, DOOR (WHT) WPL 2401F12371 Contact Us For Availability
9
FAN ASSY. WPL 7427P01060 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
10
STRIP, BOTTOM (WHT) WPL 4005F35471 Contact Us For Availability
10
NUT WPL 7103P03460 Contact Us For Availability
10
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
10
RETAINER, TOP INSULATION WPL 3804F11151 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10851 Contact Us For Availability
11
CLIP, GLASS (WHT) WPL 7112P09460 Contact Us For Availability
11
SHIELD, HEAT WPL 3604F20645 Contact Us For Availability
11
COVER, VENT WPL 4005F40351 Contact Us For Availability
11
TUBE, VENT WPL 7506P12560 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
HANDLE, DOOR (WHT)----NA WPL 7701P12160 Contact Us For Availability
12
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
BOTTOM, MAIN WPL 4011F21751 Contact Us For Availability
13
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09051 Contact Us For Availability
14
EXTENSION WPL 3826F01545 Contact Us For Availability
14
EXTRUSION (RT-WHT) WPL 7750P09160 Contact Us For Availability
14
EXTRUSION (LT-WHT) WPL 7750P09260 Contact Us For Availability
14
SCREW WPL 7101P32460 Contact Us For Availability
14
TUBING CONDUIT WPL 3414F09844 Contact Us For Availability
14
WIRES, TUBING CONDUIT WPL 5140A03260 Contact Us For Availability
14
SCREW WPL 7101P29060 Contact Us For Availability
14
NUT WPL 7103P12560 Contact Us For Availability
15
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
15
EXTRUSION, VENT (BTM-CHR) WPL 7756P09660 Contact Us For Availability
15
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
15
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
16
EXTRUSION, MICROWAVE (WHT) WPL 7756P08860 Contact Us For Availability
16
GROMMET WPL 8008P01760 Contact Us For Availability
17
COVER FAN WPL 4005F37451 Contact Us For Availability
18
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
18
SWITCH, HI-LIMIT WPL 7403P31360 Contact Us For Availability
19
BRKT, MTG-R WPL 3801F28751 Contact Us For Availability
20
BRACKET, M/WAVE MTG. (LT) WPL 3801F28651 Contact Us For Availability
20
RACEWAY, WIRE WPL 3830F00851 Contact Us For Availability
20
HARNESS SENSOR PROBE WPL 5170P09860 Contact Us For Availability
20
HARNESS, LOWER WPL 5185D28360 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003734 Contact Us For Availability
× ![]()
