Model Whirlpool 9876VVV ELECTRIC WALL OVEN – Common Parts & Diagrams

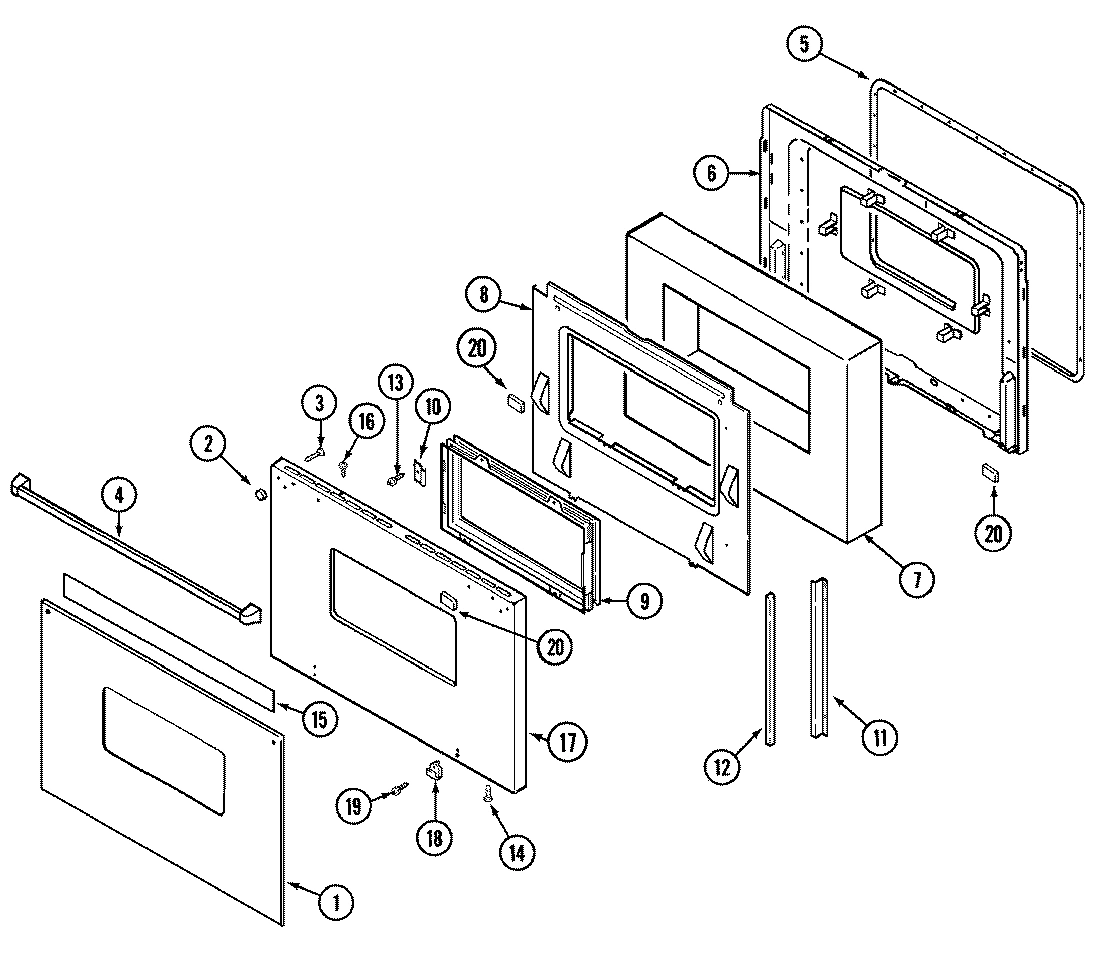

03 - DOOR
05 - INTERNAL CONTROLS
07 - WIRING INFORMATION
02 - CONTROL PANEL
04 - DOOR (SER. PRE. 15)
06 - OVEN
01 - BODY
Common parts from model Whirlpool 9876VVV ELECTRIC WALL OVEN
1
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
1
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
1
LATCH ASSY. WPL 74003032 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
1
TRIM, VENT (CHR) WPL 7756P09960 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 7902P36860 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
1
BACK, MAIN WPL 74001798 Contact Us For Availability
2
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
2
ELEMENT, BROIL WPL Y04000072 Contact Us For Availability
2
PANEL, SIDE WPL 2618F08251 Contact Us For Availability
3
SCREW WPL 7101P32660 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
3
INSULATION, FIBERBOARD WPL 7003P05660 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 7701P11160 Contact Us For Availability
4
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
4
TRIM, CONTROL PANEL (WHT) WPL 7720P16460 Contact Us For Availability
4
RACK, OVEN WPL 74001808 Contact Us For Availability
4
COVER, REAR WPL 4005F43451 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
5
TRIM, TOP (WHT) WPL 7756P10160 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SHIELD, HEAT WPL 3604F18951 Contact Us For Availability
5
SHIELD, HEAT WPL 74003035 Contact Us For Availability
6
LINING, DOOR WPL 2402W20919 Contact Us For Availability
6
HANDLE, DOOR LATCH (WHT) WPL 7701P15360 Contact Us For Availability
6
CLIP WPL 7112P02960 Contact Us For Availability
6
PANEL, CONTROL (WHT) WPL 74001786 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
SWITCH, HI-LIMIT WPL 7403P31660 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F05160 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
7
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
7
CLOCK WPL 74001787 Contact Us For Availability
7
INSULATION, DOOR WPL 74001842 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
HINGE WPL 7106P05760 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23651 Contact Us For Availability
8
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
8
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
8
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
8
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
9
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
9
FAN ASSY. WPL 7427P01060 Contact Us For Availability
9
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
9
TRIM, FILLER STRIP (WHT)----NA WPL 7752P01460 Contact Us For Availability
9
RETAINER, GLASS WPL 74001844 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
INSULATION, WRAPPER WPL 74001799 Contact Us For Availability
9
INSULATION, BACK WPL 74001800 Contact Us For Availability
9
INSULATION, OVEN WRAP WPL 74003036 Contact Us For Availability
10
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
10
RETAINER, TOP INSULATION WPL 74001793 Contact Us For Availability
10
HARNESS, OVEN SENSOR/LATCH WPL 74001790 Contact Us For Availability
10
HARNESS, MAIN WIRE WPL 74001797 Contact Us For Availability
10
GLASS, INNER WPL 74001841 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
SHIELD, LOWER VENT (WHT) WPL 3604F18171 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
11
COVER, FAN HOUSING WPL 4005F43151 Contact Us For Availability
11
MANUAL, USE & CARE WPL 74001807 Contact Us For Availability
11
MANUAL, USE & CARE WPL 8113P04160 Contact Us For Availability
11
SCREW WPL 7101P35260 Contact Us For Availability
11
TUBE, VENT WPL 7506P12560 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 74001436 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
SCREW WPL 7101P29060 Contact Us For Availability
12
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
12
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
12
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
RETAINER, INSUL. (BACK) WPL 74001801 Contact Us For Availability
13
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
13
CLIP, GLASS (WHT) WPL 7112P09460 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09251 Contact Us For Availability
13
FAN ASSY. (CONVECTION) WPL 74001805 Contact Us For Availability
13
BOTTOM, MAIN WPL 74001742 Contact Us For Availability
14
TUBING, CONDUIT WPL 3414F06651 Contact Us For Availability
14
WIRES, CONDUIT TUBING WPL 5140A03760 Contact Us For Availability
14
SCREW WPL 74001161 Contact Us For Availability
14
COVER, FAN ASSY. WPL 74001806 Contact Us For Availability
14
SCREW (WHT) WPL 74001388 Contact Us For Availability
14
EXTRUSION, SIDE (RT-WHT) WPL 74001390 Contact Us For Availability
14
EXTRUSION, SIDE (LT-WHT) WPL 74001392 Contact Us For Availability
14
SPACER, MTG. ADAPTER (WHT) WPL 74001393 Contact Us For Availability
15
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
15
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
15
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
15
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
16
SCREW (WHT) WPL 7101P30860 Contact Us For Availability
16
RACEWAY, WIRE WPL 3830F00851 Contact Us For Availability
16
SWITCH WPL 74001802 Contact Us For Availability
17
PANEL, DOOR (WHT) WPL 2401F12371 Contact Us For Availability
17
COVER, FAN WPL 4005F26251 Contact Us For Availability
17
INSULATOR, DOOR SWITCH WPL 74001626 Contact Us For Availability
18
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
18
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
18
SWITCH, HI-LIMIT WPL 7403P31360 Contact Us For Availability
19
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
19
SCREW WPL 7101P26160 Contact Us For Availability
19
RELAY WPL 74001796 Contact Us For Availability
20
INSULATOR, LATCH SWITCH WPL 74001804 Contact Us For Availability
20
INSULATOR, DOOR SWITCH WPL 74001627 Contact Us For Availability
21
WASHER WPL 7109P00260 Contact Us For Availability
21
ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability
22
GROMMET WPL 8008P01760 Contact Us For Availability
22
BUMPER, ROD WPL 74001631 Contact Us For Availability
23
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001488 Contact Us For Availability
× ![]()
