Model Whirlpool 9875VVV ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BODY

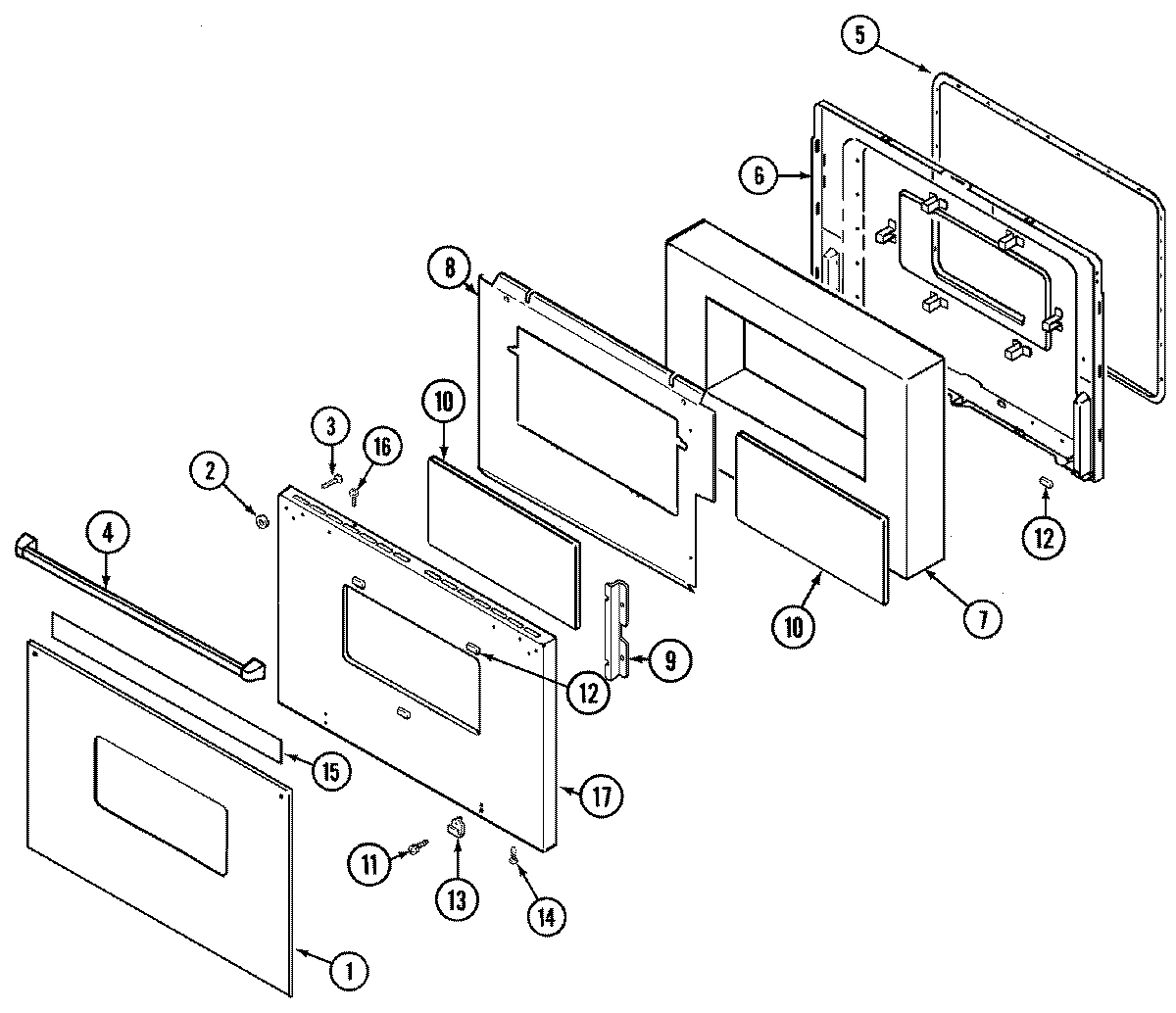

03 - DOOR (SER. PRE. 15)

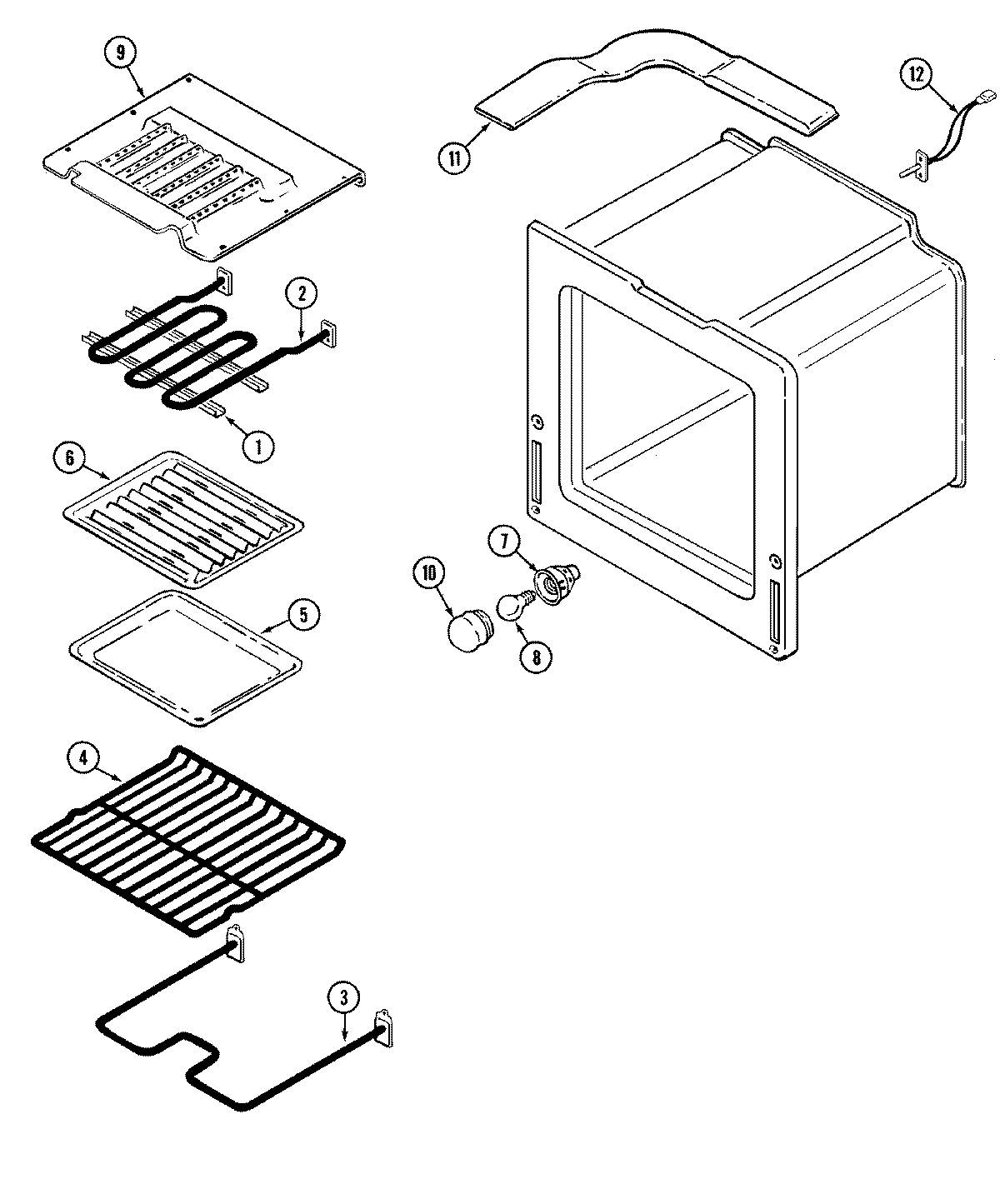

05 - OVEN

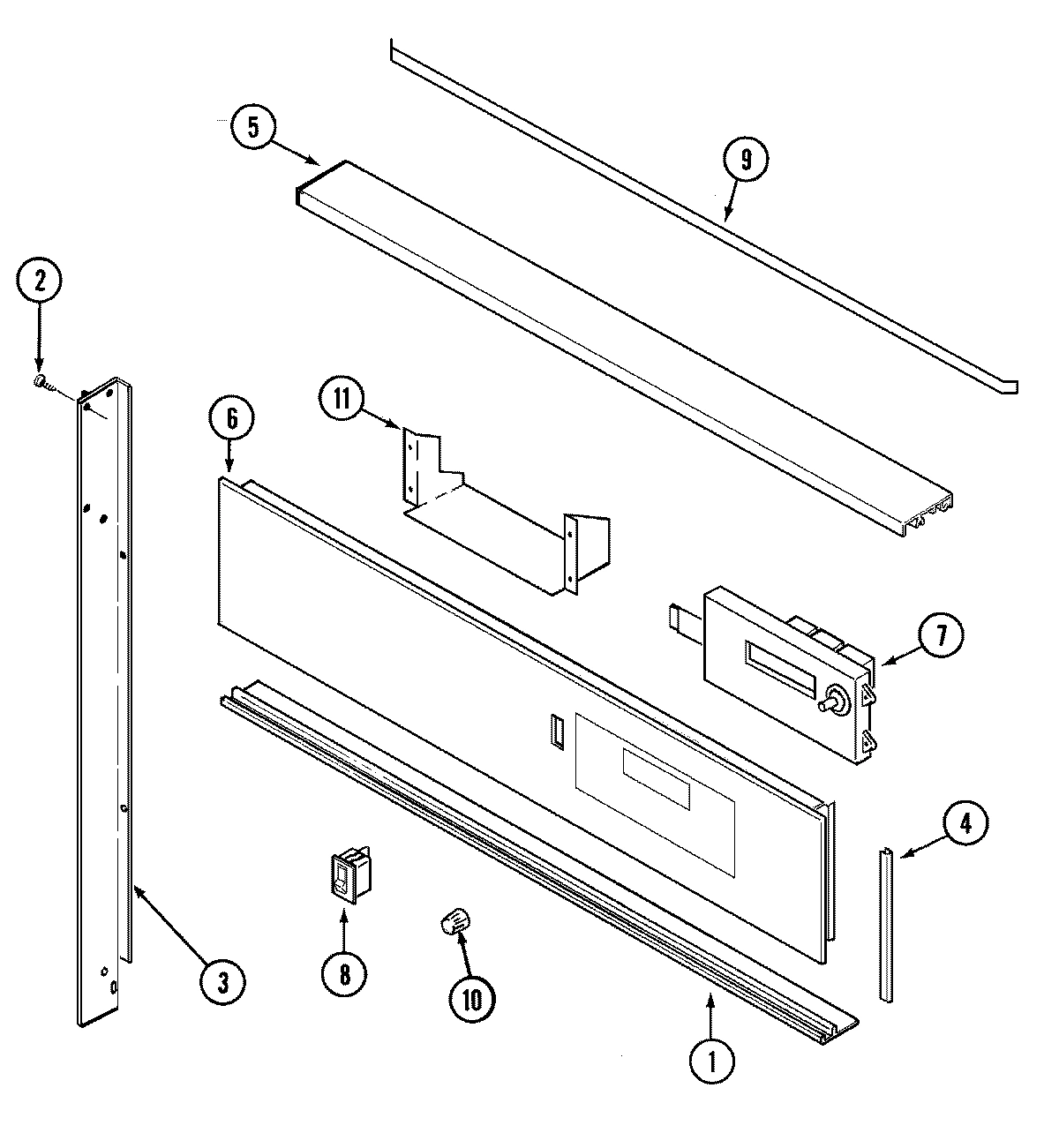

02 - CONTROL PANEL

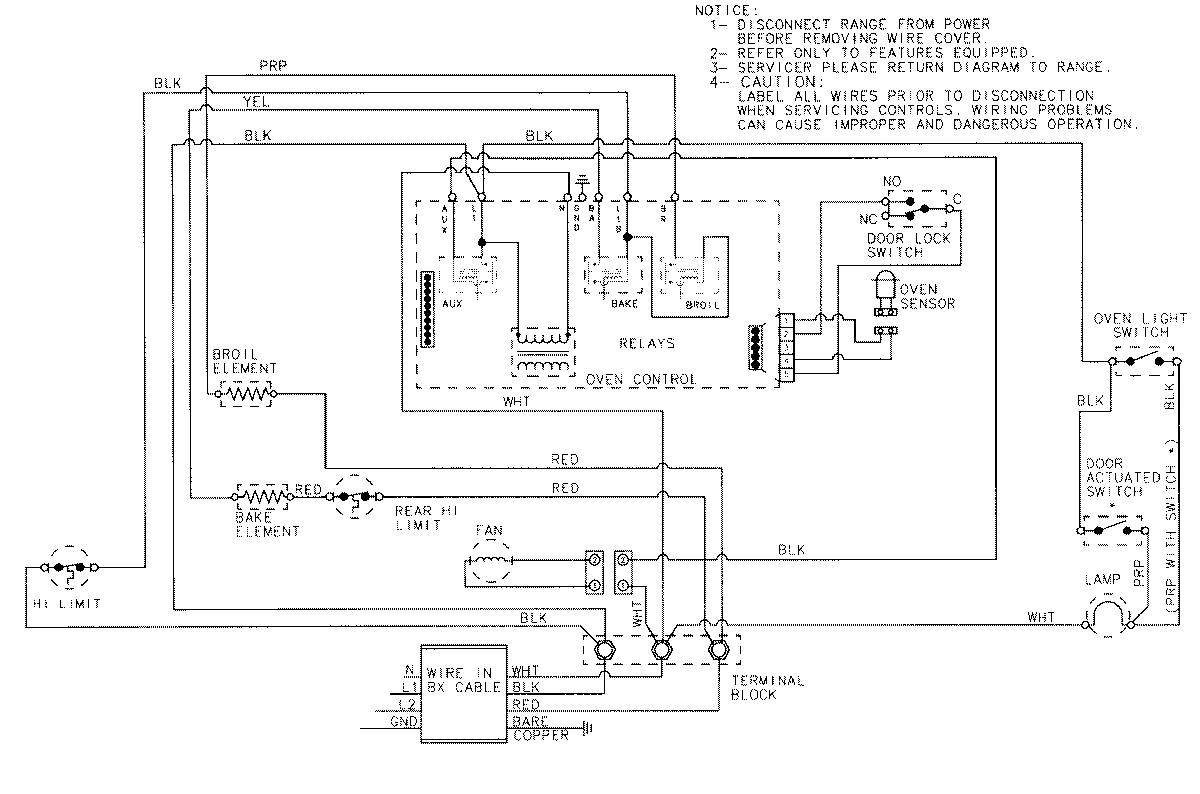

06 - WIRING INFORMATION

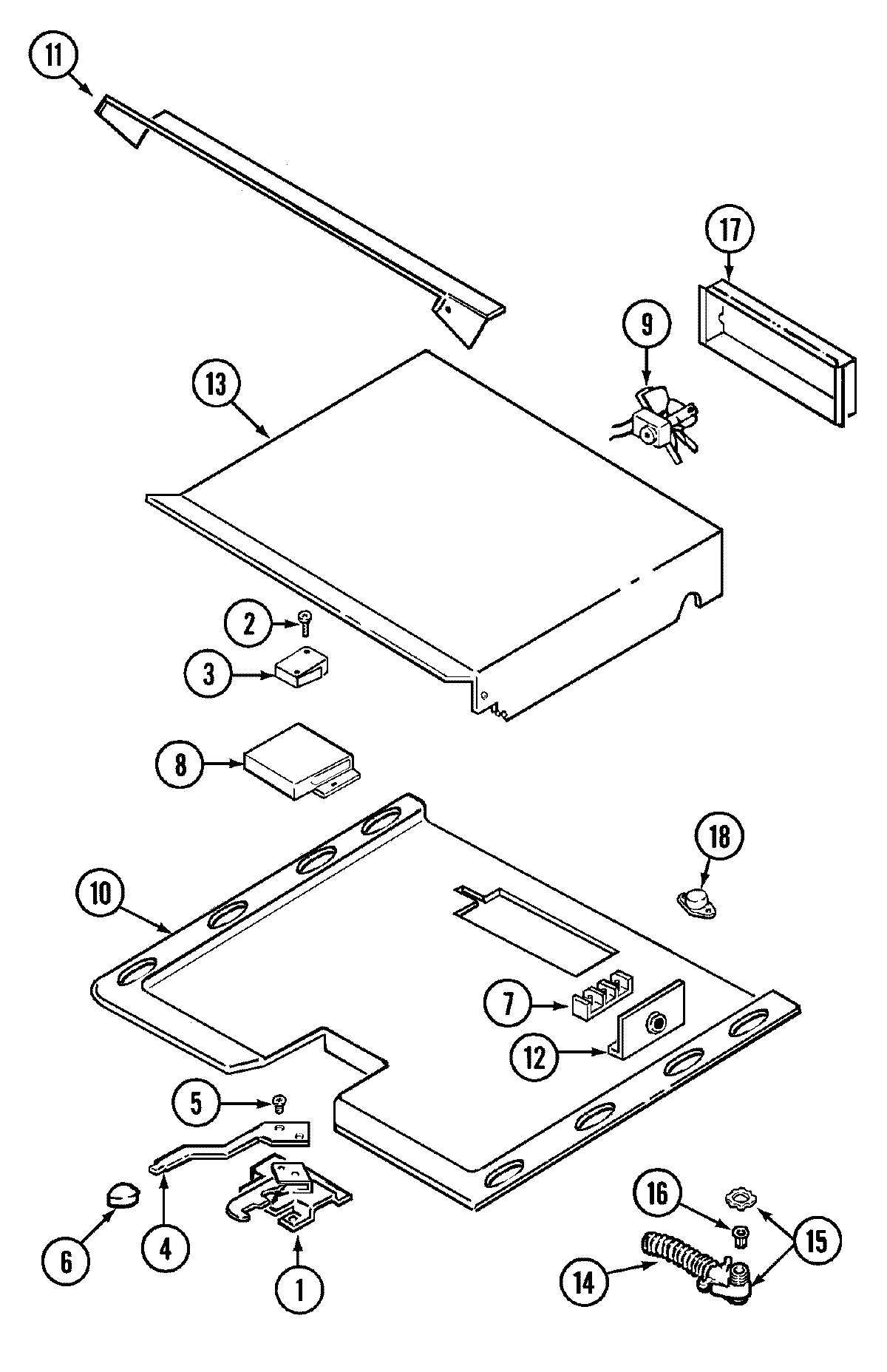

04 - INTERNAL CONTROLS
Common parts from model Whirlpool 9875VVV ELECTRIC WALL OVEN
1
BACK, MAIN WPL 4002F16951 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 7902P36860 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
1
TRIM, VENT (CHR) WPL 7756P09960 Contact Us For Availability
1
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
2
PANEL, SIDE WPL 2618F08251 Contact Us For Availability
2
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P07960 Contact Us For Availability
2
SCREW (WHT) WPL 7101P30860 Contact Us For Availability
2
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
SCREW WPL 7101P32660 Contact Us For Availability
3
SCREW WPL 7101P29060 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P07860 Contact Us For Availability
3
EXTRUSION, SIDE (RT-WHT) WPL 74001390 Contact Us For Availability
3
EXTRUSION, SIDE (LT-WHT) WPL 74001392 Contact Us For Availability
3
TRIM, SIDE (RT-WHT) WPL 7750P09960 Contact Us For Availability
3
TRIM, SIDE (LT-WHT) WPL 7750P10060 Contact Us For Availability
3
INSULATION, FIBERBOARD WPL 7003P05160 Contact Us For Availability
3
SWITCH, DOOR LATCH----NA WPL 7403P32560 Contact Us For Availability
4
COVER, REAR WPL 4005F43451 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 7701P11160 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
4
TRIM, CONTROL PANEL (WHT) WPL 7720P16460 Contact Us For Availability
4
LEVER WPL 8009P02060 Contact Us For Availability
5
SHIELD, HEAT WPL 3604F18951 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
TRIM, TOP (WHT) WPL 7756P10160 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
6
SWITCH, HI-LIMIT WPL 7403P31660 Contact Us For Availability
6
LINING, DOOR WPL 2402W20919 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
PANEL, CONTROL (WHT) WPL 7721P04860 Contact Us For Availability
6
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
6
HANDLE, DOOR LATCH (WHT) WPL 7701P13360 Contact Us For Availability
7
HINGE WPL 7106P05760 Contact Us For Availability
7
INSULATION, DOOR WPL 74001842 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
CLOCK WPL 7601P23360 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
8
SCREW WPL 7101P11560 Contact Us For Availability
8
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
8
COVER WPL 4005F42880 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
9
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
9
RETAINER, GLASS WPL 74001844 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
TRIM, FILLER STRIP (WHT)----NA WPL 7752P01460 Contact Us For Availability
9
FAN ASSY. WPL 7427P01060 Contact Us For Availability
10
SHIELD, LOWER VENT (WHT) WPL 3604F18171 Contact Us For Availability
10
GLASS, INNER WPL 74001841 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
RETAINER, TOP INSULATION WPL 3804F11751 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10851 Contact Us For Availability
11
COVER, VENT WPL 4005F40351 Contact Us For Availability
11
TUBE, VENT WPL 7506P12560 Contact Us For Availability
11
INSULATION, FIBERBOARD WPL 7003P05660 Contact Us For Availability
11
COVER, FAN HOUSING WPL 4005F43151 Contact Us For Availability
12
BOTTOM, MAIN WPL 4011F21751 Contact Us For Availability
12
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
HARNESS, MAIN WPL 5170D20960 Contact Us For Availability
12
HARNESS, SENSOR/LOCK WPL 5170P20760 Contact Us For Availability
12
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
CLIP, GLASS (WHT) WPL 7112P09460 Contact Us For Availability
13
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
13
SCREW (WHT) WPL 74001388 Contact Us For Availability
13
SPACER, MTG. ADAPTER (WHT) WPL 74001393 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09251 Contact Us For Availability
14
MANUAL, USE & CARE WPL 8113P02460 Contact Us For Availability
14
MANUAL, USE & CARE (FRENCH) WPL 8113P05660 Contact Us For Availability
14
TUBING, CONDUIT WPL 3414F06651 Contact Us For Availability
15
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
15
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
15
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
16
GROMMET WPL 8008P01760 Contact Us For Availability
17
PANEL, DOOR (WHT) WPL 2401F12371 Contact Us For Availability
17
COVER, FAN WPL 4005F26251 Contact Us For Availability
18
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
18
SWITCH, HI-LIMIT WPL 7403P31360 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001717 Contact Us For Availability
× ![]()
