Model Whirlpool 9855VUV ELECTRIC WALL OVEN – Common Parts & Diagrams

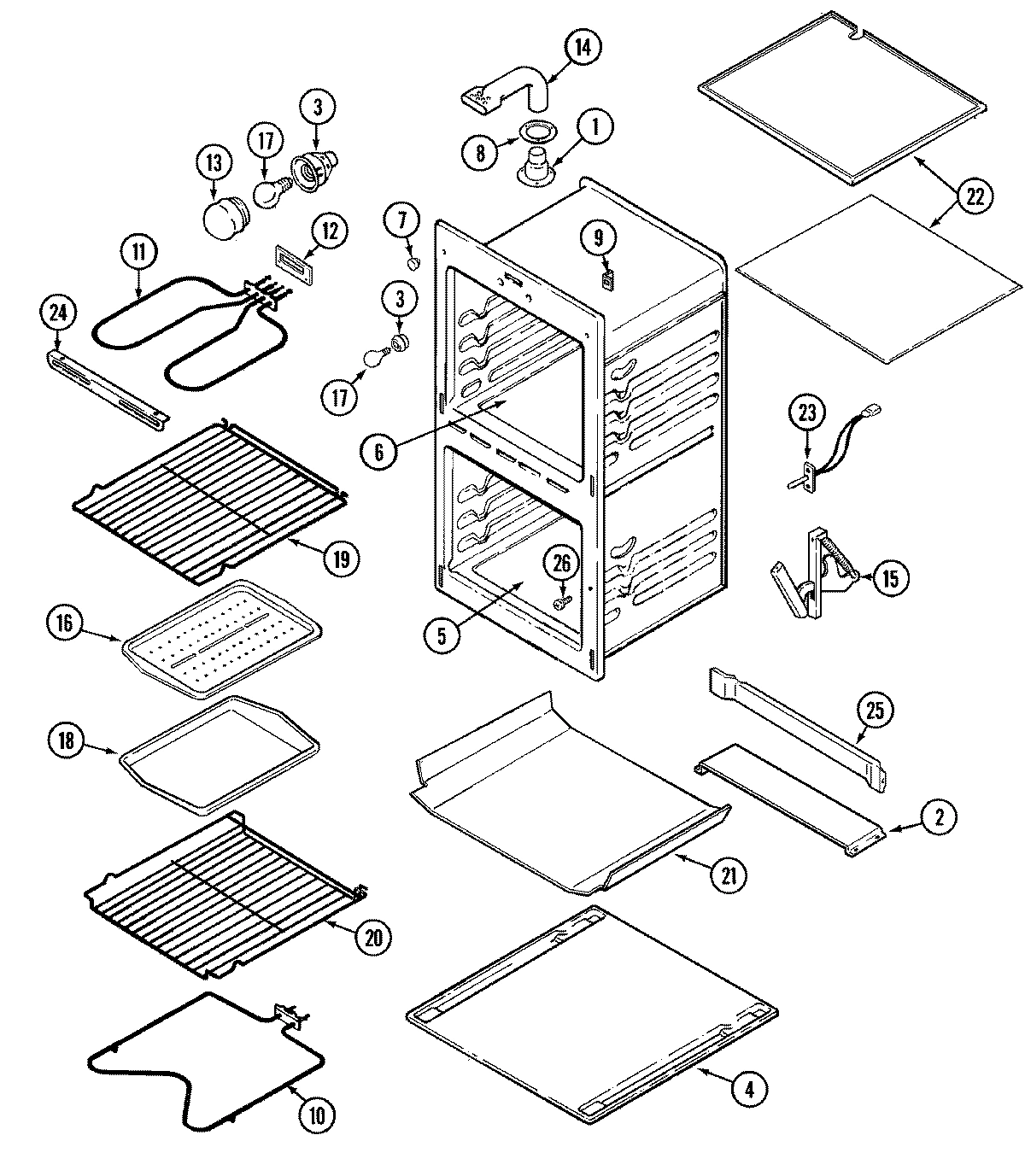

05 - OVEN

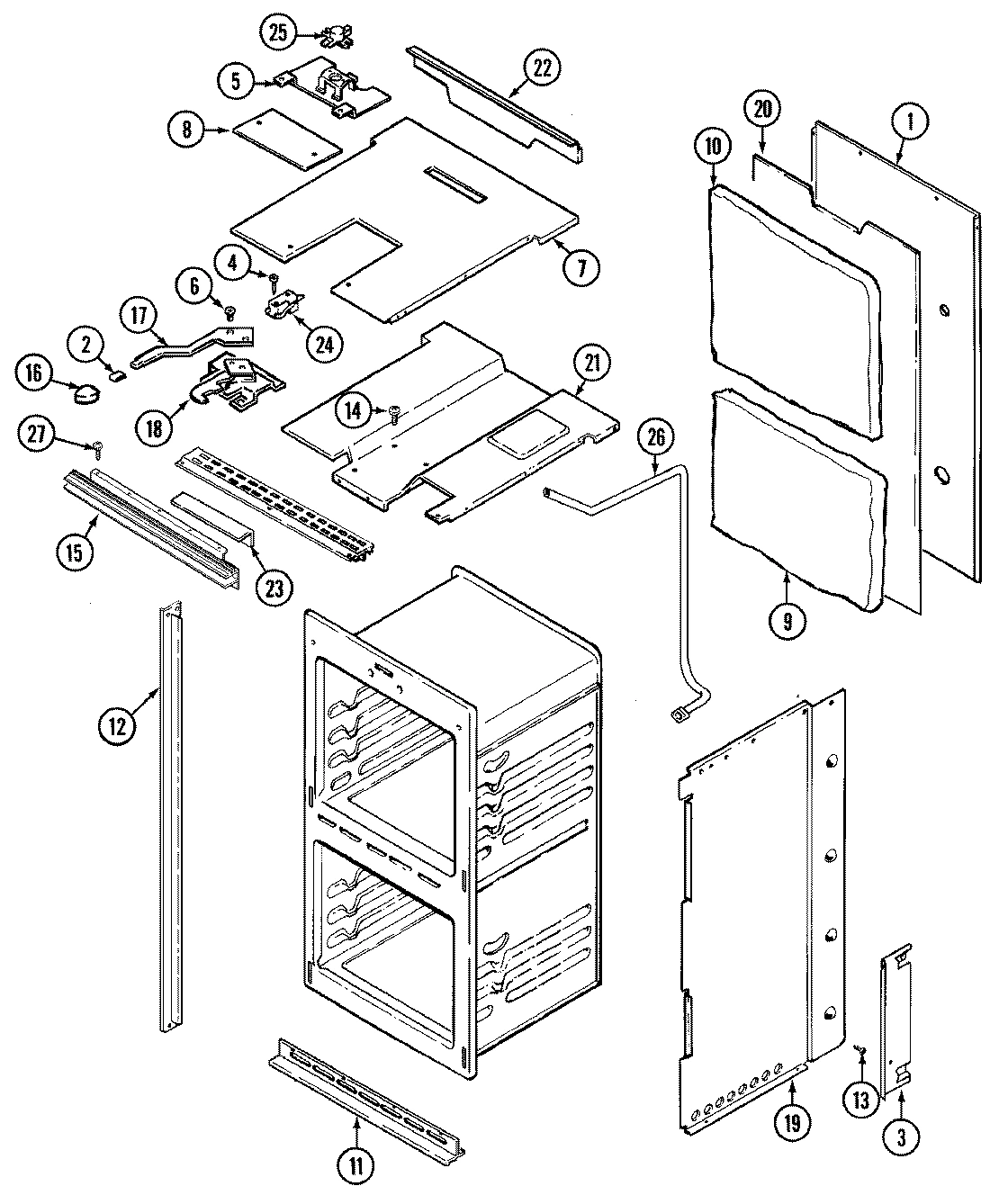

01 - BODY

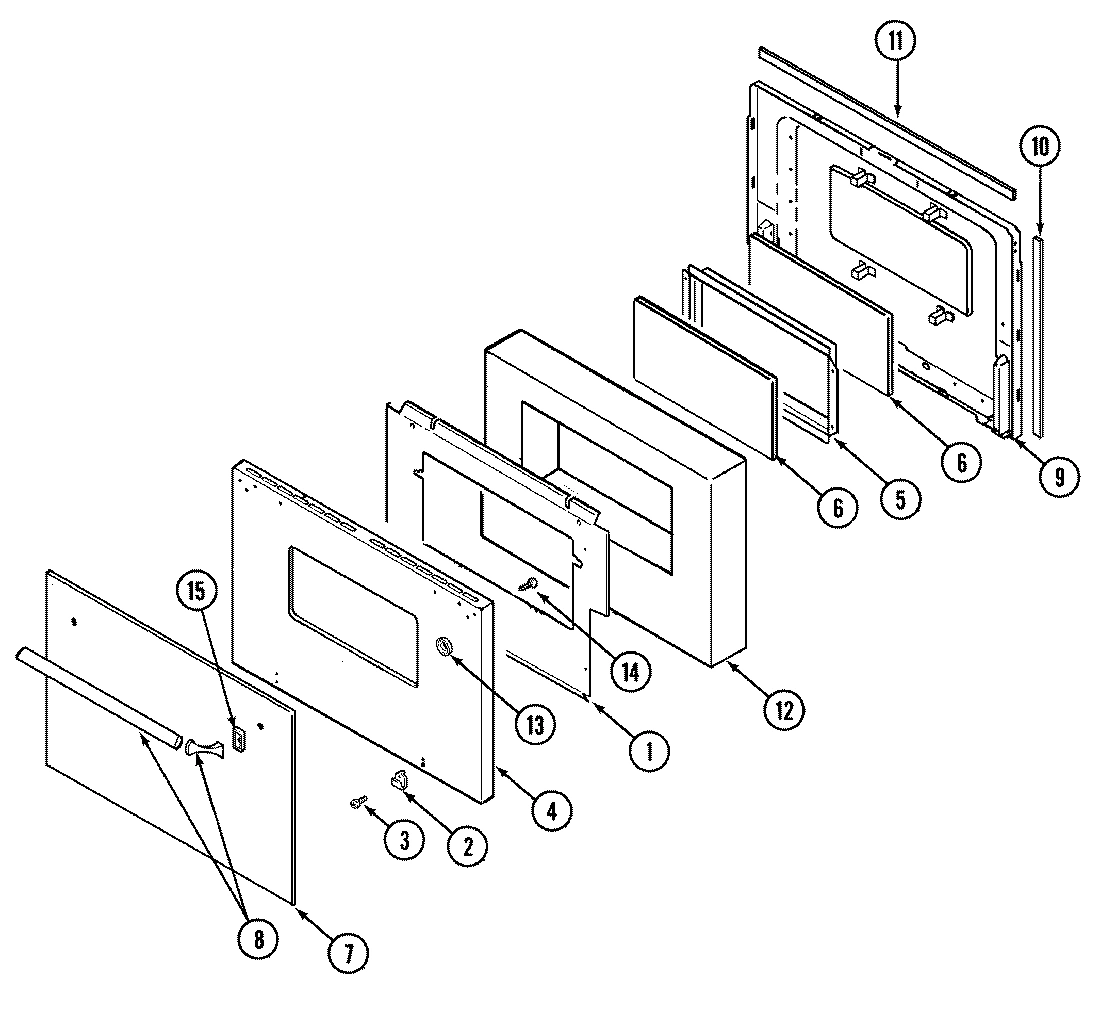

03 - DOOR (LOWER)

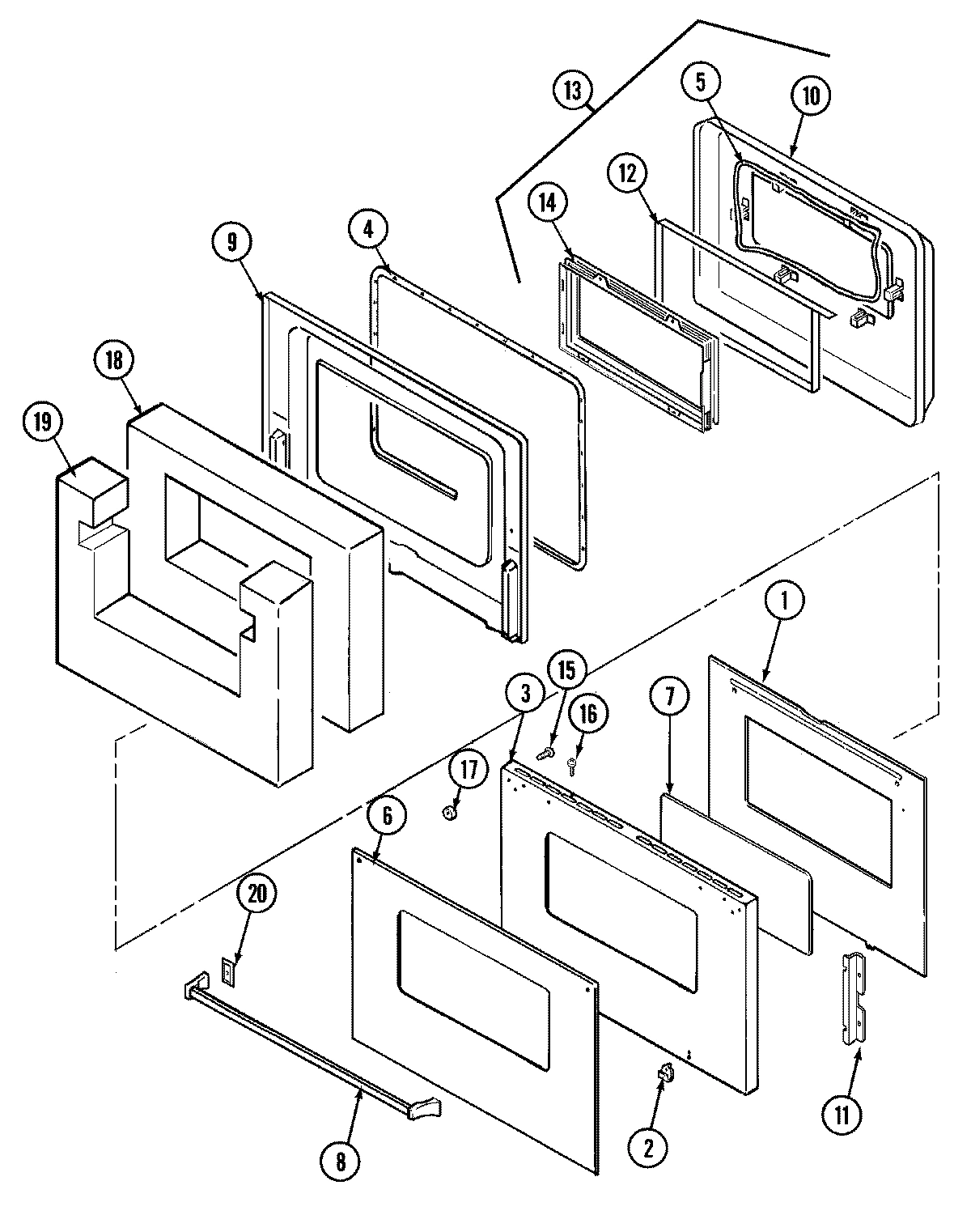

04 - DOOR (UPPER)

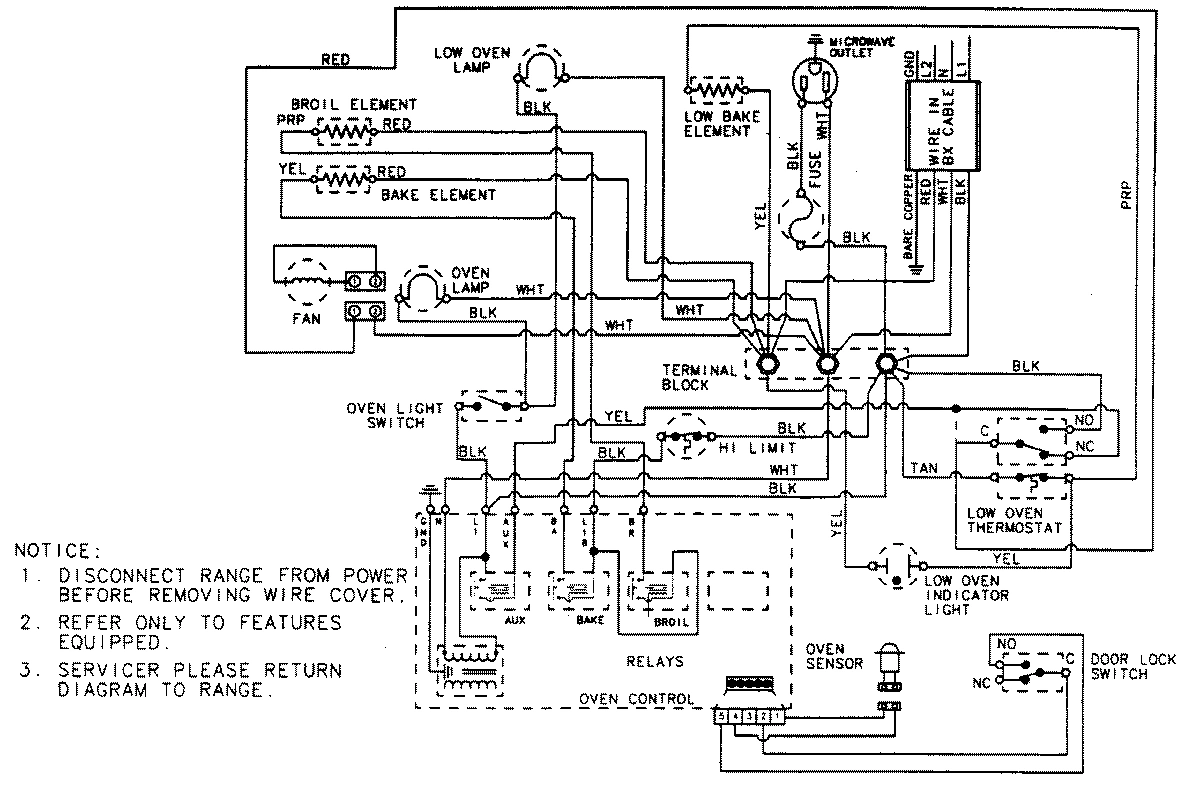

06 - WIRING INFORMATION

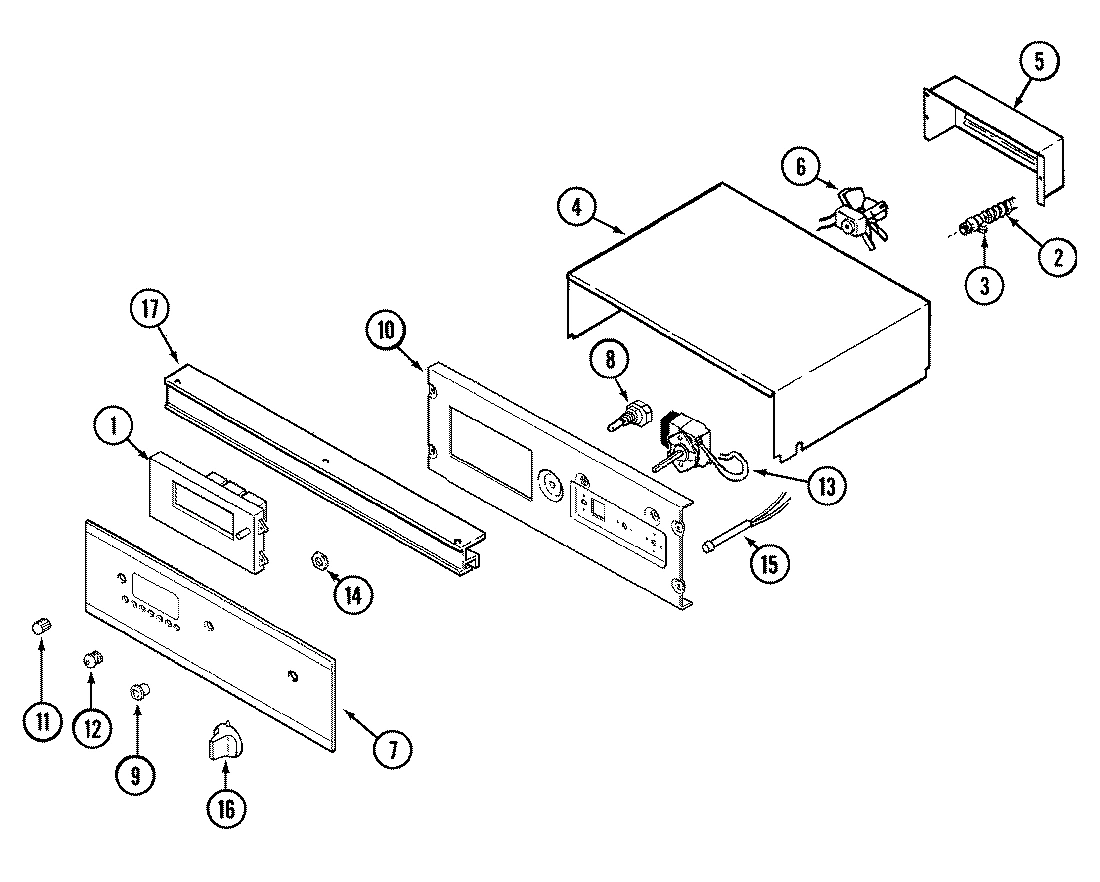

02 - CONTROL PANEL
Common parts from model Whirlpool 9855VUV ELECTRIC WALL OVEN
1
CATALYST, BURNER WPL 7505P22660 Contact Us For Availability
1
BACK, MAIN WPL 4002F14351 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F10351 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F13151 Contact Us For Availability
1
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
1
CLOCK WPL 7601P28160 Contact Us For Availability
1
SPACER WPL 8010P10060 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00580 Contact Us For Availability
2
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
2
CLIP, GLASS (WHT) WPL 7112P09460 Contact Us For Availability
2
CONDUIT, FLEXIBLE WPL 7434P00360 Contact Us For Availability
3
SCREW, BASE WPL 7101P08460 Contact Us For Availability
3
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
3
RECEPTACLE, OVEN BULB WPL 7408P03560 Contact Us For Availability
3
BAFFLE, SIDE WPL 3601F24451 Contact Us For Availability
3
PANEL, DOOR (WHT) WPL 2401F10371 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
4
BASE, WALL OVEN WPL 4003F01180 Contact Us For Availability
4
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
4
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
4
PANEL, DOOR (WHT) WPL 2401F10471 Contact Us For Availability
4
GASKET, DOOR WPL 7201P05360 Contact Us For Availability
4
COVER, WIRE WPL 4005F15051 Contact Us For Availability
5
BOTTOM, OVEN (LOWER) WPL 2205F00419 Contact Us For Availability
5
SCREW WPL 7101P35660 Contact Us For Availability
5
BRACKET, HI LIMIT WPL 3801F12845 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
5
COVER, FAN WPL 4005F26251 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F00319 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
GLASS, INNER WPL 7902P38660 Contact Us For Availability
6
GLASS, OUTER (WHT) WPL 7902P33460 Contact Us For Availability
6
SCREW WPL 7101P23960 Contact Us For Availability
6
FAN ASSY. WPL 7427P01060 Contact Us For Availability
6
GROMMET WPL 8008P00460 Contact Us For Availability
7
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
7
COVER, BOX WPL 4005F45251 Contact Us For Availability
7
SEAL, GLASS WPL 7208P00160 Contact Us For Availability
7
GLASS, OUTER (WHT) WPL 7902P33360 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
GLASS, CONTROL PANEL (WHT) WPL 74001726 Contact Us For Availability
8
GASKET WPL 7201P01660 Contact Us For Availability
8
COVER, LOCK WPL 4005F16045 Contact Us For Availability
8
HANDLE, DOOR (WHT) WPL 7701P08660 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
8
SWITCH, PUSH (WHT) WPL 7403P20460 Contact Us For Availability
9
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
9
INSULATION (BOTTOM) WPL 7002P16360 Contact Us For Availability
9
LINING, DOOR WPL 2402W13219 Contact Us For Availability
9
LINING, DOOR WPL 2402W13019 Contact Us For Availability
9
SLEEVE, SWITCH (WHT) WPL 7214P02360 Contact Us For Availability
10
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
10
INSULATION (BACK) WPL 7002P15460 Contact Us For Availability
10
INSULATION, WRAPPER WPL 7002P15760 Contact Us For Availability
10
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
10
SEAL, DOOR (VERTICAL) WPL 7212P00760 Contact Us For Availability
10
PAD, DOOR WPL 2410W04219 Contact Us For Availability
10
PLATE, BACKING WPL 3605F19580 Contact Us For Availability
10
SEAL WPL 7208P00860 Contact Us For Availability
11
SCREW WPL 7101P06560 Contact Us For Availability
11
ELEMENT, BROIL WPL 7406P09060 Contact Us For Availability
11
EXTRUSION, BOTTOM (CHR) WPL 7706P07560 Contact Us For Availability
11
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
11
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
11
KNOB, CLOCK (WHT) WPL 7711P49360 Contact Us For Availability
12
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
12
EXTRUSION, FRONT FRAME (CHR) WPL 74001697 Contact Us For Availability
12
INSULATION, DOOR LOWER WPL 7002P01960 Contact Us For Availability
12
RETAINER, GASKET WPL 3804F02145 Contact Us For Availability
12
BUTTON, CLOCK (GRAY) WPL 7711P49160 Contact Us For Availability
13
COVER WPL 3604F03744 Contact Us For Availability
13
COVER, BULB WPL 7724P04760 Contact Us For Availability
13
PAD, OVEN DOOR ASSY. WPL 2410A04219 Contact Us For Availability
13
THERMOSTAT, LOWER WPL 7404P04260 Contact Us For Availability
14
TUBE, OVEN VENT WPL 8026P02260 Contact Us For Availability
14
SCREW WPL 7101P06160 Contact Us For Availability
14
SCREW, DOOR HANDLE WPL 7101P08960 Contact Us For Availability
14
WINDOW ASSY. WPL 5700A08260 Contact Us For Availability
14
NUT, SWITCH WPL 7103P02160 Contact Us For Availability
15
HINGE, DOOR WPL 7106P03760 Contact Us For Availability
15
HINGE, DOOR WPL 7106P04260 Contact Us For Availability
15
EXTRUSION, VENT (WHT) WPL 7756P02460 Contact Us For Availability
15
SCREW WPL 7101P06860 Contact Us For Availability
15
LIGHT, SIGNAL WPL 7407P10560 Contact Us For Availability
16
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
16
HANDLE, DOOR LATCH (WHT) WPL 7701P13360 Contact Us For Availability
16
SCREW WPL 7101P26160 Contact Us For Availability
16
KNOB, SWITCH (WHT) WPL 7737P01160 Contact Us For Availability
17
BULB-OVEN WPL 7407P10360 Contact Us For Availability
17
LEVER, LATCH WPL 8009P01160 Contact Us For Availability
17
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
17
RETAINER, CTL PNL GLASS (CHR) WPL 74001699 Contact Us For Availability
18
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
18
BRACKET, DOOR LATCH WPL 3801F12751 Contact Us For Availability
18
INSULATOR WPL 7003P00160 Contact Us For Availability
18
LATCH ASSY. WPL 8002P01660 Contact Us For Availability
18
INSULATION, DOOR----NA WPL 7002P02360 Contact Us For Availability
18
HARNESS, LOOSE WIRE WPL 5125A39060 Contact Us For Availability
18
HARNESS, MAIN WPL 5170D22060 Contact Us For Availability
19
RACK WPL 7801P00560 Contact Us For Availability
19
PANEL, SIDE (RT) WPL 2618F11551 Contact Us For Availability
19
PANEL, SIDE (LT) WPL 2618F11651 Contact Us For Availability
19
INSULATION, DOOR WPL 7002P02160 Contact Us For Availability
19
MANUAL, USE & CARE WPL 8112P11960 Contact Us For Availability
20
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
20
RETAINER, REAR WPL 3804F10551 Contact Us For Availability
20
SPACER, HANDLE (WHT) WPL 8010P07760 Contact Us For Availability
20
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
21
RETAINER, BOTTOM INSULATION WPL 3804F10451 Contact Us For Availability
21
RETAINER, TOP WPL 3804F11851 Contact Us For Availability
22
RETAINER, INSULATION WPL 3804F05451 Contact Us For Availability
22
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
23
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
23
SHIELD, TERMINAL WPL 3604F04880 Contact Us For Availability
24
SUPPORT, BROIL ELEMENT WPL 3807F17619 Contact Us For Availability
24
SWITCH, DOOR LOCK WPL 7403P34760 Contact Us For Availability
25
SUPPORT WPL 3807F13580 Contact Us For Availability
25
SWITCH, HIGH LIMIT WPL 7403P06360 Contact Us For Availability
26
TUBE, OVEN VENT WPL 8026P01460 Contact Us For Availability
29
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
29
SCREW WPL 7101P08260 Contact Us For Availability
30
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
30
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
36
HARNESS, SENSOR/LOCK WPL 5170P18560 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001151 Contact Us For Availability
× ![]()
