Model Whirlpool 9854VPV ELECTRIC WALL OVEN – Common Parts & Diagrams

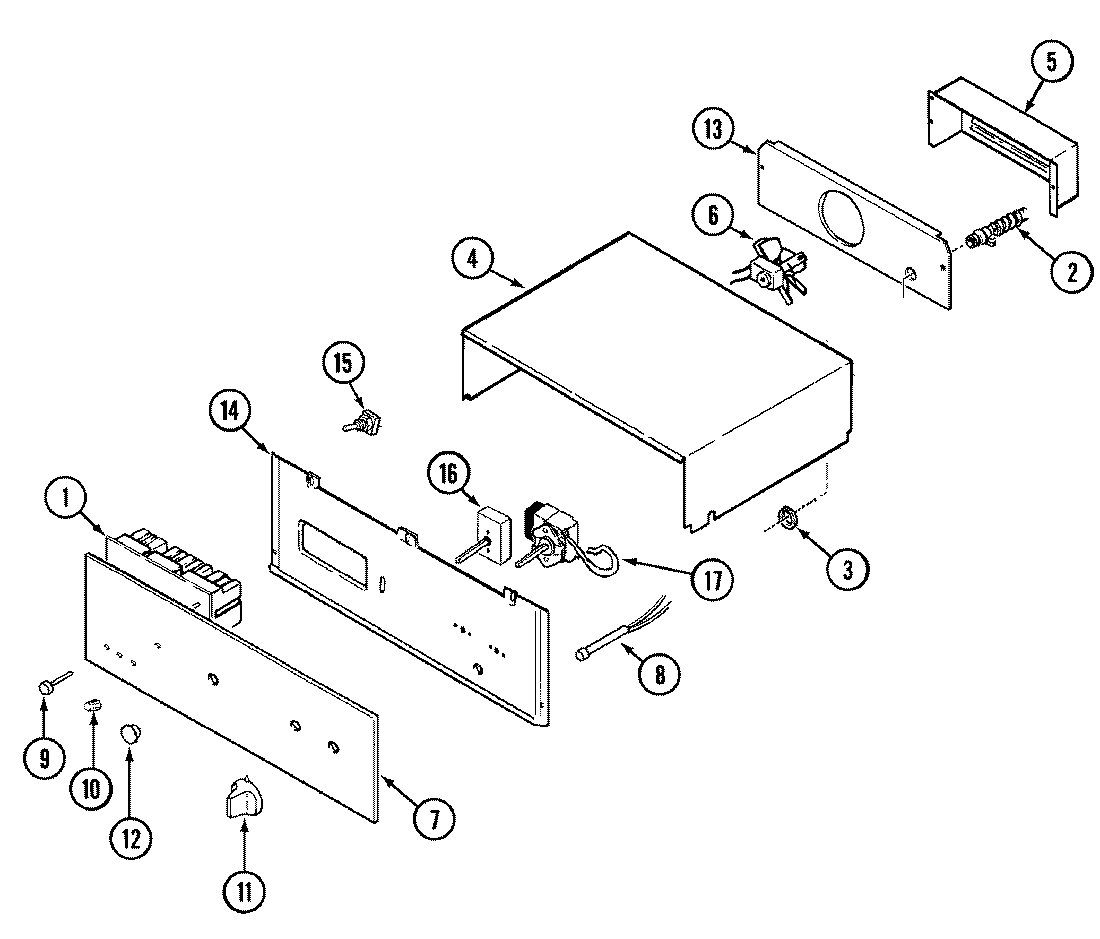

02 - CONTROL PANEL

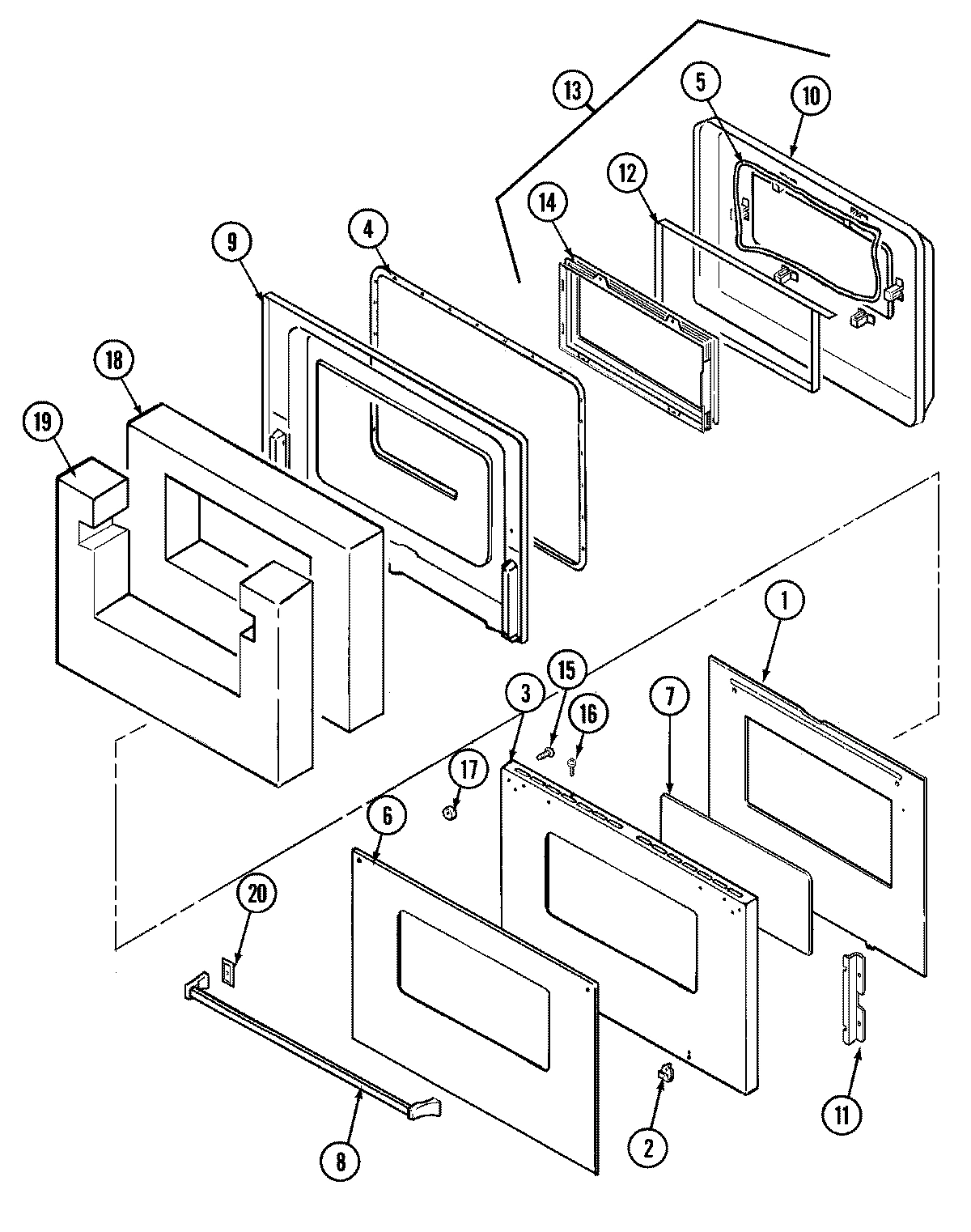

04 - DOOR ASSEMBLY-UPPER

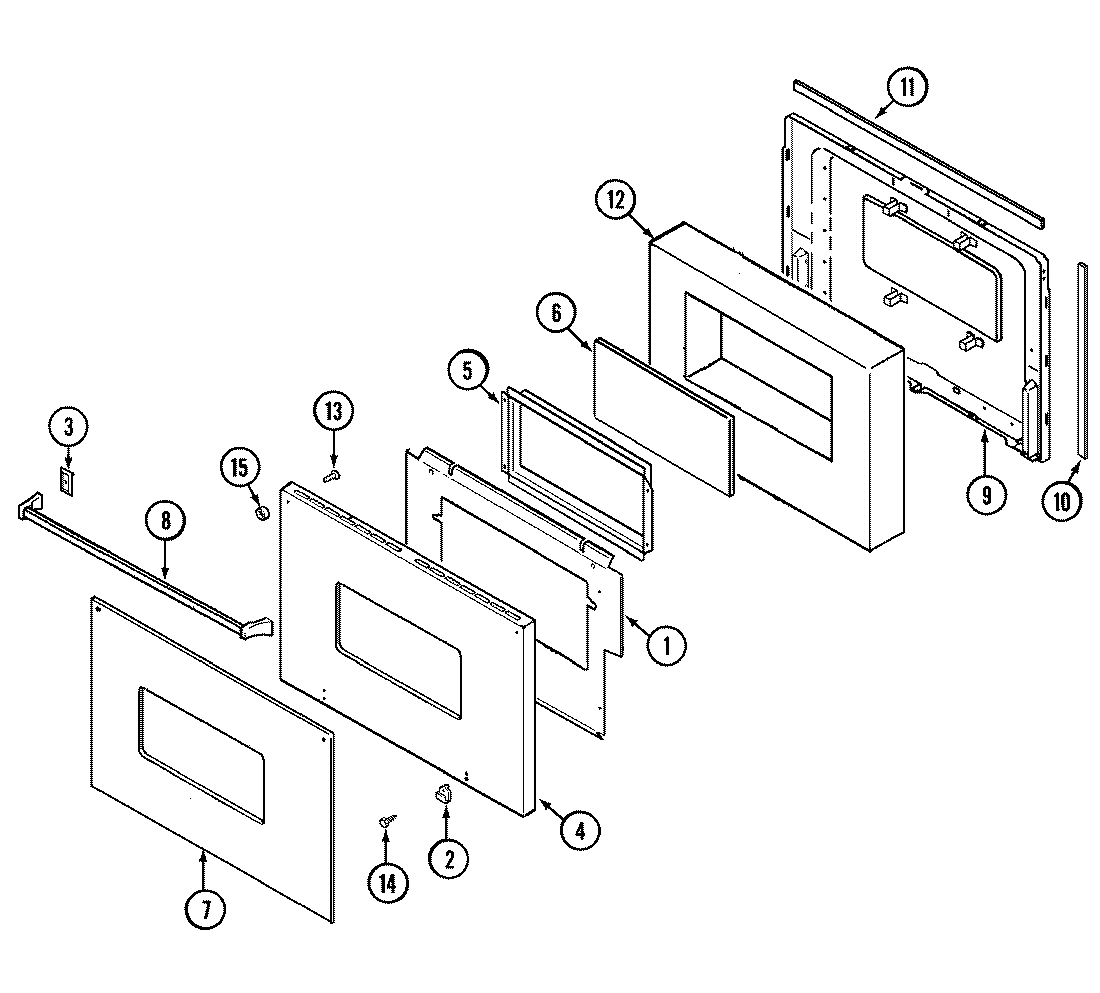

06 - DOOR-LOWER (SERIES 10)

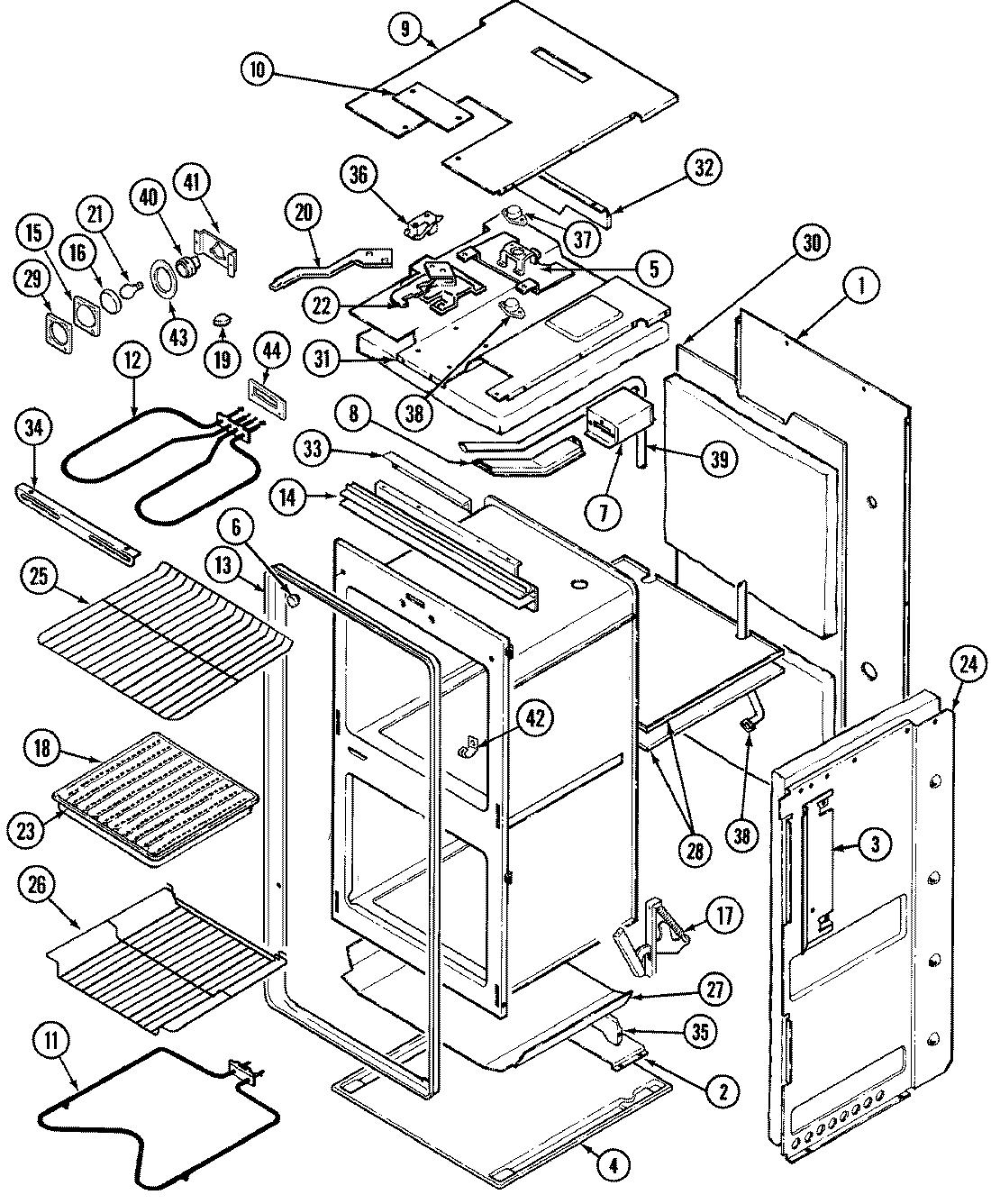

01 - BODY

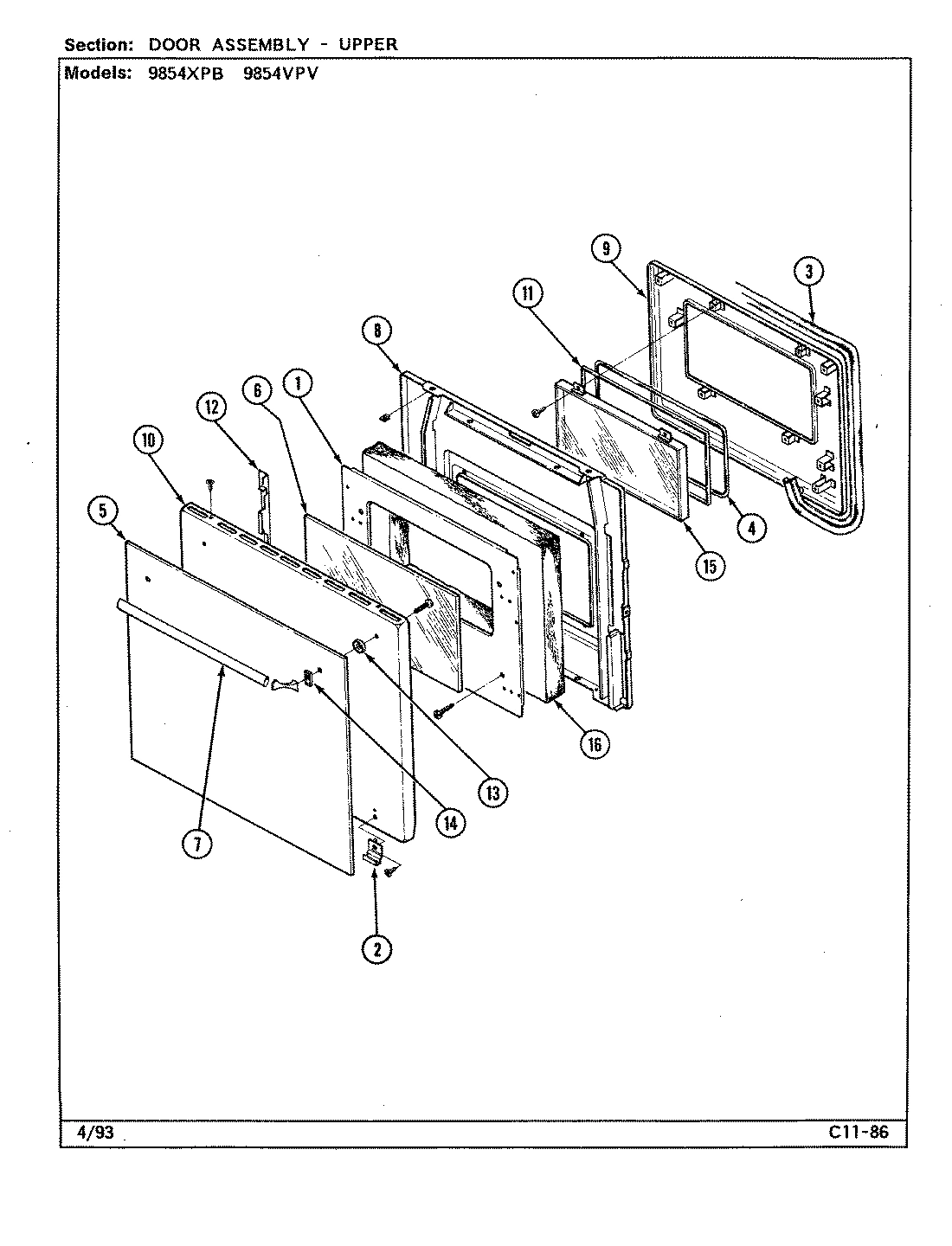

05 - DOOR ASSEMBLY-UPPER

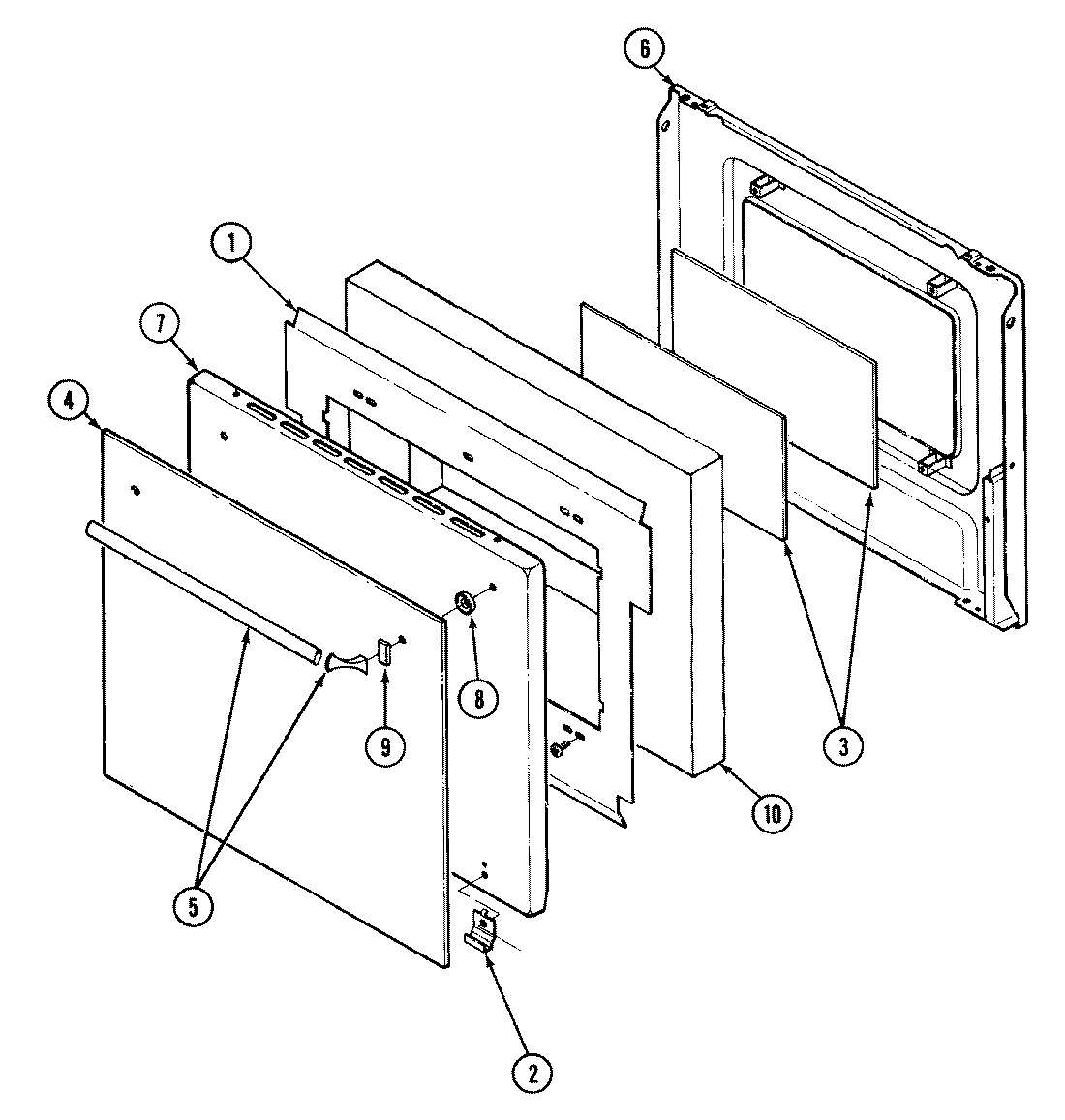

03 - DOOR ASSEMBLY-LOWER (SERIES 01)
Common parts from model Whirlpool 9854VPV ELECTRIC WALL OVEN
1
CLOCK WPL 7601P19760 Contact Us For Availability
1
SCREW WPL 7101P35660 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F10351 Contact Us For Availability
1
BACK, MAIN WPL 4002F14351 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F13151 Contact Us For Availability
2
CONDUIT, FLEXIBLE WPL 7434P00660 Contact Us For Availability
2
CLIP, GLASS (WHT) WPL 7112P09460 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00580 Contact Us For Availability
2
CLIP,GLASS RETAINER (WHT) WPL 3819F01071 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
3
PANEL, DOOR (WHT) WPL 2401F10371 Contact Us For Availability
3
BAFFLE, SIDE WPL 3601F13051 Contact Us For Availability
3
GASKET, DOOR WPL 7201P05360 Contact Us For Availability
3
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
4
COVER, WIRE WPL 4005F15051 Contact Us For Availability
4
GASKET WPL 7201P00460 Contact Us For Availability
4
GASKET WPL 7201P02060 Contact Us For Availability
4
SCREW WPL 7101P26160 Contact Us For Availability
4
PANEL, DOOR (WHT) WPL 2401F10471 Contact Us For Availability
4
GLASS, OUTER (WHT) WPL 7902P33360 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F00319 Contact Us For Availability
4
BOTTOM, OVEN (LOWER) WPL 2205F00419 Contact Us For Availability
4
MAIN BASE WPL 4003A01180 Contact Us For Availability
4
BLOCK, TERMINAL----NA WPL 7401P00360 Contact Us For Availability
5
COVER, FAN WPL 4005F26251 Contact Us For Availability
5
SEAL WPL 7208P00860 Contact Us For Availability
5
TAPE WPL 8270P06560 Contact Us For Availability
5
HANDLE, DOOR (WHT) WPL 7701P08660 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
BOX, VENT WPL 4006W04645 Contact Us For Availability
5
GLASS, DOOR WPL 7902P30060 Contact Us For Availability
6
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
6
GLASS, OUTER (WHT) WPL 7902P33460 Contact Us For Availability
6
GLASS, INNER WPL 7902P09760 Contact Us For Availability
6
GLASS, INNER WPL 7902P38660 Contact Us For Availability
6
LINING, DOOR WPL 2402W13219 Contact Us For Availability
6
BRACKET, HI LIMIT WPL 3801F12845 Contact Us For Availability
6
SCREW (BLK) WPL 7101P27660 Contact Us For Availability
7
GLASS CONTROL PANEL WPL 7912P05260 Contact Us For Availability
7
SEAL, DOOR (VERTICAL) WPL 7212P00760 Contact Us For Availability
7
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
7
SCREW WPL 7101P06860 Contact Us For Availability
7
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
7
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
7
PANEL, DOOR WPL 2401F05471 Contact Us For Availability
7
SEAL, GLASS WPL 7208P00160 Contact Us For Availability
8
TERMINAL, INDICATOR LIGHT WPL 7405P08660 Contact Us For Availability
8
LIGHT, INDICATOR----NA WPL 7407P00760 Contact Us For Availability
8
INSULATOR, TERMINAL WPL 7414P00460 Contact Us For Availability
8
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
8
CHANNEL, VENT ASSEMBLY WPL 3818W00215 Contact Us For Availability
8
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
8
LINING ASSEMBLY WPL 2402W13015 Contact Us For Availability
9
KNOB, CLOCK (BUTTON-WHT) WPL 7711P42060 Contact Us For Availability
9
LINING, DOOR WPL 74002201 Contact Us For Availability
9
SPACER, HANDLE (WHT) WPL 8010P07760 Contact Us For Availability
9
COVER, CAP HOLE WPL 4005F01135 Contact Us For Availability
9
COVER, BOX WPL 4005F20251 Contact Us For Availability
9
PAD DOOR WPL 2410W04319 Contact Us For Availability
10
KNOB, CLOCK (WHT) WPL 7711P41960 Contact Us For Availability
10
PAD, DOOR WPL 2410W04219 Contact Us For Availability
10
INSULATION, DOOR LOWER WPL 7002P01960 Contact Us For Availability
10
COVER, LOCK WPL 4005F16045 Contact Us For Availability
10
PANEL, OVEN DOOR (WHITE) WPL 2401F04571 Contact Us For Availability
11
KNOB, SWITCH (WHT) WPL 7737P01160 Contact Us For Availability
11
RETAINER, GASKET WPL 3804F02145 Contact Us For Availability
11
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
12
NUT, SWITCH WPL 7103P02160 Contact Us For Availability
12
SLEEVE, SWITCH (WHT) WPL 7214P02360 Contact Us For Availability
12
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
12
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
13
PLATE, CONDUIT WPL 3605F16451 Contact Us For Availability
13
SCREW WPL 7101P06160 Contact Us For Availability
13
PAD, OVEN DOOR ASSY. WPL 2410A04219 Contact Us For Availability
13
EXTRUSION, FRONT FRAME WPL 7750P02760 Contact Us For Availability
13
EXTRUSION, GLASS RETAINER WPL 7756P03360 Contact Us For Availability
14
PLATE, SWITCH WPL 3605F17080 Contact Us For Availability
14
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
14
EXTRUSION, VENT WPL 7756P03260 Contact Us For Availability
14
EXTRUSION, VENT WPL 7756P09460 Contact Us For Availability
15
SWITCH, PUSH (WHT) WPL 7403P20460 Contact Us For Availability
15
WINDOW ASSY. WPL 5700A08260 Contact Us For Availability
15
SCREW WPL 7101P00460 Contact Us For Availability
15
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
15
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
15
GASKET WPL 7201P01660 Contact Us For Availability
15
SPACER, DOOR WPL 8002P01160 Contact Us For Availability
16
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
16
SWITCH, SELECTOR WPL 7403P02360 Contact Us For Availability
16
INSULATION, DOOR----NA WPL 7002P02360 Contact Us For Availability
16
INSULATION, DOOR WPL 7002P02160 Contact Us For Availability
16
COVER WPL 3604F03744 Contact Us For Availability
16
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
17
THERMOSTAT, LOWER WPL 7404P04260 Contact Us For Availability
17
HINGE, OVEN DOOR WPL 7106A02060 Contact Us For Availability
17
HINGE, DOOR WPL 7106P03760 Contact Us For Availability
18
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
18
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
19
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
20
LEVER, LATCH WPL 8009P01160 Contact Us For Availability
21
BULB, OVEN WPL 7407P02660 Contact Us For Availability
21
RECEPT, OVEN LIGHT WPL 7408P00160 Contact Us For Availability
21
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
22
BRACKET, DOOR LATCH WPL 3801F12751 Contact Us For Availability
22
INSULATOR WPL 7003P00160 Contact Us For Availability
22
LATCH ASSY. WPL 8002P01660 Contact Us For Availability
23
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
24
PANEL, SIDE LF. WPL 2618F08851 Contact Us For Availability
24
PANEL, SIDE RIGHT WPL 2618F08951 Contact Us For Availability
25
RACK WPL 7801P00560 Contact Us For Availability
26
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
27
RETAINER, BOTTOM WPL 3804W03451 Contact Us For Availability
28
RETAINER, INSULATION WPL 3804F05451 Contact Us For Availability
29
RETAINER WPL 3804F01145 Contact Us For Availability
30
RETAINER, REAR WPL 3804F10551 Contact Us For Availability
31
RETAINER,TOP WPL 3804F05351 Contact Us For Availability
32
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
33
SHIELD, TERMINAL WPL 3604F04880 Contact Us For Availability
34
SCREW, BASE WPL 7101P08460 Contact Us For Availability
34
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
35
SUPPORT WPL 3807F13580 Contact Us For Availability
36
SWITCH, DOOR LOCK WPL 7403P00760 Contact Us For Availability
37
SWITCH, HIGH LIMIT WPL 7403P06360 Contact Us For Availability
38
SWITCH, FAN----NA WPL 7403P00160 Contact Us For Availability
39
CATALYST BURNER WPL 7505P01860 Contact Us For Availability
40
HOUSING, LAMP WPL 4001F01251 Contact Us For Availability
40
INSULATION, LAMP HOUSING WPL 7002P09460 Contact Us For Availability
41
BRACKET WPL 3801F02451 Contact Us For Availability
42
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
43
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
44
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
× ![]()
