Model Whirlpool 9815XUB ELECTRIC WALL OVEN – Common Parts & Diagrams

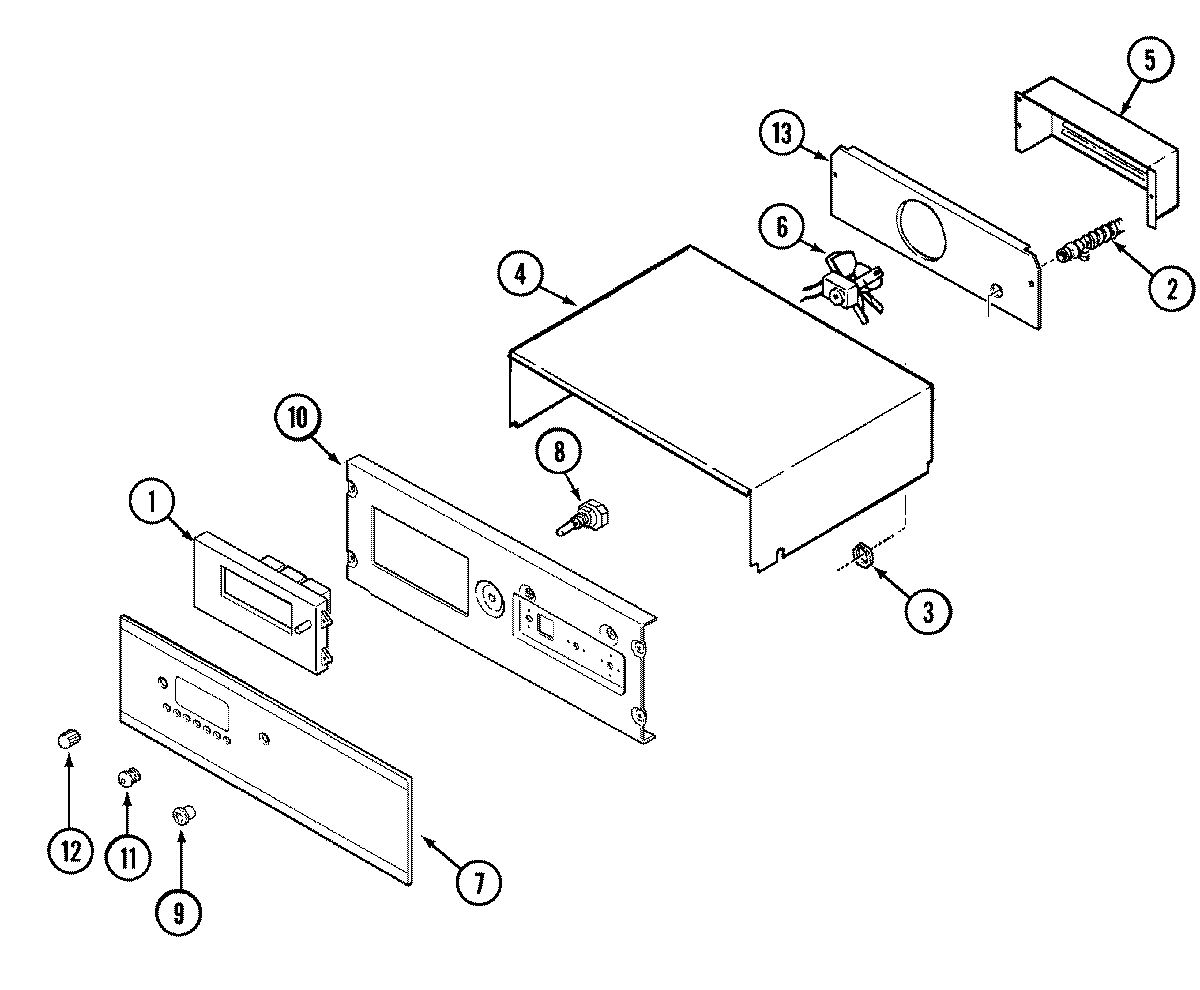

01 - CONTROL PANEL

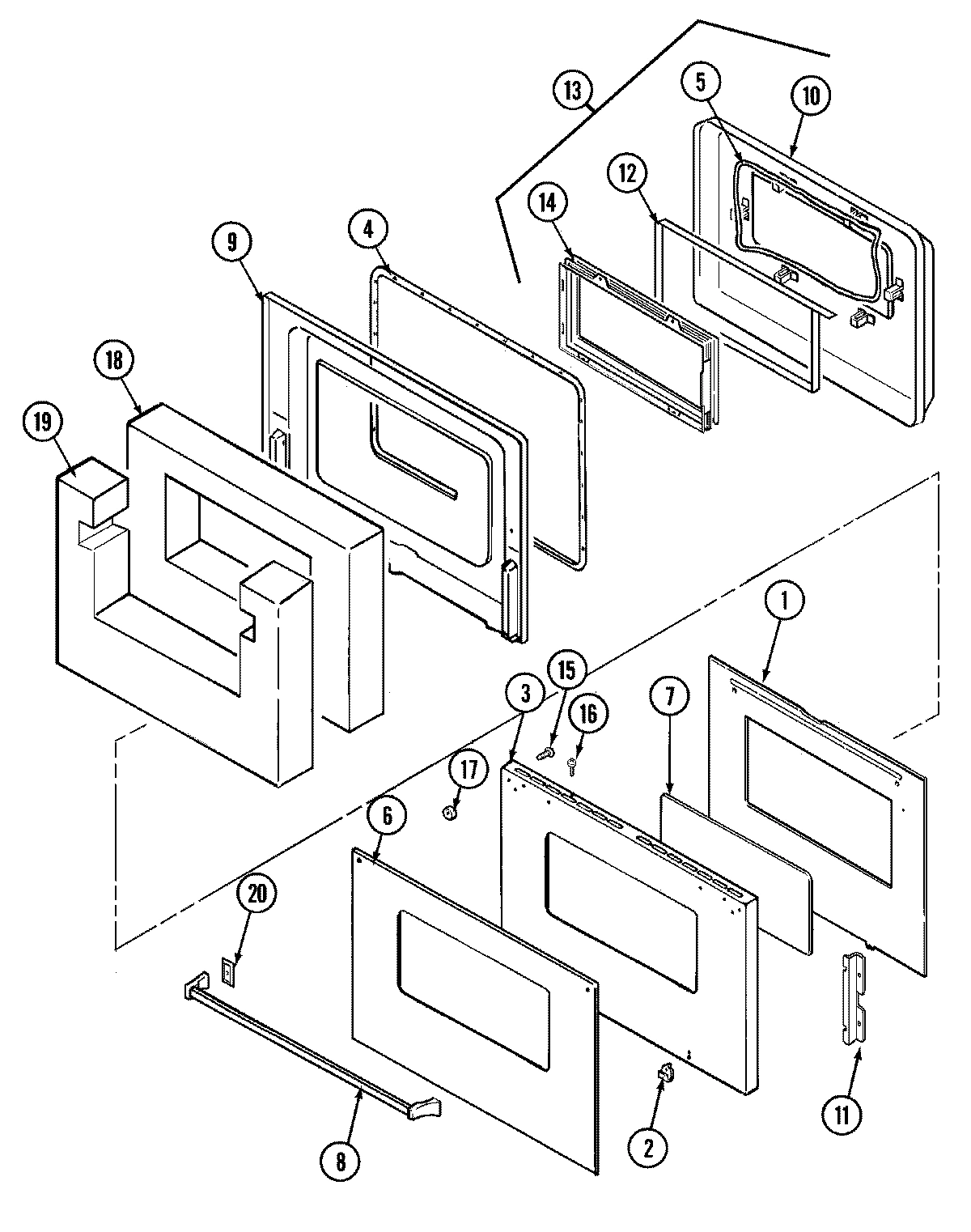

02 - DOOR

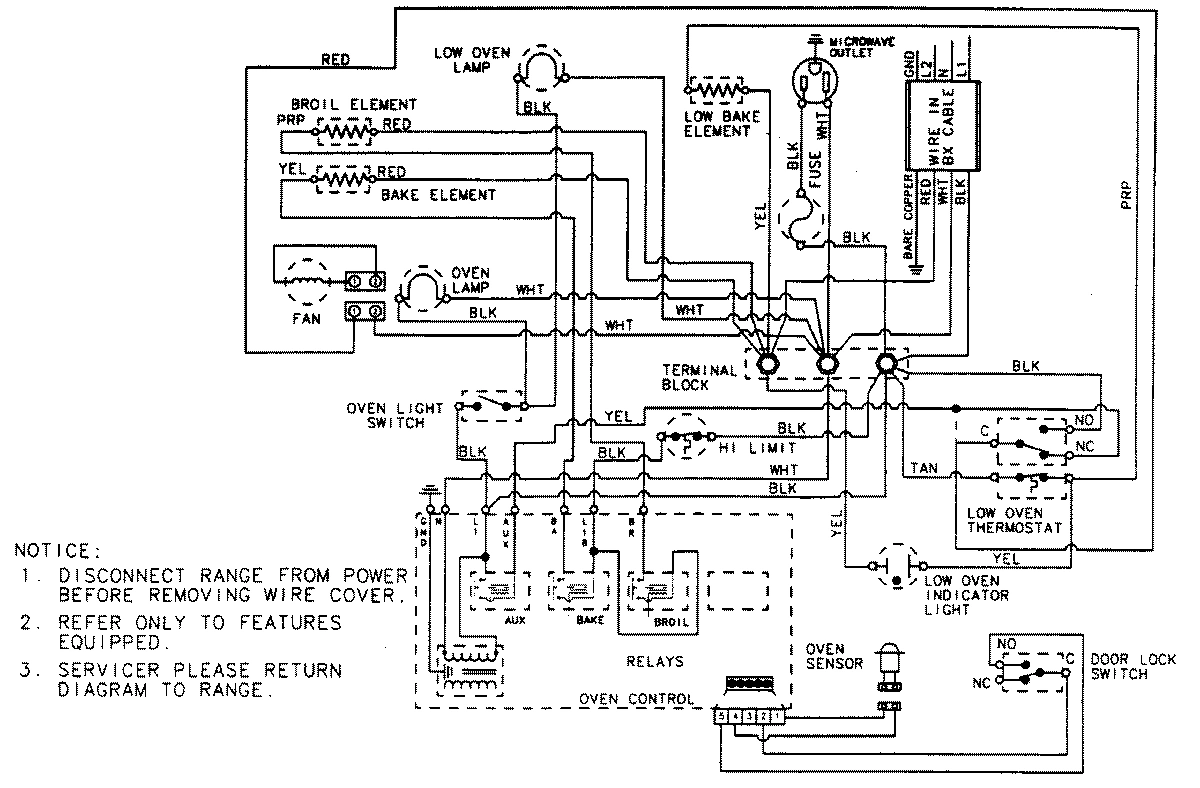

04 - WIRING INFORMATION

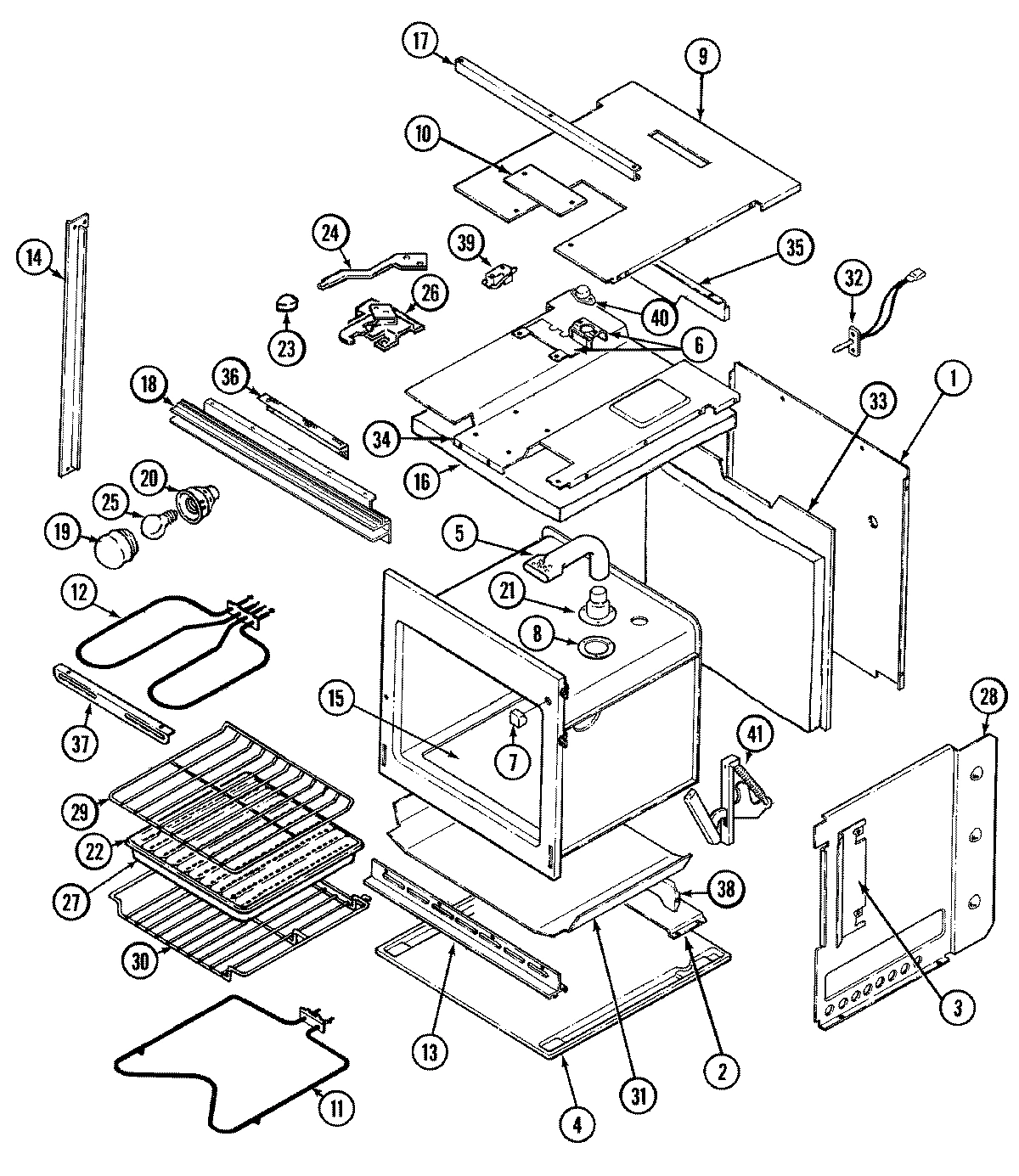

03 - OVEN/BODY
Common parts from model Whirlpool 9815XUB ELECTRIC WALL OVEN
1
CLOCK WPL 7601P28160 Contact Us For Availability
1
SPACER WPL 8010P10060 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F13151 Contact Us For Availability
1
BACK, MAIN WPL 4002F12151 Contact Us For Availability
2
TUBING, 1/2 X 48`` FLEXIBLE WPL 3414F03744 Contact Us For Availability
2
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
2
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00561 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
3
PANEL, DOOR (BLK) WPL 2401F10370 Contact Us For Availability
3
BAFFLE, SIDE WPL 3601F24451 Contact Us For Availability
4
COVER, WIRE WPL 4005F15051 Contact Us For Availability
4
GASKET, DOOR WPL 7201P05360 Contact Us For Availability
4
BASE, WALL OVEN WPL 4003F01180 Contact Us For Availability
4
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
5
COVER, FAN WPL 4005F26251 Contact Us For Availability
5
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
5
TUBE, OVEN VENT WPL 8026P02260 Contact Us For Availability
6
SCREW WPL 7101P23960 Contact Us For Availability
6
FAN ASSY. WPL 7427P01060 Contact Us For Availability
6
GROMMET WPL 8008P00460 Contact Us For Availability
6
GLASS, OUTER (BLK) WPL 7902P33660 Contact Us For Availability
6
BRACKET, HI LIMIT WPL 3801F12845 Contact Us For Availability
7
GLASS, CONTROL PANEL WPL 7912P08360 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
8
SWITCH, LIGHT (BLK)xSEE NOTE WPL 74007948 Contact Us For Availability
8
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
8
HANDLE, DOOR (BLK) WPL 7701P02460 Contact Us For Availability
8
GASKET WPL 7201P01660 Contact Us For Availability
9
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
9
LINING, DOOR WPL 2402W13019 Contact Us For Availability
9
LINING, DOOR WPL 74002201 Contact Us For Availability
9
COVER, BOX WPL 4005F45251 Contact Us For Availability
10
PLATE, BACKING WPL 3605F19580 Contact Us For Availability
10
SEAL WPL 7208P00860 Contact Us For Availability
10
PLATE, BACKING WPL 74007897 Contact Us For Availability
10
PAD, DOOR WPL 2410W04219 Contact Us For Availability
10
COVER, LOCK WPL 4005F16045 Contact Us For Availability
11
BUTTON, CLOCK (BLK) WPL 7711P49060 Contact Us For Availability
11
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
11
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
11
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
12
KNOB, CLOCK (BLK) WPL 7711P49260 Contact Us For Availability
12
RETAINER, GASKET WPL 3804F02145 Contact Us For Availability
12
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
12
ELEMENT, BROIL WPL 7406P09060 Contact Us For Availability
13
PLATE, CONDUIT WPL 3605F16451 Contact Us For Availability
13
HARNESS, LOOSE WIRE WPL 5125A39160 Contact Us For Availability
13
HARNESS, MAIN----NA WPL 5170D22160 Contact Us For Availability
13
HARNESS, SENSOR/LOCK WPL 5170P18560 Contact Us For Availability
13
HARNESS, WIRE WPL 74007947 Contact Us For Availability
13
PAD, OVEN DOOR ASSY. WPL 2410A04219 Contact Us For Availability
13
EXTRUSION, BOTTOM (BLK) WPL 74001846 Contact Us For Availability
13
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
14
MANUAL, USE & CARE WPL 8112P11960 Contact Us For Availability
14
WINDOW ASSY. WPL 5700A08260 Contact Us For Availability
14
TRIM, SIDE (RT-BLK) WPL 74001569 Contact Us For Availability
14
TRIM, SIDE (LT-BLK) WPL 74001570 Contact Us For Availability
14
EXTRUSION, SIDE (LT-BLK) WPL 7750P10360 Contact Us For Availability
14
EXTRUSION, SIDE (RT-BLK) WPL 7750P10560 Contact Us For Availability
15
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
15
SCREW WPL 7101P06860 Contact Us For Availability
15
BOTTOM, OVEN WPL 2205F00319 Contact Us For Availability
16
SCREW (BLK) WPL 7101P27660 Contact Us For Availability
16
INSULATION (TOP & REAR) WPL 7002P15360 Contact Us For Availability
16
INSULATION (BACK) WPL 7002P15460 Contact Us For Availability
16
INSULATION (BOTTOM) WPL 7002P16360 Contact Us For Availability
17
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
17
EXTRUSION, TOP (BLK) WPL 7752P01160 Contact Us For Availability
18
INSULATION, DOOR----NA WPL 7002P02360 Contact Us For Availability
18
EXTRUSION, VENT (BLK) WPL 7756P07060 Contact Us For Availability
19
INSULATION, DOOR WPL 7002P02160 Contact Us For Availability
19
COVER, BULB WPL 7724P04760 Contact Us For Availability
20
SPACER, HANDLE (BLK) WPL 8010P01560 Contact Us For Availability
20
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
21
CATALYST, BURNER WPL 7505P22660 Contact Us For Availability
22
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
23
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
23
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
23
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
24
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
24
LEVER, LATCH WPL 8009P01160 Contact Us For Availability
25
BULB-OVEN WPL 7407P10360 Contact Us For Availability
26
LATCH ASSY. WPL 8002P01660 Contact Us For Availability
27
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
28
SCREW WPL 7101P35660 Contact Us For Availability
28
PANEL, SIDE (LT) WPL 2618F11351 Contact Us For Availability
28
PANEL, SIDE (RT) WPL 2618F11451 Contact Us For Availability
29
RACK WPL 7801P00560 Contact Us For Availability
30
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
31
RETAINER, BOTTOM INSULATION WPL 3804F10451 Contact Us For Availability
32
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
33
RETAINER, REAR WPL 3804F09651 Contact Us For Availability
34
RETAINER, TOP WPL 3804F11851 Contact Us For Availability
35
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
36
SHIELD, TERMINAL WPL 3604F04880 Contact Us For Availability
37
SUPPORT, BROIL ELEMENT WPL 3807F17619 Contact Us For Availability
38
SUPPORT WPL 3807F13780 Contact Us For Availability
39
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
39
SWITCH, DOOR LOCK WPL 7403P34760 Contact Us For Availability
40
SCREW WPL 7101P29060 Contact Us For Availability
40
SWITCH, HIGH WPL 7403P06360 Contact Us For Availability
41
WPL 7106P03760 WPL 7106P03760 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001151 Contact Us For Availability
× ![]()
