  • Electrolux 970-182021 Parts List

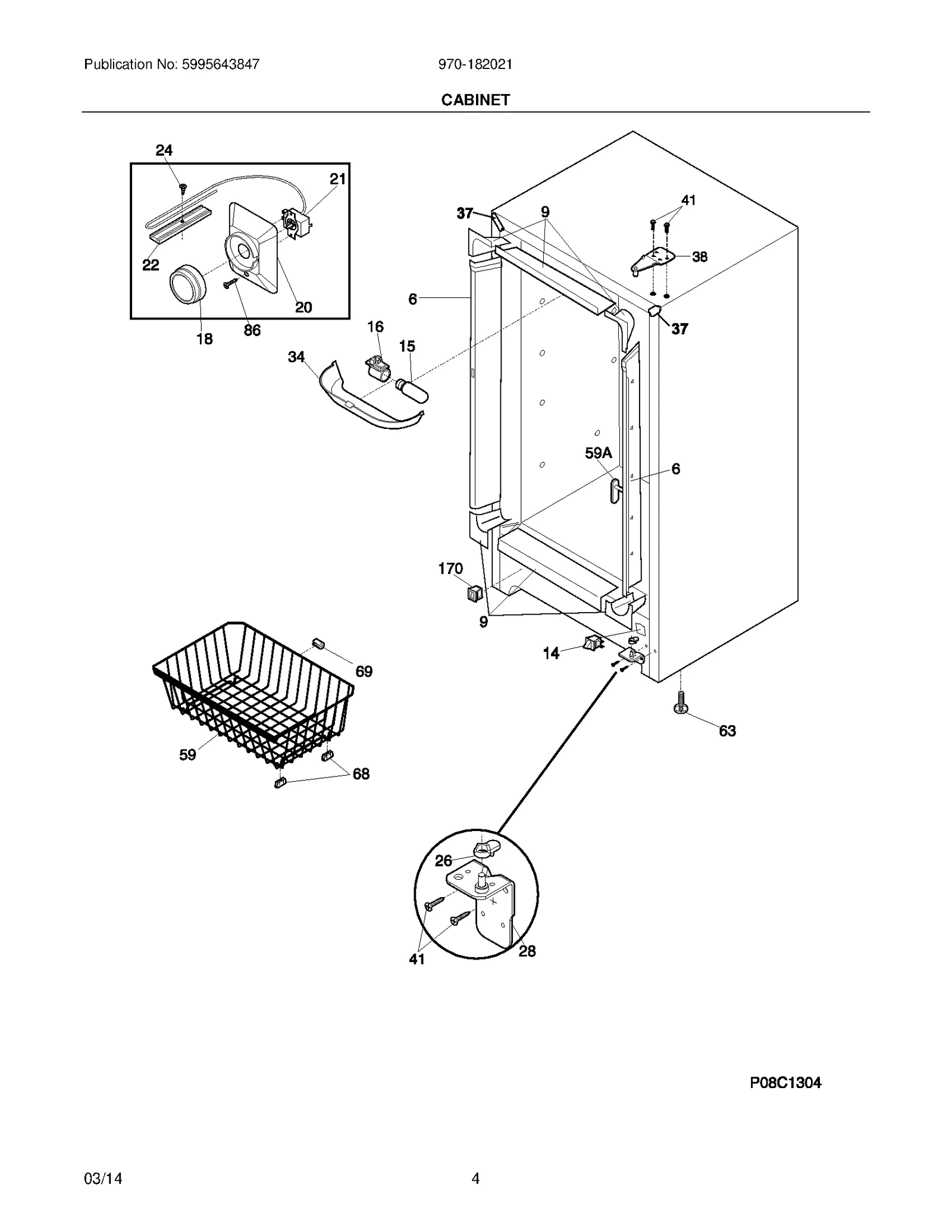

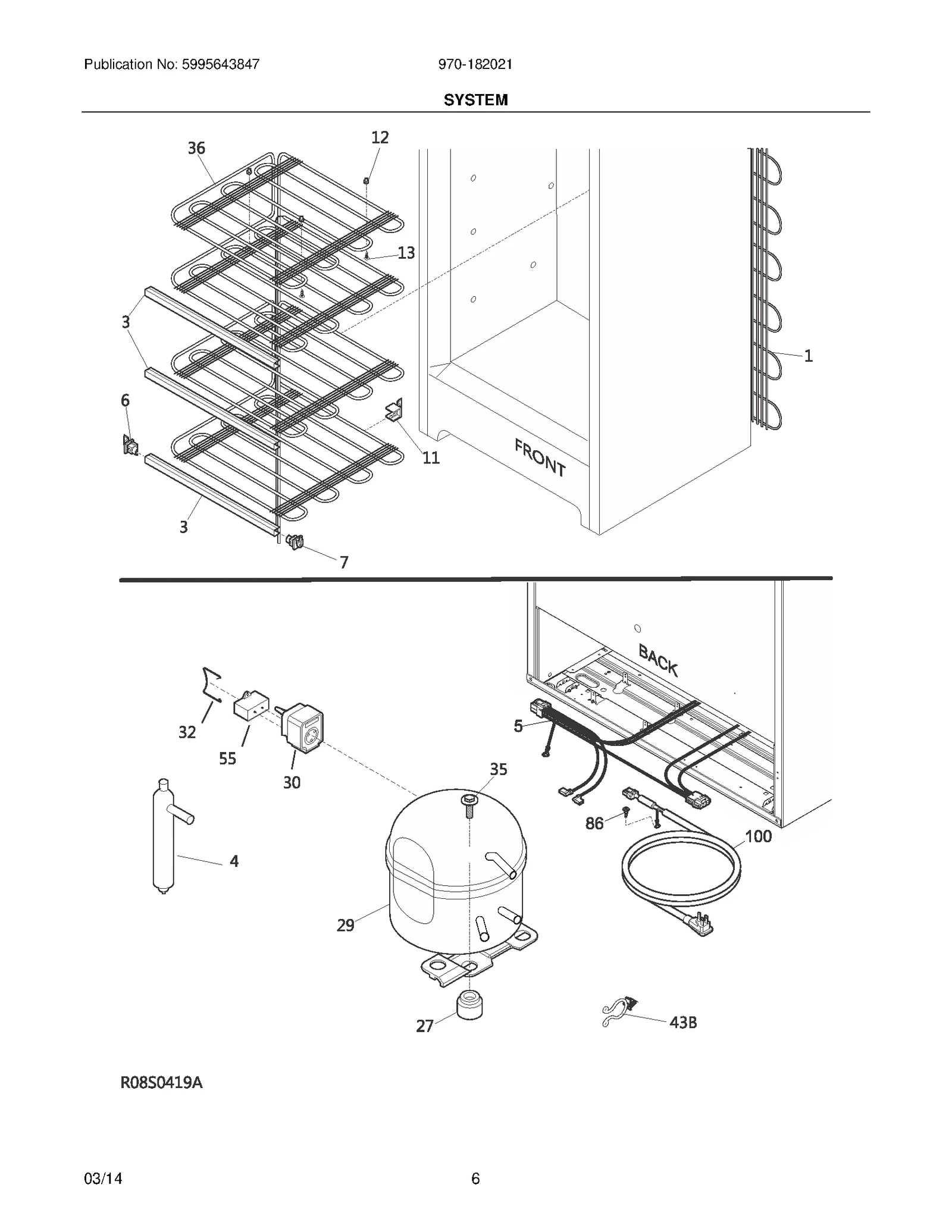

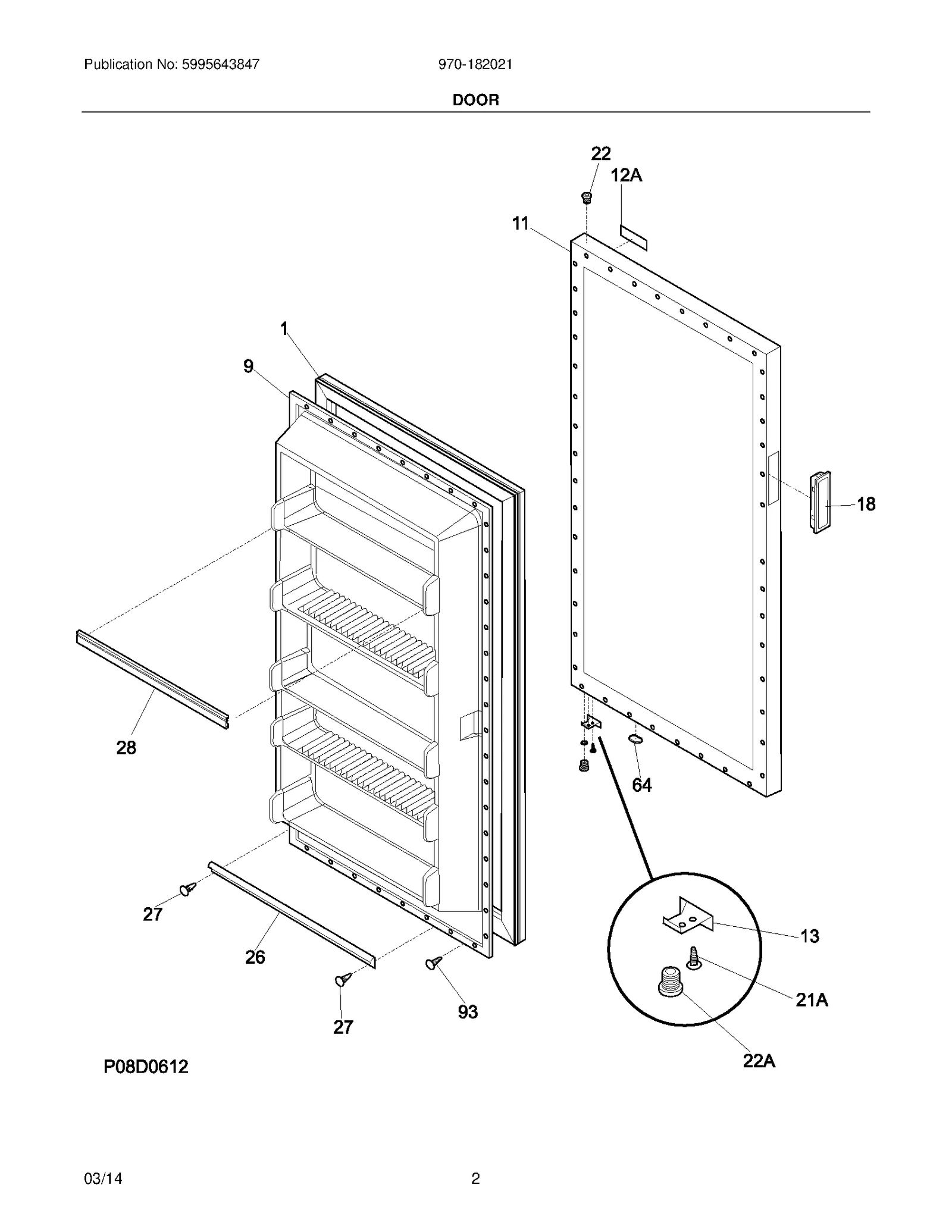

Model Electrolux 970-182021 UPRIGHT FREEZER – Common Parts & Diagrams

*
Insulation, 24", drain tube
Insulation, 24", drain tube WCI 297001704 Contact Us For Availability
View on Model
*
Sleeve, suction line
Sleeve, suction line WCI 216502500 Contact Us For Availability
View on Model
9
Breaker Kit w/corners, 28", top and bottom
Breaker Kit w/corners, 28", top and bottom WCI 297200200 Contact Us For Availability
View on Model
11
Support-rear shelf
Support-rear shelf WCI 216474600 Contact Us For Availability
View on Model
11
Panel-outer door, white
Panel-outer door, white WCI 297352500 Contact Us For Availability
View on Model
12
Grommet-spacer
Grommet-spacer WCI 216225700 Contact Us For Availability
View on Model
18
Handle, recessed, white, incl/gasket
Handle, recessed, white, incl/gasket WCI 297034200 Contact Us For Availability
View on Model
20
Cover-control housing
Cover-control housing WCI 297013800 Contact Us For Availability
View on Model
22
Clamp, cap tube, cold control
Clamp, cap tube, cold control WCI 216823500 Contact Us For Availability
View on Model
26
Ramp, door closer
Ramp, door closer WCI 216503300 Contact Us For Availability
View on Model
26
Gasket, secondary
Gasket, secondary WCI 216524301 Contact Us For Availability
View on Model
30
Controller, compressor
Controller, compressor WCI 297259508 Contact Us For Availability
View on Model
34
Shield-light
Shield-light WCI 297184400 Contact Us For Availability
View on Model
59A
Stop-basket, (2)
Stop-basket, (2) WCI 216486500 Contact Us For Availability
View on Model
63
Bracket, RH leg levelor
Bracket, RH leg levelor WCI 297164651 Contact Us For Availability
View on Model
63
Bracket, LH leg levelor
Bracket, LH leg levelor WCI 297164650 Contact Us For Availability
View on Model
64
Plug-button, hole filler, door base
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
View on Model
