Model Whirlpool 96FA-4CW ELECTRIC WALL OVEN – Common Parts & Diagrams

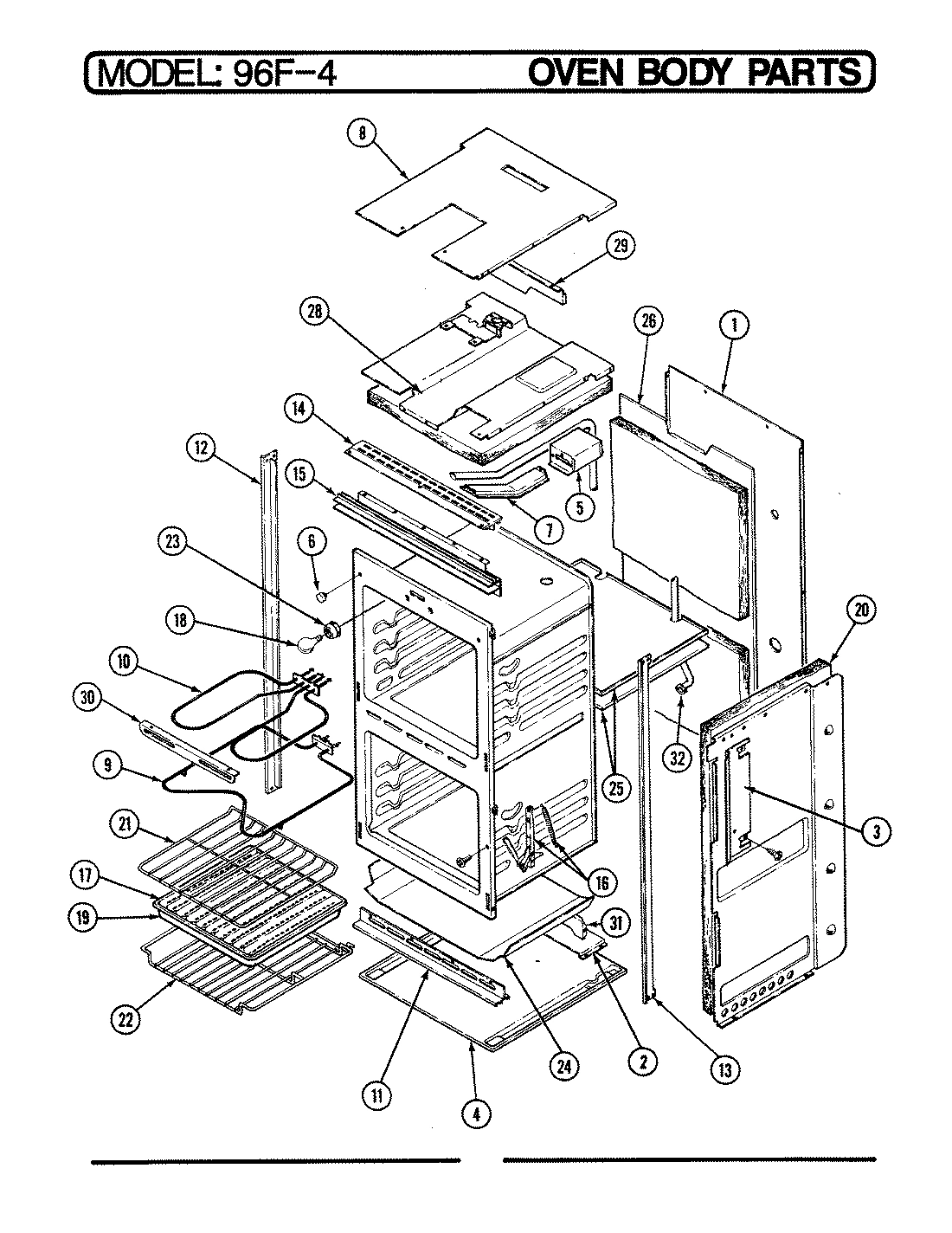

04 - OVEN

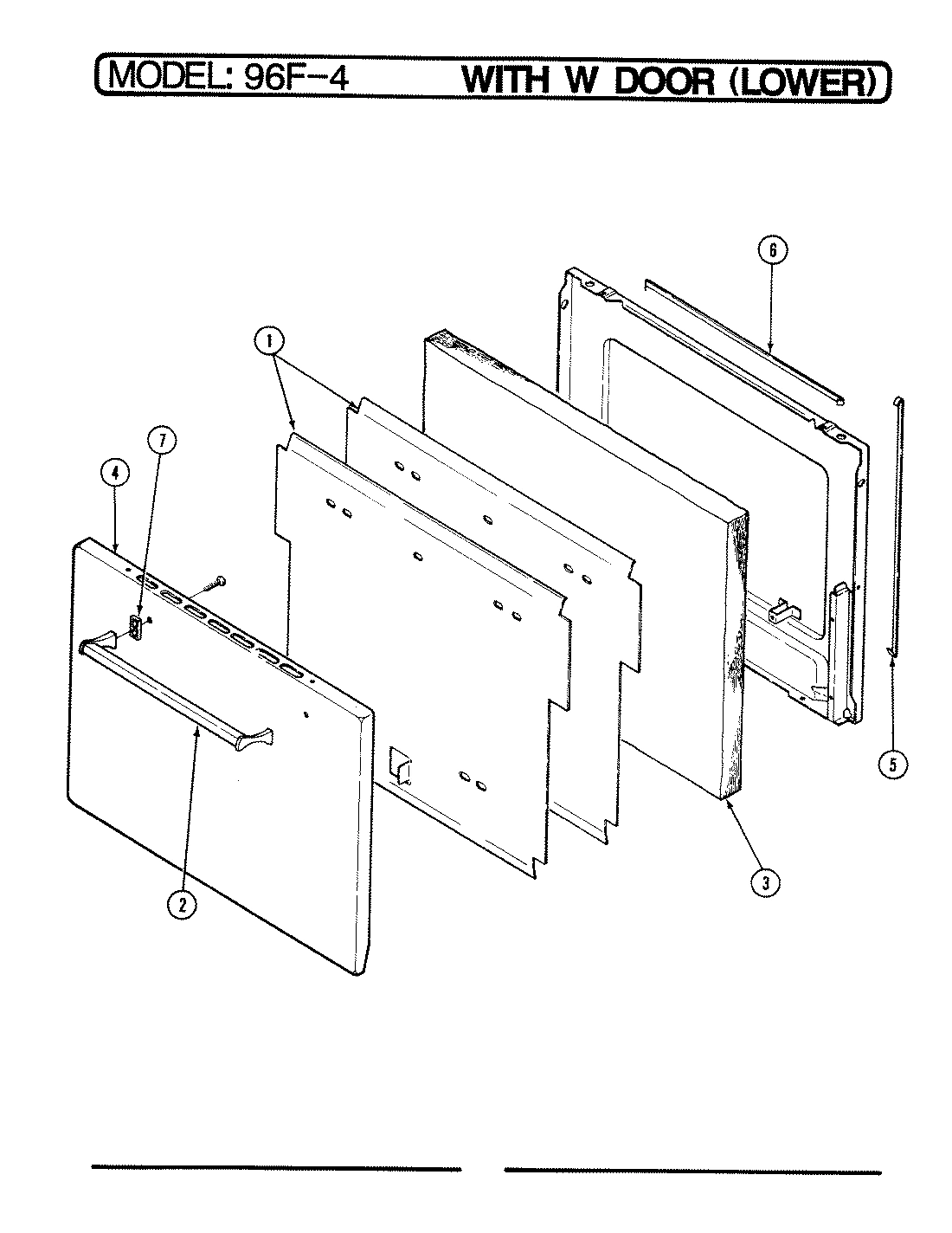

02 - DOOR-LOWER

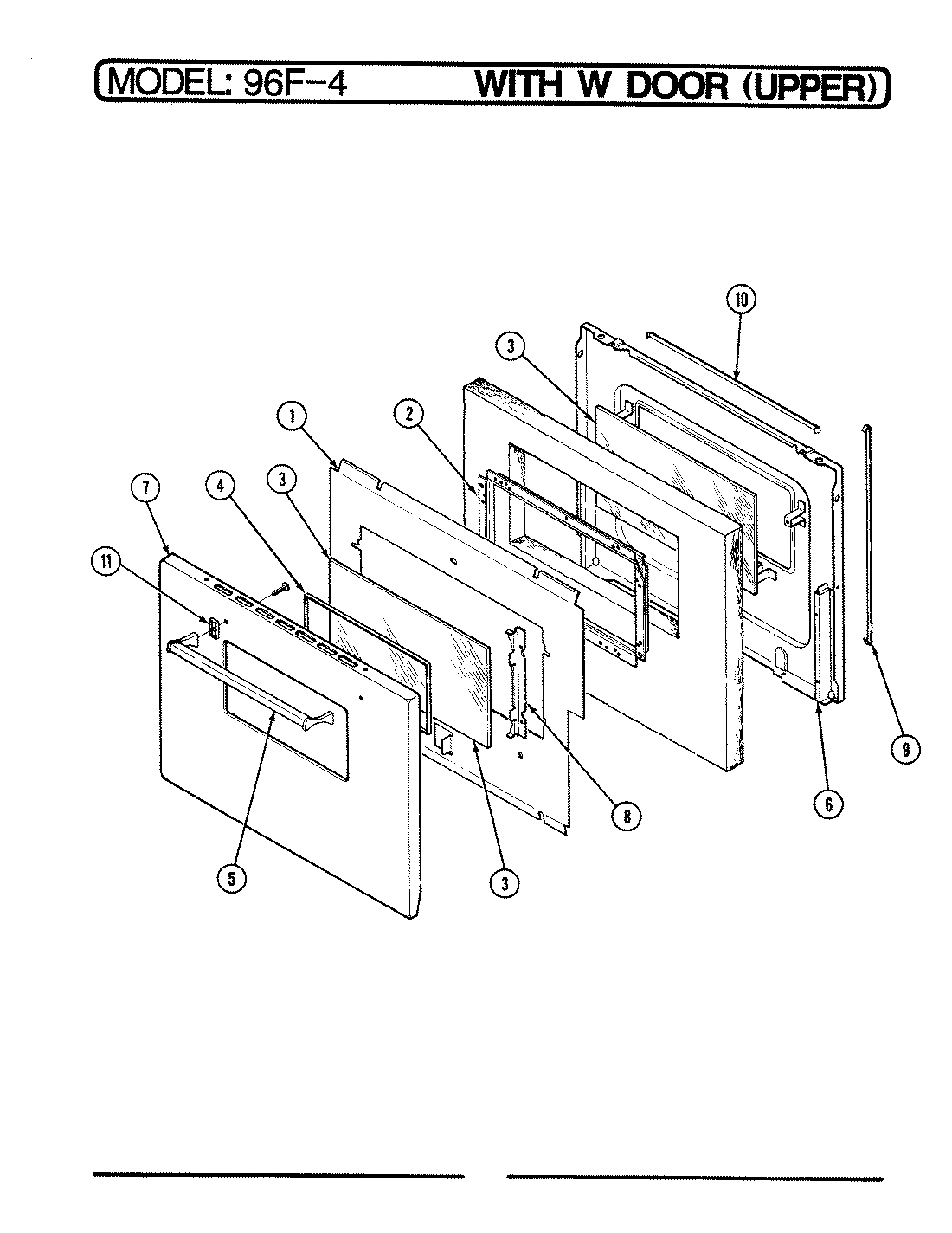

03 - DOOR-UPPER

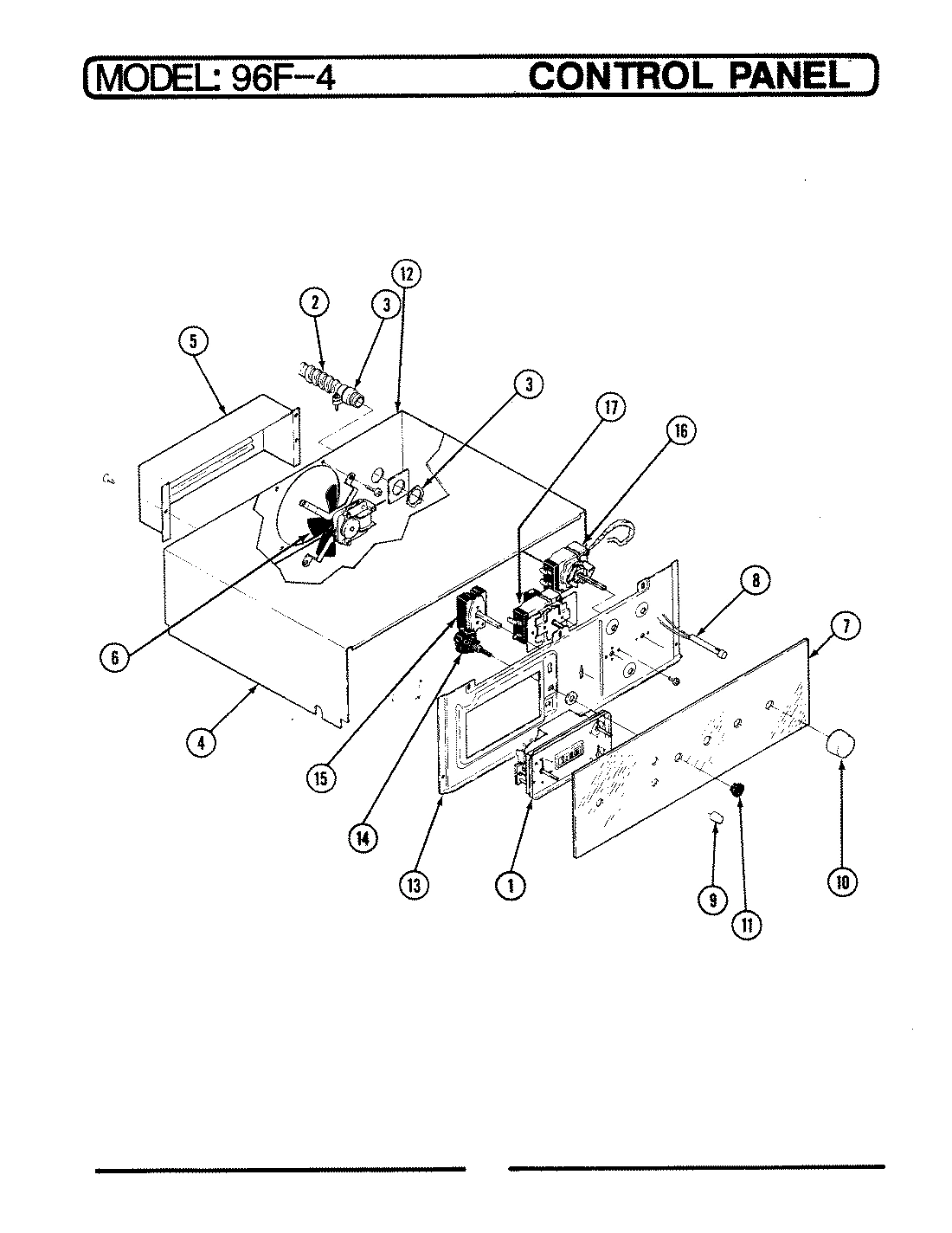

01 - CONTROL PANEL
Common parts from model Whirlpool 96FA-4CW ELECTRIC WALL OVEN
1
BACK MAIN WPL 4002F03951 Contact Us For Availability
1
BAFFLE WPL 3601F02951 Contact Us For Availability
1
BAFFLE, UPPER DOOR WPL 3601F10251 Contact Us For Availability
1
CLOCK WPL 7601P09860 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00580 Contact Us For Availability
2
FRAME, WINDOW WPL 3603F01370 Contact Us For Availability
2
CONDUIT, FLEXIBLE WPL 7434P00560 Contact Us For Availability
3
BAFFLE, SIDE WPL 3601F13051 Contact Us For Availability
3
LINING DOOR WPL 2402W13119 Contact Us For Availability
3
LINING ASSY, OV DR WPL 2402W13125 Contact Us For Availability
3
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P00360 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
4
BASE, WALL OVEN WPL 4003F01120 Contact Us For Availability
4
PANEL, OVEN DOOR ALM WPL 2401F03974 Contact Us For Availability
4
GLASS WPL 7902P05160 Contact Us For Availability
4
COVER, WIRE WPL 4005F15051 Contact Us For Availability
5
BOX, VENT WPL 4006W04615 Contact Us For Availability
5
HANDLE, DOOR WPL 7701P00560 Contact Us For Availability
5
HANDLE, DOOR (BLK) WPL 7701P12260 Contact Us For Availability
5
COVER, FAN WPL 4005F17751 Contact Us For Availability
6
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
6
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
6
LINING ASSY, OV DR WPL 2402W09723 Contact Us For Availability
6
LINING, DOOR WPL 2402W13319 Contact Us For Availability
6
LINING ASSY, OVEN DOOR WPL 2402W13325 Contact Us For Availability
6
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
7
CHANNEL, VENT ASSEMBLY WPL 3818W00215 Contact Us For Availability
7
PANEL, O.D. ALMOND WPL 2401F05274 Contact Us For Availability
7
GLASS, CONTROL PNL WPL 04000015 Contact Us For Availability
8
COVER, BOX WPL 4005F20251 Contact Us For Availability
8
RETAINER WPL 3804F05080 Contact Us For Availability
8
LIGHT, INDICATOR----NA WPL 7407P00760 Contact Us For Availability
9
ELEMENT BAKE WPL 7406P01360 Contact Us For Availability
9
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
9
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
9
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
10
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
10
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
10
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
10
KNOB (CHR) WPL 7711P29160 Contact Us For Availability
11
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
11
SPACER WPL 8010P00660 Contact Us For Availability
11
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
12
EXTRUSION, SIDE-L WPL 7706P11260 Contact Us For Availability
12
EXTRUSION, SIDE-L WPL 7750P01460 Contact Us For Availability
12
EXTENSION, SIDE (LEFT) WPL 7750P02960 Contact Us For Availability
12
BRACKET, CONDUIT WPL 3801F07245 Contact Us For Availability
13
EXTRUSION, SIDE-R WPL 7706P11360 Contact Us For Availability
13
EXTRUSION, SIDE-R WPL 7750P01560 Contact Us For Availability
13
EXTENSION, SIDE (RIGHT) WPL 7750P03060 Contact Us For Availability
13
PLATE, BACKING WPL 3605F11380 Contact Us For Availability
14
EXTRUSION, TOP WPL 7706P11460 Contact Us For Availability
14
EXTRUSION, TOP FRONT WPL 7756P01360 Contact Us For Availability
14
SWITCH, OVEN LAMP WPL 7403P10460 Contact Us For Availability
15
EXTRUSION, VENT WPL 7756P00760 Contact Us For Availability
15
EXTRUSION, VENT WPL 7756P02060 Contact Us For Availability
15
EXTRUSION, VENT WPL 7756P07160 Contact Us For Availability
15
SWITCH, SELECTOR WPL 7403P17260 Contact Us For Availability
16
HINGE, LOWER DOOR WPL 7106A01360 Contact Us For Availability
16
HINGE, UPPER DOOR WPL 7106A01560 Contact Us For Availability
16
HINGE, OVEN DOOR WPL 7106A01860 Contact Us For Availability
16
HINGE, OVEN DOOR WPL 7106A02060 Contact Us For Availability
16
HINGE WPL 7106P03660 Contact Us For Availability
16
HINGE, OVEN DOOR WPL 7106P03860 Contact Us For Availability
16
THERMOSTAT, LOWER WPL 7404P04260 Contact Us For Availability
17
INSERT, BROIL PAN WPL 3413F00219 Contact Us For Availability
17
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
17
THERMOSTAT, OVEN WPL 7404P04960 Contact Us For Availability
18
BULB, OVEN WPL 7407P02660 Contact Us For Availability
19
PAN, BROIL WPL 3401F00419 Contact Us For Availability
19
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
20
PANEL, SIDE (RT) WPL 2618F05351 Contact Us For Availability
20
PANEL, SIDE (LT) WPL 2618F05451 Contact Us For Availability
21
RACK WPL 7801P00560 Contact Us For Availability
22
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
23
RECEPT, OVEN LIGHT WPL 7408P00160 Contact Us For Availability
24
RETAINER, BOTTOM WPL 3804W03460 Contact Us For Availability
25
RETAINER, INSULATION WPL 3804F05451 Contact Us For Availability
26
RETAINER, INSUL-R WPL 3804F00751 Contact Us For Availability
28
RETAINER,TOP WPL 3804F05351 Contact Us For Availability
29
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
30
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
31
SUPPORT WPL 3807F13780 Contact Us For Availability
32
TUBE, OVEN VENT WPL 8026P01460 Contact Us For Availability
× ![]()
