Model Whirlpool 9614XPB ELECTRIC WALL OVEN – Common Parts & Diagrams

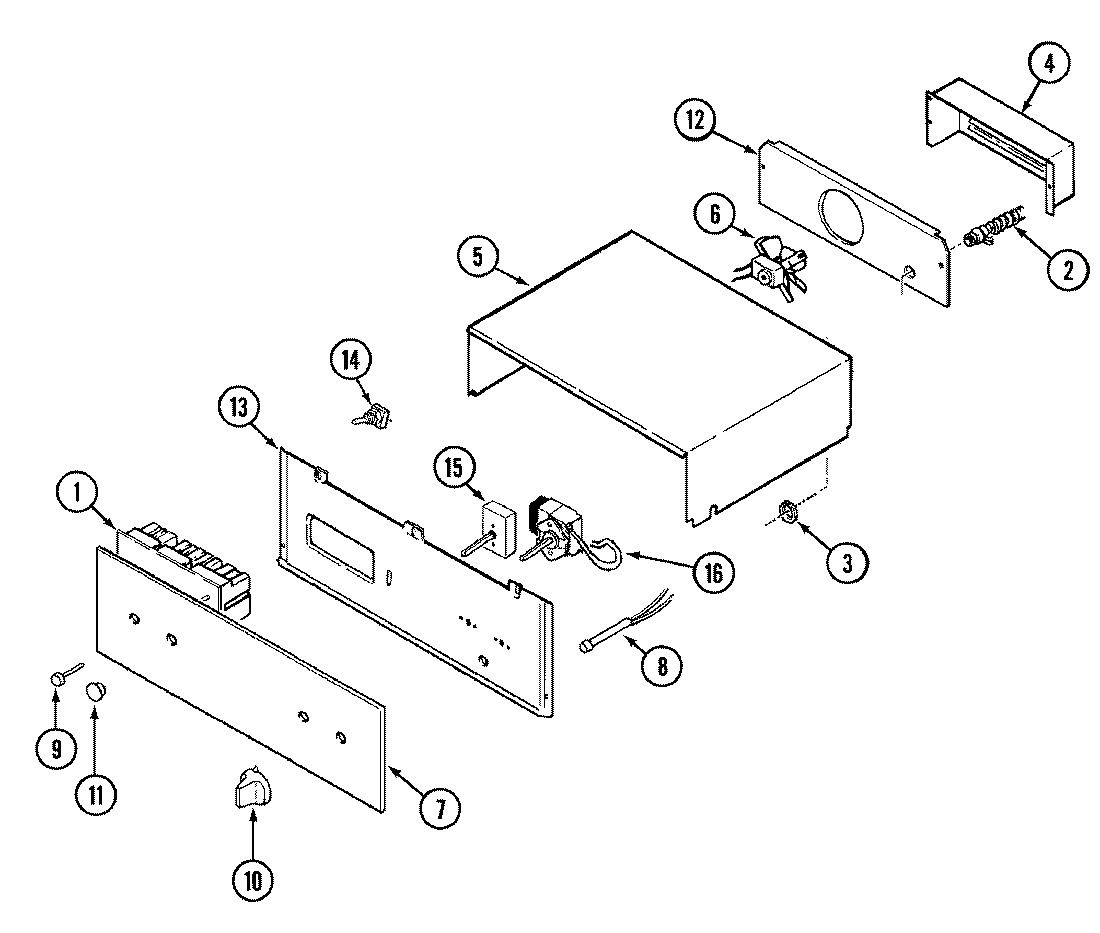

01 - CONTROL PANEL

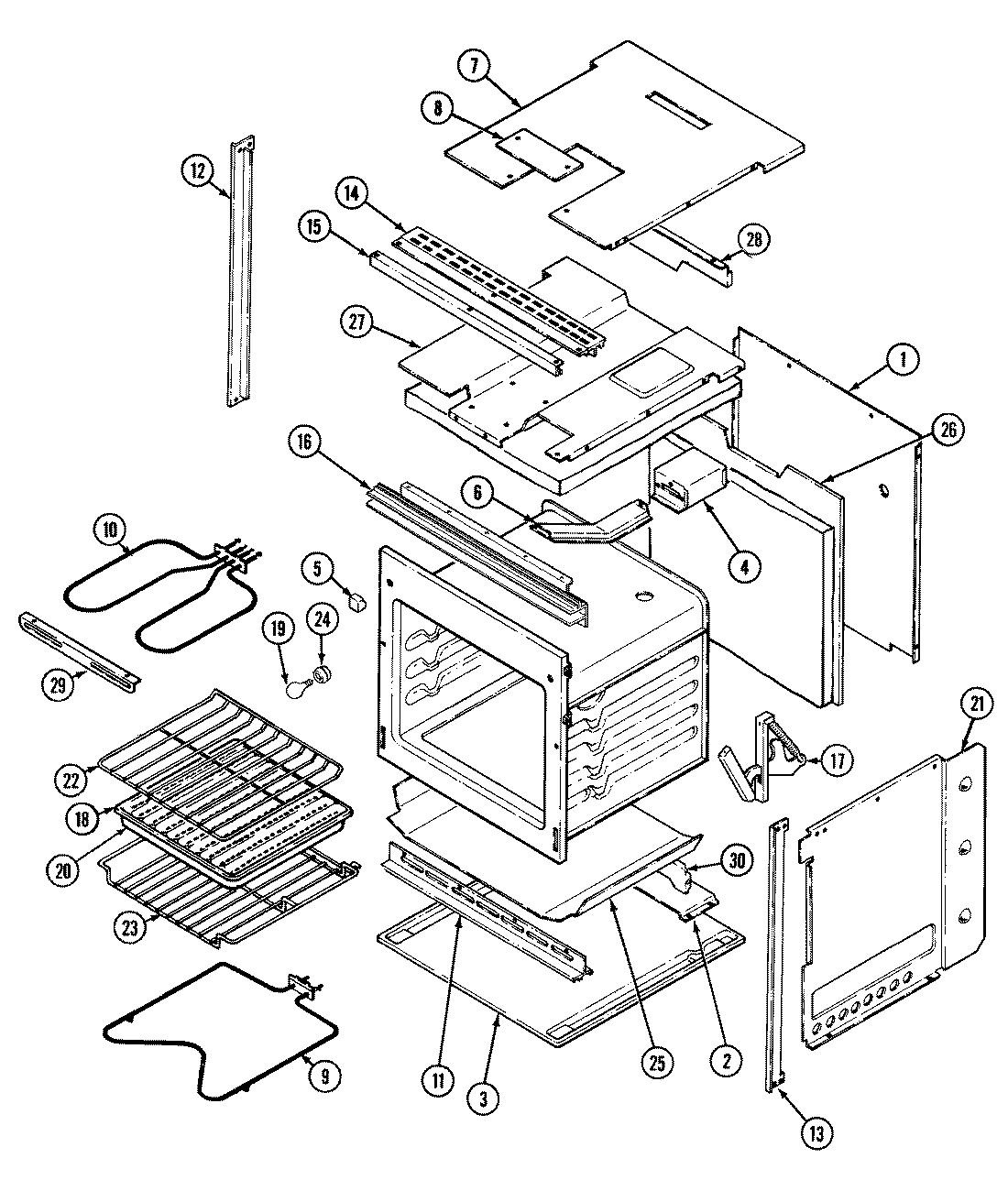

03 - OVEN/BODY

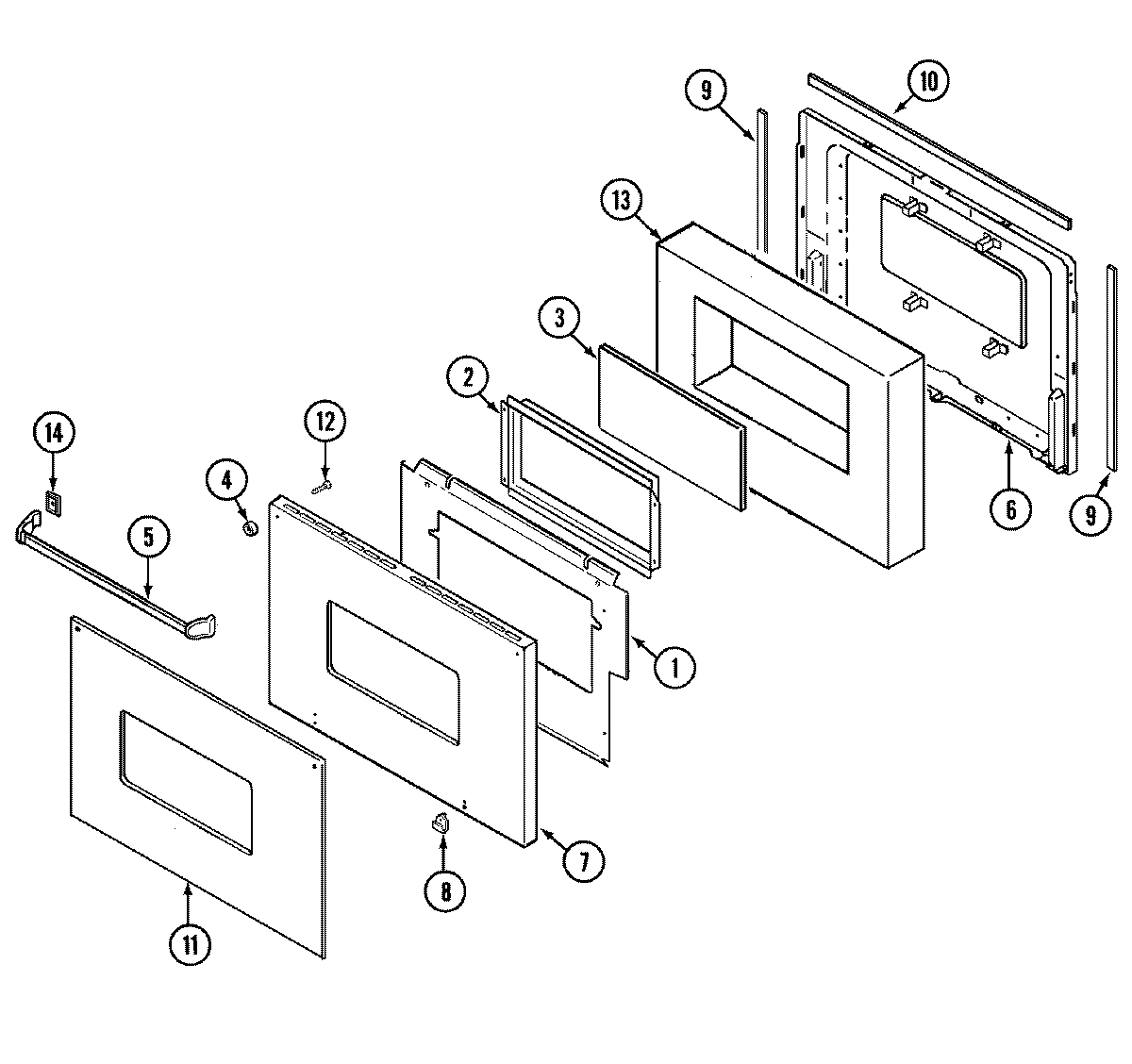

02 - DOOR
Common parts from model Whirlpool 9614XPB ELECTRIC WALL OVEN
1
CLOCK WPL 7601P09860 Contact Us For Availability
1
BACK MAIN WPL 4002F03951 Contact Us For Availability
1
BAFFLE, UPPER DOOR WPL 3601F10251 Contact Us For Availability
1
SCREW WPL 7101P35660 Contact Us For Availability
2
CONDUIT, FLEXIBLE WPL 7434P00660 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00580 Contact Us For Availability
2
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
3
BASE, WALL OVEN WPL 4003F01120 Contact Us For Availability
3
GLASS, INNER WPL 7902P38660 Contact Us For Availability
4
COVER, FAN WPL 4005F17751 Contact Us For Availability
4
BOX, VENT WPL 4006W04615 Contact Us For Availability
4
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
5
COVER, WIRE WPL 4005F15051 Contact Us For Availability
5
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
5
HANDLE, DOOR (BLK) WPL 7701P02460 Contact Us For Availability
6
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
6
CHANNEL, VENT ASSEMBLY WPL 3818W00215 Contact Us For Availability
6
LINING, DOOR WPL 2402W13317 Contact Us For Availability
7
GLASS, CONTROL PANEL WPL 7912P02760 Contact Us For Availability
7
COVER, BOX WPL 4005F20251 Contact Us For Availability
7
PANEL, DOOR (BLK) WPL 2401F11170 Contact Us For Availability
7
SCREW (BLK) WPL 7101P27660 Contact Us For Availability
8
LIGHT, INDICATOR----NA WPL 7407P00760 Contact Us For Availability
8
COVER, LOCK WPL 4005F16045 Contact Us For Availability
8
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
8
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
9
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
9
ELEMENT, BAKE WPL 7406P07560 Contact Us For Availability
9
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
10
KNOB (CHR) WPL 7711P29160 Contact Us For Availability
10
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
10
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
11
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
11
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
11
GLASS, DOOR (BLK) WPL 7902P35760 Contact Us For Availability
12
PLATE, CONDUIT WPL 3605F16451 Contact Us For Availability
12
EXTRUSION, SIDE-L WPL 7750P01660 Contact Us For Availability
12
SCREW WPL 7101P06860 Contact Us For Availability
13
PLATE, SWITCH WPL 74001455 Contact Us For Availability
13
EXTRUSION, SIDE-R WPL 7750P01760 Contact Us For Availability
13
INSULATION, DOOR WPL 7002P01560 Contact Us For Availability
14
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
14
EXTRUSION, TOP WPL 7706P11460 Contact Us For Availability
14
SPACER, HANDLE (BLK) WPL 8010P01560 Contact Us For Availability
15
SWITCH, SELECTOR WPL 7403P17260 Contact Us For Availability
15
EXTRUSION, TOP FRONT WPL 7756P01360 Contact Us For Availability
16
THERMOSTAT, OVEN WPL 7404P04960 Contact Us For Availability
16
EXTRUSION, VENT WPL 7756P07160 Contact Us For Availability
17
HARNESS, WIRE CONTROL PANEL WPL 5195A02060 Contact Us For Availability
17
HINGE WPL 7106P03660 Contact Us For Availability
18
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
18
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
19
BULB, OVEN WPL 7407P02660 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
21
PANEL, SIDE (RT) WPL 2618F05351 Contact Us For Availability
21
PANEL, SIDE (LT) WPL 2618F05451 Contact Us For Availability
22
RACK WPL 7801P00560 Contact Us For Availability
23
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
24
RECEPT, OVEN LIGHT WPL 7408P00160 Contact Us For Availability
25
RETAINER, BOTTOM INSULATION WPL 3804F10451 Contact Us For Availability
26
RETAINER, INSUL-R WPL 3804F00751 Contact Us For Availability
27
RETAINER,TOP WPL 3804F05351 Contact Us For Availability
28
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
29
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
30
SUPPORT WPL 3807F13780 Contact Us For Availability
× ![]()
