Model Whirlpool 958AH-CZW ELECTRIC RANGE – Common Parts & Diagrams
02 - DOOR

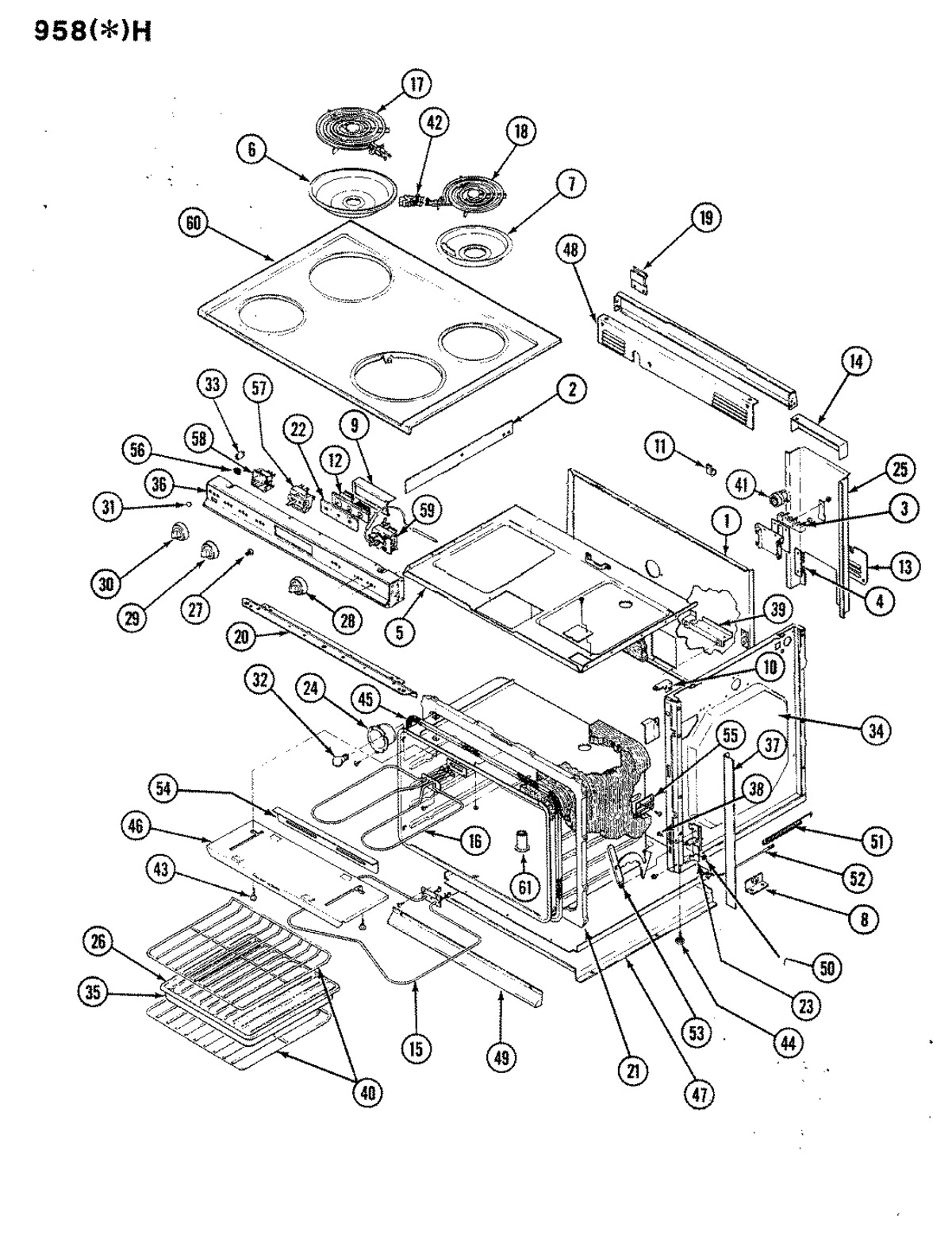

01 - BODY
Common parts from model Whirlpool 958AH-CZW ELECTRIC RANGE
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
1
KIT, BACKGUARD WPL 1430276 Contact Us For Availability
1
BACK, MAIN WPL 4002F09220 Contact Us For Availability
2
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
2
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
3
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
4
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
4
BLOCK, TERMINAL----NA WPL 7401P00360 Contact Us For Availability
5
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
5
BOX, BURNER WPL 4011F08223 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
6
BOWL, DRIP (8``) WPL 7725P00160 Contact Us For Availability
6
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
7
GLASS WPL 7902P05260 Contact Us For Availability
7
BRACE, MAIN TOP WPL 3802F07180 Contact Us For Availability
7
BOWL, DRIP (6``) WPL 7725P00260 Contact Us For Availability
7
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
8
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
8
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
8
BRACKET, CABLE ROLLER WPL 3801F01734 Contact Us For Availability
9
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
9
BRACKET, CLOCK MTG WPL 3801F11351 Contact Us For Availability
10
SCREW, BASE WPL 7101P08460 Contact Us For Availability
10
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
10
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
10
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
10
CHANNEL, WIRE REAR WPL 3818F021 Contact Us For Availability
10
CHANNEL, WIRE SIDE WPL 3818F02251 Contact Us For Availability
11
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
11
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
11
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
11
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
12
CLOCK WPL 7601P06360 Contact Us For Availability
13
SHIELD WPL 4005F01380 Contact Us For Availability
14
COVER, HOUSING WPL 4005F08280 Contact Us For Availability
15
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
16
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
17
ELEMENT (8``) WPL 7406P01560 Contact Us For Availability
18
ELEMENT (6``) WPL 7406P01860 Contact Us For Availability
18
EXTRUSION, TRIM WPL 7706P02160 Contact Us For Availability
18
EXTRUSION, TRIM WPL 7706P06560 Contact Us For Availability
18
EXTRUSION, TRIM WPL 7706P07760 Contact Us For Availability
19
KS-60 FILLER STRIP WPL 1430241 Contact Us For Availability
19
HINGE, MAIN TOP WPL 7706P17060 Contact Us For Availability
20
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
21
FRONT, FRAME OVEN WPL 2201F03223 Contact Us For Availability
22
GLASS, CLOCK WPL 7902P02760 Contact Us For Availability
23
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
23
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
24
HOUSING WPL 4001F01611 Contact Us For Availability
25
HOUSING, MAIN WIRE WPL 4001F03420 Contact Us For Availability
26
INSERT WPL 3413F00211 Contact Us For Availability
27
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
28
KNOB WPL 7711P26560 Contact Us For Availability
28
KNOB, THERMOSTAT WPL 7735P01660 Contact Us For Availability
29
KNOB, SWITCH WPL 7711P26660 Contact Us For Availability
29
KNOB, SELECTOR WPL 7739P01760 Contact Us For Availability
30
KNOB WPL 7711P26860 Contact Us For Availability
30
KNOB, SURFACE SWITCH WPL 7737P01560 Contact Us For Availability
31
LENS, SIGNAL LAMP WPL 7730P00160 Contact Us For Availability
32
BULB, OVEN WPL 7407P02660 Contact Us For Availability
33
LAMP, SIGNAL WPL 7407P01760 Contact Us For Availability
34
LINING ASSY, INNER SIDE WPL 4009W03080 Contact Us For Availability
35
PAN, BROIL WPL 3401F00411 Contact Us For Availability
36
PANEL, UPPER FRONT TRIM WPL 7722A07660 Contact Us For Availability
37
PANEL, ANGLE SIDE WPL 2618F02720 Contact Us For Availability
37
PANEL, ANGLE SIDE WPL 2618F02920 Contact Us For Availability
38
PIN, HINGE WPL 7113P00260 Contact Us For Availability
39
PLATE, CONDUIT WPL 3605F03180 Contact Us For Availability
39
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
39
PLATE, CONDUIT WPL 3605F14880 Contact Us For Availability
39
PLATE, NAME WPL 7719P02160 Contact Us For Availability
40
RACK, OVEN WPL 7801P03060 Contact Us For Availability
41
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
42
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
43
SCREW WPL 7101P00560 Contact Us For Availability
43
SCREW, CABINET WPL 7101P01460 Contact Us For Availability
43
WPL 7101P05760 WPL 7101P05760 Contact Us For Availability
44
WPL 7101P02960 WPL 7101P02960 Contact Us For Availability
45
WPL 7212P00260 WPL 7212P00260 Contact Us For Availability
46
WPL 3604F09245 WPL 3604F09245 Contact Us For Availability
47
WPL 3604F00380 WPL 3604F00380 Contact Us For Availability
48
WPL 3604F05620 WPL 3604F05620 Contact Us For Availability
49
WPL 3604F06651 WPL 3604F06651 Contact Us For Availability
49
WPL 3604W06223 WPL 3604W06223 Contact Us For Availability
50
WPL 7112P01960 WPL 7112P01960 Contact Us For Availability
51
WPL 7803P02460 WPL 7803P02460 Contact Us For Availability
52
WPL 8019P00160 WPL 8019P00160 Contact Us For Availability
52
WPL 8019P00360 WPL 8019P00360 Contact Us For Availability
53
WPL 3420A03434 WPL 3420A03434 Contact Us For Availability
54
WPL 3807F17613 WPL 3807F17613 Contact Us For Availability
55
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
56
WPL 7403P10260 WPL 7403P10260 Contact Us For Availability
57
WPL 7403P03260 WPL 7403P03260 Contact Us For Availability
58
WPL 7403P16860 WPL 7403P16860 Contact Us For Availability
59
WPL 7404P02960 WPL 7404P02960 Contact Us For Availability
60
WPL 2002W04994 WPL 2002W04994 Contact Us For Availability
60
WPL 7706P04260 WPL 7706P04260 Contact Us For Availability
61
WPL 8026P00160 WPL 8026P00160 Contact Us For Availability
× ![]()
