Model GE 911.49053200 Wall Oven (Kenmore 91149053200) – Common Parts & Diagrams
LOWER BODY

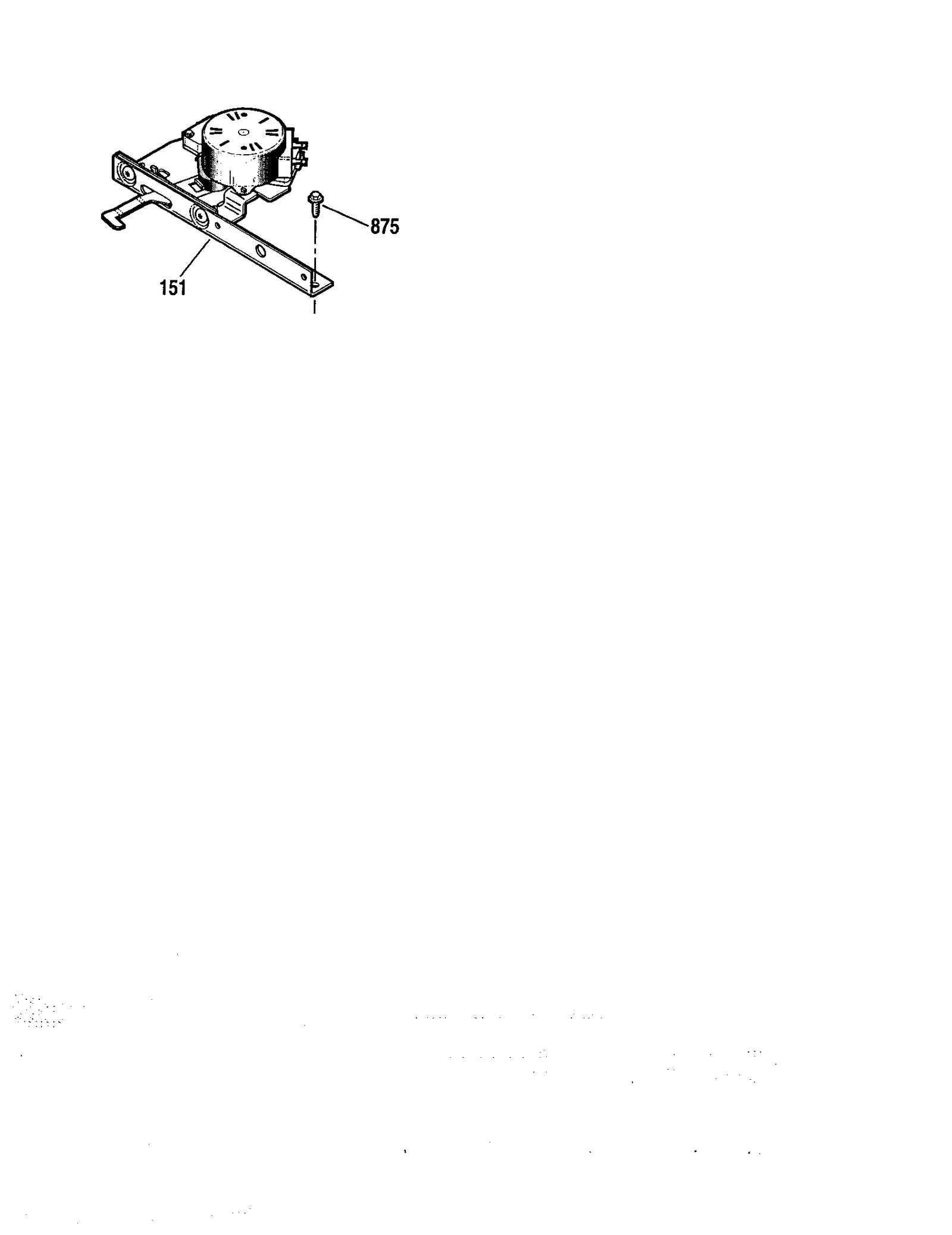

DOOR LOCK

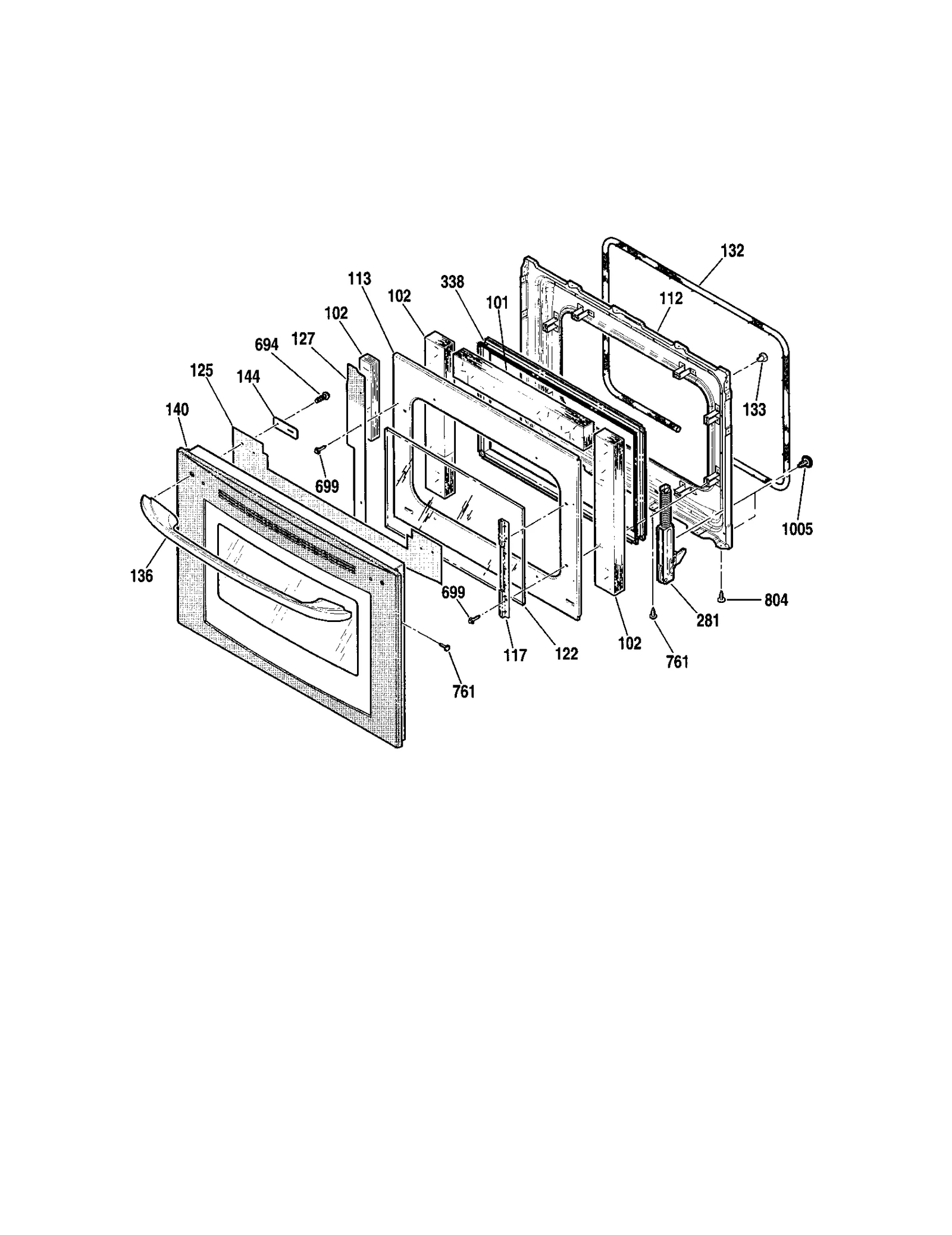

DOOR - 911.49053200

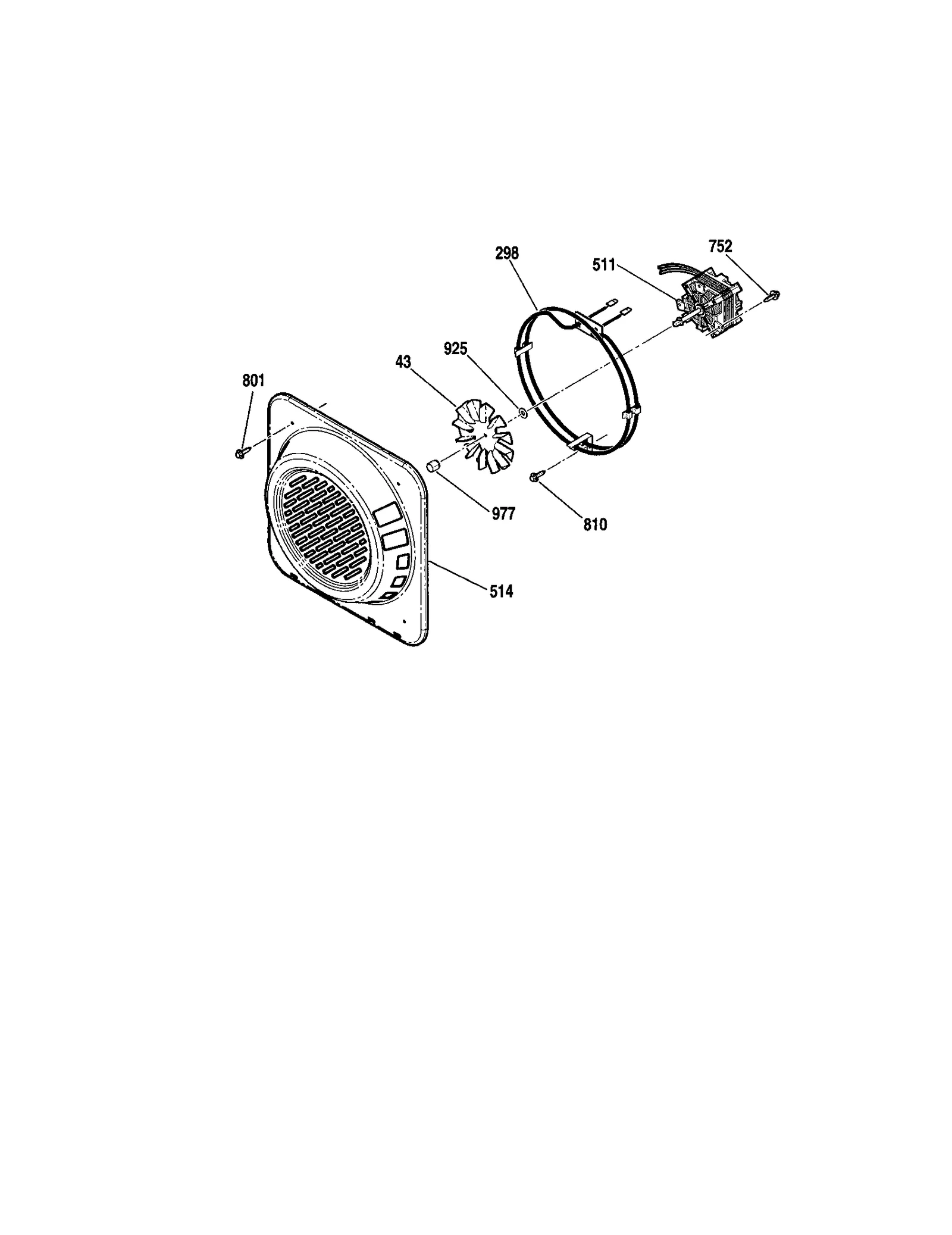

CONVECTION FAN

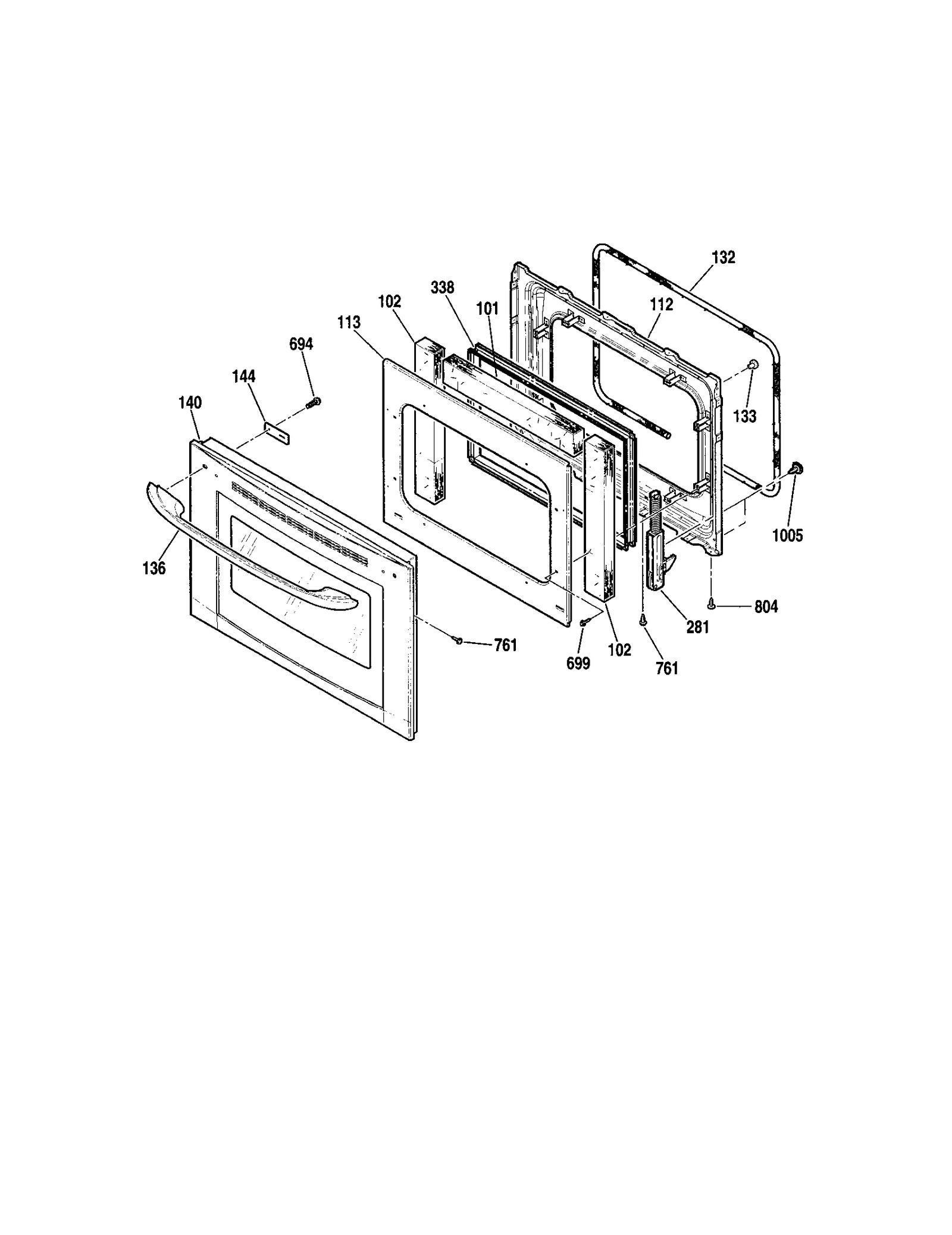

DOOR - 911.49052200/4200/9200

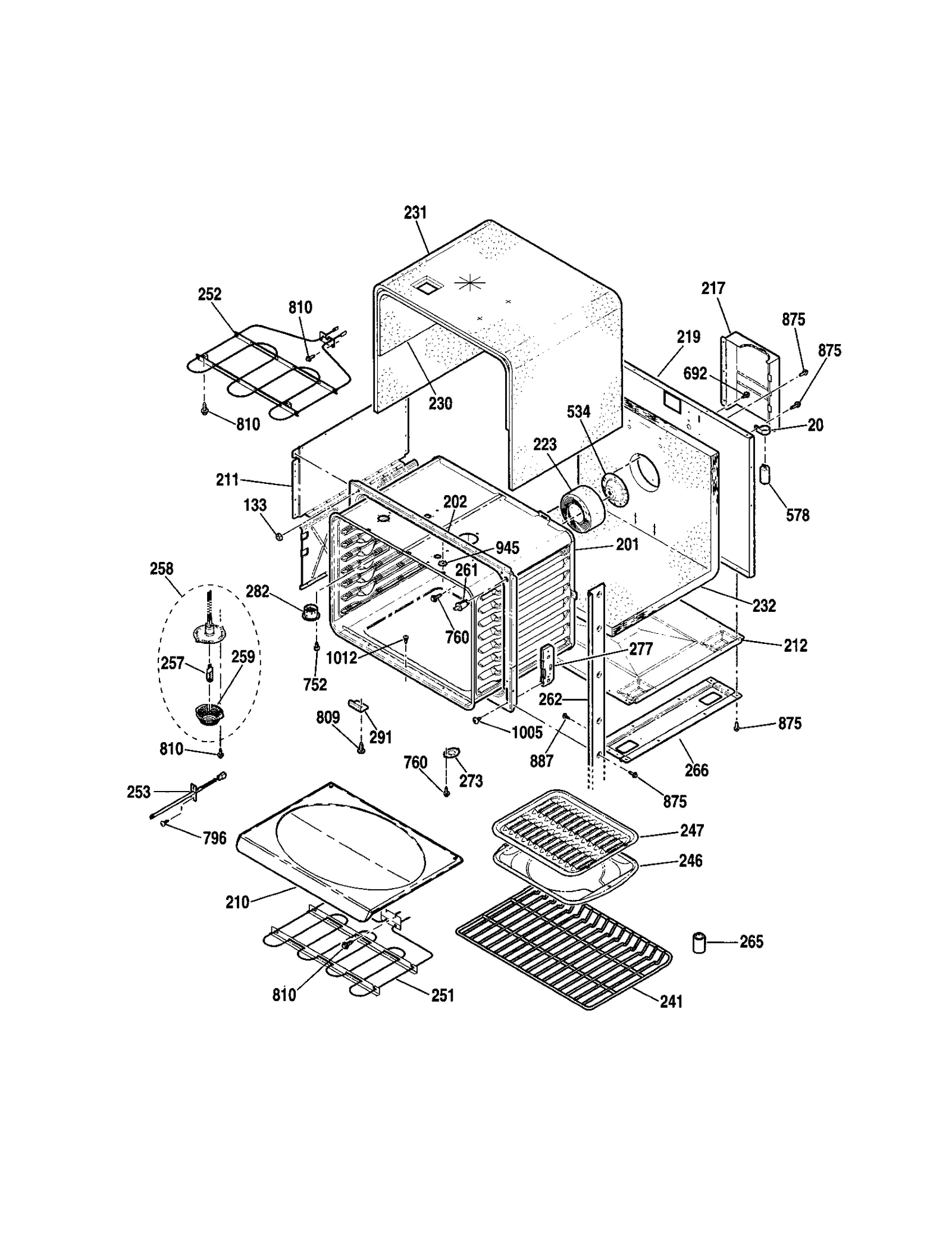

UPPER BODY

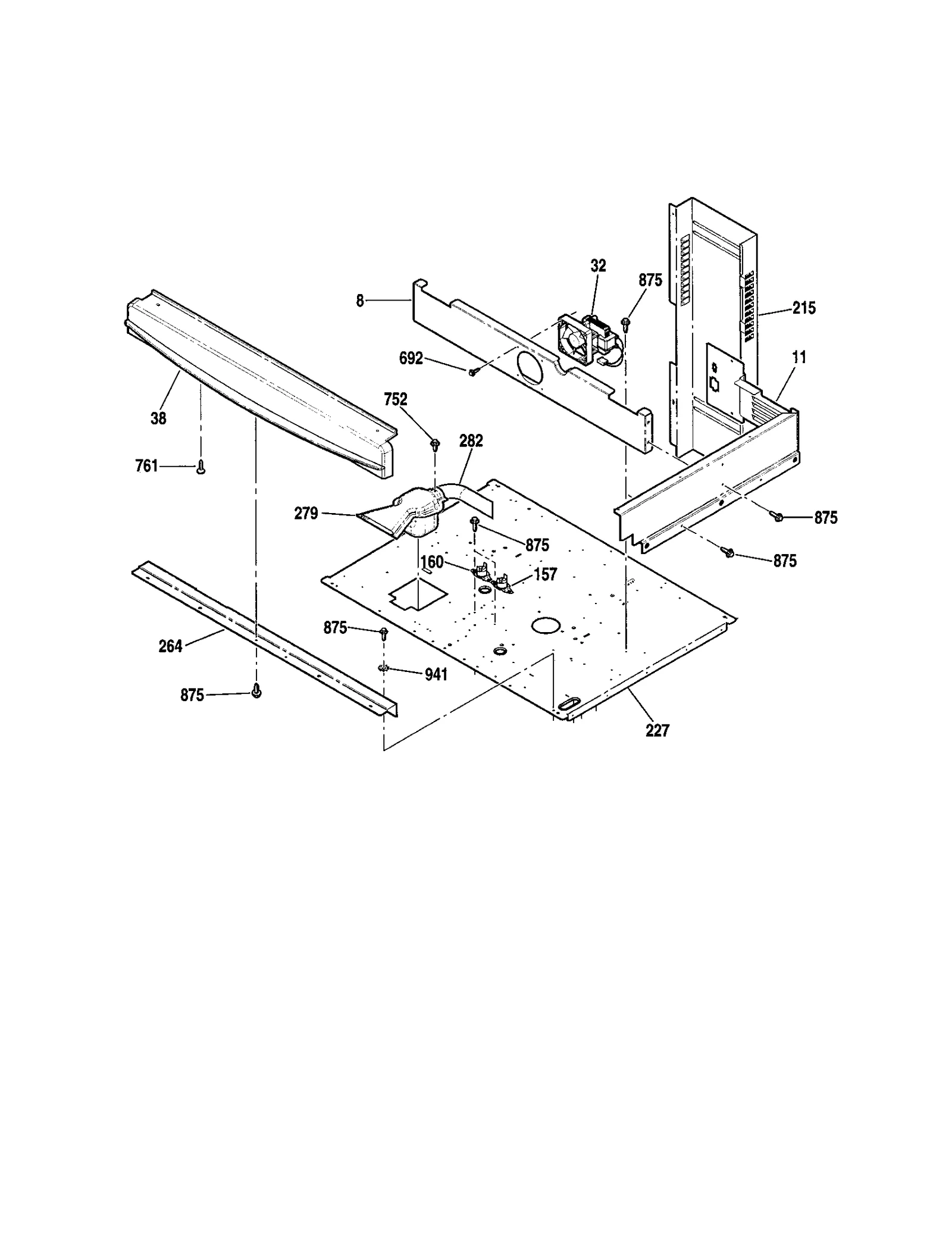

CENTER SPACER

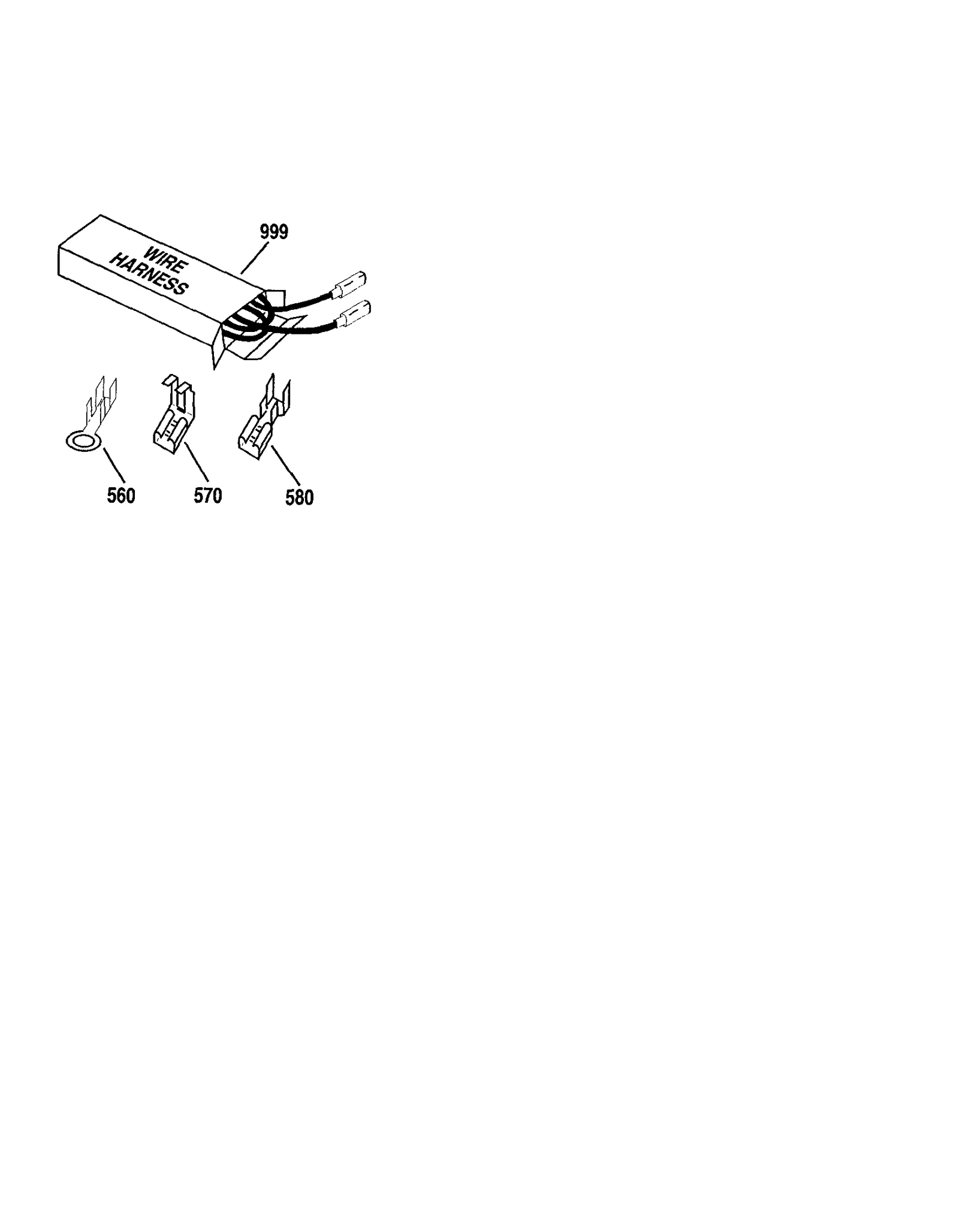

WIRE HARNESS AND WIRING COMPONENTS

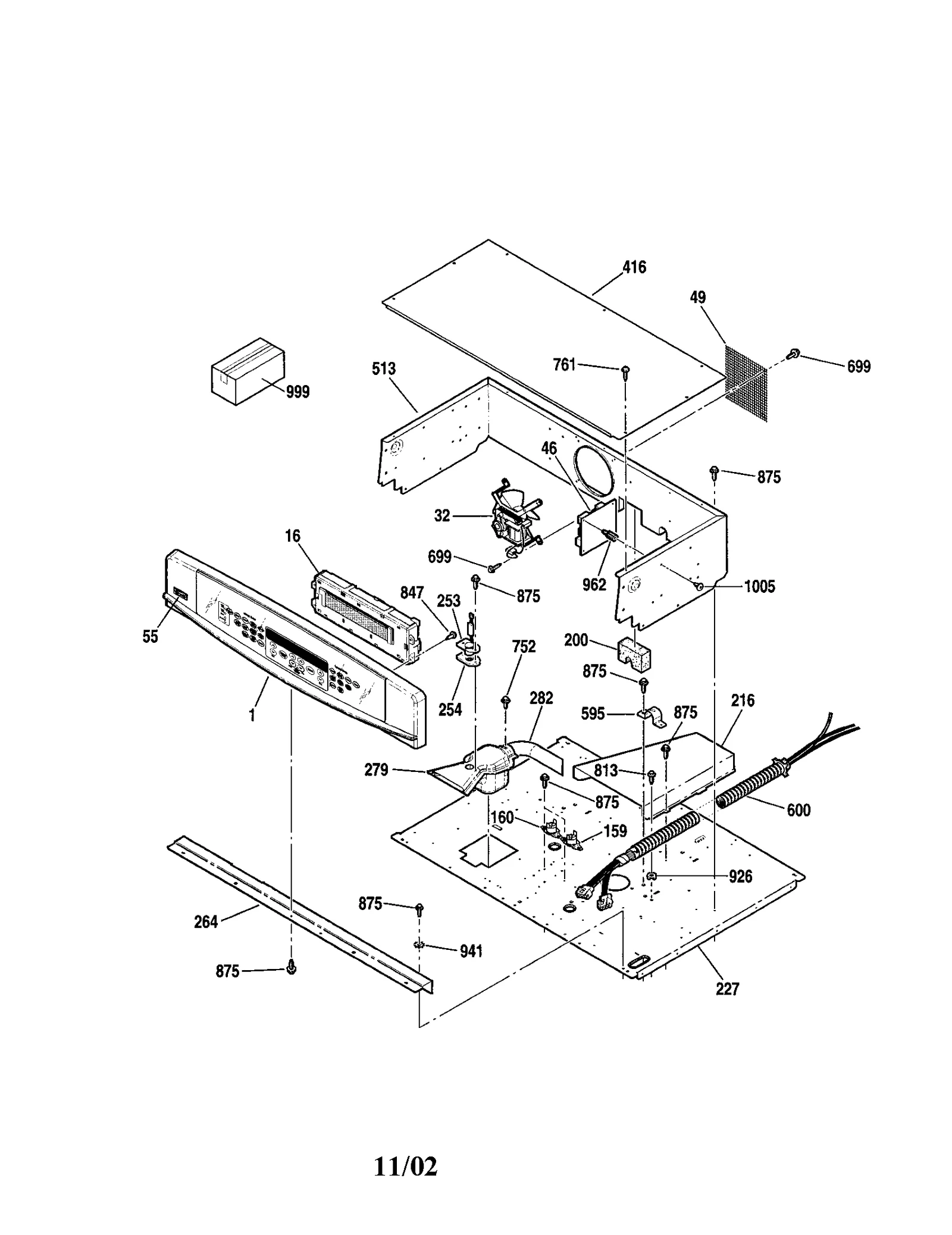

CONTROL
Common parts from model GE 911.49053200 Wall Oven (Kenmore 91149053200)
1
Control Panel GEN WB36T10585 Contact Us For Availability
1A
Oven Control Panel GEN WB36T10587 Contact Us For Availability
1B
Cntrl Pnl W/ GEN WB36T10586 Contact Us For Availability
1C
Control Panel GEN WB36T10588 Contact Us For Availability
8
Fan Support GEN WB02K5355 Contact Us For Availability
11
Side Ext-rt GEN WB37K5037 Contact Us For Availability
11A
Side Ext-lt GEN WB37K5038 Contact Us For Availability
16
Range Oven Control Board GEN WB27T10432 Contact Us For Availability
32
Fan GEN WB26T10019 Contact Us For Availability
38
Filler Trim GEN WB07T10292 Contact Us For Availability
38A
Filler Trim GEN WB07T10294 Contact Us For Availability
38B
Filler Trim GEN WB07T10295 Contact Us For Availability
38C
Filler Trim GEN WB07T10293 Contact Us For Availability
46
Range Oven Relay Control Board GEN WB27T10438 Contact Us For Availability
49
Fan Screen GEN WB34T10043 Contact Us For Availability
55
Badge Elite GEN WB02T10059 Contact Us For Availability
112
Oven Door Liner GEN WB55T10106 Contact Us For Availability
113
Retainer Insert GEN WB02T10145 Contact Us For Availability
122
OUTER DR ASM GEN WB57T10232 Contact Us For Availability
125
Reflector He GEN WB34T10068 Contact Us For Availability
136
Oven Handle GEN WB15T10076 Contact Us For Availability
136
Oven Handle GEN WB15T10073 Contact Us For Availability
136A
Oven Handle GEN WB15T10075 Contact Us For Availability
136B
Oven Handle GEN WB15T10074 Contact Us For Availability
140
Door GEN WB56T10116 Contact Us For Availability
140
Out Door/wht GEN WB56T10112 Contact Us For Availability
140A
Outer Door Assembly GEN WB56T10114 Contact Us For Availability
140B
Outer Door Assembly GEN WB56T10113 Contact Us For Availability
144
Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability
151
Range Oven Door Lock Assembly GEN WB14T10013 Contact Us For Availability
160
Limit Bake Switch GEN WB24T10080 Contact Us For Availability
200
Foam Plug GEN WB02T10167 Contact Us For Availability
201
Oven Wrapper GEN WB63T10084 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Retainer GEN WB02T10143 Contact Us For Availability
215
Wall Oven Wire Harness Cover, Center GEN WB34T10060 Contact Us For Availability
216
Wire Cover GEN WB34T10057 Contact Us For Availability
217
Cover Wire U GEN WB34T10055 Contact Us For Availability
230
Tub Insulation GEN WB35T10073 Contact Us For Availability
241
Oven Rack GEN WB48T10049 Contact Us For Availability
253
Sc Sensor GEN WB23T10017 Contact Us For Availability
254
Gasket Sensor GEN WB04T10026 Contact Us For Availability
258
Halogen Lamp GEN WB25T10028 Contact Us For Availability
259
Oven Lamp Lens GEN WB25T10013 Contact Us For Availability
261
Range Oven Door Switch GEN WB24T10065 Contact Us For Availability
262
Trim GEN WB07T10284 Contact Us For Availability
262A
Trim GEN WB07T10285 Contact Us For Availability
262B
Trim GEN WB07T10276 Contact Us For Availability
262C
Trim GEN WB07T10277 Contact Us For Availability
262D
Trim GEN WB07T10280 Contact Us For Availability
262E
Trim GEN WB07T10281 Contact Us For Availability
262F
Trim GEN WB07T10296 Contact Us For Availability
262G
Trim GEN WB07T10297 Contact Us For Availability
264
Inner Trim Vent GEN WB07T10252 Contact Us For Availability
265
Door Stopper GEN WB08T10024 Contact Us For Availability
277
Wall Oven Door Hinge Receiver GEN WB10T10025 Contact Us For Availability
279
BOX VNT ASM GEN WB38T10020 Contact Us For Availability
281
Oven Door Hinge GEN WB10T10026 Contact Us For Availability
281
Oven Door Hinge, Right GEN WB10T10034 Contact Us For Availability
281A
Oven Door Hinge GEN WB10T10027 Contact Us For Availability
281A
Oven Door Hinge, Left GEN WB10T10035 Contact Us For Availability
282
Vent Inlet D GEN WB28T10083 Contact Us For Availability
282
Duct Vent Inlet GEN WB28T10074 Contact Us For Availability
291
Cover Enam W GEN WB02T10146 Contact Us For Availability
416
Wall Oven Cooling Fan Housing Cover GEN WB34T10058 Contact Us For Availability
511
Range Convection Fan Motor GEN WB26T10013 Contact Us For Availability
513
Fan Housing GEN WB26T10014 Contact Us For Availability
514
Fan Cover GEN WB26T10012 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
578
Range Fan Motor Start Capacitor GEN WB26T10016 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
600
Wall Oven Wire Harness GEN WB18T10273 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
761B
Trim Screw GEN WB01K5211 Contact Us For Availability
887B
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
887C
Screw St 8-1 GEN WB01T10032 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
962
Screw Machin GEN WB01X10160 Contact Us For Availability
999
Wire Harness GEN WB18T10260 Contact Us For Availability
999
Installation Instructions GEN 31-10518 Contact Us For Availability
999A
Wire Harness GEN WB18T10261 Contact Us For Availability
999A
Installation Instructions GEN 31-10549 Contact Us For Availability
999B
Wall Oven Control and Display Wire Harness GEN WB18T10269 Contact Us For Availability
999B
MANUAL MINI & WD ASM GEN 31-14013 Contact Us For Availability
999C
Wire Harness GEN WB18T10257 Contact Us For Availability
999C
Owner's Manual GEN SR10499 Contact Us For Availability
999D
Parts List GEN 31-14103 Contact Us For Availability
1005
SCREW 10-32 TRT GEN WB010T1008 Contact Us For Availability
× ![]()
