Model GE 911.49033100 Electric Built-In Double Oven (Kenmore 91149033100) – Common Parts & Diagrams

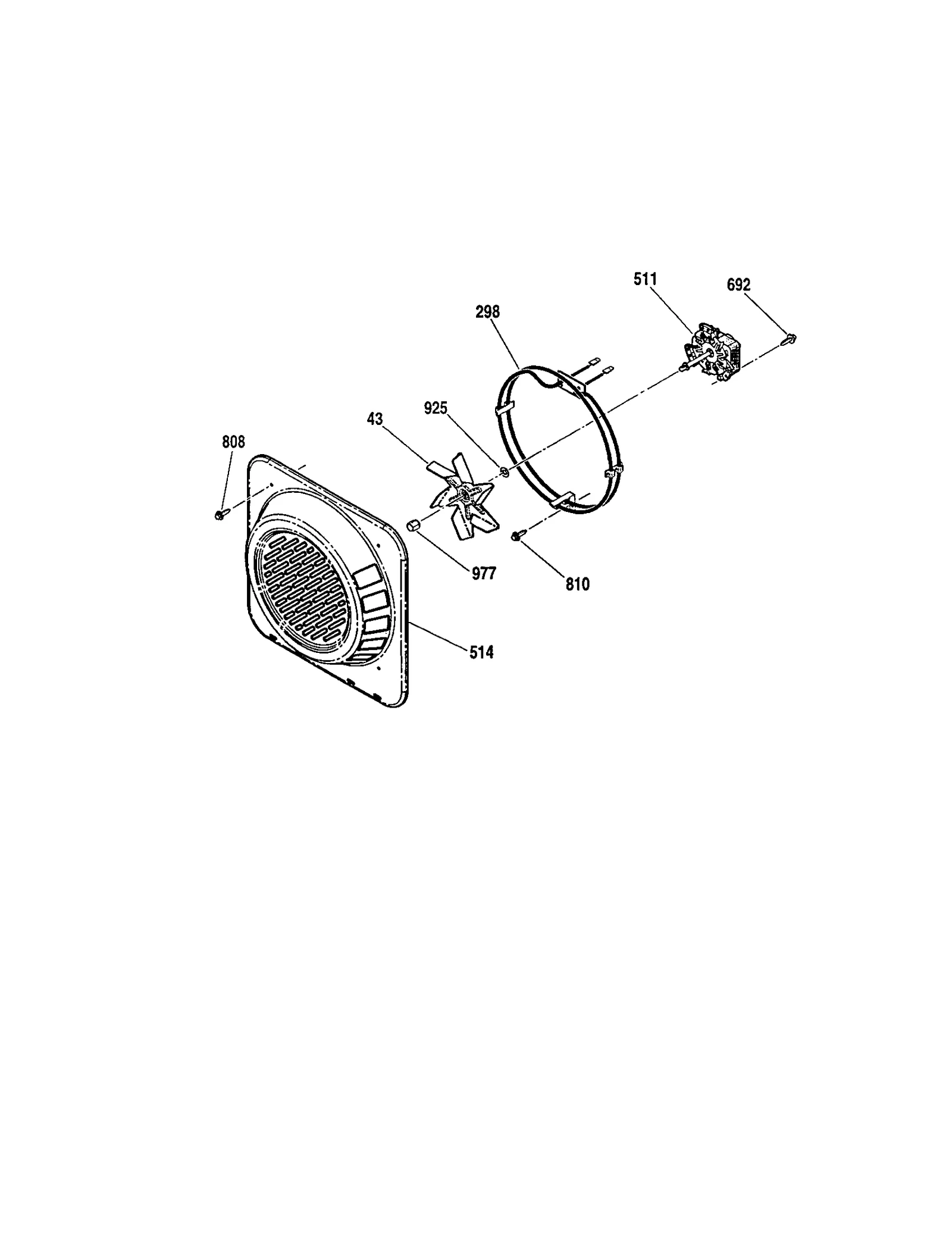

CONVENTION FAN
WIRE HARNESSES AND COMPONENTS
DOOR (911.49033100)
DOOR LOCK
CONTROL (911.49032100/34100/39100)
DOOR (911.49032100/34100/39100)
CENTER SPACE
CONTROL (911.49033100)
UPPER BODY
LOWER BODY
Common parts from model GE 911.49033100 Electric Built-In Double Oven (Kenmore 91149033100)
1
Control Panel GEN WB27T10151 Contact Us For Availability
1C
Wall Oven Control Panel Assembly GEN WB36T10463 Contact Us For Availability
8
Fan Support GEN WB02K5355 Contact Us For Availability
11
Side Ext-rt GEN WB37K5037 Contact Us For Availability
11A
Side Ext-lt GEN WB37K5038 Contact Us For Availability
16
Wall Oven Control Board GEN WB27T10298 Contact Us For Availability
38
Filler White GEN WB07K5448 Contact Us For Availability
38A
Filler Trim GEN WB07T10137 Contact Us For Availability
38B
Filler Trim GEN WB07T10135 Contact Us For Availability
38C
Filler Trim GEN WB07K5447 Contact Us For Availability
41
Filler Trim GEN WB34K5242 Contact Us For Availability
47
Air Deflector GEN WB39T10002 Contact Us For Availability
55
Badge Elite GEN WB02T10059 Contact Us For Availability
103
Window Spacer GEN WB02K5321 Contact Us For Availability
106
Door Trim Shield GEN WB07K10138 Contact Us For Availability
112
Ov Dr Lining GEN WB55T10017 Contact Us For Availability
113
Insulation Retainer GEN WB02K5322 Contact Us For Availability
121
Oven Door Glass GEN WB57T10171 Contact Us For Availability
121A
Oven Door Glass GEN WB57T10174 Contact Us For Availability
121B
Oven Glass GEN WB57T10173 Contact Us For Availability
133B
Foam Tape GEN WB01T10055 Contact Us For Availability
134
Door Vent Trim GEN WB07T10044 Contact Us For Availability
134A
Door Vent Trim GEN WB07T10126 Contact Us For Availability
134B
Door Vent Trim GEN WB07T10045 Contact Us For Availability
136
Range Oven Door Handle (Black) GEN WB15T10022 Contact Us For Availability
136
Oven Door Handle GEN WB15T10019 Contact Us For Availability
136A
Oven Door Handle GEN WB15T10021 Contact Us For Availability
136B
Wall Oven Door Handle (Black) GEN WB15T10020 Contact Us For Availability
140
Oven Door Frame GEN WB55T10078 Contact Us For Availability
140A
Oven Door Frame GEN WB55T10081 Contact Us For Availability
140B
Oven Door Frame GEN WB55T10080 Contact Us For Availability
151
Wall Oven Door Lock Assembly GEN WB14T10008 Contact Us For Availability
159
Limit Switch GEN WB24T10059 Contact Us For Availability
201
Oven Wrapper GEN WB63T10063 Contact Us For Availability
201
Oven Body GEN WB63T10070 Contact Us For Availability
202
Frame GEN WB63T10064 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
BTM. INSULATION RETAINER GEN WB02K10047 Contact Us For Availability
215
Wire Cover GEN WB34K5224 Contact Us For Availability
216
Wire Cover GEN WB34K5216 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
INSULATION RETAINER - BACK GEN WB02X10189 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
227
Insulation Retainer GEN WB02T10109 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
241A
Oven Rack GEN WB28T10049 Contact Us For Availability
252
Oven Broil Unit GEN WB44T10008 Contact Us For Availability
258
Halogen Lamp GEN WB25T10024 Contact Us For Availability
259
Oven Lamp Lens GEN WB25T10013 Contact Us For Availability
262
Trim GEN WB07T10049 Contact Us For Availability
262A
Trim GEN WB07T10050 Contact Us For Availability
262B
Trim GEN WB07T10051 Contact Us For Availability
262C
Trim GEN WB07T10052 Contact Us For Availability
262D
Trim GEN WB07T10133 Contact Us For Availability
262E
Trim GEN WB07T10134 Contact Us For Availability
262F
Trim GEN WB07T10132 Contact Us For Availability
263
Trim I-brow GEN WB07T10129 Contact Us For Availability
264
Vent Trim GEN WB07T10177 Contact Us For Availability
264
Inner Trim Vent GEN WB07T10179 Contact Us For Availability
268
Body Trim GEN WB07T10038 Contact Us For Availability
268A
Lower Trim GEN WB07T10037 Contact Us For Availability
268B
Trim Btm (bs GEN WB07T10123 Contact Us For Availability
278
Heat Shield GEN WB34T10024 Contact Us For Availability
279
Box Vent GEN WB38T10014 Contact Us For Availability
281
Range Oven Door Hinge Assembly, Right GEN WB14T10009 Contact Us For Availability
281A
Hinge Asm-lt GEN WB14T10010 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
416
Fan Hous Cvr GEN WB34K5217 Contact Us For Availability
513
Fan Housing GEN WB26K5063 Contact Us For Availability
534
Oven Support GEN WB26T10003 Contact Us For Availability
600
Wall Oven Wire Harness GEN WB18K5540 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
761A
Trim Screw GEN WB01K5211 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
770A
Scr 8-18ab F GEN WB01T10035 Contact Us For Availability
847
Screw-black GEN WB02T10110 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
887B
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
887C
Screw St 8-1 GEN WB01T10032 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
999
Instructions GEN 31-10437 Contact Us For Availability
999A
MINI MANUAL W/WIRE DIAGRAM GEN 31-13832 Contact Us For Availability
999B
Owner's Manual GEN SR10480 Contact Us For Availability
999C
Range Owner's Manual GEN SR10441 Contact Us For Availability
999D
Parts List GEN 31-13926 Contact Us For Availability
1004
Screw GEN WB02X0941 Contact Us For Availability
× ![]()
