Model GE 911.47819201 30" Electric Oven with Microwave (Kenmore 91147819201) – Common Parts & Diagrams
MICROWAVE BODY

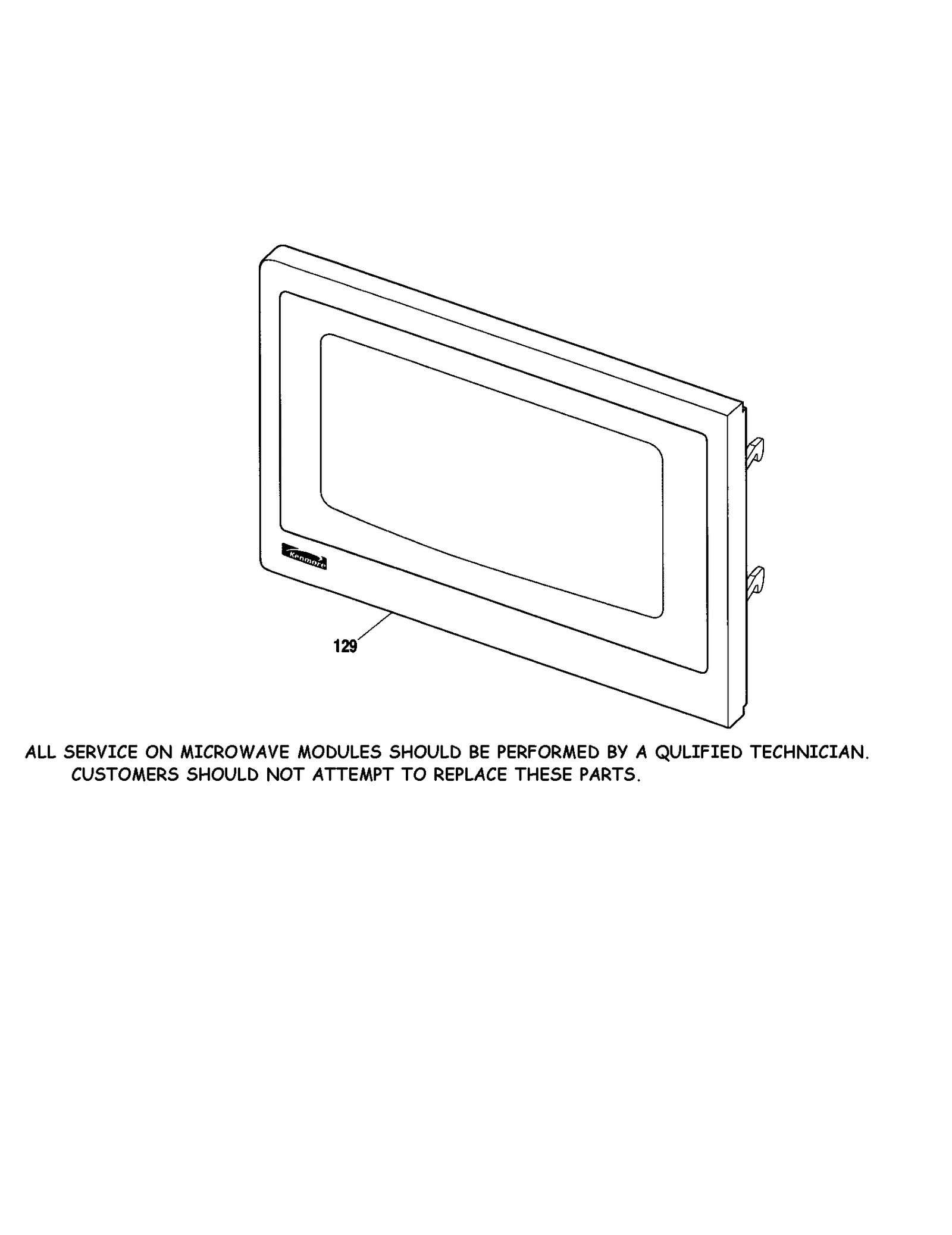

MICROWAVE DOOR

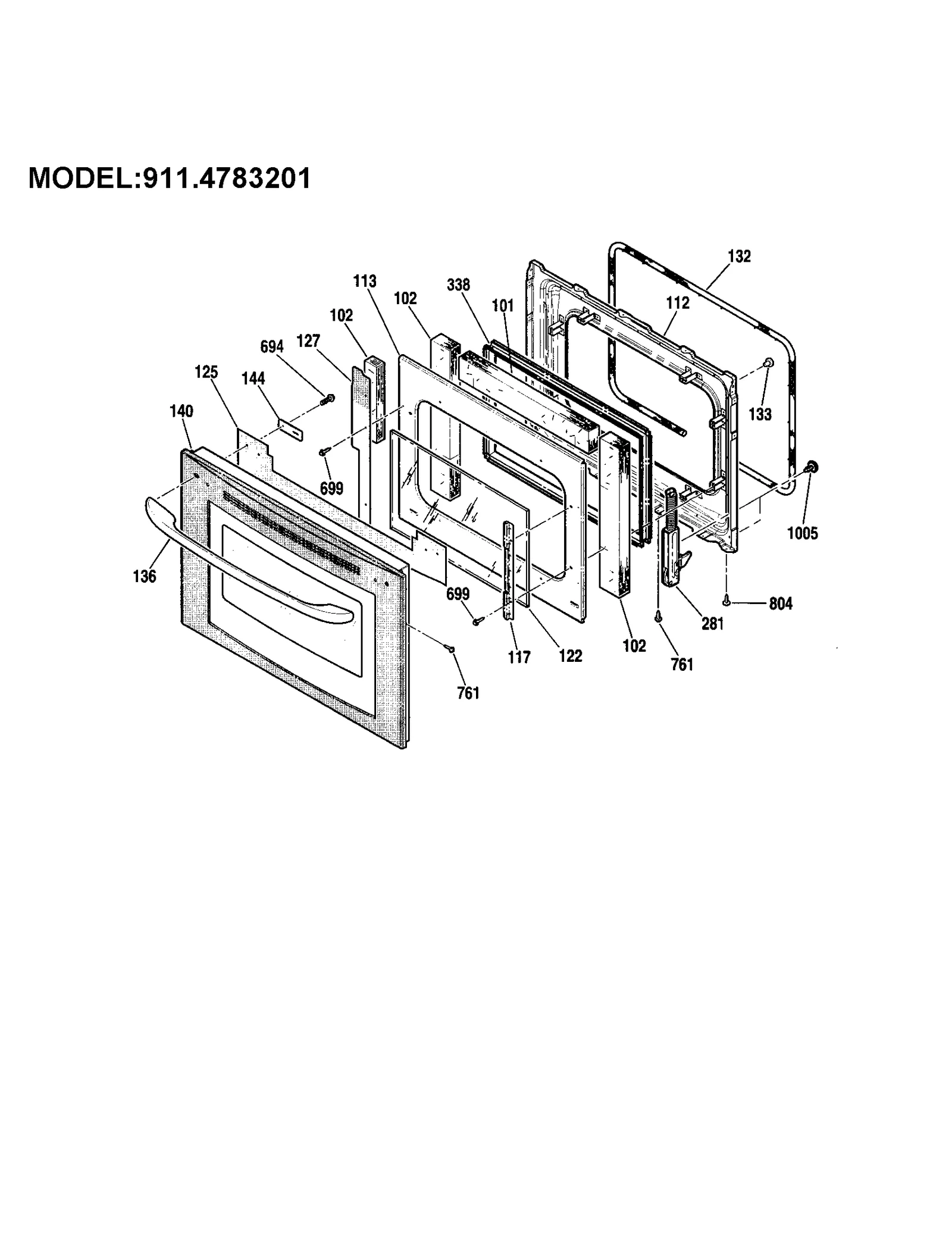

DOOR - 911.4783201

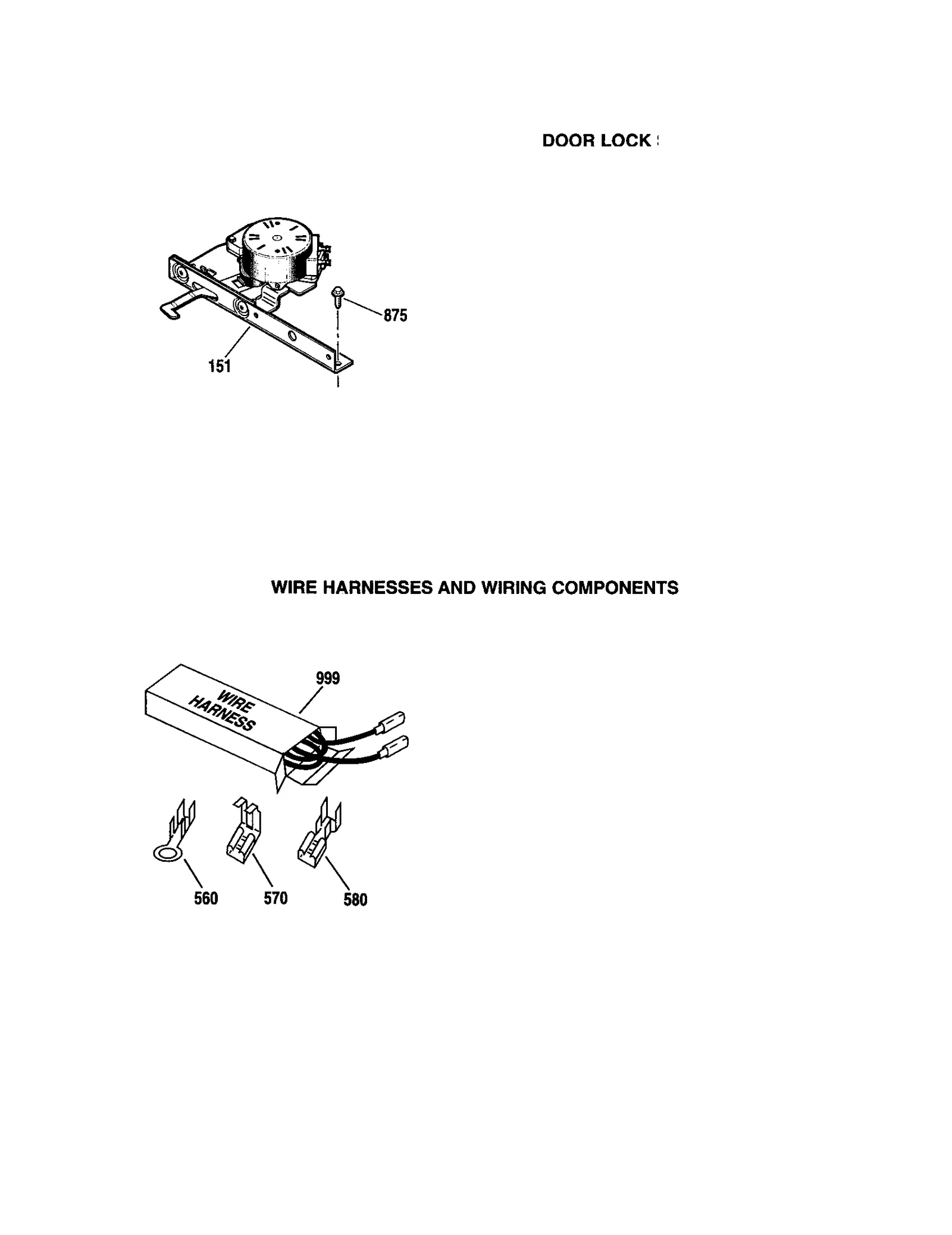

DOOR LOCK/WIRE HARNESS/COMPONENTS

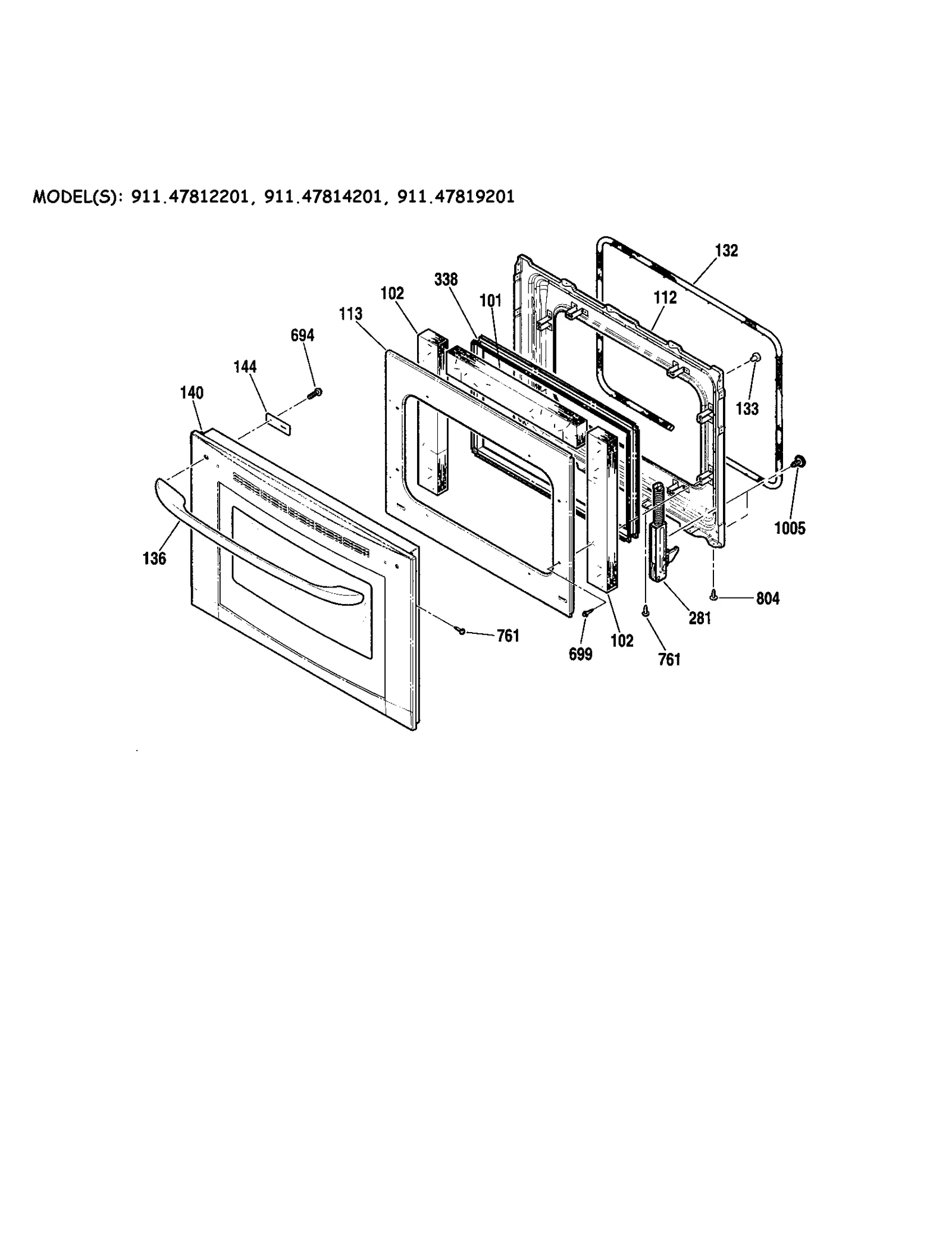

DOOR - 911.47812201/14201/19201

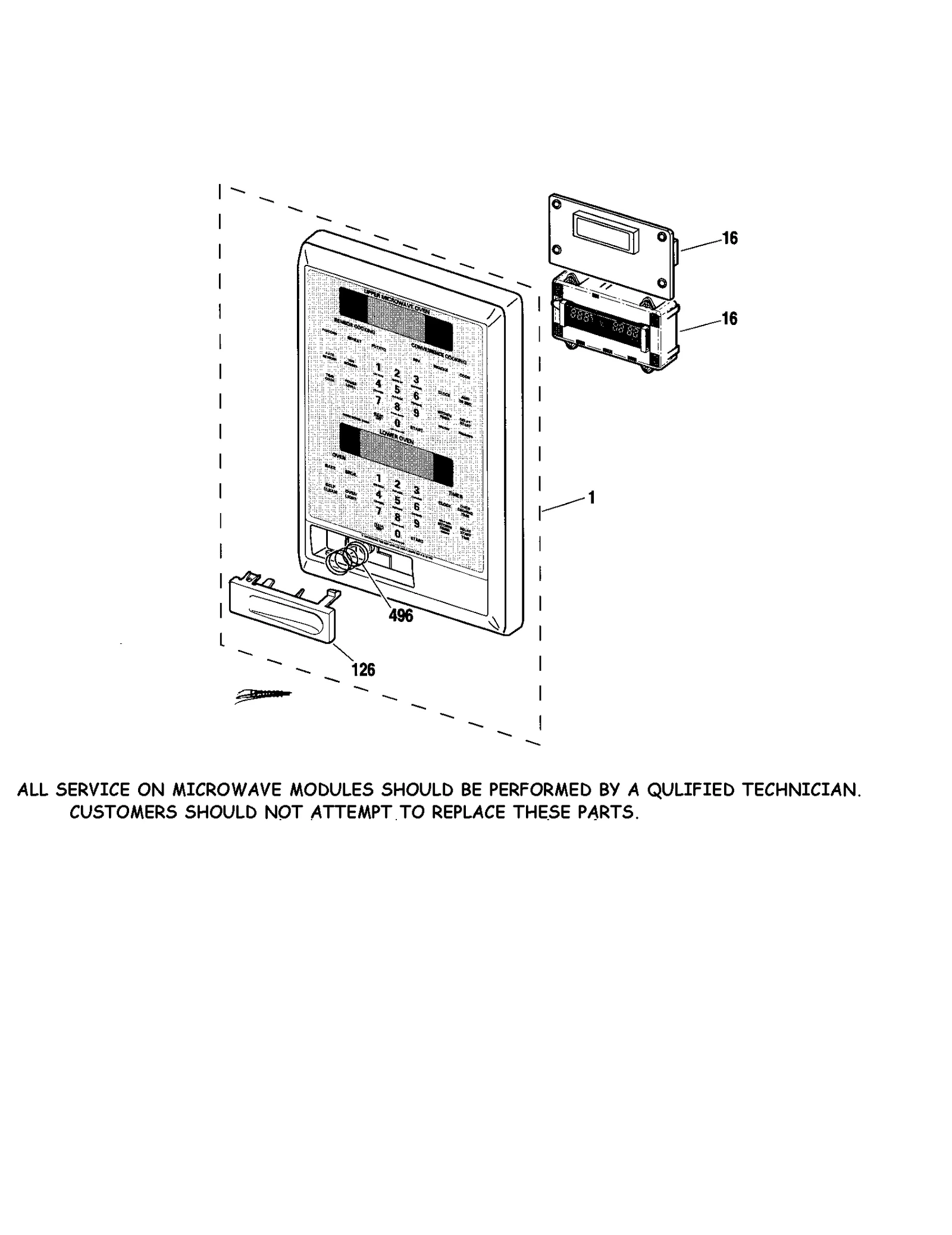

MICROWAVE CONTROL PANEL

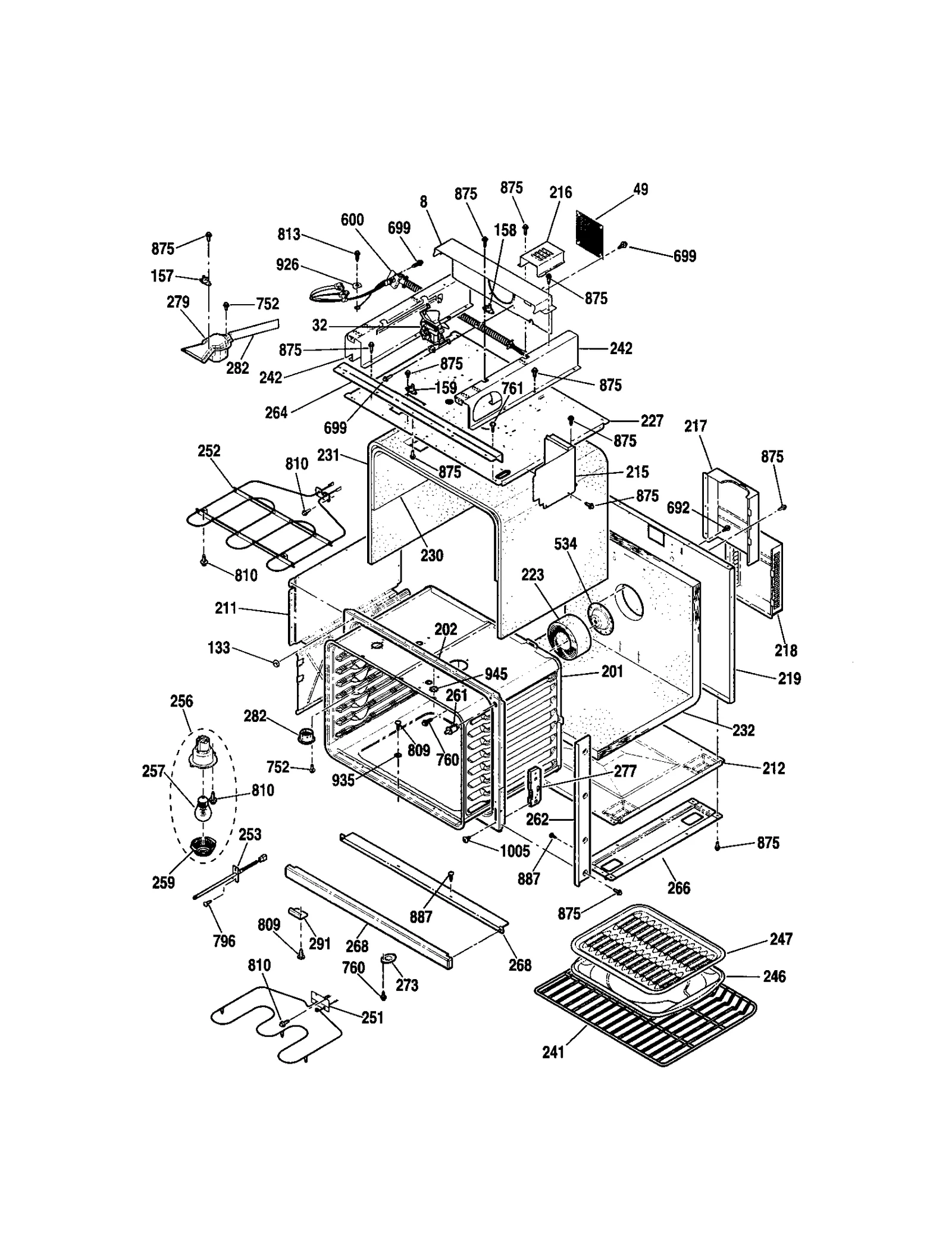

BODY

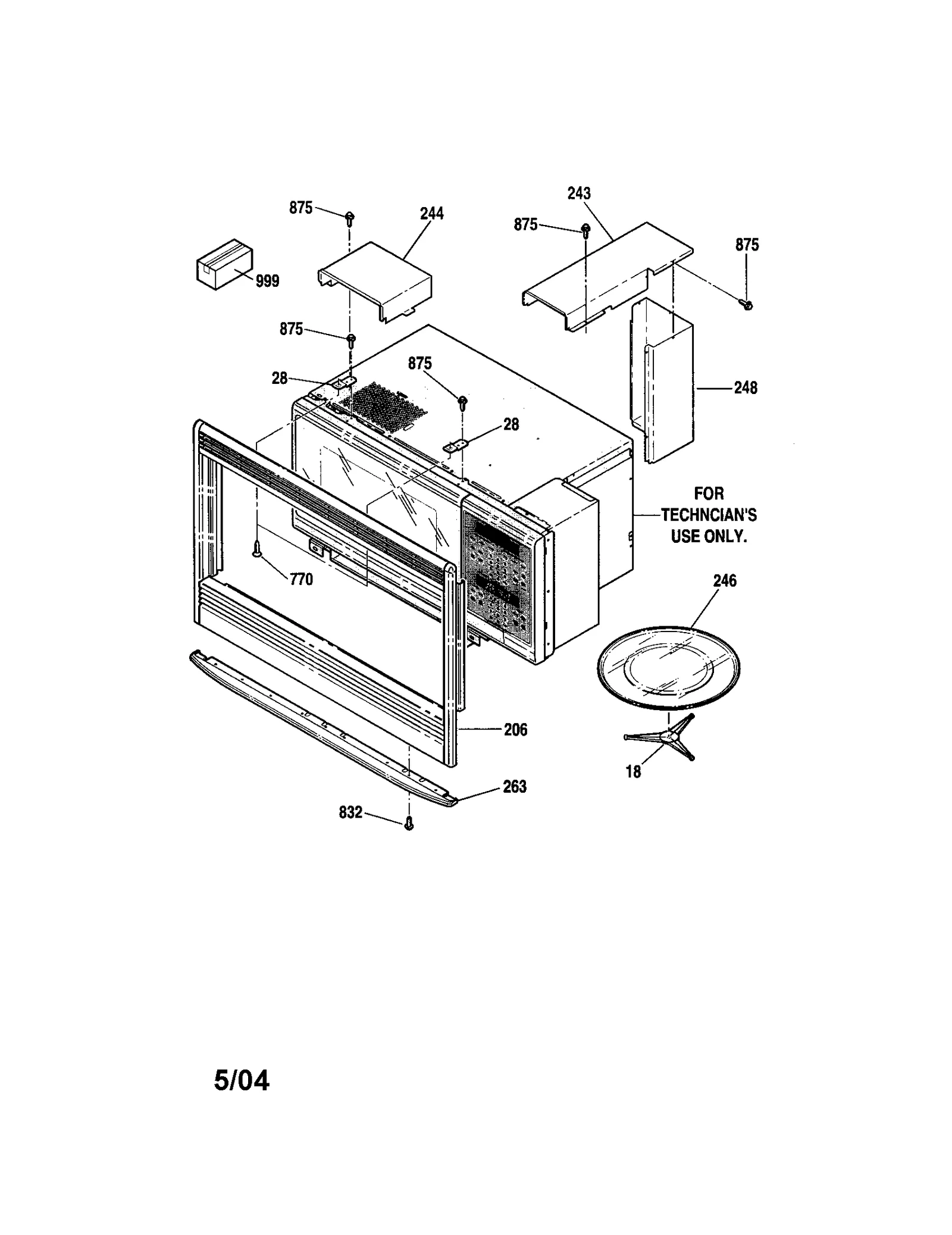

MICROWAVE ENCLOSURE
Common parts from model GE 911.47819201 30" Electric Oven with Microwave (Kenmore 91147819201)
1
Oven Control Assembly GEN WB36T10646 Contact Us For Availability
1A
Control Assembly GEN WB36T10647 Contact Us For Availability
1B
Microwave Control Panel Assembly GEN WB36T10648 Contact Us For Availability
8
Fan Support GEN WB02T10173 Contact Us For Availability
16
G.E. Range Oven Control Board GEN WB27T10497 Contact Us For Availability
16A
Wall Oven Microwave Electronic Control Board GEN WB27T10463 Contact Us For Availability
28
Bracket Support GEN WB02T10033 Contact Us For Availability
49
Fan Screen GEN WB34T10091 Contact Us For Availability
113
Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability
126
Push Button GEN WB03T10193 Contact Us For Availability
126A
Push Button GEN WB03T10194 Contact Us For Availability
126B
Push Button GEN WB03T10190 Contact Us For Availability
140B
Outer Door Assembly GEN WB56T10113 Contact Us For Availability
151
Range Oven Door Lock Assembly GEN WB14T10013 Contact Us For Availability
157
Limit Switch GEN WB24T10059 Contact Us For Availability
158
Limit Switch GEN WB24T10076 Contact Us For Availability
201
Oven Wrapper GEN WB63T10085 Contact Us For Availability
206
Trim Assembly (White) GEN WB07T10103 Contact Us For Availability
206A
Wall Oven Door Outer Panel GEN WB07T10104 Contact Us For Availability
206B
Trim Assembly GEN WB07T10306 Contact Us For Availability
206C
Trim Assembly (Stainless) GEN WB07T10305 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Retainer GEN WB02T10143 Contact Us For Availability
215
Cover Wire S GEN WB34T10009 Contact Us For Availability
216
Wire Cover GEN WB34K5234 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
230
Tub Insulation GEN WB35T10073 Contact Us For Availability
242
Rail Slide R GEN WB02T10225 Contact Us For Availability
242A
Slide Rail-l GEN WB02K5385 Contact Us For Availability
243
Air Duct Top GEN WB34T10010 Contact Us For Availability
244
Air Duct-lt GEN WB38K5056 Contact Us For Availability
246
Glass Tray GEN WB49X0690 Contact Us For Availability
248
Duct Air Bac GEN WB34T10013 Contact Us For Availability
257
Microwave Light Bulb GEN WB08X10012 Contact Us For Availability
261
Range Oven Door Switch GEN WB24T10065 Contact Us For Availability
262
Trim GEN WB07T10300 Contact Us For Availability
262A
Trim GEN WB07T10299 Contact Us For Availability
262B
Trim GEN WB07T10304 Contact Us For Availability
262C
Trim GEN WB07T10303 Contact Us For Availability
262D
Trim GEN WB07T10302 Contact Us For Availability
262E
Trim GEN WB07T10301 Contact Us For Availability
263
I-brow Trim GEN WB07K5433 Contact Us For Availability
263A
I-brow Trim GEN WB07K5435 Contact Us For Availability
263B
Trim I-brow GEN WB07K10173 Contact Us For Availability
264
Inner Trim Vent GEN WB07T10252 Contact Us For Availability
268
Bottom Trim, 30-in GEN WB07T10400 Contact Us For Availability
268A
Wall Oven Trim (Black) GEN WB07T10401 Contact Us For Availability
268B
Bottom Trim, 30-in GEN WB07T10399 Contact Us For Availability
268C
Wall Oven Bottom Trim GEN WB07T10426 Contact Us For Availability
268D
Duct Btm Air GEN WB02T10422 Contact Us For Availability
268E
Cabinet Trim, Lower GEN WB07T10429 Contact Us For Availability
277
Wall Oven Door Hinge Receiver GEN WB10T10025 Contact Us For Availability
281
Oven Door Hinge GEN WB10T10026 Contact Us For Availability
281
Oven Door Hinge, Right GEN WB10T10034 Contact Us For Availability
281A
Oven Door Hinge GEN WB10T10027 Contact Us For Availability
281A
Oven Door Hinge, Left GEN WB10T10035 Contact Us For Availability
291
Cover Enam W GEN WB02T10146 Contact Us For Availability
407
Lever Switch GEN WB10X10015 Contact Us For Availability
443
Microwave Cooling Fan Thermostat GEN WB24X10034 Contact Us For Availability
463A
Microwave Thermal Cut-Off GEN WB27X10166 Contact Us For Availability
463B
Range Safety Thermostat GEN WB24X10025 Contact Us For Availability
496
Microwave Door Release Button Spring GEN WB09X10009 Contact Us For Availability
511
Microwave Cooling Fan Motor GEN WB26X10026 Contact Us For Availability
600
Conduit Wire GEN WB18T10272 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
770B
Scr 8-18ab F GEN WB01T10035 Contact Us For Availability
770C
Screw, #8-18 GEN WB01T10068 Contact Us For Availability
887B
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
999
Wall Oven Wire Harness GEN WB18T10275 Contact Us For Availability
999
Installation Instructions GEN 31-10551 Contact Us For Availability
999A
MANUAL MINI & WD ASM GEN 31-14190 Contact Us For Availability
999B
Wall Oven Wire Harness GEN WB18T10309 Contact Us For Availability
999B
Owner's Manual GEN SR10501 Contact Us For Availability
999C
Parts List GEN 31-14197 Contact Us For Availability
× ![]()
