Model GE 911.47752200 Wall Oven (Kenmore 91147752200) – Common Parts & Diagrams

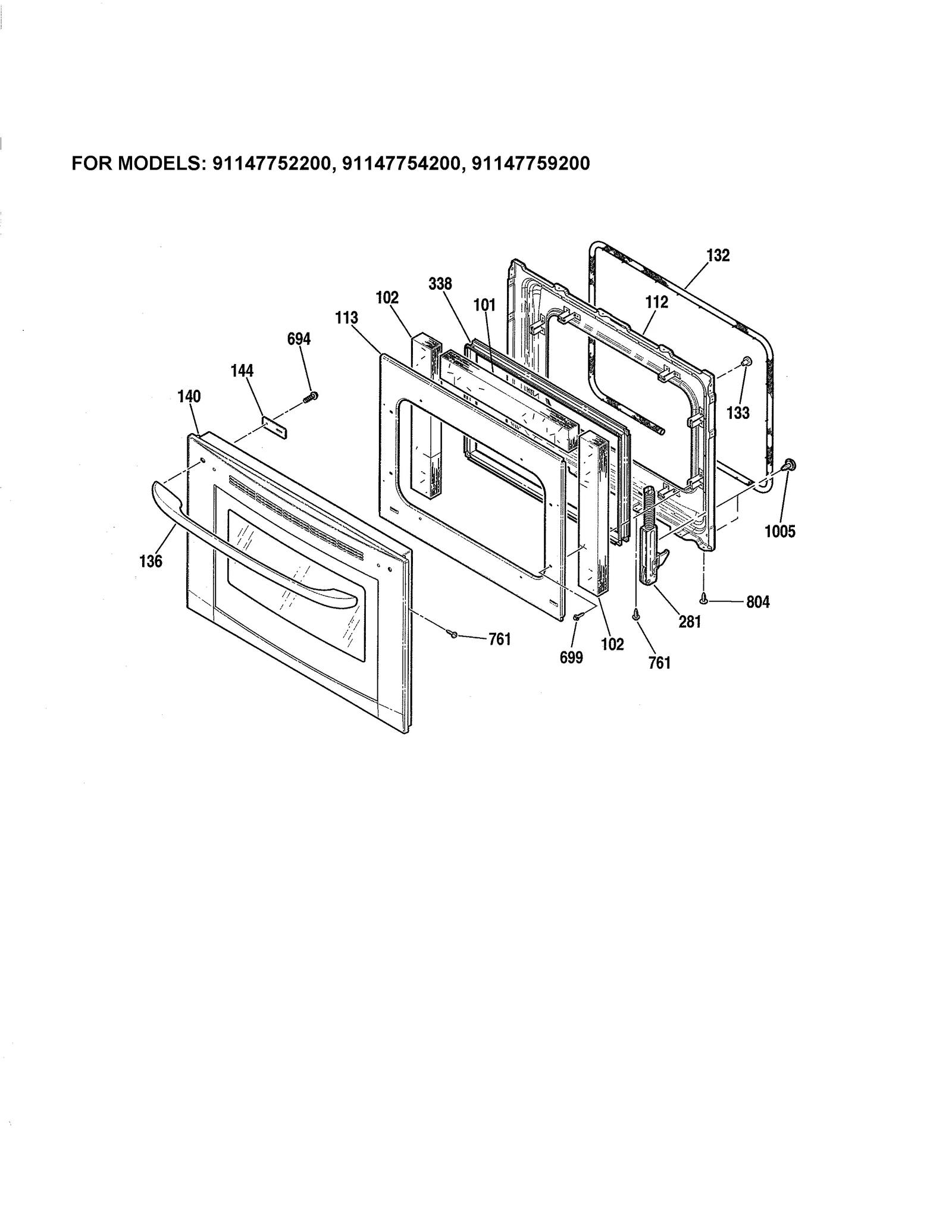

DOOR-91147752200, 91147754200, 91147759200
CONTROL SECTION
LOWER BODY SECTION
WIRE HARNESS/WIRING COMPONENTS
UPPER BODY SECTION
OVEN LATCH
DOOR - 91147753200
CENTER SPACER SECTION
Common parts from model GE 911.47752200 Wall Oven (Kenmore 91147752200)
8
Fan Support GEN WB02K5355 Contact Us For Availability
11
Side Ext-rt GEN WB37K5037 Contact Us For Availability
11A
Side Ext-lt GEN WB37K5038 Contact Us For Availability
32
Fan GEN WB26T10019 Contact Us For Availability
38
Filler Trim GEN WB07T10292 Contact Us For Availability
38A
Filler Trim GEN WB07T10294 Contact Us For Availability
38B
Filler Trim GEN WB07T10295 Contact Us For Availability
102A
Oven Insulation GEN WB35T10086 Contact Us For Availability
112
Oven Door Liner GEN WB55T10106 Contact Us For Availability
113
Retainer Insert GEN WB02T10145 Contact Us For Availability
125
Reflector He GEN WB34T10068 Contact Us For Availability
136
Handle GEN WB15T10072 Contact Us For Availability
140
Oven Outer Door GEN WB56T10115 Contact Us For Availability
144
Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability
151
Range Oven Door Lock Assembly GEN WB14T10013 Contact Us For Availability
160
Limit Bake Switch GEN WB24T10080 Contact Us For Availability
201
Oven Wrapper GEN WB63T10085 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Retainer GEN WB02T10143 Contact Us For Availability
215
Wall Oven Wire Harness Cover, Center GEN WB34T10060 Contact Us For Availability
217
Cover Wire U GEN WB34T10055 Contact Us For Availability
230
Tub Insulation GEN WB35T10073 Contact Us For Availability
257
Oven Bulb GEN WB06T10022 Contact Us For Availability
261
Range Oven Door Switch GEN WB24T10065 Contact Us For Availability
262
Trim GEN WB07T10284 Contact Us For Availability
262A
Trim GEN WB07T10285 Contact Us For Availability
262B
Trim GEN WB07T10276 Contact Us For Availability
262C
Trim GEN WB07T10277 Contact Us For Availability
262D
Trim GEN WB07T10280 Contact Us For Availability
262E
Trim GEN WB07T10281 Contact Us For Availability
264
Inner Trim Vent GEN WB07T10252 Contact Us For Availability
268
Cabinet Trim, Lower GEN WB07T10272 Contact Us For Availability
268
Bottom Trim, 30-in GEN WB07T10273 Contact Us For Availability
268A
Bottom Trim, 30-in GEN WB02T10151 Contact Us For Availability
268A
Oven Trim GEN WB02T10269 Contact Us For Availability
268B
Cabinet Trim, Lower GEN WB07T10270 Contact Us For Availability
277
Wall Oven Door Hinge Receiver GEN WB10T10025 Contact Us For Availability
281
Oven Door Hinge GEN WB10T10026 Contact Us For Availability
281A
Oven Door Hinge GEN WB10T10027 Contact Us For Availability
282
Vent Inlet D GEN WB28T10083 Contact Us For Availability
282
Duct Vent Inlet GEN WB28T10074 Contact Us For Availability
291
Cover Enam W GEN WB02T10146 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
887B
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
999
Wire Harness GEN WB18T10258 Contact Us For Availability
999A
Wire Harness GEN WB18T10259 Contact Us For Availability
999B
Wire Harness GEN WB18T10257 Contact Us For Availability
× ![]()
