GE 911.41485994 Electric Built-In Oven with Microwave (Kenmore 91141485994) Parts List

8

Fan Support GEN WB02T10020 Contact Us For Availability

View on Model

32

WB26K5061 GE Oven Upper Fan Assembly In Stock GEN WB26K5061 $139.79

View on Model

101

WB35K5097 GE Oven Door Insulation SD Backorder GEN WB35K5097 $8.07

View on Model

103

Window Spacer GEN WB02K5321 Contact Us For Availability

View on Model

106

Filler Trim Shield GEN WB07T10138 Contact Us For Availability

View on Model

112

Ov Dr Lining GEN WB55T10017 Contact Us For Availability

View on Model

113

Insulation Retainer GEN WB02K5322 Contact Us For Availability

View on Model

121

Oven Door Glass GEN WB57T10171 Contact Us For Availability

View on Model

121A

Oven Glass GEN WB57T10173 Contact Us For Availability

View on Model

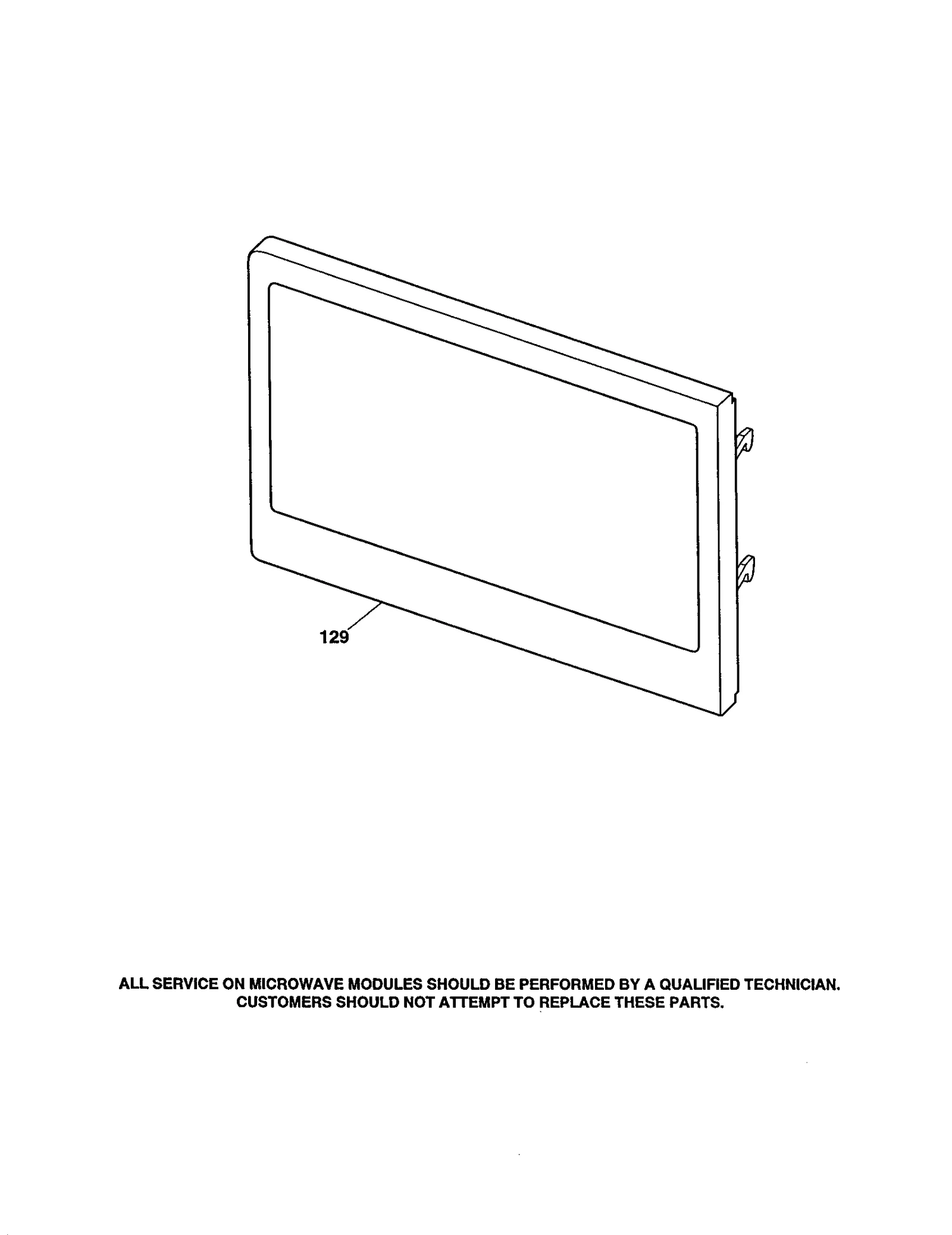

129

Complete Door GEN WB55T10033 Contact Us For Availability

View on Model

129A

Oven Door Assembly (Black) GEN WB55T10036 Contact Us For Availability

View on Model

132

WB04T10008 GE Oven Door Gasket Backorder GEN WB04T10008 $117.94

View on Model

133

WB01T10022 GE Oven Door Bumper Backorder GEN WB01T10022 $8.07

View on Model

133

WB02T10244 GE Oven Felt Pad Backorder GEN WB02T10244 $7.54

View on Model

133A

WB01T10026 GE Oven Door Pad Backorder GEN WB01T10026 $8.07

View on Model

133B

WB01T10052 GE Oven Foam Tape Backorder GEN WB01T10052 $8.07

View on Model

134

Door Vent Trim GEN WB07T10044 Contact Us For Availability

View on Model

134A

Door Vent Trim GEN WB07T10045 Contact Us For Availability

View on Model

136

Oven Door Handle GEN WB15K10006 Contact Us For Availability

View on Model

136A

Oven Door Handle GEN WB15K10005 Contact Us For Availability

View on Model

140

Oven Door Frame GEN WB55T10078 Contact Us For Availability

View on Model

140A

FRAME BLACK GEN WB55TT1008 Contact Us For Availability

View on Model

144

WB2K5395 GE Oven Reinforcement Plate Backorder GEN WB2K5395 $11.92

View on Model

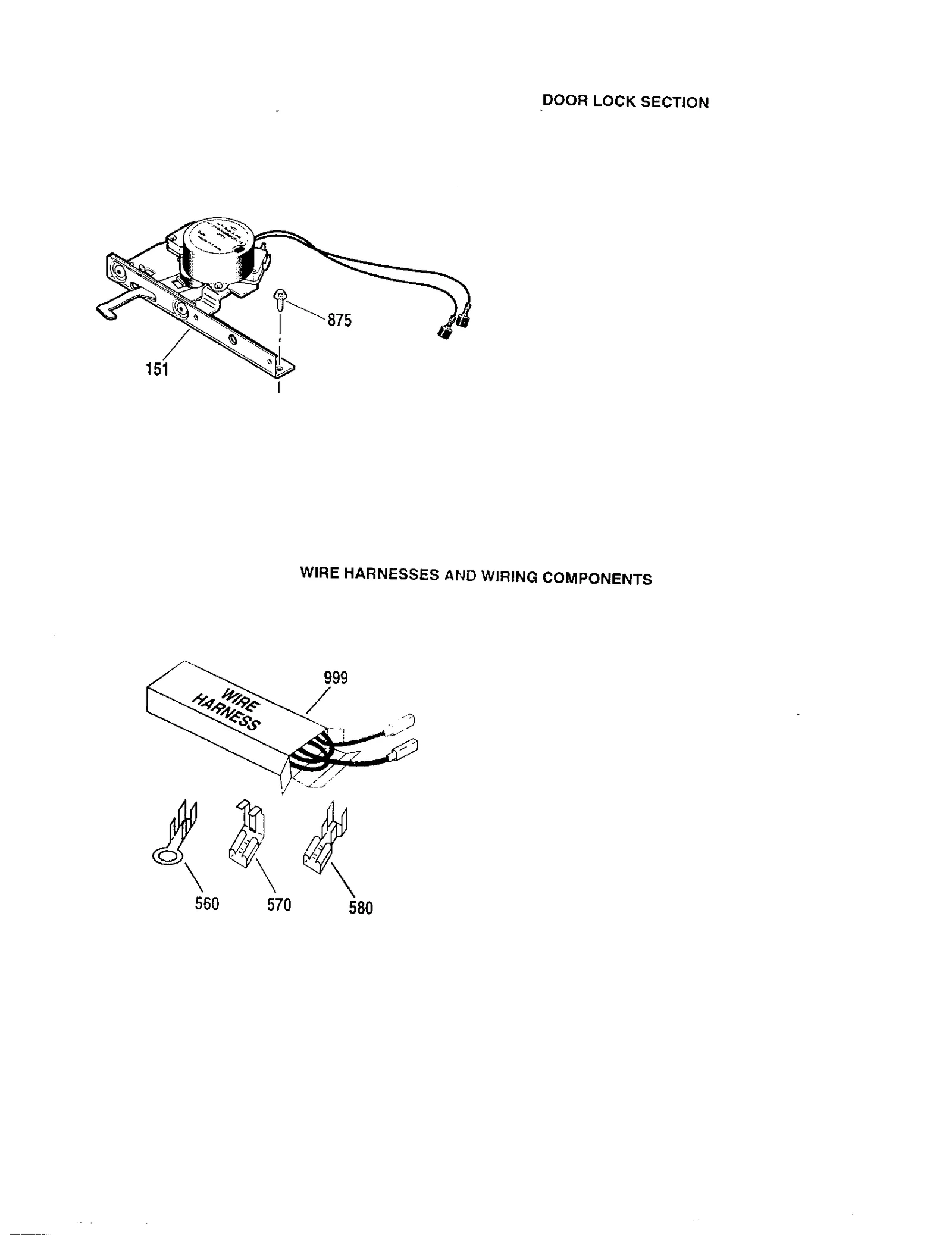

151

Wall Oven Door Lock Assembly GEN WB14T10008 Contact Us For Availability

View on Model

158

WB24T10060 GE Oven Safety Thermostat In Stock GEN WB24T10060 $12.50

View on Model

159

Limit Switch GEN WB24T10059 Contact Us For Availability

View on Model

201

Oven Wrapper GEN WB63T10068 Contact Us For Availability

View on Model

202

Frame GEN WB63T10064 Contact Us For Availability

View on Model

211

Sd Insul Ret GEN WB02K5306 Contact Us For Availability

View on Model

212

BTM. INSULATION RETAINER GEN WB02K10047 Contact Us For Availability

View on Model

215

Cover Wire S GEN WB34T10009 Contact Us For Availability

View on Model

216

Wire Cover GEN WB34K5234 Contact Us For Availability

View on Model

217

Wire Cover GEN WB34K5193 Contact Us For Availability

View on Model

218

Lower Wire Cover GEN WB34K5192 Contact Us For Availability

View on Model

219

BACK INSULATION RETAINER GEN WB56X10189 Contact Us For Availability

View on Model

220

Btm Trim Shd GEN WB34K5195 Contact Us For Availability

View on Model

227

Insulation Retainer GEN WB02T10109 Contact Us For Availability

View on Model

230

Insulation GEN WB35K5118 Contact Us For Availability

View on Model

231

Insulation GEN WB35K5119 Contact Us For Availability

View on Model

232

WB35T10090 GE Oven Back & Bottom Insulation Backorder GEN WB35T10090 $126.19

View on Model

241

WB48T10095 GE Oven Rack In Stock GEN WB48T10095 $70.96

View on Model

242

Slide Rail-r GEN WB02K5384 Contact Us For Availability

View on Model

242A

Slide Rail-l GEN WB02K5385 Contact Us For Availability

View on Model

246

Grid Broiler GEN WB48T10017 Contact Us For Availability

View on Model

247

WB48T10089 GE Oven Broiler Pan XL Backorder GEN WB48T10089 $52.04

View on Model

251

WB44T10018 GE Oven Bake Element In Stock GEN WB44T10018 $102.01

View on Model

252

WB44T10043 GE Oven Broil Unit Assembly In Stock GEN WB44T10043 $95.06

View on Model

253

WB23T10015 GE Oven Sensor Probe In Stock GEN WB23T10015 $24.16

View on Model

256

WB08T10002 GE Oven 40W 120V Cooktop Lamp Bulb In Stock GEN WB08T10002 $22.24

View on Model

257

Microwave Light Bulb GEN WB08X10012 Contact Us For Availability

View on Model

257

"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability

View on Model

259

WB25T10002 GE Oven Bulb Lens In Stock GEN WB25T10002 $9.05

View on Model

261

WB24T10147 GE Oven SPDT Light Switch In Stock GEN WB24T10147 $15.83

View on Model

262

Vert Sde Trm GEN WB07K5517 Contact Us For Availability

View on Model

262A

Vert Sde Trm GEN WB07K5518 Contact Us For Availability

View on Model

262B

Sde Trm-rt GEN WB07K5416 Contact Us For Availability

View on Model

262C

Sde Trm-lt GEN WB07K5417 Contact Us For Availability

View on Model

264

Inner Trim Vent GEN WB07T10179 Contact Us For Availability

View on Model

266

WB02K10048 GE Base Rail Backorder GEN WB02K10048 $21.24

View on Model

268

Body Trim GEN WB07T10038 Contact Us For Availability

View on Model

268A

Lower Trim GEN WB07T10037 Contact Us For Availability

View on Model

273

COVER GEN WB02K5365 Contact Us For Availability

View on Model

279

Box Vent GEN WB38T10014 Contact Us For Availability

View on Model

281

Range Oven Door Hinge Assembly, Right GEN WB14T10009 Contact Us For Availability

View on Model

281A

Hinge Asm-lt GEN WB14T10010 Contact Us For Availability

View on Model

282

Vent Tube GEN WB25K5010 Contact Us For Availability

View on Model

291

COVER GEN WB02X9152 Contact Us For Availability

View on Model

300

Spacer GEN WB02X9896 Contact Us For Availability

View on Model

338

Oven Door Glass GEN WB56K0020 Contact Us For Availability

View on Model

353

WB2X8320 GE Range Window Clip Backorder GEN WB2X8320 $8.07

View on Model

407

Lever Switch GEN WB10X10015 Contact Us For Availability

View on Model

443

Microwave Cooling Fan Thermostat GEN WB24X10034 Contact Us For Availability

View on Model

463

WB6X549 GE Oven Holder Sensor A02 Backorder GEN WB6X549 $8.10

View on Model

463A

Therm-magntr GEN WB21X0536 Contact Us For Availability

View on Model

463B

Range Safety Thermostat GEN WB24X10025 Contact Us For Availability

View on Model

466

Lower Hinge GEN WB10X10017 Contact Us For Availability

View on Model

466A

Hinge GEN WB14X0211 Contact Us For Availability

View on Model

480

WB27X1170 GE Oven Gas Sensor Backorder GEN WB27X1170 $135.94

View on Model

496

Microwave Door Release Button Spring GEN WB09X10009 Contact Us For Availability

View on Model

511

Microwave Cooling Fan Motor GEN WB26X10026 Contact Us For Availability

View on Model

522

Cushion GEN WB35X10001 Contact Us For Availability

View on Model

531

Cushion High-Voltage Transformer GEN WB35X10002 Contact Us For Availability

View on Model

534

Oven Support GEN WB26T10003 Contact Us For Availability

View on Model

556

WB24X830 GE Microwave Oven Door Switch In Stock GEN WB24X830 $32.45

View on Model

562

WB27X10928 GE Oven Line Fuse In Stock GEN WB27X10928 $11.86

View on Model

576

WB24X829 GE Oven Microwave Secondary Micro Sw In Stock GEN WB24X829 $30.93

View on Model

578

WB27X10073 GE Oven Capacitor Backorder GEN WB27X10073 $100.00

View on Model

579

WB27X10516 GE Oven Magnetron Assembly In Stock GEN WB27X10516 $369.88

View on Model

582

Microwave High-Voltage Transformer GEN WB27X10189 Contact Us For Availability

View on Model

597

WB27X1160 GE Microwave High Voltage Diode In Stock GEN WB27X1160 $98.90

View on Model

600

Wall Oven Wire Harness GEN WB18K5628 Contact Us For Availability

View on Model

692

SCREW 8-18X3/4" GEN WZ04K0416 Contact Us For Availability

View on Model

694

WB1K5157 GE Oven Black Screw Backorder GEN WB1K5157 $8.07

View on Model

699

WB1M1 GE Oven Screw Backorder GEN WB1M1 $7.75

View on Model

752

WB1K5200 GE Oven Screw 340531 Backorder GEN WB1K5200 $8.07

View on Model

760

WB1X536 GE Oven Screw Backorder GEN WB1X536 $9.85

View on Model

761

WB1K5029 GE Oven Screw Backorder GEN WB1K5029 $8.07

View on Model

761

Screw (White) GEN WB01K5185 Contact Us For Availability

View on Model

770

Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability

View on Model

770A

WB01T10012 GE Oven Screw Backorder GEN WB01T10012 $8.07

View on Model

796

WB1K5116 GE Oven Screw Backorder GEN WB1K5116 $8.07

View on Model

809

WB1X1137 GE Oven Screw Backorder GEN WB1X1137 $8.88

View on Model

810

WB1X1130 GE Oven Screw 10-32 Backorder GEN WB1X1130 $8.07

View on Model

813

WB1X1261 GE Oven Screw Backorder GEN WB1X1261 $8.07

View on Model

835

Screw-10-32 GEN WB01X1123 Contact Us For Availability

View on Model

856

WB1X1293 GE Oven Screw In Stock GEN WB1X1293 $8.07

View on Model

862

SCREW GEN WB01X1178 Contact Us For Availability

View on Model

875

WH2X930 GE Screw Backorder GEN WH2X930 $8.07

View on Model

887

WB1K5172 GE Oven Screw Backorder GEN WB1K5172 $16.46

View on Model

887

WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black Backorder GEN WB1K5173 $8.07

View on Model

926

GROUND WASHER GEN WB01X1260 Contact Us For Availability

View on Model

935

WB1K5174 GE Oven Washer Backorder GEN WB1K5174 $8.07

View on Model

945

WB1K5046 GE Oven Washer Backorder GEN WB1K5046 $7.17

View on Model

947

Cable Clip GEN WB01K5043 Contact Us For Availability

View on Model

999

WIRE HARNESS - M/W GEN WB18T10046 Contact Us For Availability

View on Model

1005

WB01T10008 GE Oven Screw 10-32 In Stock GEN WB01T10008 $8.88

View on Model

NI01

Console GEN WB36X10095 Contact Us For Availability

View on Model

NI02

Oven Control GEN WB27T10319 Contact Us For Availability

View on Model

NI03

Console (White) GEN WB36X10097 Contact Us For Availability

View on Model
