Model GE 911.41485993 Built-In Oven with Microwave (Kenmore 91141485993) – Common Parts & Diagrams

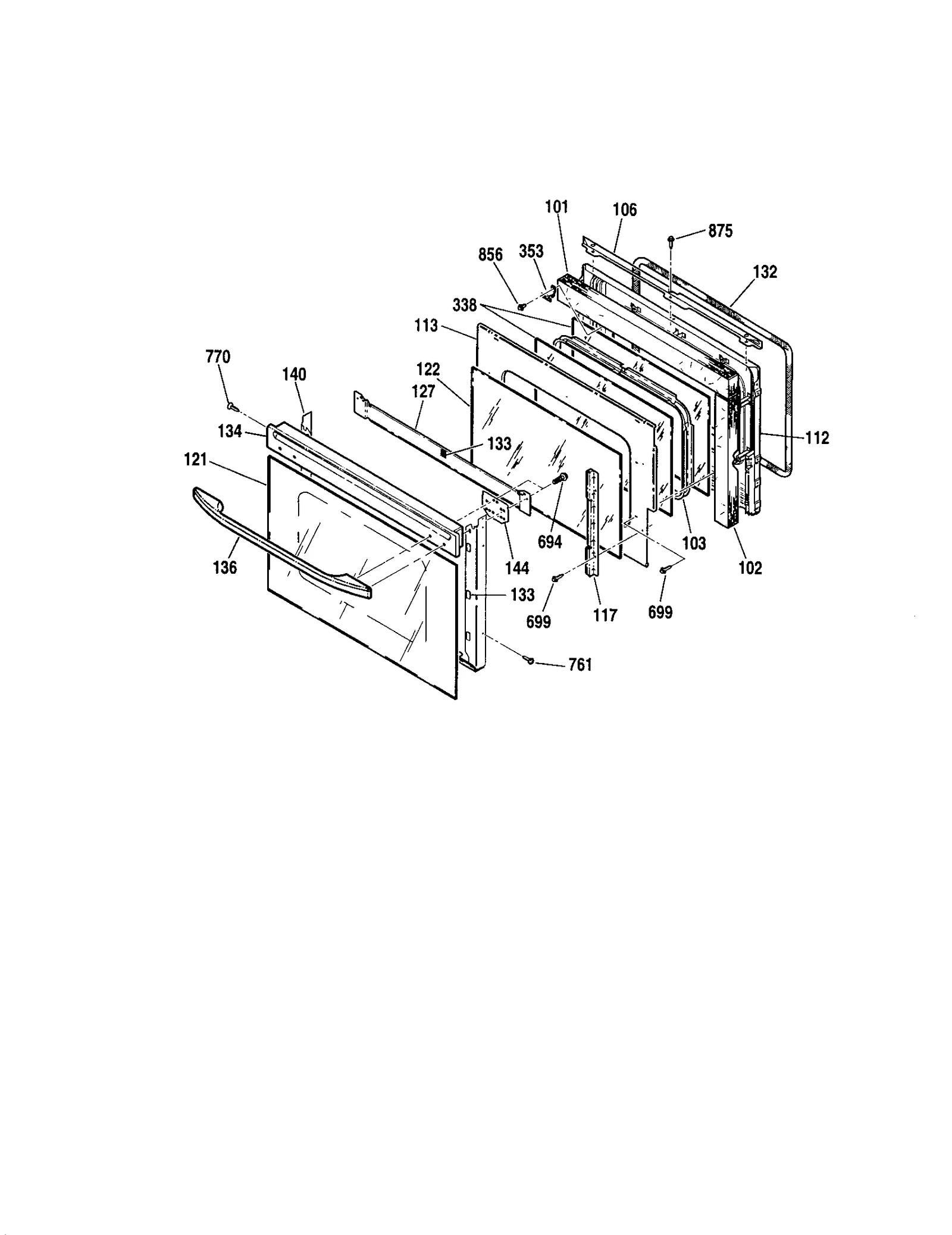

DOOR SECTION
MICROWAVE BODY SECTION
MICROWAVE ENCLOSURE SECTION
DOOR LOCK/WIRE HARNESS/COMPONENTS
MICROWAVE DOOR SECTION
MICROWAVE CONTROL PANEL SECTION
BODY SECTION
Common parts from model GE 911.41485993 Built-In Oven with Microwave (Kenmore 91141485993)
1
Console (White) GEN WB36X10097 Contact Us For Availability
1A
Console GEN WB36X10095 Contact Us For Availability
8
Fan Support GEN WB02T10020 Contact Us For Availability
16
Oven Control GEN WB27T10313 Contact Us For Availability
16A
Control Board GEN WB27T10112 Contact Us For Availability
18
Assy-guide R GEN WB06X10168 Contact Us For Availability
28
Bracket Support GEN WB02T10033 Contact Us For Availability
47
Air Deflector GEN WB39T10003 Contact Us For Availability
126
Button-black GEN WB03X0885 Contact Us For Availability
126A
Button-white GEN WB03X0887 Contact Us For Availability
129
Complete Door GEN WB55T10033 Contact Us For Availability
129A
Oven Door Assembly (Black) GEN WB55T10036 Contact Us For Availability
151
Wall Oven Door Lock Assembly GEN WB14T10008 Contact Us For Availability
158
Range Limit Switch GEN WB24T10033 Contact Us For Availability
159
Limit Switch GEN WB24T10045 Contact Us For Availability
201
Oven Body GEN WB63T10067 Contact Us For Availability
202
Frame GEN WB63T10064 Contact Us For Availability
206
Trim Assembly (White) GEN WB07T10103 Contact Us For Availability
206A
Wall Oven Door Outer Panel GEN WB07T10104 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Insulation Retainer GEN WB02K5305 Contact Us For Availability
215
Cover Wire S GEN WB34T10009 Contact Us For Availability
216
Wire Cover GEN WB34K5234 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
BACK INSULATION RETAINER GEN WB56X10189 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
227
Retainer Insert GEN WB02T10082 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
242
Slide Rail-r GEN WB02K5384 Contact Us For Availability
242A
Slide Rail-l GEN WB02K5385 Contact Us For Availability
243
Air Duct Top GEN WB34T10010 Contact Us For Availability
244
Air Duct-lt GEN WB38K5056 Contact Us For Availability
246
Glass Tray GEN WB49X0690 Contact Us For Availability
246
Grid Broiler GEN WB48T10017 Contact Us For Availability
248
Duct Air Bac GEN WB34T10013 Contact Us For Availability
252
Broil Element GEN WB44K1007 Contact Us For Availability
257
Microwave Light Bulb GEN WB08X10012 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
262
Vert Sde Trm GEN WB07K5517 Contact Us For Availability
262A
Vert Sde Trm GEN WB07K5518 Contact Us For Availability
262B
Sde Trm-rt GEN WB07K5416 Contact Us For Availability
262C
Sde Trm-lt GEN WB07K5417 Contact Us For Availability
263
I-brow Trim GEN WB07K5433 Contact Us For Availability
263
I-brow Trim GEN WB07K5435 Contact Us For Availability
264
Vent Trim GEN WB07T10177 Contact Us For Availability
266A
Slide Bracket GEN WB63X10016 Contact Us For Availability
268
Body Trim GEN WB07T10038 Contact Us For Availability
268A
Lower Trim GEN WB07T10037 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
278
Heat Shield GEN WB34T10024 Contact Us For Availability
279
Condenser Kit GEN WB50T10039 Contact Us For Availability
281
Wall Oven Door Hinge, Right GEN WB14T10005 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
300
Spacer GEN WB02X9896 Contact Us For Availability
407
Lever Switch GEN WB10X10015 Contact Us For Availability
407A
Latch Hook GEN WB10X10016 Contact Us For Availability
413
Oven Base Plate GEN WB63X10011 Contact Us For Availability
413A
Base Bracket GEN WB63X10015 Contact Us For Availability
427
Microwave Turntable Motor GEN WB26X0194 Contact Us For Availability
439
Fuse Holder GEN WB06X10050 Contact Us For Availability
443
Microwave Cooling Fan Thermostat GEN WB24X10034 Contact Us For Availability
446
DUCT RIGHT - B GEN WB34T10017 Contact Us For Availability
461
Cavity GEN WB63X10012 Contact Us For Availability
463A
Therm-magntr GEN WB21X0536 Contact Us For Availability
463B
Range Safety Thermostat GEN WB24X10025 Contact Us For Availability
466
Lower Hinge GEN WB10X10017 Contact Us For Availability
466A
Hinge GEN WB14X0211 Contact Us For Availability
496
Microwave Door Release Button Spring GEN WB09X10009 Contact Us For Availability
511
Microwave Cooling Fan Motor GEN WB26X10026 Contact Us For Availability
522
Cushion GEN WB35X10001 Contact Us For Availability
531
Cushion High-Voltage Transformer GEN WB35X10002 Contact Us For Availability
534
Oven Support GEN WB26T10003 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
582
Microwave High-Voltage Transformer GEN WB27X10189 Contact Us For Availability
600
Wall Oven Wire Harness GEN WB18K5628 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
835
Screw-10-32 GEN WB01X1123 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
947
Cable Clip GEN WB01K5043 Contact Us For Availability
999
Installation Instructions GEN 31-10308 Contact Us For Availability
999
Wire Harness GEN WB18T10109 Contact Us For Availability
999A
Wall Oven Owner's Manual GEN 31-13682 Contact Us For Availability
999A
Main Wire Harness GEN WB18T10148 Contact Us For Availability
999B
MANUAL MINI & WD ASM GEN 31-13666 Contact Us For Availability
999B
Wire Harness GEN WB18T10056 Contact Us For Availability
999C
WIRE HARNESS - M/W GEN WB18T10046 Contact Us For Availability
999C
Oven Owner's Manual GEN SR10426 Contact Us For Availability
999D
Parts List GEN 31-13791 Contact Us For Availability
× ![]()
