Model GE 911.41089993 Electric Built-In Oven (Kenmore 91141089993) – Common Parts & Diagrams

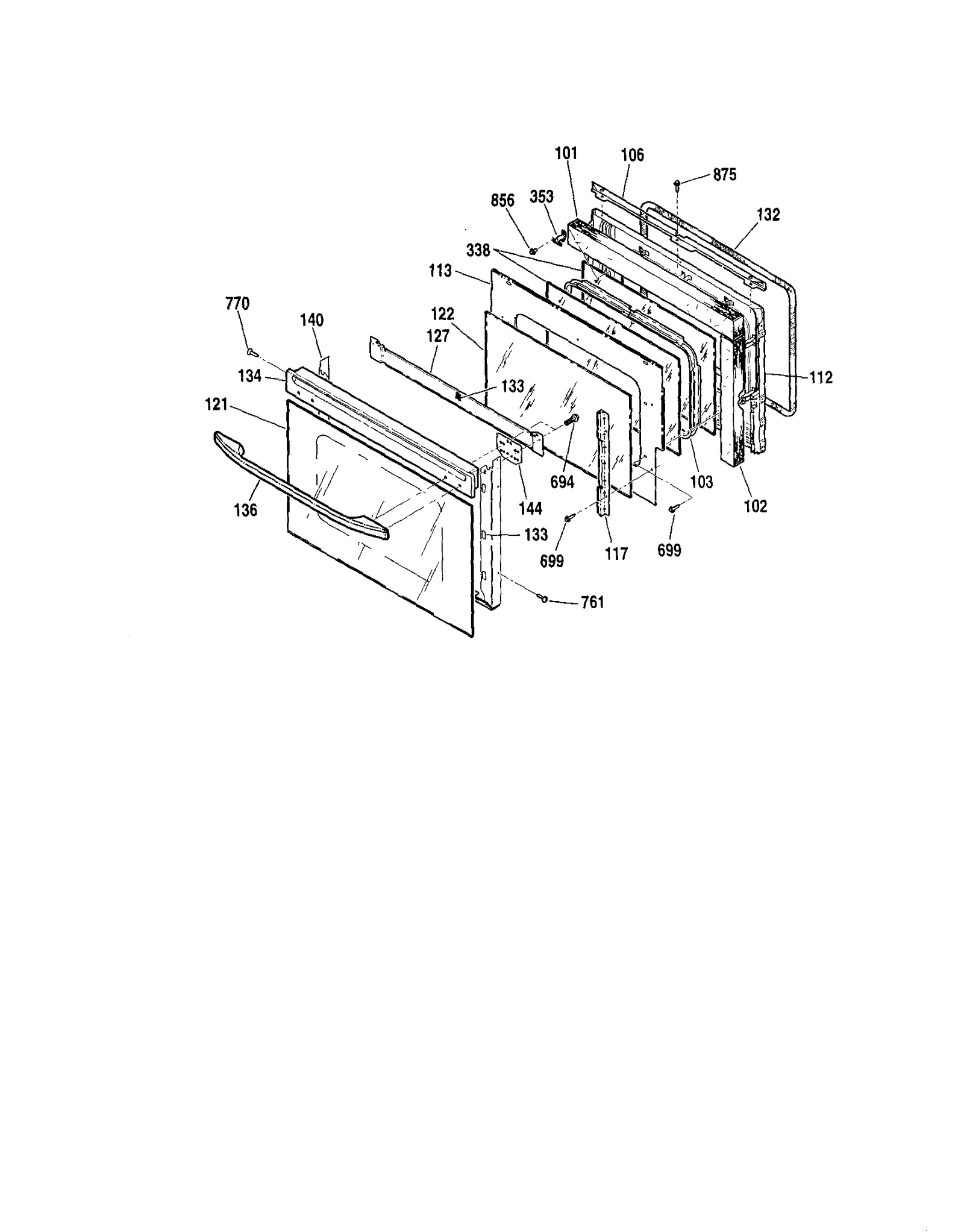

DOOR
CONTROL
BODY
WIRE HARNESSES/WIRING COMPONENTS
DOOR LOCK
Common parts from model GE 911.41089993 Electric Built-In Oven (Kenmore 91141089993)
1
Range Touch Control Panel (White) GEN WB36T10163 Contact Us For Availability
1A
Wall Oven Control Panel GEN WB36T10162 Contact Us For Availability
1B
Range Control Panel Assembly (Almond) GEN WB36T10164 Contact Us For Availability
1C
Control Panel GEN WB36T10354 Contact Us For Availability
16
Wall Oven Control Board GEN WB27T10305 Contact Us For Availability
16A
Oven Control GEN WB27T10306 Contact Us For Availability
47
Air Deflector GEN WB39T10002 Contact Us For Availability
121A
Wall Oven Door Outer Panel (Black) GEN WB57T10091 Contact Us For Availability
151
Wall Oven Door Lock Assembly GEN WB14T10008 Contact Us For Availability
158
Range Limit Switch GEN WB24T10033 Contact Us For Availability
159
Limit Switch GEN WB24T10045 Contact Us For Availability
201
Oven Body GEN WB63T10067 Contact Us For Availability
202
Frame GEN WB63T10064 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Insulation Retainer GEN WB02K5305 Contact Us For Availability
216
Wire Cover GEN WB34K5216 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
BACK INSULATION RETAINER GEN WB56K10189 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
227
Retainer Insert GEN WB02T10082 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
246
Grid Broiler GEN WB48T10017 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
262
Trim Vert Si GEN WB07T10040 Contact Us For Availability
262A
Trim Vert Si GEN WB07T10041 Contact Us For Availability
262B
Trim Vert Si GEN WB07T10042 Contact Us For Availability
262C
Trim Vert Si GEN WB07T10043 Contact Us For Availability
262D
Trim Vert Si GEN WB07T10046 Contact Us For Availability
262E
Trim Vert Si GEN WB07T10047 Contact Us For Availability
262F
Trim GEN WB07T10124 Contact Us For Availability
262G
Trim GEN WB07T10125 Contact Us For Availability
264
Vent Trim GEN WB07T10177 Contact Us For Availability
268
Body Trim GEN WB07T10038 Contact Us For Availability
268A
Lower Trim GEN WB07T10037 Contact Us For Availability
268B
Trim Btm (ad GEN WB07T10039 Contact Us For Availability
268C
Trim Btm (bs GEN WB07T10123 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
278
Heat Shield GEN WB34T10024 Contact Us For Availability
279
Condenser Kit GEN WB50T10039 Contact Us For Availability
281
Wall Oven Door Hinge, Right GEN WB14T10005 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
416
Fan Hous Cvr GEN WB34K5217 Contact Us For Availability
513
Fan Housing GEN WB26K5063 Contact Us For Availability
534
Oven Support GEN WB26T10003 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
600
Condenser Wire GEN WB18K5473 Contact Us For Availability
602
Screw-12-pk GEN WH02X0941 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
761B
Trim Screw GEN WB01K5211 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
770B
Screw-ad GEN WB01T10007 Contact Us For Availability
770C
Scr 8-18ab F GEN WB01T10035 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
887B
Trim Screw GEN WB01K5178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
999
Installation GEN SR10259 Contact Us For Availability
999A
MANUAL MINI & WD ASM GEN 31-13648 Contact Us For Availability
999A
Wire Harness GEN WB18T10109 Contact Us For Availability
999B
Wall Oven Owner's Manual GEN SR10403 Contact Us For Availability
999B
Oven Wire Harness GEN WB18T10112 Contact Us For Availability
999C
Parts List GEN 31-13851 Contact Us For Availability
× ![]()
