Model GE 911.41084994 Electric Built-In Oven (Kenmore 91141084994) – Common Parts & Diagrams
CONTROL

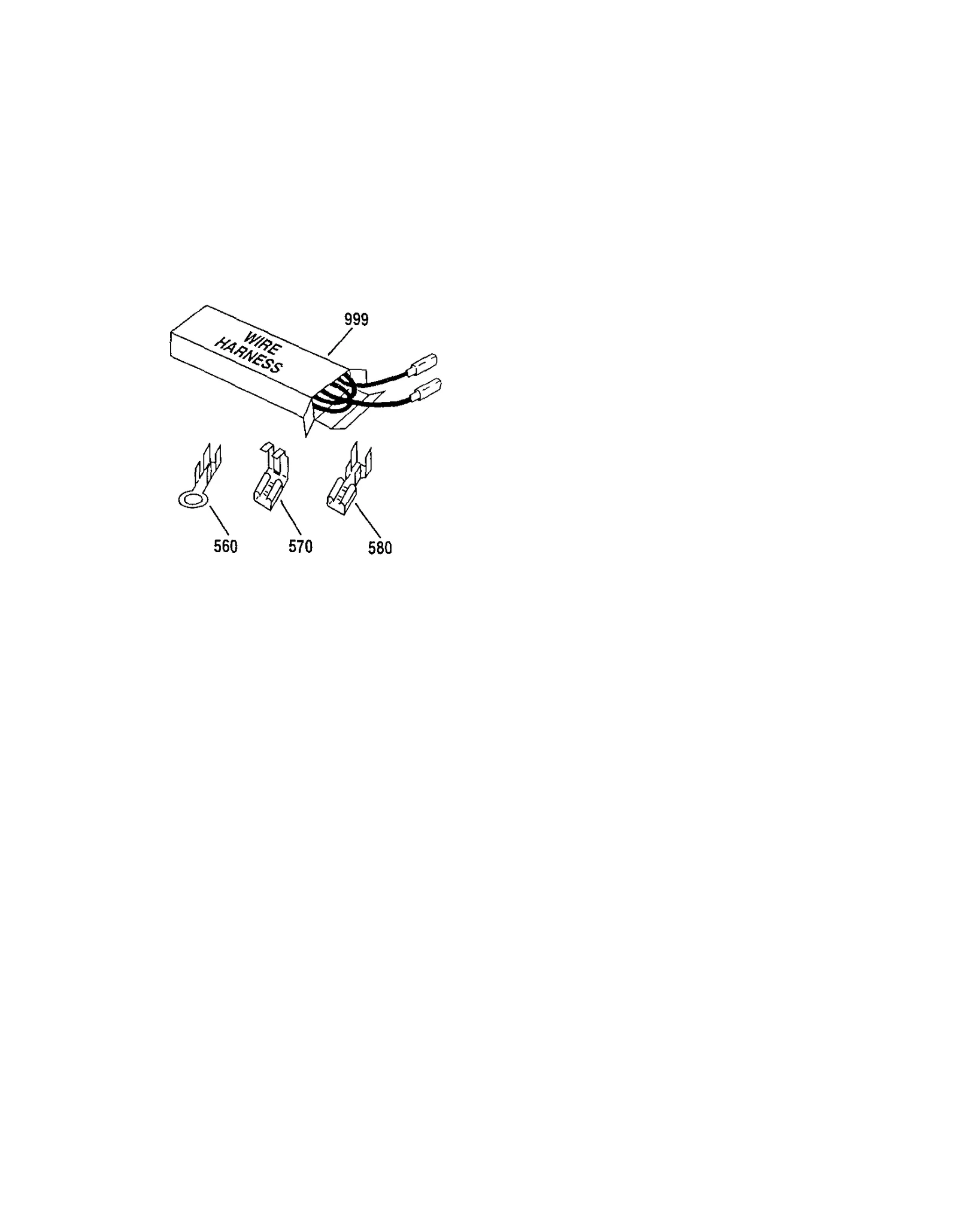

WIRE HARNESS AND WIRING COMPONENTS

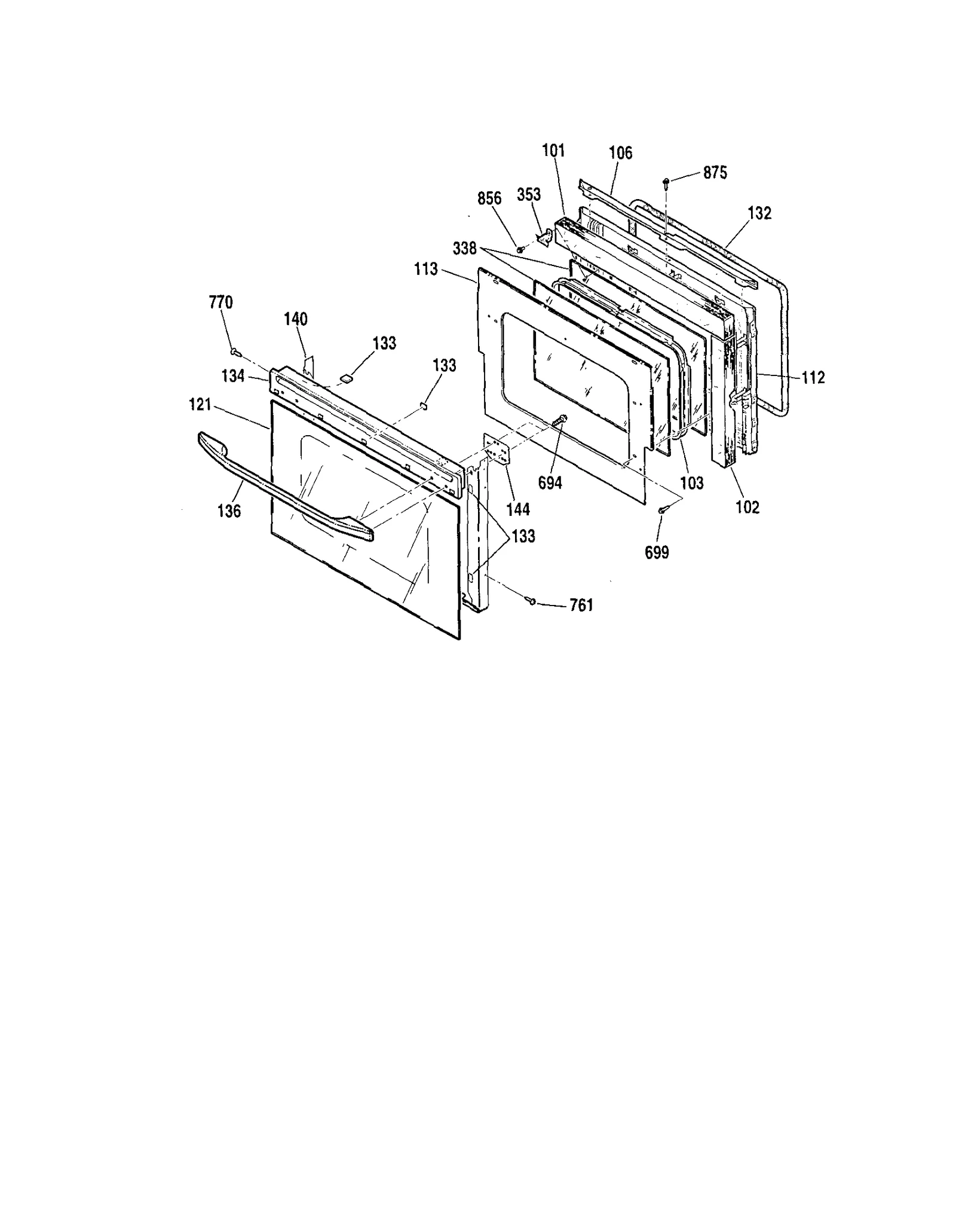

DOOR

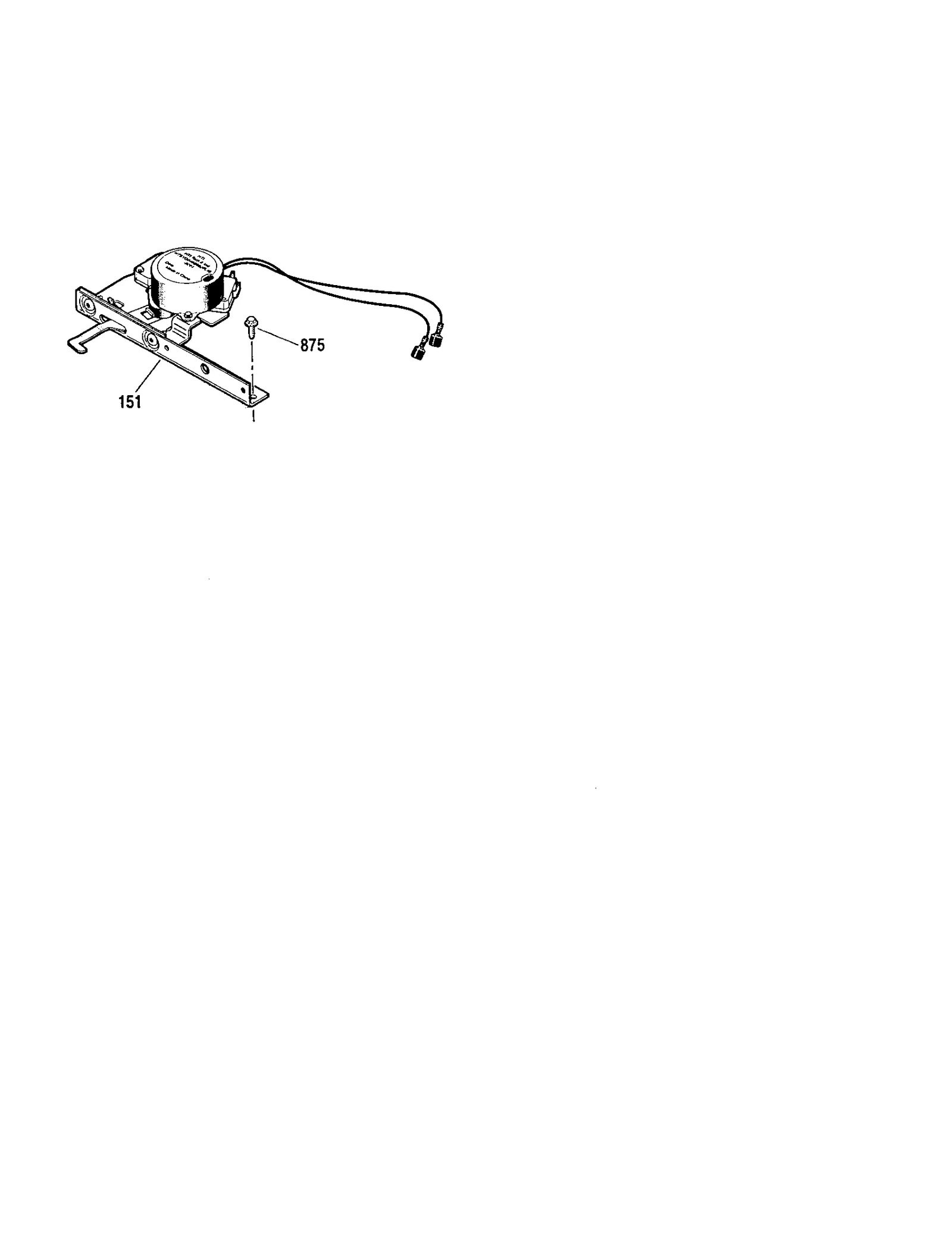

DOOR LOCK

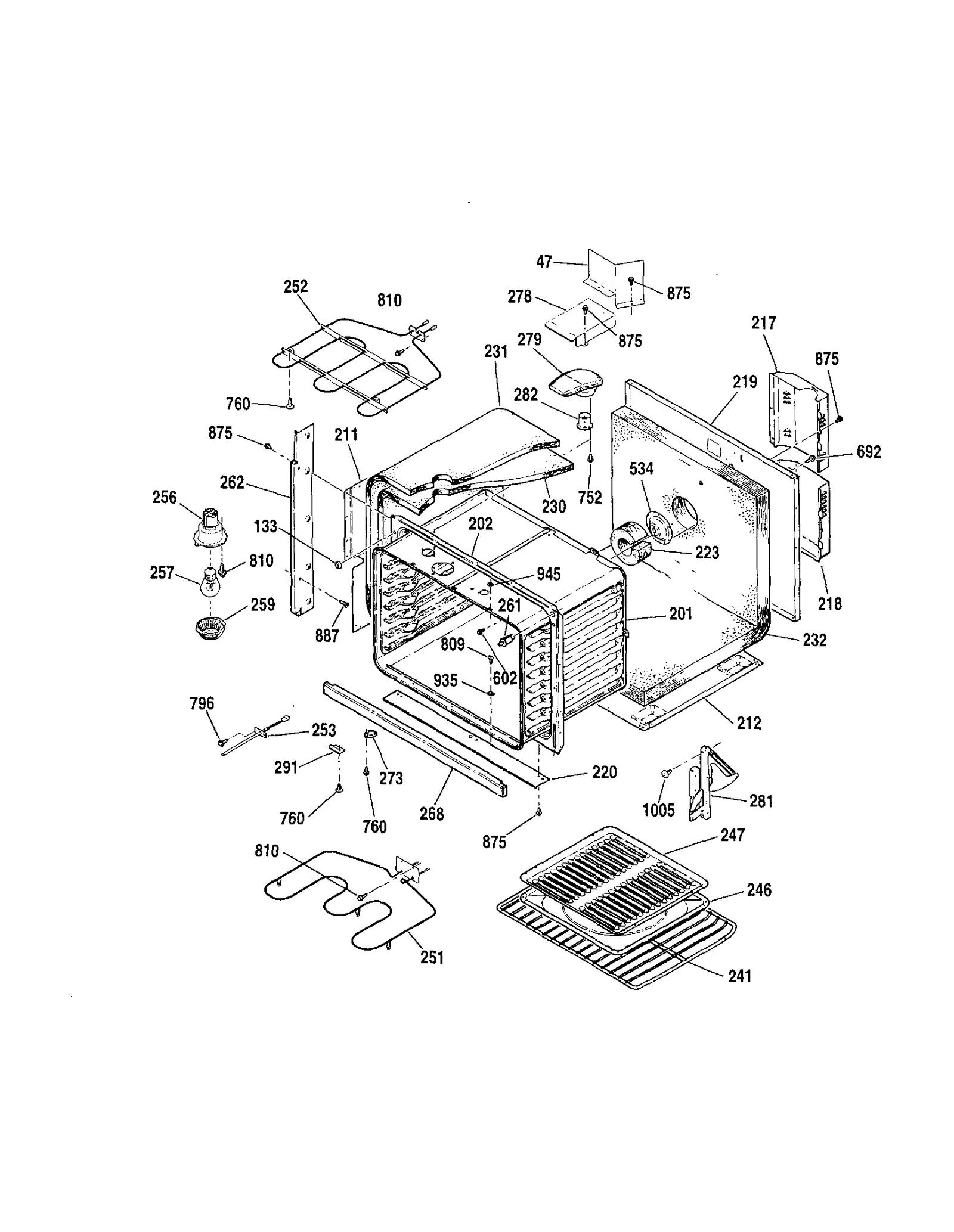

BODY
Common parts from model GE 911.41084994 Electric Built-In Oven (Kenmore 91141084994)
1
Range Touch Control Panel (White) GEN WB36T10163 Contact Us For Availability
1A
Wall Oven Control Panel GEN WB36T10162 Contact Us For Availability
16
Wall Oven Control Board GEN WB27T10305 Contact Us For Availability
47
Air Deflector GEN WB39T10002 Contact Us For Availability
103
Window Spacer GEN WB02K5321 Contact Us For Availability
106
Door Trim Shield GEN WB07K10138 Contact Us For Availability
112
Ov Dr Lining GEN WB55T10017 Contact Us For Availability
113
Insulation Retainer GEN WB02K5322 Contact Us For Availability
121
Wall Oven Door Outer Panel (White) GEN WB57T10090 Contact Us For Availability
121A
Wall Oven Door Outer Panel (Black) GEN WB57T10091 Contact Us For Availability
121B
Oven Door Glass GEN WB57T10094 Contact Us For Availability
121C
Oven Door Glass GEN WB57T10174 Contact Us For Availability
134
Door Vent Trim GEN WB07T10044 Contact Us For Availability
134A
Door Vent Trim GEN WB07T10045 Contact Us For Availability
134B
Door Vent Trim GEN WB07T10048 Contact Us For Availability
134C
Door Vent Trim GEN WB07T10126 Contact Us For Availability
136
Oven Door Handle GEN WB15K10006 Contact Us For Availability
136A
Oven Door Handle GEN WB15K10005 Contact Us For Availability
136B
Door Handle GEN WB15K10007 Contact Us For Availability
136C
Handle GEN WB15T10043 Contact Us For Availability
140
Oven Door Frame GEN WB55T10078 Contact Us For Availability
140A
Oven Door Frame GEN WB55T10080 Contact Us For Availability
140B
Oven Drive Frame GEN WB55T10079 Contact Us For Availability
140C
Oven Door Frame GEN WB55T10081 Contact Us For Availability
151
Wall Oven Door Lock Assembly GEN WB14T10008 Contact Us For Availability
159
Limit Switch GEN WB24T10059 Contact Us For Availability
201
Oven Wrapper GEN WB63T10068 Contact Us For Availability
202
Frame GEN WB63T10064 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
BTM. INSULATION RETAINER GEN WB02K10047 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
BACK INSULATION RETAINER GEN WB56K10189 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
246
Grid Broiler GEN WB48T10017 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
262
Trim Vert Si GEN WB07T10040 Contact Us For Availability
262A
Trim Vert Si GEN WB07T10041 Contact Us For Availability
262B
Trim Vert Si GEN WB07T10042 Contact Us For Availability
262C
Trim Vert Si GEN WB07T10043 Contact Us For Availability
262D
Trim Vert Si GEN WB07T10046 Contact Us For Availability
262E
Trim Vert Si GEN WB07T10047 Contact Us For Availability
262F
Trim GEN WB07T10124 Contact Us For Availability
262G
Trim GEN WB07T10125 Contact Us For Availability
268
Body Trim GEN WB07T10038 Contact Us For Availability
268A
Lower Trim GEN WB07T10037 Contact Us For Availability
268B
Trim Btm (ad GEN WB07T10039 Contact Us For Availability
268C
Trim Btm (bs GEN WB07T10123 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
278
Heat Shield GEN WB34T10024 Contact Us For Availability
279
Box Vent GEN WB38T10014 Contact Us For Availability
281
Range Oven Door Hinge Assembly, Right GEN WB14T10009 Contact Us For Availability
281A
Hinge Asm-lt GEN WB14T10010 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
534
Oven Support GEN WB26T10003 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
602
Screw-12-pk GEN WH02X0941 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
761B
Trim Screw GEN WB01K5211 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
770B
Screw-ad GEN WB01T10007 Contact Us For Availability
770C
Scr 8-18ab F GEN WB01T10035 Contact Us For Availability
887B
Trim Screw GEN WB01K5178 Contact Us For Availability
887C
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
999A
Wire Harness GEN WB18T10109 Contact Us For Availability
999B
Main Wire Harness GEN WB18T10209 Contact Us For Availability
× ![]()
