Model Maytag 8TMGD6630HW0 LAUNDRY, RESIDENTIAL, GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

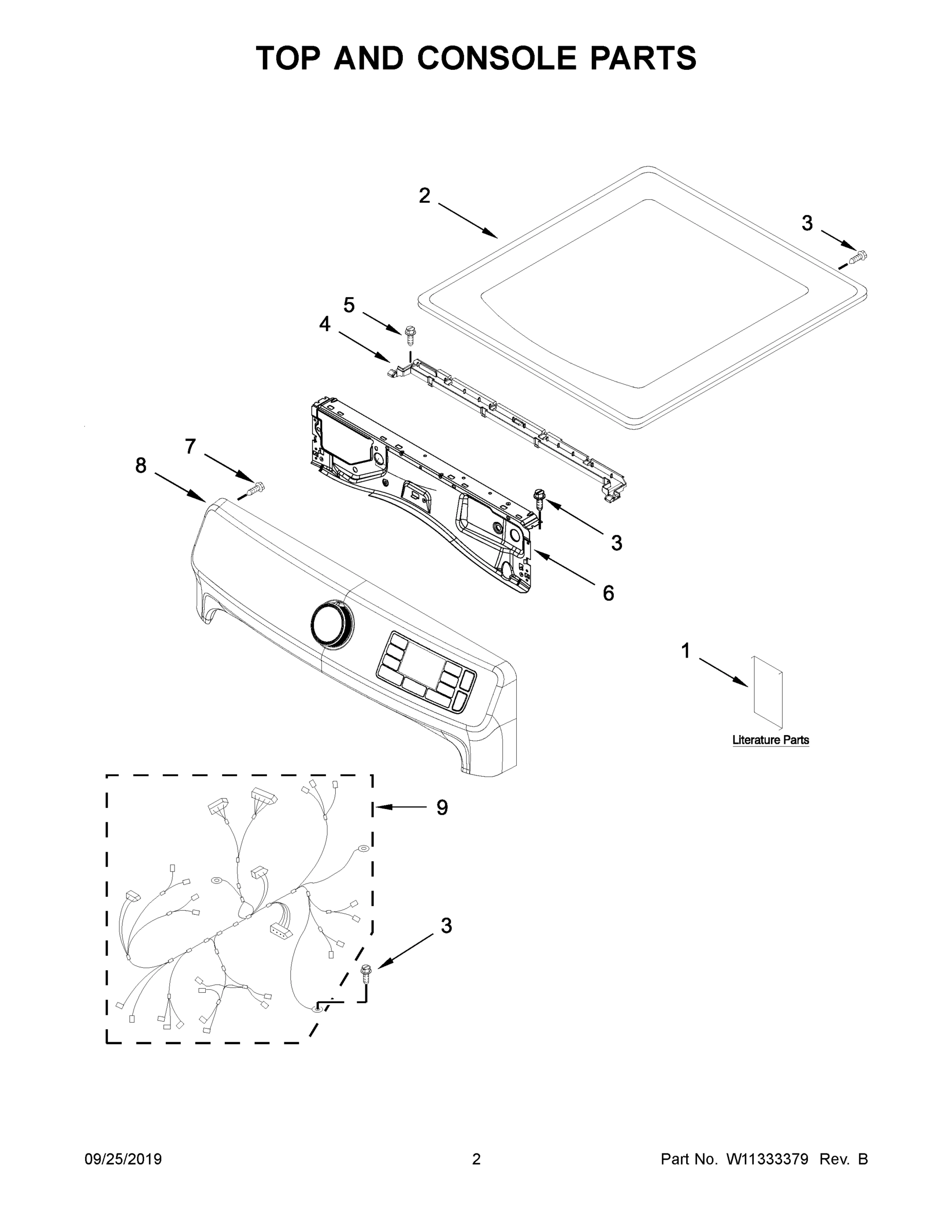

02 - TOP AND CONSOLE PARTS

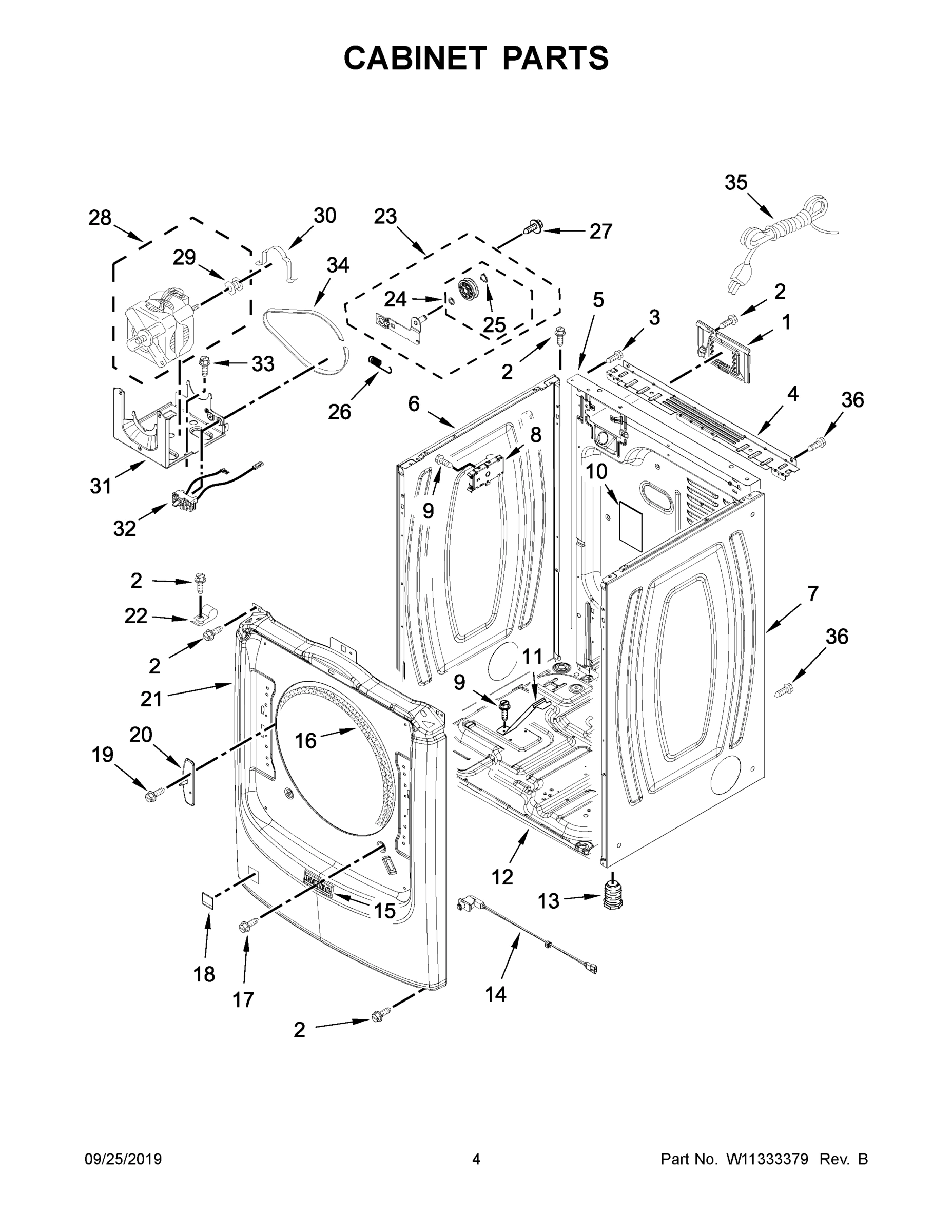

03 - CABINET PARTS

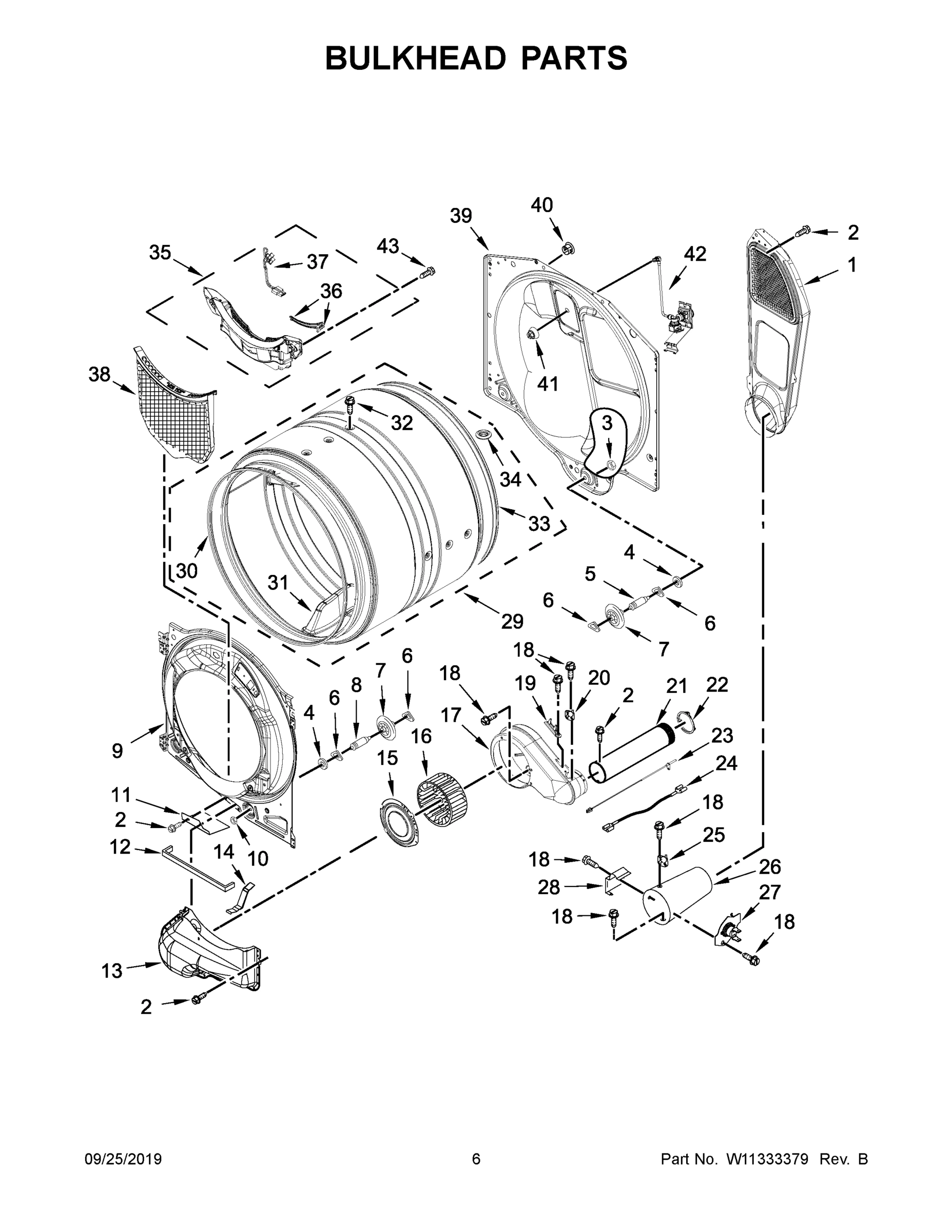

04 - BULKHEAD PARTS

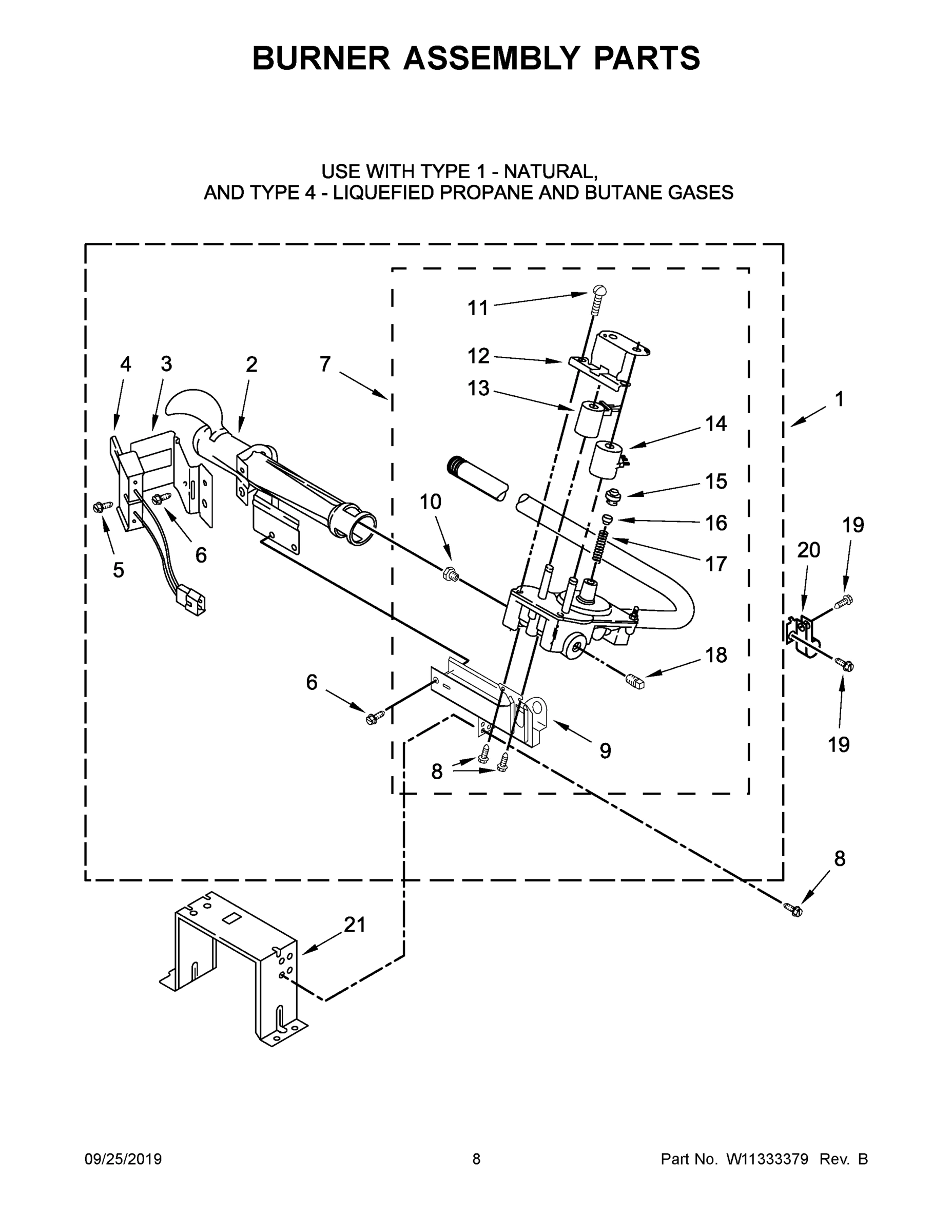

05 - BURNER ASSEMBLY PARTS

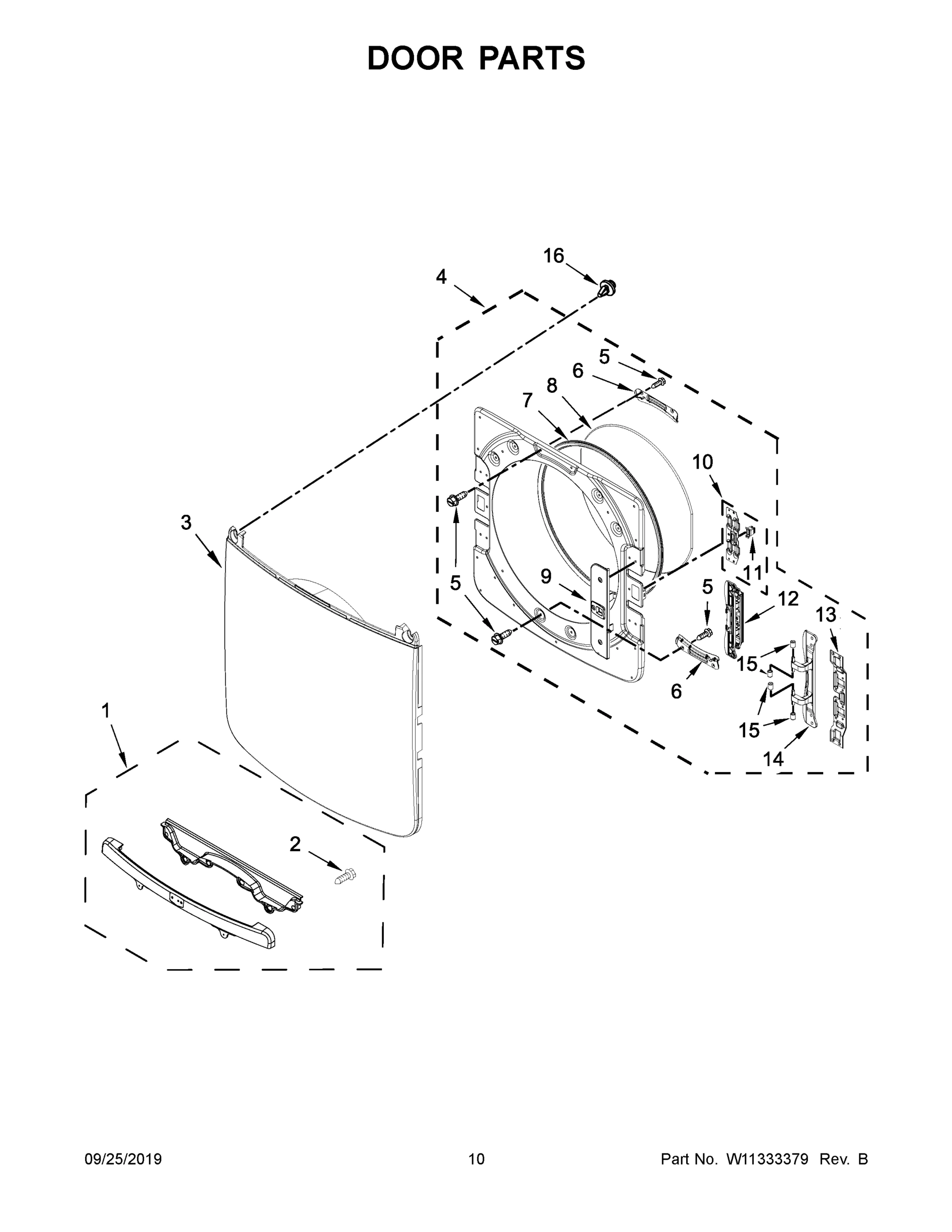

06 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 8TMGD6630HW0 LAUNDRY, RESIDENTIAL, GAS DRYER
1
MAY W11307141 MAY W11307141 Contact Us For Availability
1
COVER, TERMINAL BLOCK MAY 8317339 Contact Us For Availability
1
ASSEMBLY, AIR DUCT MAY W10293765 Contact Us For Availability
1
BURNER ASSEMBLY 60 HZ. (TYPE 1) (WHITE RODGER MAY 8576353 Contact Us For Availability
1
HANDLE, DOOR (CHROME) MAY W10626038 Contact Us For Availability
1A
MAY W11307145 MAY W11307145 Contact Us For Availability
1B
MAY W11184899 MAY W11184899 Contact Us For Availability
1C
MAY W11241396 MAY W11241396 Contact Us For Availability
1D
MAY W11307150 MAY W11307150 Contact Us For Availability
2
TOP (WHITE) MAY W10208383 Contact Us For Availability
2
TUBE, BURNER MAY 688617 Contact Us For Availability
2
SCREW MAY 9742177 Contact Us For Availability
3
SCREW MAY W10773242 Contact Us For Availability
3
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
3
BRACKET, IGNITOR MAY 694298 Contact Us For Availability
3
MAY W11196020 MAY W11196020 Contact Us For Availability
4
MAY W11255768 MAY W11255768 Contact Us For Availability
4
BRACKET, REAR MAY W10208382 Contact Us For Availability
4
WASHER MAY 3387459 Contact Us For Availability
4
IGNITOR MAY 686590 Contact Us For Availability
4
MAY W11283318 MAY W11283318 Contact Us For Availability
5
SCREW MAY 12990702 Contact Us For Availability
5
PANEL, REAR MAY W10487430 Contact Us For Availability
5
SCREW MAY W10288126 Contact Us For Availability
5
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
5
SCREW MAY W10366705 Contact Us For Availability
6
BRACKET, CONSOLE MAY W10208198 Contact Us For Availability
6
PANEL, SIDE (LEFT) (WHITE) MAY W11177568 Contact Us For Availability
6
WASHER, TRI RING MAY W10512946 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
BRACKET, GLASS MAY W10208252 Contact Us For Availability
7
SCREW MAY W10146359 Contact Us For Availability
7
MAY W11177569 MAY W11177569 Contact Us For Availability
7
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
7
VALVE, GAS 60 HZ. (COMPLETE) MAY W10118312 Contact Us For Availability
7
MAY W11183899 MAY W11183899 Contact Us For Availability
8
MAY W11226322 MAY W11226322 Contact Us For Availability
8
MAY W11382246 MAY W11382246 Contact Us For Availability
8
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8
GLASS, DOOR MAY W10208417 Contact Us For Availability
9
MAY W11157861 MAY W11157861 Contact Us For Availability
9
BULKHEAD, FRONT MAY W10673493 Contact Us For Availability
9
BASE, BURNER MAY 3389871 Contact Us For Availability
9
MAY W11178949 MAY W11178949 Contact Us For Availability
10
PAD, FOAM MAY W10504381 Contact Us For Availability
10
NUT, HEX MAY 3934666 Contact Us For Availability
10
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 15418 Contact Us For Availability
10
ASSEMBLY, DOOR CATCH MAY W10208254 Contact Us For Availability
10A
ORIFICE, BURNER (TYPE 4 (BUTANE)) MAY 15422 Contact Us For Availability
10B
ORIFICE, BURNER (TYPE 4 (PROPANE)) MAY 234867 Contact Us For Availability
11
BRACKET, BURNER MAY 8529757 Contact Us For Availability
11
MAY W11257251 MAY W11257251 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
11
ASSEMBLY, SPRING CATCH MAY W10208401 Contact Us For Availability
12
BASE, CABINET MAY 8565046 Contact Us For Availability
12
SEAL, HOUSING OUTLET MAY W10211950 Contact Us For Availability
12
BRACKET, COIL MAY 694538 Contact Us For Availability
12
ASSEMBLY, DOOR HINGE MAY W10208414 Contact Us For Availability
13
FOOT, DRYER MAY 3392100 Contact Us For Availability
13
ASSEMBLY, LINT DUCT MAY W10211896 Contact Us For Availability
13
COIL, 60 HZ. (2 TERMINAL) (MAIN) MAY 694540 Contact Us For Availability
13
PLATE, HINGE RETAINER MAY W10208419 Contact Us For Availability
14
DOOR SWITCH, SNAP IN MAY W10569114 Contact Us For Availability
14
CLIP, LINT DUCT MAY W10414388 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3 TERMINAL) (PILOT POSIT MAY 694539 Contact Us For Availability
14
HINGE, BASE MAY W10208415 Contact Us For Availability
15
BADGE, MAYTAG MAY W10639171 Contact Us For Availability
15
MAY W11254843 MAY W11254843 Contact Us For Availability
15
LEAK, LIMITER MAY 694424 Contact Us For Availability
15
CAP, HINGE MAY W10208398 Contact Us For Availability
16
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
16
WHEEL, BLOWER MAY 697772 Contact Us For Availability
16
SCREW, REGULATOR ADJUSTMENT MAY 694423 Contact Us For Availability
16
BUMPER, DOOR MAY W11178950 Contact Us For Availability
17
SCREW MAY 3357011 Contact Us For Availability
17
HOUSING, BLOWER MAY W10211911 Contact Us For Availability
17
SPRING, REGULATOR MAY 694422 Contact Us For Availability
18
SCREW MAY 693995 Contact Us For Availability
18
PLUG, FRONT PANEL (WHITE) MAY 8564457 Contact Us For Availability
18
PLUG, PIPE MAY 239822 Contact Us For Availability
19
SCREW MAY 3390647 Contact Us For Availability
19
FUSE, THERMAL (91C) MAY W10693363 Contact Us For Availability
20
STRIKE, DOOR MAY W10208250 Contact Us For Availability
20
THERMISTOR MAY 8577274 Contact Us For Availability
20
CLAMP, PIPE MAY 3387561 Contact Us For Availability
21
PANEL, FRONT (WHITE) MAY W10651060 Contact Us For Availability
21
EXHAUST PIPE MAY W10342188 Contact Us For Availability
21
BRACKET, SUPPORT MAY 3389889 Contact Us For Availability
22
BRACKET, GAS PIPE MAY 3978776 Contact Us For Availability
22
COLLAR, DUCT MAY W10344699 Contact Us For Availability
23
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
23
THERMISTOR, GAS INLET MAY W10623852 Contact Us For Availability
24
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
24
MAY W10920818 MAY W10920818 Contact Us For Availability
25
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
26
SPRING, IDLER MAY W10446781 Contact Us For Availability
26
FUNNEL, BURNER MAY 8573824 Contact Us For Availability
27
SCREW MAY 3389420 Contact Us For Availability
27
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
28
ASSEMBLY, MOTOR MAY W10806758 Contact Us For Availability
28
SENSOR, RADIANT MAY 338906 Contact Us For Availability
29
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
29
ASSEMBLY, DRUM (COMPLETE) MAY W10381481 Contact Us For Availability
30
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
30
SEAL, DRUM FRONT MAY W10521122 Contact Us For Availability
31
BRACKET, MOTOR MOUNTING MAY W10242878 Contact Us For Availability
31
BAFFFLE, DRUM MAY W10416098 Contact Us For Availability
32
SWITCH, BROKEN BELT MAY W10774832 Contact Us For Availability
32
SCREW MAY W10219342 Contact Us For Availability
33
SEAL, DRUM MAY W10521118 Contact Us For Availability
34
BELT, DRIVE MAY 3387610 Contact Us For Availability
34
CAP, PLUG MAY W10665050 Contact Us For Availability
35
CORD, POWER MAY W10869140 Contact Us For Availability
35
ASSEMBLY, OUTLET GRILL AND HOUSING MAY W10672683 Contact Us For Availability
36
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
37
HARNESS, SENSOR MAY W10298258 Contact Us For Availability
38
LINT SCREEN (WHITE) MAY W10516085 Contact Us For Availability
39
MAY W11209933 MAY W11209933 Contact Us For Availability
40
PLUG, REAR BULKHEAD MAY 8529007 Contact Us For Availability
41
NOZZLE, CAP MAY W11100488 Contact Us For Availability
42
VALVE AND HOSE ASSEMBLY MAY W11157054 Contact Us For Availability
43
SCREW MAY W10794806 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
DRYER EXHAUST KIT NOT INCLUDED, KIT, 4-WAY VE MAY W10323246 Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 TO TYPE 4 LPG) MAY 8576846 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE KIT FOR STEAM DRYER MAY W10044609 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, HOSE MAY W10242307 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DOOR REVERSING MAY W10315283 Contact Us For Availability
NI
ACCESSORY PARTS, CONNECTOR, HOSE -"Y" MAY W10336486 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE, INLET (2') MAY W10439655 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW) MAY W10446202 Contact Us For Availability
NI
MAY W10623830 MAY W10623830 Contact Us For Availability
NI
ACCESSORY PARTS, BAG ASSEMBLY, INCLUDES THE F MAY W10676169 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSE, 5 FT (COLD WATER MAY W10782875 Contact Us For Availability
NI
MAY W10869845 MAY W10869845 Contact Us For Availability
NI
ACCESSORY PARTS, DRY RACK MAY W10886894 Contact Us For Availability
× ![]()
