Model Whirlpool 89L-6 ELECTRIC COOK-TOP – Common Parts & Diagrams
01 - BLOWER/PLENUM

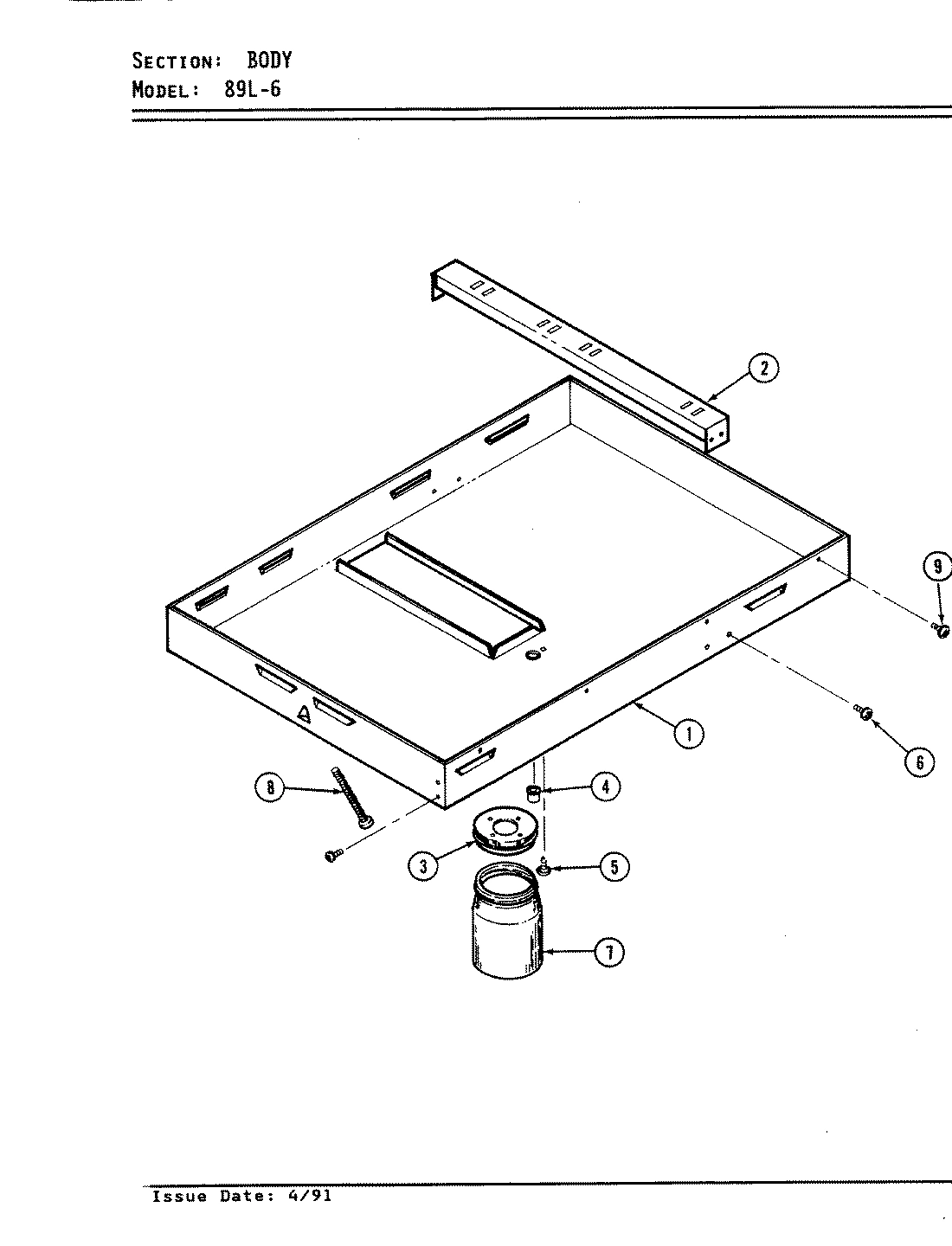

02 - BURNER BOX

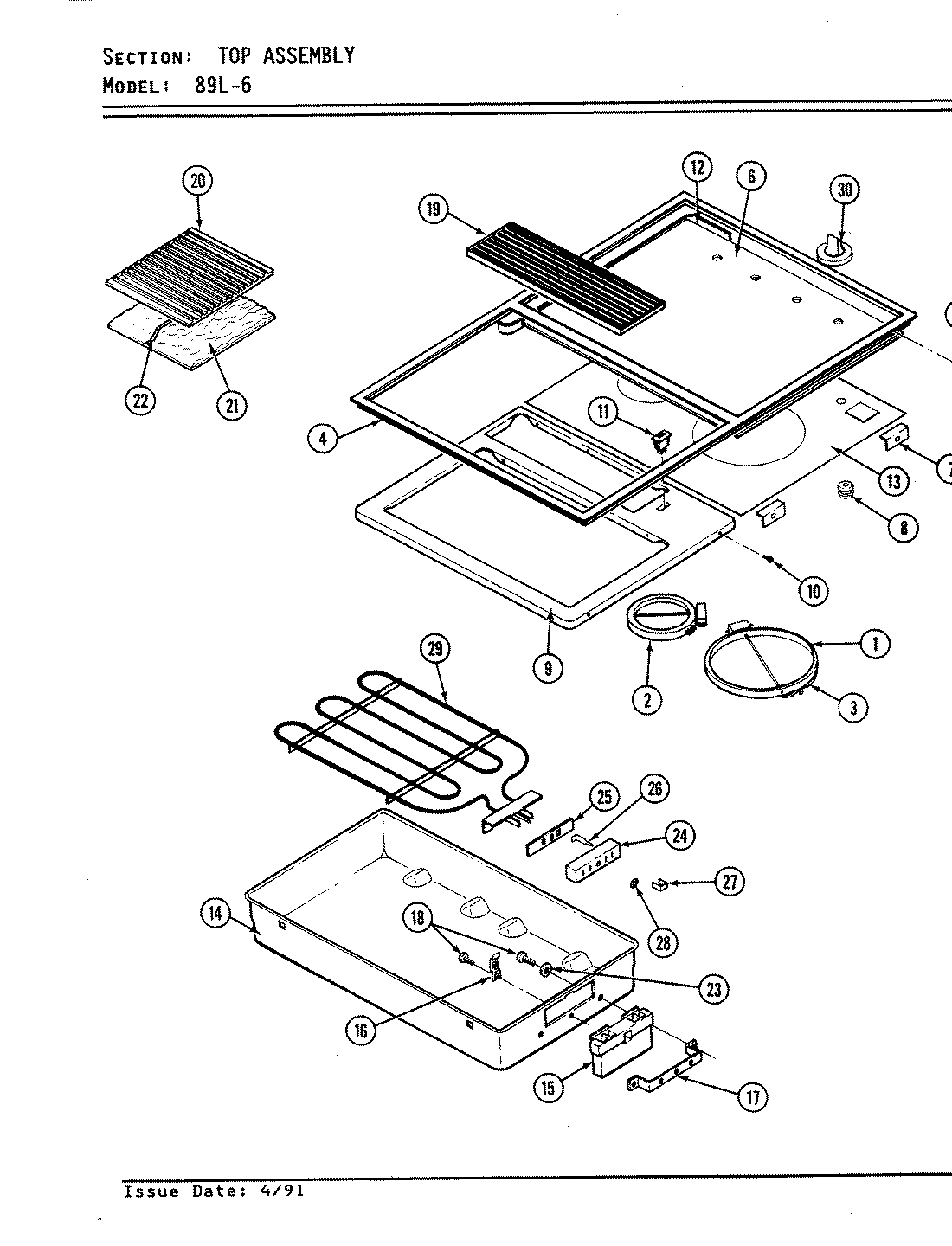

04 - TOP ASSEMBLY

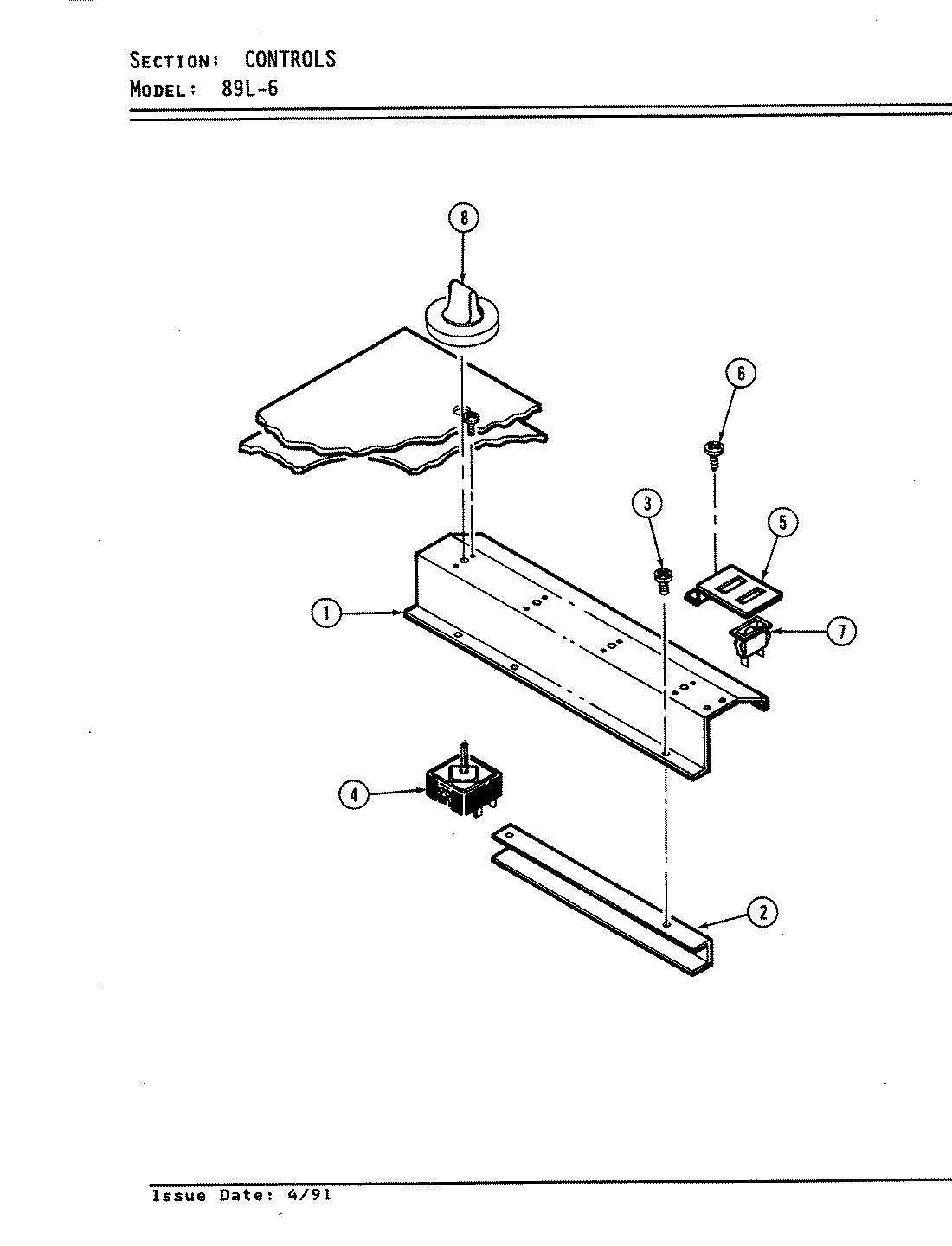

03 - CONTROLS
Common parts from model Whirlpool 89L-6 ELECTRIC COOK-TOP
1
BOTTOM, BURNER BOX WPL 4011F17351 Contact Us For Availability
1
ELEMENT, GIANT WPL 7406P05760 Contact Us For Availability
1
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
1
PLATE, SWITCH MTG WPL 3605F17545 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F40261 Contact Us For Availability
2
ELEMENT, STD WPL 7406P05860 Contact Us For Availability
2
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
2
SUPPORT SWITCH WPL 3807F40145 Contact Us For Availability
3
LID, JAR WPL Y707870 Contact Us For Availability
3
SCREW WPL 7101P00460 Contact Us For Availability
3
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 8004P01560 Contact Us For Availability
4
GROMMET, NYLON WPL 8008P01460 Contact Us For Availability
4
FRAME TOP WPL 7706P29260 Contact Us For Availability
4
SCREW WPL 7101P15360 Contact Us For Availability
4
SEAL, GASKET INF. SW. WPL 7212P03060 Contact Us For Availability
4
SWITCH, INF. CONTROL WPL 7403P18260 Contact Us For Availability
4
SWITCH, INFINITE (1400W) WPL 7403P26660 Contact Us For Availability
4
SWITCH, INFINITE (2400W) WPL 7403P26760 Contact Us For Availability
4
SWITCH, INFINITE WPL 7403P31260 Contact Us For Availability
5
NUT WPL 707161 Contact Us For Availability
5
SCREW, GROUND (GRN) WPL 7101P02760 Contact Us For Availability
5
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
5
BRACKET, LIGHT INDICATOR WPL 3801F18845 Contact Us For Availability
6
SCREW WPL Y707402 Contact Us For Availability
6
GLASS, TOP WPL 7918P03360 Contact Us For Availability
6
GLASS, TOP WPL 7918P03460 Contact Us For Availability
6
SCREW WPL 7101P10860 Contact Us For Availability
7
TINNERMAN WPL 712310 Contact Us For Availability
7
RETAINER, MAIN TOP GLASS WPL 3804F09245 Contact Us For Availability
7
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P07460 Contact Us For Availability
8
SCREW WPL 707407 Contact Us For Availability
8
SCREW WPL Y707121 Contact Us For Availability
8
GROMMET WPL 8008P03360 Contact Us For Availability
8
KNOB, SWITCH WPL 7737P02660 Contact Us For Availability
9
BAND, MOTOR WPL Y707393 Contact Us For Availability
9
TOP, MAIN CONTROL PANEL WPL 2002F06960 Contact Us For Availability
10
MOTOR, BLOWER WPL Y705032 Contact Us For Availability
10
SCREW WPL 7101P24260 Contact Us For Availability
11
FOAM, URETHANE WPL Y715957 Contact Us For Availability
11
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
12
+TAPE, SILICONE 1 IN. BY 102 I WPL 4870F00660 Contact Us For Availability
13
BUSHING, PLENUM WPL Y705177 Contact Us For Availability
13
BAFFLE, CERAMIC TOP WPL 3601F20580 Contact Us For Availability
14
RING, INLET WPL Y704758 Contact Us For Availability
14
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
15
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
15
WIRE, RECEPTACLE (PURPLE) WPL 5111P10360 Contact Us For Availability
15
WIRE RECEPTACLE CTRL WPL 5111P10460 Contact Us For Availability
15
WIRE RECEPTACLE CTRL WPL 5111P10560 Contact Us For Availability
15
WIRE RECEPTACLE CTRL - VIOLET WPL 5111P18160 Contact Us For Availability
15
WIRE RECEPTACLE CTRL - YELLOW WPL 5111P18260 Contact Us For Availability
15
WIRE RECEPTACLE CTRL WPL 5155P36960 Contact Us For Availability
15
WIRE RECEPTACLE CTRL - BROWN WPL 5155P39760 Contact Us For Availability
16
RETAINER, FILTER WPL Y707688 Contact Us For Availability
17
PLENUM WPL Y701840 Contact Us For Availability
17
BRACKET WPL Y702698 Contact Us For Availability
18
RING, RESTRICTOR WPL Y704761 Contact Us For Availability
18
SCREW WPL 7101P29460 Contact Us For Availability
19
GRILL, AIR WPL 8312P05160 Contact Us For Availability
20
CONDUIT, METAL WPL Y705155 Contact Us For Availability
20
GRILL GRATE WPL 8312P06860 Contact Us For Availability
21
PLATE, ROCK WPL 708929 Contact Us For Availability
22
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
23
COVER, PLATE WPL 7724P05060 Contact Us For Availability
23
WASHER WPL Y707664 Contact Us For Availability
24
TUBING, CONDUIT WPL 3414F06651 Contact Us For Availability
25
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
25
INSULATOR WPL Y700449 Contact Us For Availability
26
SLEEVE, TUBE WPL 8018P00260 Contact Us For Availability
27
WASHER WPL 7109P00260 Contact Us For Availability
27
CLIP, SHUNT WPL Y700450 Contact Us For Availability
28
CLAMP, CONDUIT WPL 7111P01960 Contact Us For Availability
29
SCREW WPL 7101P11260 Contact Us For Availability
29
WASHER, LOCK WPL 7109P01260 Contact Us For Availability
29
ELEMENT, GRILL (240V) WPL Y04100007 Contact Us For Availability
30
CLAMP, CABLE WPL 715780 Contact Us For Availability
31
CLIP WPL Y707335 Contact Us For Availability
31
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
32
CONNECTOR WPL Y705154 Contact Us For Availability
33
CAUTION LABEL WPL 708082 Contact Us For Availability
36
TINNERMAN, LOWER WPL 7101958 Contact Us For Availability
37
CLIP WPL Y707831 Contact Us For Availability
38
BLOCK, TERMINAL----NA WPL 7401P00360 Contact Us For Availability
40
SCREW WPL 7101P07560 Contact Us For Availability
× ![]()
