Model Whirlpool 87848 ELECTRIC RANGE – Common Parts & Diagrams
01 - GLASS CARTRIDGE

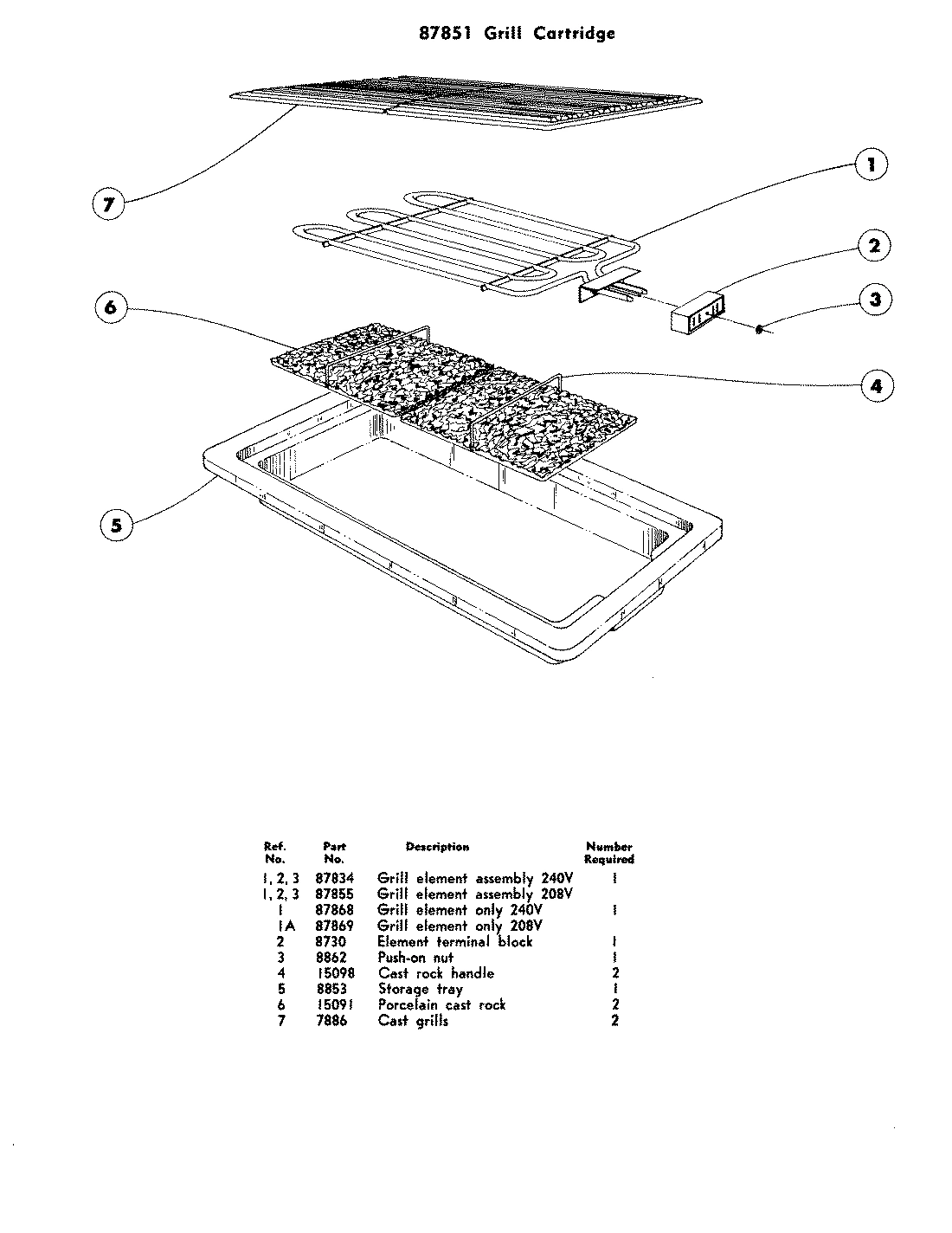

02 - GRILL CARTRIDGE

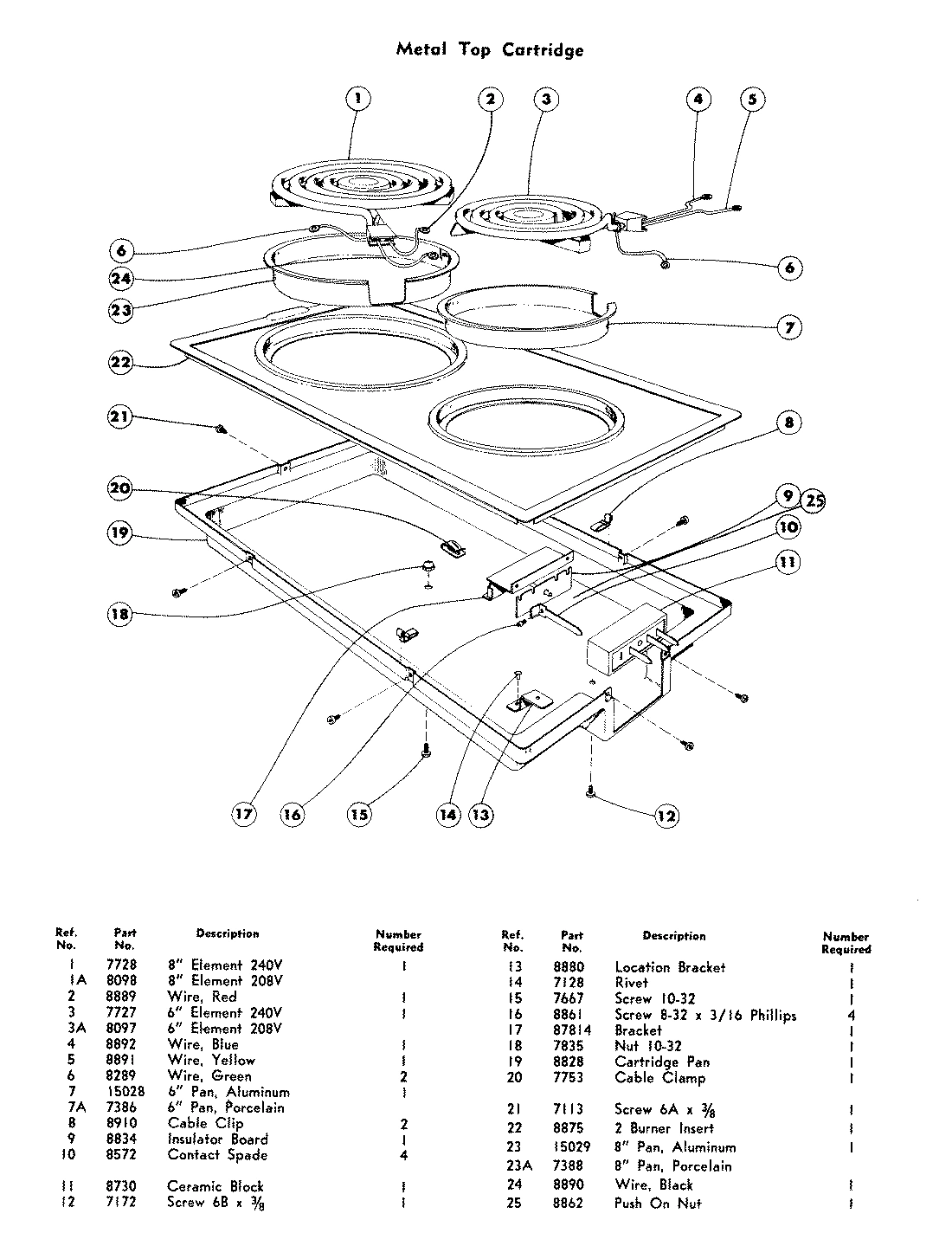

03 - METAL TOP CARTRIDGE

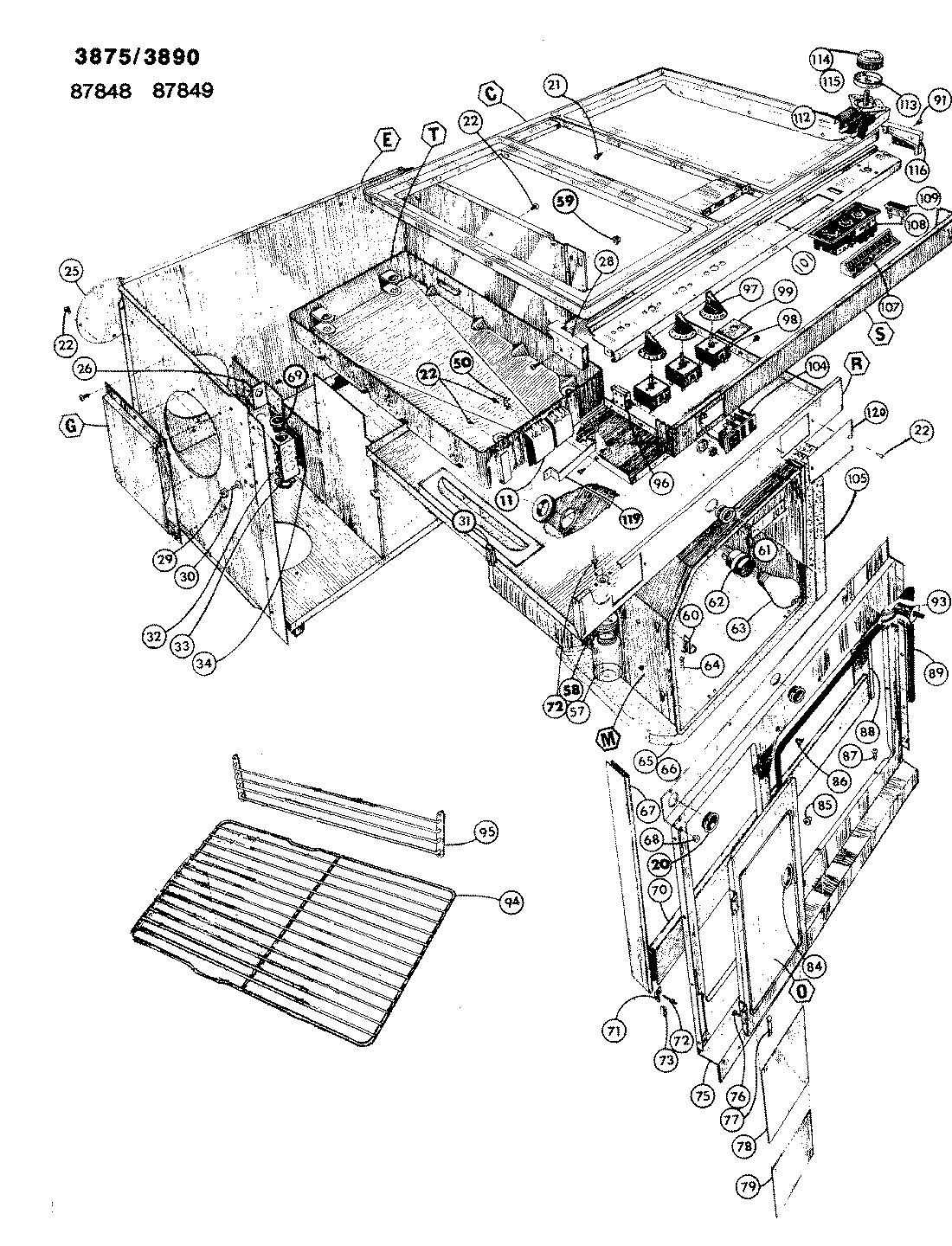

04 - PARTS LIST
Common parts from model Whirlpool 87848 ELECTRIC RANGE
1
ELEMENT, GRILL WPL 787834 Contact Us For Availability
1
ELEMENT, COMPLETE, 240V WPL 787868 Contact Us For Availability
1
BURNER ELEMENT 240V WPL 707728 Contact Us For Availability
2
WIRE, RED WPL Y708889 Contact Us For Availability
3
BURNER (6``) WPL Y707727 Contact Us For Availability
4
WIRE BLUE WPL 708892 Contact Us For Availability
5
TRAY, STORAGE WPL 708853 Contact Us For Availability
5
WIRE YELLOW WPL Y708891 Contact Us For Availability
6
PORCELAIN CAST ROCK WPL Y715091 Contact Us For Availability
6
WIRE-GREEN WPL 708289 Contact Us For Availability
7
GRATE WPL 707886 Contact Us For Availability
7
PAN, ALUMINUM WPL Y715028 Contact Us For Availability
7
TUBE, DRAIN WPL 708833 Contact Us For Availability
7
DRAIN TUBE WPL 708935 Contact Us For Availability
8
CLIP WPL Y708910 Contact Us For Availability
8
GASKET WPL 708909 Contact Us For Availability
9
NUT WPL 708934 Contact Us For Availability
10
TRANSFORMER WPL 701629 Contact Us For Availability
10
GROMMET WPL 708932 Contact Us For Availability
11
RECEPTACLE WPL Y715120 Contact Us For Availability
13
LOCATION BRACKET WPL 708880 Contact Us For Availability
15
SCREW WPL 707667 Contact Us For Availability
15
SCREW WPL 707116 Contact Us For Availability
16
WIRE, BLUE WPL 708835 Contact Us For Availability
17
BRACKET WPL Y787814 Contact Us For Availability
17
WIRE, BLACK WPL 708837 Contact Us For Availability
18
BLOCK, ELEM (240V) WPL 708917 Contact Us For Availability
18
STRIP, ASBESTOS WPL 708963 Contact Us For Availability
18
NUT ACORN WPL 707835 Contact Us For Availability
19
CARTRIDGE PAN WPL 708828 Contact Us For Availability
20
CLAMP,CABLE WPL 707753 Contact Us For Availability
23
PAN, ALUMINUM WPL 715029 Contact Us For Availability
24
WIRE, BLACK WPL Y708890 Contact Us For Availability
25
COVER, EXHAUSTER WPL 708263 Contact Us For Availability
26
COVER, WIRING WPL 708653 Contact Us For Availability
28
END CAP WPL 708533 Contact Us For Availability
29
NUT WPL 707161 Contact Us For Availability
30
SCREW WPL 707346 Contact Us For Availability
32
HANDY BOX WPL 701819 Contact Us For Availability
34
COVER, HANDY BOX WPL 702225 Contact Us For Availability
35
GROMMET WPL 708658 Contact Us For Availability
38
SCREW WPL Y707402 Contact Us For Availability
39
SCREW WPL 707407 Contact Us For Availability
40
ISOLATOR MOTOR WPL Y707395 Contact Us For Availability
41
BAND, MOTOR WPL Y707393 Contact Us For Availability
42
STRIP, FOAM WPL 708280 Contact Us For Availability
43
CAP, CONNECTOR WPL 707767 Contact Us For Availability
44
CONDUIT WPL Y707758 Contact Us For Availability
47
CAUTION LABEL WPL 708082 Contact Us For Availability
49
GREASE BOX WPL 708232 Contact Us For Availability
50
CLIP, GROUND WPL 708947 Contact Us For Availability
51
INSTRUCTION LABEL WPL 708308 Contact Us For Availability
52
DOOR KNOB WPL 708238 Contact Us For Availability
54
DOOR WPL 708204 Contact Us For Availability
55
CLEANING LABEL WPL 708111 Contact Us For Availability
56
SERIAL PLATE WPL 708876 Contact Us For Availability
58
LID, JAR WPL Y707870 Contact Us For Availability
59
NUT WPL 708824 Contact Us For Availability
62
OVEN LIGHT RECEPTACLE WPL Y708236 Contact Us For Availability
64
TINNERMAN WPL 708736 Contact Us For Availability
65
INSULATION, OVEN WRAP WPL 708250 Contact Us For Availability
66
INSULATION, OVEN BACK WPL 708251 Contact Us For Availability
67
TRIM SIDE LEFT WPL 708555 Contact Us For Availability
68
BUMPER, BUTTON WPL 708361 Contact Us For Availability
69
BUSHING WPL 708939 Contact Us For Availability
70
TRIM BOTTOM WPL 708556 Contact Us For Availability
71
TRIM BRACKET WPL 708686 Contact Us For Availability
73
U-CLIP WPL 708735 Contact Us For Availability
74
HINGE, DOOR WPL 702112 Contact Us For Availability
75
FRONT CLOSURE WPL 715061 Contact Us For Availability
76
SCREW WPL 708278 Contact Us For Availability
77
HEX NUT WPL 708279 Contact Us For Availability
78
INSTRUCTION LABEL WPL 708762 Contact Us For Availability
79
WIRING LABEL WPL 708859 Contact Us For Availability
80
DOOR FRAME WPL 708614 Contact Us For Availability
81
BLACK GLASS WPL 708616 Contact Us For Availability
83
INSULATION, OVEN DOOR WPL 708252 Contact Us For Availability
84
GROMMET WPL 707082 Contact Us For Availability
85
CATCH, DOOR WPL 707551 Contact Us For Availability
86
CLIP, GASKET WPL 708734 Contact Us For Availability
88
TRIM SIDE , RIGHT WPL 708554 Contact Us For Availability
89
GASKET, DOOR WPL 715063 Contact Us For Availability
90
DOOR HANDLE WPL Y708594 Contact Us For Availability
91
SCREW WPL 708825 Contact Us For Availability
93
SWITCH LITE WPL 708619 Contact Us For Availability
94
RACK OVEN WPL 708234 Contact Us For Availability
95
RACK SUPPORT WPL 708557 Contact Us For Availability
98
SWITCH, INFINITE WPL Y707036 Contact Us For Availability
101
CONTROL PANEL WPL 708538 Contact Us For Availability
104
OUTLET SWITCH FOR FAN WPL 708618 Contact Us For Availability
105
INSULATION WPL 708253 Contact Us For Availability
106
OVEN ELEMENT WPL Y708267 Contact Us For Availability
107
ESCUTCHEON WPL 708590 Contact Us For Availability
108
CLOCK/TIMER WPL 708694 Contact Us For Availability
108
GLA WPL 770105 Contact Us For Availability
108
WPL 770106 WPL 770106 Contact Us For Availability
108
WPL 770107 WPL 770107 Contact Us For Availability
109
WPL 708620 WPL 708620 Contact Us For Availability
110
WPL 708665 WPL 708665 Contact Us For Availability
111
WPL Y708585 WPL Y708585 Contact Us For Availability
112
WPL 708704 WPL 708704 Contact Us For Availability
113
WPL 708305 WPL 708305 Contact Us For Availability
115
WPL Y708707 WPL Y708707 Contact Us For Availability
116
WPL 708534 WPL 708534 Contact Us For Availability
119
WPL 708839 WPL 708839 Contact Us For Availability
120
WPL 708646 WPL 708646 Contact Us For Availability
121
WPL Y708558 WPL Y708558 Contact Us For Availability
122
WPL 787717 WPL 787717 Contact Us For Availability
123
WPL 787819 WPL 787819 Contact Us For Availability
124
WPL 787699 WPL 787699 Contact Us For Availability
125
WPL 786715 WPL 786715 Contact Us For Availability
126
WPL 787733 WPL 787733 Contact Us For Availability
127
WPL 786719 WPL 786719 Contact Us For Availability
128
WPL Y786315 WPL Y786315 Contact Us For Availability
129
WPL 786720 WPL 786720 Contact Us For Availability
130
WPL 787722 WPL 787722 Contact Us For Availability
131
WPL 787713 WPL 787713 Contact Us For Availability
132
WPL 787817 WPL 787817 Contact Us For Availability
133
WPL 787751 WPL 787751 Contact Us For Availability
134
WPL 787712 WPL 787712 Contact Us For Availability
135
WPL 708854 WPL 708854 Contact Us For Availability
136
WPL 787716 WPL 787716 Contact Us For Availability
137
WPL 787816 WPL 787816 Contact Us For Availability
138
WPL 787743 WPL 787743 Contact Us For Availability
× ![]()
