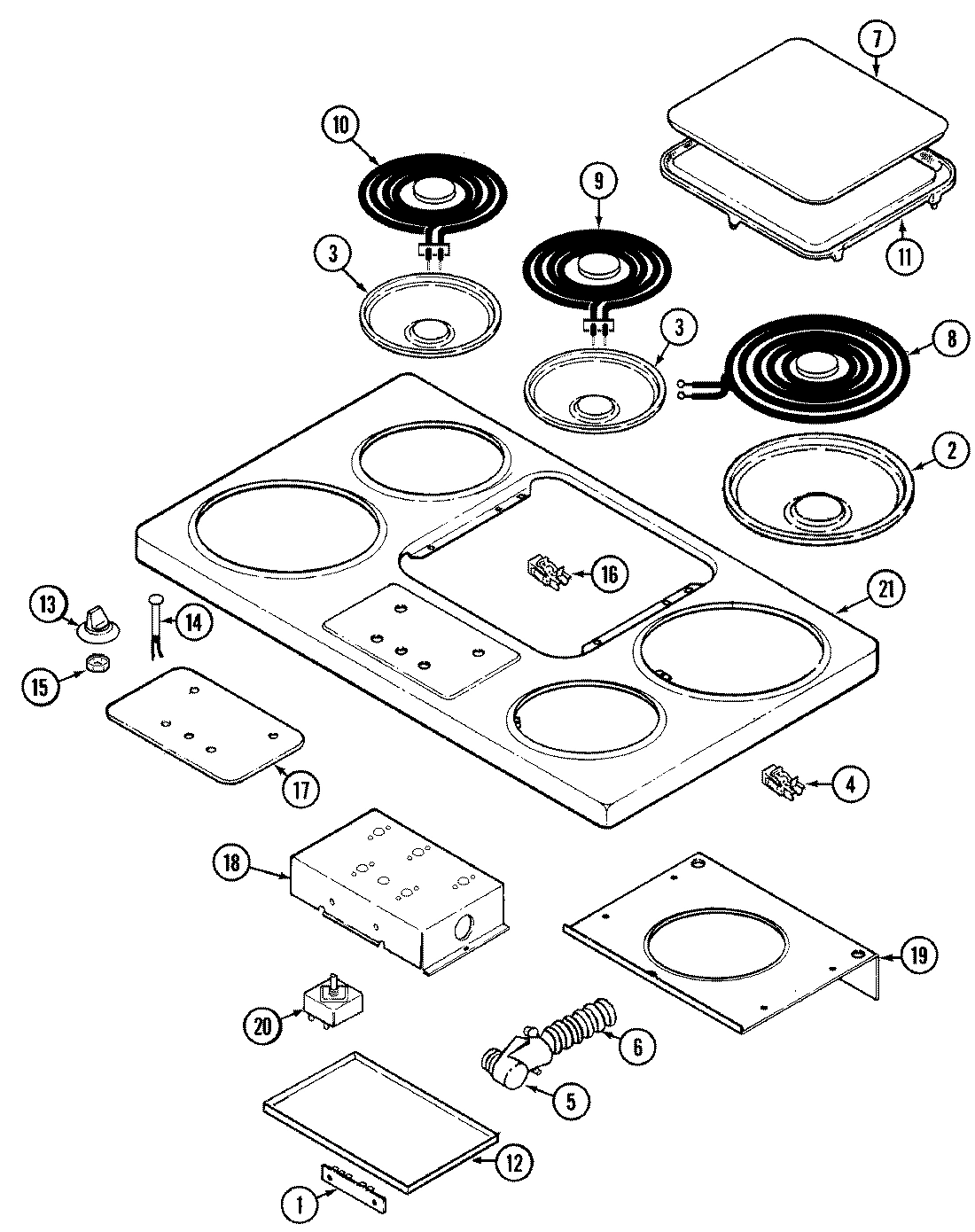

Model Whirlpool 8720PA ELECTRIC COOK-TOP – Common Parts & Diagrams

1
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
View on Model
1
BOTTOM, BURNER BOX
BOTTOM, BURNER BOX WPL 4011F08880 Contact Us For Availability
View on Model
2
BOWL, DRIP (8``)
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
View on Model
2
CONNECTOR, RIGHT ANG
CONNECTOR, RIGHT ANG WPL 7417P00460 Contact Us For Availability
View on Model
3
BOWL, DRIP (6``)(W/HOLE-CHR)
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
View on Model
3
TUBING, FLEXIBLE
TUBING, FLEXIBLE WPL 3414F03444 Contact Us For Availability
View on Model
4
HINGE, TOP
HINGE, TOP WPL 7106P00160 Contact Us For Availability
View on Model
5
HINGE, TOP
HINGE, TOP WPL 7106P00560 Contact Us For Availability
View on Model
6
HOUSING, UNIT
HOUSING, UNIT WPL 4001F06551 Contact Us For Availability
View on Model
7
COVER, GRIDDLE
COVER, GRIDDLE WPL 2005F00530 Contact Us For Availability
View on Model
7
NUT, TWIN SPEED
NUT, TWIN SPEED WPL 7103P02860 Contact Us For Availability
View on Model
8
ELEMENT (8``)
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
View on Model
8
NUT, SNAP
NUT, SNAP WPL 7103P01660 Contact Us For Availability
View on Model
9
ELEMENT, SURFACE GRIDDLE
ELEMENT, SURFACE GRIDDLE WPL 7406P05660 Contact Us For Availability
View on Model
9
SPACER, TOP
SPACER, TOP WPL 8010P07260 Contact Us For Availability
View on Model
9
STRAP
STRAP WPL 8019P00260 Contact Us For Availability
View on Model
10
ELEMENT (6``)
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
View on Model
10
SCREW
SCREW WPL 7101P11460 Contact Us For Availability
View on Model
11
GRIDDLE
GRIDDLE WPL 7508P00660 Contact Us For Availability
View on Model
12
COVER, HOUSING
COVER, HOUSING WPL 4005F08680 Contact Us For Availability
View on Model
13
KNOB, SWITCH
KNOB, SWITCH WPL 7737P02660 Contact Us For Availability
View on Model
14
LIGHT, SIGNAL
LIGHT, SIGNAL WPL 7407P01260 Contact Us For Availability
View on Model
15
NUT, SWITCH
NUT, SWITCH WPL 7103P02160 Contact Us For Availability
View on Model
16
RECEPTACLE
RECEPTACLE WPL 7408P00460 Contact Us For Availability
View on Model
17
TRIM, MAIN TOP
TRIM, MAIN TOP WPL 7720P14560 Contact Us For Availability
View on Model
18
HOUSING
HOUSING WPL 4001F02980 Contact Us For Availability
View on Model
19
SUPPORT
SUPPORT WPL 3807F00130 Contact Us For Availability
View on Model
20
SWITCH, INFINITE
SWITCH, INFINITE WPL 7403P02760 Contact Us For Availability
View on Model
21
TOP, MAIN (ALMOND)
TOP, MAIN (ALMOND) WPL 2002W04084 Contact Us For Availability
View on Model
