Model Whirlpool 8710PS ELECTRIC COOK-TOP – Common Parts & Diagrams

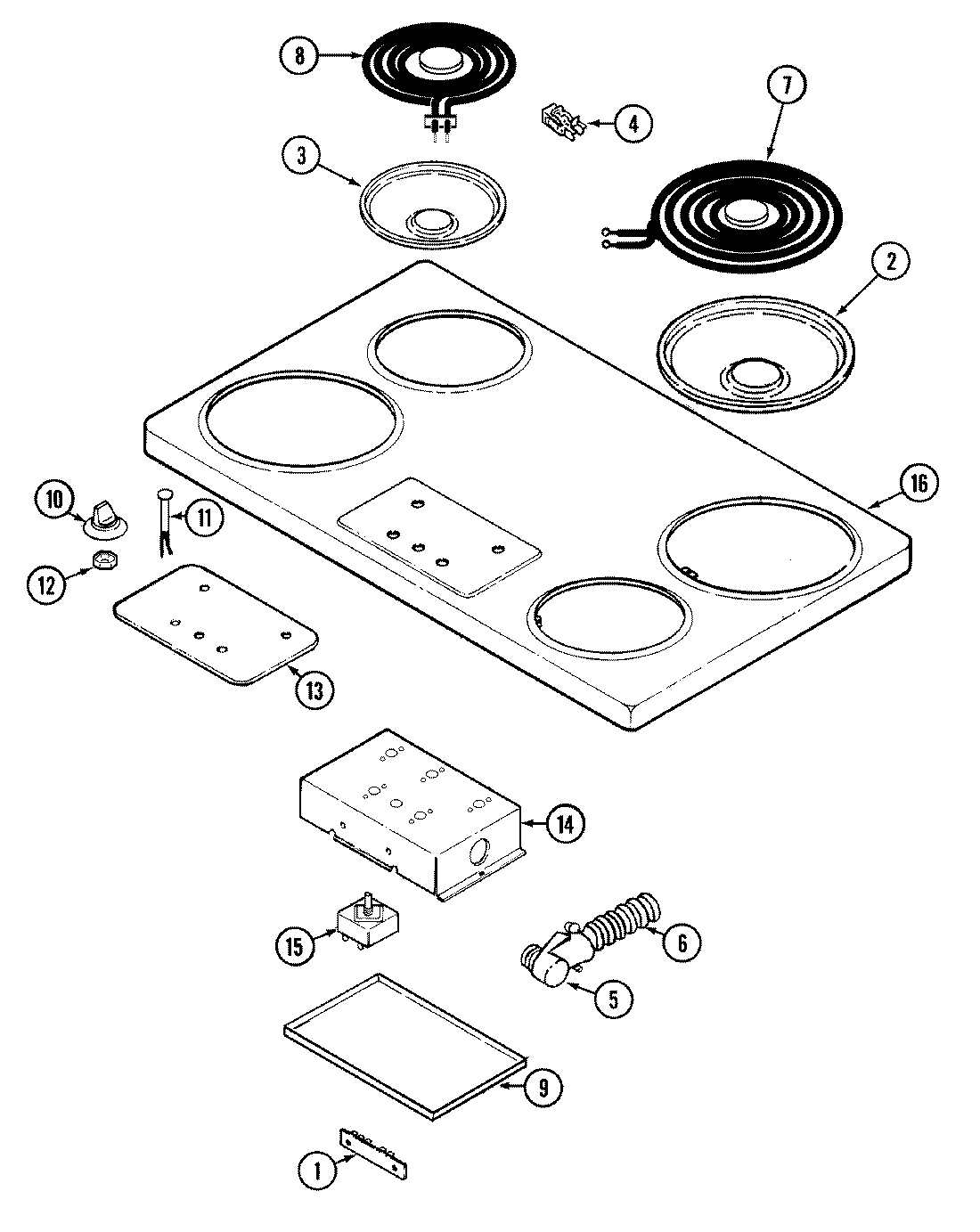

02 - TOP ASSEMBLY

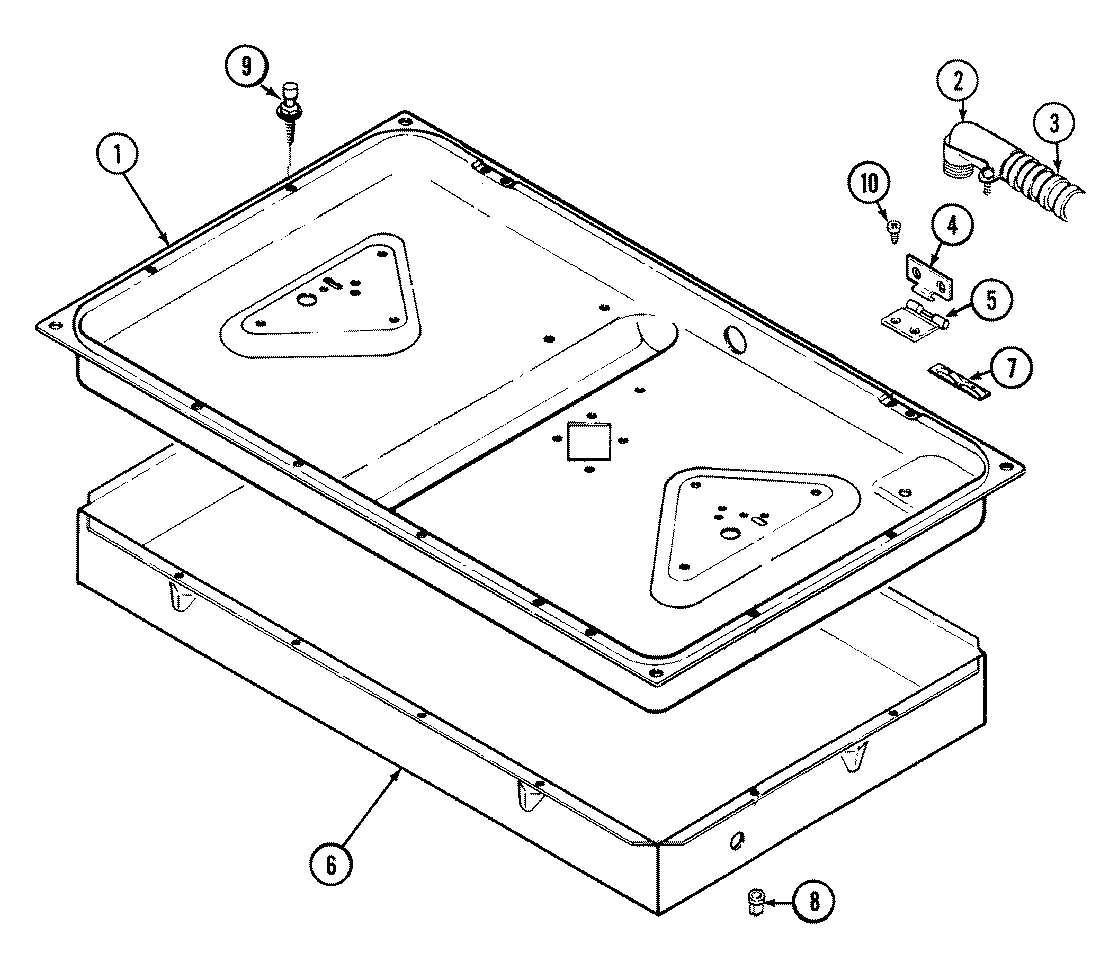

01 - BODY
Common parts from model Whirlpool 8710PS ELECTRIC COOK-TOP
1
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
1
BOTTOM, BURNER BOX WPL 4011F08880 Contact Us For Availability
2
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
2
CONNECTOR, RIGHT ANG WPL 7417P00460 Contact Us For Availability
3
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
3
TUBING, FLEXIBLE WPL 3414F03444 Contact Us For Availability
4
HINGE, TOP WPL 7106P00160 Contact Us For Availability
5
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
5
HINGE, TOP WPL 7106P00560 Contact Us For Availability
6
HOUSING, UNIT WPL 4001F06551 Contact Us For Availability
7
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
7
NUT, TWIN SPEED WPL 7103P02860 Contact Us For Availability
8
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
8
NUT, SNAP WPL 7103P01660 Contact Us For Availability
9
COVER, HOUSING WPL 4005F08680 Contact Us For Availability
9
SPACER, TOP WPL 8010P07260 Contact Us For Availability
9
STRAP WPL 8019P00260 Contact Us For Availability
10
KNOB, SWITCH WPL 7737P02660 Contact Us For Availability
10
SCREW WPL 7101P11460 Contact Us For Availability
11
LIGHT, SIGNAL WPL 7407P01260 Contact Us For Availability
12
NUT, SWITCH WPL 7103P02160 Contact Us For Availability
13
TRIM, MAIN TOP WPL 7720P14460 Contact Us For Availability
14
HOUSING WPL 4001F02980 Contact Us For Availability
15
SWITCH, INFINITE WPL 7403P02760 Contact Us For Availability
16
TOP ASSY, MAIN WPL 2002W05930 Contact Us For Availability
× ![]()
