Model LG 86UM3C-B – Common Parts & Diagrams

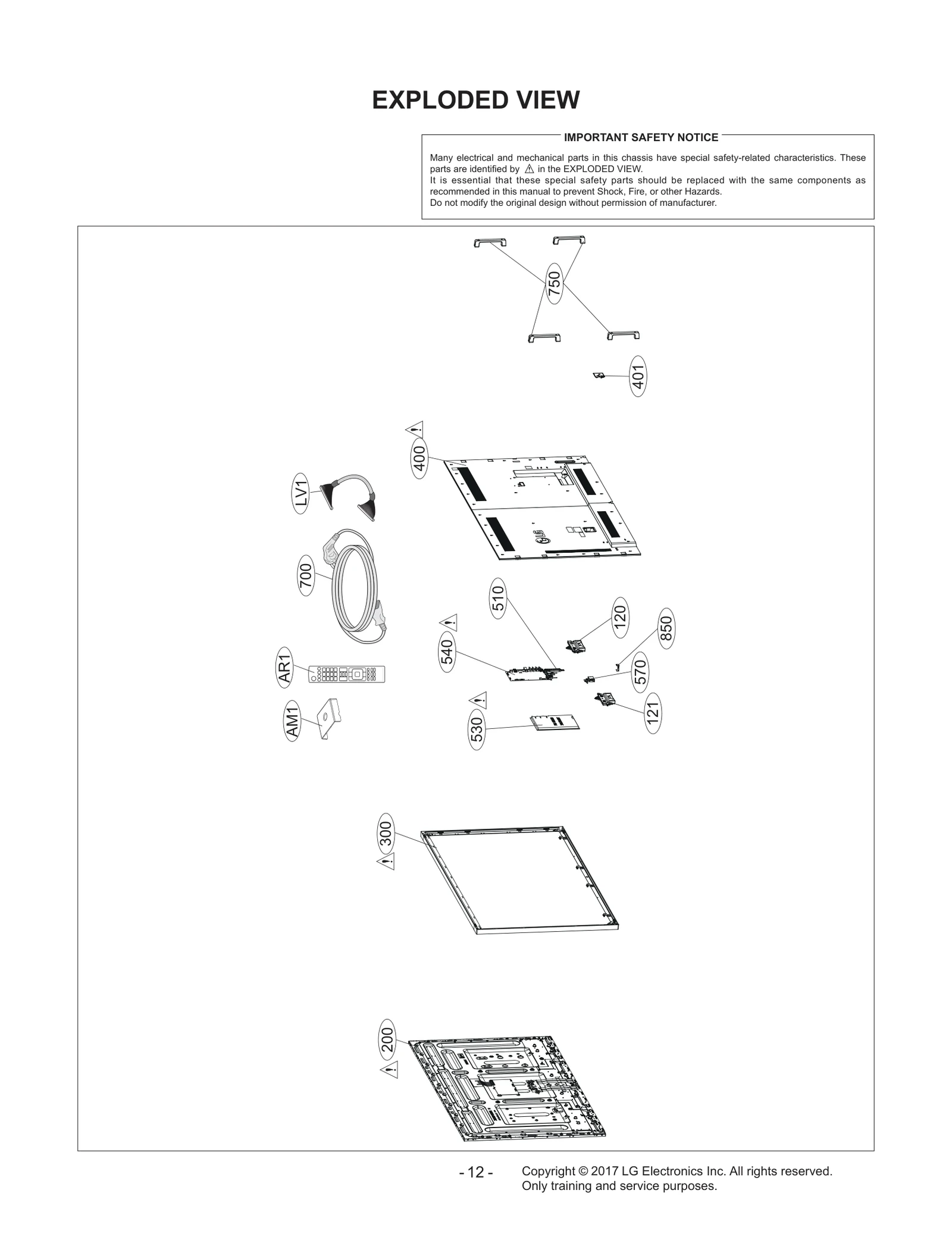

Diagram 0
Diagram 1
Common parts from model LG 86UM3C-B
120
Speaker Assembly LGE EAB64248201 Contact Us For Availability
121
Speaker Assembly LGE EAB64248202 Contact Us For Availability
200
LCD Module LGE EAJ63774603 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88707506 Contact Us For Availability
401
Cover LGE MCK66775503 Contact Us For Availability
530
Power Supply Assembly LGE EAY64289806 Contact Us For Availability
541
Cover LGE MCK69108101 Contact Us For Availability
542
Cover LGE MCK69108201 Contact Us For Availability
570
Cover Assembly LGE ACQ89008901 Contact Us For Availability
750
Handle LGE MEB62895201 Contact Us For Availability
A4
Cable,Assembly LGE EAD62707902 Contact Us For Availability
A5
Cable,Assembly LGE EAD63127608 Contact Us For Availability
A6
Screw,Taptite LGE FAB30013219 Contact Us For Availability
AM1
Cover LGE MCK68607501 Contact Us For Availability
LV1
Cable,FFC LGE EAD63787823 Contact Us For Availability
S1
Harness,Single LGE EAD63147304 Contact Us For Availability
S2
Harness,Single LGE EAD63147104 Contact Us For Availability
S7
Harness,Multi LGE EAD63727317 Contact Us For Availability
S8
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
S9
Harness,Single LGE EAD62732504 Contact Us For Availability
S10
Harness,Single LGE EAD63429407 Contact Us For Availability
S11
Cable,Assembly LGE EAD63406601 Contact Us For Availability
× ![]()
