Model LG 86QNED70AUA – Common Parts & Diagrams
Diagram 0

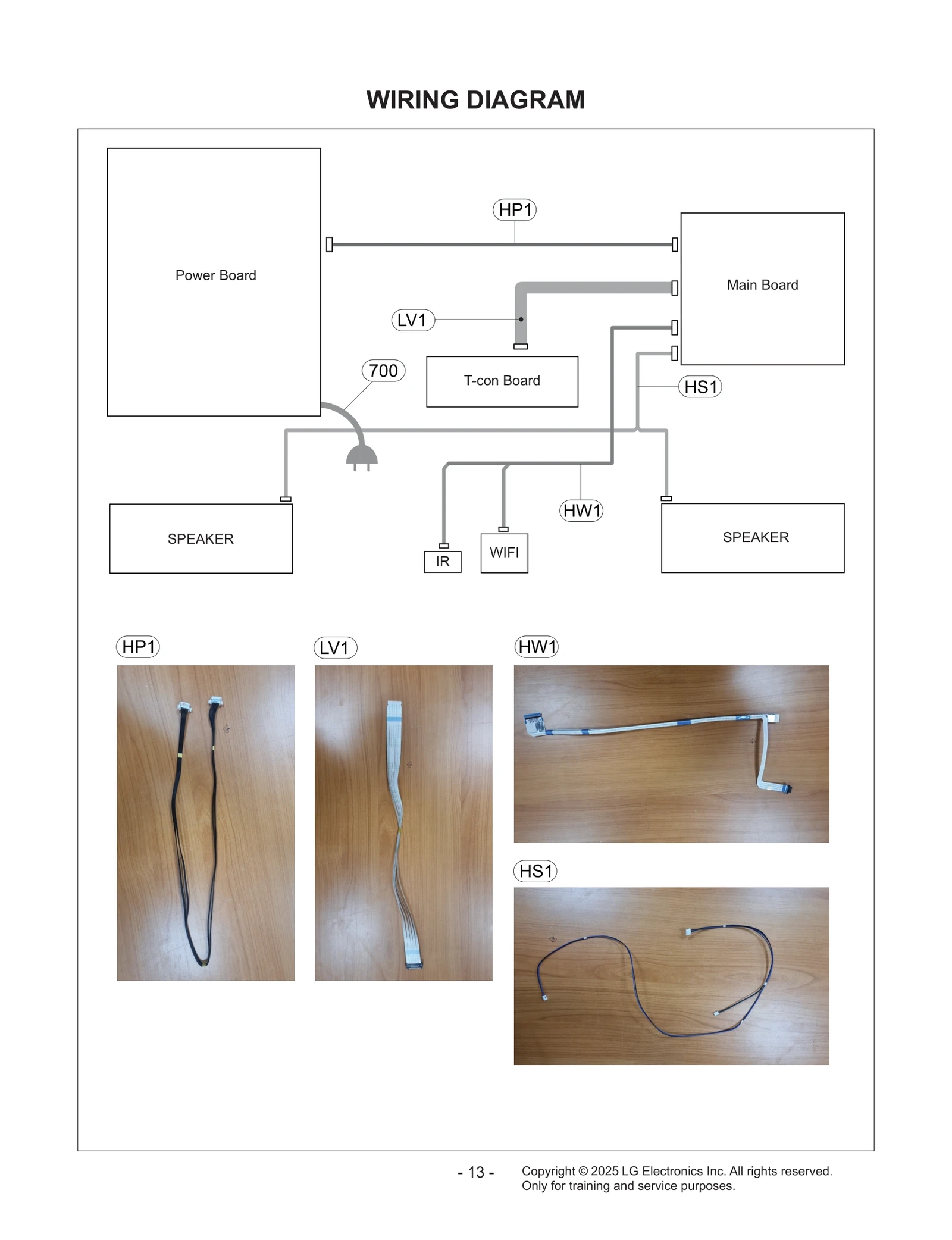

Diagram 1
Common parts from model LG 86QNED70AUA
200
LCD,Module-TFT LGE EAJ30043203 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF30373703 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30683003 Contact Us For Availability
411
Cover Assembly,Bottom LGE ACQ30214437 Contact Us For Availability
521
Bracket LGE MAZ67472154 Contact Us For Availability
522
Bracket LGE MAZ67472287 Contact Us For Availability
522
Bracket LGE MAZ67472286 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU30258301 Contact Us For Availability
710
Bracket LGE MAZ67457320 Contact Us For Availability
710
Bracket LGE MAZ67457321 Contact Us For Availability
810
Bracket LGE MAZ67455001 Contact Us For Availability
820
Insulator LGE MEV67700004 Contact Us For Availability
900
Base Assembly LGE AAN77370151 Contact Us For Availability
951
Damper LGE MCQ68894005 Contact Us For Availability
AR2
Remote Controller Assembly LGE AKB76046602 Contact Us For Availability
ARC2
Part LGE EBZ30385903 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
AW2
Screw,Machine LGE FAB32838809 Contact Us For Availability
AW3
Screw,Taptite LGE FAB31639801 Contact Us For Availability
HP1
Harness,Single LGE EAD64586006 Contact Us For Availability
LV1
Cable,FFC LGE EAD66037718 Contact Us For Availability
× ![]()
