Model LG 86NANO99UPA – Common Parts & Diagrams

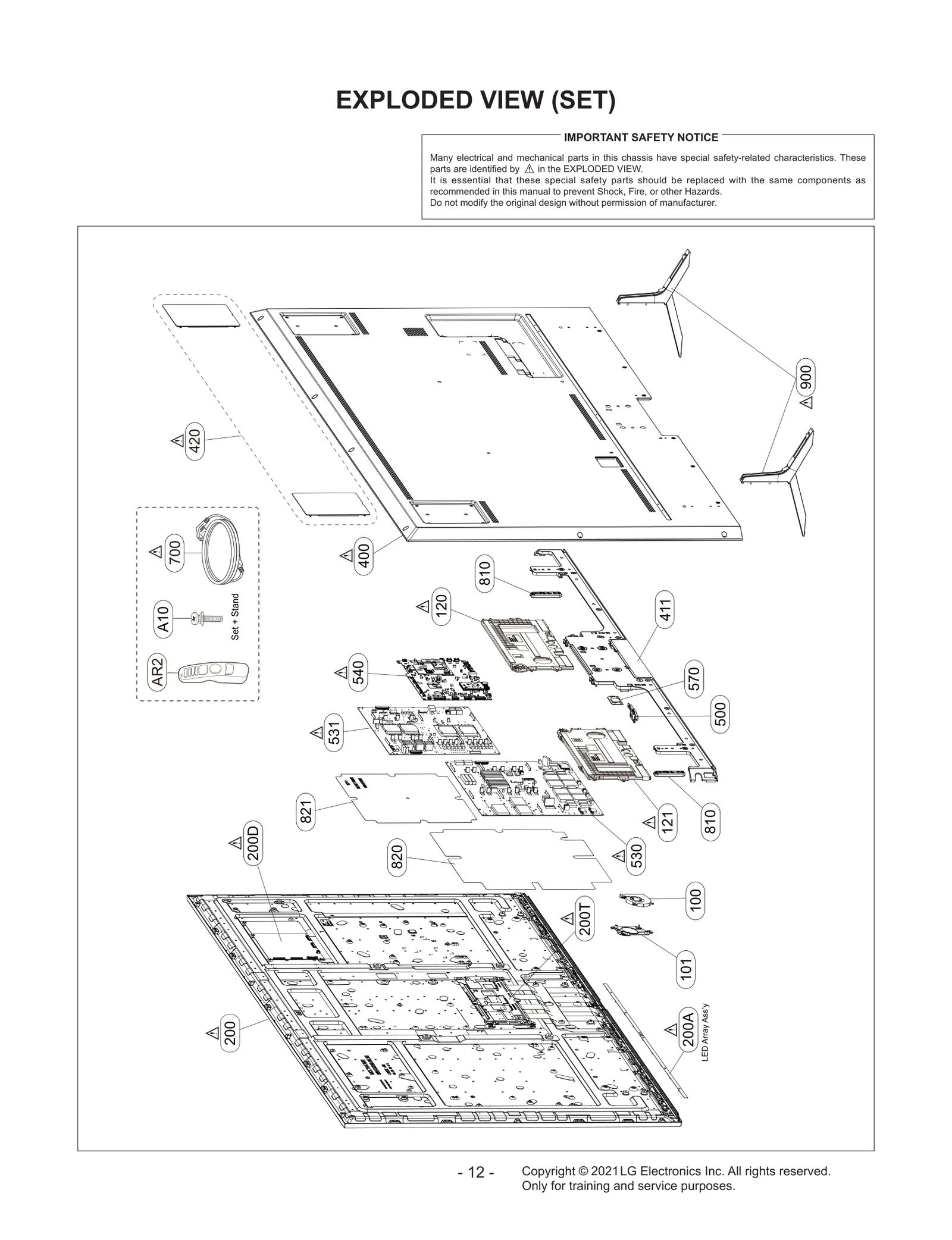

Diagram 0
Diagram 1
Common parts from model LG 86NANO99UPA
101
Supporter LGE MJH66256902 Contact Us For Availability
120
Speaker Assembly LGE EAB65819001 Contact Us For Availability
121
Speaker Assembly LGE EAB65819002 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65686702 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF30111901 Contact Us For Availability
200D
PCB Assembly LGE EBR32281701 Contact Us For Availability
200T
Time Control LGE EAT65170801 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30235580 Contact Us For Availability
500
PCB Assembly,IR Key LGE EBR31871301 Contact Us For Availability
531
Power Supply Assembly LGE EAY65894622 Contact Us For Availability
700
Power Cord,Attach LGE EAD65887402 Contact Us For Availability
810
Bracket LGE MAZ67461102 Contact Us For Availability
820
Plate Assembly LGE AGU30015101 Contact Us For Availability
900
Base Assembly LGE AAN30014708 Contact Us For Availability
HD1
Harness,Single LGE EAD63026126 Contact Us For Availability
HP1
Harness,Multi LGE EAD64687815 Contact Us For Availability
HS1
Harness,Multi LGE EAD65894904 Contact Us For Availability
HT1
Harness,Single LGE EAD63725108 Contact Us For Availability
HW1
Harness,Multi LGE EAD65898403 Contact Us For Availability
LV1
Cable,FFC LGE EAD63285777 Contact Us For Availability
LV2
Cable,FFC LGE EAD63285778 Contact Us For Availability
LV3
Cable,FFC LGE EAD63285779 Contact Us For Availability
LV4
Cable,FFC LGE EAD63285780 Contact Us For Availability
× ![]()
