Model Whirlpool 86HN-1 ELECTRIC COOK-TOP – Common Parts & Diagrams

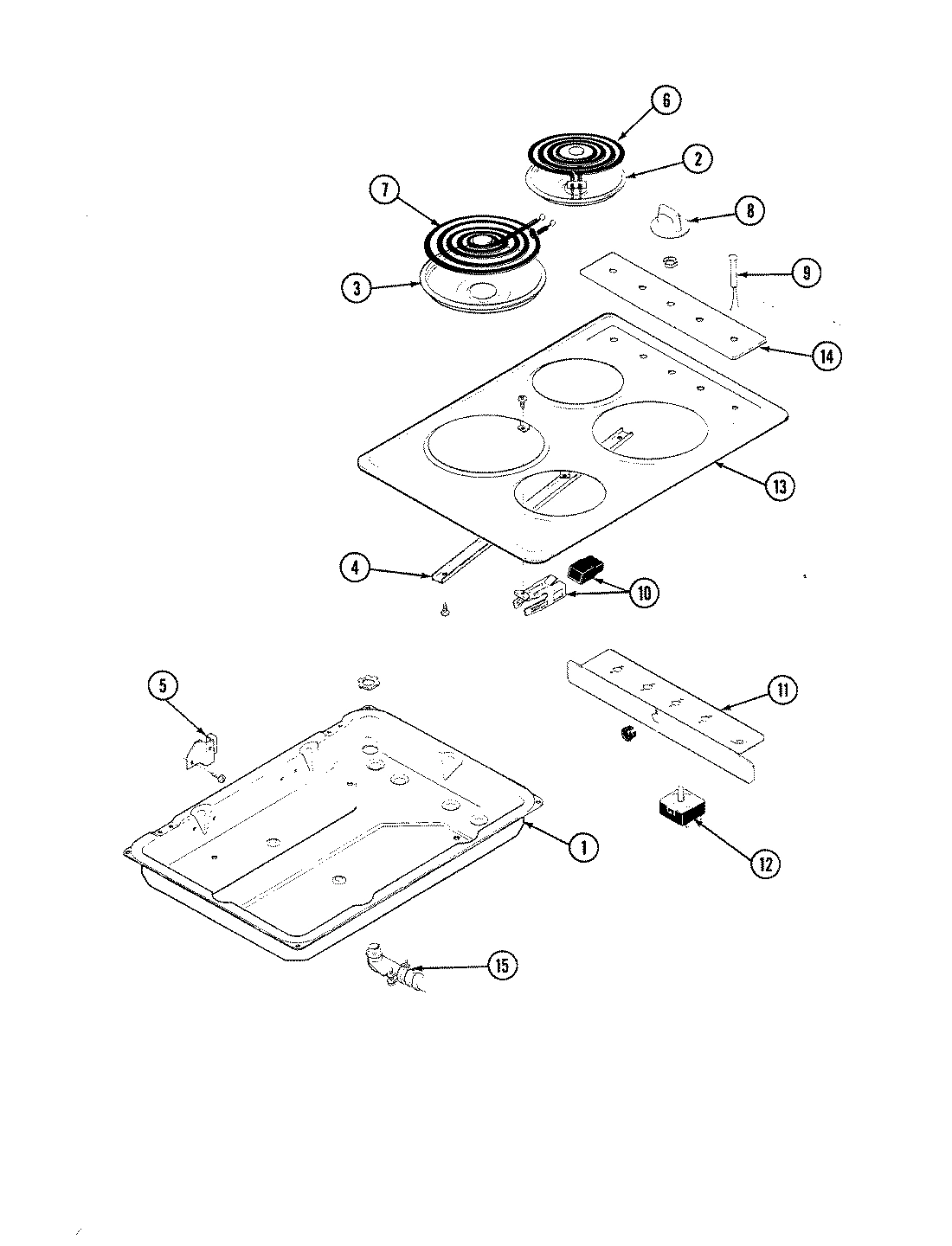

01 - TOP ASSEMBLY
Common parts from model Whirlpool 86HN-1 ELECTRIC COOK-TOP
1
BOTTOM, BURNER BOX WPL 4011F14380 Contact Us For Availability
2
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
3
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
4
BRACE, TOP WPL 3802F07080 Contact Us For Availability
5
BRACKET, MAIN TOP SUPPORT WPL 3801F18345 Contact Us For Availability
5
SCREW WPL 7101P06360 Contact Us For Availability
5
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
5
LUG, GROUND WPL 7807P00360 Contact Us For Availability
6
ELEMENT (6``) WPL 7406P01860 Contact Us For Availability
7
ELEMENT, GIANT SURFACE WPL 7406P03060 Contact Us For Availability
8
KNOB, SWITCH WPL 7737P01260 Contact Us For Availability
9
PLATE, REINFORCEMENT WPL 3605F13145 Contact Us For Availability
9
SCREW, GROUND (GRN) WPL 7101P02760 Contact Us For Availability
9
PLATE, NAME WPL 7719P02660 Contact Us For Availability
9
LIGHT, SIGNAL WPL Y04000016 Contact Us For Availability
10
SCREW WPL 7101P04260 Contact Us For Availability
10
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
11
SHIELD, SWITCH WIRING WPL 3604F13370 Contact Us For Availability
11
SLEEVE, TUBE WPL 8018P00160 Contact Us For Availability
12
NUT, SWITCH WPL 7103P02160 Contact Us For Availability
12
SWITCH, INFINITE WPL 7403P02760 Contact Us For Availability
13
TOP, MAIN WHITE WPL 2002W06281 Contact Us For Availability
13
TOP ASSY, MAIN WHT WPL 2002W06381 Contact Us For Availability
14
TRIM WPL 7720P10860 Contact Us For Availability
14
TRIM WPL 7720P13360 Contact Us For Availability
14
GROMMET, NYLON WPL 8008P00360 Contact Us For Availability
15
CONDUIT ASSY, FLEX WPL 5700A21460 Contact Us For Availability
× ![]()
