  • Whirlpool 8660PV Parts List

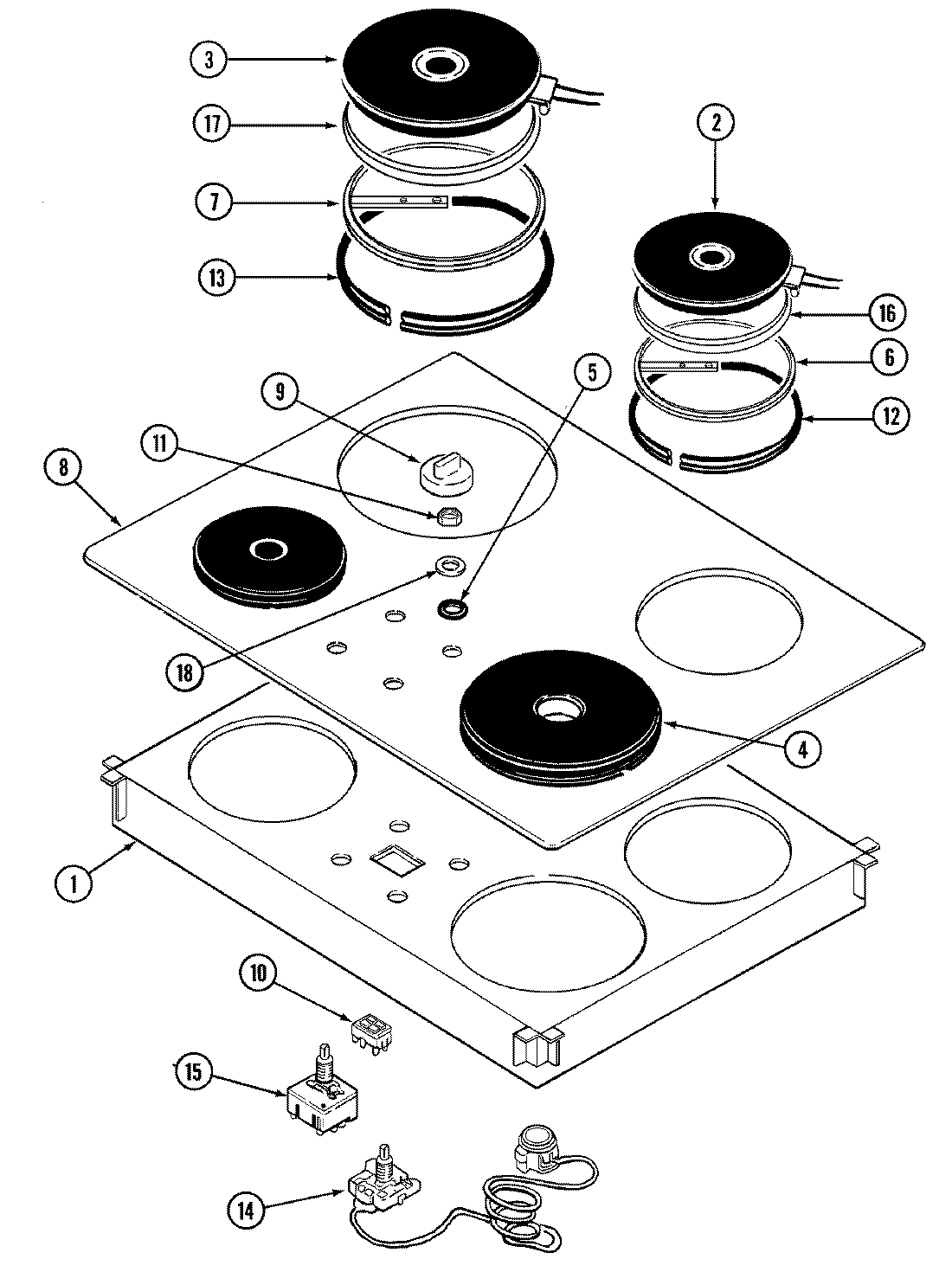

Model Whirlpool 8660PV ELECTRIC COOK-TOP – Common Parts & Diagrams

1
BAFFLE
BAFFLE WPL 3601W17251 Contact Us For Availability
View on Model
1
BOX, BURNER
BOX, BURNER WPL 4006W11851 Contact Us For Availability
View on Model
2
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
View on Model
2
ELEMENT (6``)
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
View on Model
3
SLEEVE, TUBE
SLEEVE, TUBE WPL 8018P00160 Contact Us For Availability
View on Model
3
ELEMENT, SOLID DISC (8``)
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
View on Model
4
CONDUIT, FLEXIBLE
CONDUIT, FLEXIBLE WPL 3414F03644 Contact Us For Availability
View on Model
4
ELEMENT (8``- AUTO SWITCH)
ELEMENT (8``- AUTO SWITCH) WPL 7406P02260 Contact Us For Availability
View on Model
5
CONNECTOR, RIGHT ANG
CONNECTOR, RIGHT ANG WPL 7417P00460 Contact Us For Availability
View on Model
5
GASKET, INF SWITCH
GASKET, INF SWITCH WPL 7201P02460 Contact Us For Availability
View on Model
6
COVER, BOTTOM
COVER, BOTTOM WPL 4005F03951 Contact Us For Availability
View on Model
6
GASKET, RING (6``)
GASKET, RING (6``) WPL Y7201P02160 Contact Us For Availability
View on Model
7
NUT, SURFACE ELEMENT
NUT, SURFACE ELEMENT WPL 7103P07460 Contact Us For Availability
View on Model
7
GASKET, RING (8``)
GASKET, RING (8``) WPL Y7201P02260 Contact Us For Availability
View on Model
8
NUT, KEPS
NUT, KEPS WPL 7103P07560 Contact Us For Availability
View on Model
8
GLASS, MAIN TOP-WHITE
GLASS, MAIN TOP-WHITE WPL 7918P01060 Contact Us For Availability
View on Model
9
BRACKET, CONDUIT
BRACKET, CONDUIT WPL 3801F07245 Contact Us For Availability
View on Model
9
KNOB, SURFACE ELEMENT (WHT)
KNOB, SURFACE ELEMENT (WHT) WPL 7737P01360 Contact Us For Availability
View on Model
10
SCREW
SCREW WPL 7101P05960 Contact Us For Availability
View on Model
10
LIGHT, SIGNAL
LIGHT, SIGNAL WPL 7407P06460 Contact Us For Availability
View on Model
11
SWITCH, HI-LIMIT
SWITCH, HI-LIMIT WPL 7403P17460 Contact Us For Availability
View on Model
11
NUT, SWITCH MTG
NUT, SWITCH MTG WPL 7103P07360 Contact Us For Availability
View on Model
12
SILICONE SEAL (6``)
SILICONE SEAL (6``) WPL 7212P01160 Contact Us For Availability
View on Model
13
SILICONE SEAL (8``)
SILICONE SEAL (8``) WPL 7212P01060 Contact Us For Availability
View on Model
14
SWITCH, AUTO
SWITCH, AUTO WPL 7403P20660 Contact Us For Availability
View on Model
15
SWITCH, INFINITE
SWITCH, INFINITE WPL 7403P20960 Contact Us For Availability
View on Model
16
TRIM, RING (6``) (WHT)
TRIM, RING (6``) (WHT) WPL 3608F00181 Contact Us For Availability
View on Model
17
TRIM, RING (8``) (WHT)
TRIM, RING (8``) (WHT) WPL 3608F00281 Contact Us For Availability
View on Model
18
WASHER, SWITCH
WASHER, SWITCH WPL 7109P01360 Contact Us For Availability
View on Model
19
POLISH, ELECTROL RESTORING
POLISH, ELECTROL RESTORING WPL 8308P00160 Contact Us For Availability
View on Model
21
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 8112P02060 Contact Us For Availability
View on Model
22
GUIDE, QUICK REF. - MAGIC CHEF
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
View on Model
