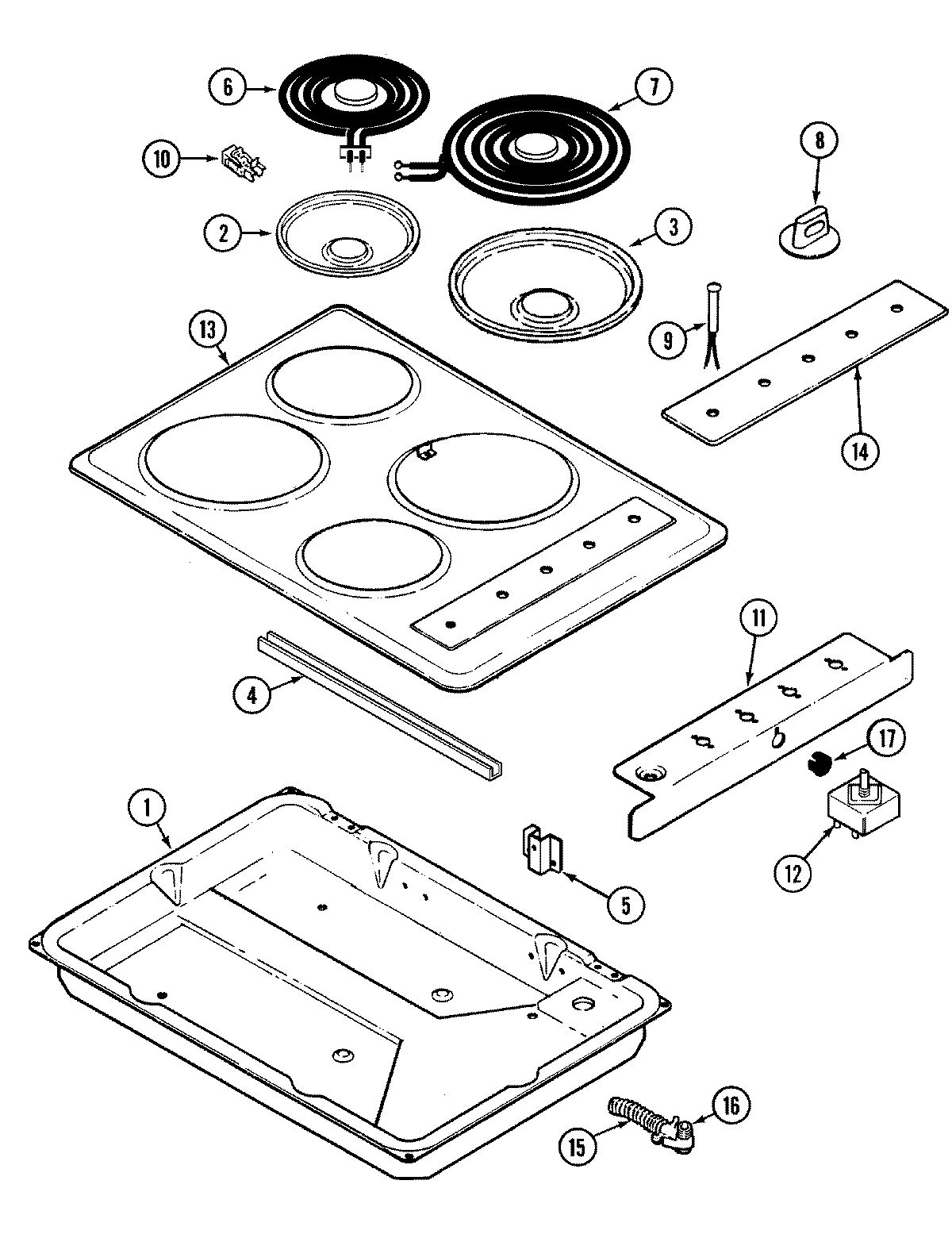

Model Whirlpool 8610PS ELECTRIC COOK-TOP – Common Parts & Diagrams

1
BOTTOM, BURNER BOX
BOTTOM, BURNER BOX WPL 4011F14380 Contact Us For Availability
View on Model
2
BOWL, DRIP (6``)
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
View on Model
3
BOWL, DRIP (8``)
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
View on Model
4
BRACE, TOP
BRACE, TOP WPL 3802F07051 Contact Us For Availability
View on Model
5
BRACKET, MAIN TOP SUPPORT
BRACKET, MAIN TOP SUPPORT WPL 3801F18345 Contact Us For Availability
View on Model
5
CLAMP, WIRE 3/4
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL 7118P00460 Contact Us For Availability
View on Model
6
ELEMENT (6``)
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
View on Model
7
ELEMENT (8``)
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
View on Model
8
KNOB, SWITCH
KNOB, SWITCH WPL 7737P02660 Contact Us For Availability
View on Model
9
LIGHT, INDICATOR
LIGHT, INDICATOR WPL 74001480 Contact Us For Availability
View on Model
9
PLATE, BURNER BOX
PLATE, BURNER BOX WPL 8112P00160 Contact Us For Availability
View on Model
9
LIGHT, SIGNAL
LIGHT, SIGNAL WPL Y04000016 Contact Us For Availability
View on Model
10
SCREW
SCREW WPL 7101P04260 Contact Us For Availability
View on Model
10
CLIP, UNIT BLOCK
CLIP, UNIT BLOCK WPL 7112P02660 Contact Us For Availability
View on Model
10
BLOCK, SURFACE UNIT
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
View on Model
11
SHIELD SWITCH WIRING
SHIELD SWITCH WIRING WPL 3604F13380 Contact Us For Availability
View on Model
12
NUT, SWITCH
NUT, SWITCH WPL 7103P02160 Contact Us For Availability
View on Model
12
SWITCH, INFINITE
SWITCH, INFINITE WPL 7403P02760 Contact Us For Availability
View on Model
13
TOP, MAIN (STAINLESS)
TOP, MAIN (STAINLESS) WPL 2002W06330 Contact Us For Availability
View on Model
14
TRIM, CONTROL PANEL (BLK)
TRIM, CONTROL PANEL (BLK) WPL 7720P14760 Contact Us For Availability
View on Model
14
TRIM, CONTROL PANEL (BLK)
TRIM, CONTROL PANEL (BLK) WPL 7720P18460 Contact Us For Availability
View on Model
15
TUBING, CONDUIT (FLEXIBLE)
TUBING, CONDUIT (FLEXIBLE) WPL 3414F03544 Contact Us For Availability
View on Model
15
BRACKET, CONDUIT
BRACKET, CONDUIT WPL 3801F07245 Contact Us For Availability
View on Model
15
WIRES, CONDUIT TUBING
WIRES, CONDUIT TUBING WPL 74001216 Contact Us For Availability
View on Model
15
WIRES, TUBING
WIRES, TUBING WPL 74001447 Contact Us For Availability
View on Model
16
CONNECTOR, RIGHT ANG
CONNECTOR, RIGHT ANG WPL 7417P00460 Contact Us For Availability
View on Model
16
SLEEVE, TUBE
SLEEVE, TUBE WPL 8018P00160 Contact Us For Availability
View on Model
17
GROMMET, NYLON
GROMMET, NYLON WPL 8008P01460 Contact Us For Availability
View on Model
18
WIRE/TERMINAL KIT
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
View on Model
18
HARNESS, COMPLETE ASSY
HARNESS, COMPLETE ASSY WPL 5175A01560 Contact Us For Availability
View on Model
18
HARNESS, WIRE COOKTOP
HARNESS, WIRE COOKTOP WPL 74001593 Contact Us For Availability
View on Model
19
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 74002580 Contact Us For Availability
View on Model
NI
WIRING INFORMATION
WIRING INFORMATION WPL 15001158 Contact Us For Availability
View on Model
NI
WIRING INFORMATION
WIRING INFORMATION WPL 15001541 Contact Us For Availability
View on Model
