Model Whirlpool 85TW-4K RV COOK-TOP – Common Parts & Diagrams

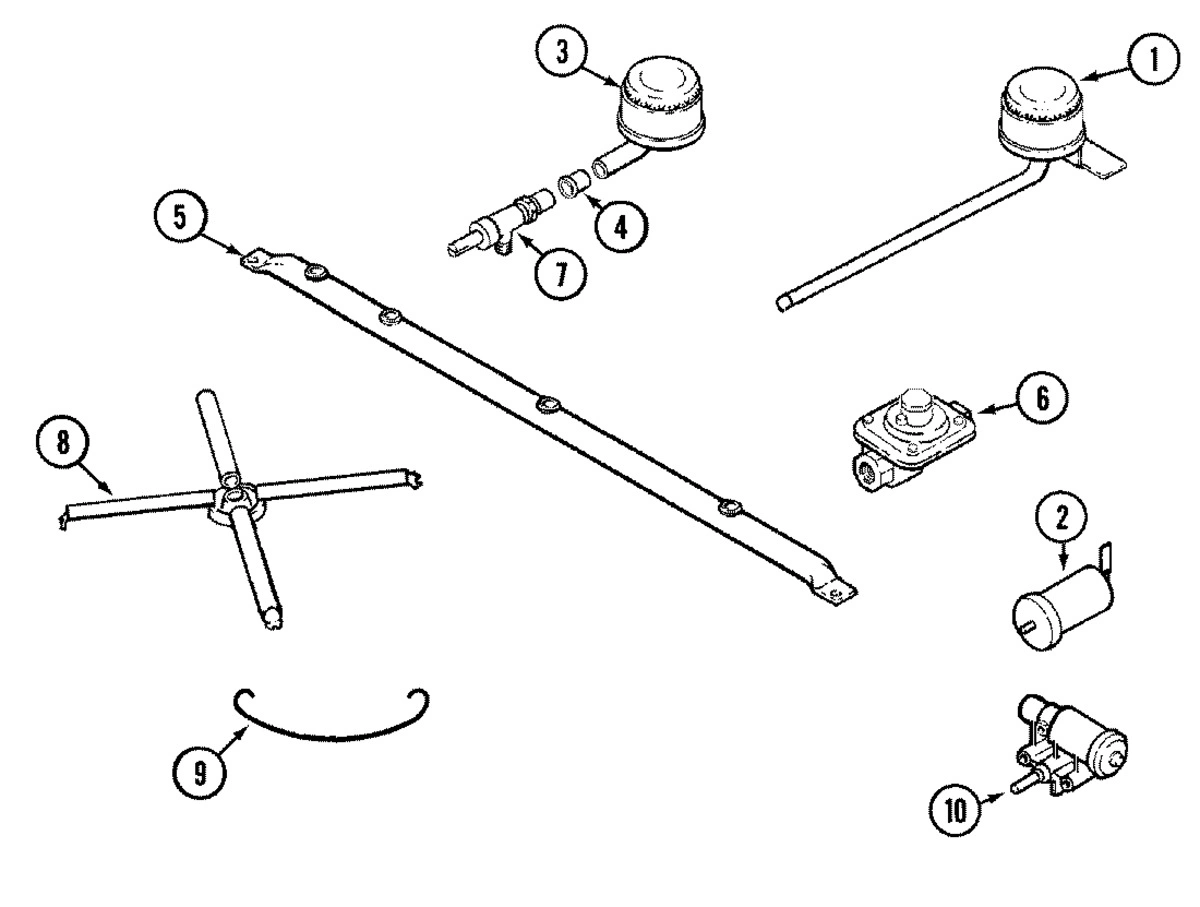

1
BURNER, ASSY L.R.
BURNER, ASSY L.R. WPL 7505P15460 Contact Us For Availability
View on Model

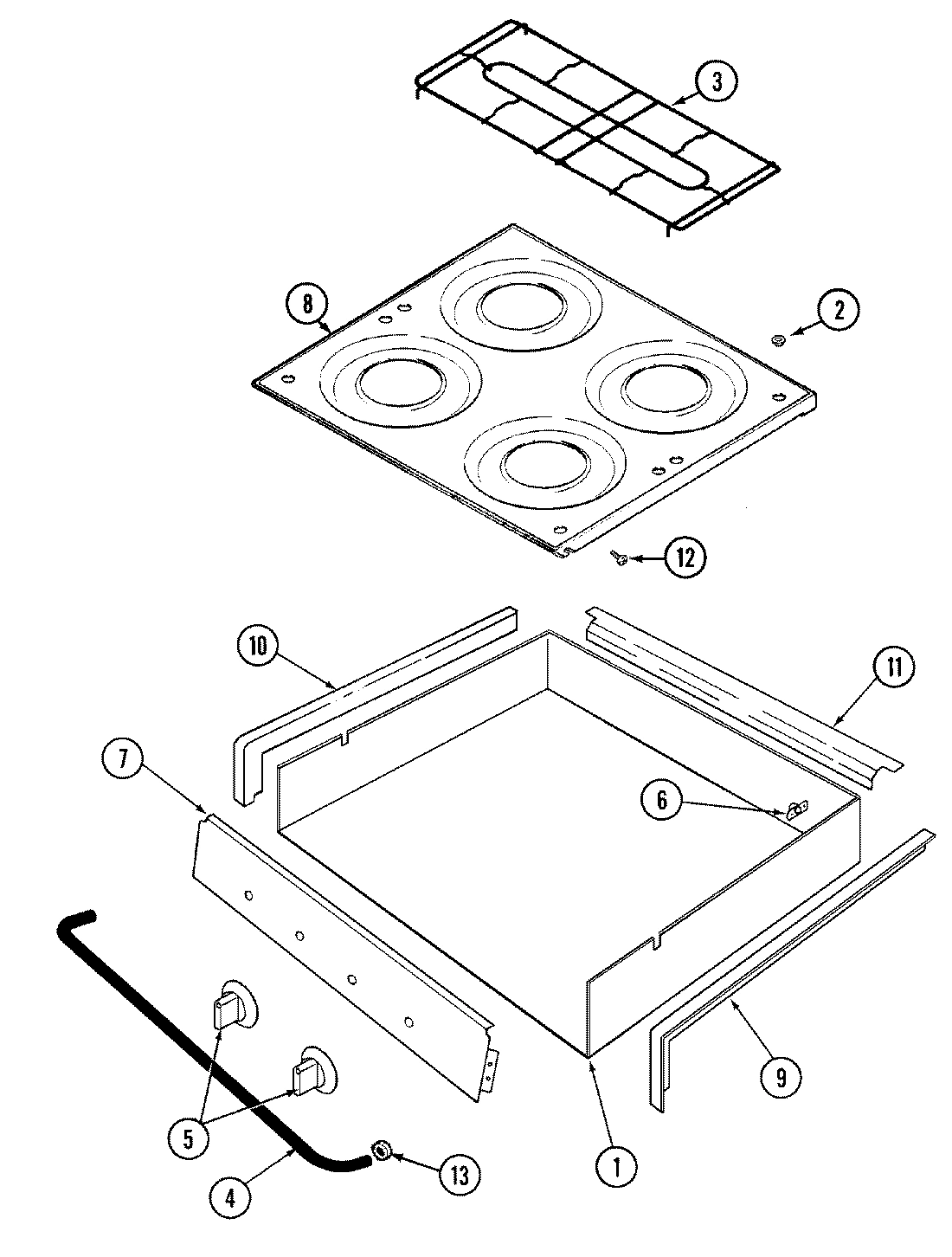

1
BURNER BOX ASSY.
BURNER BOX ASSY. WPL 4006W07680 Contact Us For Availability
View on Model
2
FASTENER, PUSH RING RV
FASTENER, PUSH RING RV WPL 7104P00260 Contact Us For Availability
View on Model
2
IGNITER, TOP
IGNITER, TOP WPL 7432P07760 Contact Us For Availability
View on Model
2
GROMMET
GROMMET WPL Y8007P02060 Contact Us For Availability
View on Model
3
BURNER, ASSY R.F.
BURNER, ASSY R.F. WPL 7505P15160 Contact Us For Availability
View on Model
3
BURNER, ASSY L.F.
BURNER, ASSY L.F. WPL 7505P15260 Contact Us For Availability
View on Model
3
GRATE, TOP
GRATE, TOP WPL 7518P01260 Contact Us For Availability
View on Model
4
INSERT, BURNER
INSERT, BURNER WPL 7214P01560 Contact Us For Availability
View on Model
4
GUARD, FABRIC
GUARD, FABRIC WPL 3609F00670 Contact Us For Availability
View on Model
5
PIPE, MANIFOLD
PIPE, MANIFOLD WPL 7513P09660 Contact Us For Availability
View on Model
5
KNOB, VALVE
KNOB, VALVE WPL 7733P07260 Contact Us For Availability
View on Model
6
FITTING, HALF UNION
FITTING, HALF UNION WPL 7507P08360 Contact Us For Availability
View on Model
6
REGULATOR, PRESSURE
REGULATOR, PRESSURE WPL 7510P04360 Contact Us For Availability
View on Model
6
T-NUT (RV HINGE)
T-NUT (RV HINGE) WPL 7103P10960 Contact Us For Availability
View on Model
7
VALVE, TOP BURNER (5200)
VALVE, TOP BURNER (5200) WPL 7502P18160 Contact Us For Availability
View on Model
7
PANEL, MANIFOLD
PANEL, MANIFOLD WPL 2616F11570 Contact Us For Availability
View on Model
8
FLASH TUBE
FLASH TUBE WPL 7506P06760 Contact Us For Availability
View on Model
8
TOP, MAIN (WHT)
TOP, MAIN (WHT) WPL 74001484 Contact Us For Availability
View on Model
9
CLIP
CLIP WPL 7112P06860 Contact Us For Availability
View on Model
9
TRIM (RT-BLK)
TRIM (RT-BLK) WPL 74002839 Contact Us For Availability
View on Model
10
WIRE, IGNITER
WIRE, IGNITER WPL 5111A71960 Contact Us For Availability
View on Model
10
TRIM (LT-BLK)
TRIM (LT-BLK) WPL 74002840 Contact Us For Availability
View on Model
11
TRIM, REAR (BLK)
TRIM, REAR (BLK) WPL 74002841 Contact Us For Availability
View on Model
12
BUMPER
BUMPER WPL 8003P00860 Contact Us For Availability
View on Model
13
SPACER, HANDLE
SPACER, HANDLE WPL 8010P07360 Contact Us For Availability
View on Model
14
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 8112P11860 Contact Us For Availability
View on Model
15
GUIDE, QUICK REF. - MAGIC CHEF
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
View on Model
