Model Whirlpool 8595W00 DISHWASHER – Common Parts & Diagrams
03 - DOOR

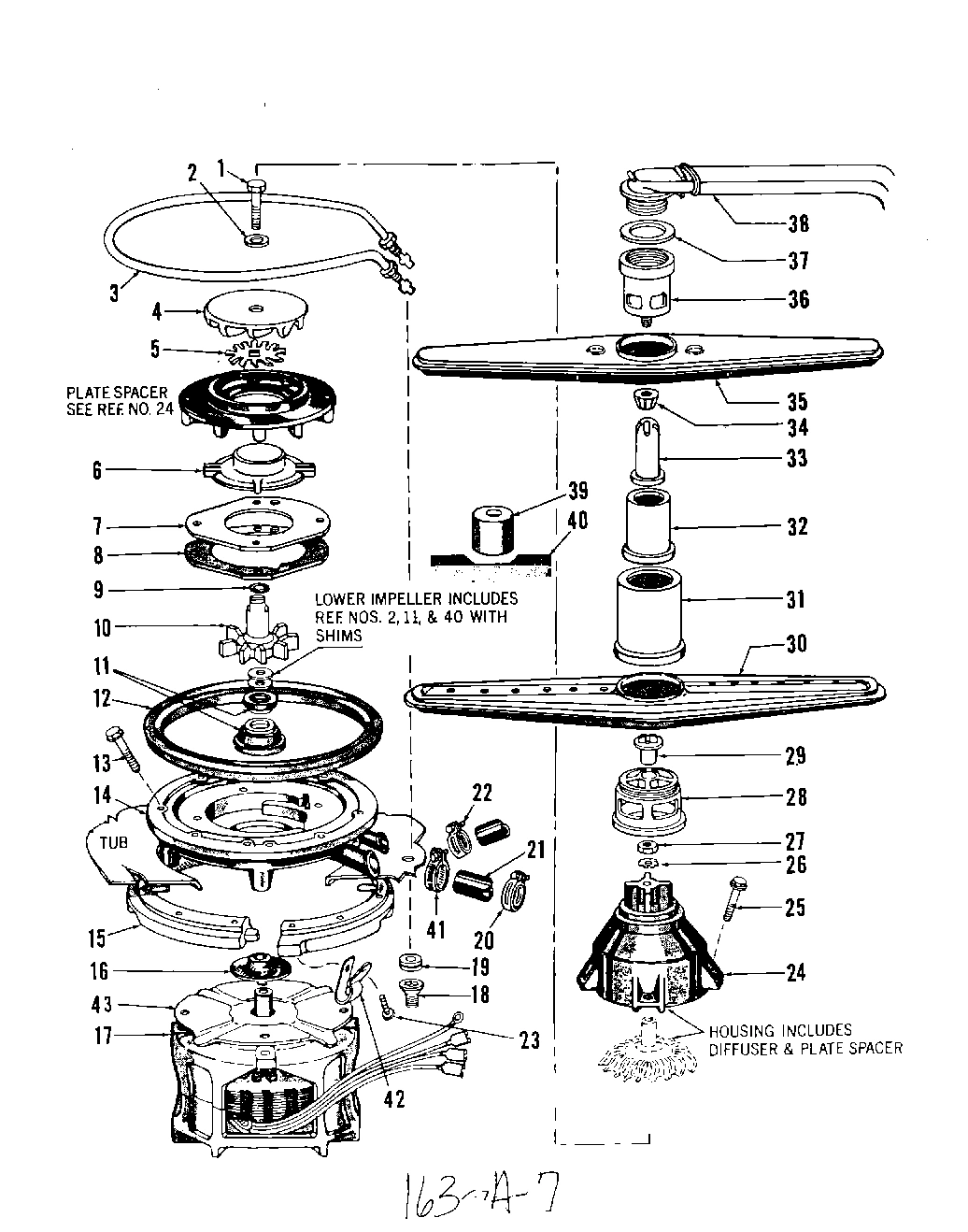

05 - MOTOR, HEATER AND SPRAY ARM

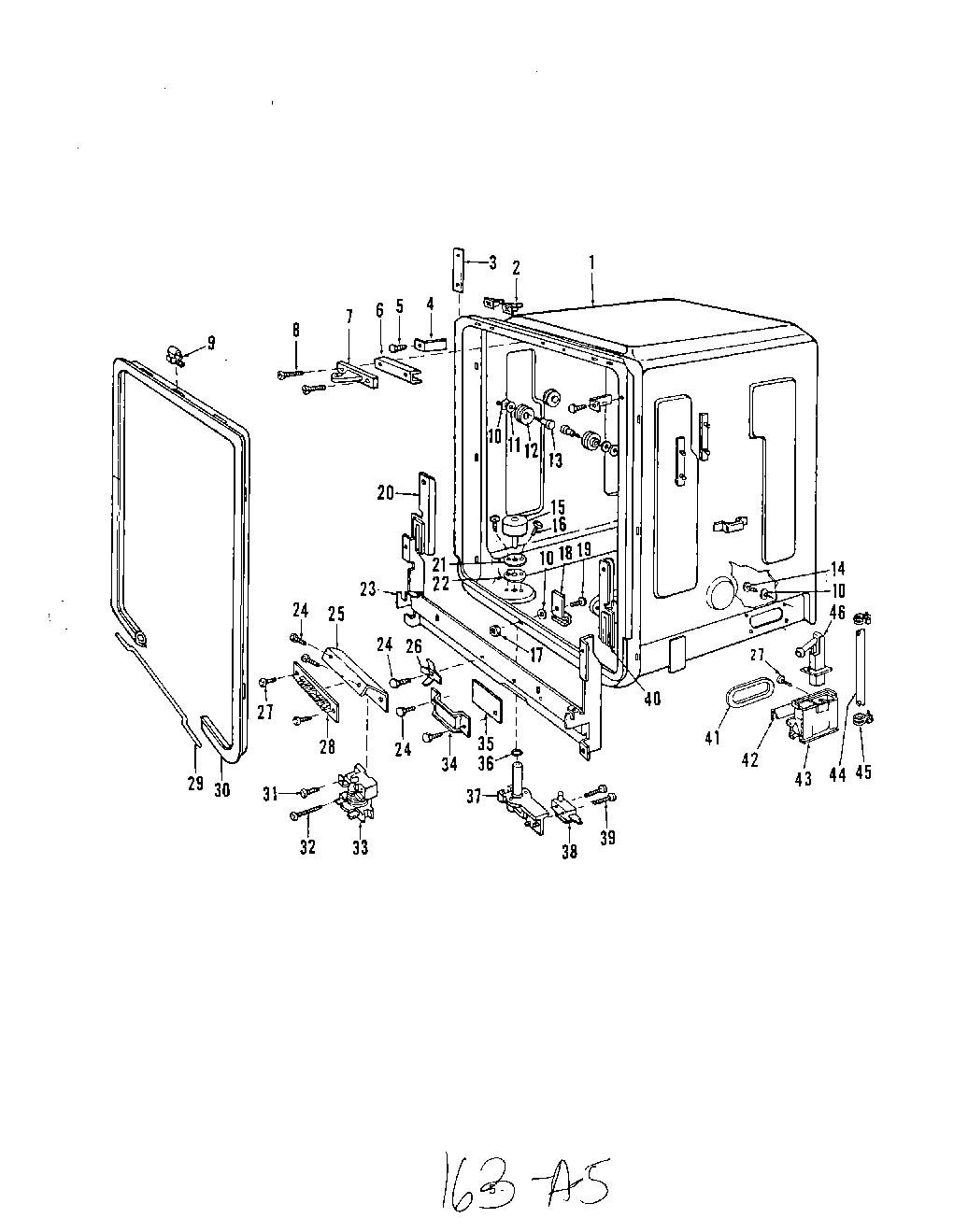

04 - TUB

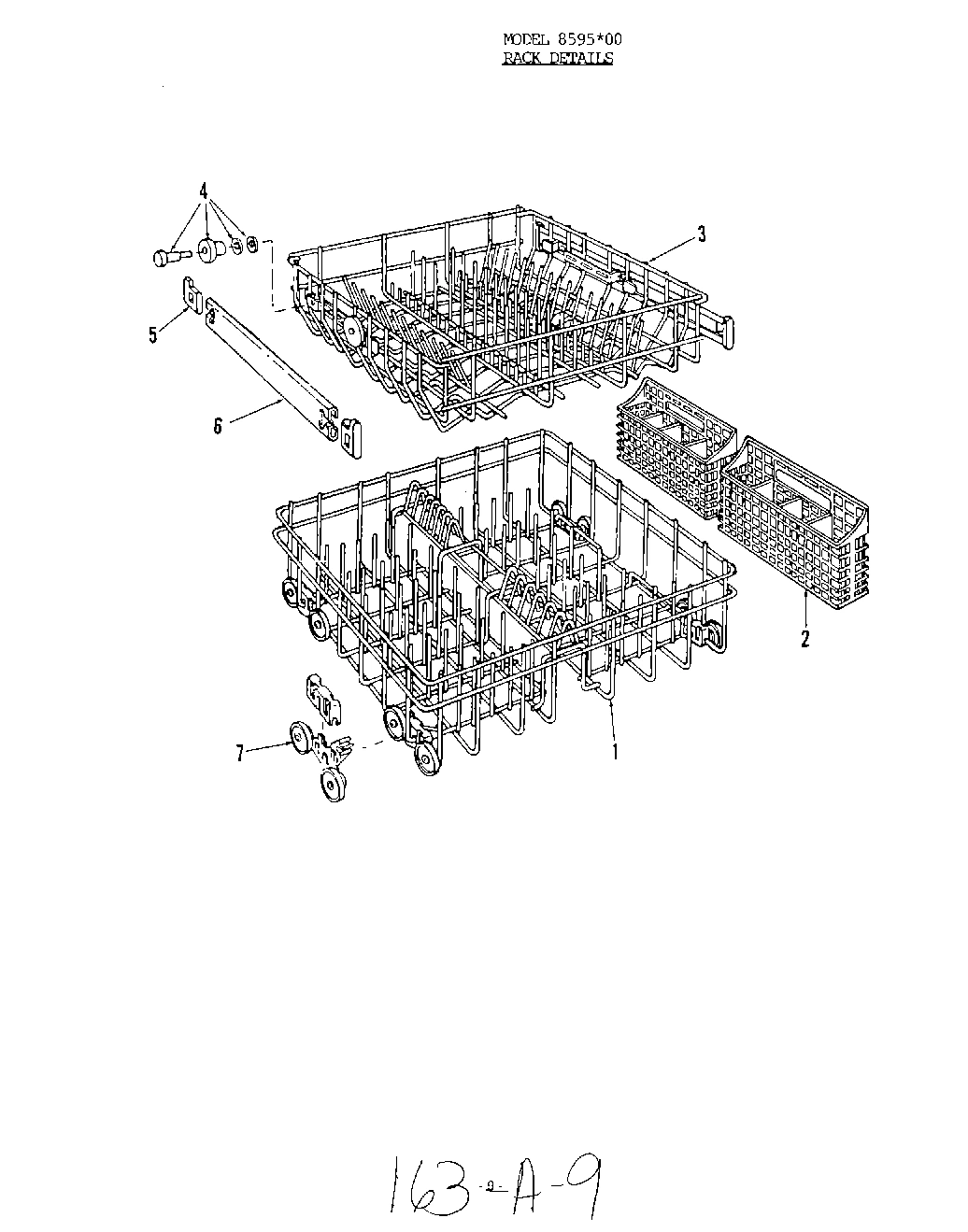

06 - RACK

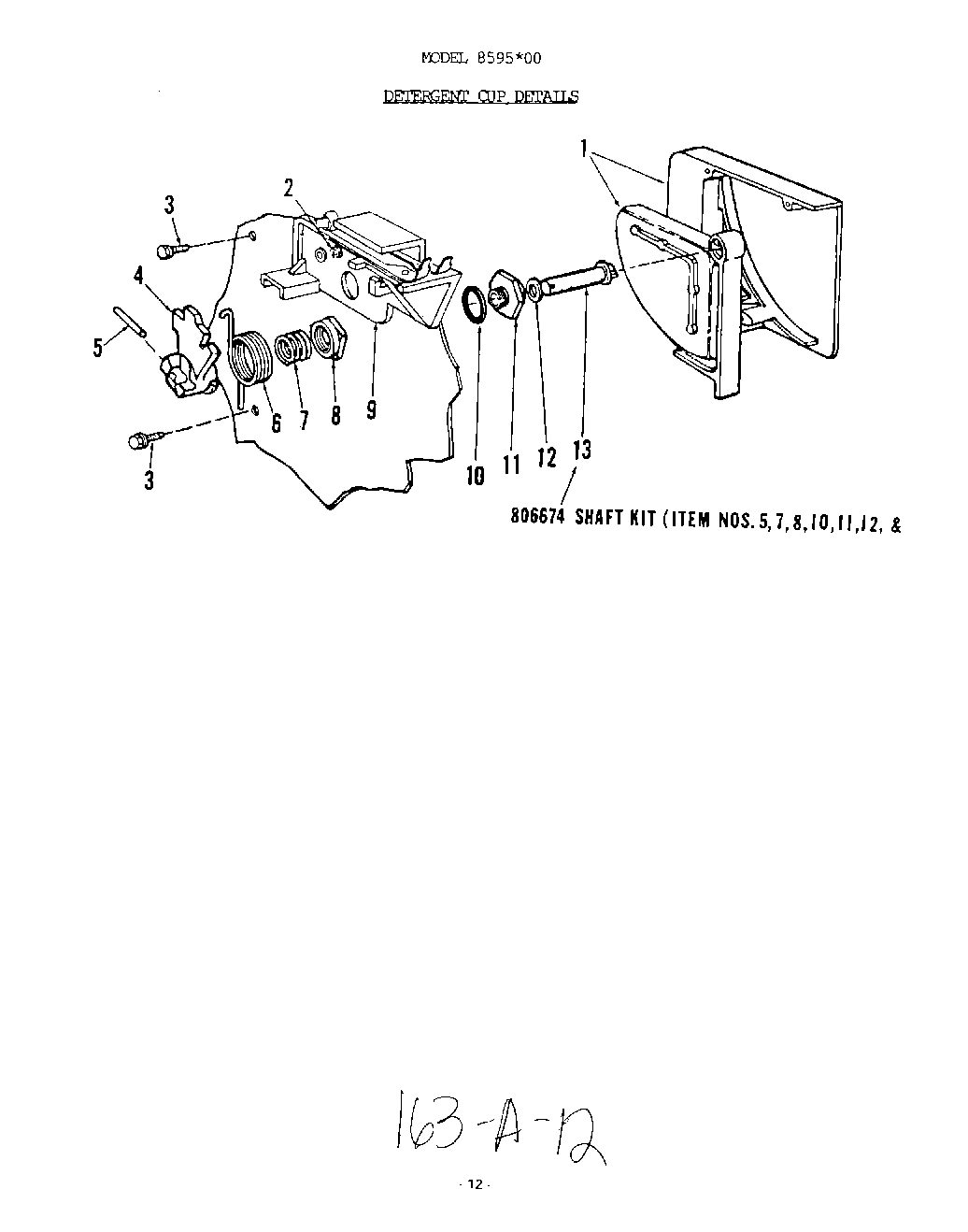

08 - DETERGENT CUP

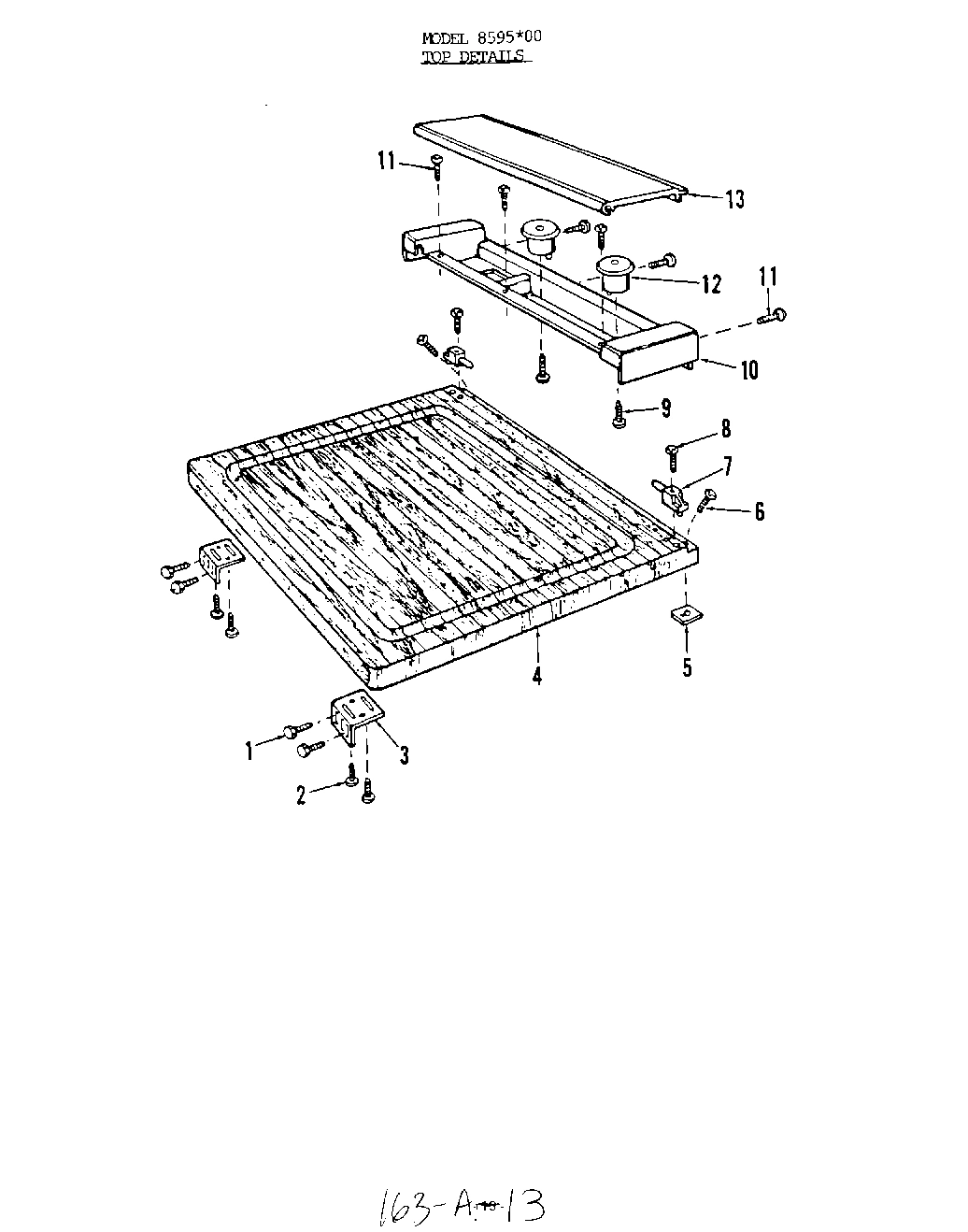

09 - TOP

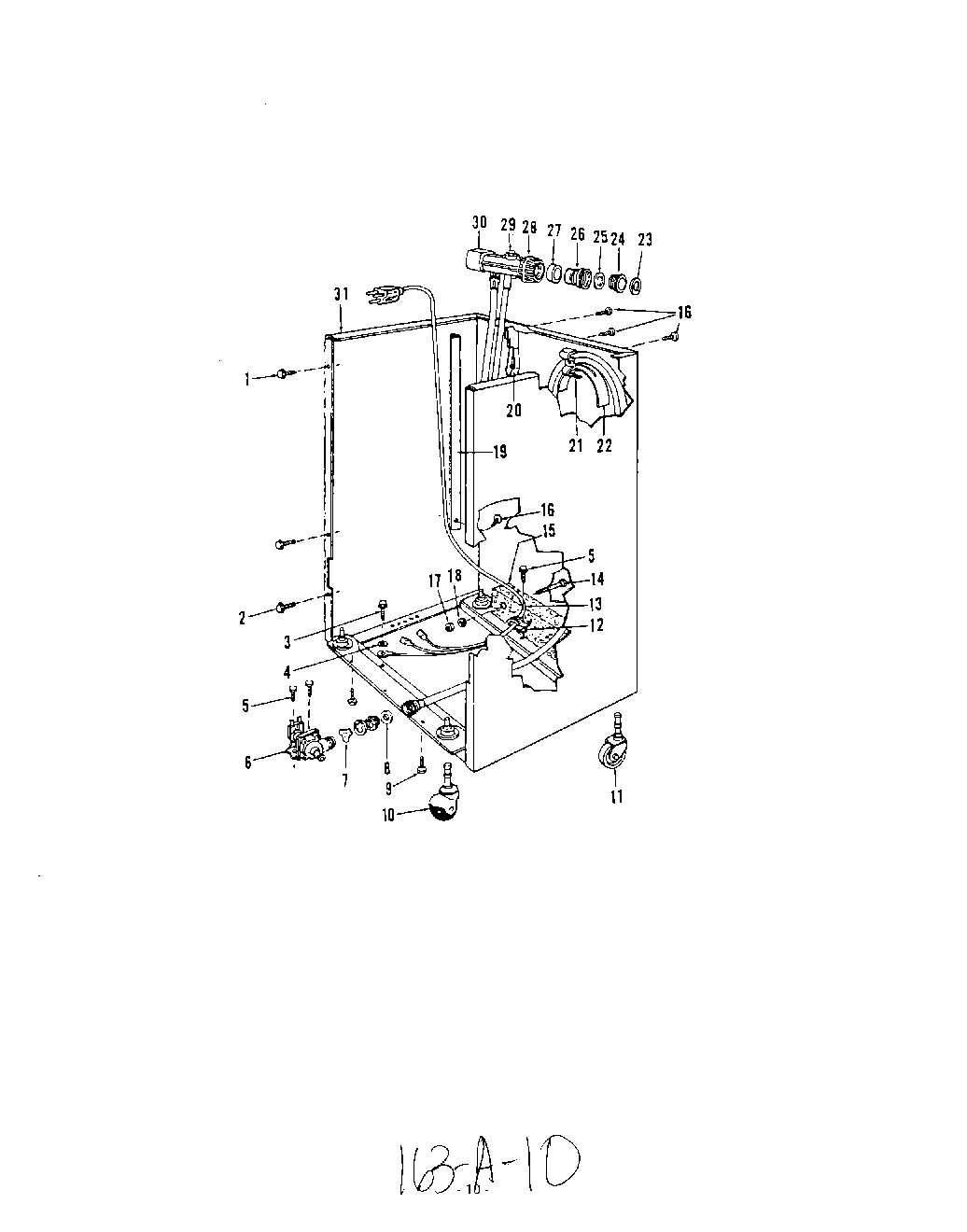

07 - FRAME

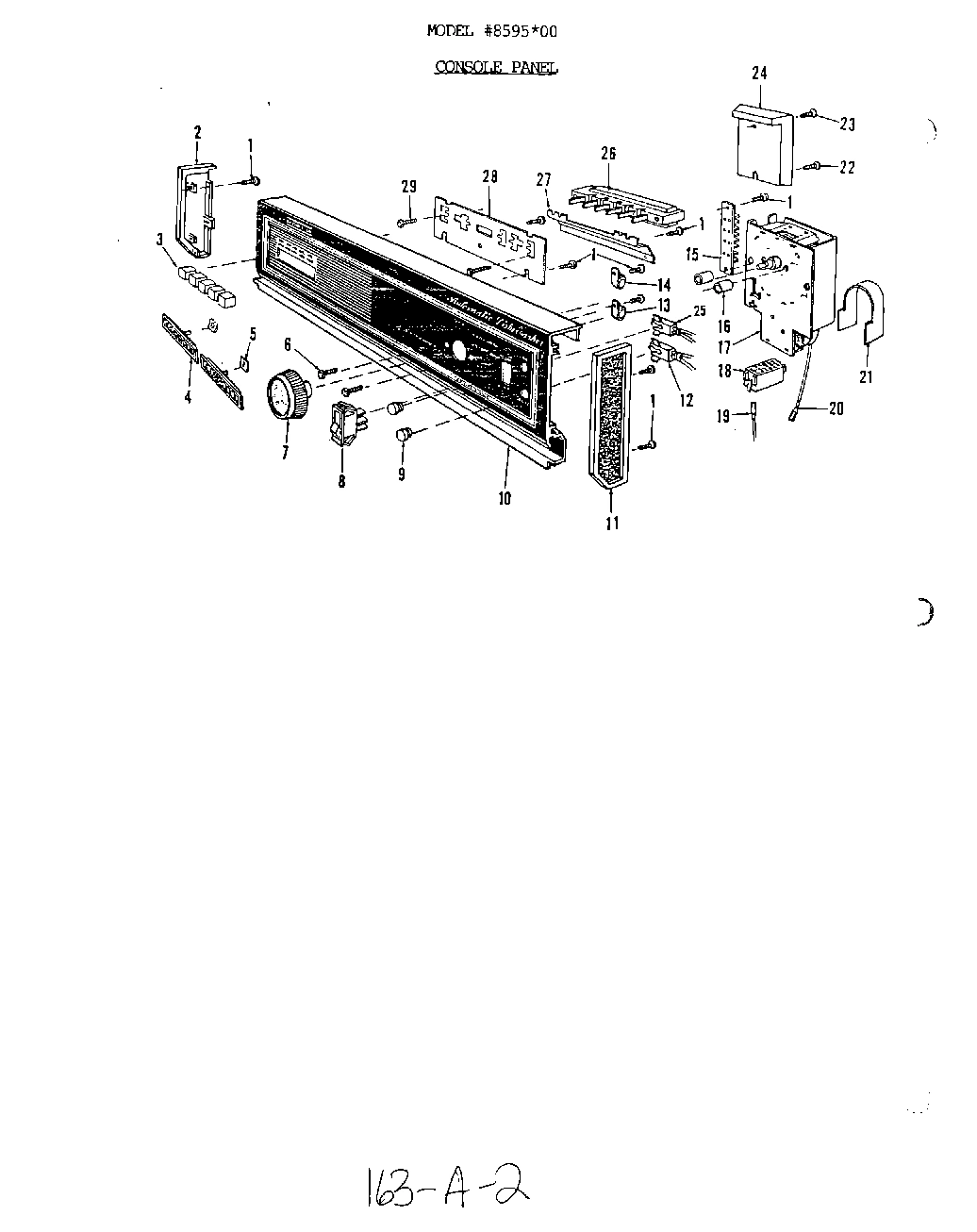

02 - CONSOLE PANEL

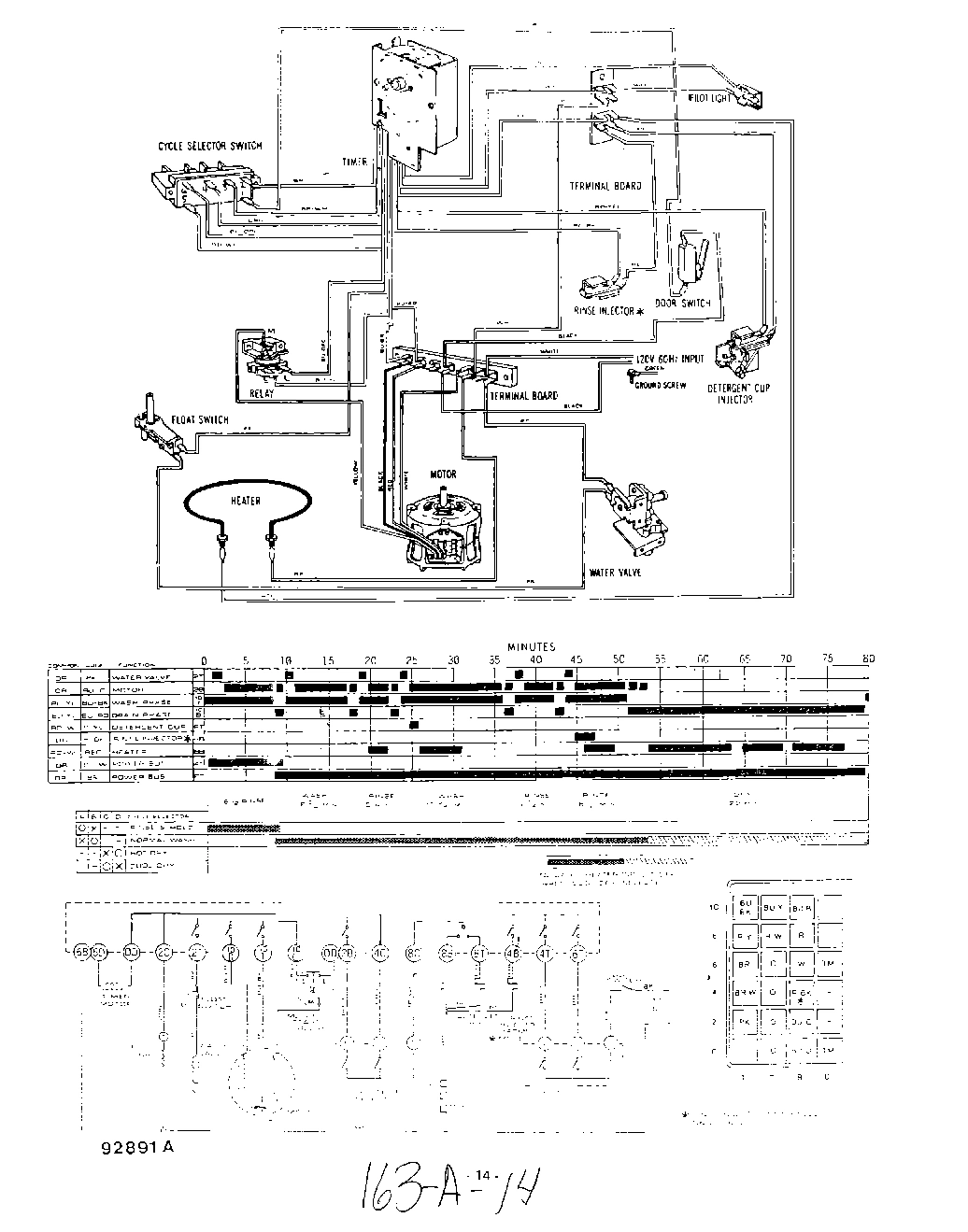

10 - WIRING DIAGRAM
Common parts from model Whirlpool 8595W00 DISHWASHER
1
Door Panel (White) WPL 807262 Contact Us For Availability
1
Door Panel - Almond WPL 808523 Contact Us For Availability
1
Door Panel - Golden Wheat WPL 808524 Contact Us For Availability
1
Door Panel - Avocado WPL 808611 Contact Us For Availability
1
Door Panel - Coffee WPL 808653 Contact Us For Availability
1
Screw No.10-32x2-1/4`` Lg. Hex Hd. St. St. WPL 806353 Contact Us For Availability
1
Tub Assembly WPL 808725 Contact Us For Availability
1
Screw No.10-24x7/8``Lg. Acorn Hex Hd. Chrome WPL 806539 Contact Us For Availability
1
Lower Rack Assembly WPL 808684 Contact Us For Availability
1
Detergent Cup & Cover Kit WPL 807261 Contact Us For Availability
1
Screw No.10x5/8`` Lg. Acorn Hex Washer Hd. Ch WPL 807036 Contact Us For Availability
1
Screw No.8x7/16``Lg. C.R. Pan Hd. Cad. Pl. WPL 806943 Contact Us For Availability
2
Door Trim - Side WPL 808026 Contact Us For Availability
2
Screw No.8x5/8`` Lg. C.R. Truss Hd. Cad. Pl. WPL 807270 Contact Us For Availability
2
Plastic Nut WPL 807018 Contact Us For Availability
2
Silverware Basket WPL 807512 Contact Us For Availability
2
``O`` Ring WPL 808210 Contact Us For Availability
2
Screw No.10-24x5/8``Lg. Acorn Hex Hd. Cad. Pl WPL 806663 Contact Us For Availability
2
End Cap L.H. WPL 808811 Contact Us For Availability
3
Screw No.8-32x5/16``Lg. C.R. Hex Hd. Cad. Pl. WPL 806830 Contact Us For Availability
3
Heater WPL 806836 Contact Us For Availability
3
Tapping Plate WPL 807038 Contact Us For Availability
3
Upper Rack Assembly WPL 807902 Contact Us For Availability
3
Screw No.8x5/8`` Lg. Hex Washer Hd. St. St. WPL 808209 Contact Us For Availability
3
Clip - Top WPL 805069 Contact Us For Availability
3
Screw No.10-32x1/2``Lg. Hex Washer Hd. Cad. P WPL 807951 Contact Us For Availability
3
Pushbutton WPL 807273 Contact Us For Availability
4
Switch WPL 807043 Contact Us For Availability
4
Impeller - Upper WPL 808041 Contact Us For Availability
4
Pad - Tub WPL 807454 Contact Us For Availability
4
Wheel Assembly-Complete WPL 807957 Contact Us For Availability
4
Cam WPL 806566 Contact Us For Availability
4
Top (Maple) WPL 808205 Contact Us For Availability
4
Washer WPL 807373 Contact Us For Availability
4
Vent Grille WPL 808477 Contact Us For Availability
5
Latch Assembly - Door WPL 807016 Contact Us For Availability
5
Blade - Macerator WPL 808075 Contact Us For Availability
5
End Cap Rack Slide WPL 807853 Contact Us For Availability
5
Rollpin - Cam WPL 804734 Contact Us For Availability
5
Clamp - Top (Rear) WPL 807819 Contact Us For Availability
5
Screw 10Bx1/2``Lg. Hex Slotted Hd. Cad. Pl. WPL 807950 Contact Us For Availability
5
Speednut WPL 808475 Contact Us For Availability
6
Screw 6-32x1``Lg. Hex Hd. Cad. Pl. WPL 808618 Contact Us For Availability
6
Shroud - Impeller WPL 806267 Contact Us For Availability
6
Shim - Strike WPL 807073 Contact Us For Availability
6
Rack Slide WPL 807854 Contact Us For Availability
6
Spring - Cam WPL 805227 Contact Us For Availability
6
Screw No.10-16x1 1/2`` Lg. C.R. Truss Hd. Cad WPL 807817 Contact Us For Availability
6
Inlet Water Valve WPL 808431 Contact Us For Availability
6
Screw No.10-32x1-17/64``Lg. C.R. Truss Hd. Ca WPL 808422 Contact Us For Availability
7
Latch Knob WPL 806398 Contact Us For Availability
7
Plate - Pump WPL 807884 Contact Us For Availability
7
Strike WPL 807015 Contact Us For Availability
7
Cap - Wheel Bracket WPL 807008 Contact Us For Availability
7
Spring-Cam Compression WPL 806567 Contact Us For Availability
7
Hinge - Hose Cover WPL 808193 Contact Us For Availability
7
Flow Washer WPL 808432 Contact Us For Availability
7
Timer Knob WPL 808909 Contact Us For Availability
8
Terminal - Insulator WPL 806846 Contact Us For Availability
8
Gasket - Pump WPL 807709 Contact Us For Availability
8
Nut WPL 806568 Contact Us For Availability
8
Screw No.8-3/4`` Lg. C.R. Pan Hd. Chrome Pl. WPL 806382 Contact Us For Availability
8
Washer - Hose WPL 800787 Contact Us For Availability
8
Rocker Switch WPL 807737 Contact Us For Availability
9
``O`` Ring WPL 806521 Contact Us For Availability
9
Screw No.10x1``Lg. Hex Washer Hd. St. St. WPL 807268 Contact Us For Availability
9
Fasteners - Door Gasket WPL 805763 Contact Us For Availability
9
Trigger Assembly WPL 808507 Contact Us For Availability
9
Lens-Red WPL 805664 Contact Us For Availability
10
Impeller-Lower Kit (Includes Ref. No. 11, Sea WPL 808042 Contact Us For Availability
10
Sealing Washer WPL 805776 Contact Us For Availability
10
Washer WPL 802836 Contact Us For Availability
10
Base - Lid WPL 808192 Contact Us For Availability
10
Front Casters WPL 808542 Contact Us For Availability
10
Console Panel WPL 808817 Contact Us For Availability
11
Washer WPL 803367 Contact Us For Availability
11
Seal WPL 803903 Contact Us For Availability
11
Bushing WPL 805626 Contact Us For Availability
11
Rear Caster WPL 808543 Contact Us For Availability
11
End Cap R.H. WPL 808810 Contact Us For Availability
12
Thermostat WPL 808646 Contact Us For Availability
12
Gasket-Pump WPL 807710 Contact Us For Availability
12
Roller WPL 807180 Contact Us For Availability
12
O-RING WPL 806647 Contact Us For Availability
12
Post WPL 808195 Contact Us For Availability
12
Clamp - Cord WPL 804426 Contact Us For Availability
12
Light Assembly - Delay WPL 808736 Contact Us For Availability
13
Clamp WPL 808442 Contact Us For Availability
13
Clamp - Thermostat WPL 808495 Contact Us For Availability
13
Shoulder Screw WPL 807181 Contact Us For Availability
13
Shaft WPL 806648 Contact Us For Availability
13
LId WPL 808194 Contact Us For Availability
13
Power Cord WPL 805046 Contact Us For Availability
14
Arm Assembly - Counterbalance L.H. WPL 805682 Contact Us For Availability
14
Pump Housing WPL 807711 Contact Us For Availability
14
Screw No.8x5/8``Lg. C.R. Hex Hd. St. St. WPL 806901 Contact Us For Availability
14
Shaft Kit (Includes Items 5, 8, 10, 11, 12 & WPL 806674 Contact Us For Availability
14
Cover - Top Clip (2) WPL 808743 Contact Us For Availability
14
Machine Screw 1/4``-20x4``Lg. C.R. Truss Hd. WPL 806812 Contact Us For Availability
15
Screw No.8x3/8`` Lg. C.R. Round Hd. Cad. Pl. WPL 806810 Contact Us For Availability
15
Clamp Ring (Includes Both Halves) WPL 807712 Contact Us For Availability
15
Float WPL 804630 Contact Us For Availability
15
Weight WPL 808615 Contact Us For Availability
15
Terminal Board Assembly WPL 808483 Contact Us For Availability
16
Vent Plate Assembly WPL 808369 Contact Us For Availability
16
Screw No.8Ax1/2`` Lg. C.R. Truss Hd. Chrome P WPL 807501 Contact Us For Availability
16
Slinger WPL 808561 Contact Us For Availability
16
Spacer WPL 808424 Contact Us For Availability
17
Motor (Includes Slinger, 3 Brass Shims, 4 Mot WPL 806300 Contact Us For Availability
17
Nut WPL 803346 Contact Us For Availability
17
Nut WPL 808661 Contact Us For Availability
17
Timer WPL 808682 Contact Us For Availability
18
Trim - Door Bottom WPL 807347 Contact Us For Availability
18
Nut 1/2`` 20 Brass WPL 806834 Contact Us For Availability
18
Clip - Gasket WPL 808115 Contact Us For Availability
18
Washer WPL 808613 Contact Us For Availability
18
Housing - Timer Terminal WPL 808231 Contact Us For Availability
19
Grommet - Heater WPL 806833 Contact Us For Availability
19
Hose Guard WPL 808120 Contact Us For Availability
19
Housing Terminal WPL 808333 Contact Us For Availability
20
Porcelain Weld Assembly WPL 807194 Contact Us For Availability
20
Clamp - Hose WPL 805495 Contact Us For Availability
20
Counterbalance Arm Guide L.H. WPL 807470 Contact Us For Availability
20
Hose Guide WPL 805859 Contact Us For Availability
20
Terminal - Timer WPL 808334 Contact Us For Availability
21
Access Panel Trip - Top WPL 808346 Contact Us For Availability
21
Access Panel-Coffee WPL 808654 Contact Us For Availability
21
Hose - Connector WPL 808174 Contact Us For Availability
21
Plate - Float Tube WPL 808064 Contact Us For Availability
21
Hose Clamp WPL 806142 Contact Us For Availability
21
Insulator - Timer WPL 808664 Contact Us For Availability
22
Screw No.8x3/8`` Lg. C.R. Binding Hd. Cad. Pl WPL 803416 Contact Us For Availability
22
Access Panel - White WPL 807257 Contact Us For Availability
22
Access Panel - G.W. WPL 808525 Contact Us For Availability
22
Access Panel - Almond WPL 808526 Contact Us For Availability
22
Access Panel - Avocado WPL 808527 Contact Us For Availability
22
Clamp WPL 806090 Contact Us For Availability
22
Gasket - Float Tube WPL 808063 Contact Us For Availability
22
Hose Support WPL 806143 Contact Us For Availability
23
Trim-Access-Side R.H. WPL 808028 Contact Us For Availability
23
Screw No.8Bx5/16``Lg. C.R. Truss Hd. Cad. Pl. WPL 806894 Contact Us For Availability
23
Hinge Weld Assembly WPL 807885 Contact Us For Availability
23
WASHER WPL 803393 Contact Us For Availability
24
Trim-Access Panel-Bottom WPL 808521 Contact Us For Availability
24
Housing Pump (Includes Diffuser & Plate Space WPL 806978 Contact Us For Availability
24
Screw Adaptor WPL 800782 Contact Us For Availability
24
Splash Pan WPL 807425 Contact Us For Availability
25
Toe Plate WPL 808522 Contact Us For Availability
25
Screw No.10xl 3/4 Lg. Hex Hd. St. St. WPL 807359 Contact Us For Availability
25
Bracket - Terminal WPL 807849 Contact Us For Availability
25
Washer WPL 803392 Contact Us For Availability
25
Light Assembly - Pilot WPL 808484 Contact Us For Availability
26
Terminal-Grounding WPL 807213 Contact Us For Availability
26
Trim - Access Panel L.H. WPL 808029 Contact Us For Availability
26
Lockwasher WPL 804526 Contact Us For Availability
26
Switch WPL 808744 Contact Us For Availability
27
Screw No.8x5/8``Lg. C.R. Truss Hd. St. St. WPL 808749 Contact Us For Availability
27
Nut WPL 804527 Contact Us For Availability
27
Shield - Vent Slot WPL 808398 Contact Us For Availability
28
Bearing WPL 808175 Contact Us For Availability
28
Terminal Block Assembly WPL 807486 Contact Us For Availability
28
Collar Repair Kit WPL 807499 Contact Us For Availability
28
Switch - Bracket WPL 808814 Contact Us For Availability
29
Counterbalance Arm Mounting Bracket WPL 806717 Contact Us For Availability
29
Nut WPL 808176 Contact Us For Availability
29
Wire - Gasket Junction WPL 808344 Contact Us For Availability
29
Pressure Relief Valve Kit WPL 807498 Contact Us For Availability
29
Screw WPL 807141 Contact Us For Availability
30
Counterbalance Arm Assembly - R.H. WPL 805681 Contact Us For Availability
30
Spray Arm Assembly WPL 808177 Contact Us For Availability
30
Tub Gasket & Wire Assembly (Includes No. 29) WPL 808345 Contact Us For Availability
30
Hose & Coupler Assembly WPL 807496 Contact Us For Availability
31
Door Spring WPL 805683 Contact Us For Availability
31
Tower Base WPL 808178 Contact Us For Availability
31
Wrapper Assy (White) WPL 808533 Contact Us For Availability
31
Wrapper Assy (Coffee) WPL 808534 Contact Us For Availability
31
Wrapper Assy (Avocado) WPL 808535 Contact Us For Availability
31
Wrapper Assy (Golden Wheat) WPL 808536 Contact Us For Availability
31
Wrapper Assy (Almond) WPL 808537 Contact Us For Availability
32
Spring Pad WPL 805884 Contact Us For Availability
32
Tower Section WPL 808179 Contact Us For Availability
32
Screw No.8-32x1 1/4``Lg. C.R. Oval Hd Cad. Pl WPL 804672 Contact Us For Availability
33
Screw No.10 - 24x5/8`` Lg. C.R. Truss Chrome WPL 803311 Contact Us For Availability
33
Tower Tip WPL 808180 Contact Us For Availability
33
Relay WPL 806121 Contact Us For Availability
34
Fill Plug WPL 806755 Contact Us For Availability
34
Nut WPL 808181 Contact Us For Availability
34
Clamp - Wiring WPL 806723 Contact Us For Availability
35
Screw No.8 Type ``B``x1/2`` Lg.C.R. Truss WPL 806967 Contact Us For Availability
35
Spray Arm - Upper WPL 808259 Contact Us For Availability
35
Wire Shield WPL 808013 Contact Us For Availability
36
WPL 805631 WPL 805631 Contact Us For Availability
36
Distributor WPL 808183 Contact Us For Availability
36
``O`` Ring WPL 807759 Contact Us For Availability
37
WPL 806753 WPL 806753 Contact Us For Availability
37
Gasket WPL 808184 Contact Us For Availability
37
Tube - Float WPL 807677 Contact Us For Availability
38
WPL 806757 WPL 806757 Contact Us For Availability
38
Elbow & Tube Assembly WPL 808185 Contact Us For Availability
38
Switch WPL 807680 Contact Us For Availability
39
WPL 806756 WPL 806756 Contact Us For Availability
39
Seal Installation Tool WPL 803923 Contact Us For Availability
39
Screw No.4-40x5/8``Lg. Hex Hd. Cad. Pl. WPL 804594 Contact Us For Availability
40
WPL 807449 WPL 807449 Contact Us For Availability
40
Gage - Seal Shim WPL 807077 Contact Us For Availability
40
Guide - Counterbalance R.H. WPL 807471 Contact Us For Availability
41
Gasket WPL 806797 Contact Us For Availability
42
WPL 807450 WPL 807450 Contact Us For Availability
42
Tapping Plate WPL 808705 Contact Us For Availability
43
Motor Shield WPL 808435 Contact Us For Availability
43
Vent Stack WPL 808706 Contact Us For Availability
44
WPL 808715 WPL 808715 Contact Us For Availability
44
Tubing - Inlet WPL 807891 Contact Us For Availability
45
Clamp WPL 807813 Contact Us For Availability
46
Inlet Nozzle WPL 808707 Contact Us For Availability
× ![]()
