Model Whirlpool 8595L10 DISHWASHER – Common Parts & Diagrams
10 - WIRING DIAGRAM
07 - RACK

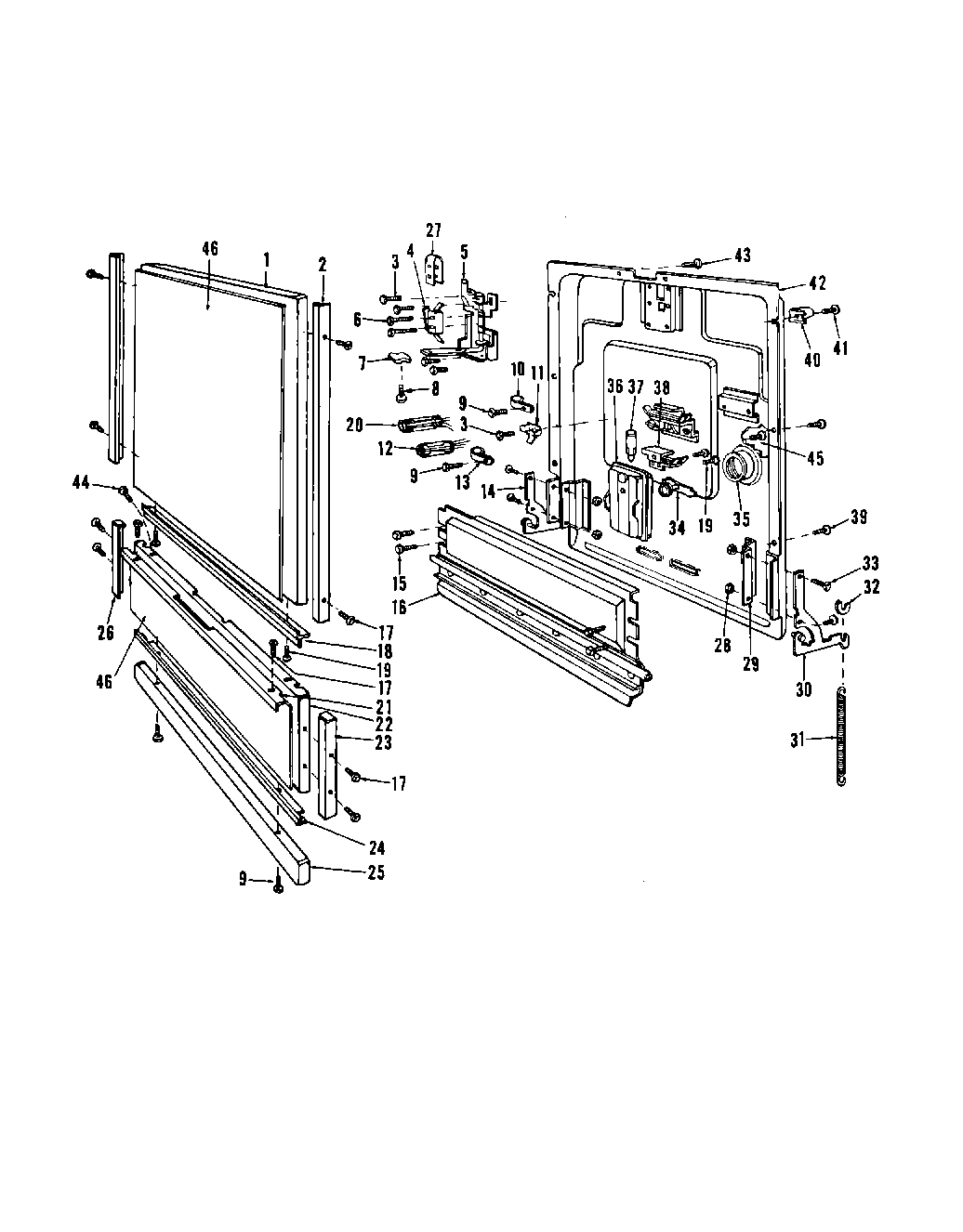

03 - DOOR

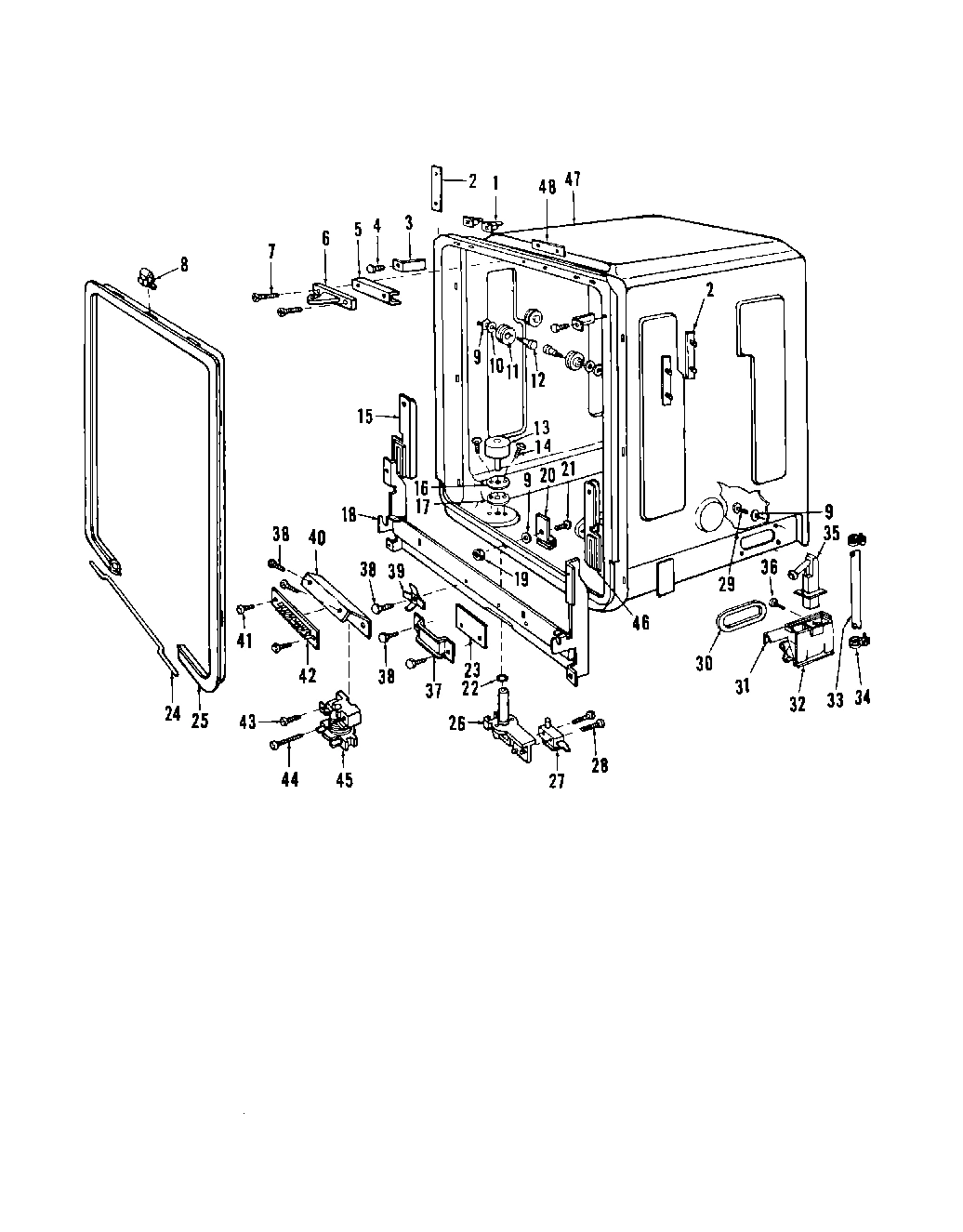

05 - TUB

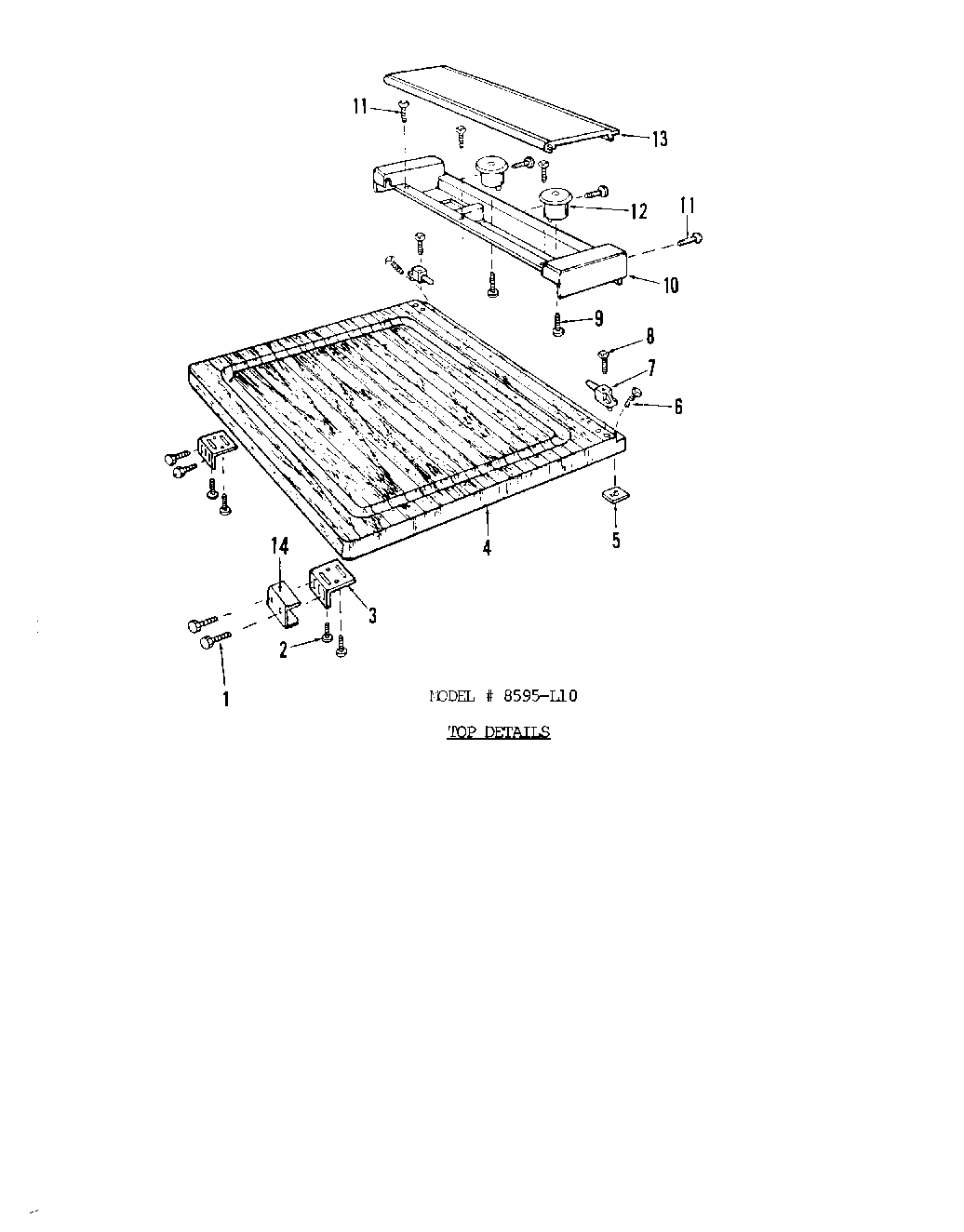

09 - TOP

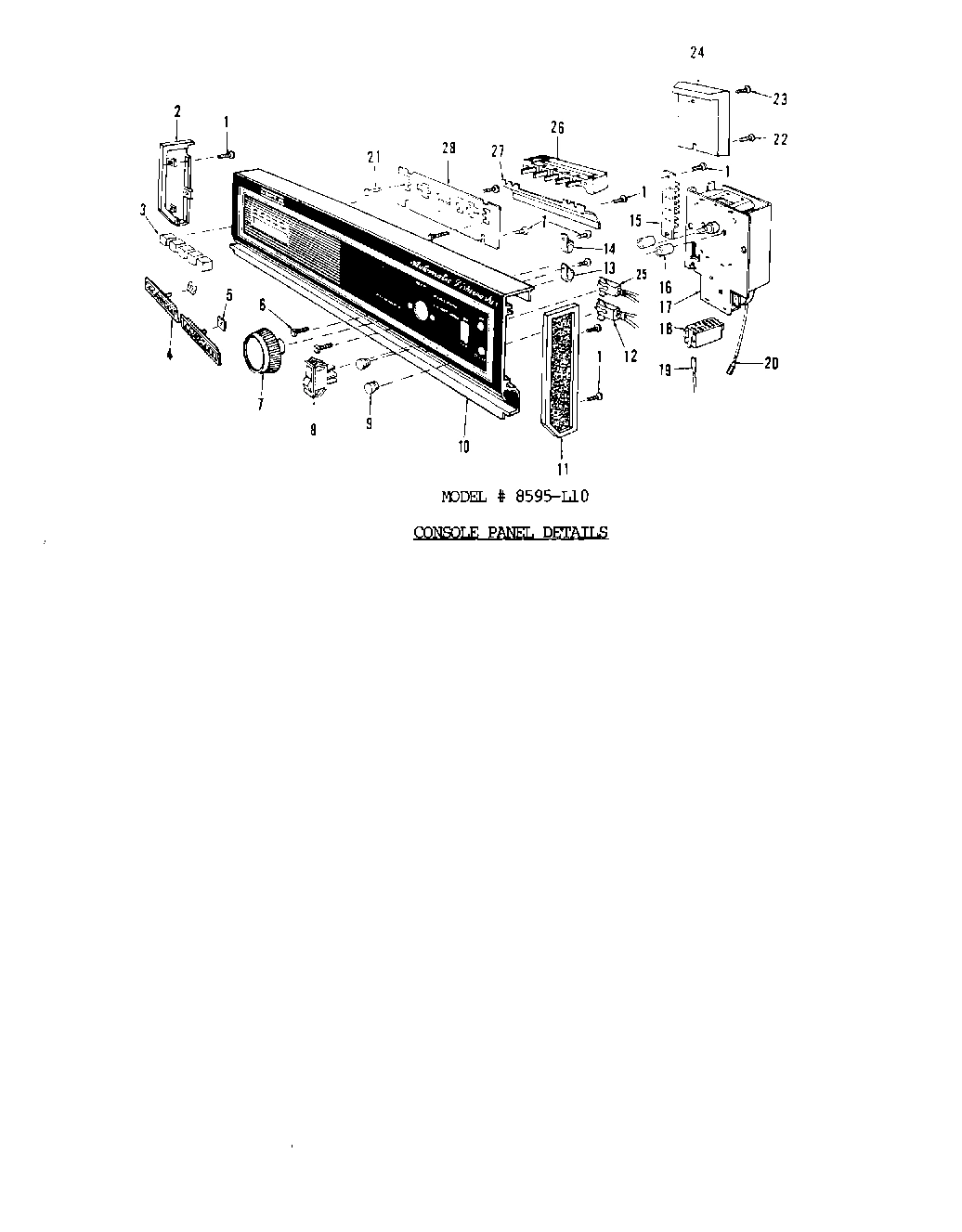

02 - CONSOLE PANEL

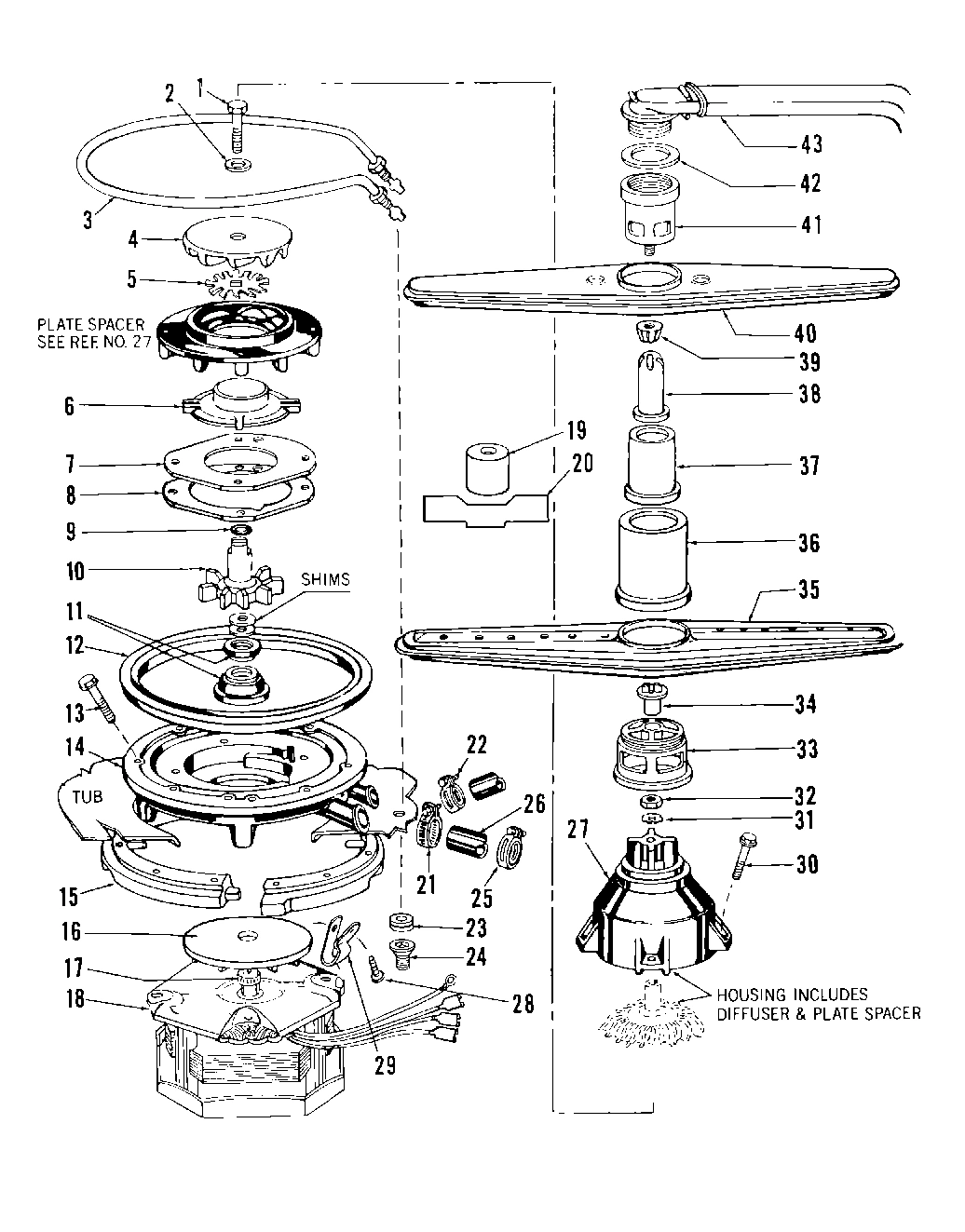

04 - MOTOR, HEATER AND SPRAY ARM

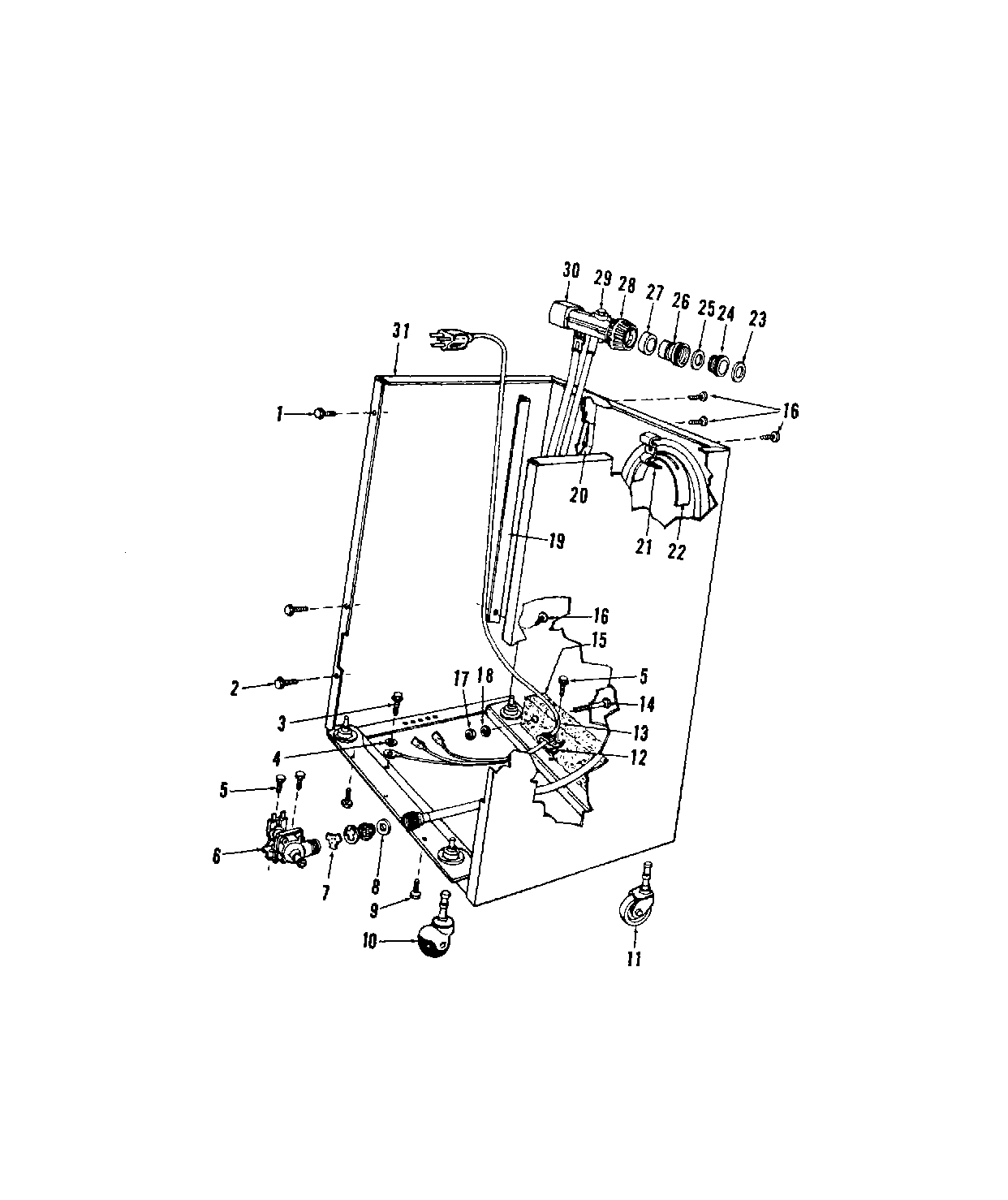

06 - FRAME

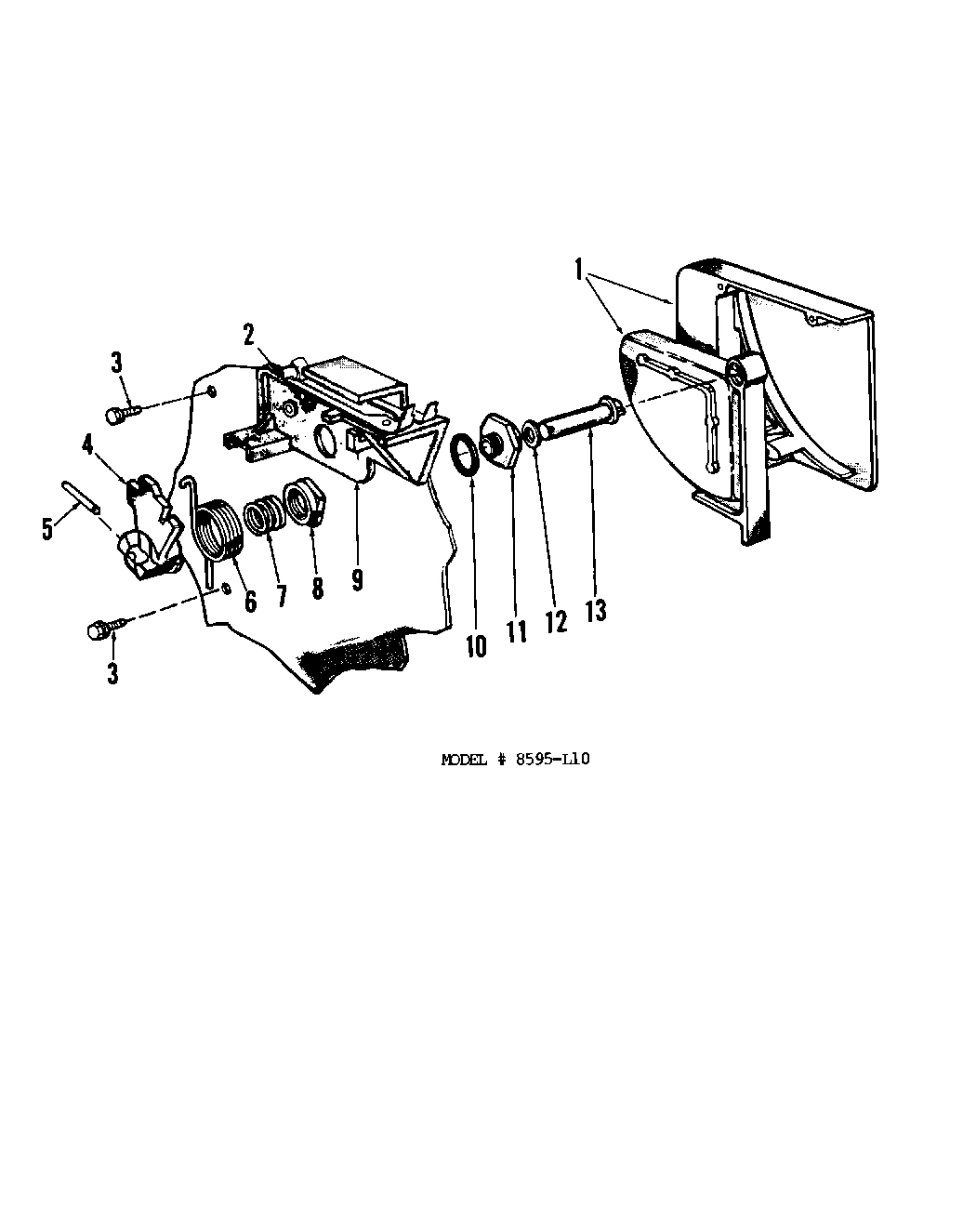

08 - DETERGENT CUP
Common parts from model Whirlpool 8595L10 DISHWASHER
1
xDetergent Cup & Cover WPL 807261 Contact Us For Availability
1
Door Panel (White) WPL 807262 Contact Us For Availability
1
Nut WPL 807018 Contact Us For Availability
1
Screw 10-24 x 7/8 Lg. Acorn Hex Washer Hd. Ch WPL 806539 Contact Us For Availability
1
Screw 10x5/8 Lg. Acorn Hex Hd. Chrome Pl. WPL 807036 Contact Us For Availability
1
Screw 8x7/16 Lg. C.R. Pan Hd. Cad. Pl. WPL 806943 Contact Us For Availability
1
Screw 10-32x2 1/4 Lg. Hex Hd. St. St. WPL 806353 Contact Us For Availability
2
``O`` Ring WPL 808210 Contact Us For Availability
2
Door Panel Trim-Side WPL 808026 Contact Us For Availability
2
Tapping Plate WPL 807038 Contact Us For Availability
2
Washer WPL 803367 Contact Us For Availability
2
Screw 8 x 5/8 Lg. C.R. Truss Hd. Cad. Pl. WPL 807270 Contact Us For Availability
2
End Cap - L.H. (Chrome) WPL 808811 Contact Us For Availability
2
Screw 10-24x7/8 Lg. Acorn Hex Washer Hd. WPL 806663 Contact Us For Availability
3
Screw 8x5/8 Lg. Hex Washer Hd. St. St. WPL 806565 Contact Us For Availability
3
Pad - Tub WPL 807454 Contact Us For Availability
3
Clip WPL 805069 Contact Us For Availability
3
Pushbutton WPL 807273 Contact Us For Availability
3
xHeater (Includes Key Nos. 23 & 24) WPL 806864 Contact Us For Availability
3
Screw 10-32x1/2 C.R. Hex Washer Hd. Cad. Pl. WPL 807951 Contact Us For Availability
4
Cam WPL 806566 Contact Us For Availability
4
xSwitch WPL 807043 Contact Us For Availability
4
Wood Top WPL 808205 Contact Us For Availability
4
Vent Grille WPL 808477 Contact Us For Availability
4
xUpper Impeller WPL 808041 Contact Us For Availability
4
Washer WPL 807373 Contact Us For Availability
5
Spirol Pin WPL 808827 Contact Us For Availability
5
xLatch Assembly WPL 807016 Contact Us For Availability
5
Shim WPL 807073 Contact Us For Availability
5
Clamp WPL 807819 Contact Us For Availability
5
Speednut WPL 808475 Contact Us For Availability
5
Blade - Macerator WPL 808075 Contact Us For Availability
5
Screw 10Bx1/2 Lg. Hex Slot Hd. Cad. Pl. WPL 807950 Contact Us For Availability
6
Spring - Cam WPL 805227 Contact Us For Availability
6
Screw 6-32x1``Lg. Hex Hd. Cad. Pl. WPL 808618 Contact Us For Availability
6
xDoor Strike WPL 807015 Contact Us For Availability
6
Screw 10-16x1 1/2 Lg. C.R. Truss Hd. Cad. Pl. WPL 807817 Contact Us For Availability
6
Screw 10-32x1 17/64 Lg. C.R. Truss Hd. Zinc P WPL 808422 Contact Us For Availability
6
Shroud - Impeller WPL 806267 Contact Us For Availability
6
xWater Valve Kit (Includes Key No. 7) WPL 808667 Contact Us For Availability
7
Spring-Cam Compression WPL 806567 Contact Us For Availability
7
xLatch Knob WPL 806398 Contact Us For Availability
7
xHose Cover Hinge WPL 808193 Contact Us For Availability
7
xTimer Knob WPL 808812 Contact Us For Availability
7
Plate - Pump WPL 807884 Contact Us For Availability
7
Flow Washer WPL 808432 Contact Us For Availability
8
Detergent Cup Nut WPL 806568 Contact Us For Availability
8
Screw 8-32x5/16 Lg. Hex Hd. Cad. Pl. WPL 808715 Contact Us For Availability
8
xTub Gasket Clip Kit (Includes Key No. 20) WPL 805763 Contact Us For Availability
8
Screw 8x3/4 Lg. C.R. Pan Hd. St. St. WPL 806382 Contact Us For Availability
8
xRocker Switch WPL 807737 Contact Us For Availability
8
xPump Gasket WPL 807709 Contact Us For Availability
8
Washer WPL 800787 Contact Us For Availability
9
Bi-Metal Assembly Kit (Includes Key No. 11) WPL 808507 Contact Us For Availability
9
Sealing Washer WPL 805776 Contact Us For Availability
9
Screw 10x1 Lg. Hex Washer Hd. St. St. WPL 807268 Contact Us For Availability
9
Lens-Red WPL 805664 Contact Us For Availability
9
``O`` Ring WPL 806521 Contact Us For Availability
10
Washer WPL 802836 Contact Us For Availability
10
xLid Base WPL 808192 Contact Us For Availability
10
Console Panel (Includes Key Nos. 4 & 5) WPL 808817 Contact Us For Availability
10
xPump Seal Kit (Includes Key Nos. 2,4,5,9,11 WPL 808042 Contact Us For Availability
10
xCaster-Front WPL 808542 Contact Us For Availability
11
Bushing WPL 805626 Contact Us For Availability
11
Screw 8x1/2 Lg. C.R. Truss Hd. Chrome Pl. WPL 807501 Contact Us For Availability
11
Tub Roller WPL 807180 Contact Us For Availability
11
End Cap-R.H. (Chrome) WPL 808810 Contact Us For Availability
11
Water Seal WPL 803903 Contact Us For Availability
11
xCaster-Rear WPL 808543 Contact Us For Availability
12
O-RING WPL 806647 Contact Us For Availability
12
xThermostat (High Limit) WPL 808485 Contact Us For Availability
12
Screw & Washer Kit (Includes Key Nos. 9 & 10) WPL 808564 Contact Us For Availability
12
Post WPL 808195 Contact Us For Availability
12
xLight Assembly WPL 808736 Contact Us For Availability
12
xPump Gasket WPL 807710 Contact Us For Availability
12
Clamp WPL 804426 Contact Us For Availability
13
Clamp WPL 808495 Contact Us For Availability
13
xFloat WPL 804630 Contact Us For Availability
13
xLid WPL 808194 Contact Us For Availability
13
xPower Cord WPL 805046 Contact Us For Availability
14
xCounterbalance Arm Assembly-L.H. WPL 805682 Contact Us For Availability
14
Top Clip Cover WPL 808743 Contact Us For Availability
14
xPump Housing (Includes Key No. 15) WPL 807711 Contact Us For Availability
14
Screw 1/4-20x4 Lg. C.R. Truss Hd. Cad. Pl. WPL 808612 Contact Us For Availability
15
Screw 8x3/8 Lg. C.R. Round Hd. St. St. WPL 806810 Contact Us For Availability
15
xCounterbalance Arm Guide L.H. WPL 807470 Contact Us For Availability
15
Terminal Board Assembly WPL 808483 Contact Us For Availability
15
xClamp Ring (2) WPL 807712 Contact Us For Availability
15
Weight WPL 808615 Contact Us For Availability
16
xVent Plate Assembly WPL 808369 Contact Us For Availability
16
Plate - Float Tube WPL 808064 Contact Us For Availability
16
Spacer WPL 808424 Contact Us For Availability
16
Watershield Fan (Includes Key No. 17) WPL 808899 Contact Us For Availability
17
Gasket - Float Tube WPL 808063 Contact Us For Availability
17
xTimer WPL 808682 Contact Us For Availability
17
Tolerance Ring WPL 808898 Contact Us For Availability
17
Nut WPL 808661 Contact Us For Availability
18
Door Panel Trim-Bottom WPL 807347 Contact Us For Availability
18
Hinge Weld Assembly WPL 808739 Contact Us For Availability
18
Timer Housing (Black) WPL 808231 Contact Us For Availability
18
xMoter Assembly (Includes Key Nos. 1,9,16, & WPL 806300 Contact Us For Availability
18
Washer WPL 808613 Contact Us For Availability
19
Nut WPL 803346 Contact Us For Availability
19
Housing Terminal WPL 808333 Contact Us For Availability
19
xSeal Installation Tool WPL 803923 Contact Us For Availability
19
Hose Guard WPL 808120 Contact Us For Availability
20
xThermostat (Water Heat) WPL 808646 Contact Us For Availability
20
Dam Clip WPL 808115 Contact Us For Availability
20
Terminal - Timer WPL 808334 Contact Us For Availability
20
Gage - Seal Shim WPL 807077 Contact Us For Availability
20
Hose Guide WPL 805859 Contact Us For Availability
21
Access Panel Trip - Top WPL 808346 Contact Us For Availability
21
Screw 6-30x3/8 Lg. Pan Hd. Cad. Pl. WPL 808141 Contact Us For Availability
21
Clamp WPL 806142 Contact Us For Availability
22
Screw 8x3/8 Lg. C.R. Binding Hd. Cad. Pl. WPL 803416 Contact Us For Availability
22
Access Panel - White WPL 807257 Contact Us For Availability
22
``O`` Ring WPL 807759 Contact Us For Availability
22
Drain Hose Clamp WPL 806090 Contact Us For Availability
22
Hose Support WPL 806143 Contact Us For Availability
23
Access Panel Trim-R.H. WPL 808028 Contact Us For Availability
23
Screw 8 x 5/16 Lg. C.R. Truss Hd. St. St. WPL 806894 Contact Us For Availability
23
Wire Shield WPL 808013 Contact Us For Availability
23
Grommet - Heater WPL 806833 Contact Us For Availability
23
WASHER WPL 803393 Contact Us For Availability
24
Access Panel Trim-Bottom WPL 808521 Contact Us For Availability
24
Gasket Junction Wire WPL 808344 Contact Us For Availability
24
Splash Pan WPL 807425 Contact Us For Availability
24
Heater Nut 1/2 20 Brass WPL 806834 Contact Us For Availability
24
xScrew Adaptor WPL 800782 Contact Us For Availability
25
xToeplate WPL 808522 Contact Us For Availability
25
xTub Gasket & Wire Assembly (Includes Key Nos WPL 808345 Contact Us For Availability
25
xLight Assembly WPL 808711 Contact Us For Availability
25
Hose Clamp WPL 805495 Contact Us For Availability
25
Washer WPL 803392 Contact Us For Availability
26
Access Panel Trim - L.H. WPL 808029 Contact Us For Availability
26
xFloat Switch Kit (Includes Key Nos. 16,17,22 WPL 807677 Contact Us For Availability
26
xSwitch WPL 808744 Contact Us For Availability
26
Hose WPL 805674 Contact Us For Availability
27
Cover - Switch WPL 807450 Contact Us For Availability
27
xFloat Switch WPL 807680 Contact Us For Availability
27
Shield - Vent Slot WPL 808398 Contact Us For Availability
27
xPump Housing Kit (Includes Key Nos. 6 & 7) WPL 806978 Contact Us For Availability
28
Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl. WPL 804594 Contact Us For Availability
28
Switch Mounting Bracket WPL 808814 Contact Us For Availability
28
xCollar Repair Kit WPL 807499 Contact Us For Availability
29
Clamp WPL 808442 Contact Us For Availability
29
Counterbalance Arm Mounting Bracket WPL 806717 Contact Us For Availability
29
Screw 8 x 5/8 Lg. C.R. Hex Washer Hd. St. St. WPL 806901 Contact Us For Availability
29
xPressure Relief Valve-Kit WPL 807498 Contact Us For Availability
30
xCounterbalance Arm Assembly R.H. WPL 805681 Contact Us For Availability
30
Blower Housing Gasket WPL 806797 Contact Us For Availability
30
Screw 10 x 1 3/4 Lg. Hex Hd. St. St. WPL 807359 Contact Us For Availability
30
Hose & Coupler Assembly WPL 807496 Contact Us For Availability
31
xDoor Spring (Includes Key No. 32) WPL 805683 Contact Us For Availability
31
Tapping Plate WPL 808705 Contact Us For Availability
31
Lockwasher WPL 804526 Contact Us For Availability
31
Frame Assembly (Almond) WPL 808537 Contact Us For Availability
32
Spring Pad WPL 805884 Contact Us For Availability
32
xVent Stack WPL 808706 Contact Us For Availability
32
Nut WPL 804527 Contact Us For Availability
33
Screw 10-24x5/8 Lg. C.R. Truss Hd. Chr. Pl. WPL 803311 Contact Us For Availability
33
Water Inlet Tubing (Includes Key No. 34) WPL 807891 Contact Us For Availability
33
Bearing WPL 808175 Contact Us For Availability
34
xFill Plug WPL 806755 Contact Us For Availability
34
Clamp WPL 807813 Contact Us For Availability
34
xSpray Arm Nut WPL 808176 Contact Us For Availability
35
Grommet - Dispenser WPL 805631 Contact Us For Availability
35
Water Inlet Nozzle WPL 808707 Contact Us For Availability
35
xSpray Arm Assembly WPL 808177 Contact Us For Availability
36
xBody Assembly WPL 806753 Contact Us For Availability
36
Screw 8 x 1/2 Lg. C.R. Flat Hd. Cad. Pl. WPL 808818 Contact Us For Availability
36
xTower Base WPL 808178 Contact Us For Availability
37
xPlunger WPL 806757 Contact Us For Availability
37
Clamp - Wiring WPL 806723 Contact Us For Availability
37
xTower Section WPL 808179 Contact Us For Availability
38
Screw 8-32x5/16 Lg. C.R. Hex Hd. Cad. Pl. WPL 806830 Contact Us For Availability
38
Bracket Assembly WPL 806756 Contact Us For Availability
38
xTower Tip WPL 808180 Contact Us For Availability
39
Grounding Terminal WPL 807213 Contact Us For Availability
39
Screw 8x1/2 Lg. C.R. Truss Hd. St. St. WPL 806967 Contact Us For Availability
39
Nut WPL 808181 Contact Us For Availability
40
Guide - Door WPL 807449 Contact Us For Availability
40
Terminal board Bracket WPL 807849 Contact Us For Availability
40
xUpper Spray Arm Assembly WPL 808259 Contact Us For Availability
41
Screw 8x5/8 Lg. C.R. Truss Hd. St. St. WPL 808749 Contact Us For Availability
41
Distributor WPL 808183 Contact Us For Availability
42
Porcelain Weld Assembly WPL 807194 Contact Us For Availability
42
Terminal Block Assembly WPL 807486 Contact Us For Availability
42
Gasket WPL 808184 Contact Us For Availability
43
Elbow & Tube Assembly WPL 808185 Contact Us For Availability
44
Screw 8-32x1 1/4 Lg. C.R. Oval Hd. Cad. Pl. WPL 804672 Contact Us For Availability
45
WPL 806863 WPL 806863 Contact Us For Availability
45
xMotor Relay WPL 805255 Contact Us For Availability
46
WPL 807645 WPL 807645 Contact Us For Availability
46
xCounter WPL 807471 Contact Us For Availability
47
WPL 808725 WPL 808725 Contact Us For Availability
48
WPL 808868 WPL 808868 Contact Us For Availability
× ![]()
