Model Whirlpool 8587L00 DISHWASHER – Common Parts & Diagrams
06 - FRAME
08 - DETERGENT CUP

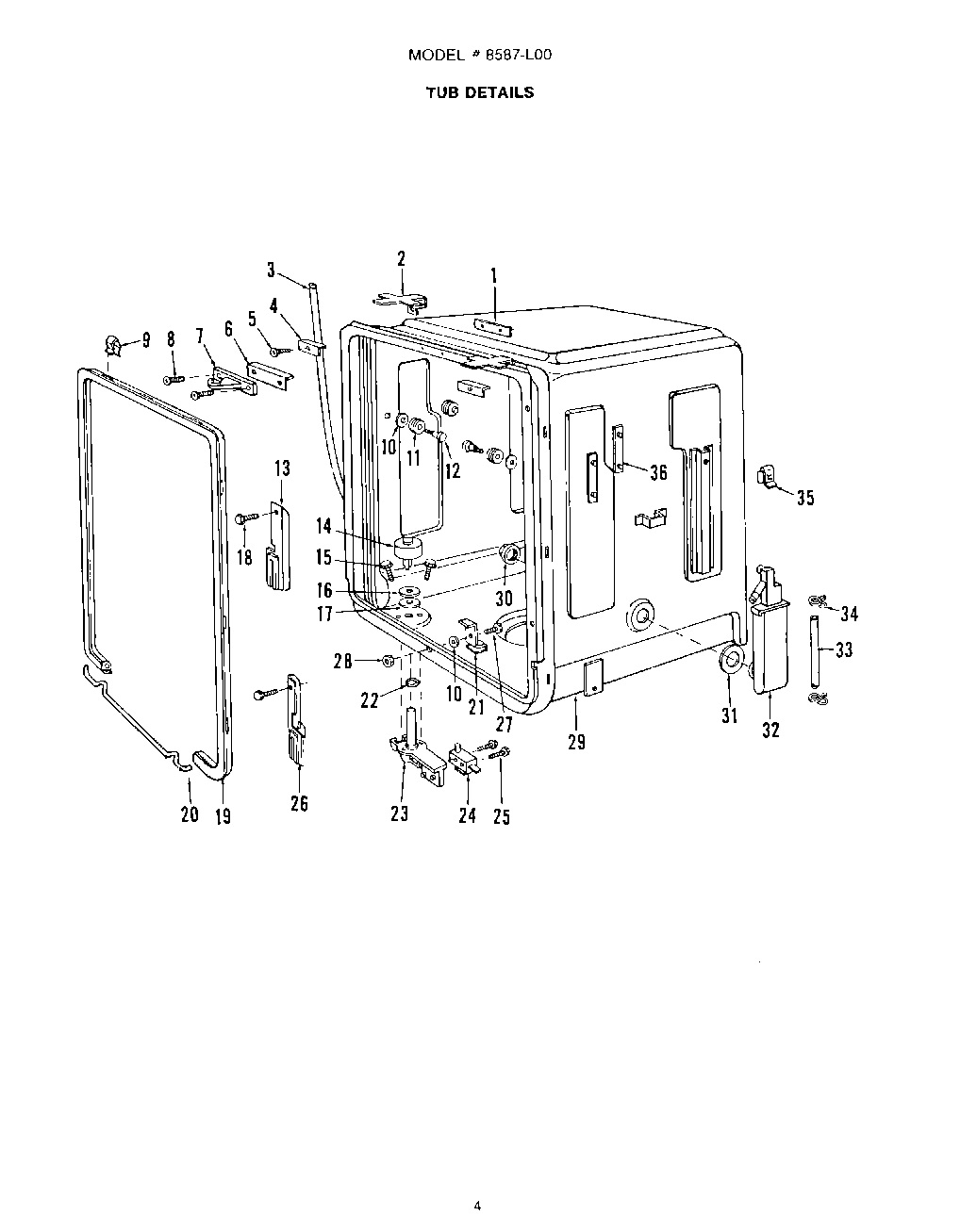

04 - TUB

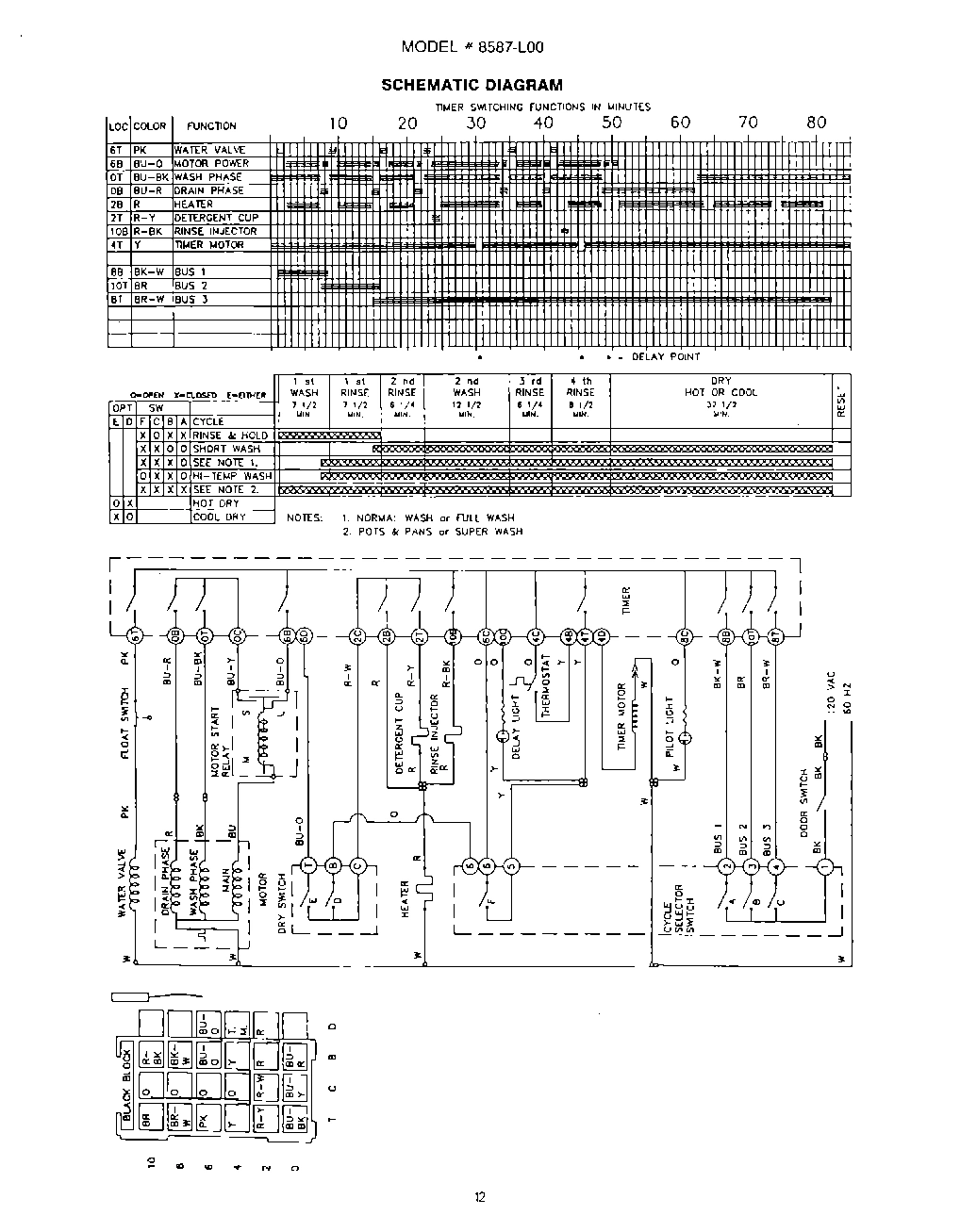

09 - SCHEMATIC DIAGRAM

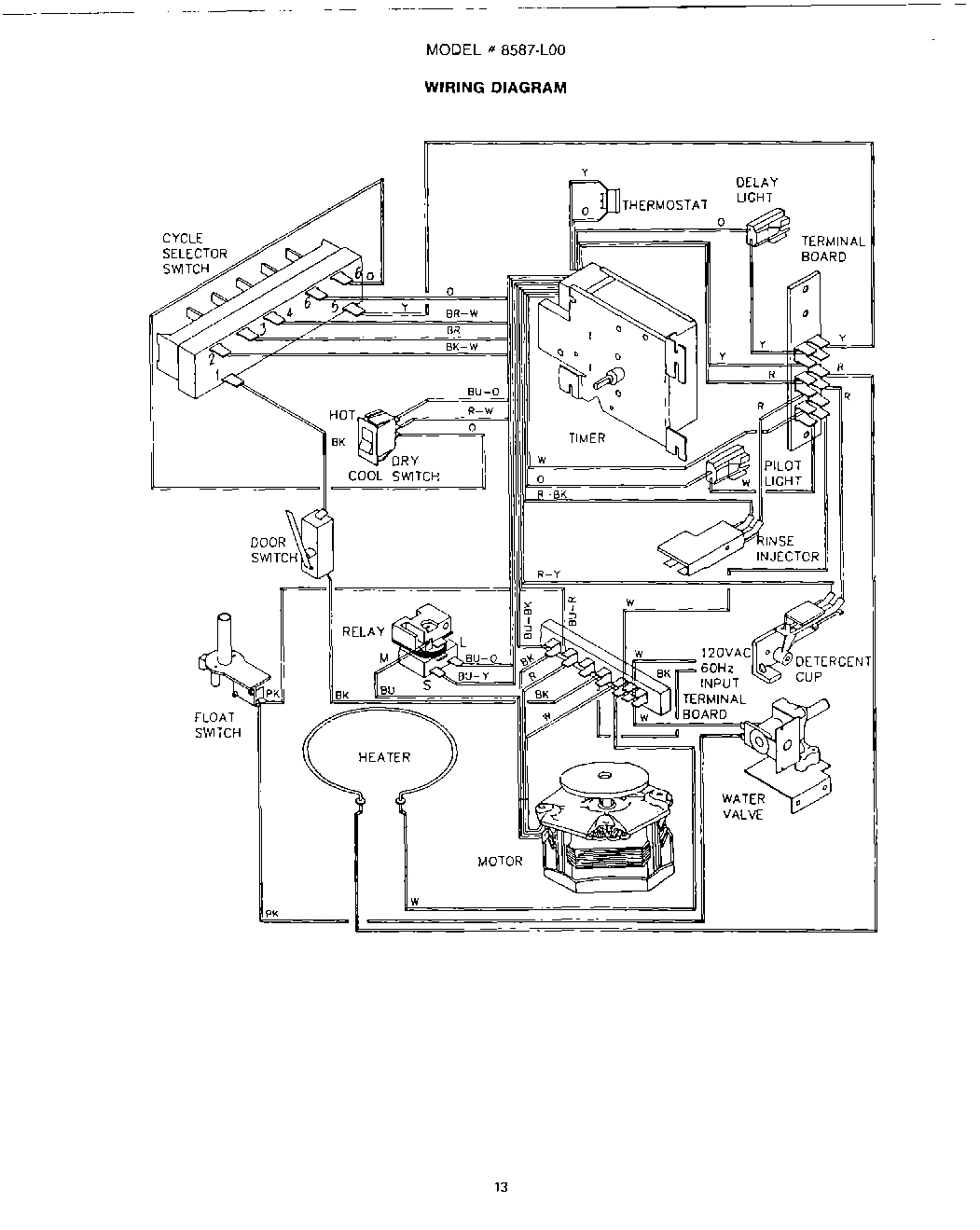

10 - WIRING DIAGRAM

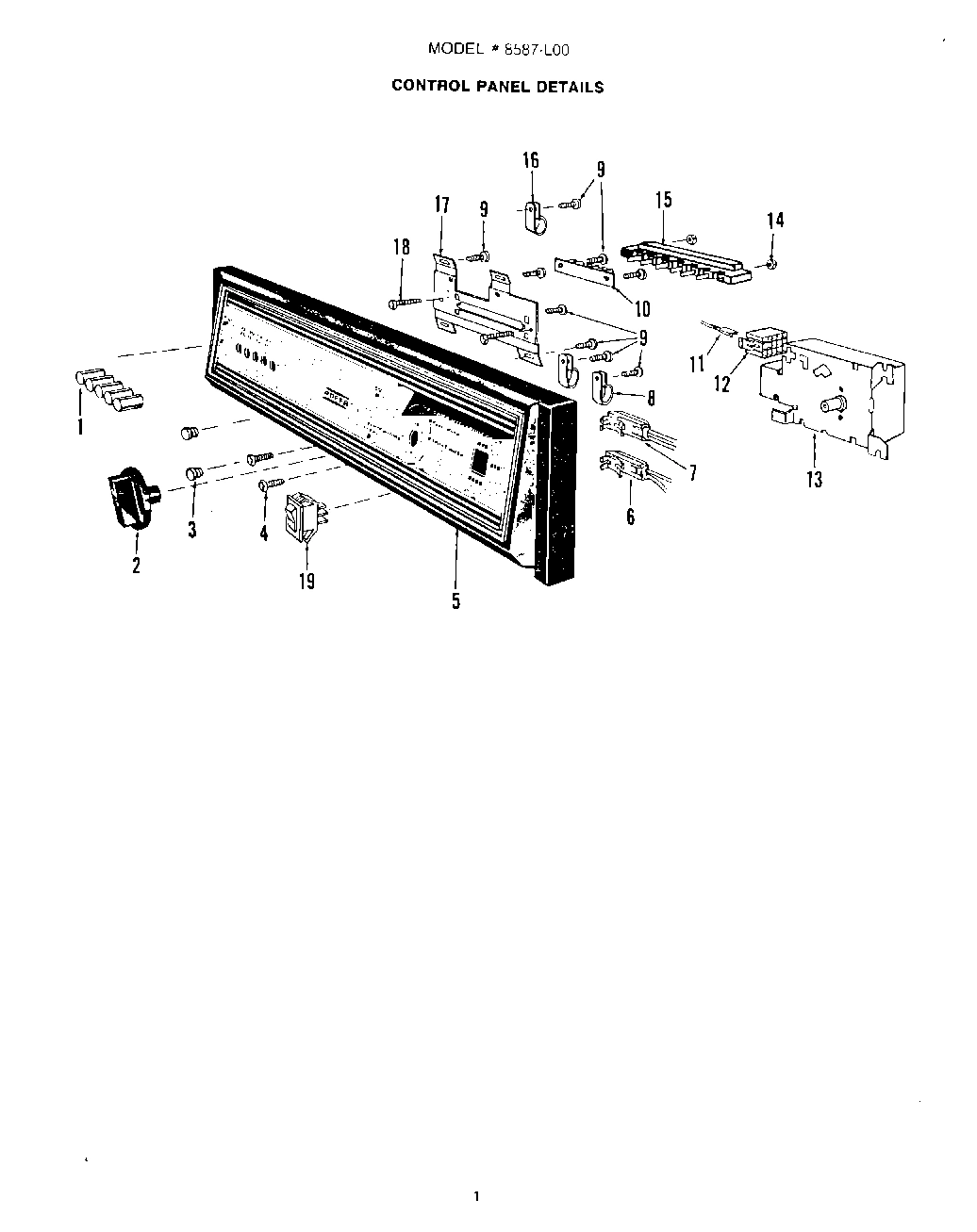

02 - CONTROL PANEL

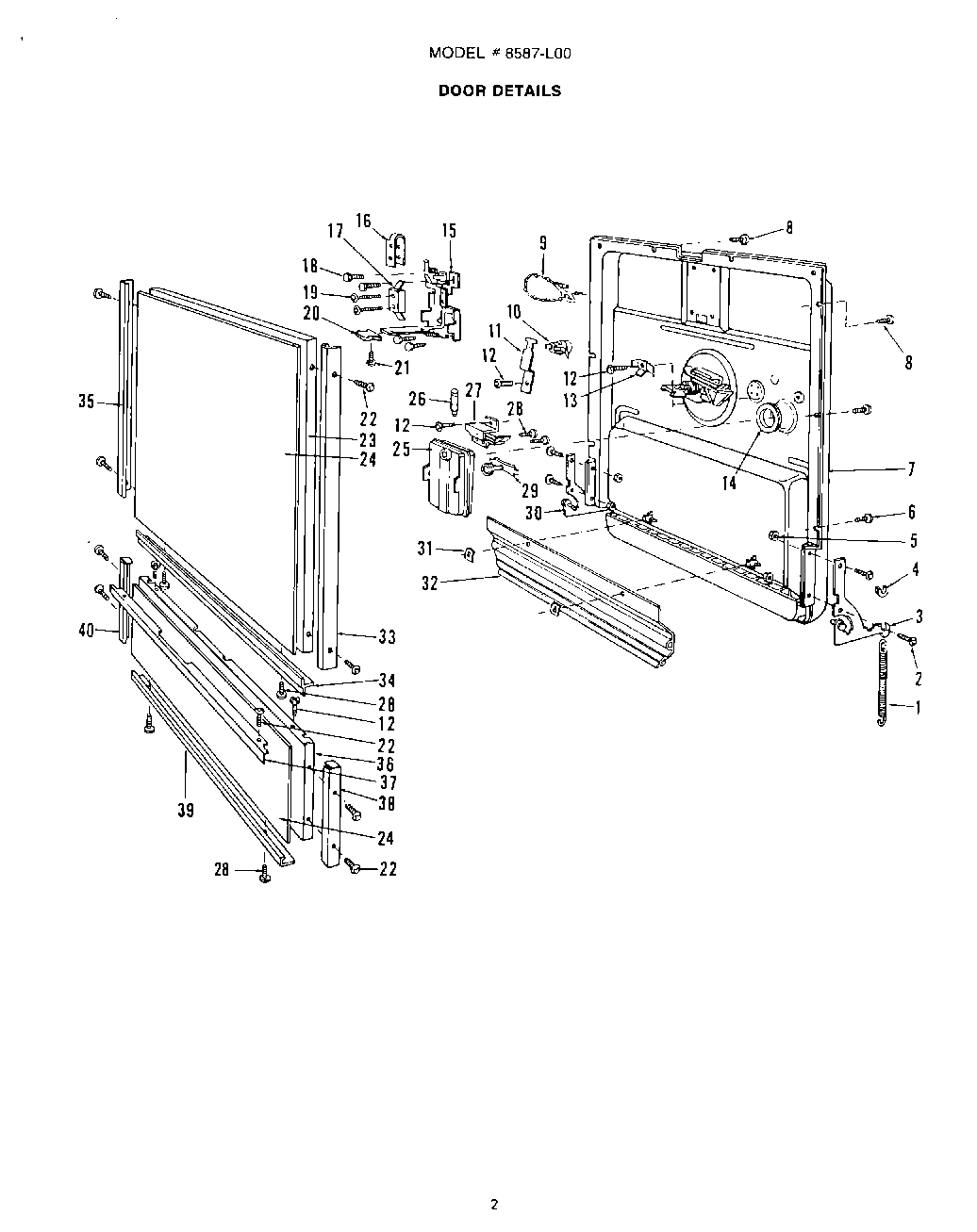

03 - DOOR

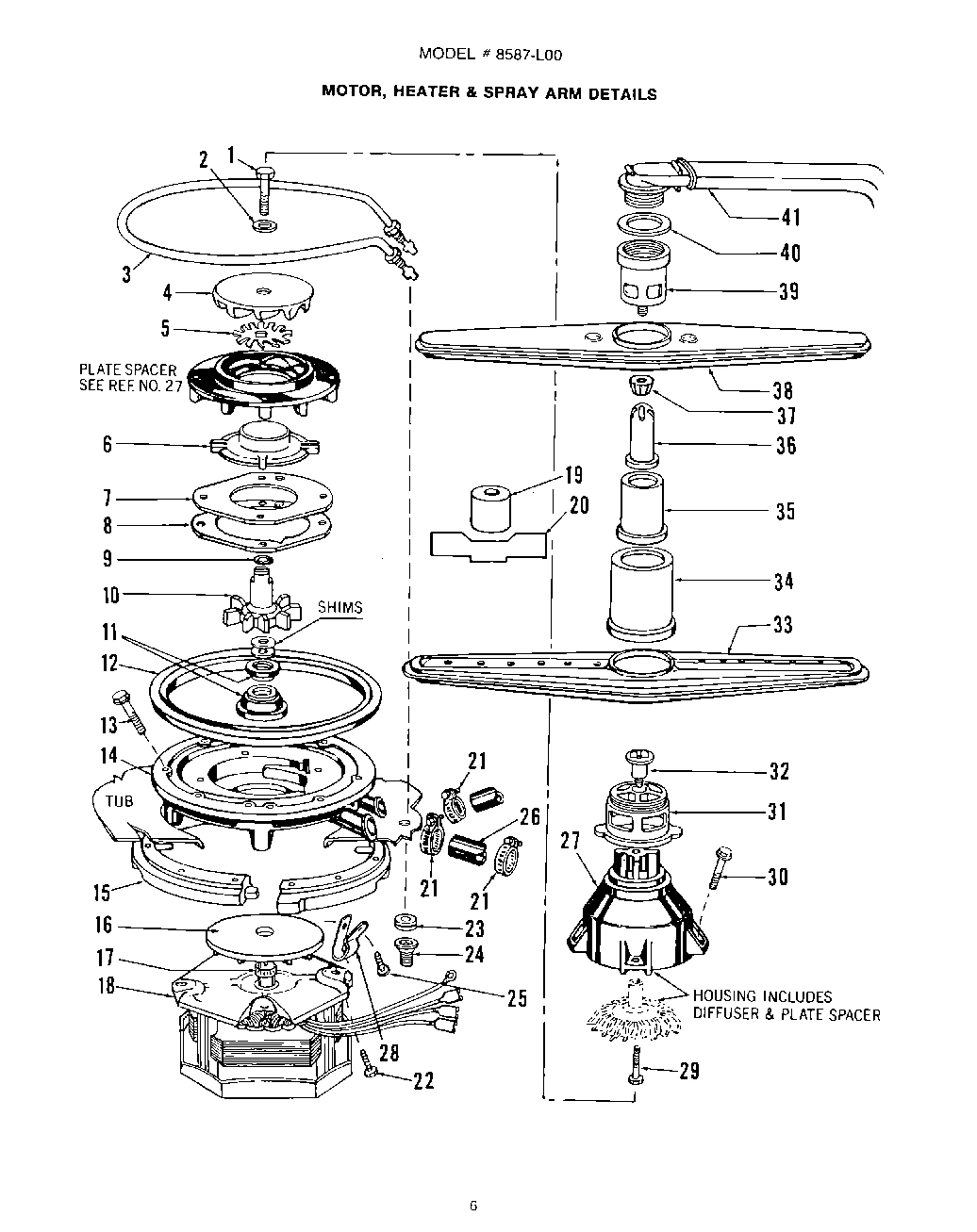

05 - MOTOR, HEATER AND SPRAY ARM

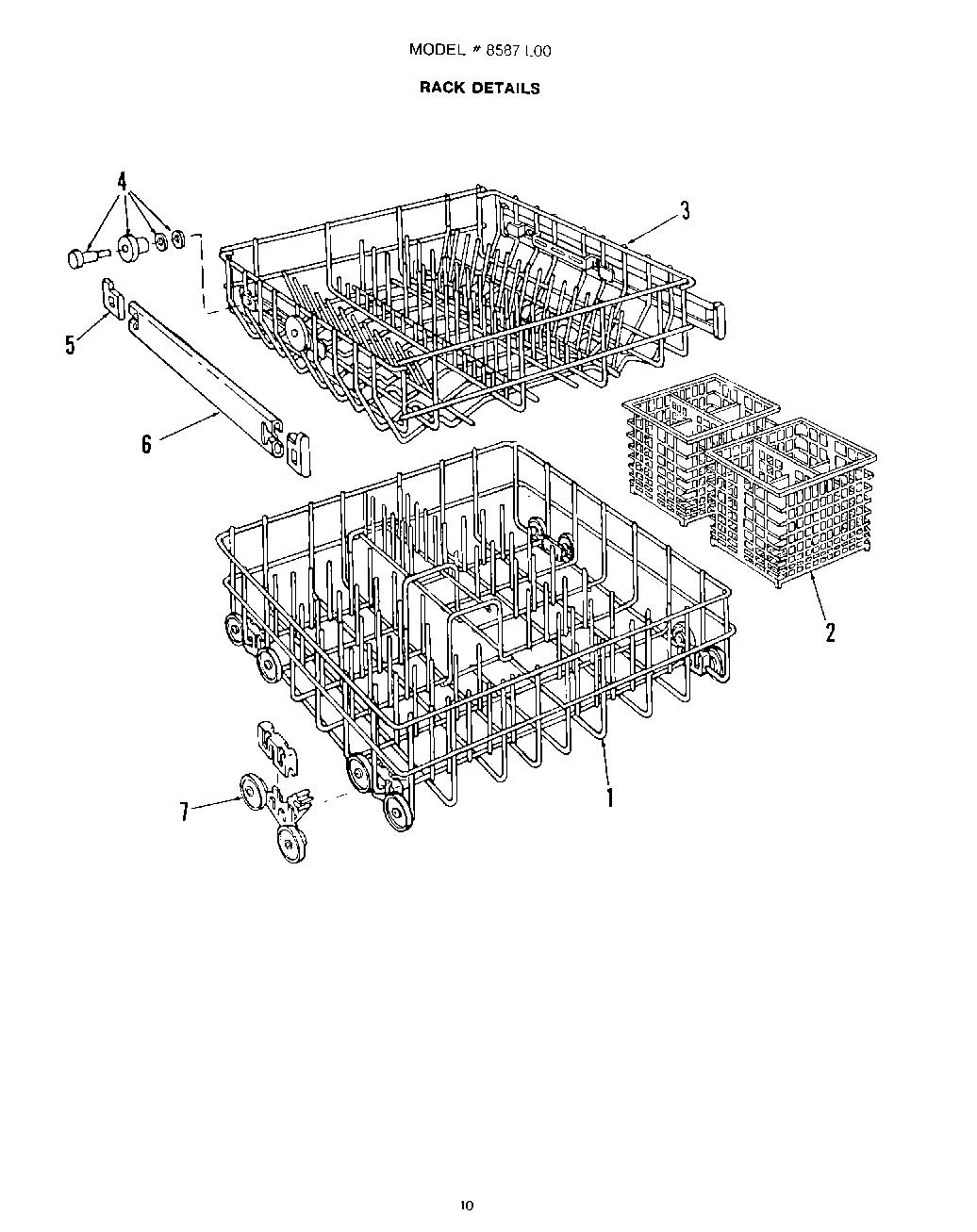

07 - RACK
Common parts from model Whirlpool 8587L00 DISHWASHER
1
Junction Box Cover WPL 800222 Contact Us For Availability
1
Spiral Pin WPL 808827 Contact Us For Availability
1
Latch Tapping Plate WPL 808868 Contact Us For Availability
1
Pushbuttons WPL 809369 Contact Us For Availability
1
Door Spring WPL 809360 Contact Us For Availability
1
Screw No.10-32x2-1/4`` Lg. Hex Hd. St. St. WPL 806353 Contact Us For Availability
1
Lower Rack Assembly WPL 809372 Contact Us For Availability
2
Junction Box Bracket WPL 807019 Contact Us For Availability
2
Cam WPL 806566 Contact Us For Availability
2
Attach Clip WPL 808289 Contact Us For Availability
2
Timer Knob WPL 809370 Contact Us For Availability
2
Screw No. 10-24 x 5/8`` Lg. C.R. Truss Hd. Ch WPL 803311 Contact Us For Availability
2
Washer WPL 803367 Contact Us For Availability
2
Silverware Basket WPL 808845 Contact Us For Availability
3
Screw No. 10-32 x 1/2`` C.R. Hex Washer Hd. C WPL 807951 Contact Us For Availability
3
Spring - Cam WPL 805227 Contact Us For Availability
3
Drain Hose, Corrugated WPL 809112 Contact Us For Availability
3
Lens WPL 809036 Contact Us For Availability
3
Counterbalance Arm Assembly - R.H. WPL 805681 Contact Us For Availability
3
Heater (Includes Key Nos. 23 & 24) WPL 809060 Contact Us For Availability
3
Upper Rack Assembly WPL 808239 Contact Us For Availability
4
Washer WPL 807373 Contact Us For Availability
4
Spring-Cam Compression WPL 806567 Contact Us For Availability
4
Clip Shim WPL 809199 Contact Us For Availability
4
Screw No. 10-32 x 27/32`` Lg. C.R. Truss Hd. WPL 805324 Contact Us For Availability
4
Spring Pad WPL 805884 Contact Us For Availability
4
Upper Impeller WPL 809005 Contact Us For Availability
4
Wheel Assembly-Complete WPL 807957 Contact Us For Availability
5
Screw No. 10B x 1/2`` Lg. Hex Slot Hd. Cad. P WPL 807950 Contact Us For Availability
5
Screw No.8x7/16``Lg. C.R. Truss Hd. St. St. WPL 806976 Contact Us For Availability
5
Control Panel WPL 809374 Contact Us For Availability
5
Blade - Macerator WPL 808075 Contact Us For Availability
5
End Cap Rack Slide WPL 807853 Contact Us For Availability
6
Bi-Metal Assembly WPL 809072 Contact Us For Availability
6
Shim WPL 809214 Contact Us For Availability
6
Light Assembly WPL 809332 Contact Us For Availability
6
Shroud - Impeller WPL 806267 Contact Us For Availability
6
Rack Slide WPL 807854 Contact Us For Availability
7
Side Panel Kit (Reversible Right or Left) (Wh WPL 808880 Contact Us For Availability
7
Side Panel Kit (Reversible Right or Left) (Co WPL 808881 Contact Us For Availability
7
Side Panel Kit (Reversible Right or Left) (Av WPL 808882 Contact Us For Availability
7
Side Panel Kit (Reversible Right or Left) (Wh WPL 808883 Contact Us For Availability
7
Side Panel Kit (Reversible Right or Left) (Al WPL 808884 Contact Us For Availability
7
Dispenser Lid WPL 809028 Contact Us For Availability
7
Door Strike WPL 807015 Contact Us For Availability
7
Light Assembly WPL 809317 Contact Us For Availability
7
Door Assembly WPL 809054 Contact Us For Availability
7
Plate - Pump WPL 807884 Contact Us For Availability
7
Wheel & Bracket Assembly WPL 807008 Contact Us For Availability
8
Motor Relay WPL 805255 Contact Us For Availability
8
O-RING WPL 806647 Contact Us For Availability
8
Screw No.8x5/8``Lg. C.R. Truss Hd. St. St. WPL 808749 Contact Us For Availability
8
Gasket - Pump WPL 807709 Contact Us For Availability
9
Tub Gasket Clip Kit (Includes Key No. 21) WPL 805763 Contact Us For Availability
9
Screw No. 8B x 7/16`` Lg. C.R. Truss Hd. Cad. WPL 809175 Contact Us For Availability
9
Wire Tie WPL 809075 Contact Us For Availability
9
``O`` Ring WPL 806521 Contact Us For Availability
10
Screw No.8-32x1 1/4``Lg. C.R. Oval Hd Cad. Pl WPL 804672 Contact Us For Availability
10
Washer WPL 809044 Contact Us For Availability
10
Terminal Board Assembly WPL 808483 Contact Us For Availability
10
Thermostat (Water Heat) WPL 808956 Contact Us For Availability
10
Pump Seal Kit (Includes Key Nos. 2,4,5,9,11,& WPL 809110 Contact Us For Availability
11
Screw No. 1/4-20 x 1/2`` Lg. Hex Washer Slott WPL 807001 Contact Us For Availability
11
Tub Roller WPL 807180 Contact Us For Availability
11
Housing Terminal WPL 808333 Contact Us For Availability
11
Thermostat Retainer WPL 809097 Contact Us For Availability
11
Water Seal WPL 803903 Contact Us For Availability
12
Toeplate WPL 809304 Contact Us For Availability
12
Screw & Washer Kit (Includes Key No. 10) WPL 808564 Contact Us For Availability
12
Timer Terminal Housing WPL 809296 Contact Us For Availability
12
Gasket WPL 809008 Contact Us For Availability
13
Adjustable Toeplate WPL 809303 Contact Us For Availability
13
Grounding Terminal WPL 807213 Contact Us For Availability
13
Counterbalance Arm Guide L.H. WPL 807470 Contact Us For Availability
13
Screw No.10x1``Lg. Hex Washer Hd. St. St. WPL 807268 Contact Us For Availability
13
Timer WPL 809190 Contact Us For Availability
14
Terminal Block Assembly WPL 807486 Contact Us For Availability
14
Float WPL 804630 Contact Us For Availability
14
Nut WPL 803346 Contact Us For Availability
14
Grommet - Dispenser WPL 805631 Contact Us For Availability
14
Pump Housing WPL 809102 Contact Us For Availability
15
Switch WPL 809368 Contact Us For Availability
15
Latch Assembly WPL 807016 Contact Us For Availability
15
Clamp Ring WPL 807712 Contact Us For Availability
16
Clamp - Wiring WPL 806723 Contact Us For Availability
16
Plate - Float Tube WPL 808064 Contact Us For Availability
16
Cover - Switch WPL 807450 Contact Us For Availability
16
Watershield Fan (Includes Key No. 17) WPL 808899 Contact Us For Availability
17
Wire Shield WPL 809144 Contact Us For Availability
17
Gasket - Float Tube WPL 808063 Contact Us For Availability
17
Switch Mounting Bracket WPL 809334 Contact Us For Availability
17
Switch WPL 807043 Contact Us For Availability
17
Tolerance Ring WPL 808898 Contact Us For Availability
18
Terminal board Bracket WPL 807849 Contact Us For Availability
18
Screw No. 8A x 5/8`` Lg. C.R. Truss Hd. Cad. WPL 809029 Contact Us For Availability
18
Screw No. 10-24 x 7/8`` Lg. Acorn Hex Washer WPL 806539 Contact Us For Availability
18
Screw No. 8-32 x 1 3/8`` Lg. C.R. Truss Hd. C WPL 807103 Contact Us For Availability
18
Motor Assembly (Includes Key Nos. 1,9,16, & 2 WPL 809100 Contact Us For Availability
18
Complete Pump & Motor Assembly (Includes Key WPL 809111 Contact Us For Availability
19
Gasket & Wire Assembly (Includes Key Nos. 9 & WPL 809035 Contact Us For Availability
19
Rocker Switch WPL 809359 Contact Us For Availability
19
Screw 6-32x1``Lg. Hex Hd. Cad. Pl. WPL 808618 Contact Us For Availability
19
Seal Installation Tool (Required when install WPL 803923 Contact Us For Availability
20
Speednut WPL 808170 Contact Us For Availability
20
Gasket Junction Wire WPL 809320 Contact Us For Availability
20
Latch Knob WPL 808712 Contact Us For Availability
20
Gage - Seal Shim WPL 807077 Contact Us For Availability
21
Water Inlet Valve WPL 809240 Contact Us For Availability
21
Dam Clip WPL 808115 Contact Us For Availability
21
Screw 8-32 x 5/16`` Lg. Hex Hd. Cad. Pl WPL 809715 Contact Us For Availability
22
Leveler WPL 807672 Contact Us For Availability
22
``O`` Ring WPL 807759 Contact Us For Availability
22
Screw No. 10 x 1 Lg. Hex Washer Hd. Cad. Pl. WPL 809022 Contact Us For Availability
23
Teenut - Snap- in WPL 807671 Contact Us For Availability
23
Float Switch Kit (Includes Key Nos. 16,17,22, WPL 807677 Contact Us For Availability
23
Door Panel (White) WPL 870262 Contact Us For Availability
23
Grommet - Heater WPL 806833 Contact Us For Availability
24
Side Angle WPL 807851 Contact Us For Availability
24
Float Switch WPL 807680 Contact Us For Availability
24
Door & Access Panel Inserts (Almond) WPL 808908 Contact Us For Availability
24
Door And Access Panel Inserts (Avocado) WPL 808909 Contact Us For Availability
24
Door & Access Panel Inserts (Platinum) WPL 808910 Contact Us For Availability
24
Door & Access Panel Inserts (Toast) WPL 808911 Contact Us For Availability
24
Door & Access Panel Inserts (Wheat) WPL 808912 Contact Us For Availability
24
Door & Access Panel Inserts (Black) WPL 808913 Contact Us For Availability
24
Door & Access Panel Inserts (White) WPL 808914 Contact Us For Availability
24
Door & Access Panel Inserts (Coffee) WPL 808916 Contact Us For Availability
24
Heater Nut 1/2 20 Brass WPL 806834 Contact Us For Availability
25
Screw No.4-40x5/8``Lg. Hex Hd. Cad. Pl. WPL 804594 Contact Us For Availability
25
Body Assembly WPL 806753 Contact Us For Availability
25
Screw No.8x5/8`` Lg. C.R. Truss Hd. Cad. Pl. WPL 807270 Contact Us For Availability
26
Rear Brace WPL 807852 Contact Us For Availability
26
Counterbalance Arm Guide R.H. WPL 807471 Contact Us For Availability
26
Plunger WPL 806757 Contact Us For Availability
26
Connector Hose WPL 8081742 Contact Us For Availability
27
Hinge Weld Assembly WPL 807848 Contact Us For Availability
27
Bi-Metal Assembly WPL 809109 Contact Us For Availability
27
Impeller Housing Kit (Includes Key No. 6 & 7) WPL 809119 Contact Us For Availability
28
Screw 8x1/2 Lg. C.R. Truss Hd. Chrome Pl. WPL 807501 Contact Us For Availability
28
Support Channel WPL 808670 Contact Us For Availability
28
Clamp WPL 808442 Contact Us For Availability
29
Tub & Gasket Assembly WPL 809347 Contact Us For Availability
29
Dispenser Fill Plug WPL 807673 Contact Us For Availability
30
Nut WPL 805669 Contact Us For Availability
30
Arm Assembly - Counterbalance L.H. WPL 805682 Contact Us For Availability
30
Screw No.10x1 3/4``Lg. Hex Hd. St. St. WPL 807359 Contact Us For Availability
31
Gasket-Water Inlet WPL 803573 Contact Us For Availability
31
Speednut WPL 809026 Contact Us For Availability
31
Bearing WPL 809046 Contact Us For Availability
32
Water Inlet Assembly WPL 806470 Contact Us For Availability
32
Baffle Seal WPL 809025 Contact Us For Availability
32
Spray Arm Bolt WPL 809018 Contact Us For Availability
33
Water Inlet Tubing (Includes Key No. 34) WPL 807891 Contact Us For Availability
33
Door Panel Trim WPL 808976 Contact Us For Availability
33
Spray Arm Assembly WPL 808177 Contact Us For Availability
34
Clamp WPL 807813 Contact Us For Availability
34
WPL 807347 WPL 807347 Contact Us For Availability
34
Tower Base WPL 808178 Contact Us For Availability
35
Cage Nut WPL 806291 Contact Us For Availability
35
WPL 808977 WPL 808977 Contact Us For Availability
35
Tower Section WPL 808179 Contact Us For Availability
36
Tapping Plate WPL 807038 Contact Us For Availability
36
WPL 809108 WPL 809108 Contact Us For Availability
36
Tower Tip WPL 808180 Contact Us For Availability
37
Tub Installation (Not Shown) WPL 809113 Contact Us For Availability
37
WPL 808346 WPL 808346 Contact Us For Availability
37
Nut WPL 808181 Contact Us For Availability
38
WPL 808028 WPL 808028 Contact Us For Availability
38
Spray Arm Assembly WPL 809021 Contact Us For Availability
39
WPL 808027 WPL 808027 Contact Us For Availability
39
Distributor WPL 808183 Contact Us For Availability
40
WPL 808029 WPL 808029 Contact Us For Availability
40
Gasket WPL 808184 Contact Us For Availability
41
Elbow & Tube Assem WPL 808185 Contact Us For Availability
× ![]()
