Model Whirlpool 8565L30 DISHWASHER – Common Parts & Diagrams
05 - MOTOR, HEATER AND SPRAY ARM
06 - FRAME

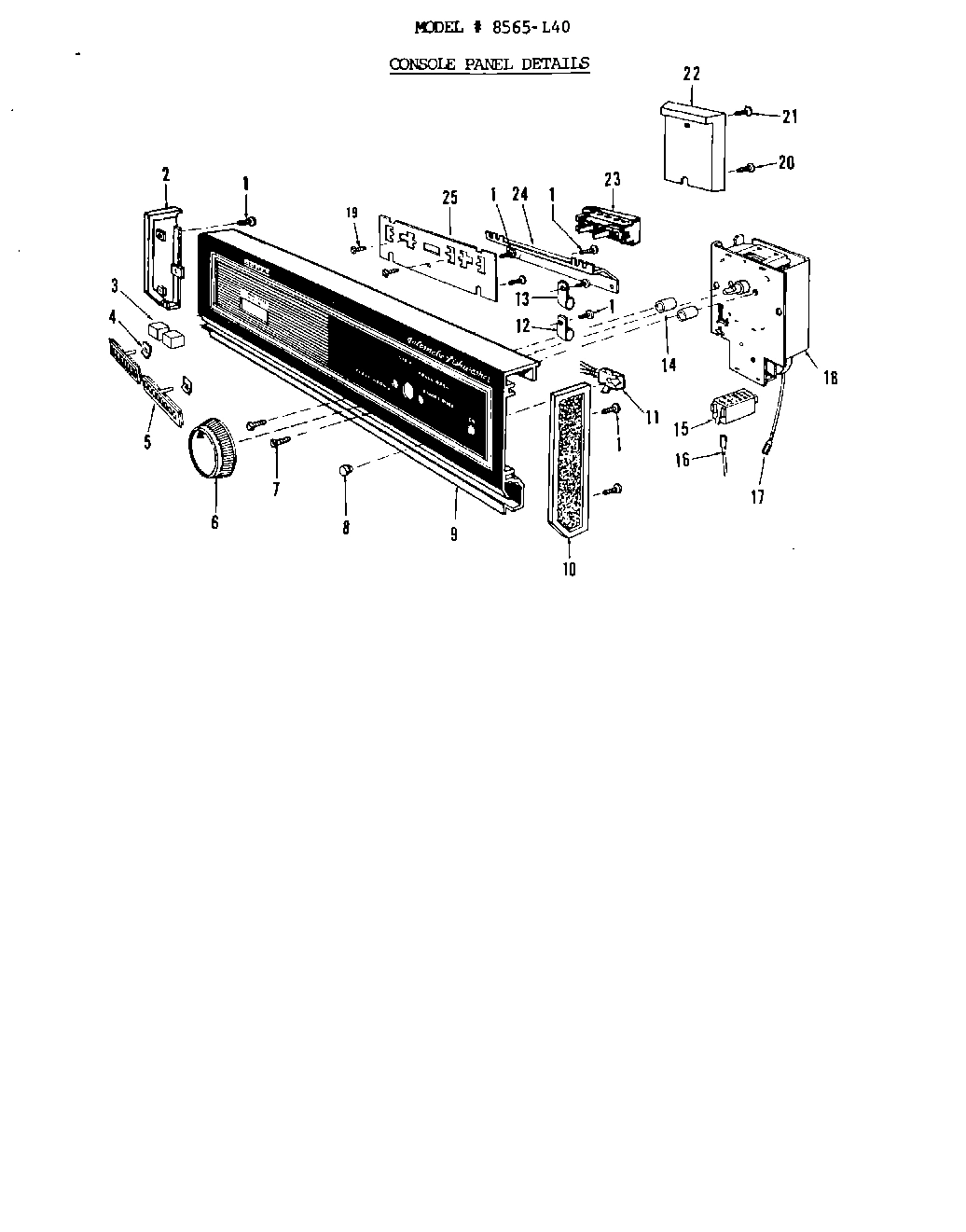

02 - CONSOLE PANEL

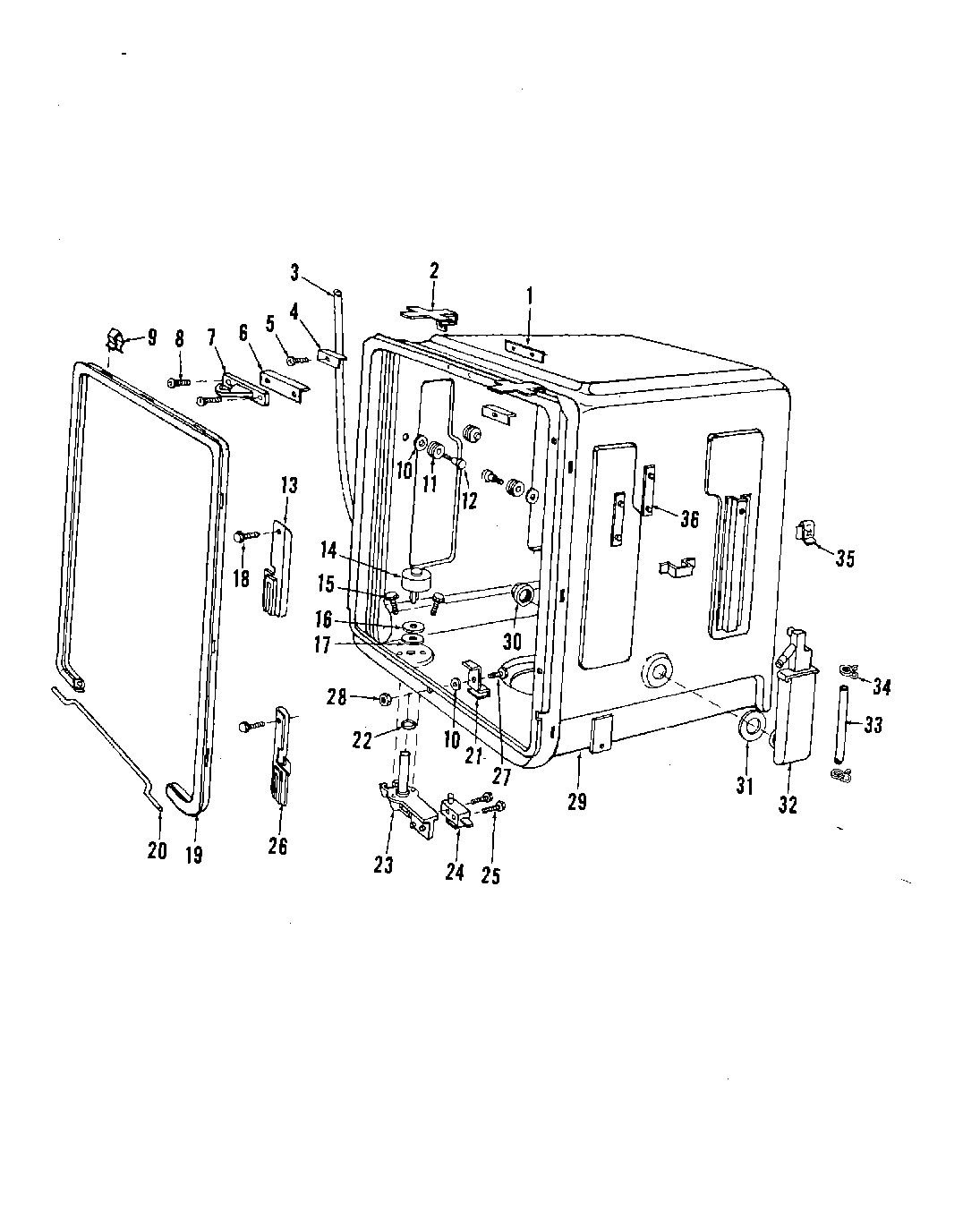

04 - TUB

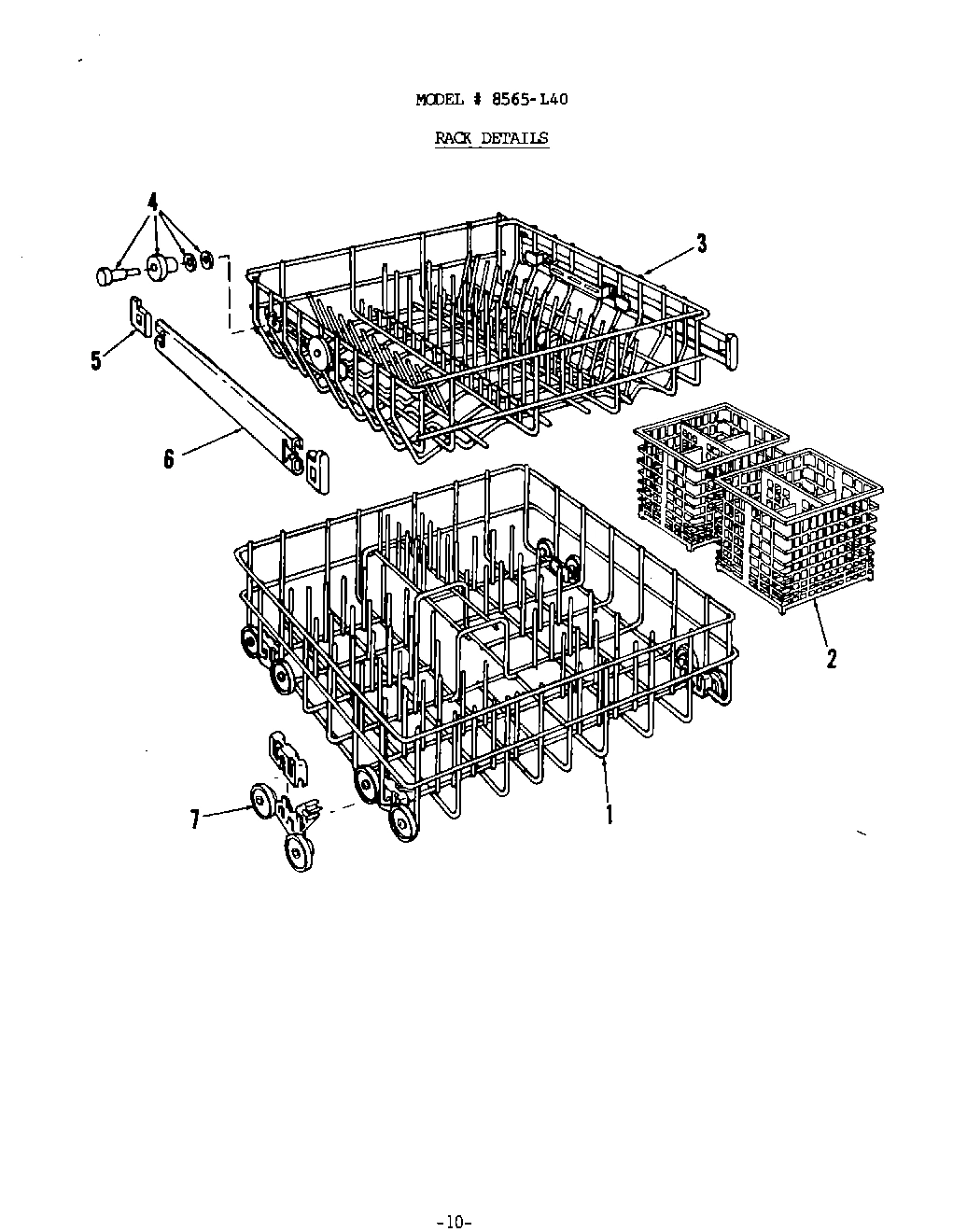

07 - RACK

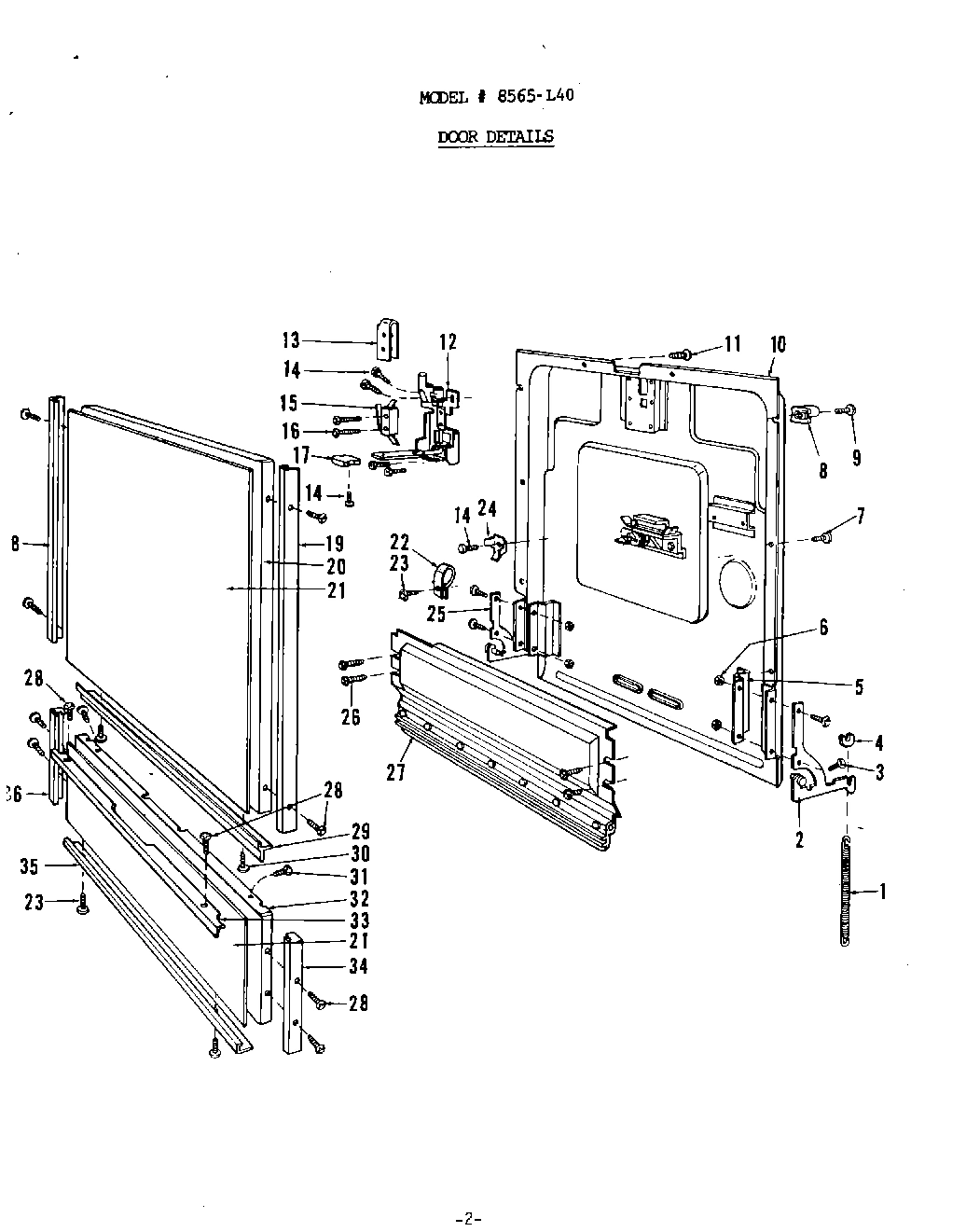

03 - DOOR

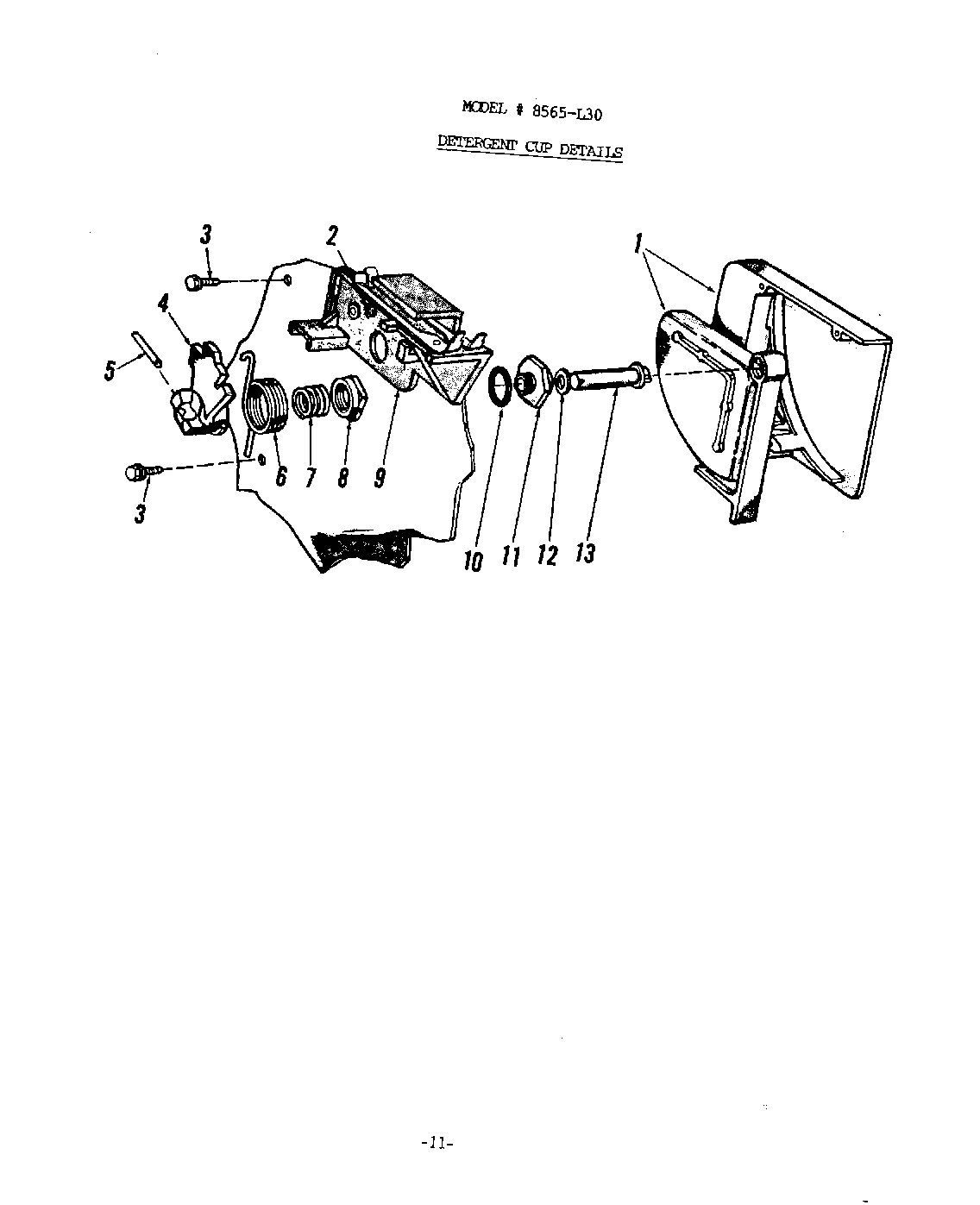

08 - DETERGENT CUP
Common parts from model Whirlpool 8565L30 DISHWASHER
1
Screw 10-32x2 1/4 Lg. Hex Hd. St. St. WPL 806353 Contact Us For Availability
1
Junction Box Cover WPL 800222 Contact Us For Availability
1
Screw 8x7/16 Lg. C.R. Pan Hd. Cad. Pl. WPL 806943 Contact Us For Availability
1
Latch Tapping Plate WPL 808868 Contact Us For Availability
1
Lower Rack Assembly WPL 808874 Contact Us For Availability
1
Door Spring (Includes Key No. 4) WPL 805683 Contact Us For Availability
1
Detergent Cup & Cover WPL 807261 Contact Us For Availability
2
Washer WPL 803367 Contact Us For Availability
2
Junction Box Bracket WPL 807019 Contact Us For Availability
2
End Cap - L.G. (Black) WPL 808694 Contact Us For Availability
2
Attach Clip WPL 808289 Contact Us For Availability
2
Silverware Basket WPL 808845 Contact Us For Availability
2
Counterbalance Arm Assembly - R.H. WPL 805681 Contact Us For Availability
2
``O`` Ring WPL 808210 Contact Us For Availability
3
Heater (Includes Key Nos. 23 & 24) WPL 809060 Contact Us For Availability
3
Screw 10-32x1/2 C.R. Hex Washer Hd. Cad. Pl. WPL 807951 Contact Us For Availability
3
Pushbutton WPL 807273 Contact Us For Availability
3
Drain Hose, Corrugated WPL 809112 Contact Us For Availability
3
Upper Rack Assembly WPL 807902 Contact Us For Availability
3
Screw 10-24x5/8 Lg. C.R. Truss Hd. Chr. Pl. WPL 803311 Contact Us For Availability
3
Screw 8x5/8 Lg. Hex Washer Hd. St. St. WPL 806565 Contact Us For Availability
4
Upper Impeller WPL 809005 Contact Us For Availability
4
Washer WPL 807373 Contact Us For Availability
4
Speednut WPL 808475 Contact Us For Availability
4
Screw 8x7/16 Lg. C.R. Truss Hd. St. St. WPL 806976 Contact Us For Availability
4
Wheel Assembly-Complete WPL 807957 Contact Us For Availability
4
Spring Pad WPL 805884 Contact Us For Availability
4
Cam WPL 806566 Contact Us For Availability
5
Blade - Macerator WPL 808075 Contact Us For Availability
5
Screw 10Bx1/2 Lg. Hex Slot Hd. Cad. Pl. WPL 807950 Contact Us For Availability
5
Vent Grille WPL 808477 Contact Us For Availability
5
Shim WPL 807073 Contact Us For Availability
5
End Cap Rack Slide WPL 807853 Contact Us For Availability
5
Counterbalance Arm Mounting Bracket WPL 806717 Contact Us For Availability
5
Spirol Pin WPL 808827 Contact Us For Availability
6
Shroud - Impeller WPL 806267 Contact Us For Availability
6
Timer Knob WPL 808812 Contact Us For Availability
6
Door Strike WPL 807015 Contact Us For Availability
6
Rack Slide WPL 807854 Contact Us For Availability
6
Spring - Cam WPL 805227 Contact Us For Availability
7
Plate - Pump WPL 807884 Contact Us For Availability
7
Side Panel Kit (White) WPL 808880 Contact Us For Availability
7
Side Panel Kit (Coffee) WPL 808881 Contact Us For Availability
7
Side Panel Kit (Avocado) WPL 808882 Contact Us For Availability
7
Side Panel Kit (Wheat) WPL 808883 Contact Us For Availability
7
Side Panel Kit (Almond) WPL 808884 Contact Us For Availability
7
Screw 10-32x1 17/64 Lg. C.R. Truss Hd. Zinc P WPL 808422 Contact Us For Availability
7
Wheel & Bracket Assembly WPL 807008 Contact Us For Availability
7
Screw 8x1/2 Lg. C.R. Truss Hd. St. St. WPL 806967 Contact Us For Availability
7
Spring-Cam Compression WPL 806567 Contact Us For Availability
8
Gasket - Pump WPL 807709 Contact Us For Availability
8
Motor Relay WPL 805255 Contact Us For Availability
8
Lens-Red WPL 805664 Contact Us For Availability
8
Tub Gasket Clip Kit (Includes Key No. 21) WPL 805763 Contact Us For Availability
8
Guide - Door WPL 807449 Contact Us For Availability
8
Detergent Cup Nut WPL 806568 Contact Us For Availability
9
``O`` Ring WPL 806521 Contact Us For Availability
9
Console Panel (Includes Key Nos. 4 & 5) WPL 808941 Contact Us For Availability
9
Clip Shim WPL 808366 Contact Us For Availability
9
Screw 8x5/8 Lg. C.R. Truss Hd. St. St. WPL 808749 Contact Us For Availability
9
Bi-Metal Assembly Kit (Includes Key No. 11) WPL 808507 Contact Us For Availability
10
Pump Seal Kit (Includes Key Nos. 2,4,5,9,11,& WPL 809116 Contact Us For Availability
10
Screw 8-32x1 1/4 Lg. C.R. Oval Hd. Cad. Pl. WPL 804672 Contact Us For Availability
10
End Cap-R.H. (Black) WPL 808693 Contact Us For Availability
10
Washer WPL 809044 Contact Us For Availability
10
Weld & Finish Assembly WPL 807191 Contact Us For Availability
10
Washer WPL 802836 Contact Us For Availability
11
Water Seal WPL 803903 Contact Us For Availability
11
Screw 1/4-20x1/2 Lg. Hex Washer Slotted Hd.Bl WPL 807001 Contact Us For Availability
11
Light Assembly WPL 808610 Contact Us For Availability
11
Screw 8 x 5/16 Lg. C.R. Truss Hd. St. St. WPL 806894 Contact Us For Availability
11
Tube Roller WPL 807180 Contact Us For Availability
11
Bushing WPL 805626 Contact Us For Availability
12
Gasket WPL 809008 Contact Us For Availability
12
Toeplate WPL 807850 Contact Us For Availability
12
Screw & Washer Kit (Includes Key No. 10) WPL 808564 Contact Us For Availability
12
Latch Assembly WPL 807016 Contact Us For Availability
12
O-RING WPL 806647 Contact Us For Availability
13
Adjustable Toeplate WPL 806295 Contact Us For Availability
13
Counterbalance Arm Guide L.H. WPL 807470 Contact Us For Availability
13
Cover - Switch WPL 807450 Contact Us For Availability
13
Shaft Kit (Includes Key Nos. 2,4,5,7,8,10,11, WPL 806674 Contact Us For Availability
14
Pump Housing WPL 809059 Contact Us For Availability
14
Terminal Block Assembly WPL 807486 Contact Us For Availability
14
Spacer WPL 808424 Contact Us For Availability
14
Float WPL 804630 Contact Us For Availability
14
Screw 8-32x5/16 Lg. C.R. Hex Hd. Cad. Pl. WPL 806830 Contact Us For Availability
15
Screw 10x1 Lg. Hex Washer Hd. St. St. WPL 807268 Contact Us For Availability
15
Clamp Ring (2) WPL 807712 Contact Us For Availability
15
Timer Housing (Black) WPL 808231 Contact Us For Availability
15
Switch WPL 807043 Contact Us For Availability
16
Watershield Fan (Includes Key No. 17) WPL 808899 Contact Us For Availability
16
Clamp - Wiring WPL 806723 Contact Us For Availability
16
Housing Terminal WPL 808333 Contact Us For Availability
16
Plate - Float Tube WPL 808064 Contact Us For Availability
16
Screw 6-32x1``Lg. Hex Hd. Cad. Pl. WPL 808618 Contact Us For Availability
17
Tolerance Ring WPL 808898 Contact Us For Availability
17
Wire Shield WPL 808013 Contact Us For Availability
17
Terminal - Timer WPL 808334 Contact Us For Availability
17
Gasket - Float Tube WPL 808063 Contact Us For Availability
17
Latch Knob WPL 806398 Contact Us For Availability
18
Motor Assembly (Includes Key Nos. 1,9,16, & 2 WPL 809100 Contact Us For Availability
18
Terminal board Bracket WPL 807849 Contact Us For Availability
18
Timer WPL 808686 Contact Us For Availability
18
Screw 10 - 24 x 7/8 Lg. Acorn Hex Washer Hd. WPL 806539 Contact Us For Availability
18
Door Panel Trim - L.H. WPL 808977 Contact Us For Availability
19
Seal Installation Tool (Required when install WPL 803923 Contact Us For Availability
19
Screw 6-30 x 3/8 Lg. Pan Hd Cad. Pl. WPL 807141 Contact Us For Availability
19
Gasket & Wire Assembly (Includes Key Nos. 8 & WPL 809034 Contact Us For Availability
19
Door Panel Trim - R.H. WPL 808976 Contact Us For Availability
20
Gage - Seal Shim WPL 807077 Contact Us For Availability
20
Speednut WPL 808170 Contact Us For Availability
20
Gasket Junction Wire WPL 808344 Contact Us For Availability
20
Door Panel (White) WPL 807262 Contact Us For Availability
21
Rear Brace WPL 807852 Contact Us For Availability
21
Dam Clip WPL 808115 Contact Us For Availability
21
Door & Access Panel Inserts (Almond) WPL 808908 Contact Us For Availability
21
Door & Access Panel Inserts (Avocado) WPL 808909 Contact Us For Availability
21
Door & Access Panel Inserts (Platinum) WPL 808910 Contact Us For Availability
21
Door & Access Panel Inserts (Toast) WPL 808911 Contact Us For Availability
21
Door & Access Panel Inserts (Wheat) WPL 808912 Contact Us For Availability
21
Door & Access Panel Inserts (Black) WPL 808913 Contact Us For Availability
21
Door & Access Panel Inserts (White) WPL 808914 Contact Us For Availability
21
Door & Access Panel Inserts (Coffee) WPL 808916 Contact Us For Availability
22
Clamp WPL 808442 Contact Us For Availability
22
Water Valve Kit (Includes Key Nos. 23 & 24) WPL 808668 Contact Us For Availability
22
Splash Pan WPL 807425 Contact Us For Availability
22
``O`` Ring WPL 807759 Contact Us For Availability
23
Grommet - Heater WPL 806833 Contact Us For Availability
23
Flow Washer WPL 808457 Contact Us For Availability
23
Screw 8 x 3/8 Lg. C.R. C.R. Binding Hd. Cad. WPL 803416 Contact Us For Availability
23
Switch WPL 807281 Contact Us For Availability
23
Float Switch Kit (Includes Key Nos. 16,17,22, WPL 807677 Contact Us For Availability
24
Heater Nut 1/2 20 Brass WPL 806834 Contact Us For Availability
24
Grounding Terminal WPL 807213 Contact Us For Availability
24
Gasket WPL 806100 Contact Us For Availability
24
Shield - Vent Slot WPL 808398 Contact Us For Availability
24
Float Switch WPL 807680 Contact Us For Availability
25
Screw 8 x 5/8 Lg. C.R. Truss Hd. Cad. Pl. WPL 807270 Contact Us For Availability
25
Inlet Fitting WPL 808337 Contact Us For Availability
25
Switch Mounting Bracket WPL 808814 Contact Us For Availability
25
Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl. WPL 804594 Contact Us For Availability
25
Arm Assembly - Counterbalance L.H. WPL 805682 Contact Us For Availability
26
Valve Mounting Bracket WPL 807613 Contact Us For Availability
26
Cage Nut WPL 806291 Contact Us For Availability
26
Screw 8x3/8 Lg. C.R. Round Hd. St. St. WPL 806810 Contact Us For Availability
27
Impeller Housing Kit (Includes Key Nos. 6 & 7 WPL 809119 Contact Us For Availability
27
Screw 8-18Bx5/8 Lg. Hex Hd. Zinc Pl. WPL 808368 Contact Us For Availability
27
Tapping Plate WPL 807038 Contact Us For Availability
27
Vent Plate Assembly WPL 809122 Contact Us For Availability
28
Screw 10 x 1 3/4 Lg. Hex Hd. St. St. WPL 807359 Contact Us For Availability
28
Inlet Fitting Retaining Plate WPL 808458 Contact Us For Availability
28
Screw 8 x 5/8 Lg. C.R. Hex Washer Hd. St. St. WPL 806901 Contact Us For Availability
29
Bearing WPL 809046 Contact Us For Availability
29
Leveler WPL 807672 Contact Us For Availability
29
Blower Housing Gasket WPL 806797 Contact Us For Availability
29
Door Panel Trim-Bottom WPL 807347 Contact Us For Availability
30
Spray Arm Bolt WPL 809018 Contact Us For Availability
30
Screw 8x1/2 Lg. C.R. Tr WPL 807501 Contact Us For Availability
30
Teenut - Snap- in WPL 807671 Contact Us For Availability
30
Screw 8 x 1/2 Lg. C.R. Flat Hd. Cad. Pl. WPL 808818 Contact Us For Availability
31
Spray Arm Assembly WPL 808177 Contact Us For Availability
31
Hinge Weld Assembly WPL 807848 Contact Us For Availability
31
Water Inlet Nozzle WPL 808707 Contact Us For Availability
32
Tower Base WPL 808178 Contact Us For Availability
32
Side Angle WPL 807851 Contact Us For Availability
32
Vent Stack WPL 808706 Contact Us For Availability
32
WPL 809108 WPL 809108 Contact Us For Availability
33
Tower Section WPL 808179 Contact Us For Availability
33
Support Channel WPL 808670 Contact Us For Availability
33
Water Inlet Tubing (Includes Key No. 34) WPL 807891 Contact Us For Availability
33
WPL 808346 WPL 808346 Contact Us For Availability
34
Tower Tip WPL 808180 Contact Us For Availability
34
Clamp WPL 807813 Contact Us For Availability
34
WPL 808028 WPL 808028 Contact Us For Availability
35
Screw 10 x 1 Lg. Hex Washer Hd. Cad. Pl. WPL 809022 Contact Us For Availability
35
Tapping Plate WPL 808705 Contact Us For Availability
35
WPL 808027 WPL 808027 Contact Us For Availability
36
Nut WPL 803346 Contact Us For Availability
36
WPL 808029 WPL 808029 Contact Us For Availability
37
Counterbalance Arm Guide R.H. WPL 807471 Contact Us For Availability
37
WPL 808926 WPL 808926 Contact Us For Availability
39
Tub & Gasket Assembly WPL 809141 Contact Us For Availability
40
Tub Insulation (Not Shown) WPL 809113 Contact Us For Availability
× ![]()
